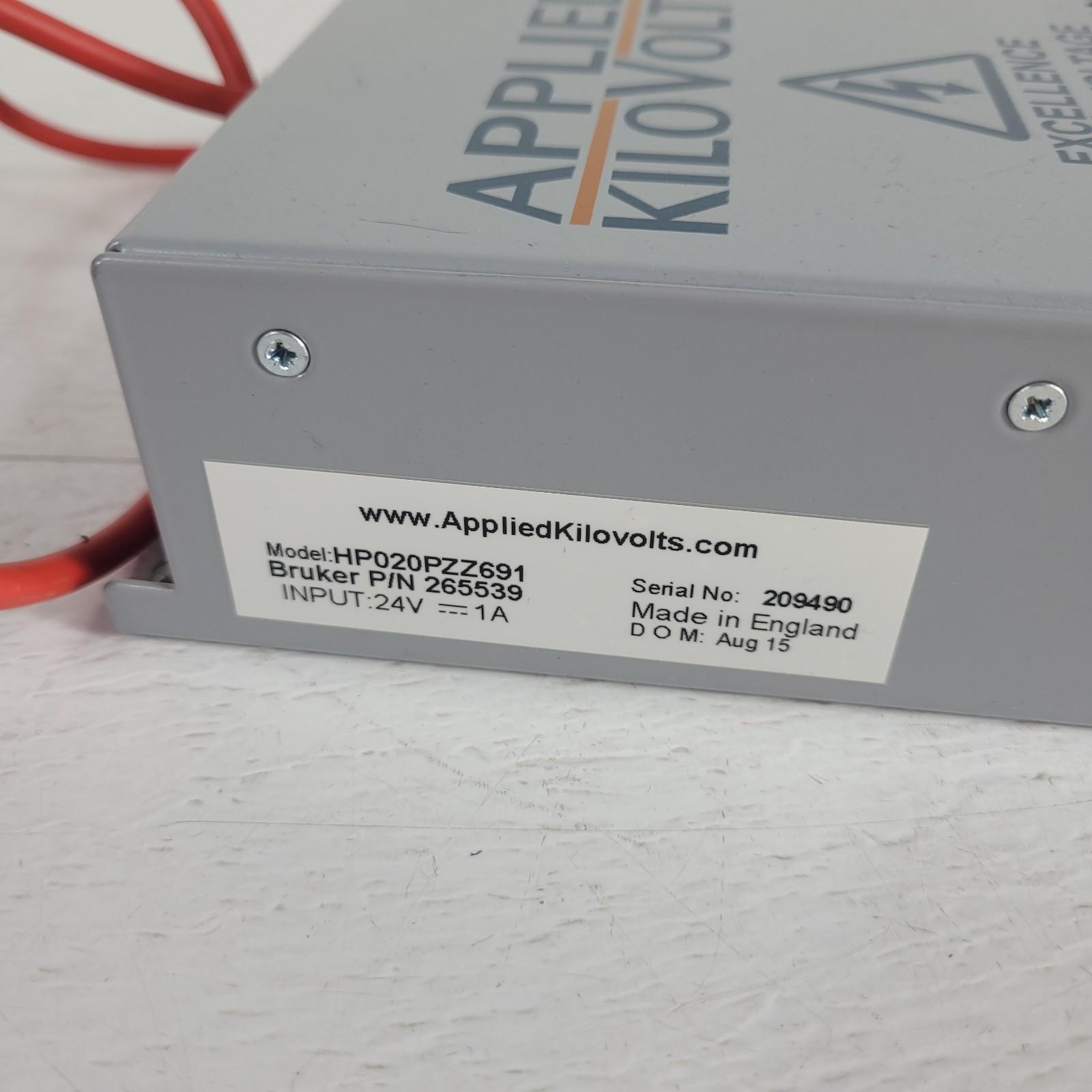

Applied Kilovolts HP020PZZ691 High Voltage Power Supply 24V DC Input 1A 265539
Used see photos.

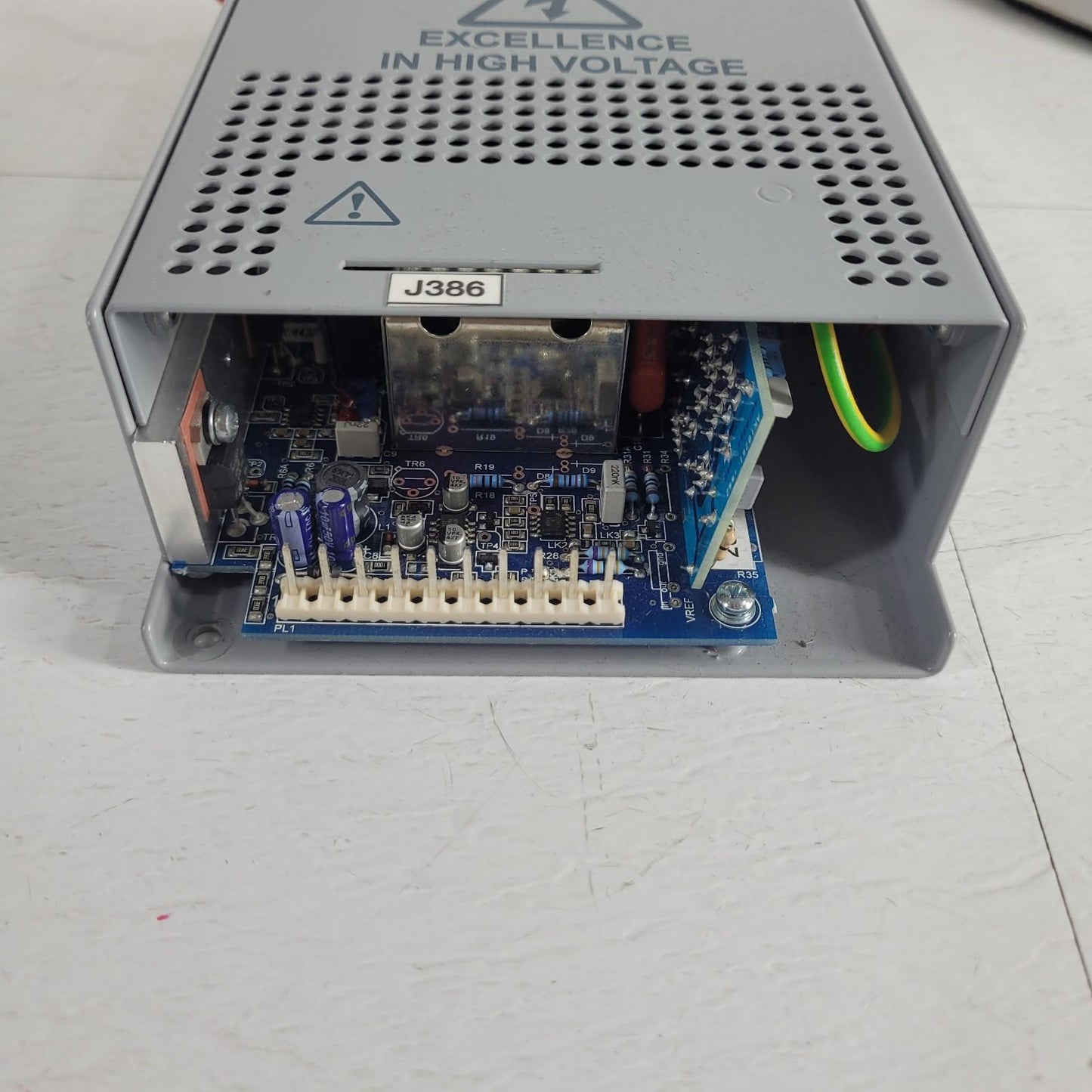

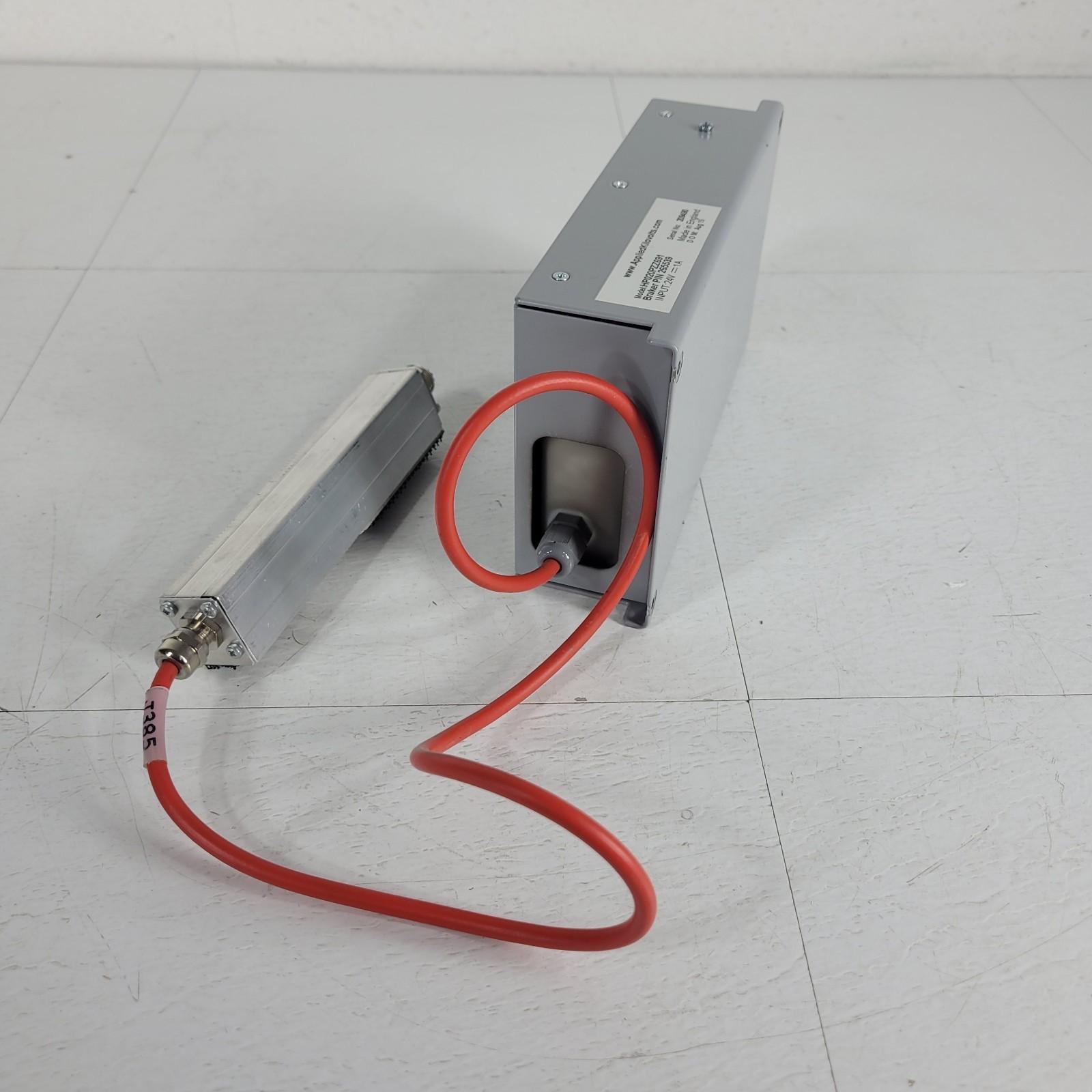

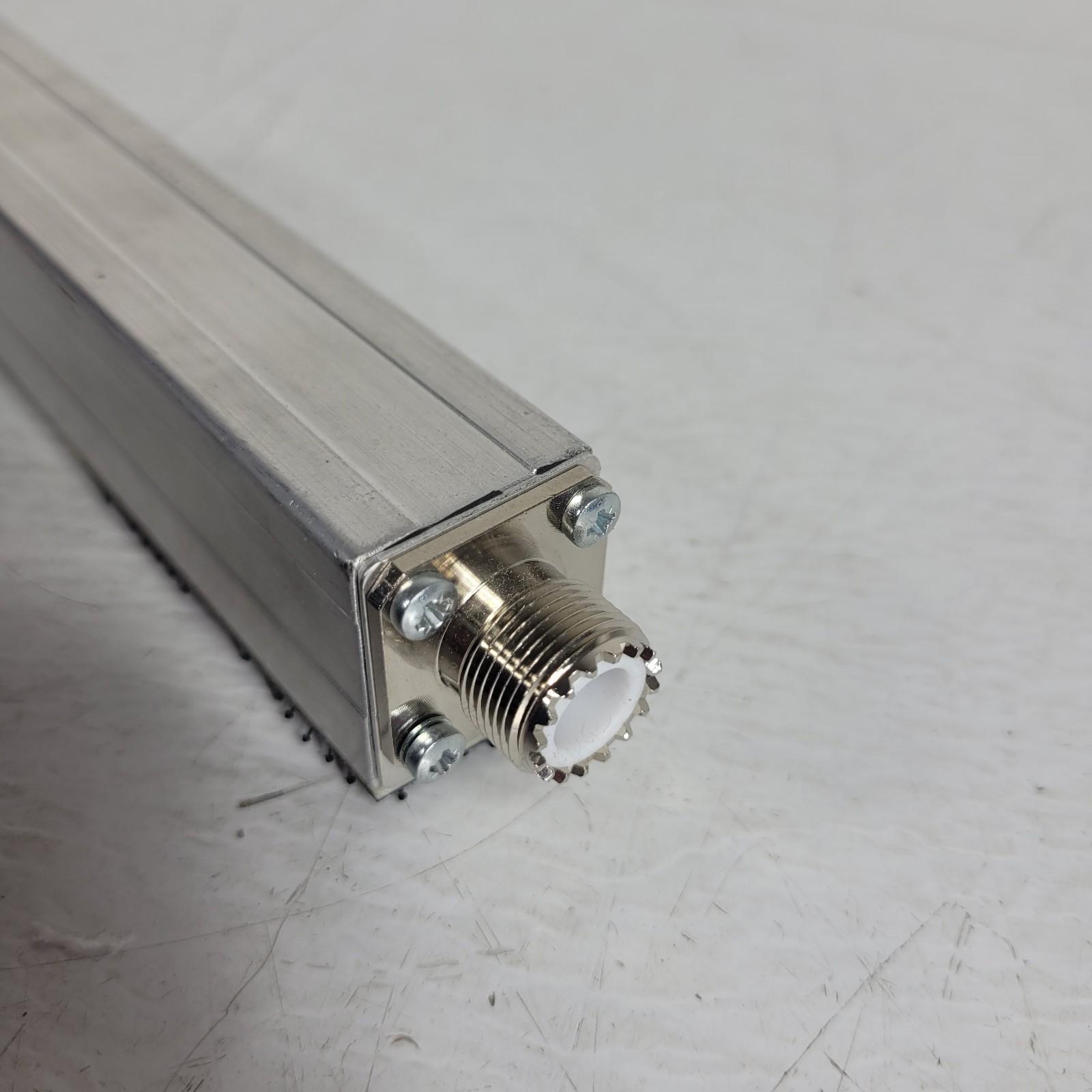

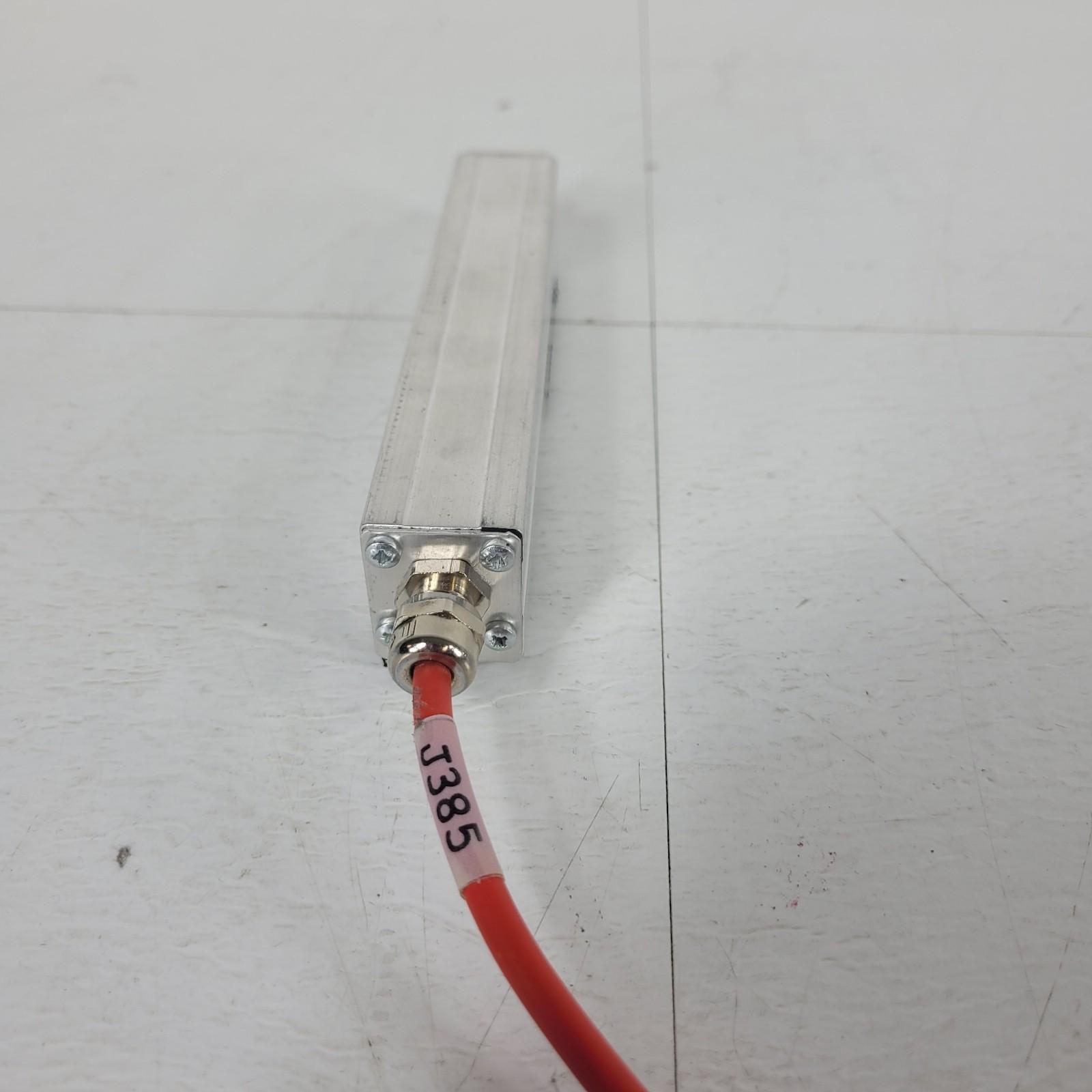

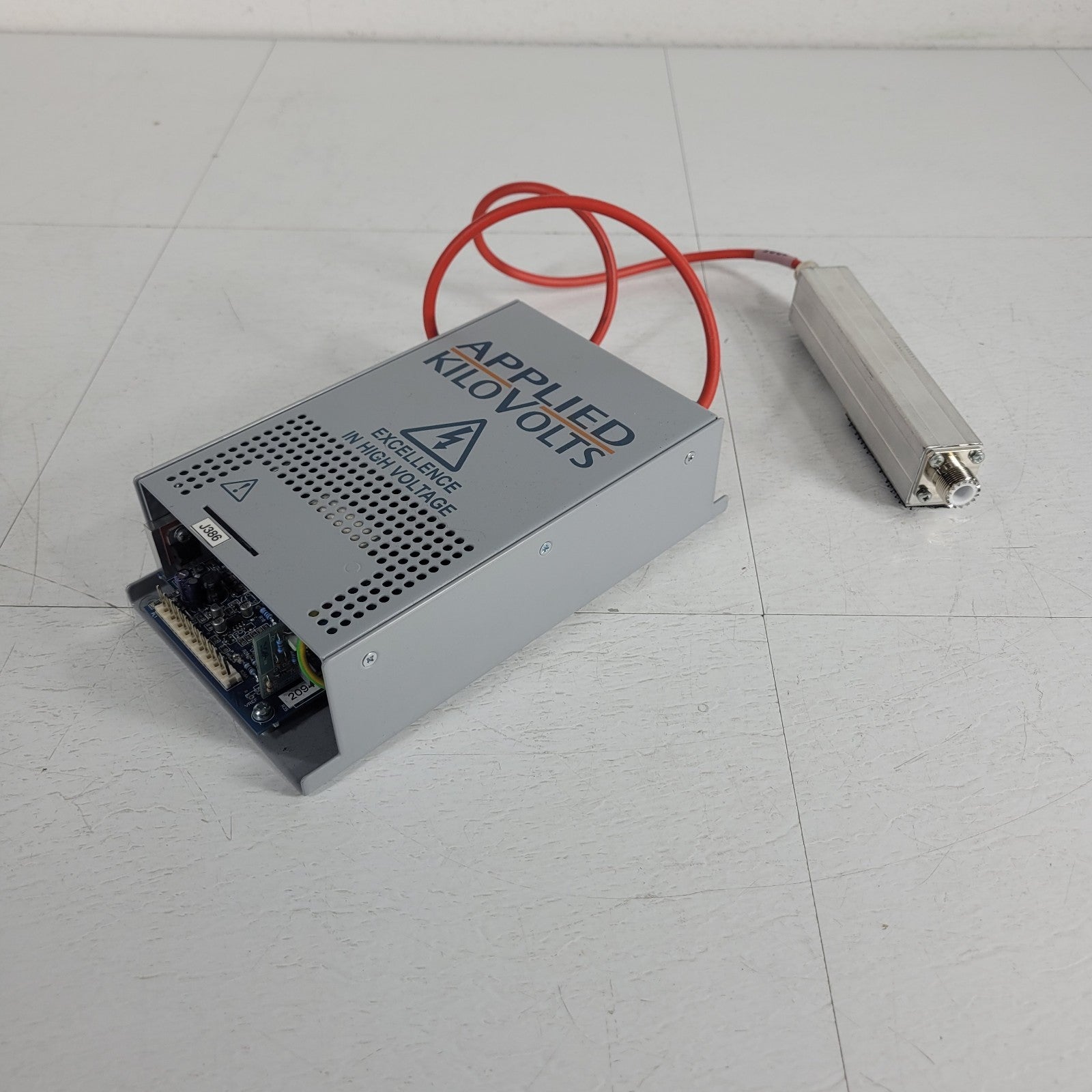

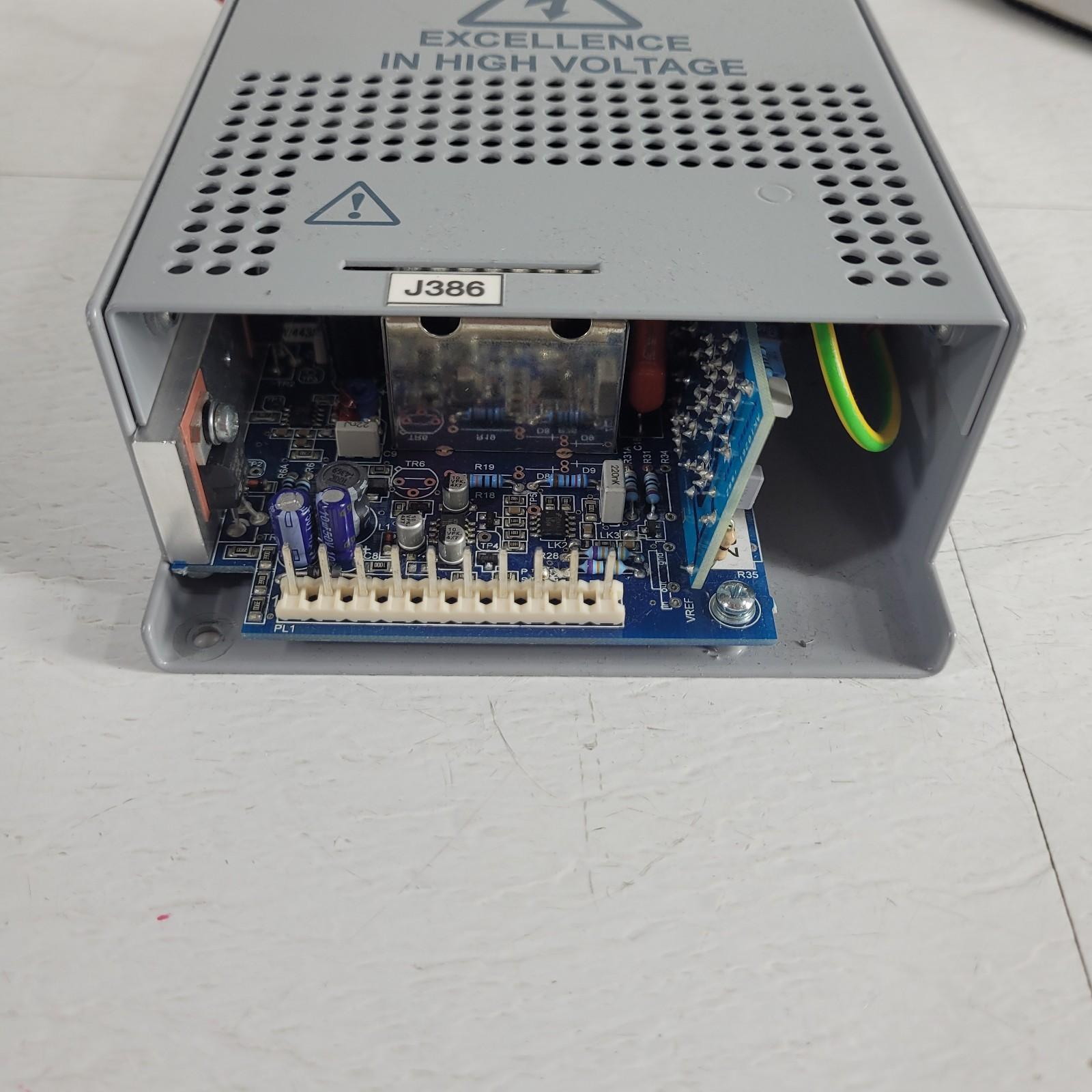

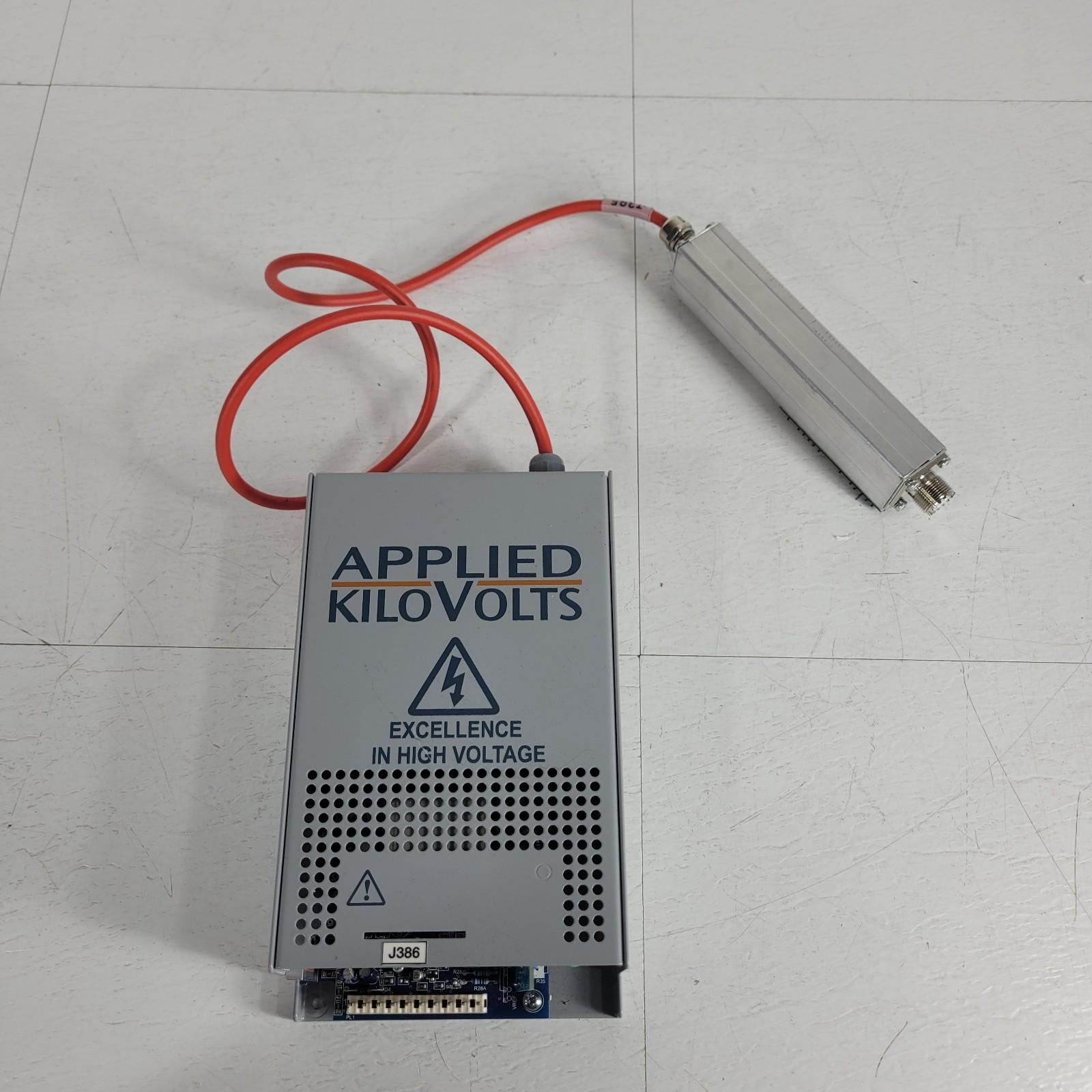

Used Applied Kilovolts HP020PZZ691 precision high-voltage DC module from the HP Series; unipolar positive output rated 50 V to 20 kV at up to 0.4 mA (10 W class) with low ripple (typically <200 mV p-p at full load) and high stability (line and load regulation <10 ppm). Operates from a +24 VDC input (current-limited; <1 A) and is programmable via 0 to +10 V analog control (0 to 100% output) with a 0 to +10 V voltage monitor output (optional current monitor if fitted); includes protection against intermittent arcing and sustained shorts to ground. I/O is via a 10-way Molex connector and the HV output is via a screened cable; compact 210 × 120 × 55 mm form factor commonly used in PMT, mass spec, and electron optics instrumentation.
