Applied Kilovolts HP005NZZ694 High Voltage Power Supply Unipolar Negative 5 kV

Applied Kilovolts HP005NZZ694 High Voltage Power Supply 24V Input 1A Coax Output

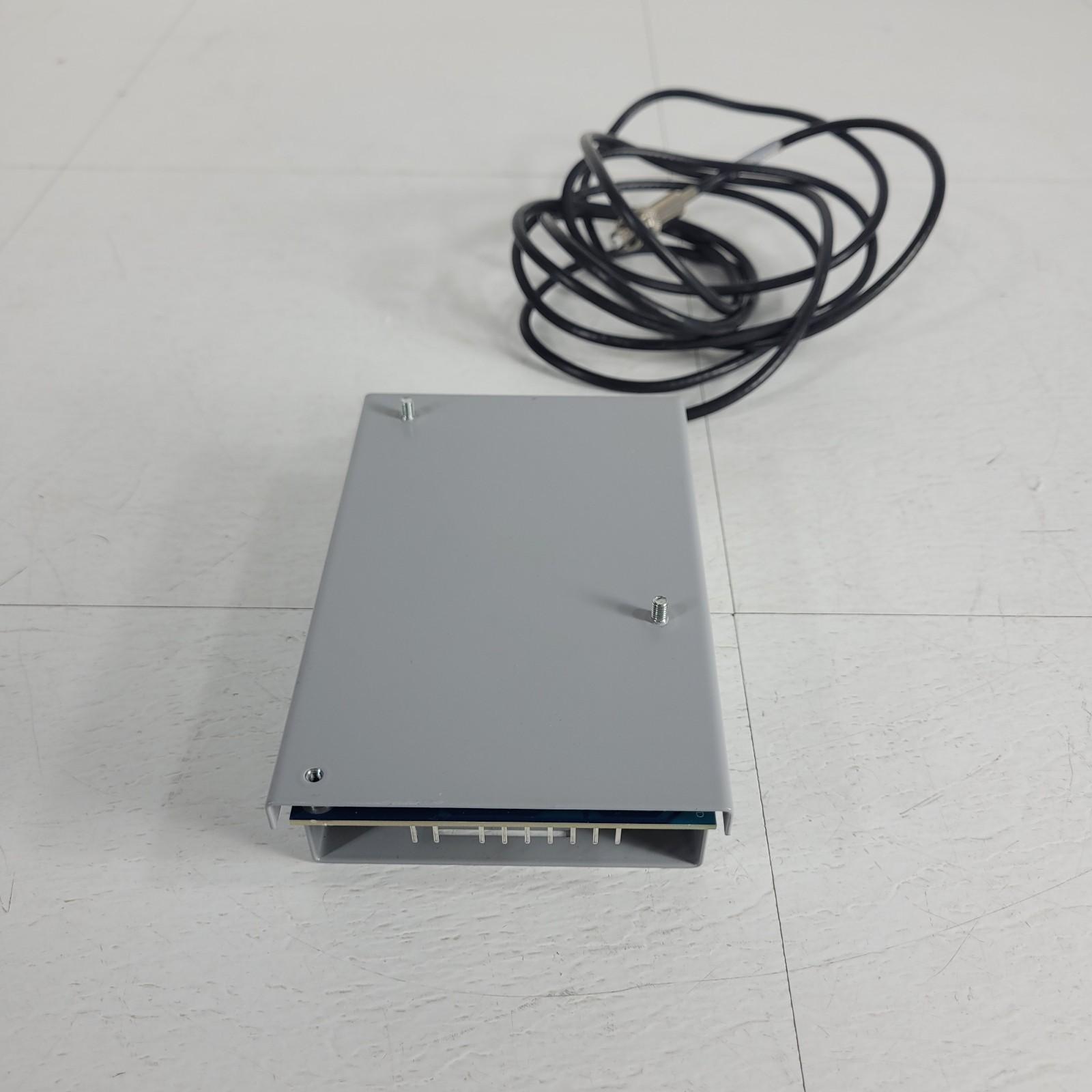

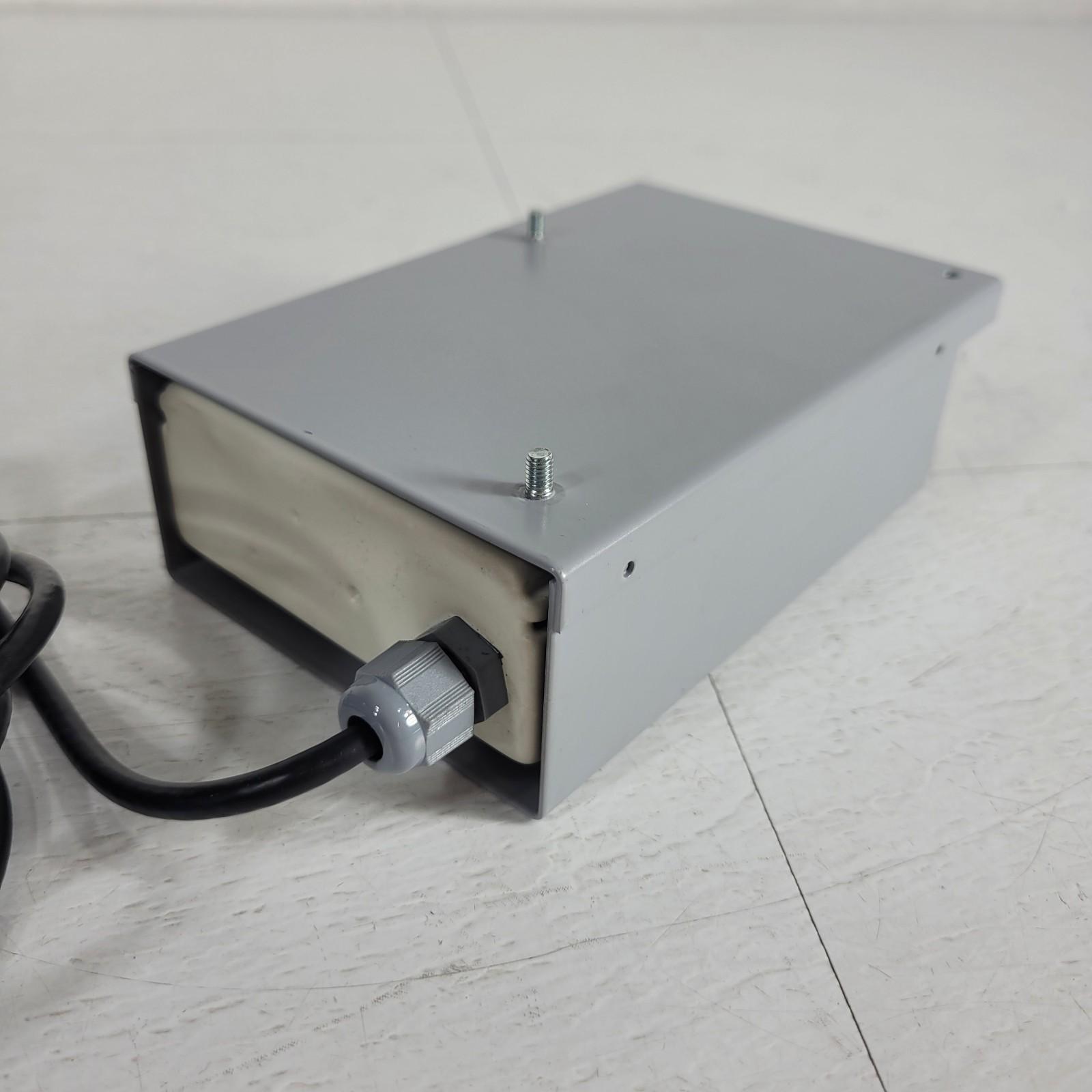

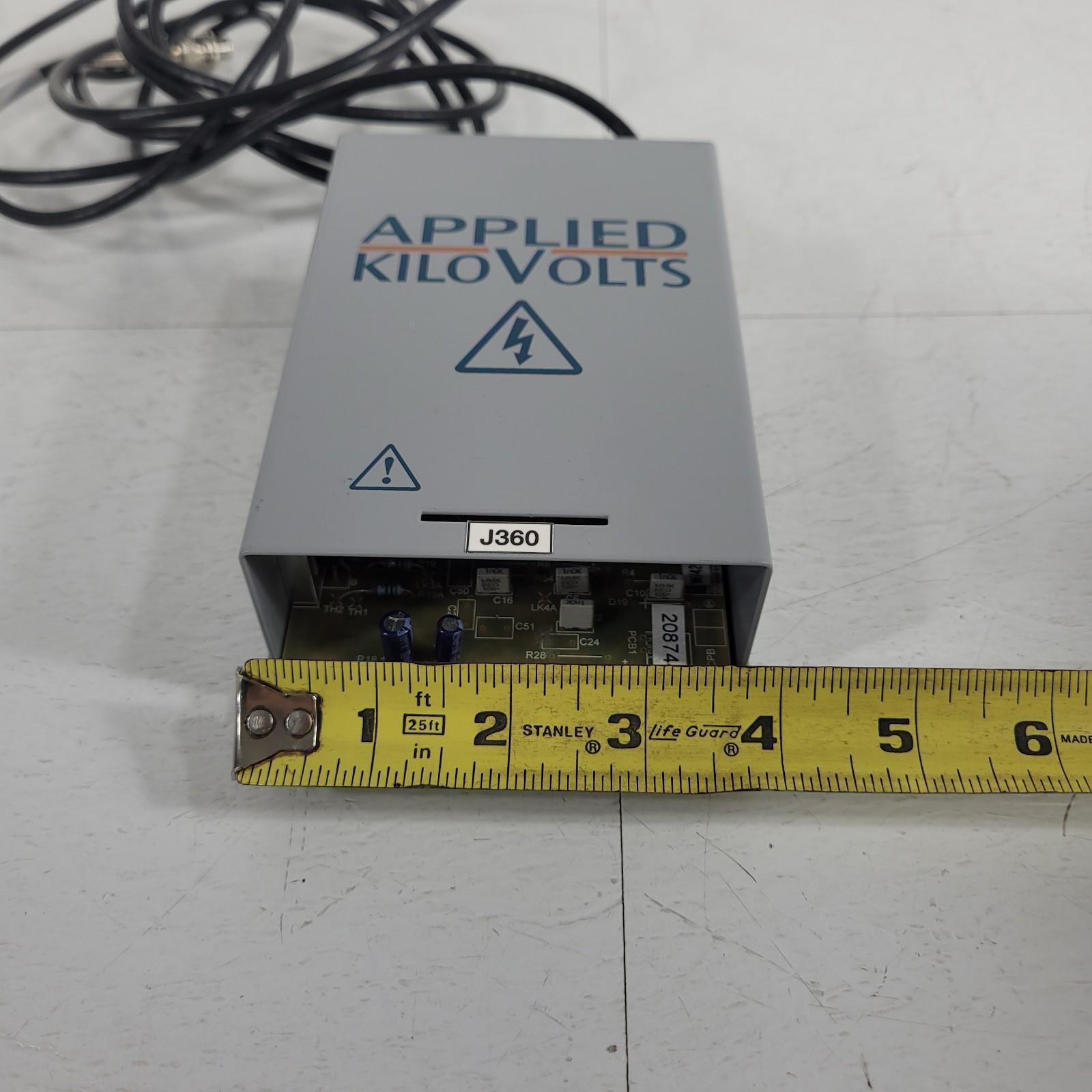

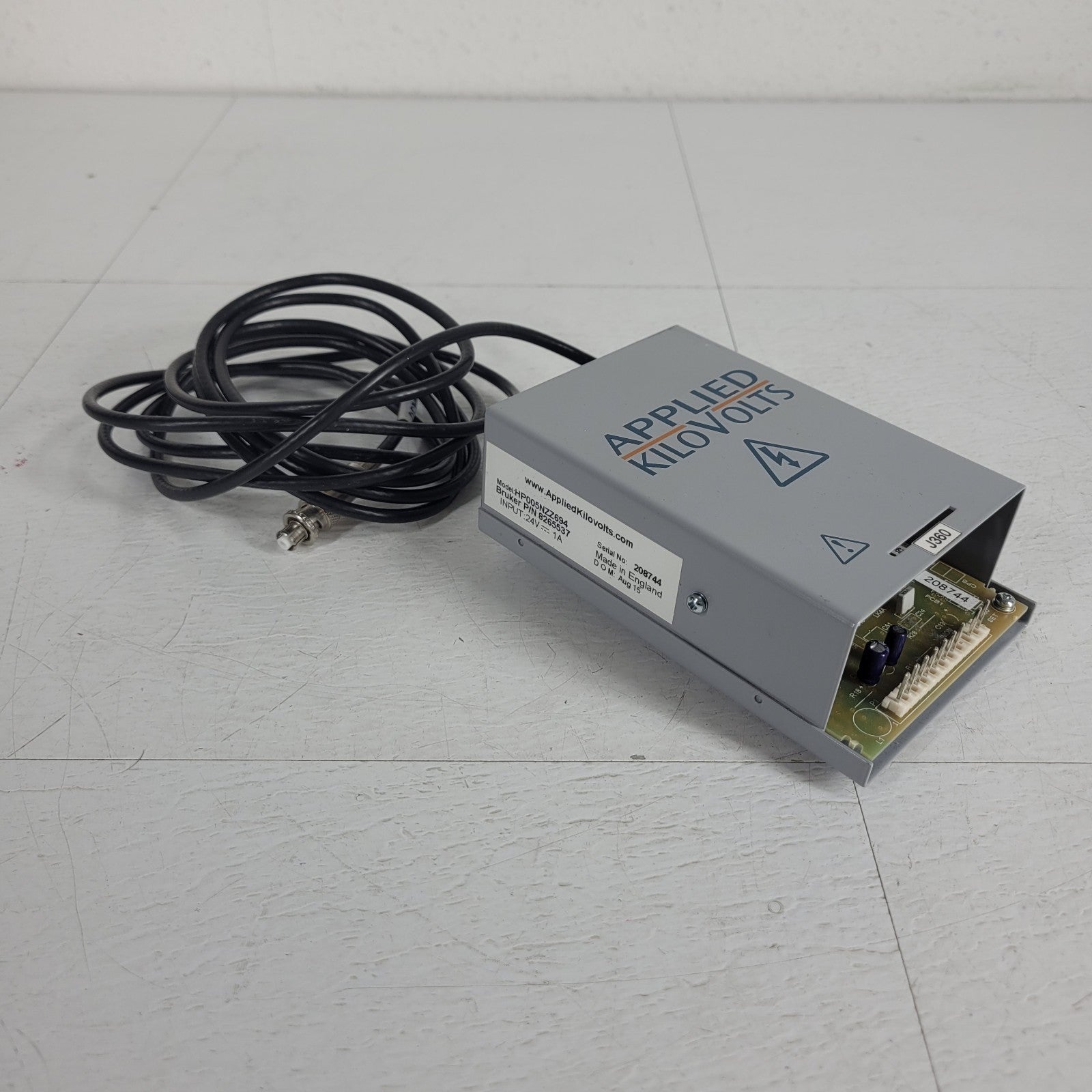

Used see photos.

Most important specs (core HP005N family):

-HV output (family spec): 10 V to 5 kV, 2 mA max (≈ 10 W)

-Polarity: Negative (N)

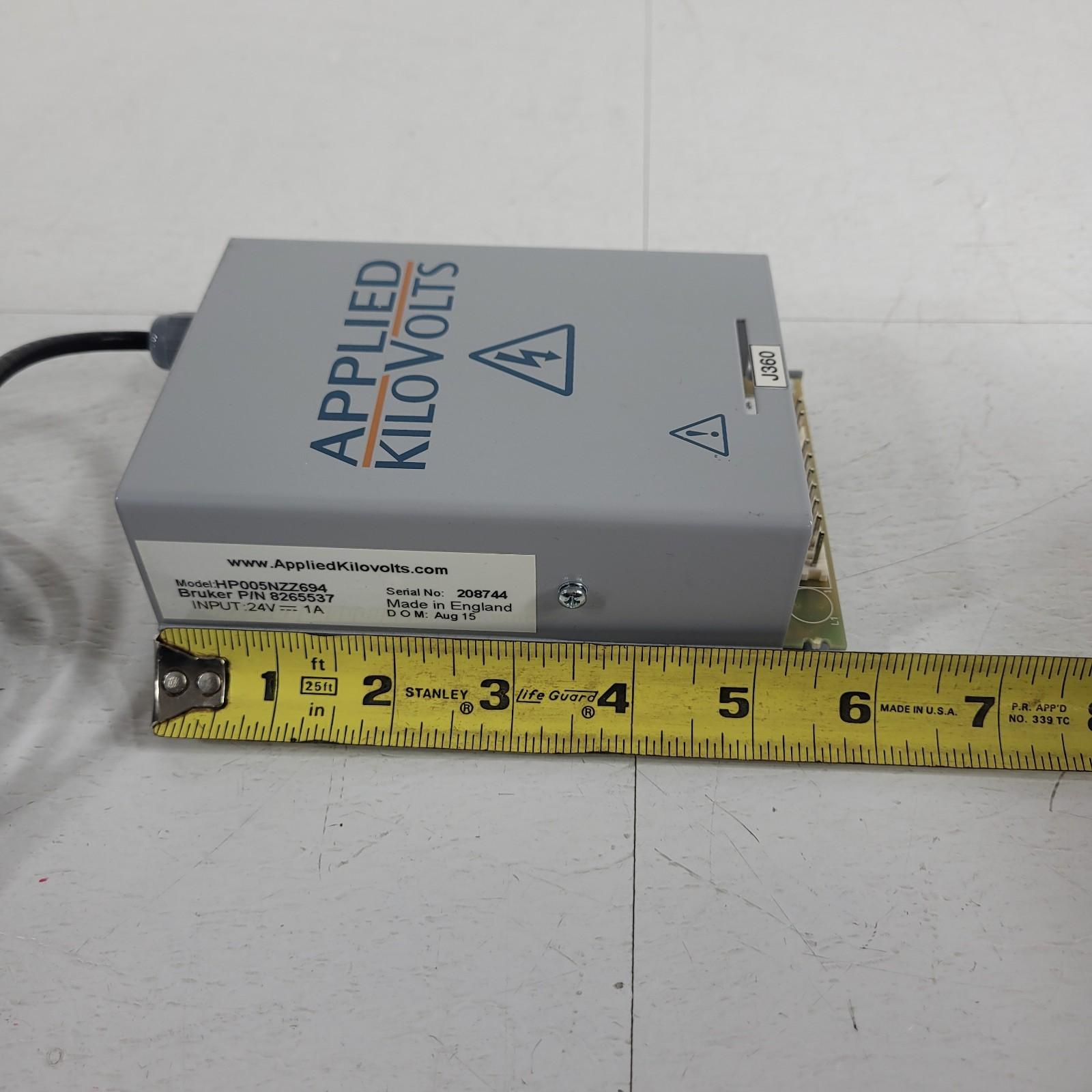

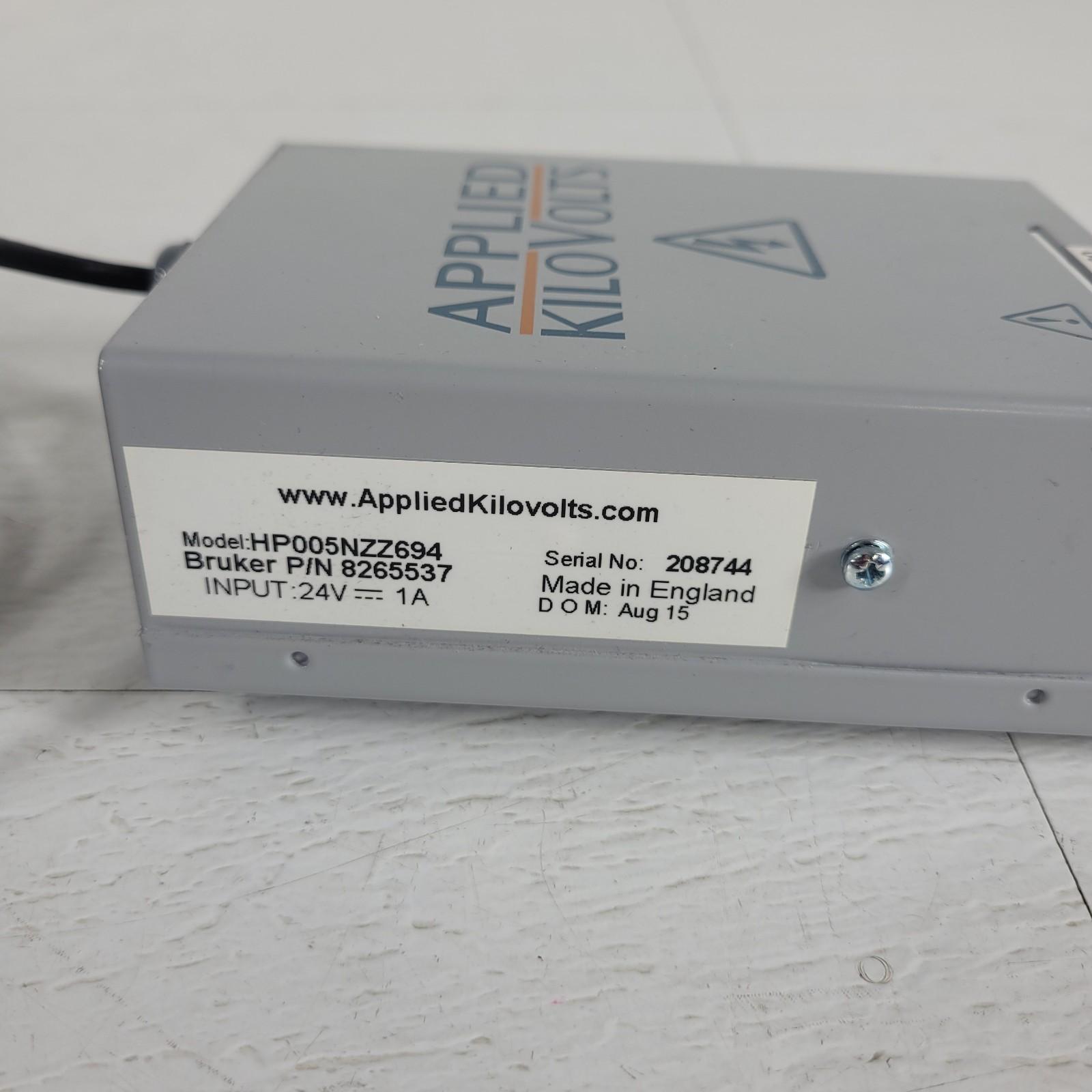

-Input power (your unit label): 24 VDC, 1 A

-Control: 0 to +10 V analog for 0 to 100% output (±2%); internal or external pot options

-Monitor outputs: 0 to +10 V voltage monitor (±2%); current monitor is an available option on unipolar units

-Ripple (HP005 family): <20 mV p-p at full load

-Regulation/stability (family): line and load regulation <10 ppm (under stated conditions); drift after warmup noted in datasheet

-Protection: arc/short-circuit protected

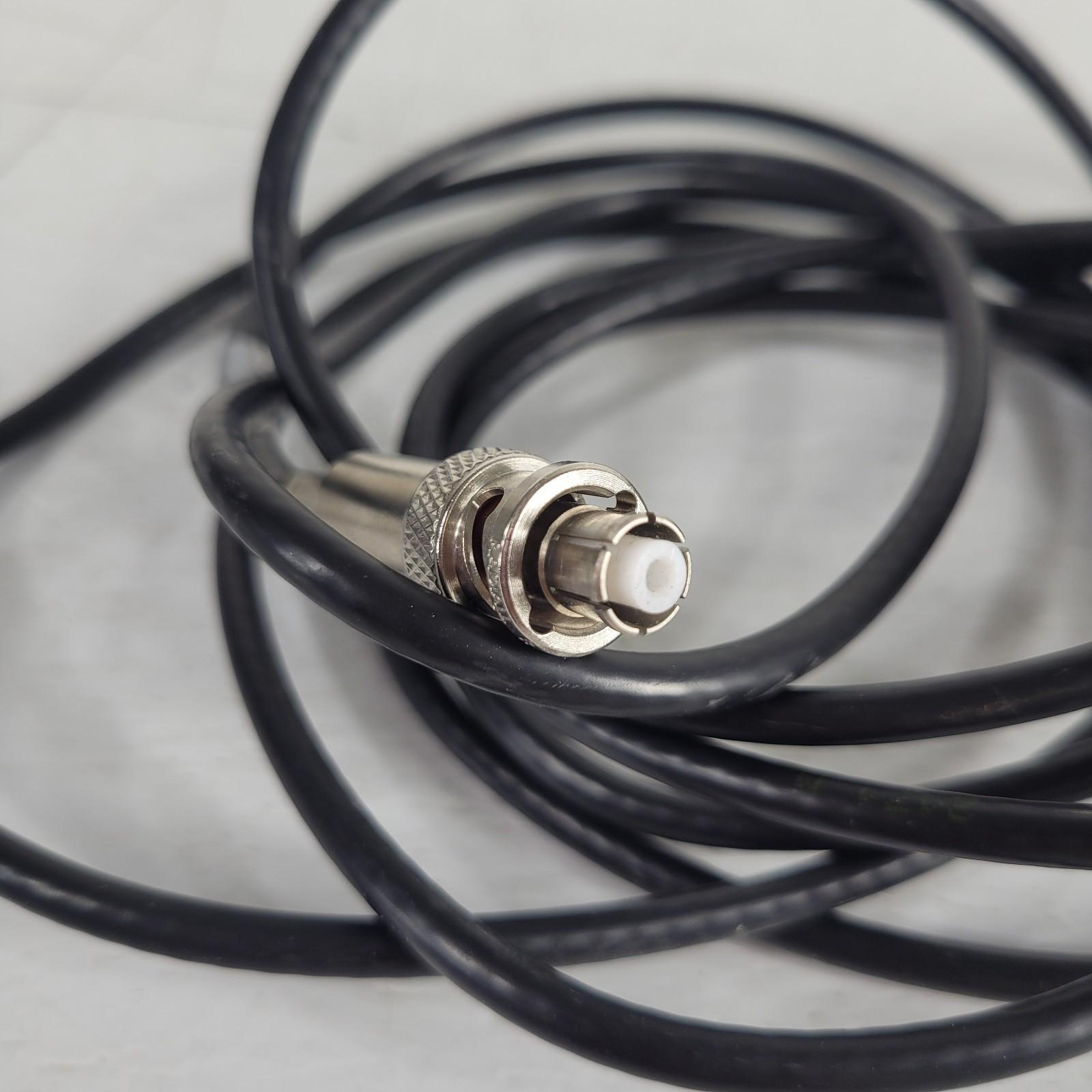

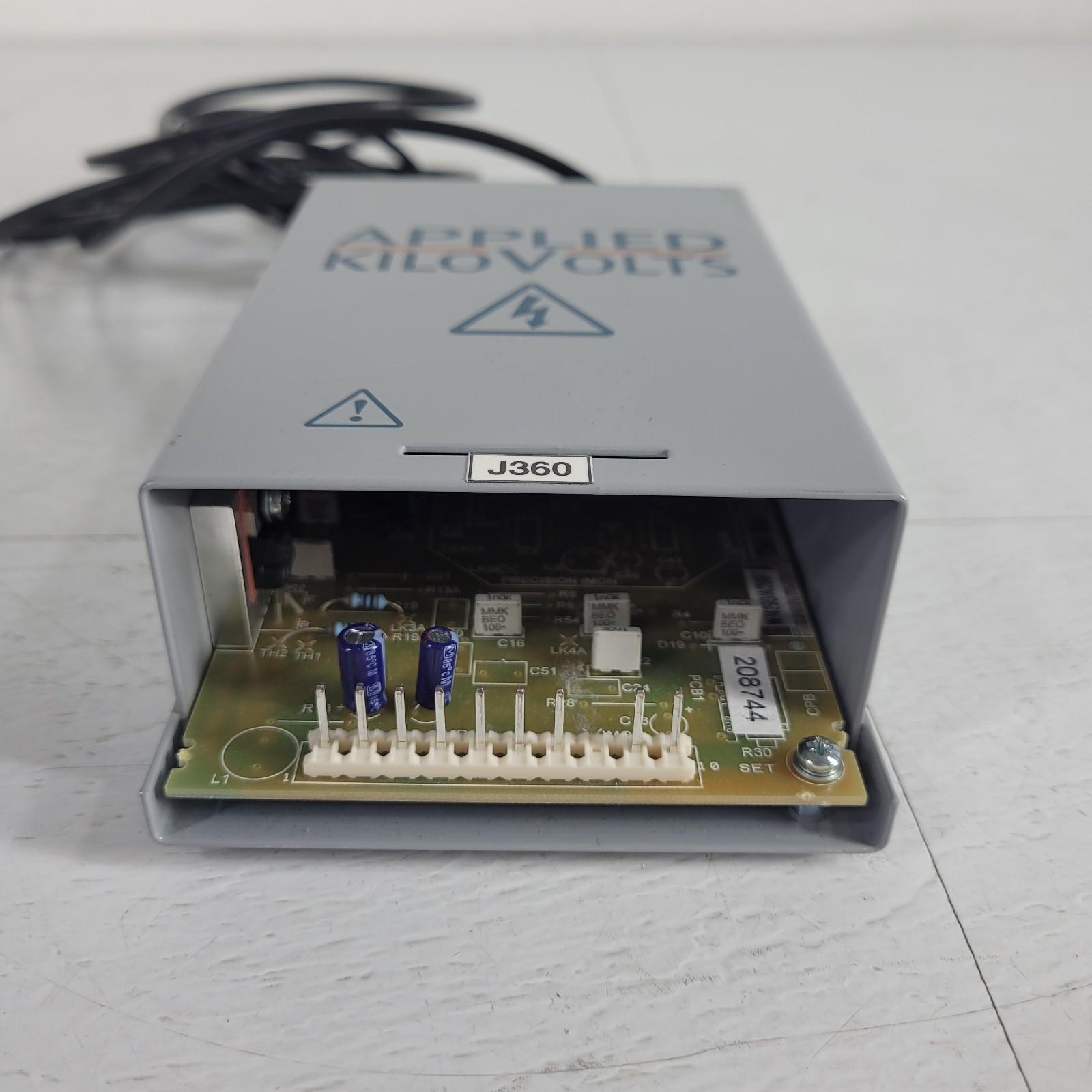

-Mechanical (HP005 unipolar family): about 147 × 98 × 47 mm, ~1.0 kg; Molex 10-way I/O; screened HV output cable

-Operating temp (family): 0°C to 50°C
