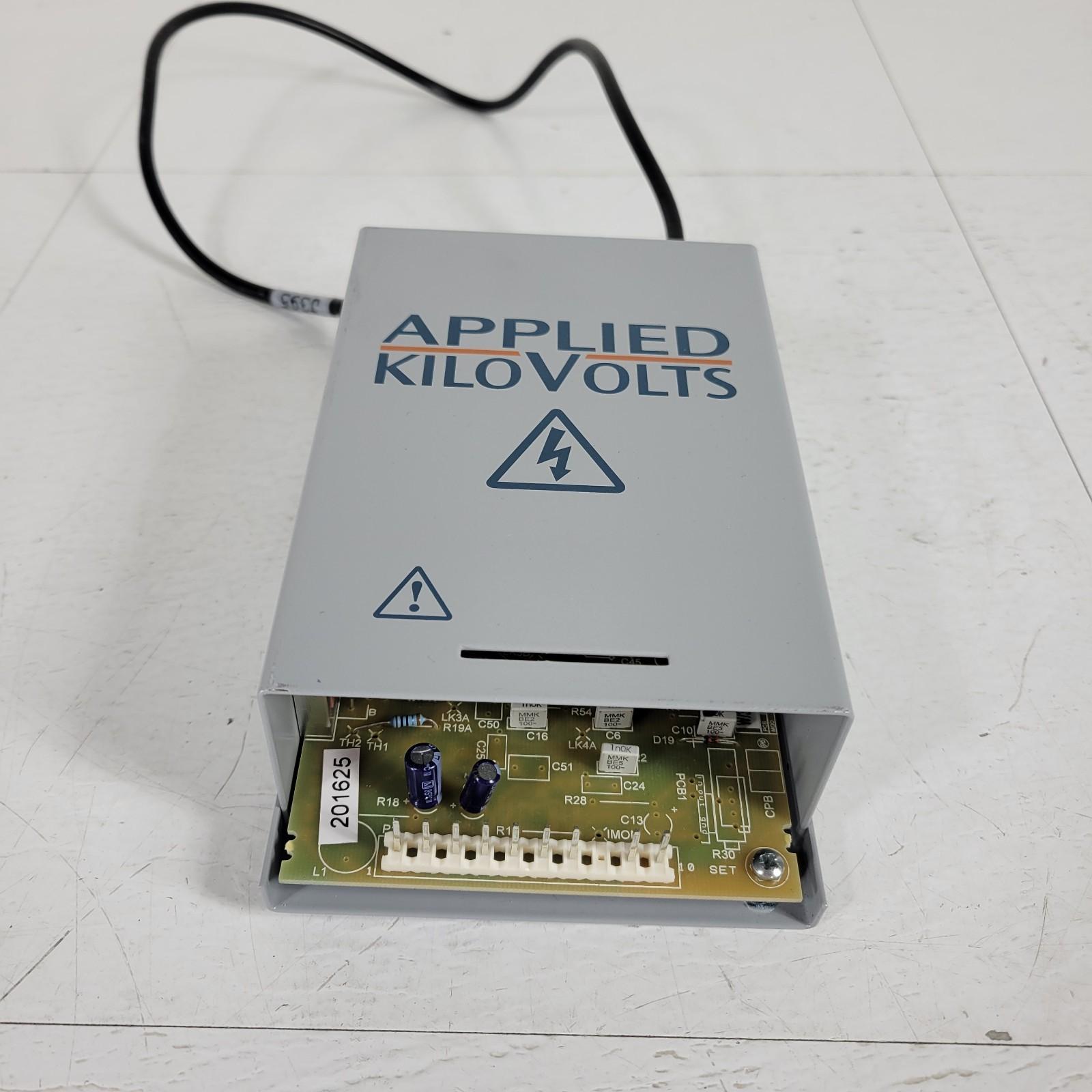

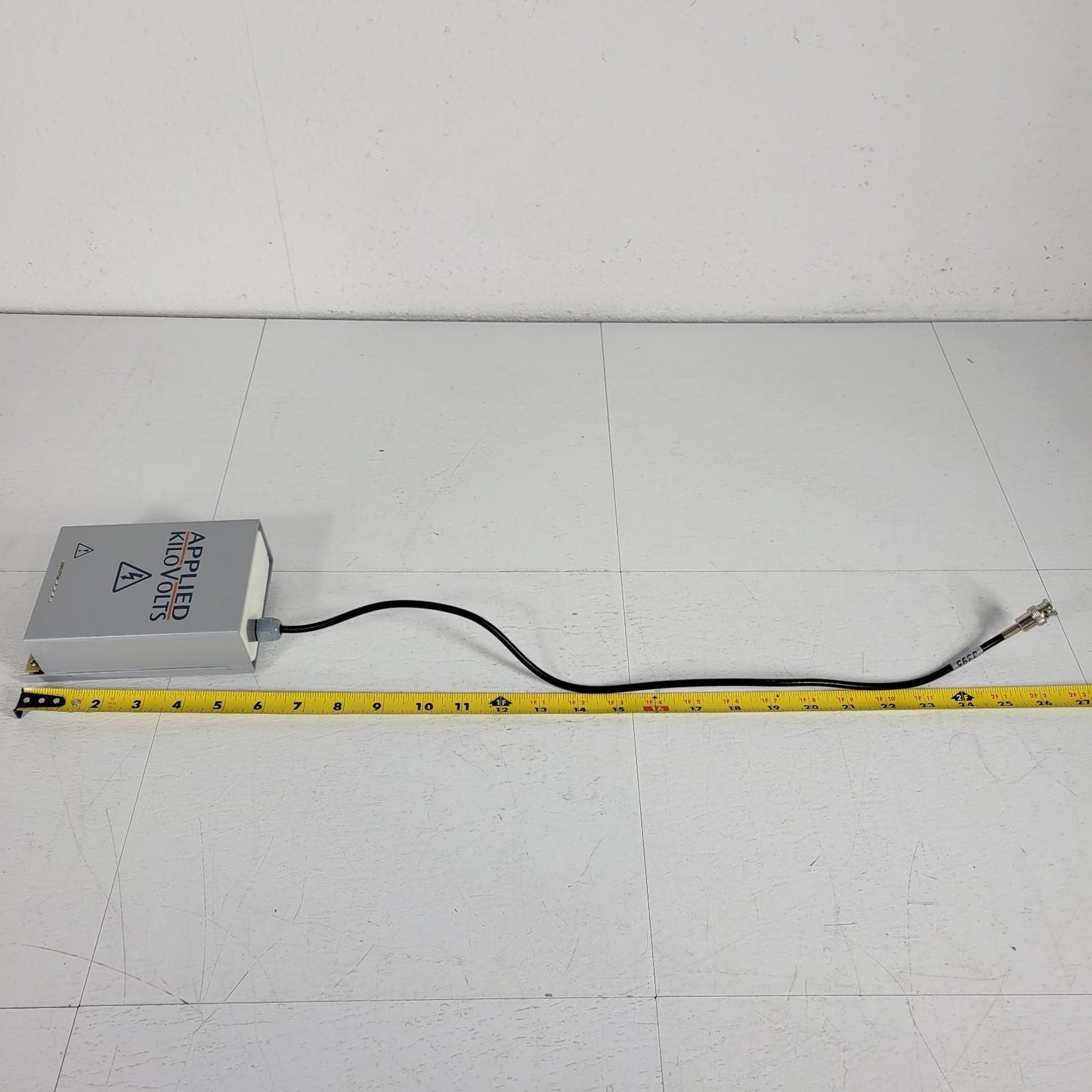

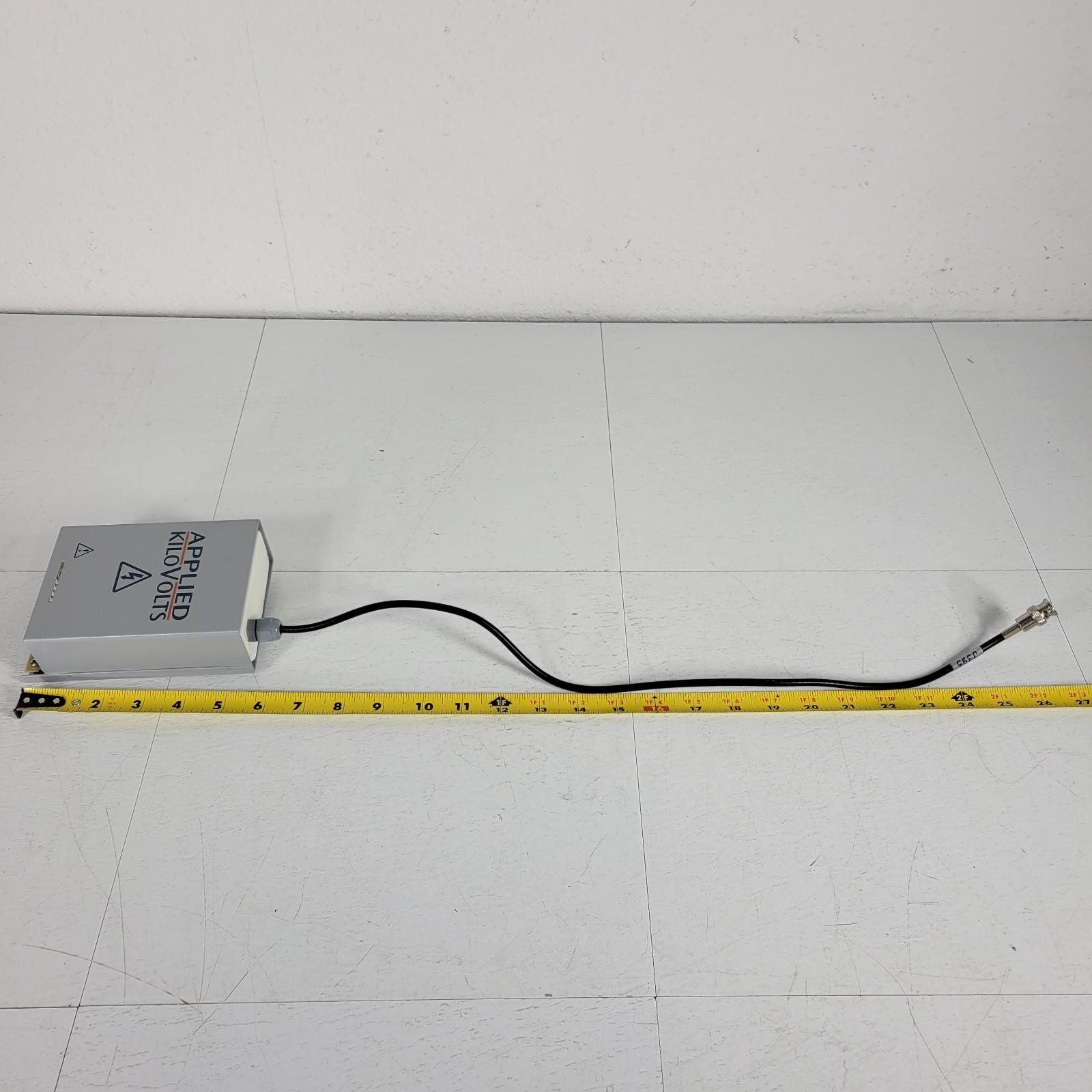

Applied Kilovolts HP005NZZ695 High Voltage Power Supply 5kV Negative 24V In

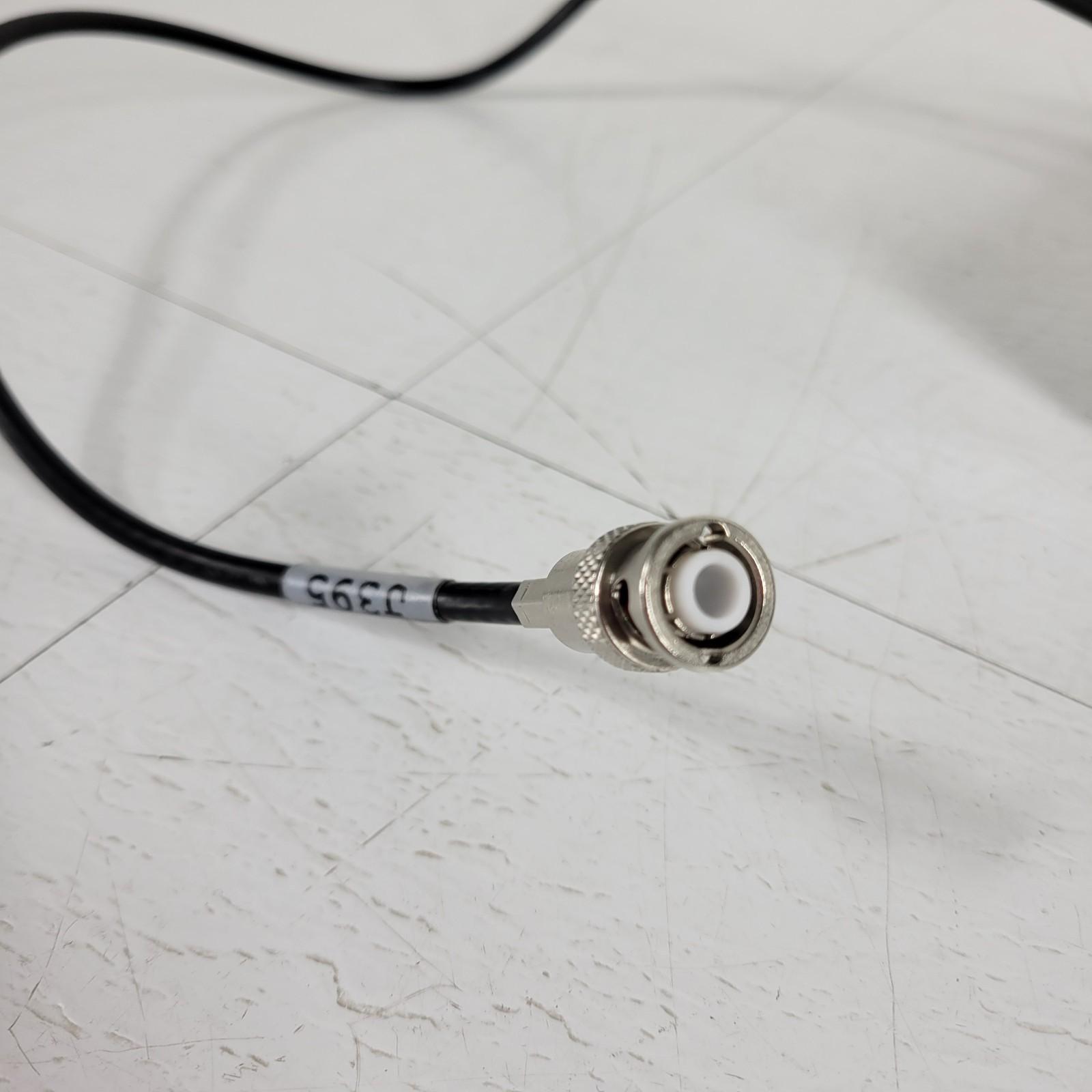

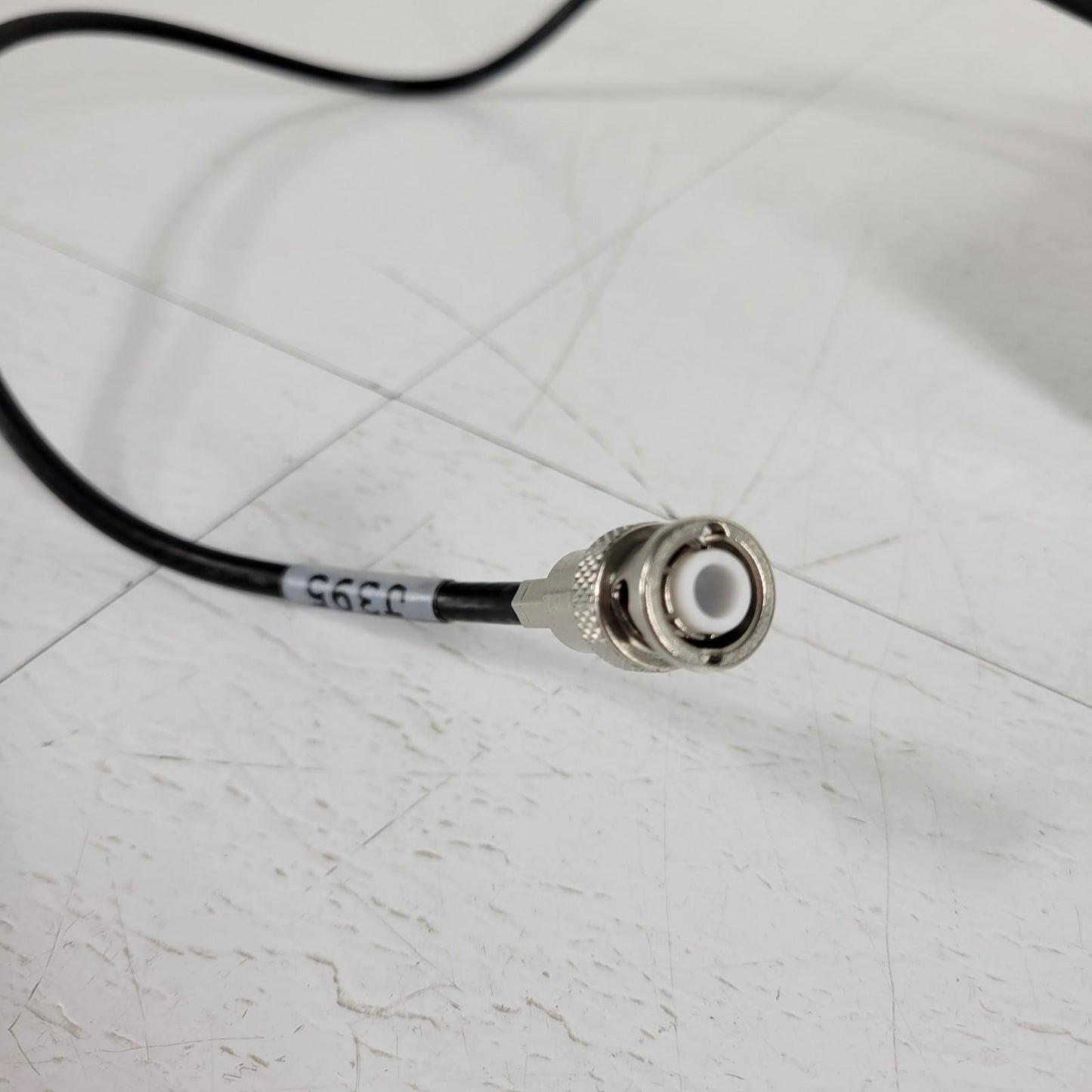

Applied Kilovolts HP005NZZ695 High Voltage Power Supply 24V Input 1A Coax Output

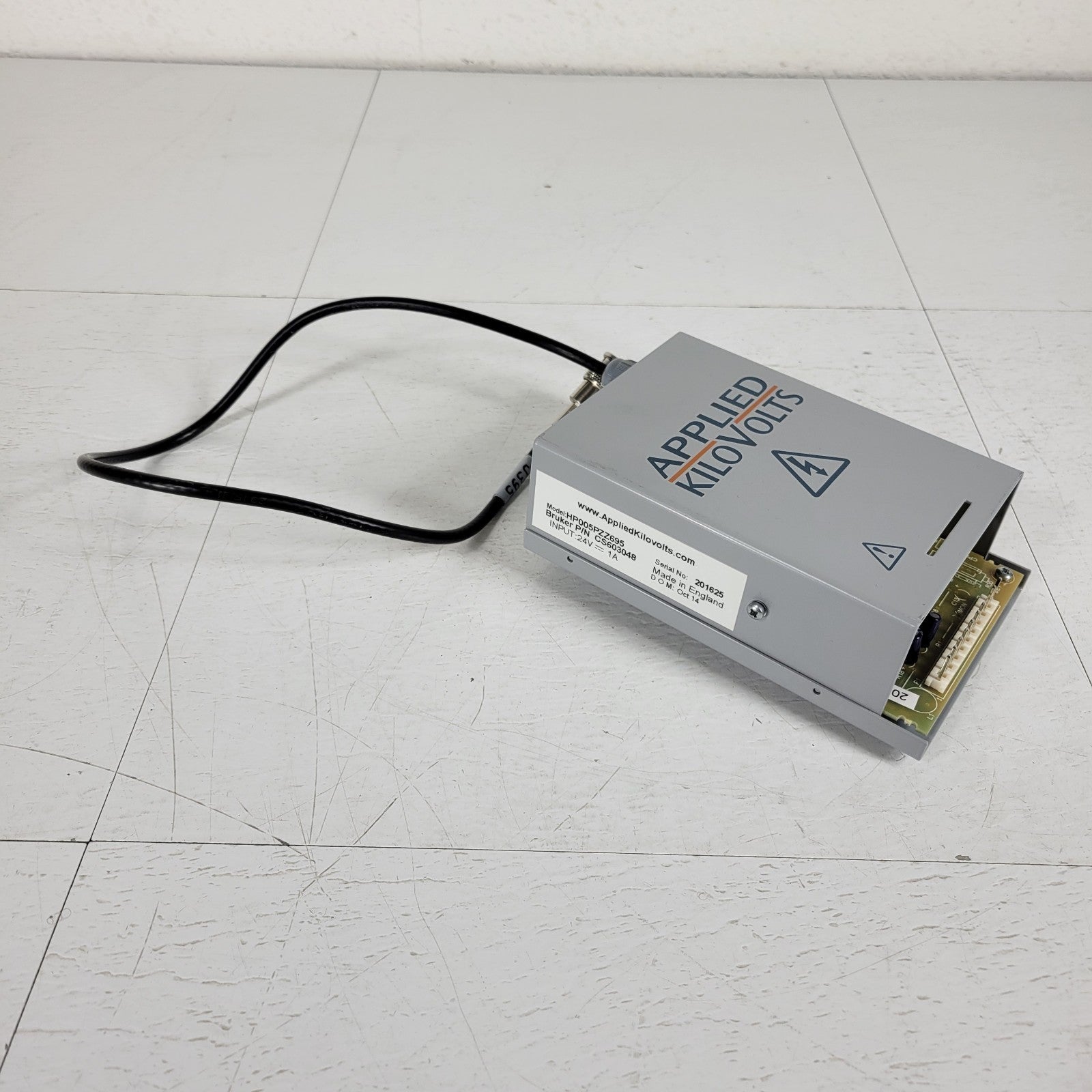

Used see photos.

Most important specs (core HP005N family):

-HV output (family spec): 10 V to 5 kV, 2 mA max (≈ 10 W)

-Polarity: Negative (N)

-Input power: 24 VDC, 1 A

-Control: 0 to +10 V analog for 0 to 100% output (±2%); internal or external pot options

-Monitor outputs: 0 to +10 V voltage monitor (±2%); current monitor is an available option on unipolar units

-Ripple (HP005 family): <20 mV p-p at full load

-Regulation/stability (family): line and load regulation <10 ppm (under stated conditions); drift after warmup noted in datasheet

-Protection: arc/short-circuit protected

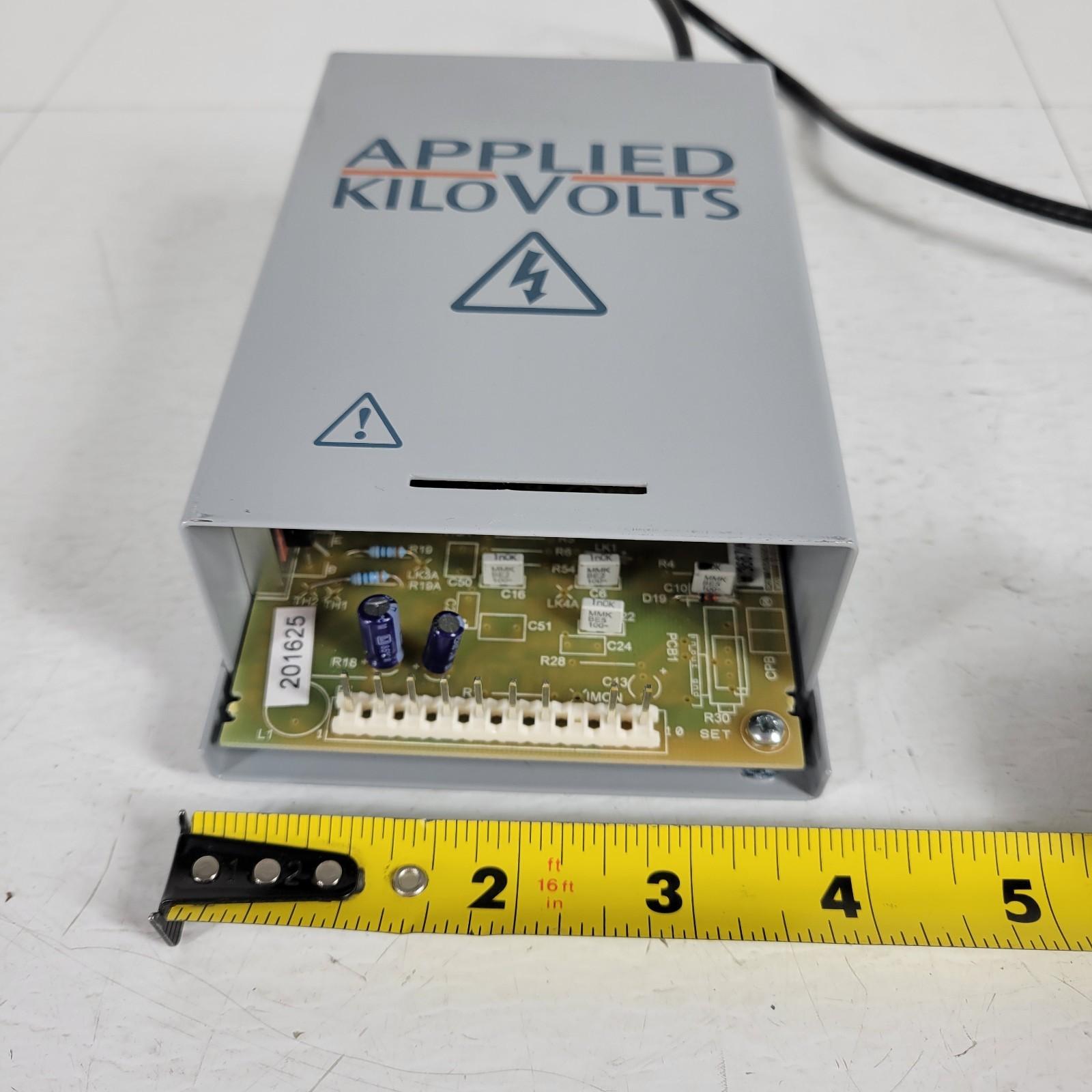

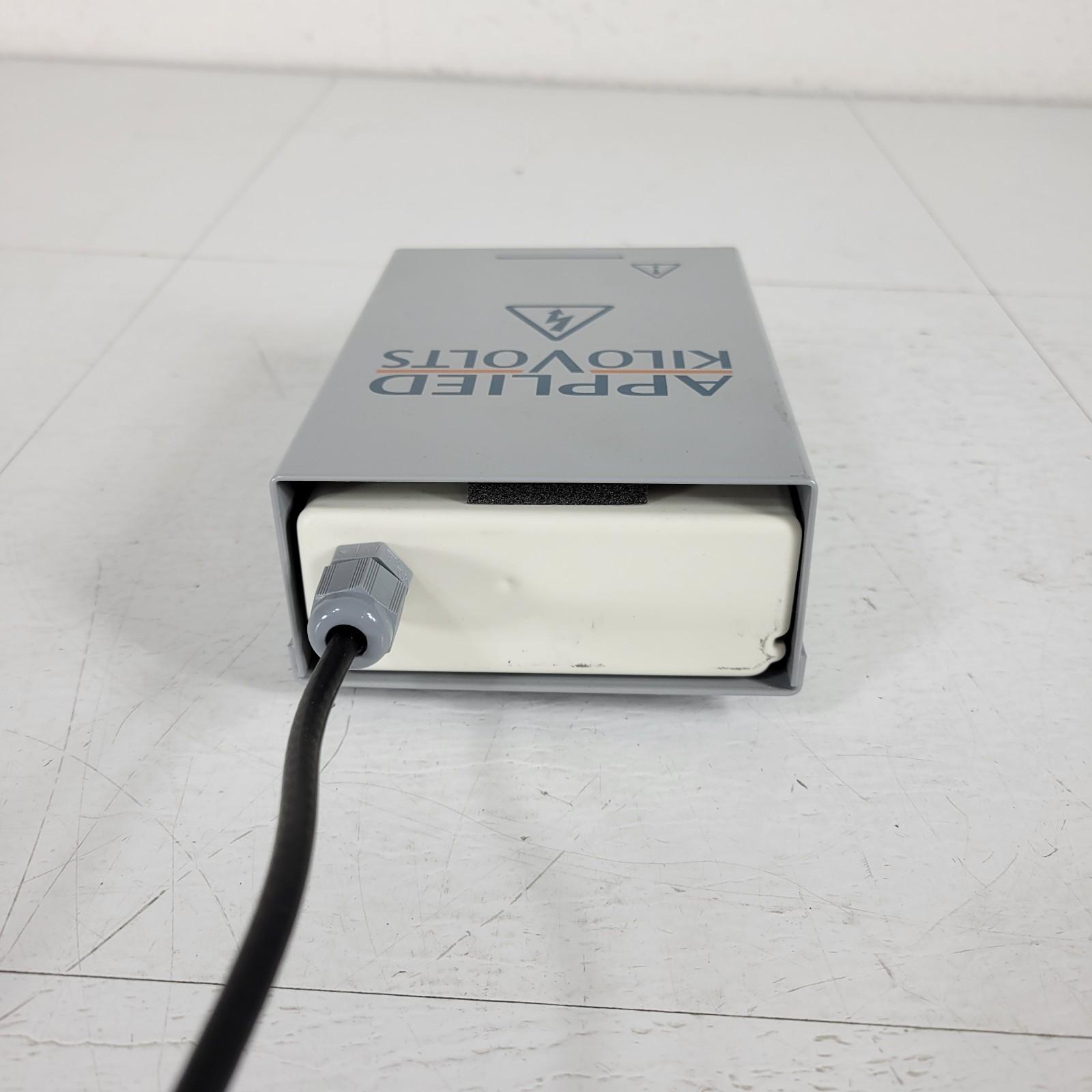

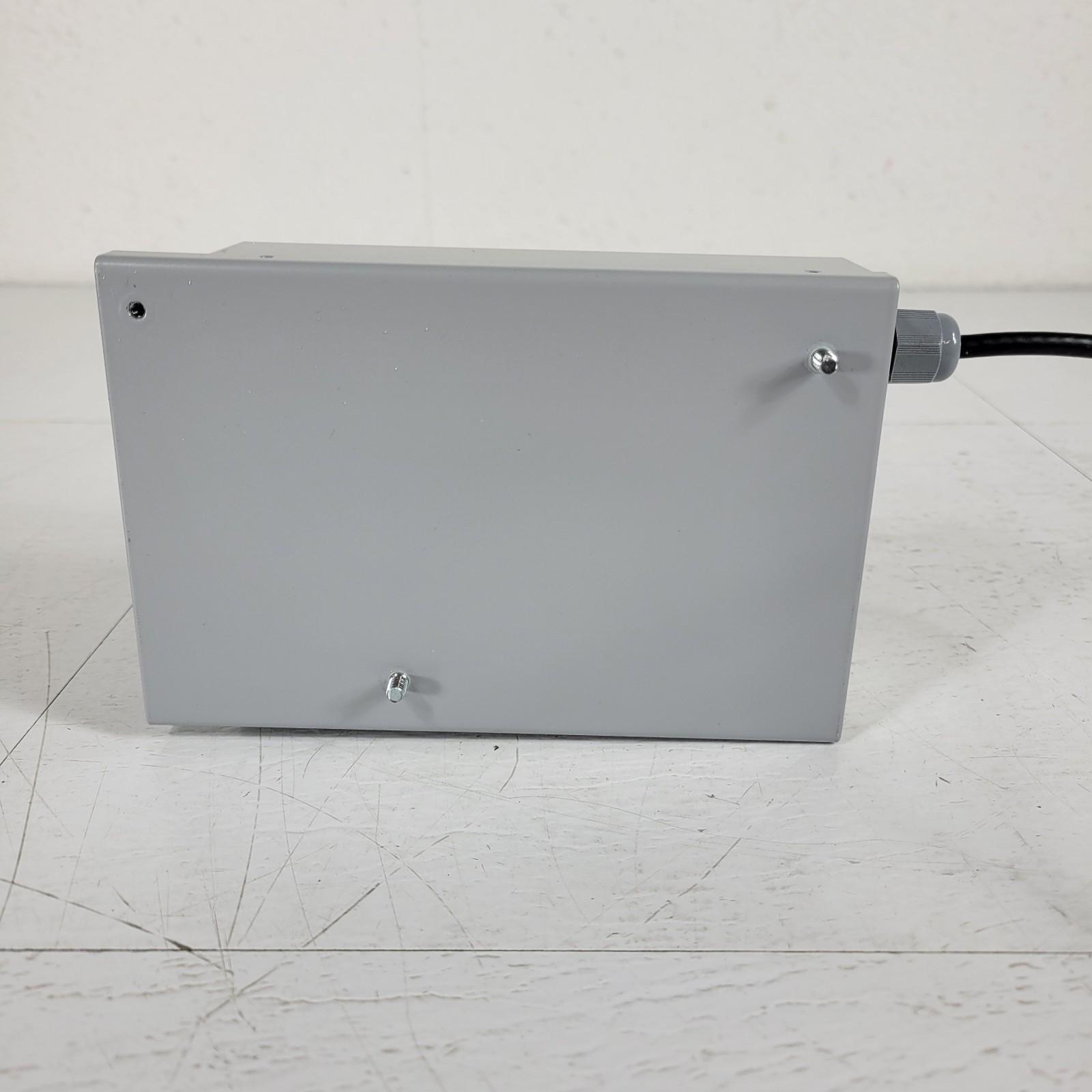

-Mechanical (HP005 family): about 147 × 98 × 47 mm, ~1.0 kg; Molex 10-way I/O; screened HV output cable

-Operating temp (family): 0°C to 50°C
