Bruker Dimension Direct Drive EC Cantilever Holder Tapping Mode ScanAsyst QNM
Bruker Dimension Direct Drive EC Cantilever Holder Tapping Mode ScanAsyst QNM
Couldn't load pickup availability

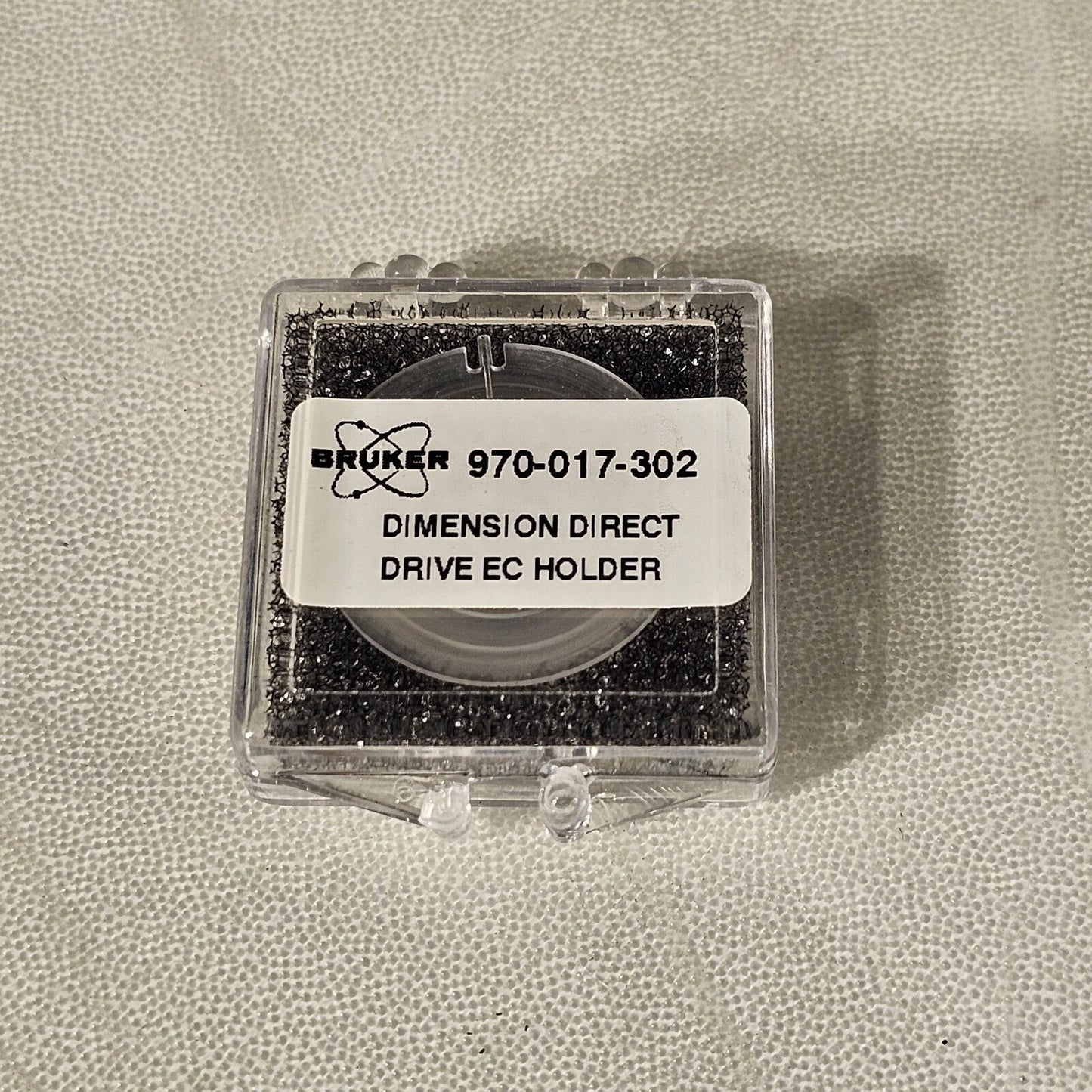

Bruker Dimension Direct Drive EC Cantilever Holder Tapping Mode ScanAsyst QNM 970-017-302 DECAFMCH-DD

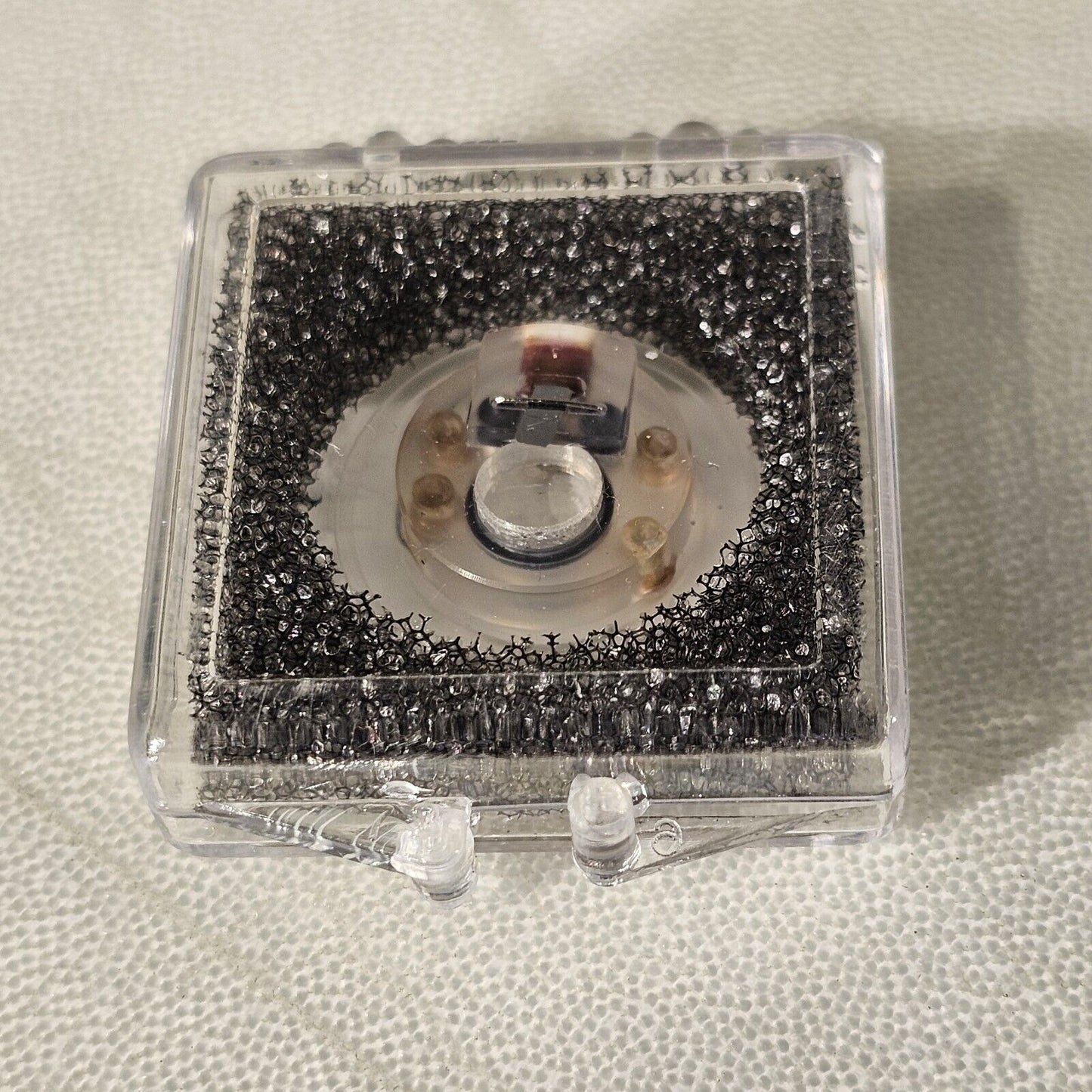

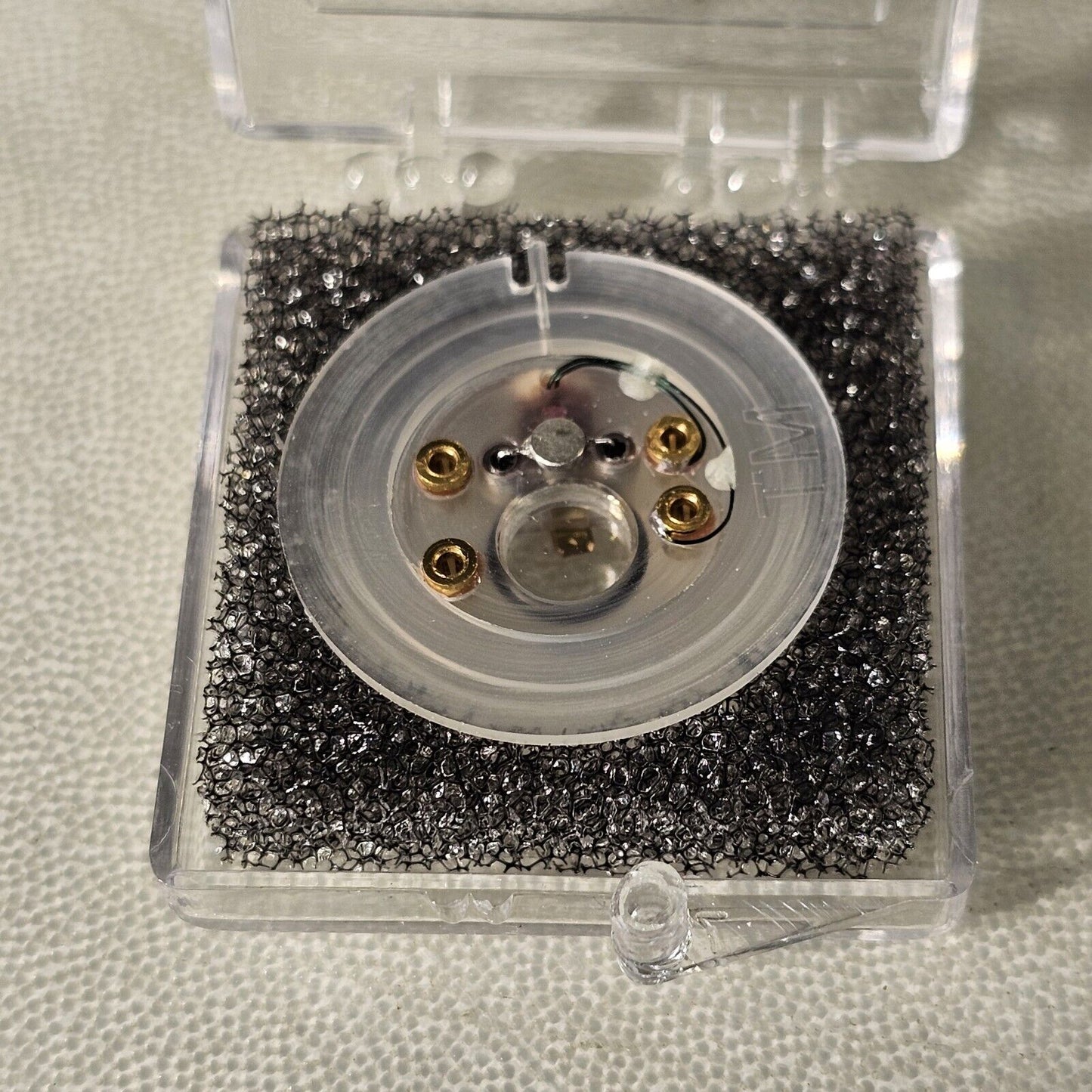

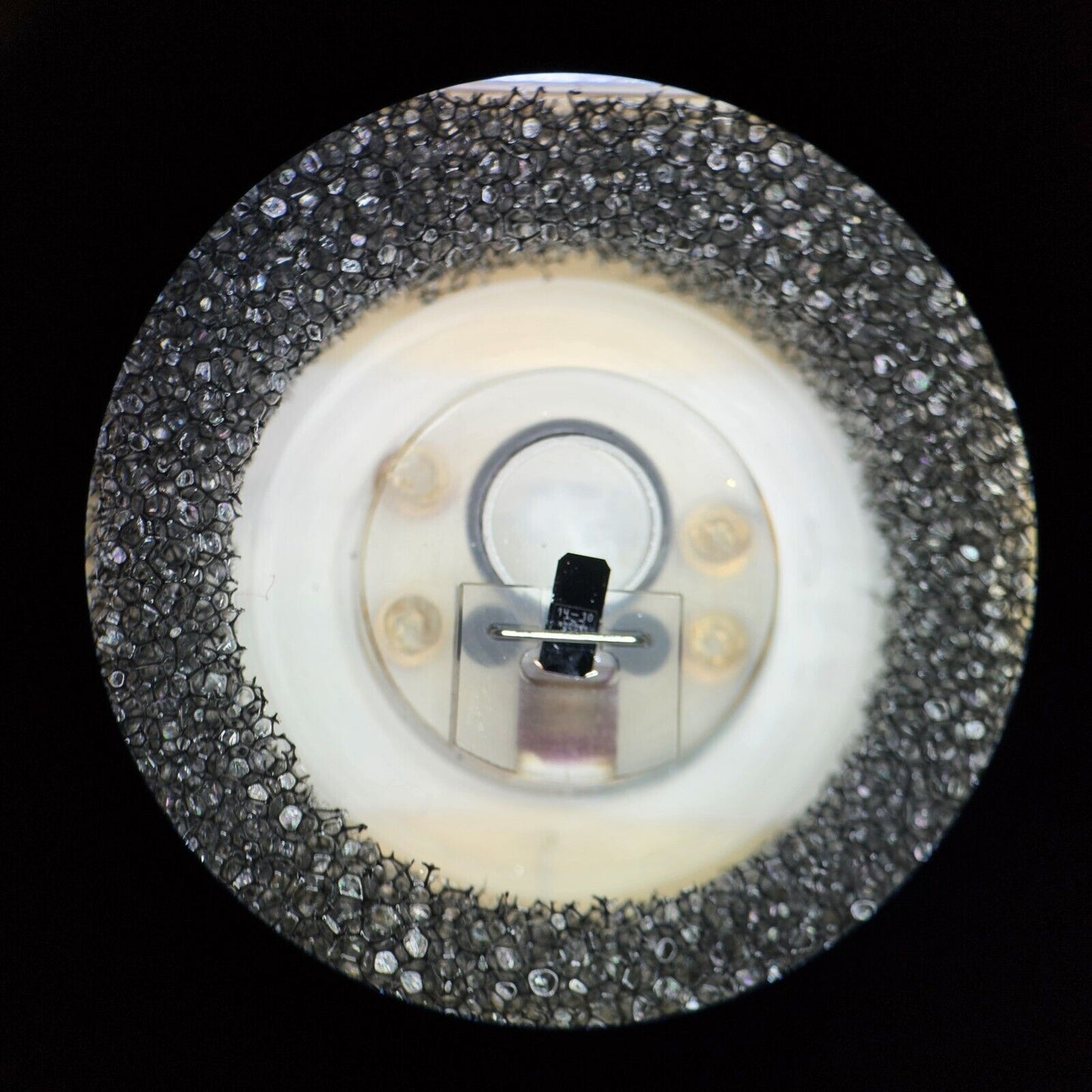

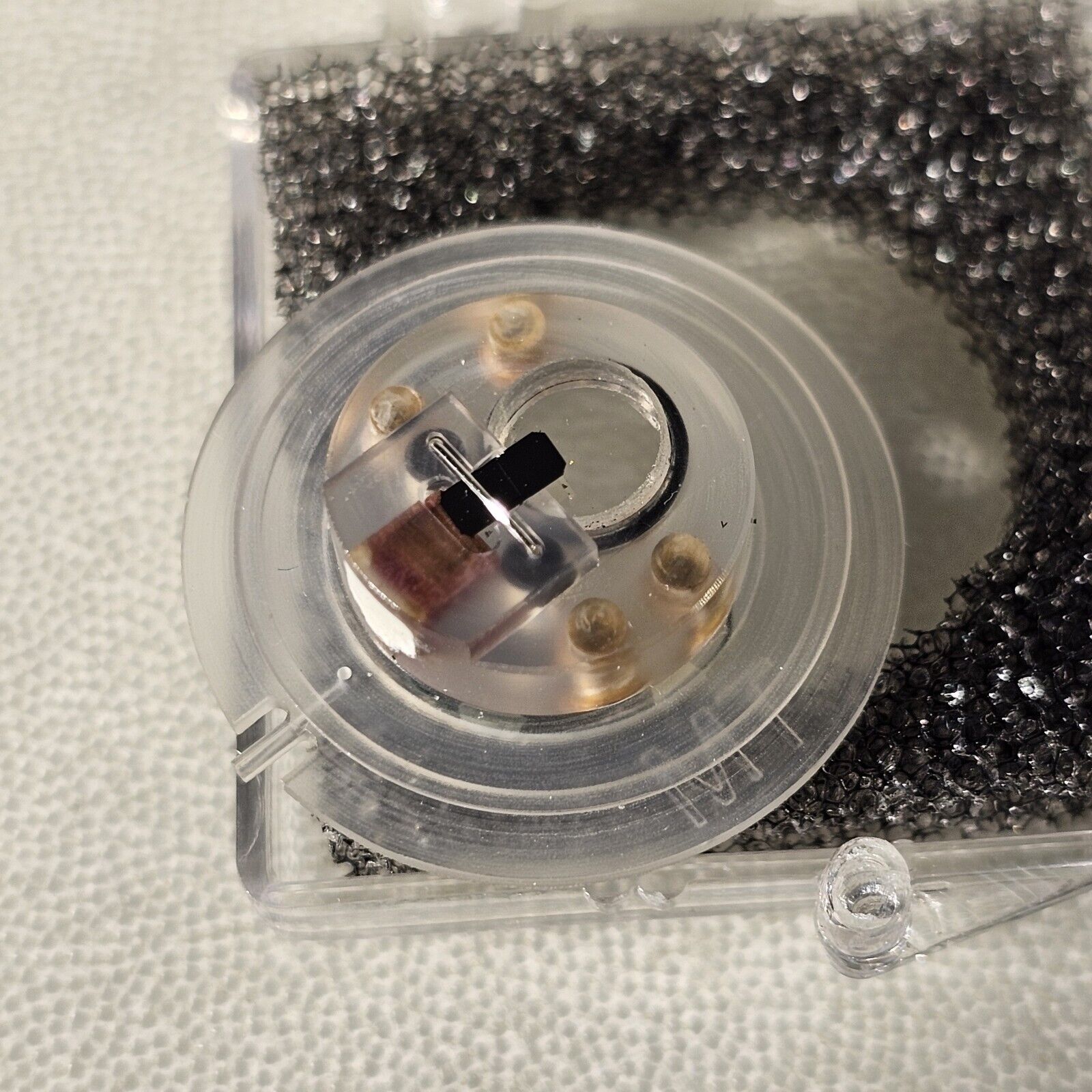

Used in good shape. Was removed directly from operation: even still has an old probe in it.
From the manufacturer:

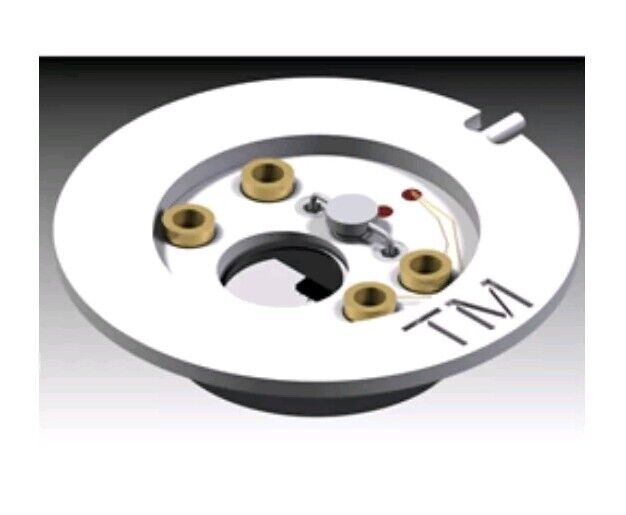

Dimension Direct Drive Tapping EC
Cantilever Holder
-- Kel-F (PCTFE) cantilever holder for fluid
operation, specifically in conjunction with
second generation Dimension EC
accessory
⁃ Enables contact mode, TappingMode
ScanAsyst, PeakForce-QNM
-- Provides highly-efficient direct drive for
TappingMode in fluid by a small built-in
piezo
Tilted glass window enhances optical
view of sample surface
‣- Provides a seal against the second
generation Dimension Icon/Edge EC cell
-- Included with the second generation
Dimension Icon and Edge EC accessories
(Models ICONEC-V2-NOPOT, ICONEC-V2-
POT-100V, -110V,-220V, EDGEEC-V2-
NOPOT, EDGEEC-V2-POT-100V, -110V,
-220V) but available as a spare part
-- REQUIRES one of the second
generation Dimension Icon or Edge EC
accessories (see model numbers above)
