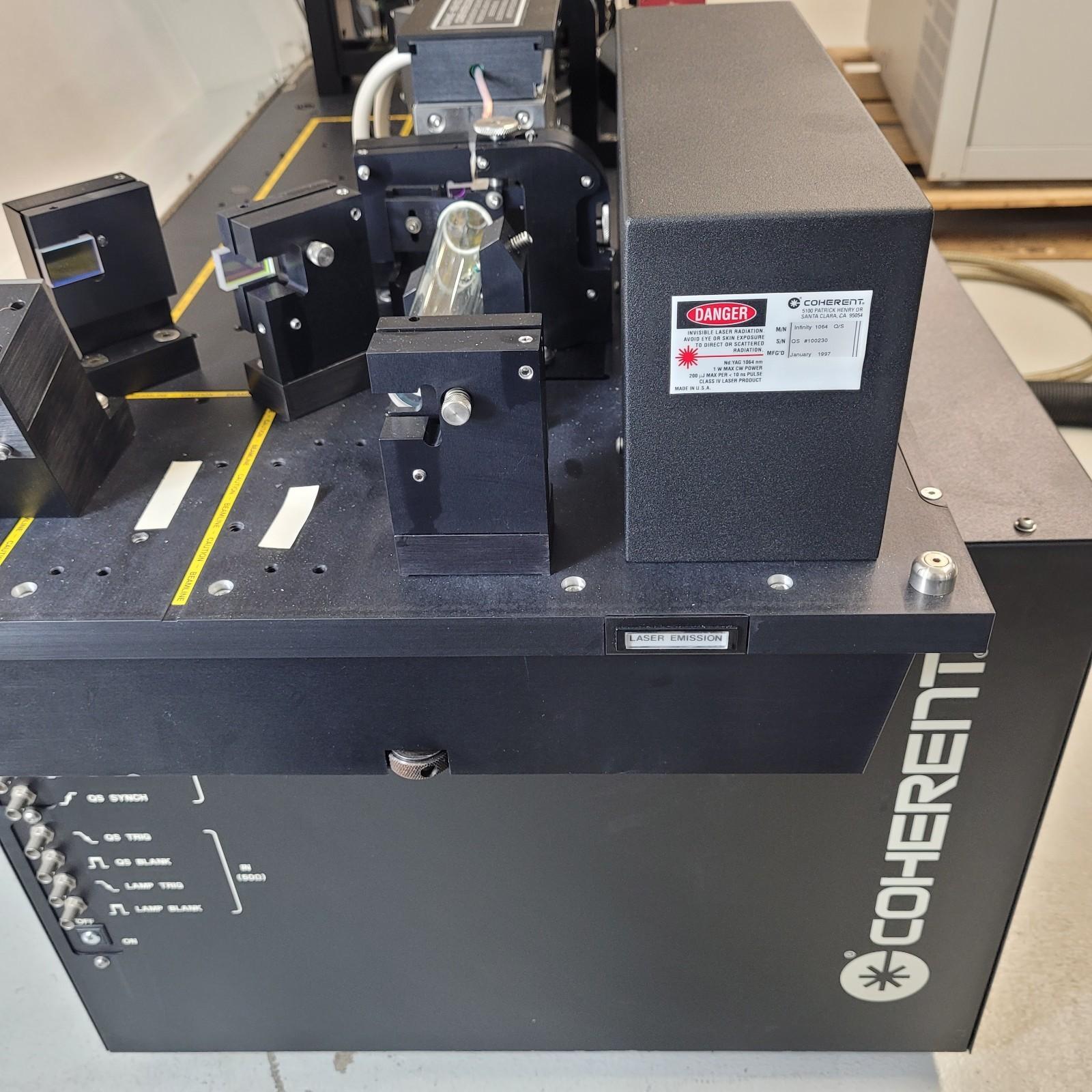

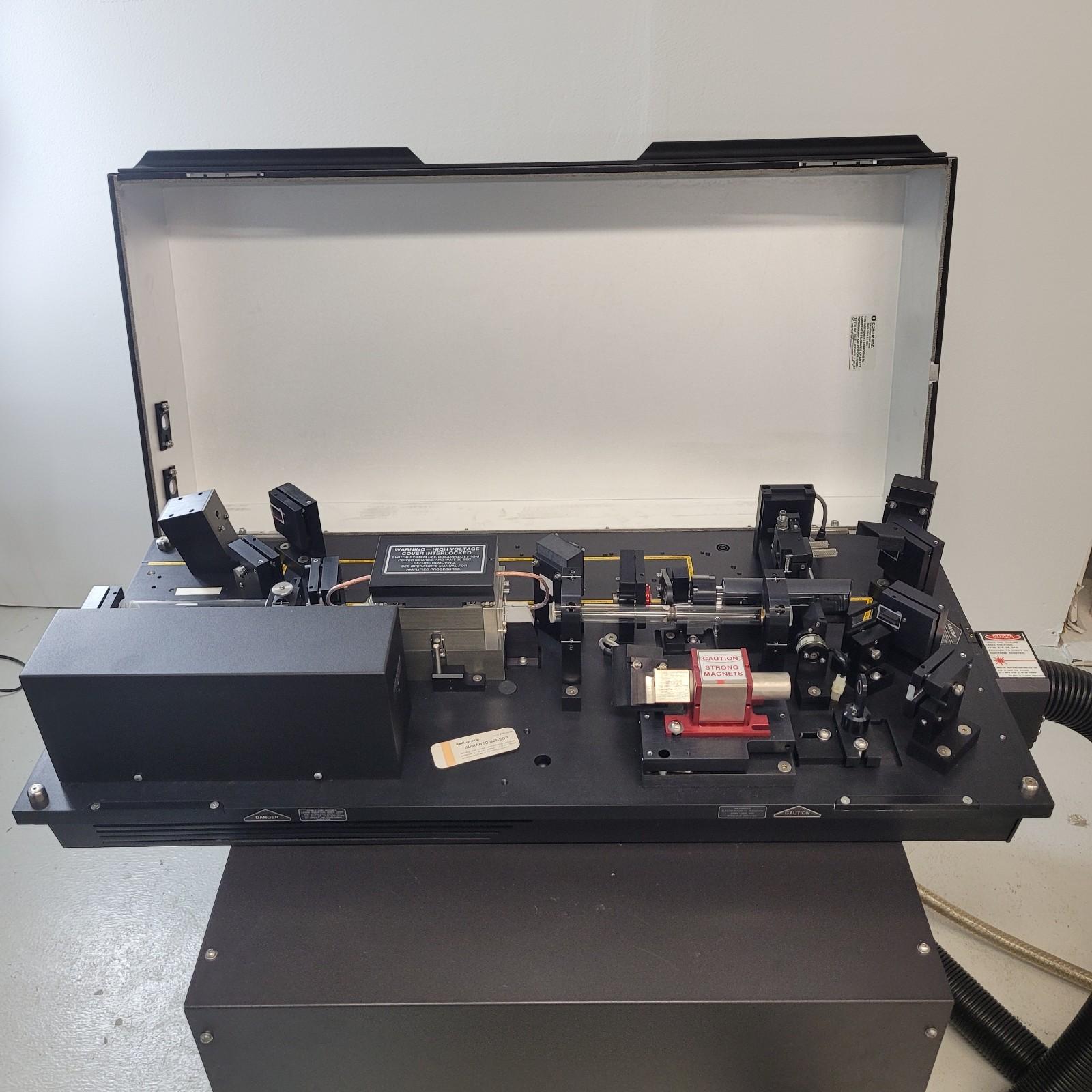

Not tested, received along with other equipment that was tested and worked, we do not have 3 phase power to test this laser. Some parts appear to be missing in the laser head, which is why this system is sold as "For Parts or Not Working" condition.
Details/specifications:

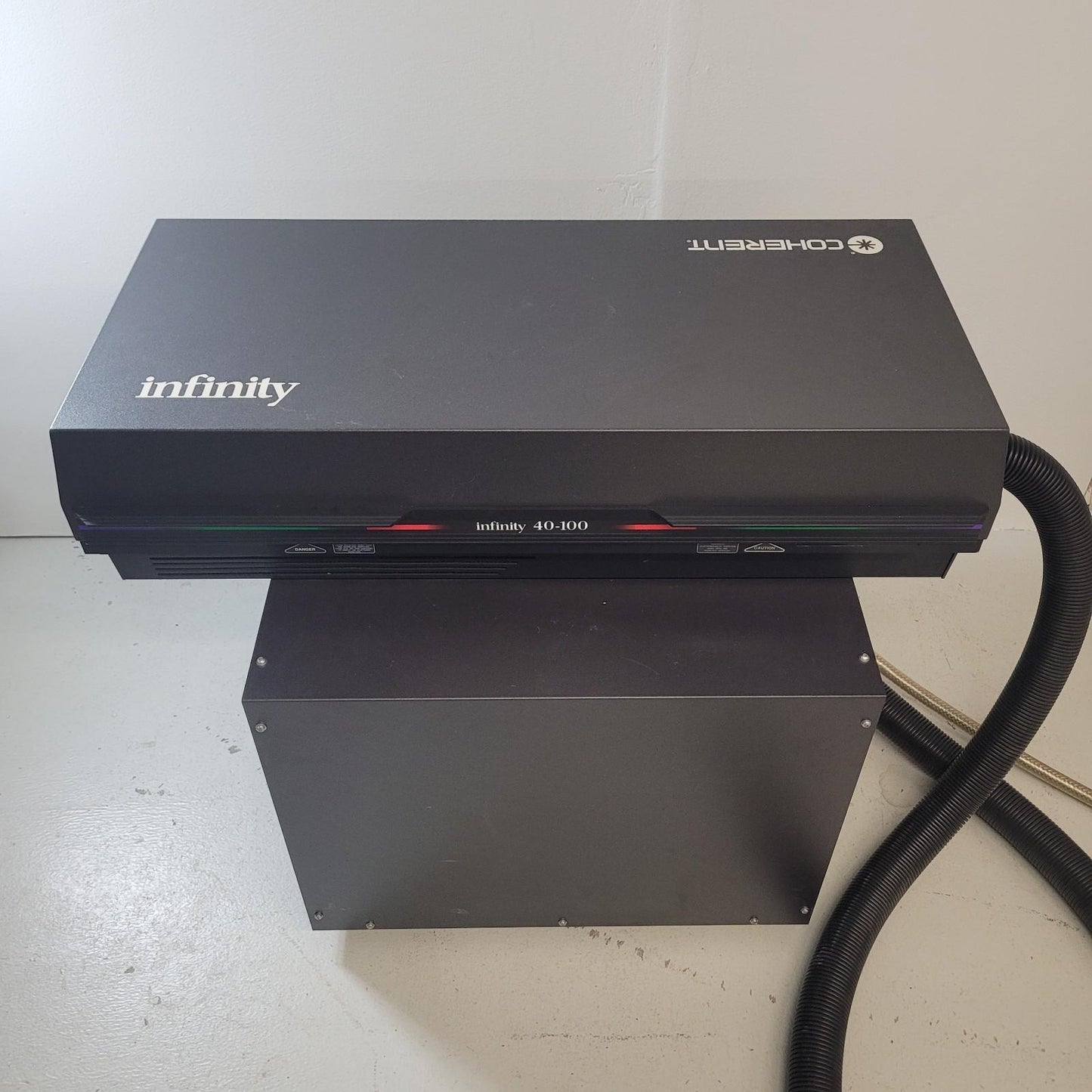

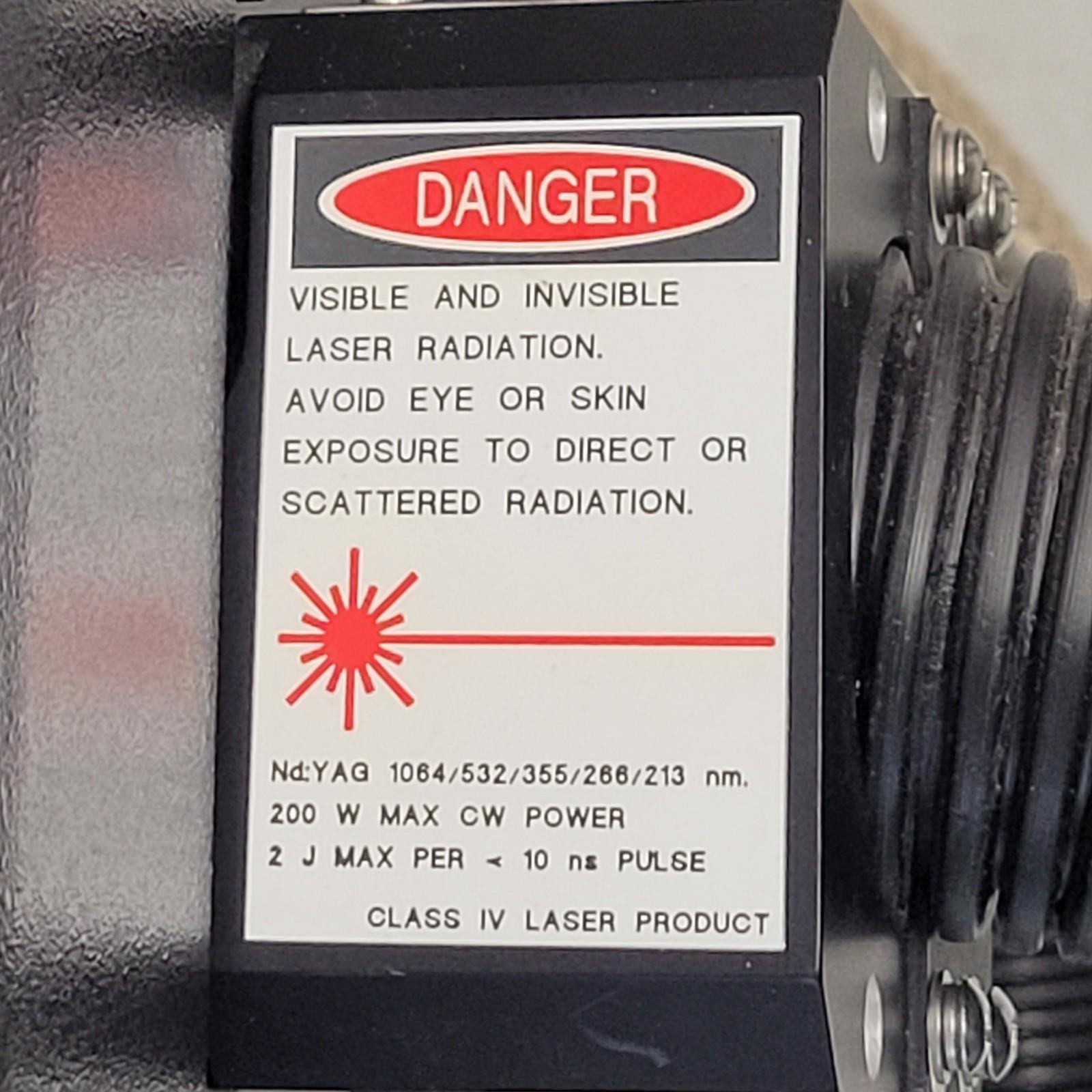

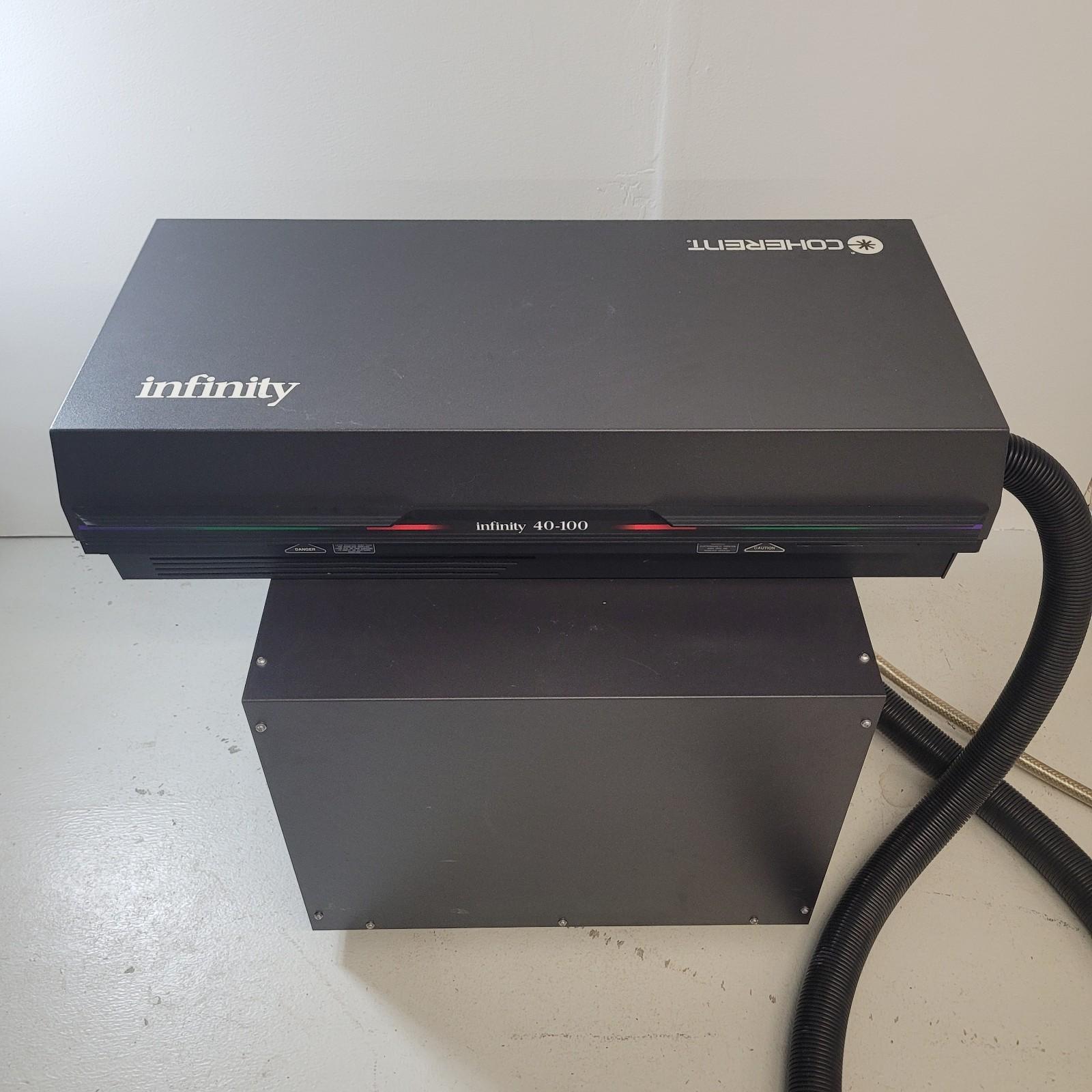

Q-switched pulsed YAG laser
Capable of 1064/532/355/266/213nm wavelengths
Rating:
0.1-50 Hz rep rate:
500 mj/pulse at 1064 nm
250 mj/pulse at 532 nm
Pulse width of 3.5 ns at 1064 nm, and 3 ns at 532 nm
50-100 Hz rep rate:
400 mj/pulse at 1064 nm
200 mj/pulse at 532 nm
Divergence, full angle: < 9.7 mrad
Line width: single longitudinal mode < 2x transform limit due to diode pumped injection seeded oscillator
Single shot: < 250 MHz
Timing jitter: < 500 psec

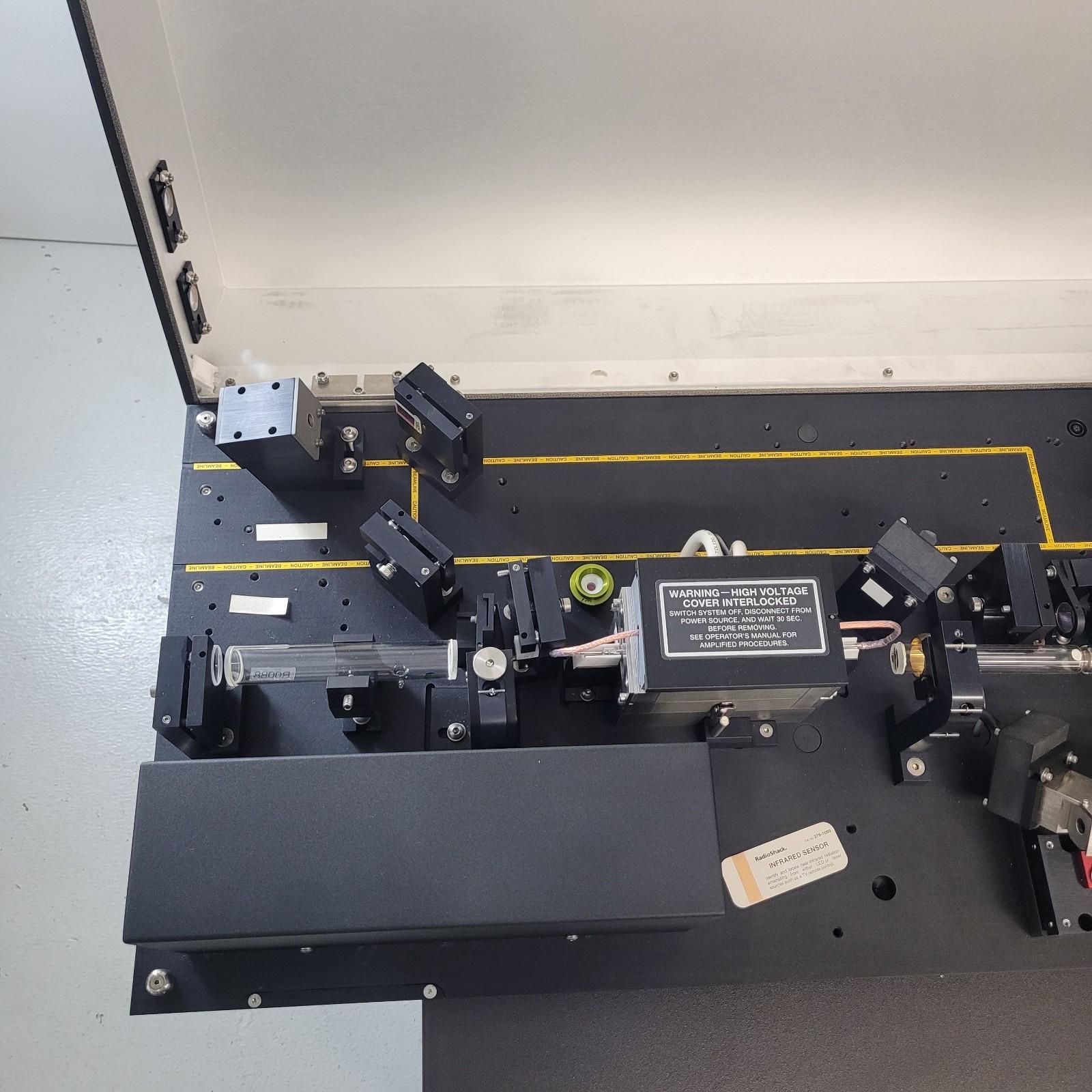

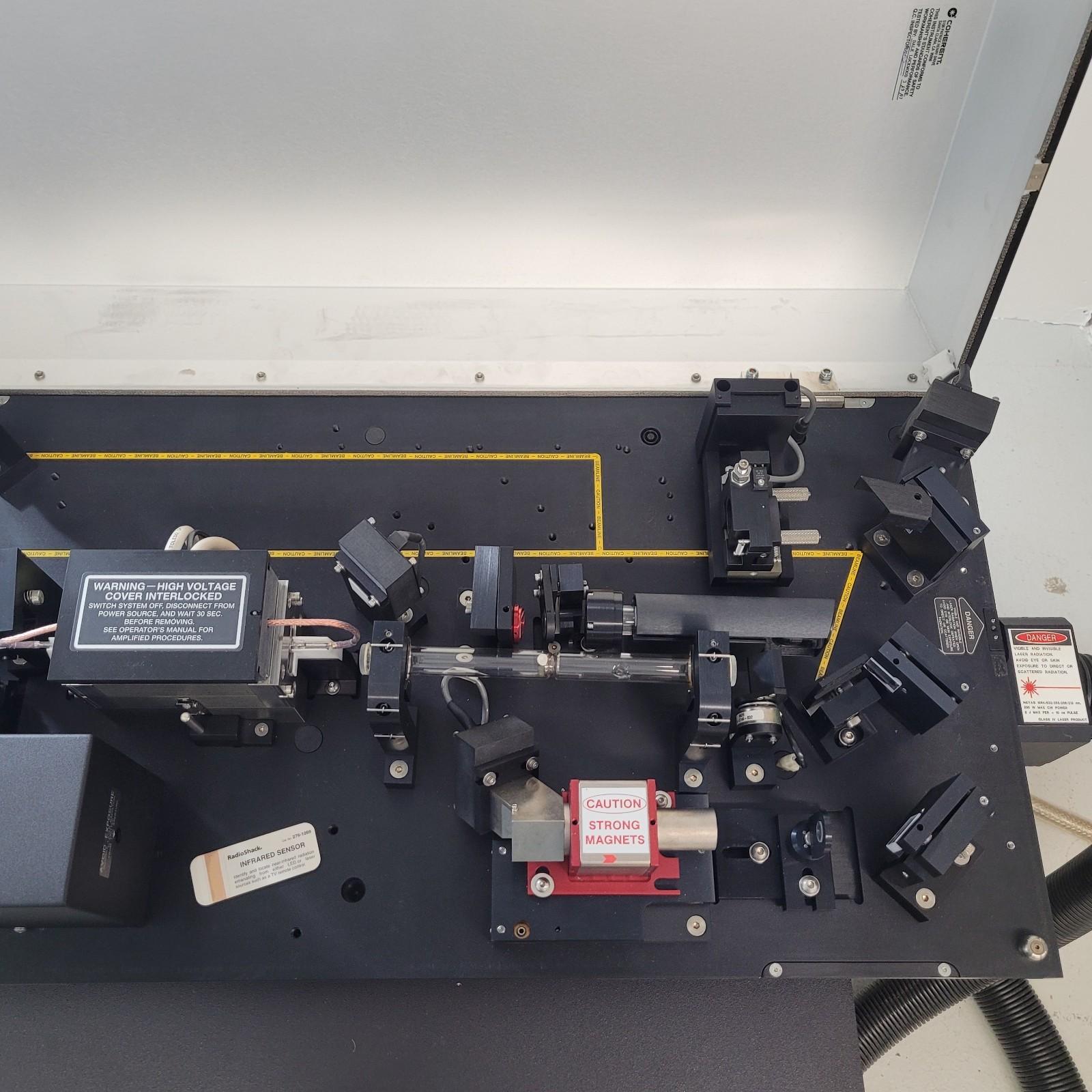

SBS cell (phase conjugate mirror) for wave front phase correction
Output beam size: 5.5mm
Ships via freight due to size and weight, will be partially disconnected for shipping. Buyer is responsible for freight shipping costs.
