Custom KF25 NW25 Vacuum Manifold Plate w/ 1/2in Swagelok VCO Multi-Port

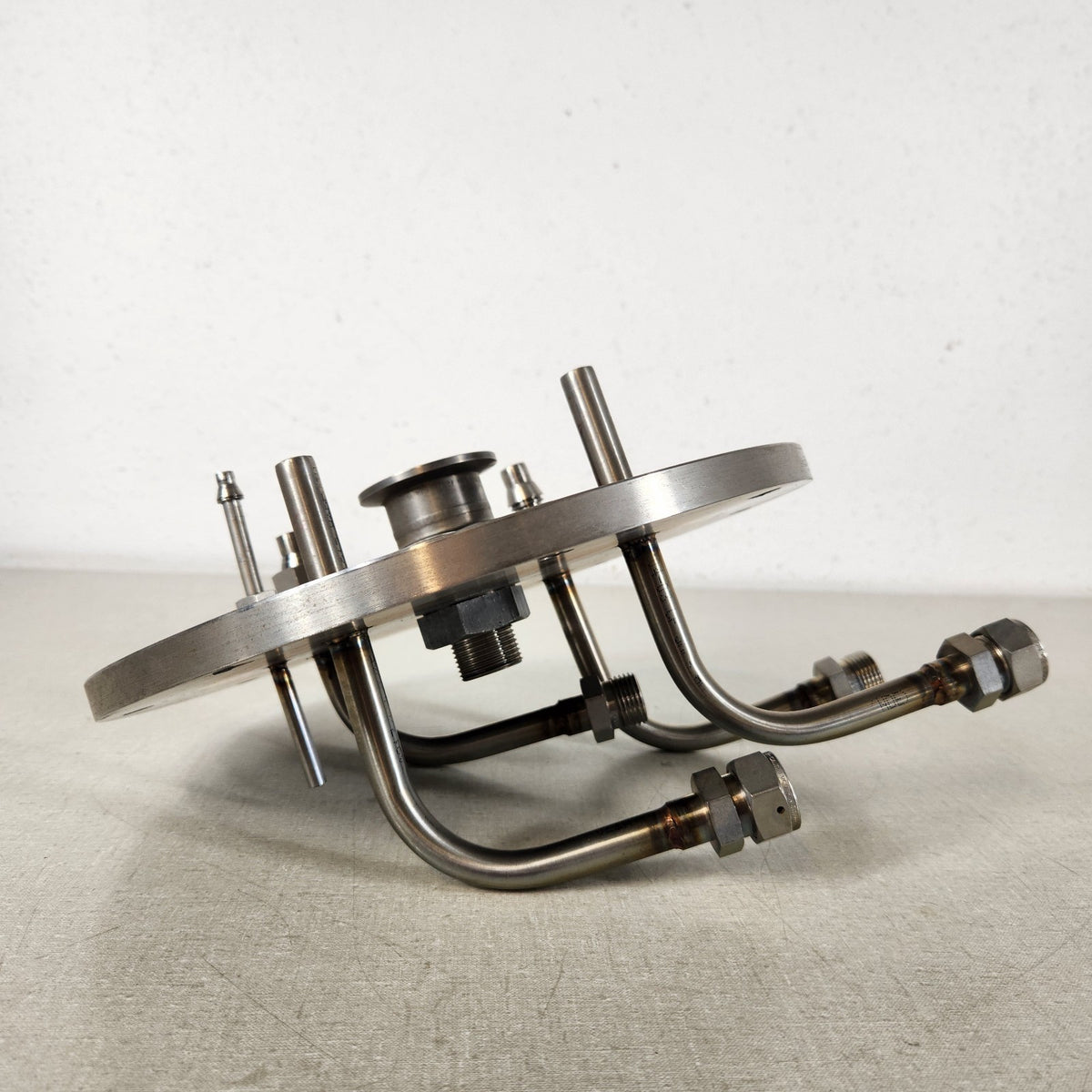

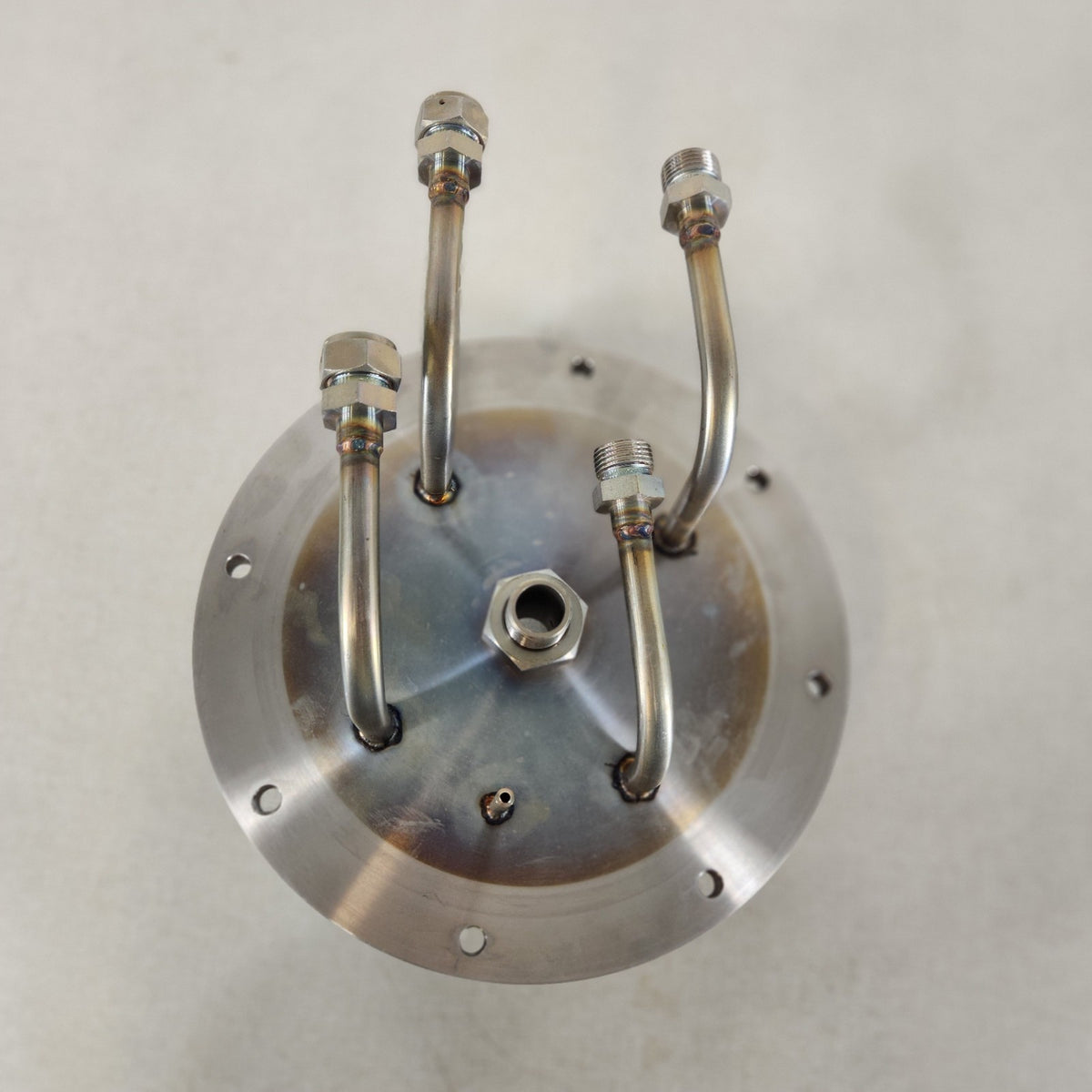

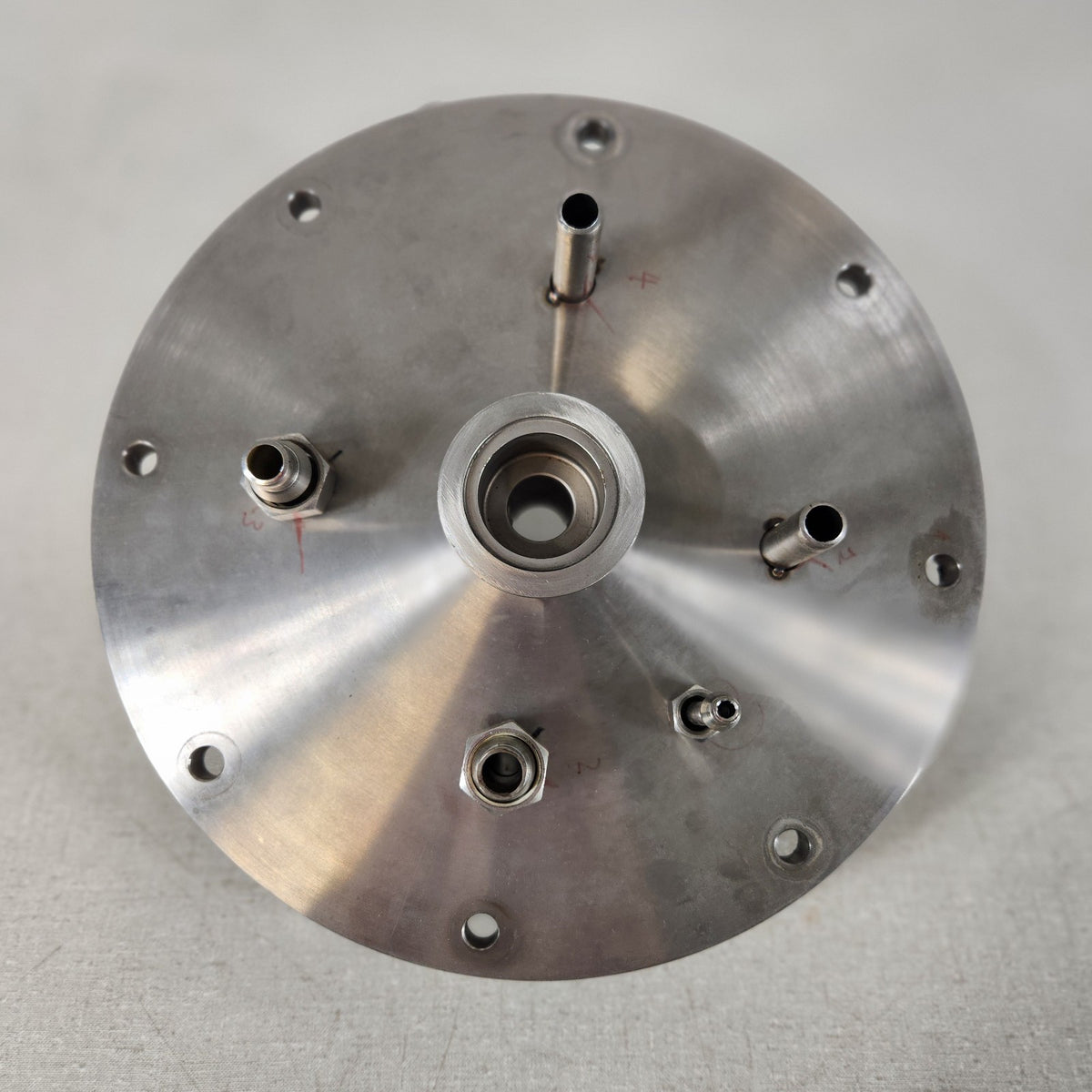

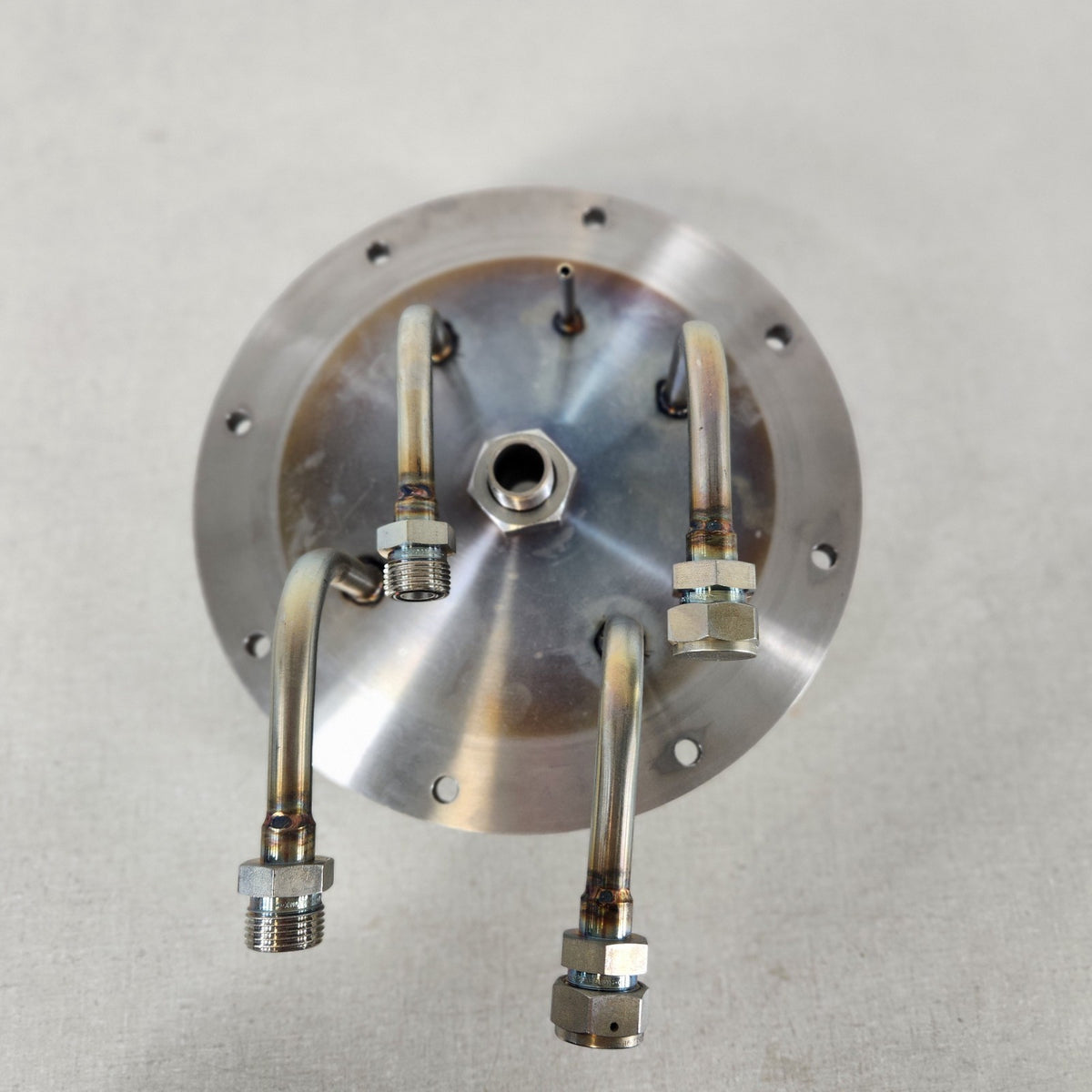

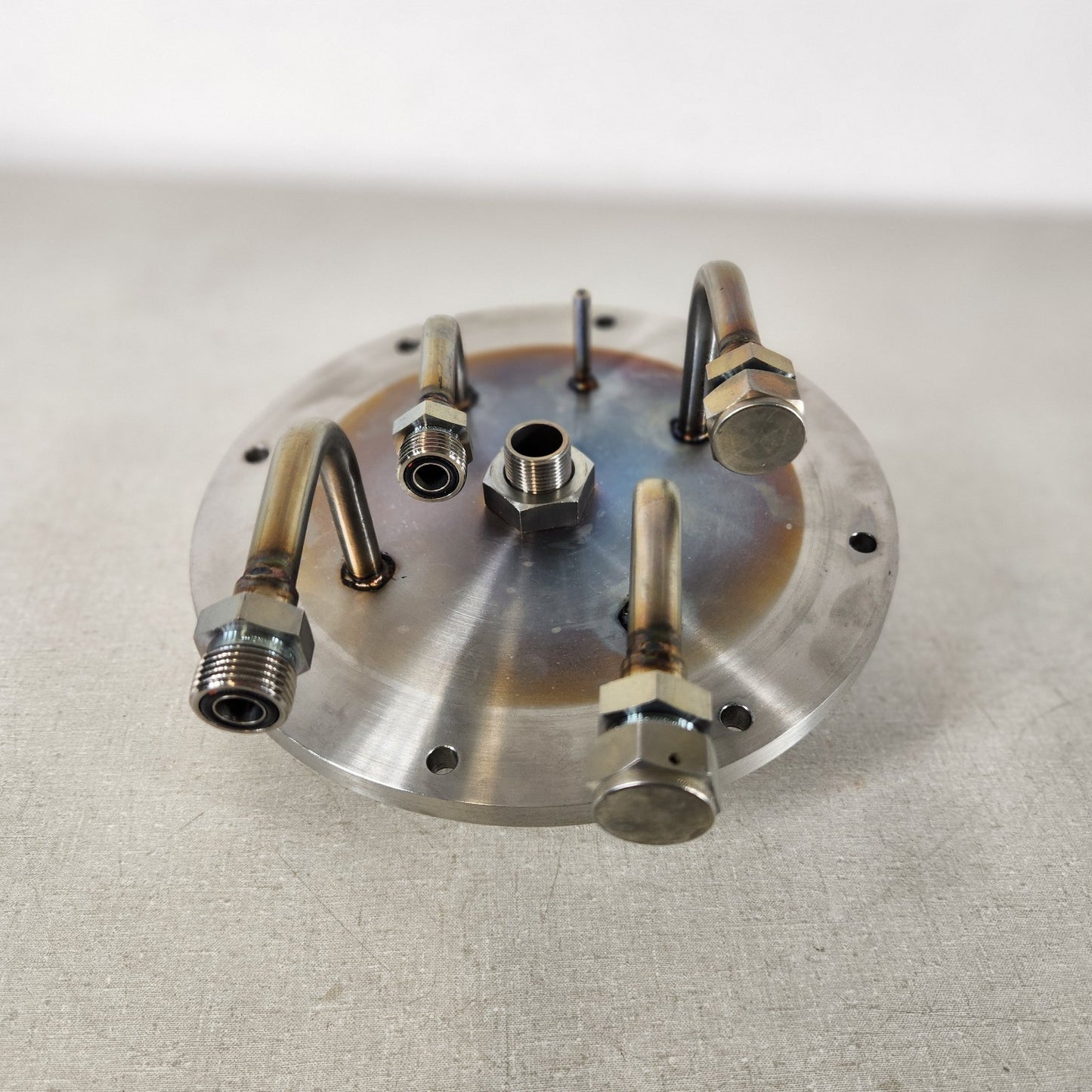

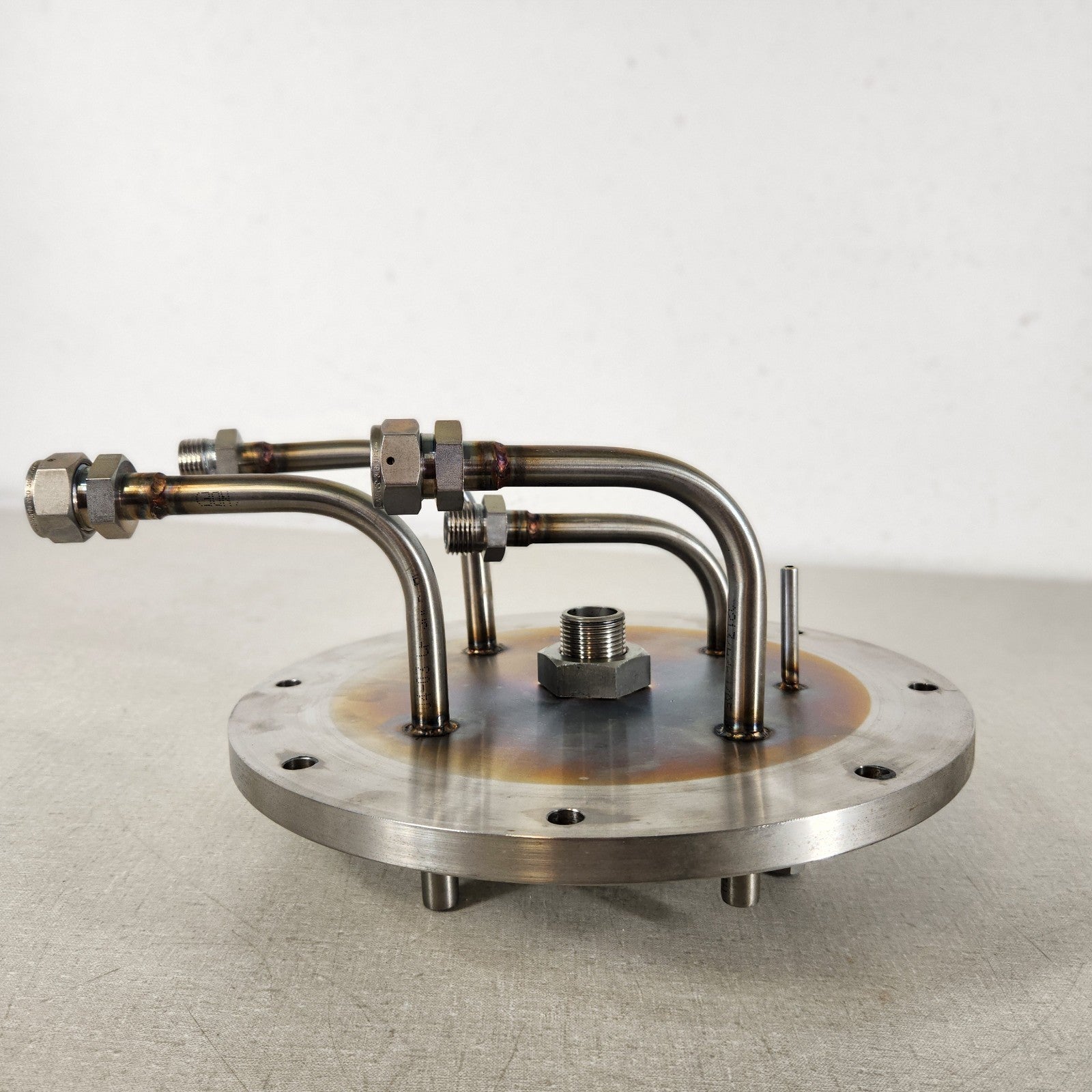

Custom Steel High Vacuum Chamber Lid Plate Multi-Port Feedthrough Manifold.

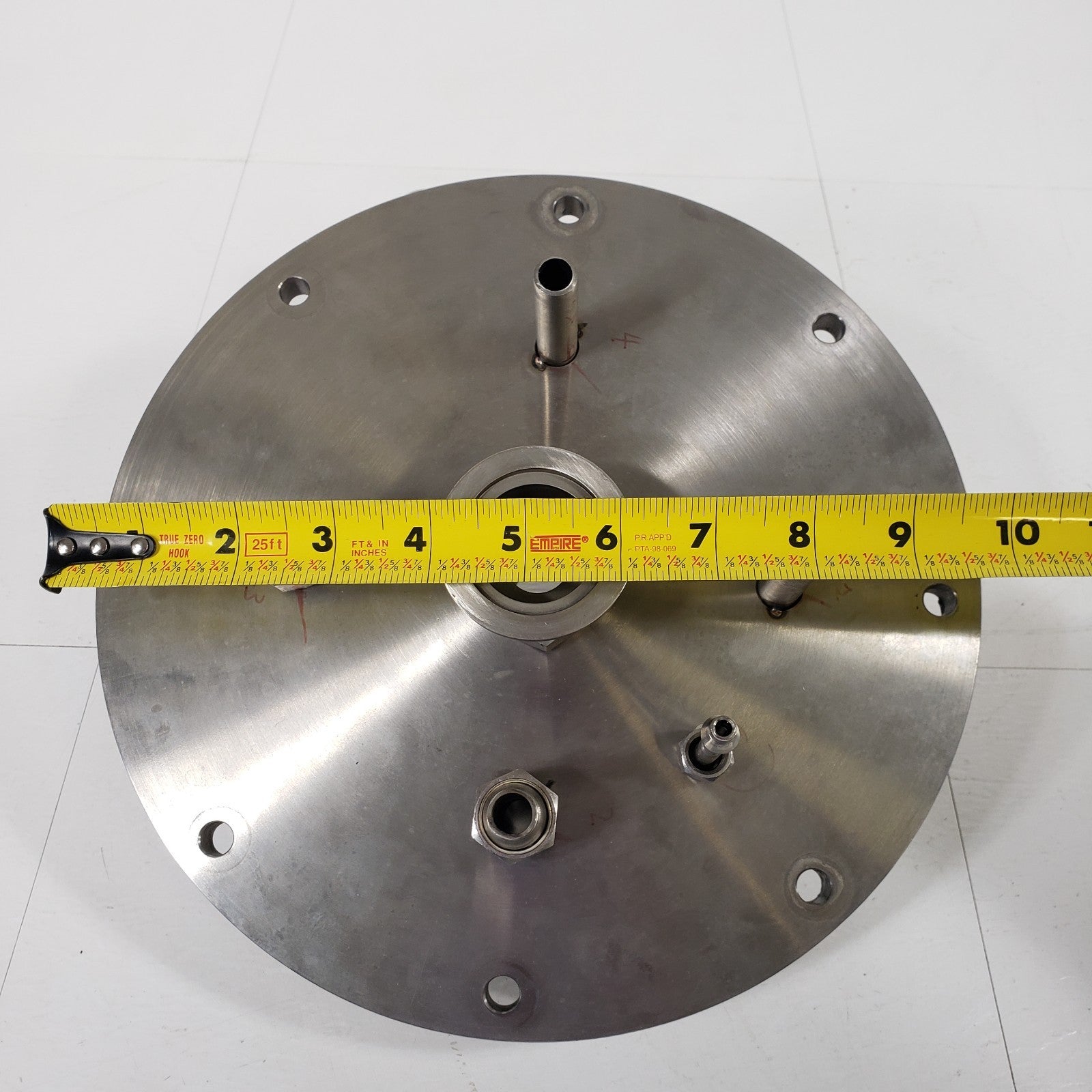

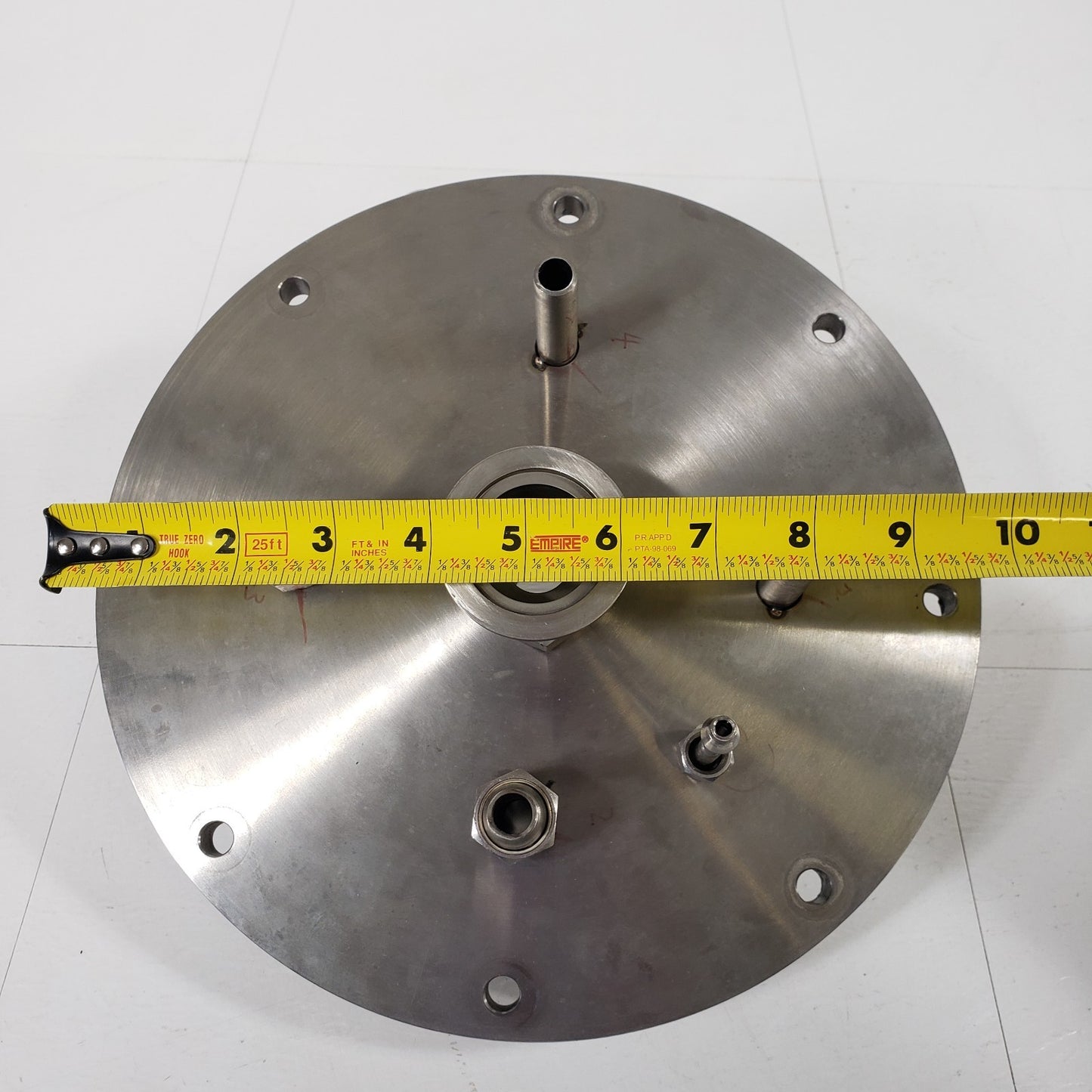

Used, see photos. Outer diameter of the flange is about 10-1/2".

Fittings attached to the tubing include:

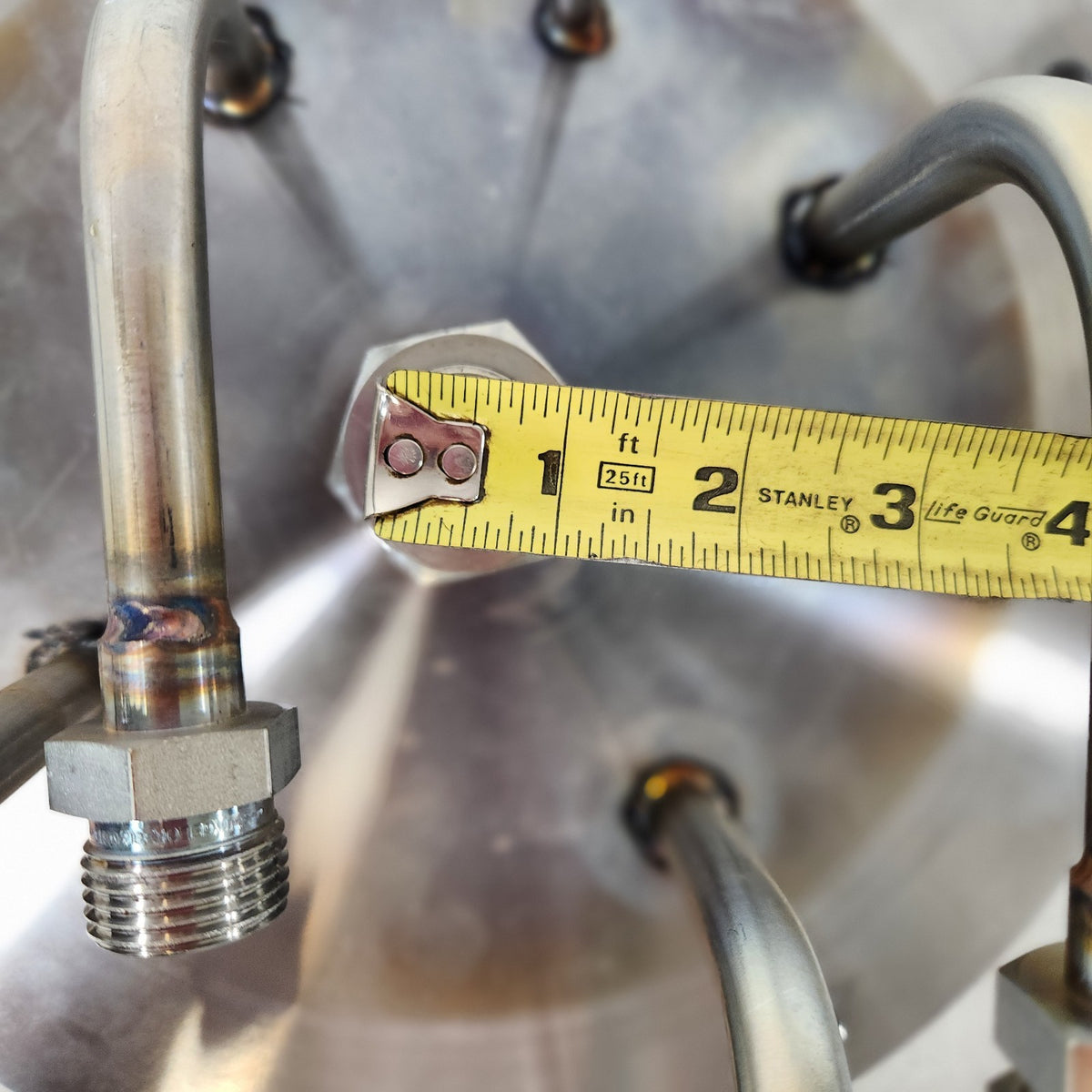

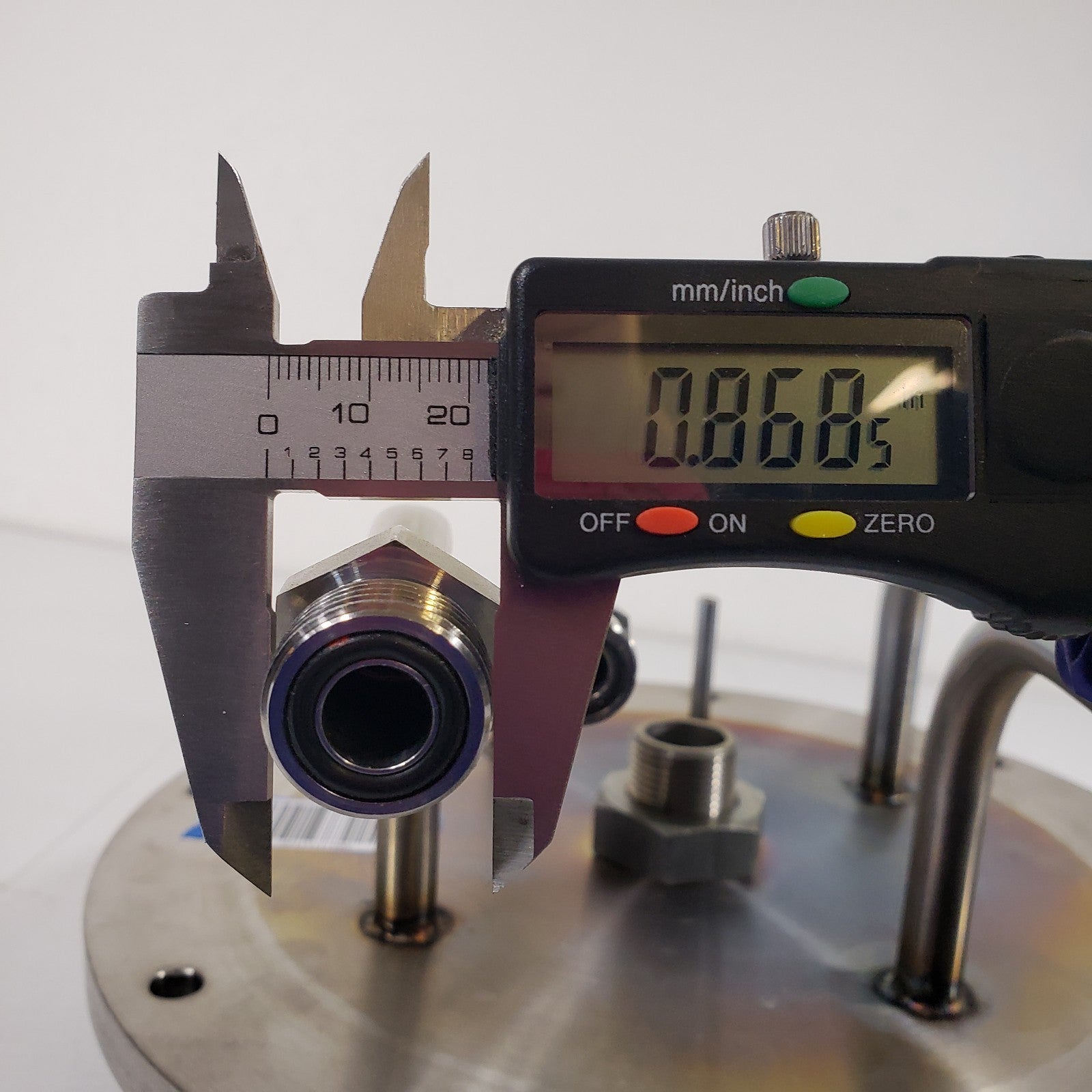

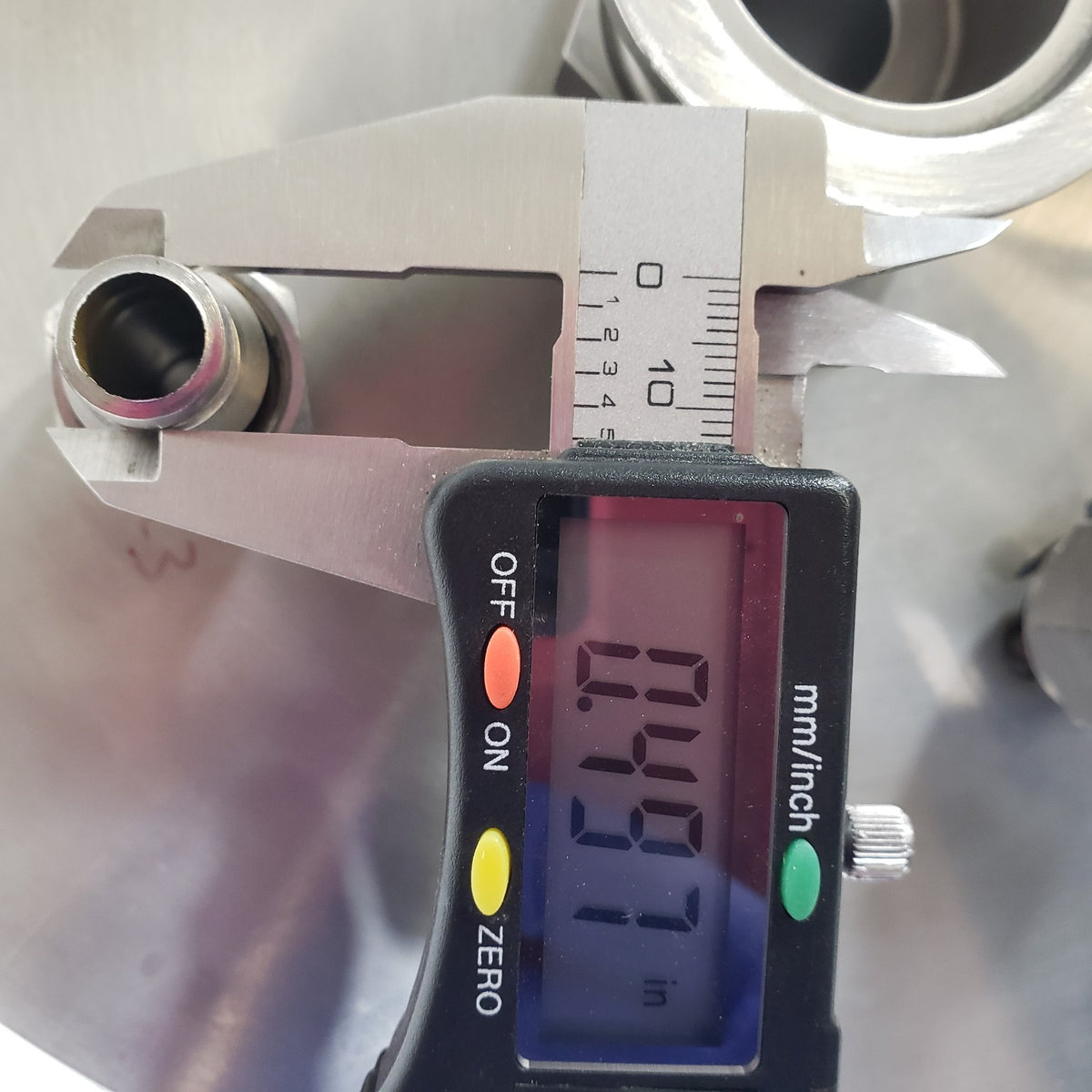

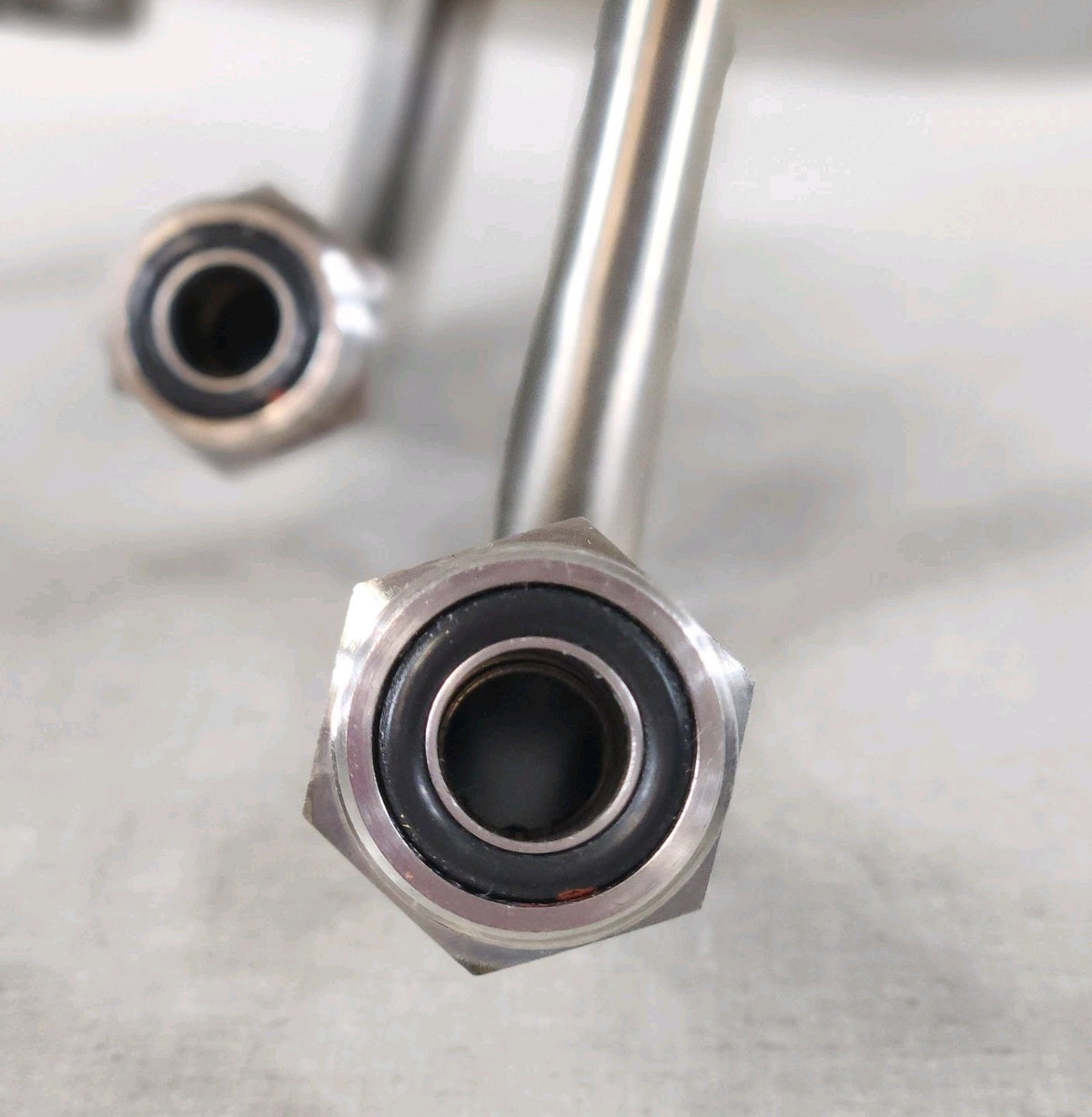

-4x 1/2" VCO fittings on 1/2" tubes

-1x KF40

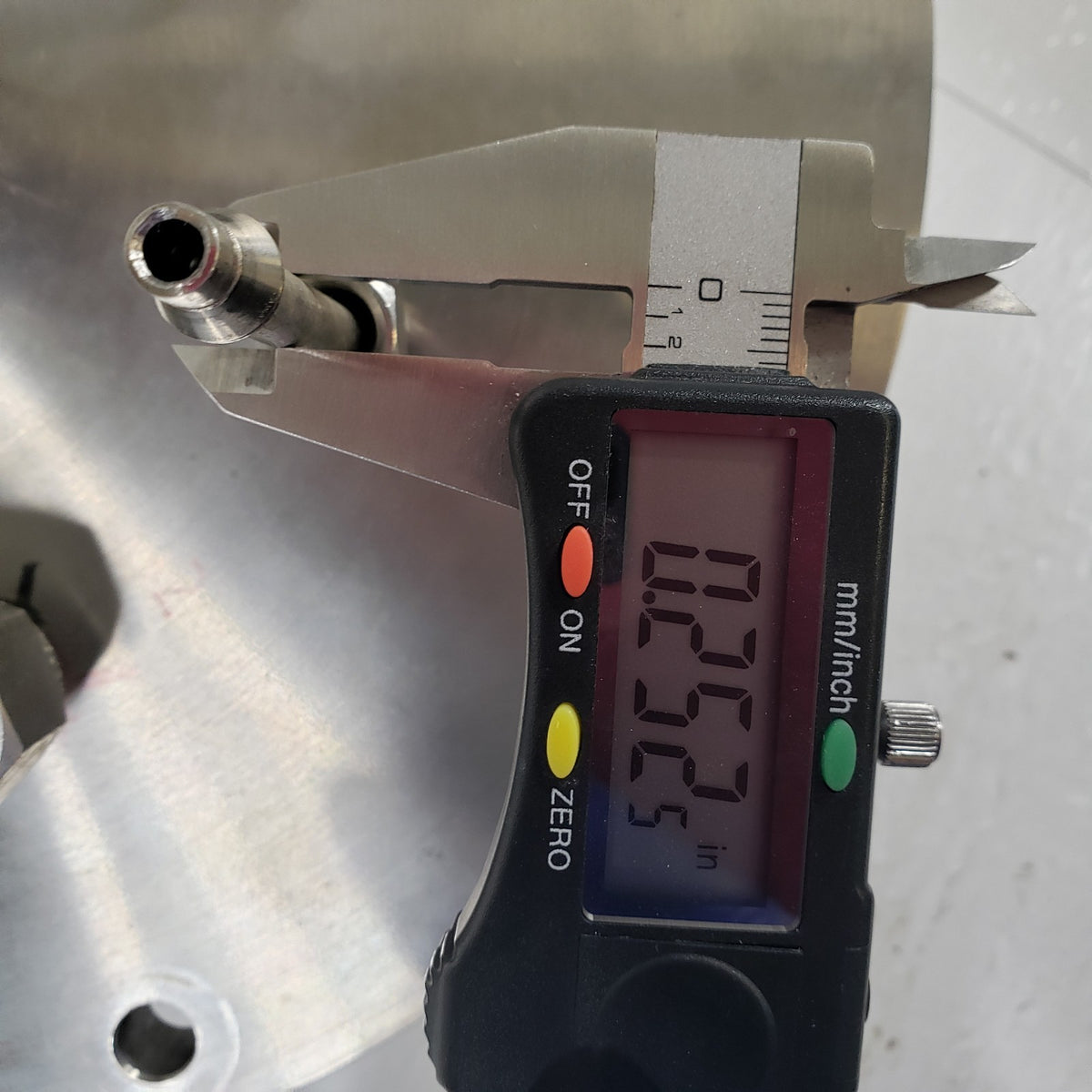

-1x 1/4" Tube

-AE
