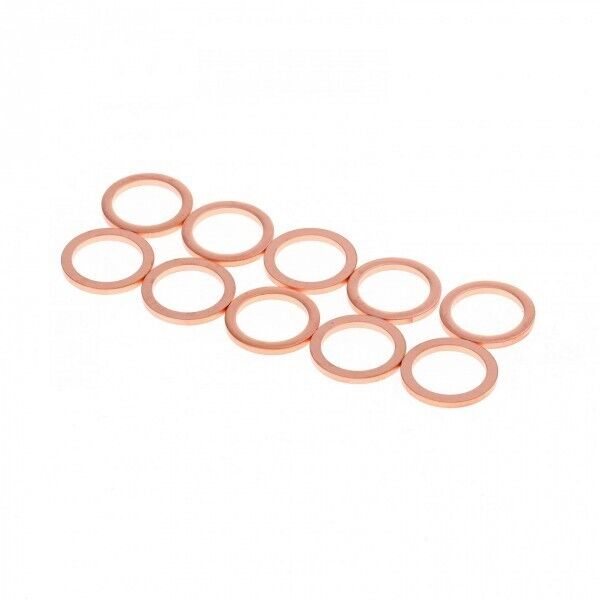

Pack of 10- DN100CF 6" CF Conflat Flange Copper Gasket CF100 UHV Vacuum
Brand new, unopened gasket. Includes 10 gasket per item quantity.

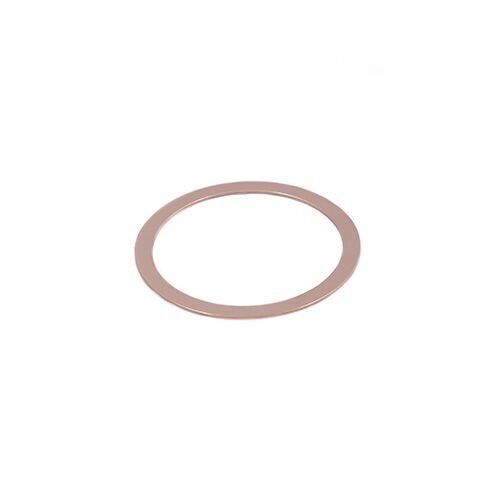

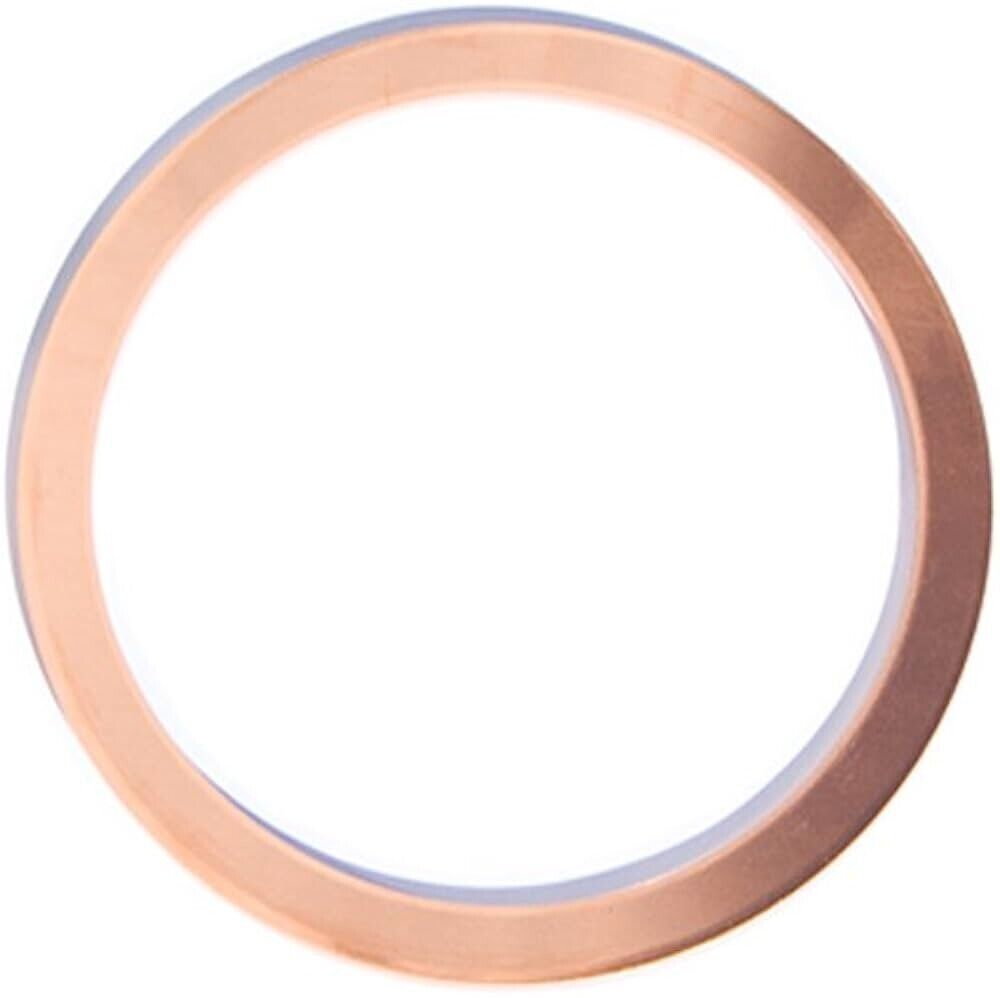

The most commonly used gasket for stainless steel CF flanges. Punched from hard, high purity, oxygen-free (OFHC) copper stock. The gaskets are then cleaned and processed to minimize scratches and burrs. Maximum Bake-out Temperature is 450° C.

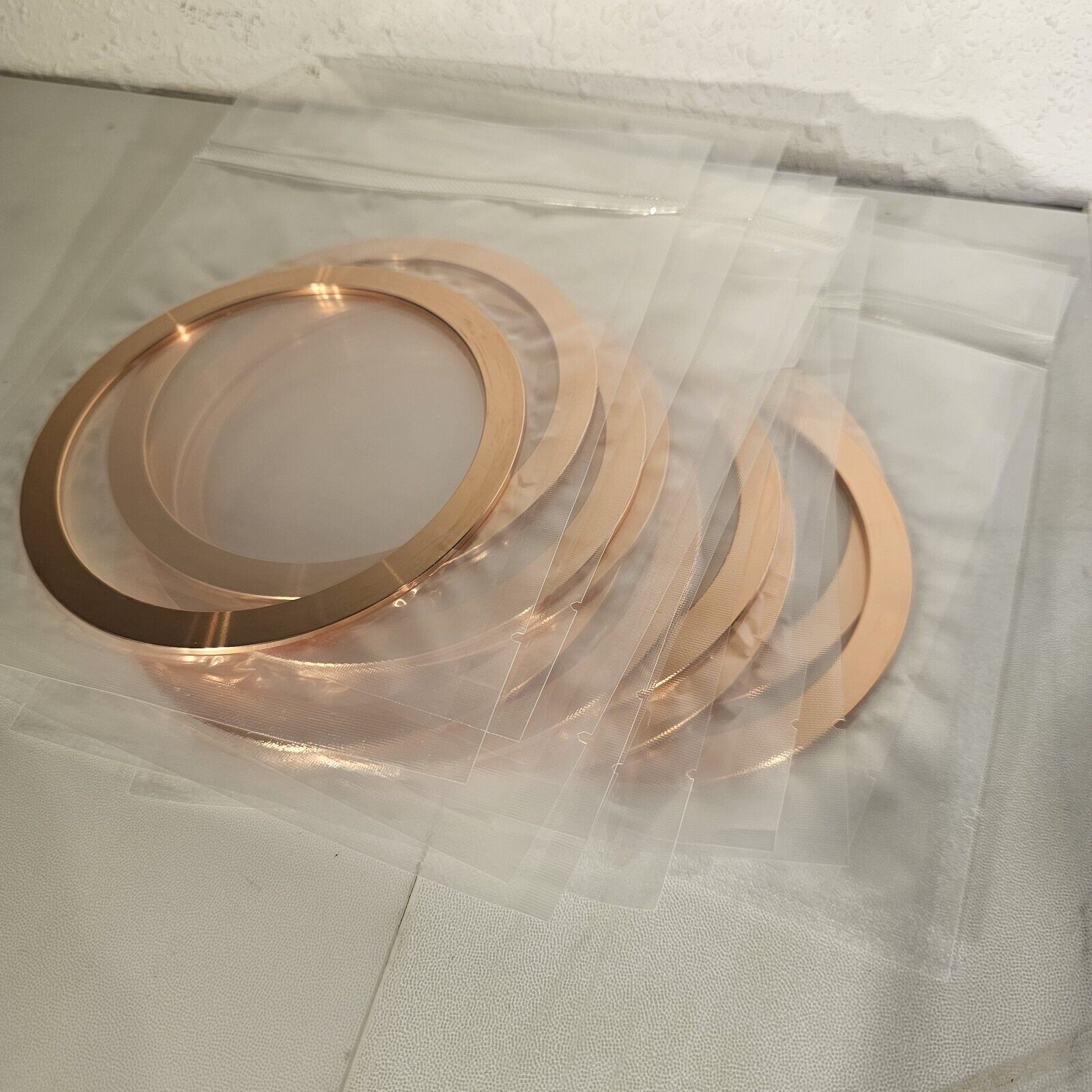

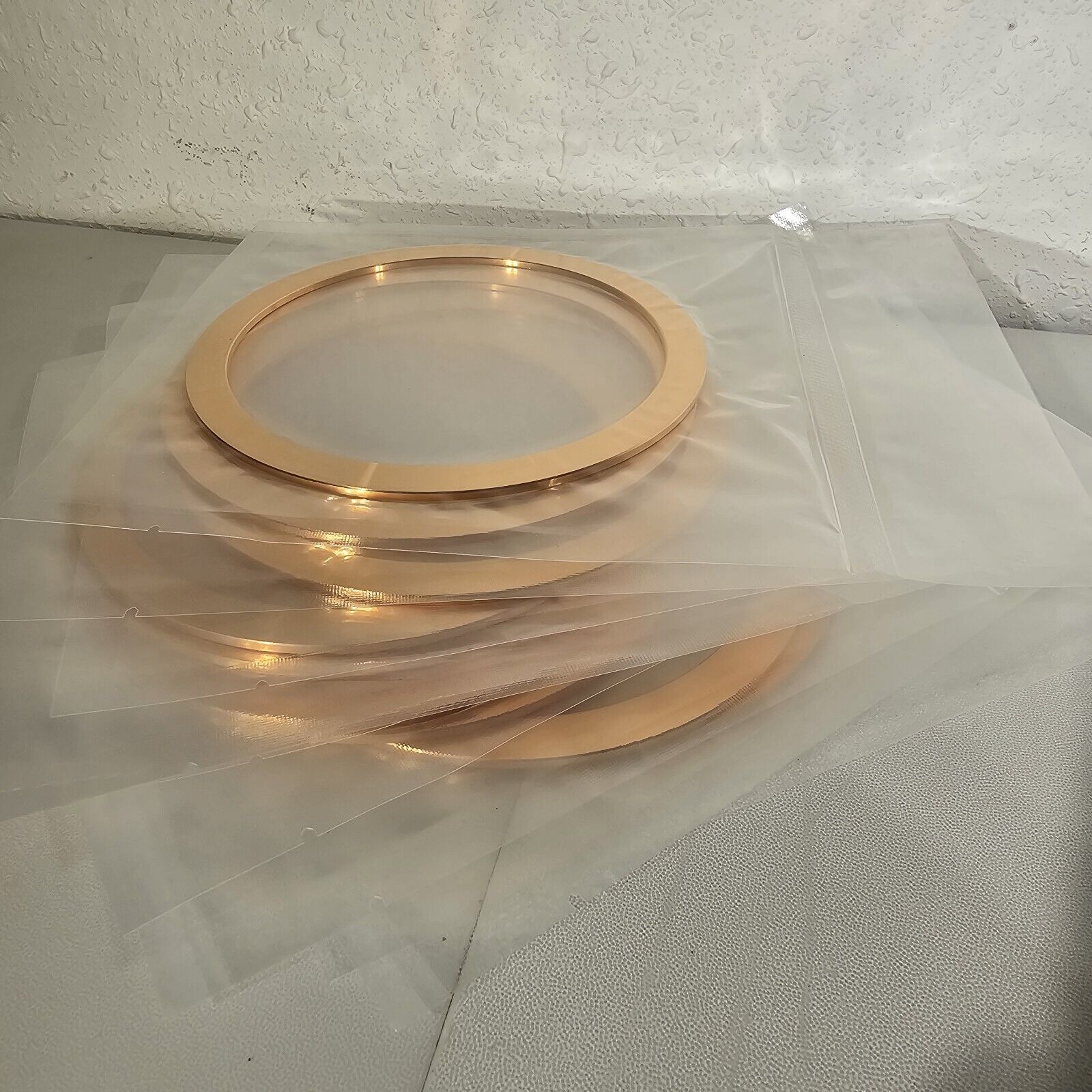

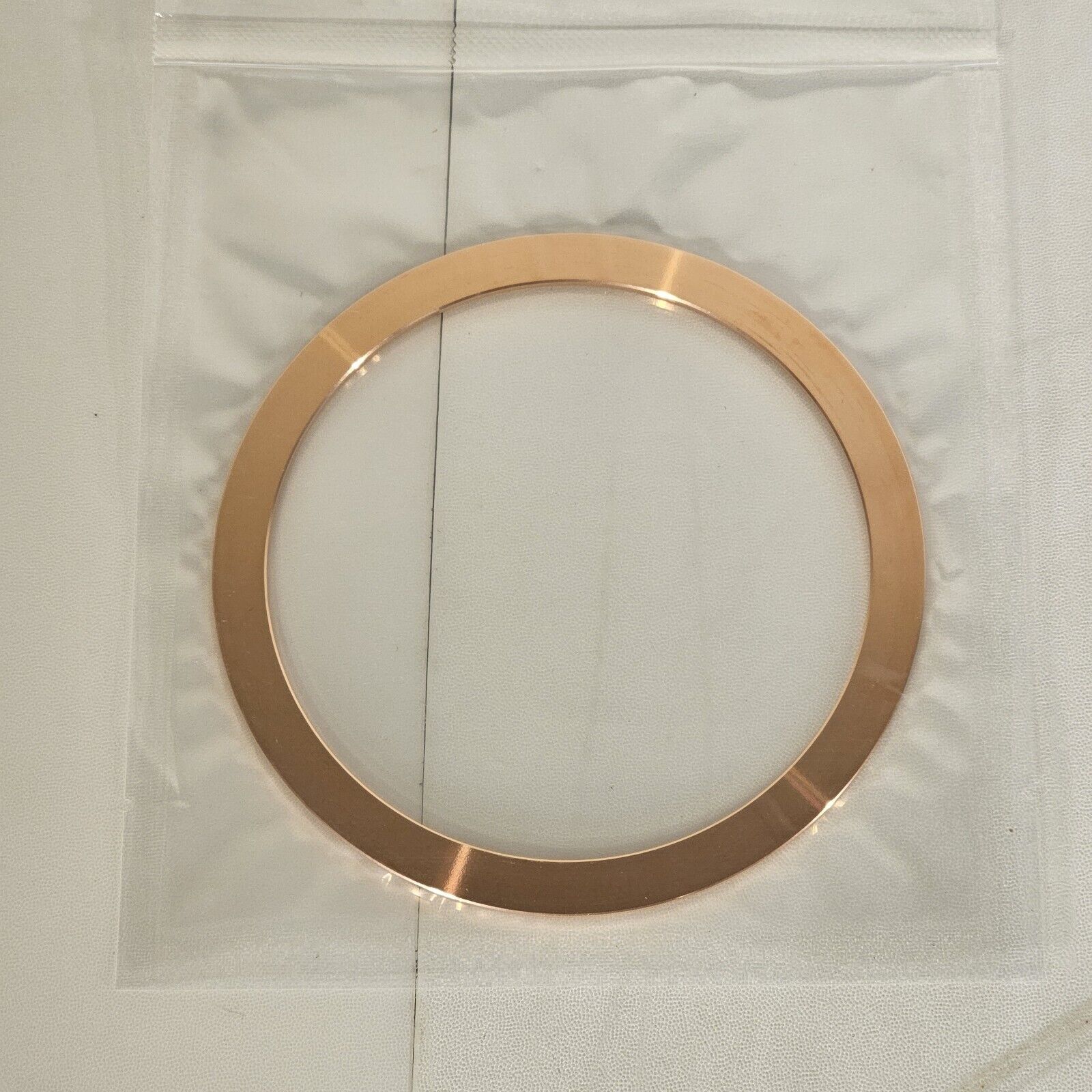

All-metal gaskets are individually packaged.
Material: OFHC Copper

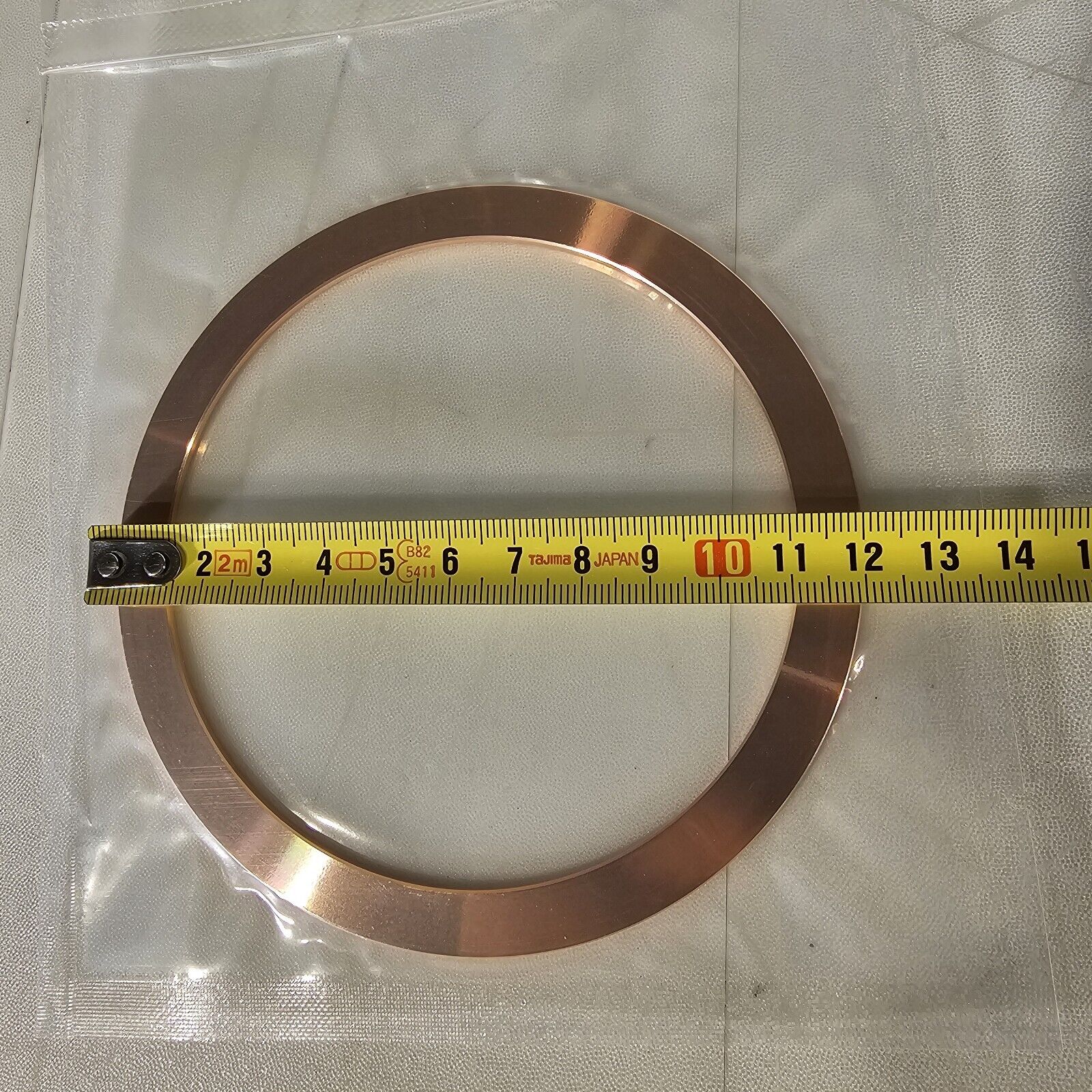

Flange OD: 6.00 in.
Gasket ID: 4.010 in.
Gasket OD: 4.743 in.
Gasket Thickness: 0.08 in.
Max vacuum pressure: approximately 1.0E-13 Torr
Cross-reference part numbers: P102281 GA-0600 200850 G-600 191013 VZCUA100 CF600-GA-CO-SD CF6.00-CU PN14562 14562 CF600-GA-CO 600-CG CF-CS-600 ES83945 GK-400
6" OD CF Conflat Flange Equivalents: 600CF, CF100, CF600, DN100CF, NW100CF
We also sell 2.75" CF copper gaskets, 2.75" CF FKM rubber gaskets, 6" CF copper gaskets, and many more parts in our online store!
