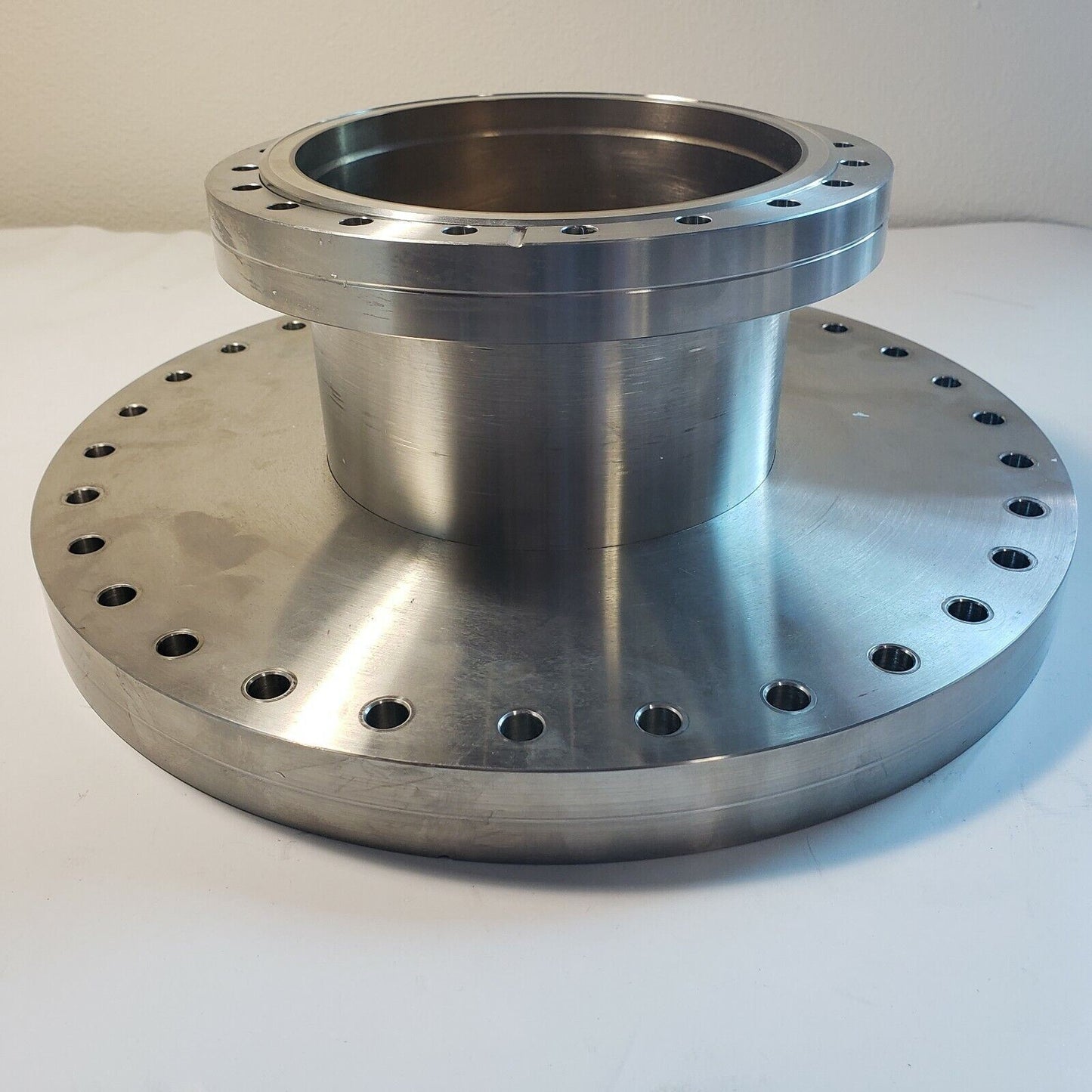

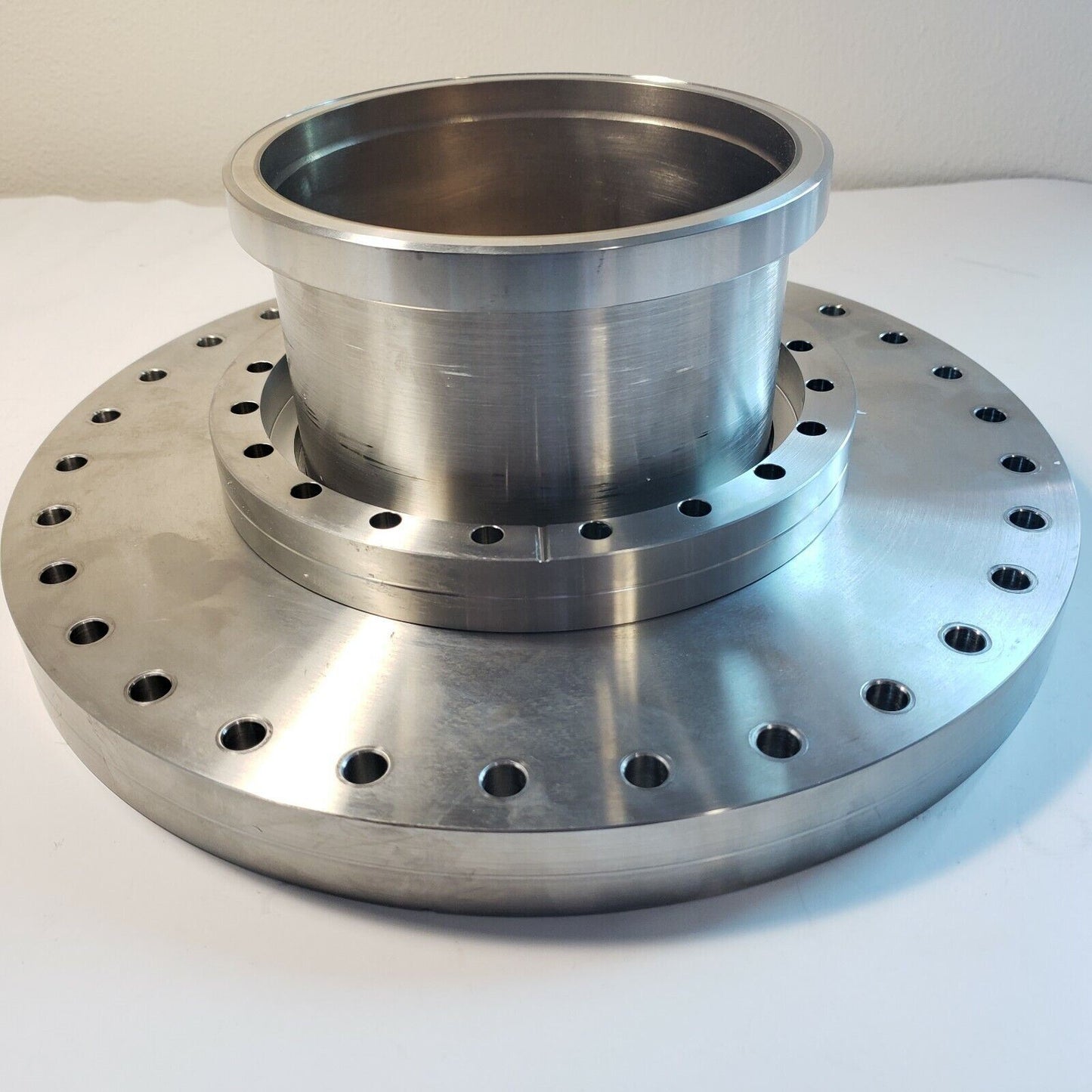

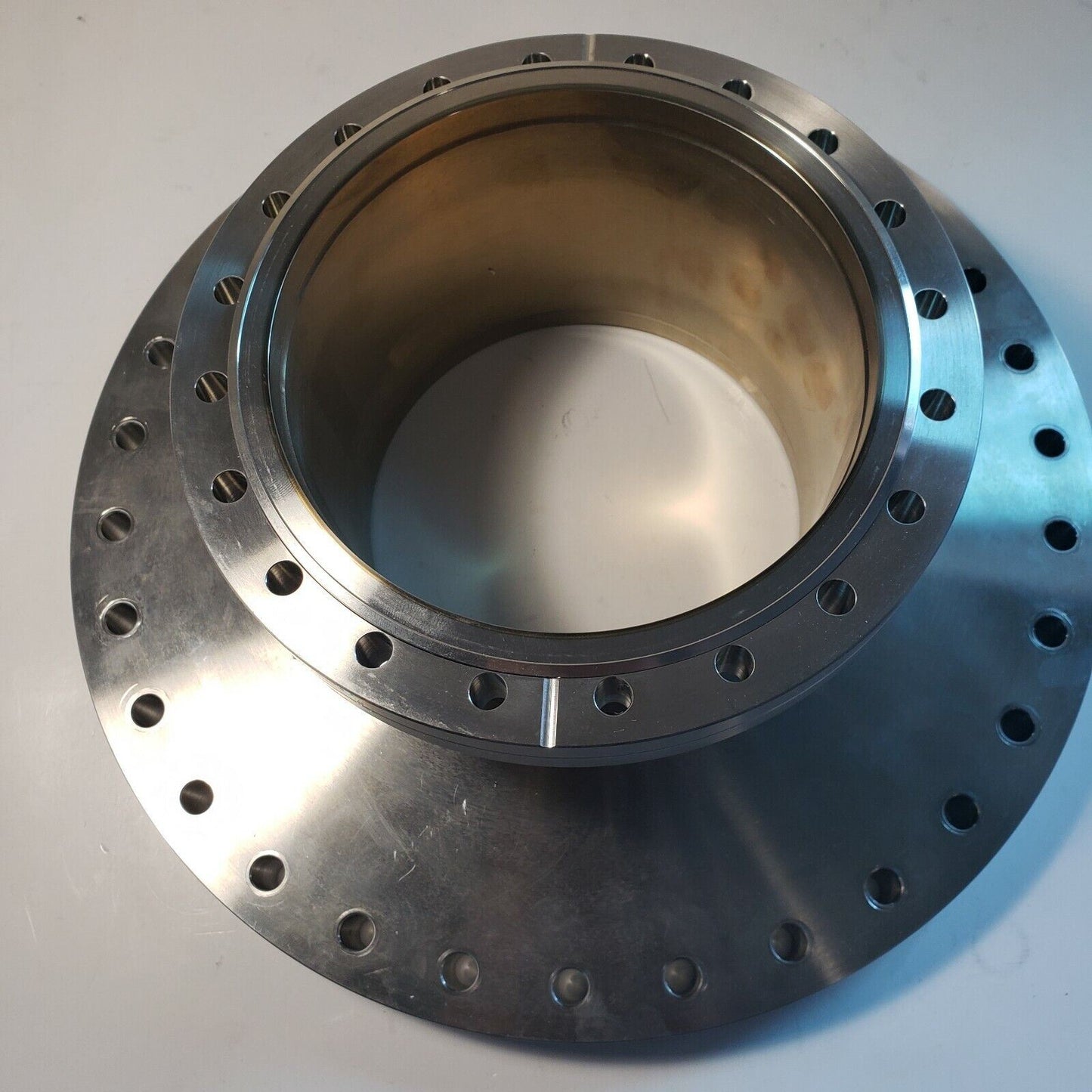

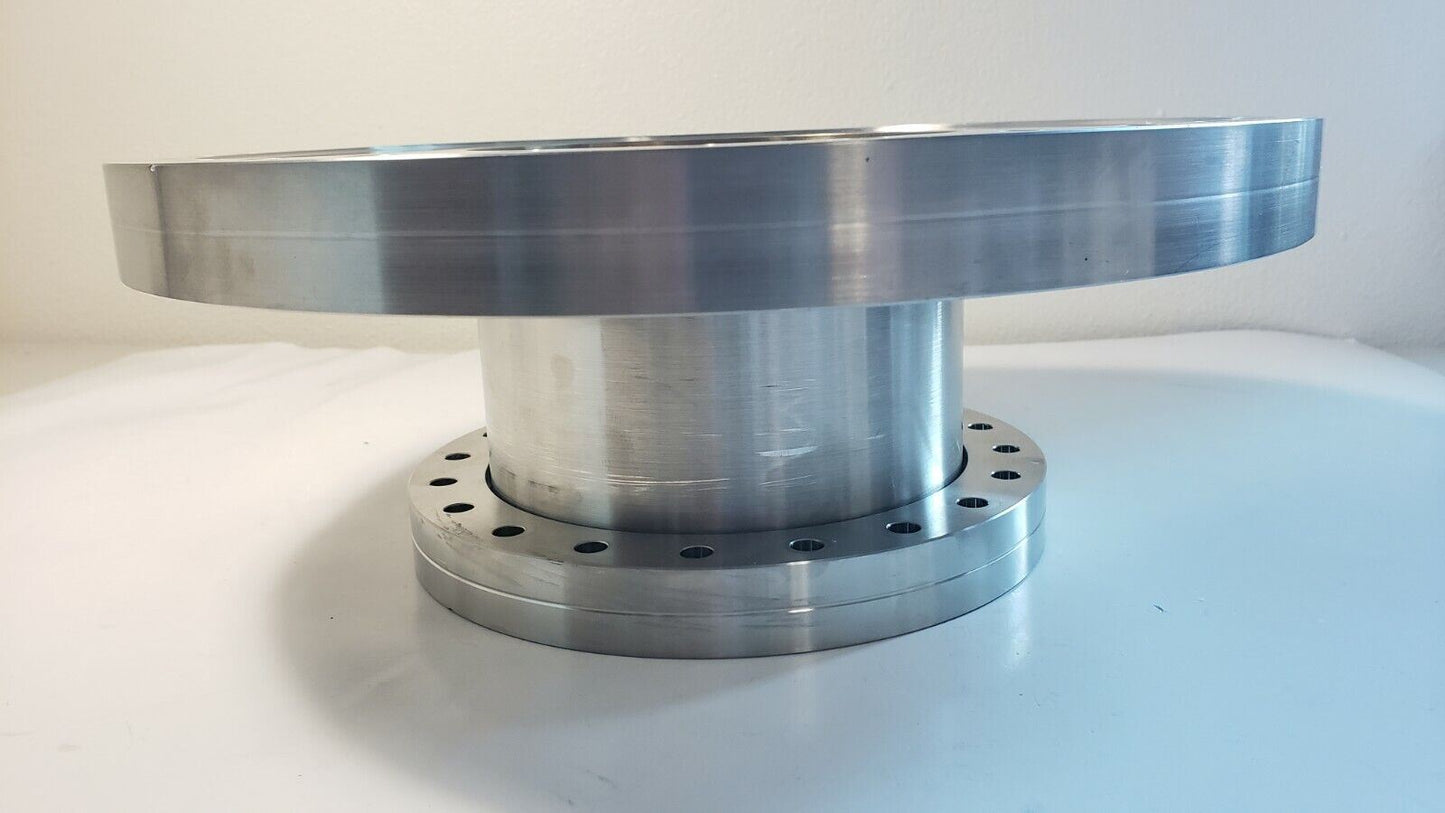

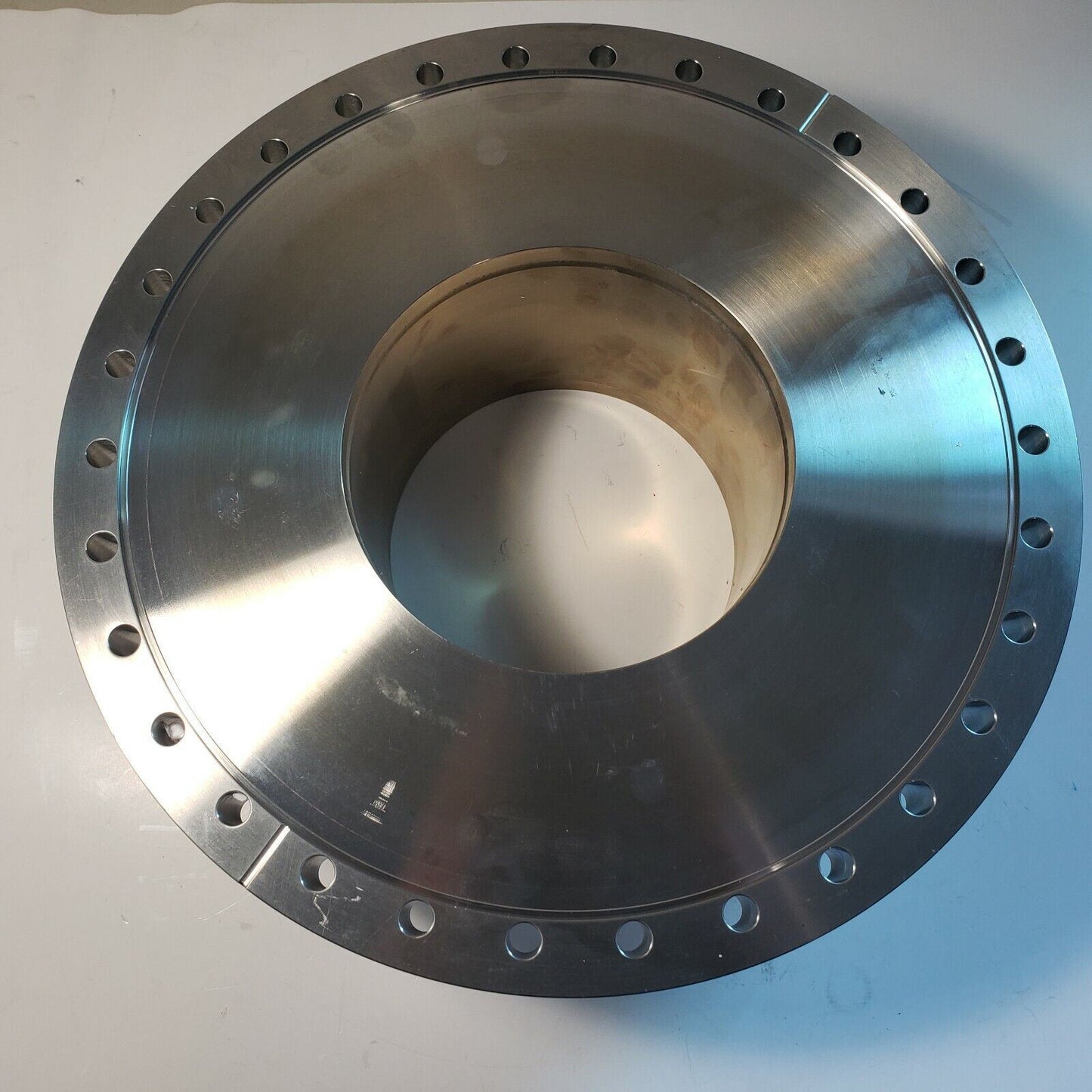

DN275CF 13.25" OD CF Conflat Flange to DN160CF 8" Adapter Knife Edge High Vacuum

DN275CF 13.25" OD CF Conflat Flange to DN160CF 8" Adapter Knife Edge High Vacuum. Condition is "Used". Shipped with Standard Shipping.

This vacuum adapter can achieve ultra high vacuum easily. If has 2 Conflat flanges that are in great condition, no dents or scratches in the knife edges.

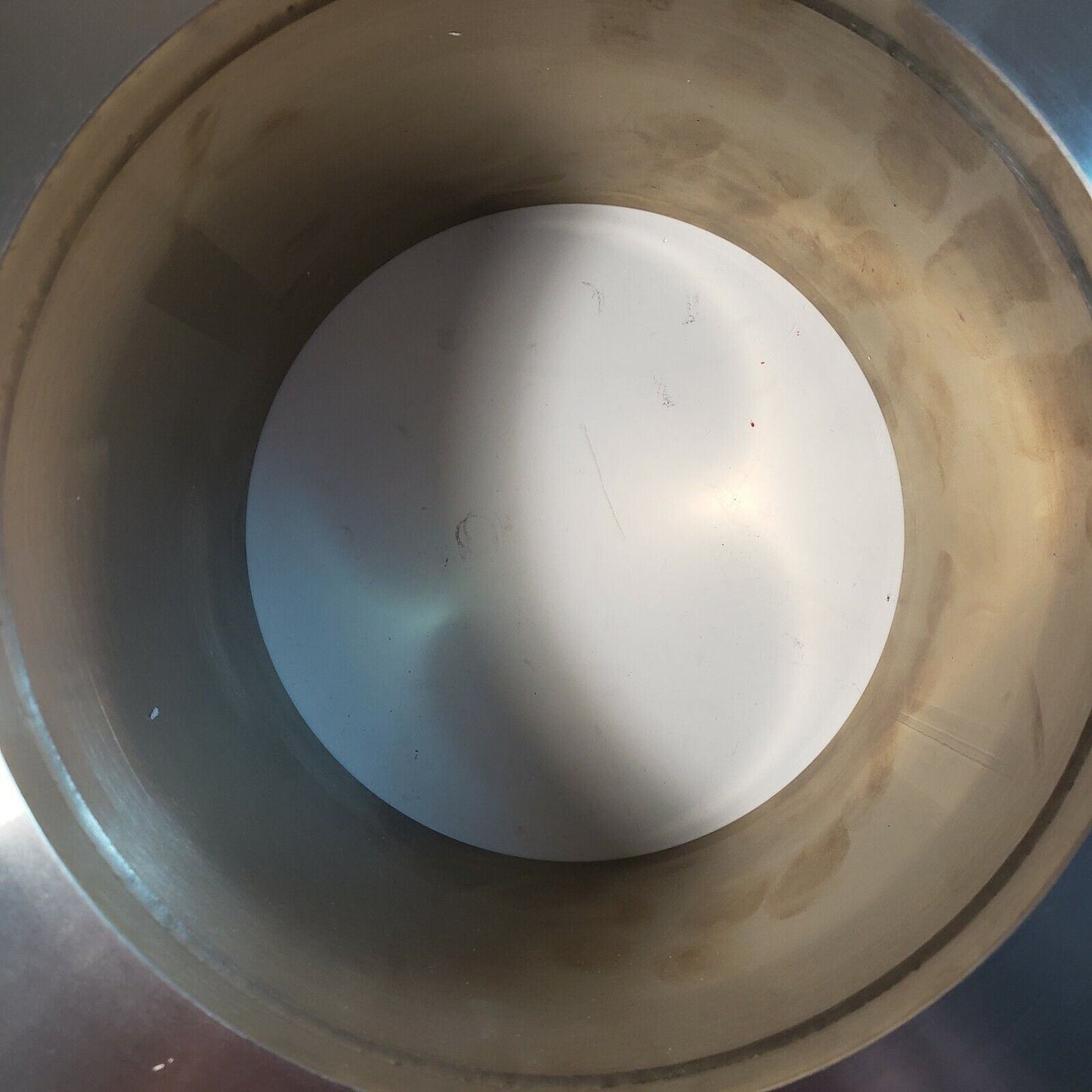

Chamber is 5" deep, and has about a 6" inner diameter. The flanges are 8" CF and 13.25" CF (DN160CF and DN275CF, respectively). DN160CF flange is rotatable, DN275CF flange is fixed.

Adapter nipple made from stainless steel.

Weighs about 40 pounds.
