EG&G XRD-51 Biplanar High Speed X-Ray Detector 300 ps DN100CF 6" Conflat Fitting

EG&G XRD-51 Biplanar High Speed X-Ray Detector 300 ps DN100CF 6" Conflat Fitting

Regular price $620.00 USD
Regular price Sale price $620.00 USD
Sale Sold out

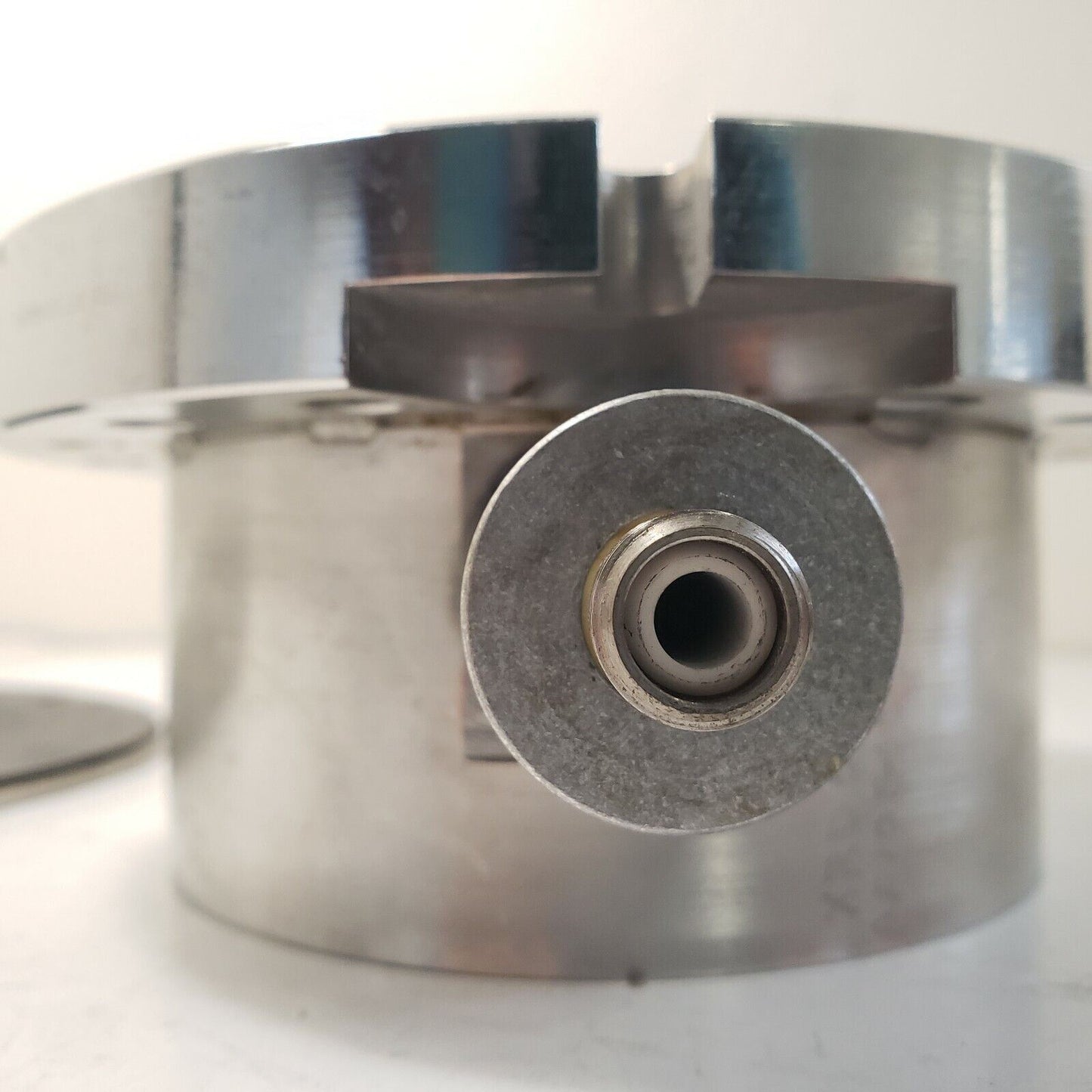

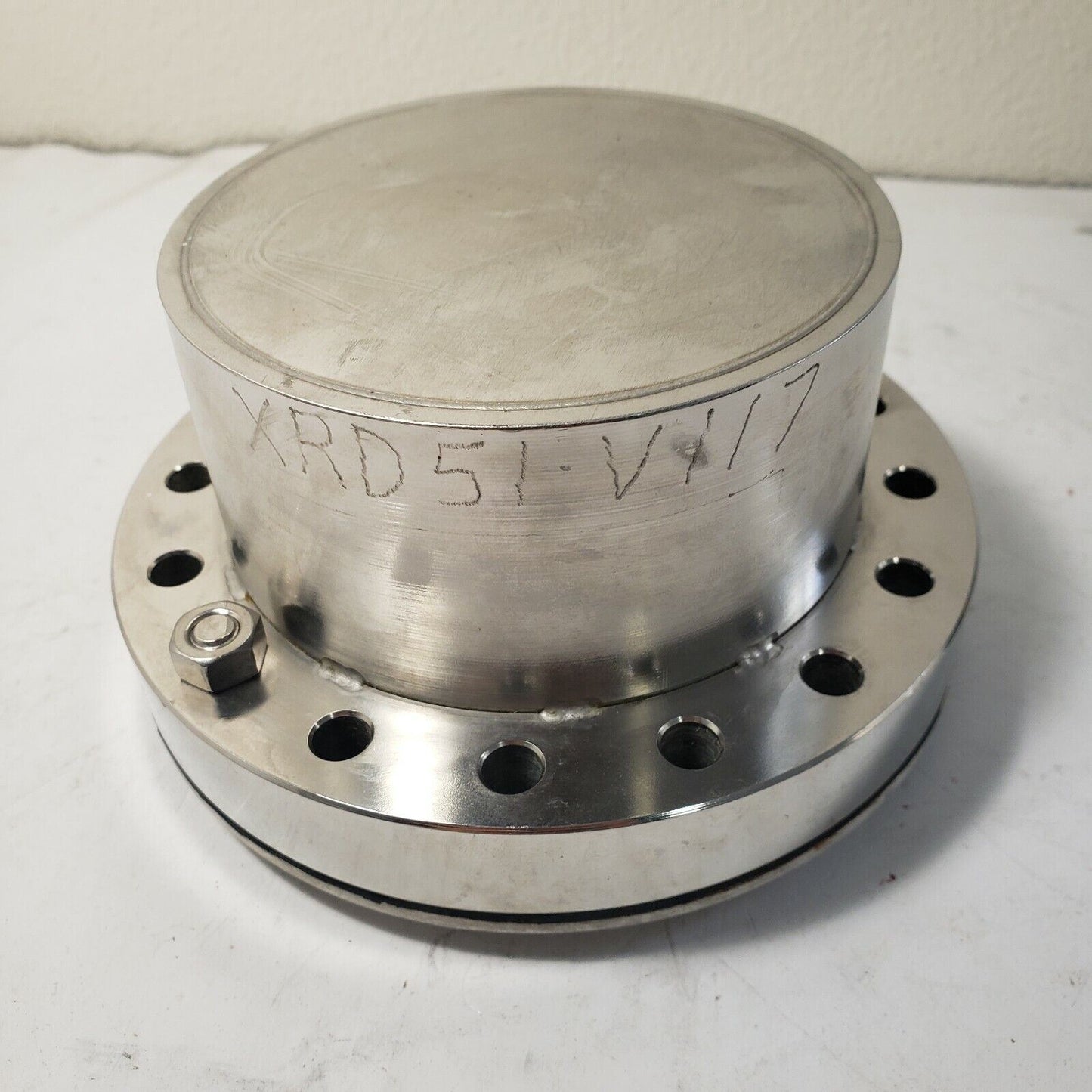

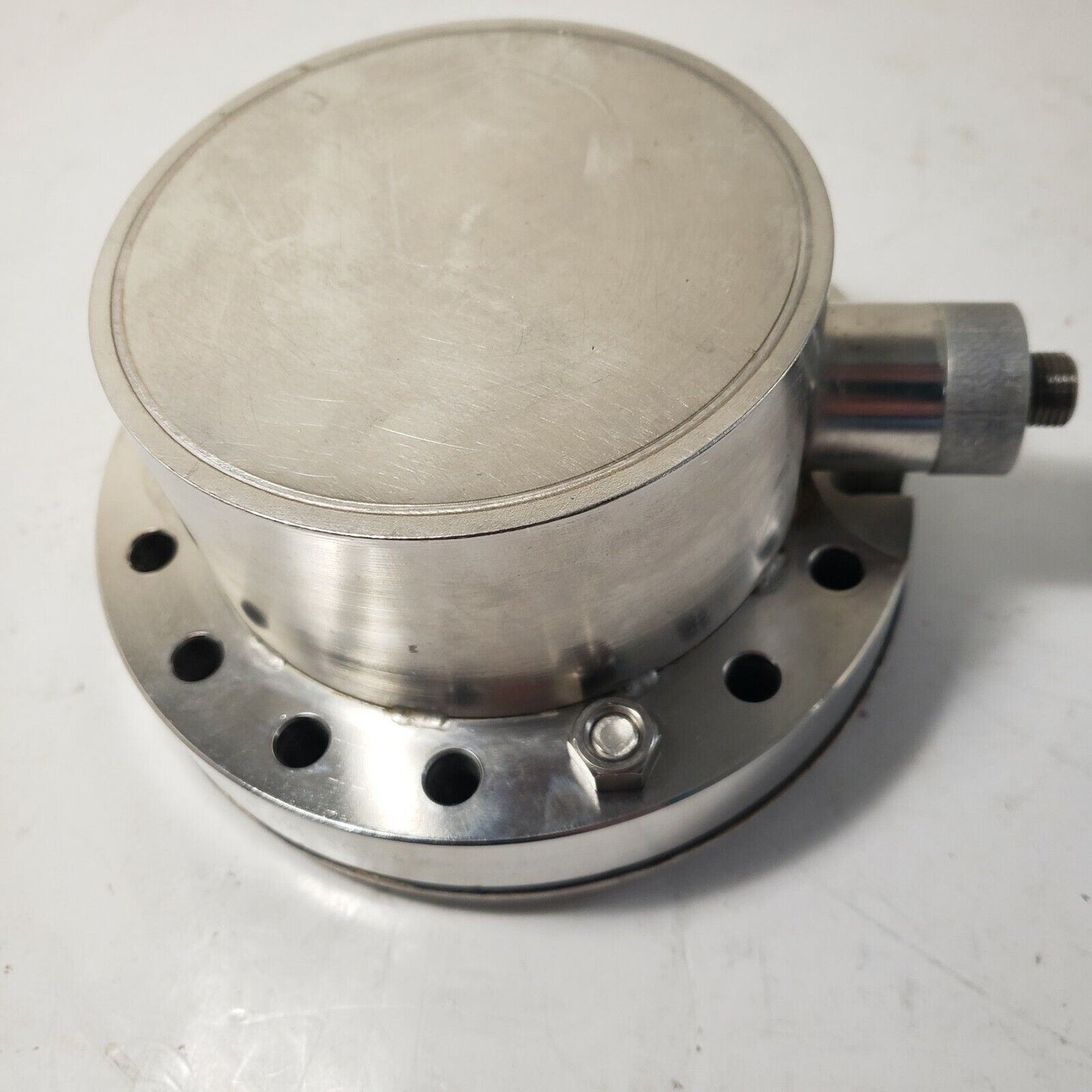

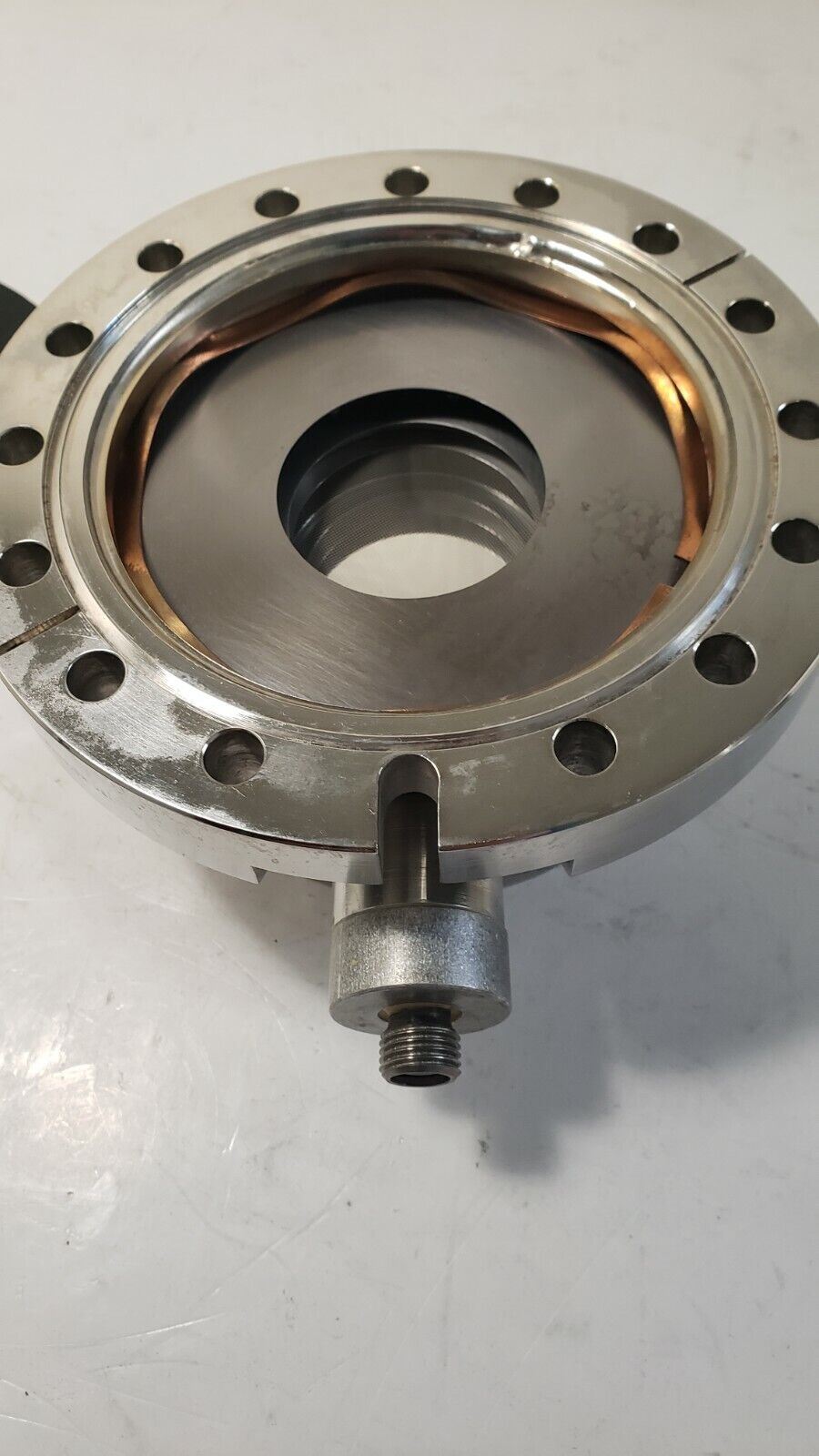

EG&G XRD-51 Biplanar High Speed X-Ray Detector 300 ps w/Diamond-Turned Cathode.

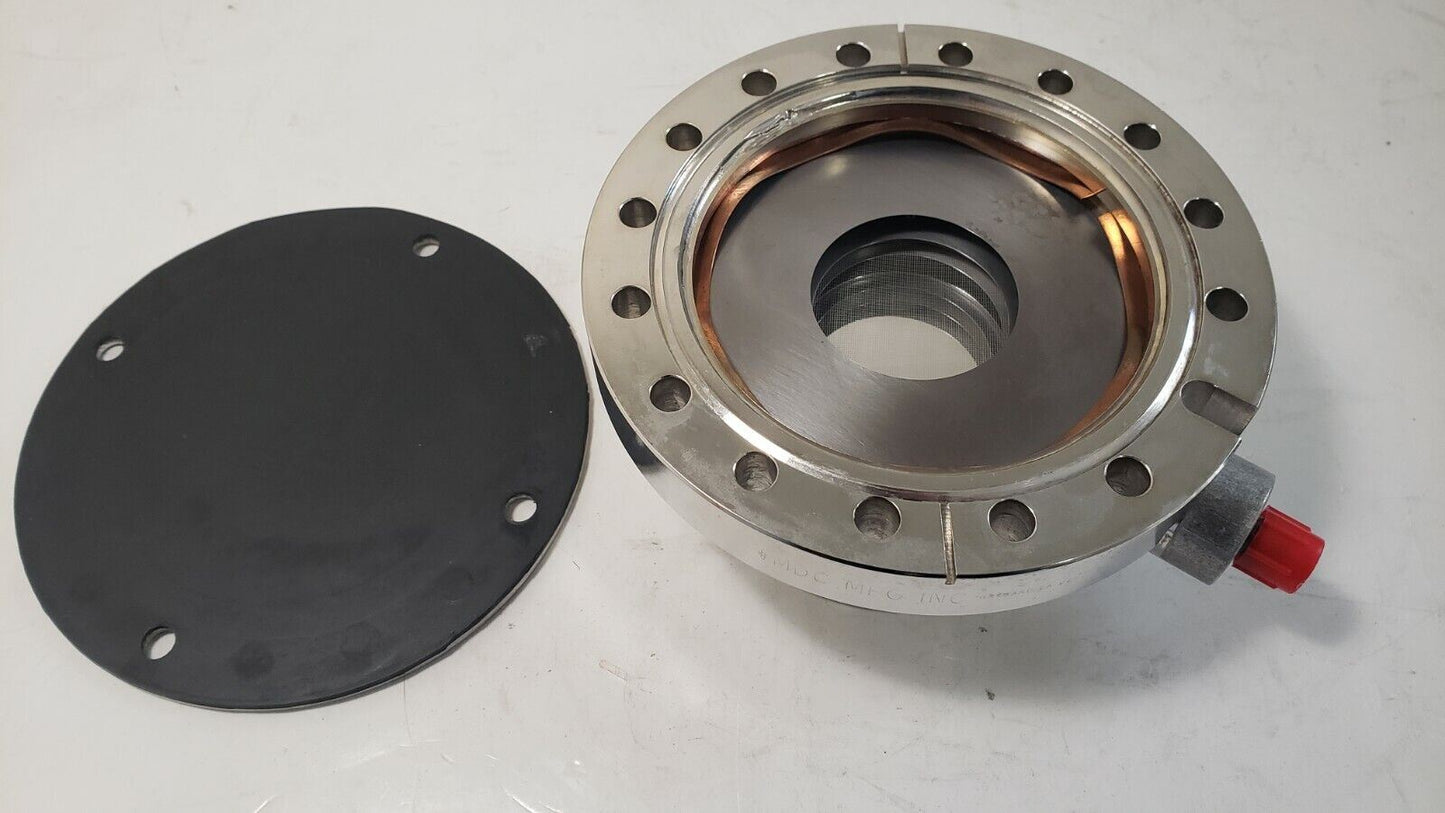

DN100CF, 6" conflat knife edge fitting. Comes with metal cover to keep the detector in good condition (pictured).

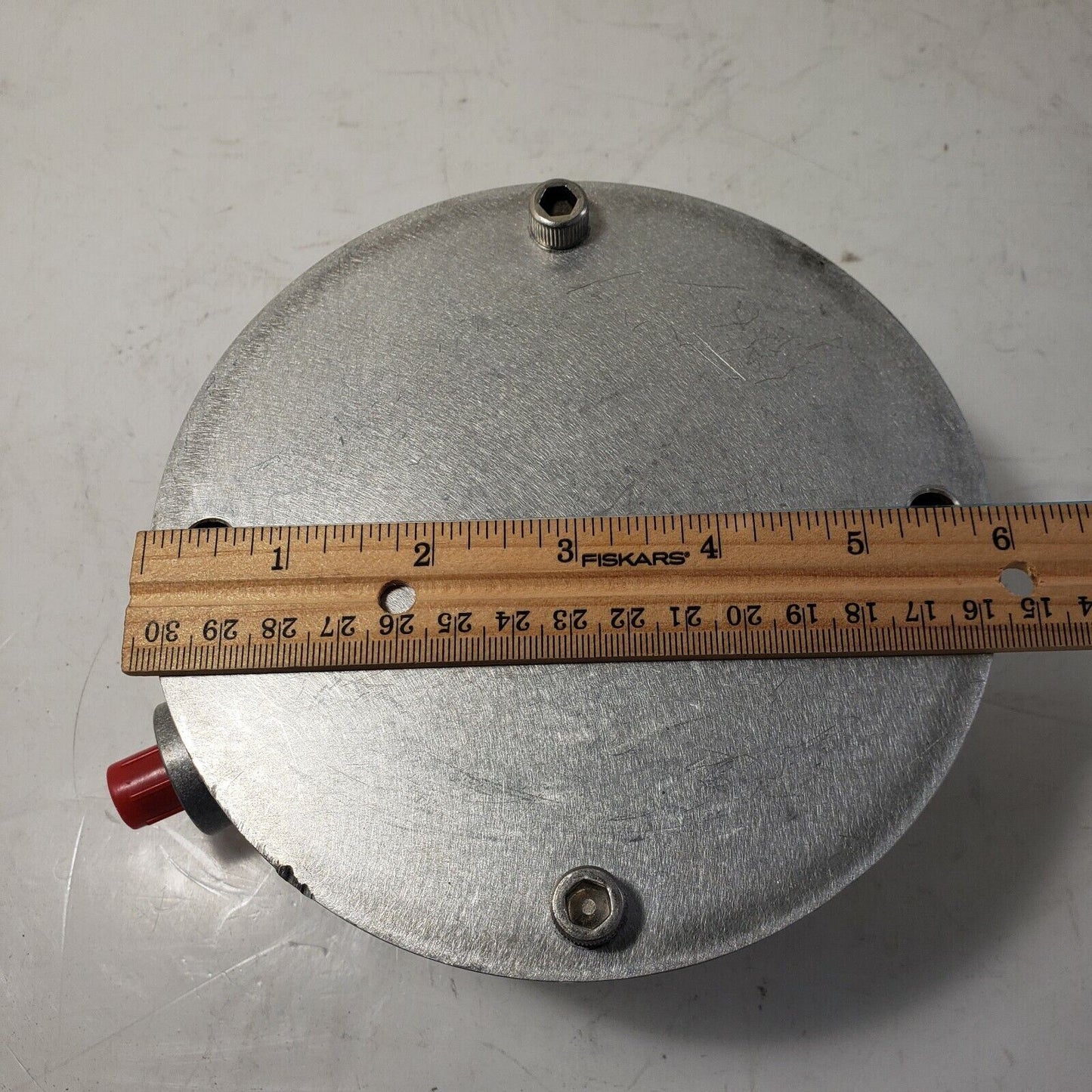

Ruler not included.

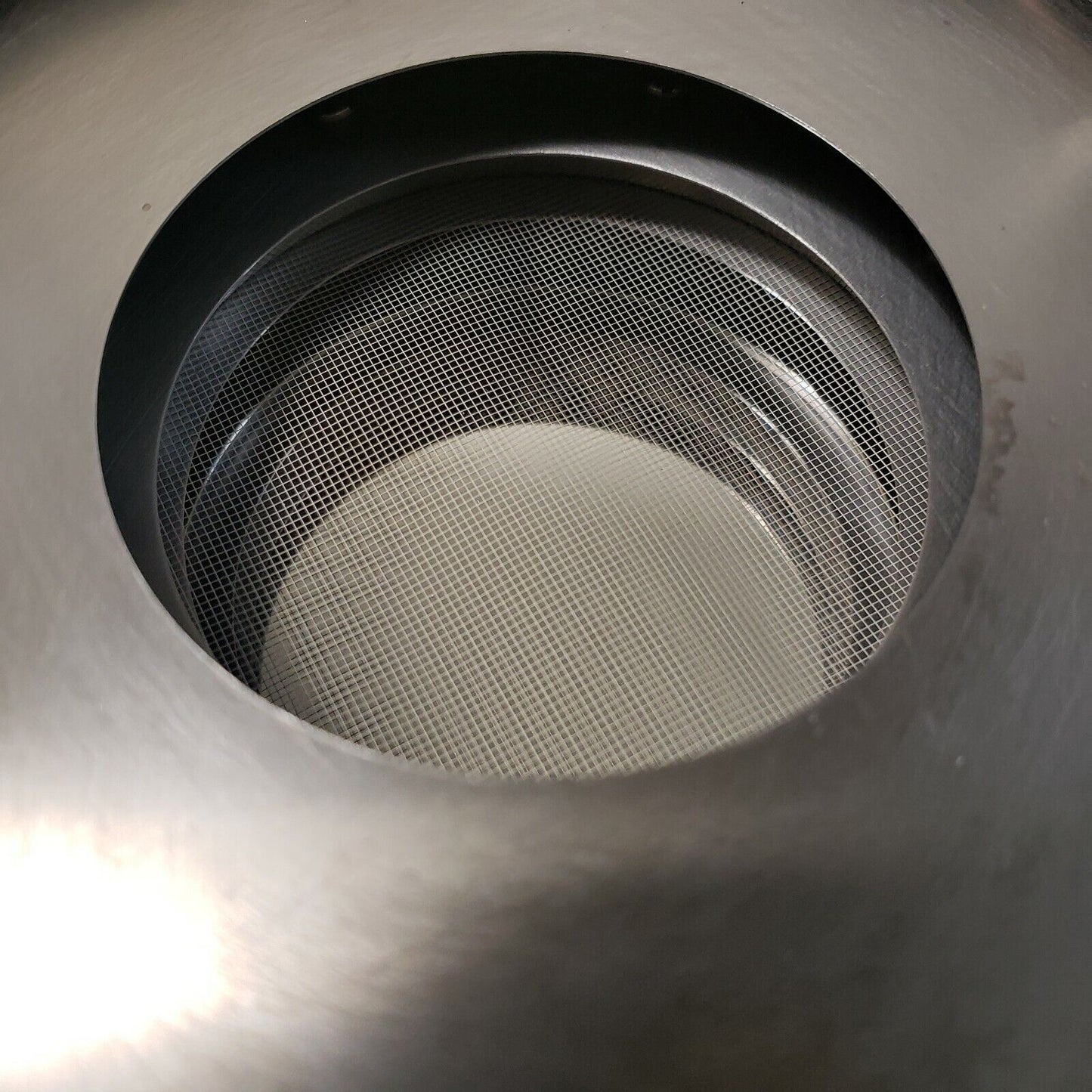

EG&G Energy Measurements model XRD-51 windowless x-ray vacuum biplanar phototodiode with diamond-turned aluminum photocathode. The XRD series of fast-response detectors was developed to meet the demands of advanced fusion experiments. Using the transit time equation given in Pellinen et al., the XRD-51 risetime can be estimated to be about 300 picoseconds when operated with a bias of 5kV. Also included are two removable tantalum collimators.

Features of the XRD-51 include:

  • Fast Picosecond Response
  • Removable Collimators
  • Removable Photocathode
  • Removable Anode Mesh
  • Biplanar Geometry
  • Ultra-linear
  • Wide Dynamic Range
  • Broad Spectral Response


SPECIFICATIONS

EFFECTIVE PHOTOCATHODE DIAMETER        39.5 mm
FLANGE TYPE        6 inch CF
RISE TIME      300 picoseconds
PHOTOCATHODE MATERIAL         Diamond-Turned Aluminum
ANODE MESH OPTICAL TRANSMISSION        90 %
DISTANCE BETWEEN ANODE AND CATHODE       6.5 mm
ANODE THICKNESS       38 μm
ANODE MATERIAL        Nickel
COLLIMATOR MATERIAL        Tantalum
COLLIMATOR THICKNESS        0.25 mm
HV CONNECTOR        0.5 inch diameter, 20 tpi threaded
