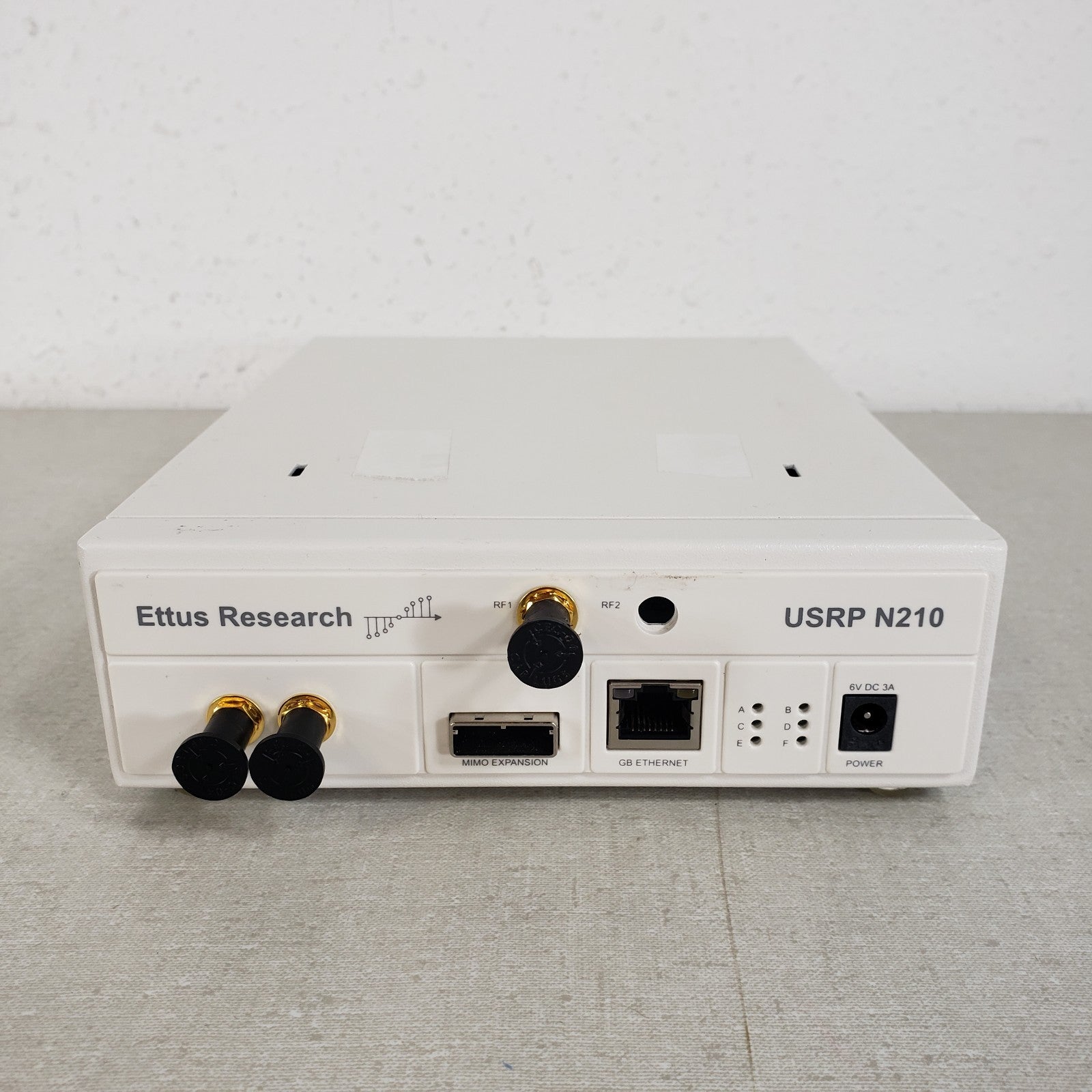

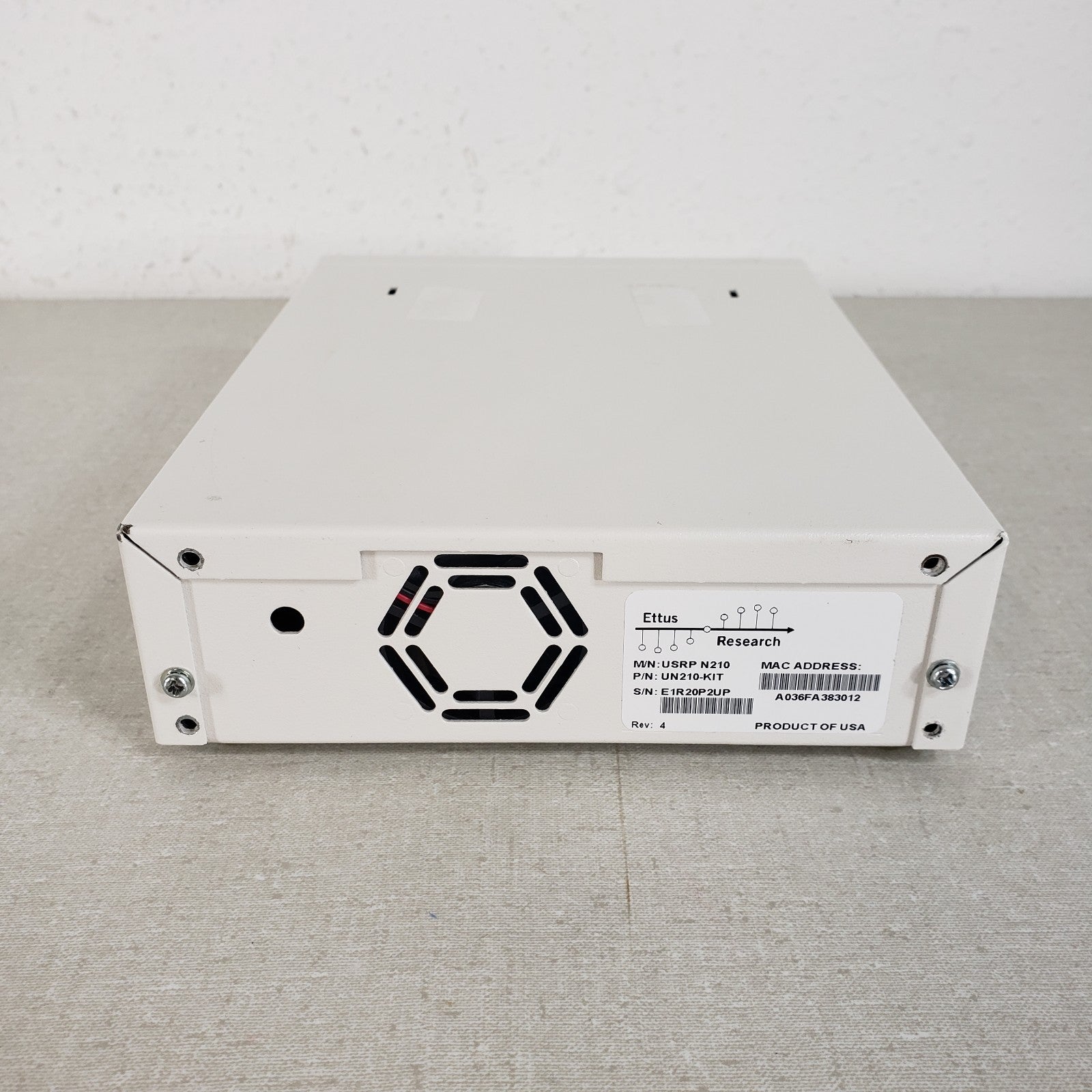

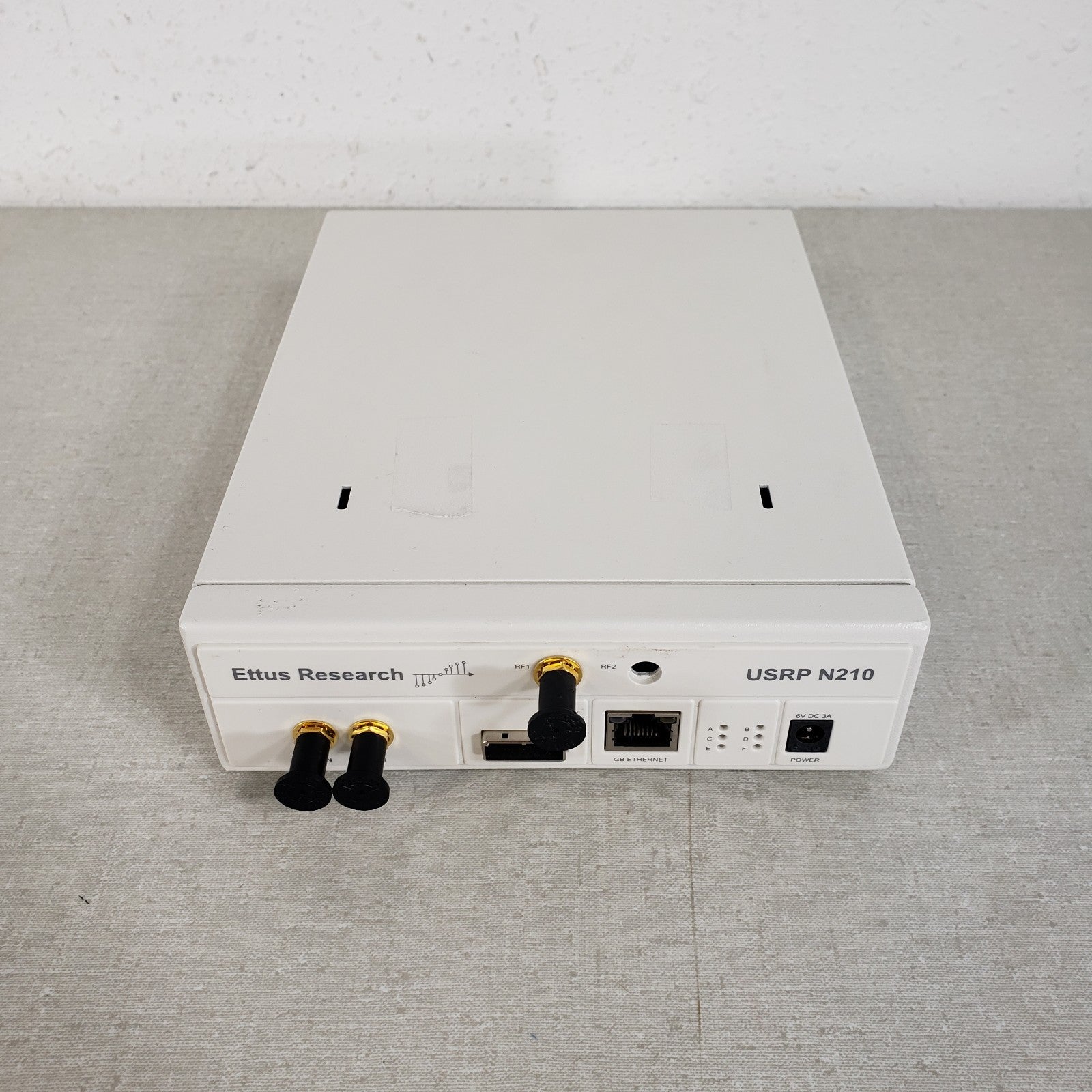

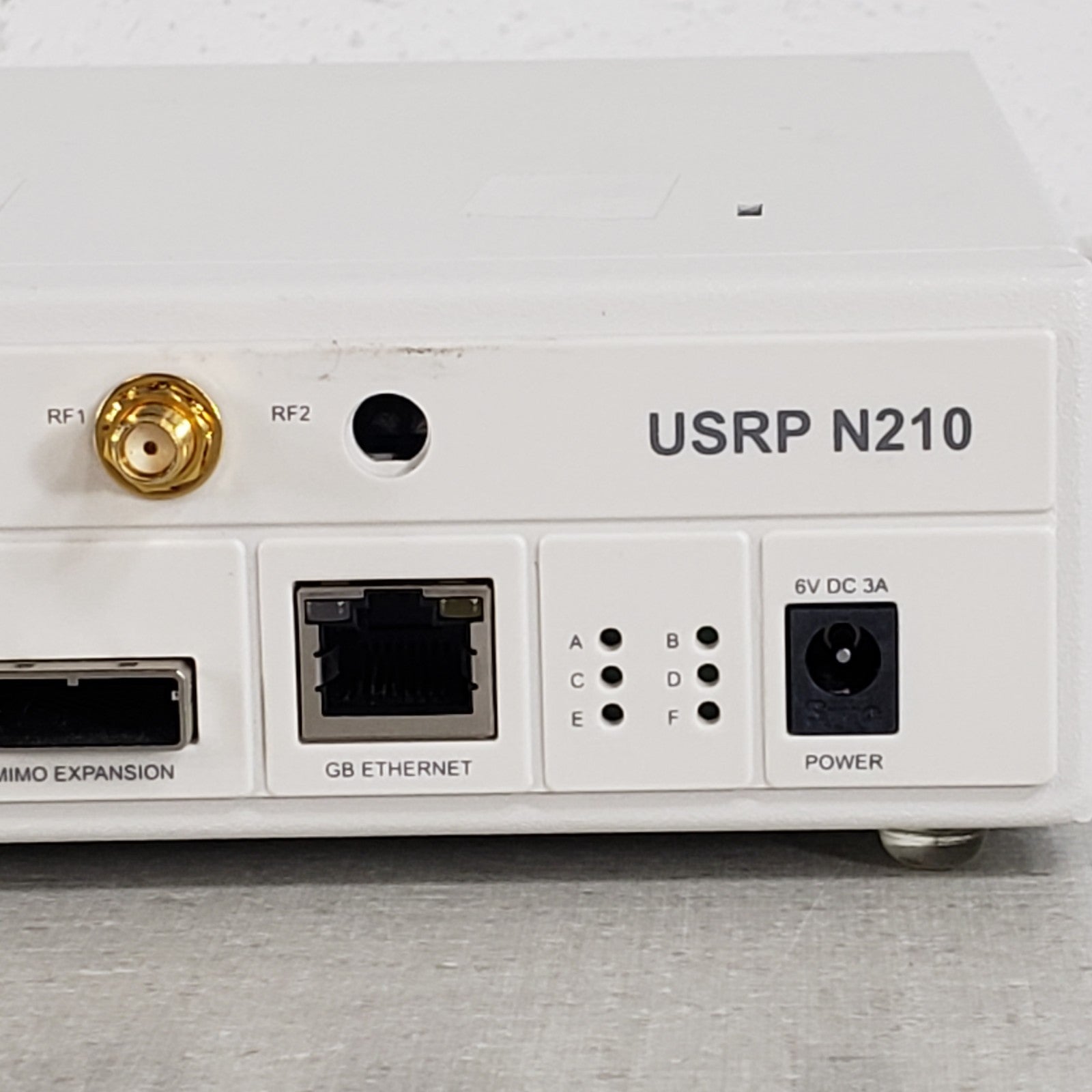

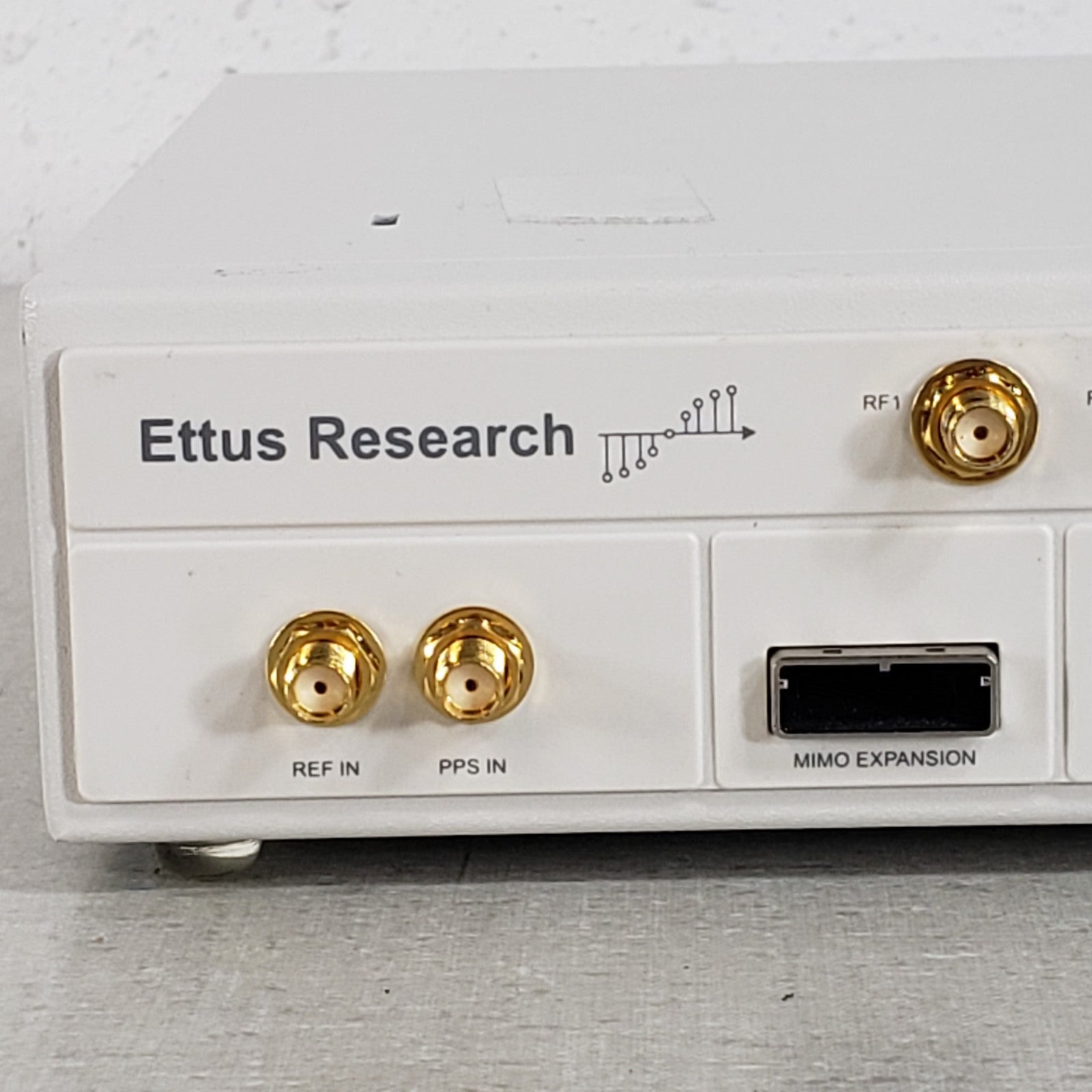

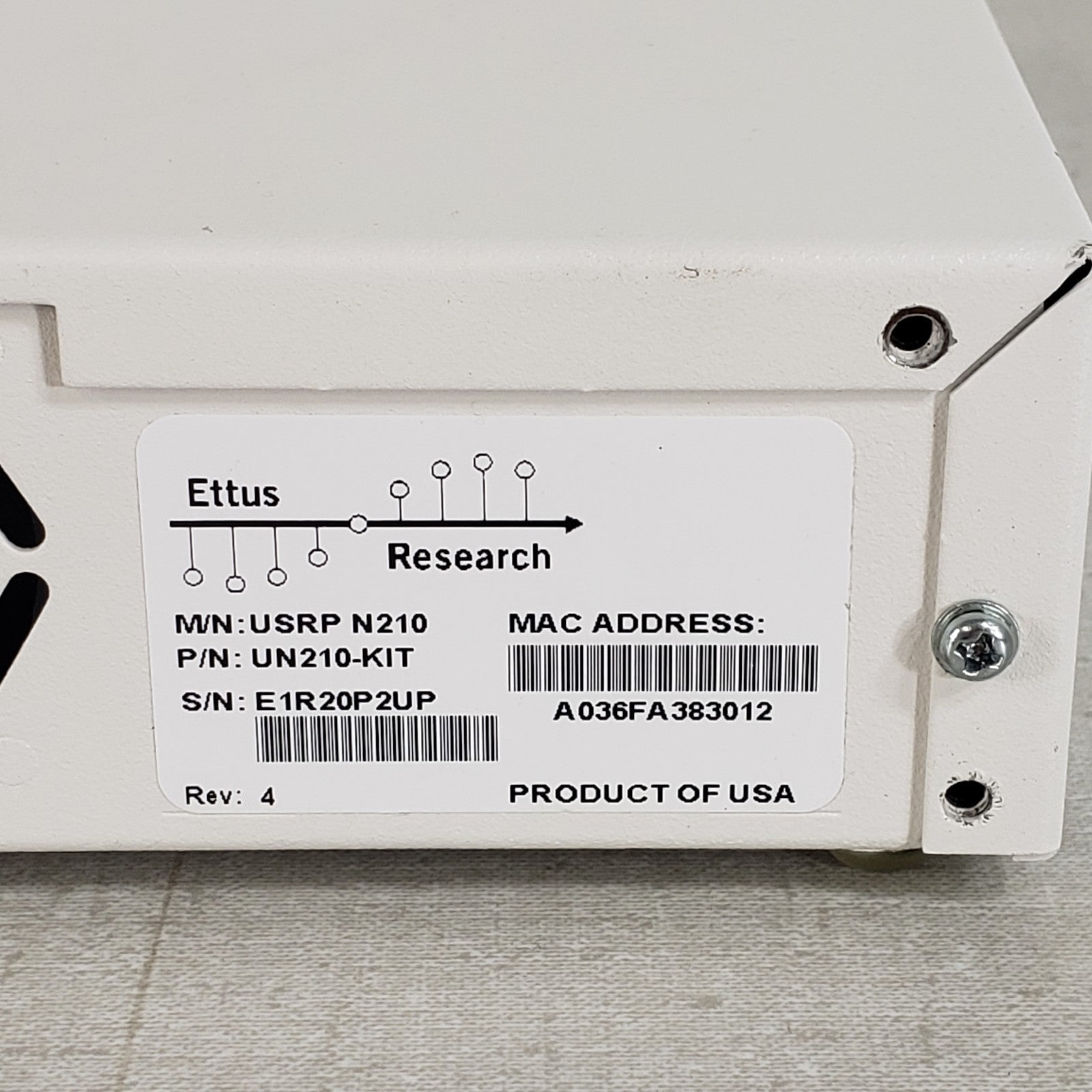

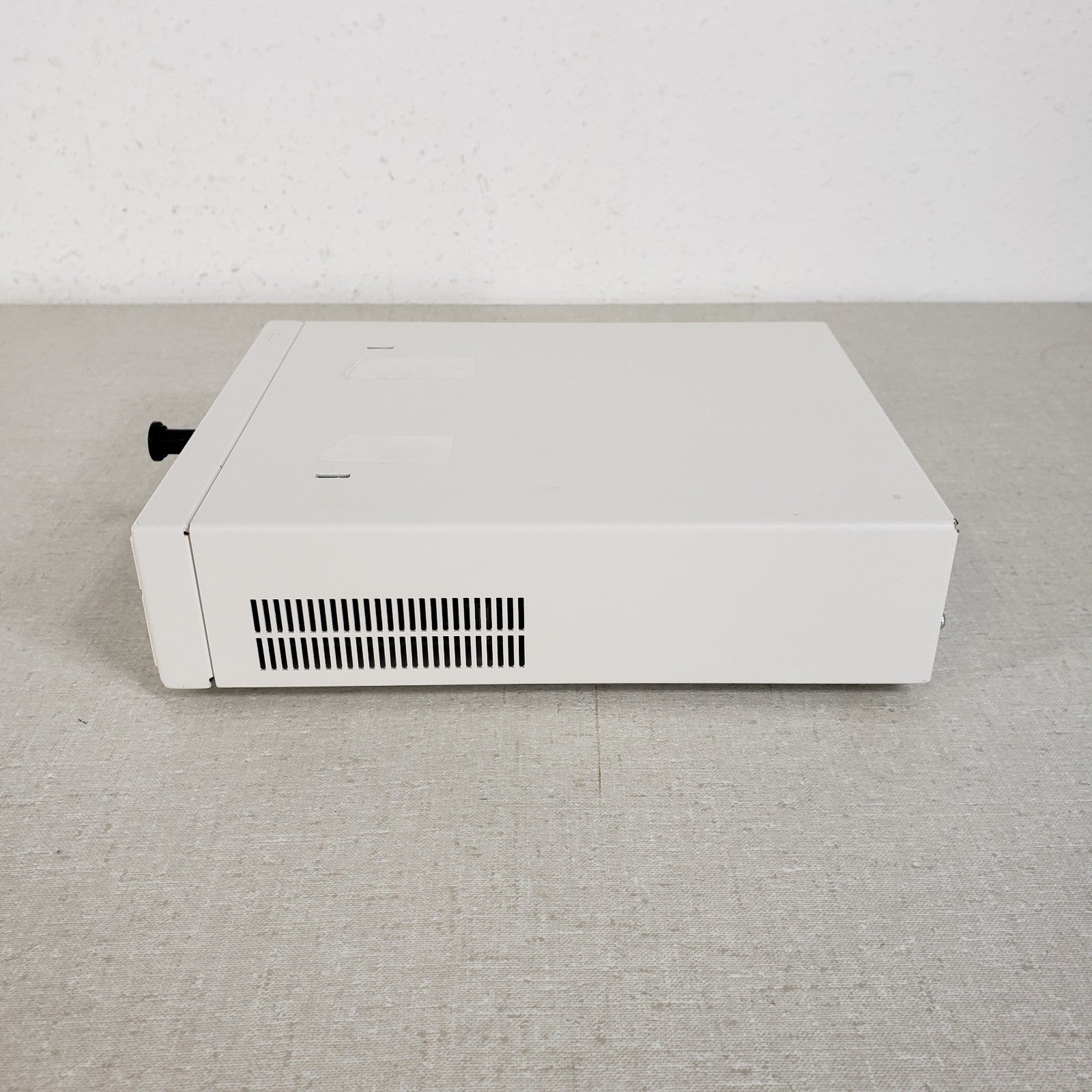

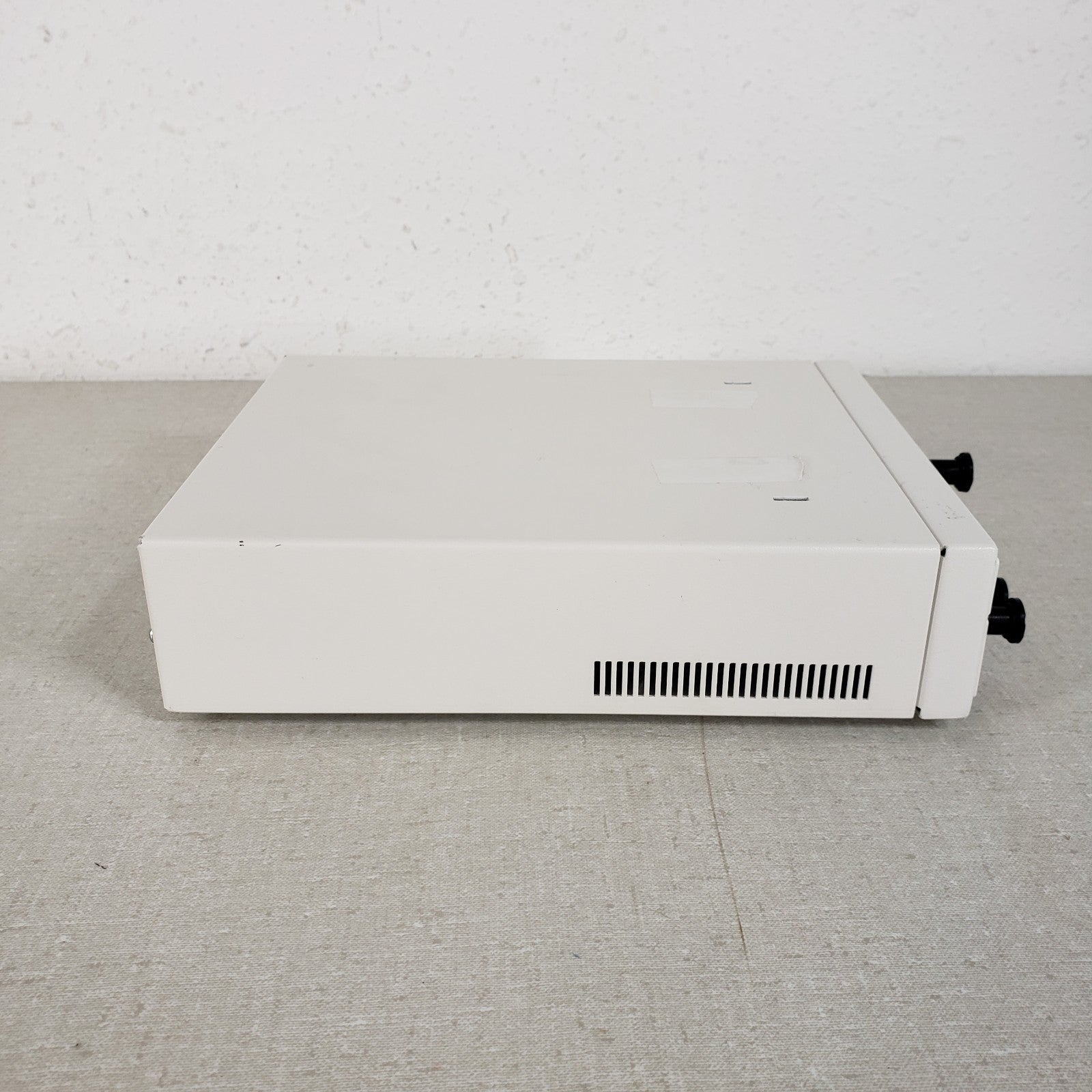

Ettus Research USRP N210 Software Defined Radio System SDR Open Source UN210 FLEX900 RFX900
Used see photos

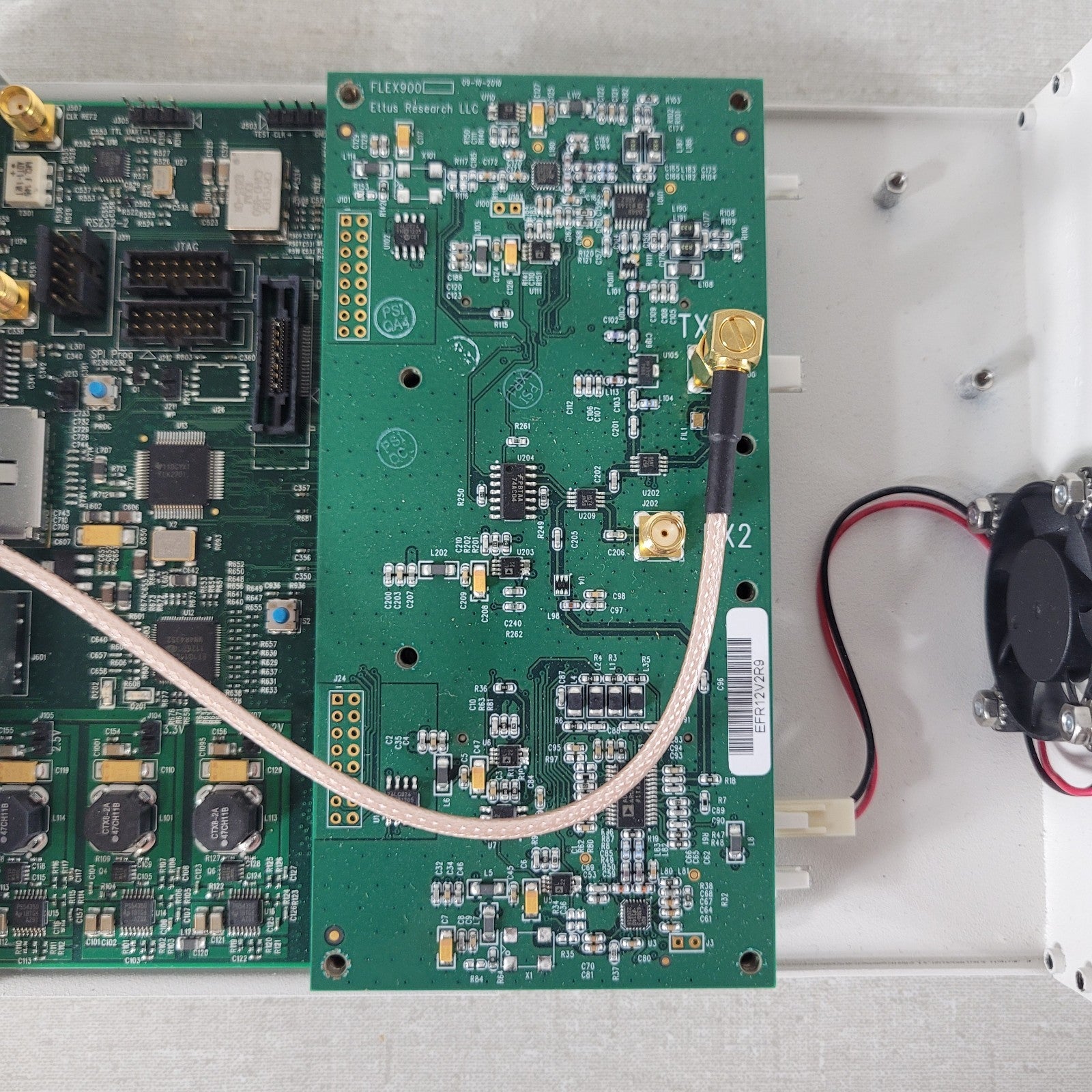

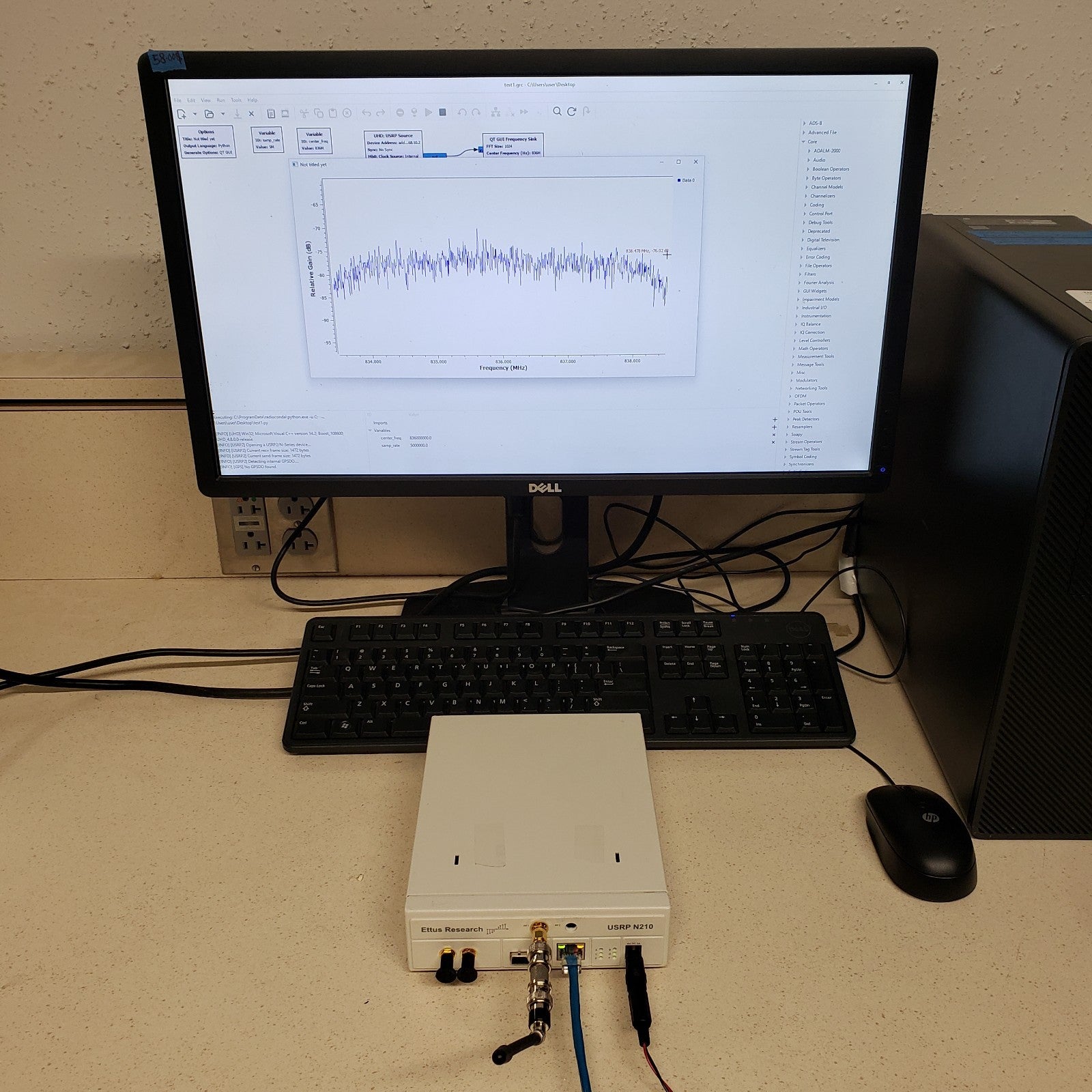

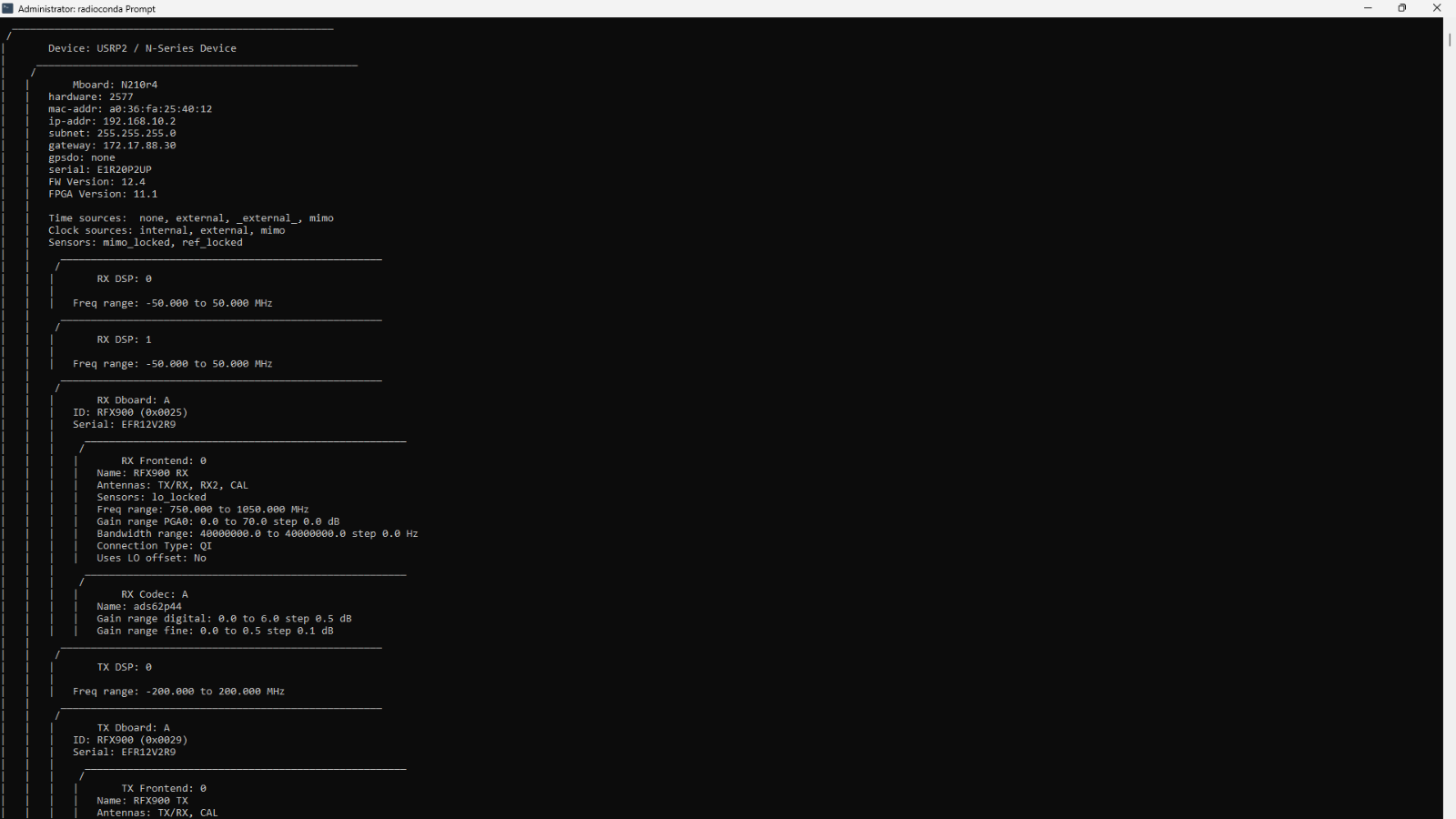

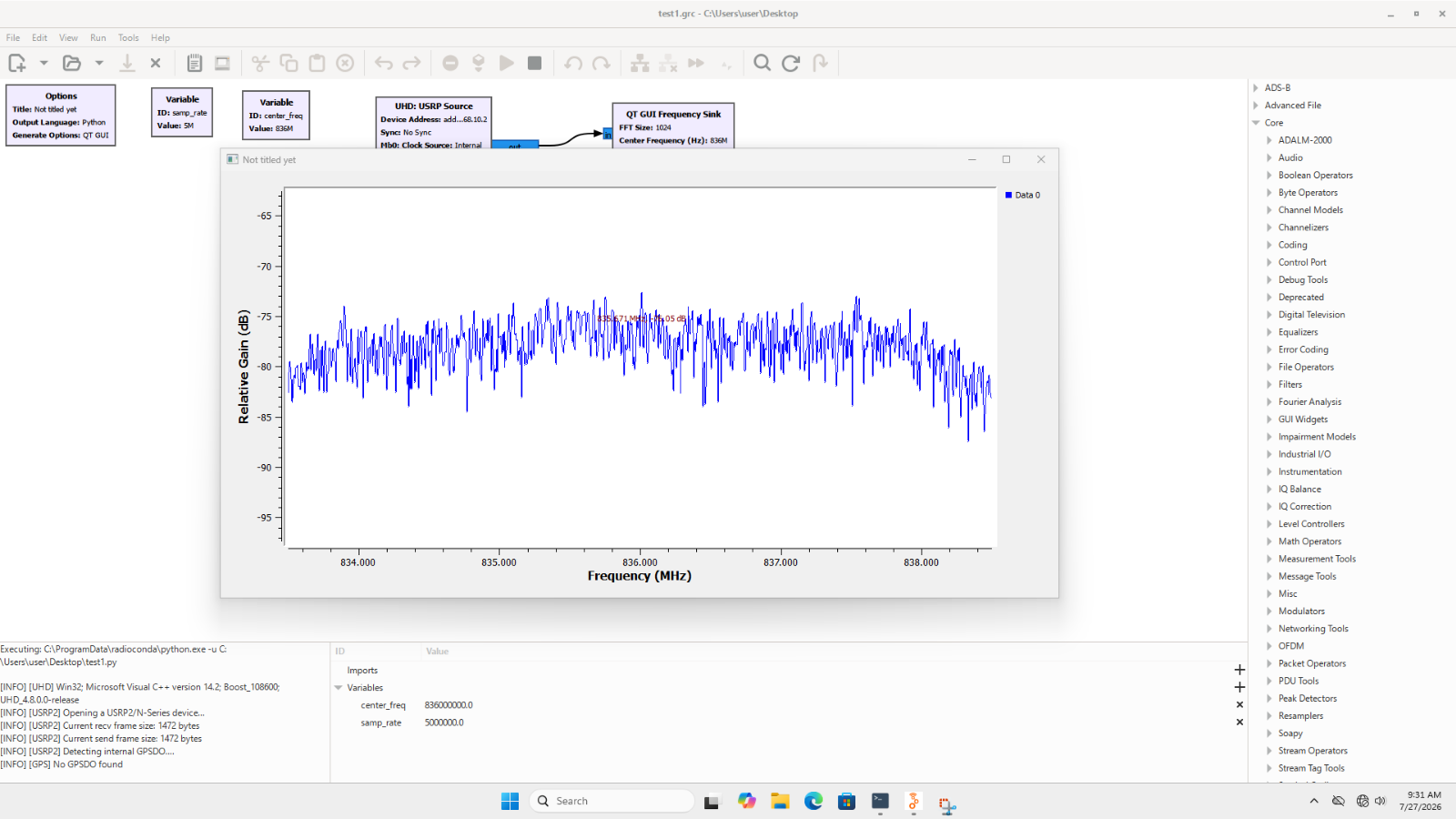

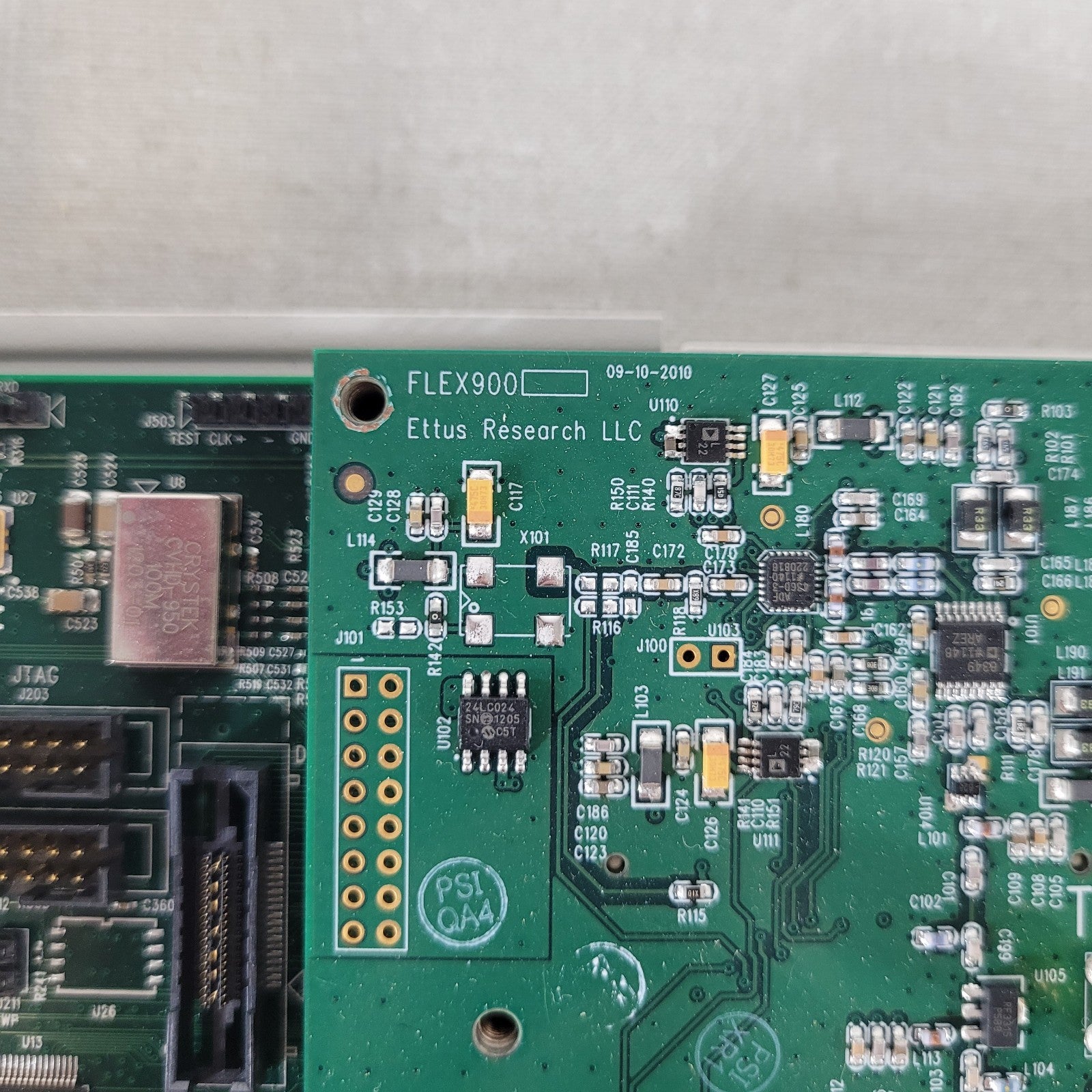

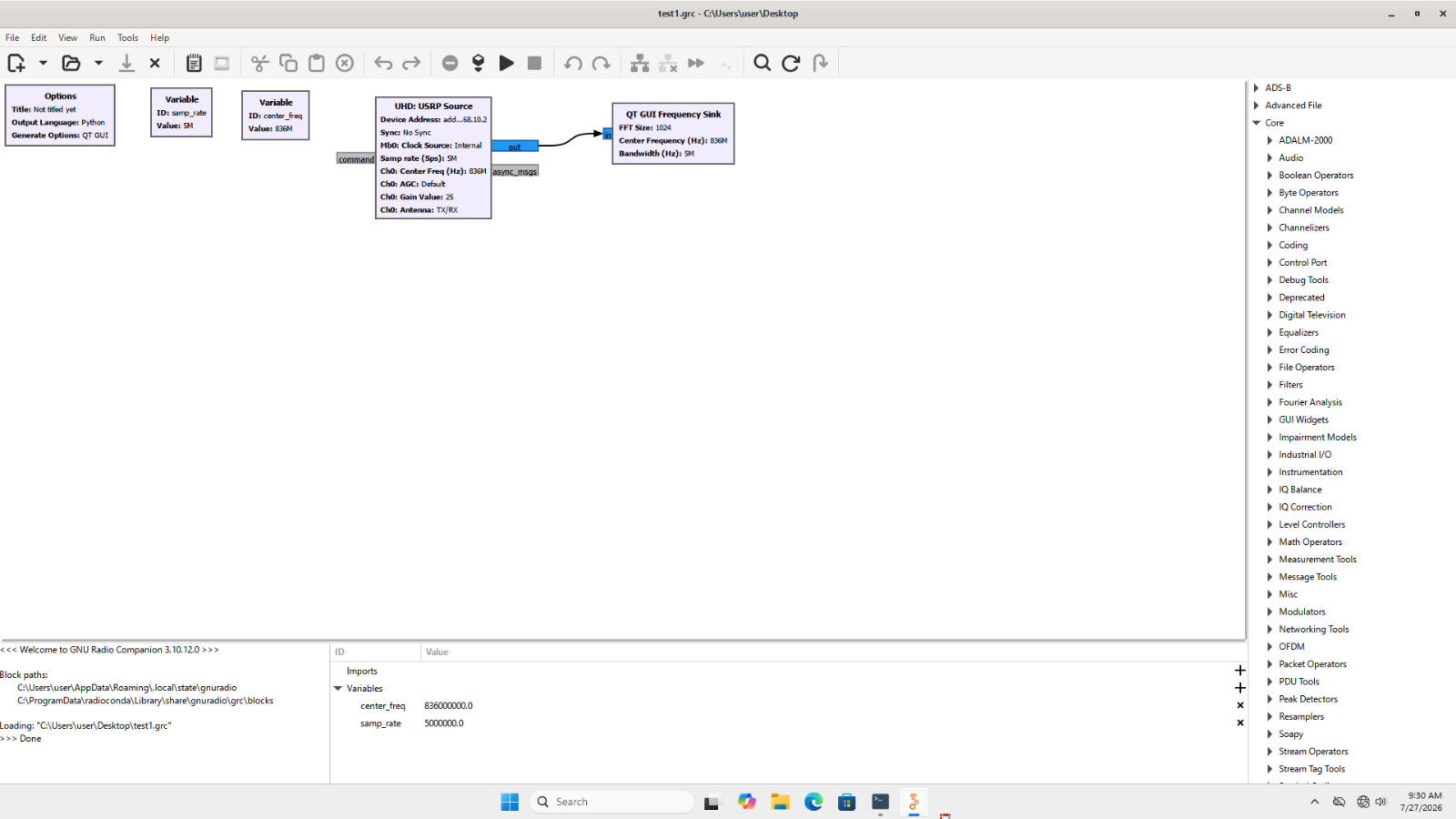

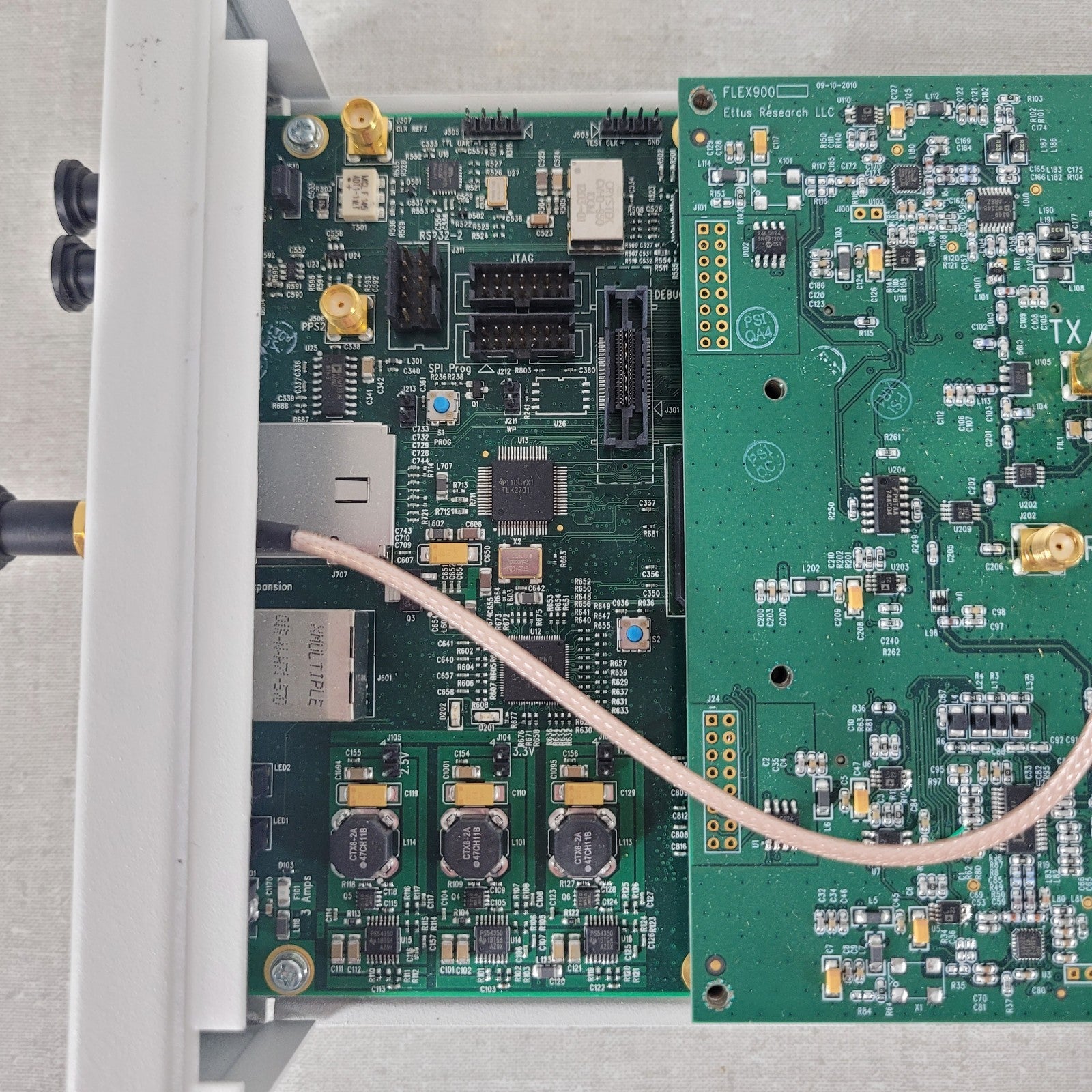

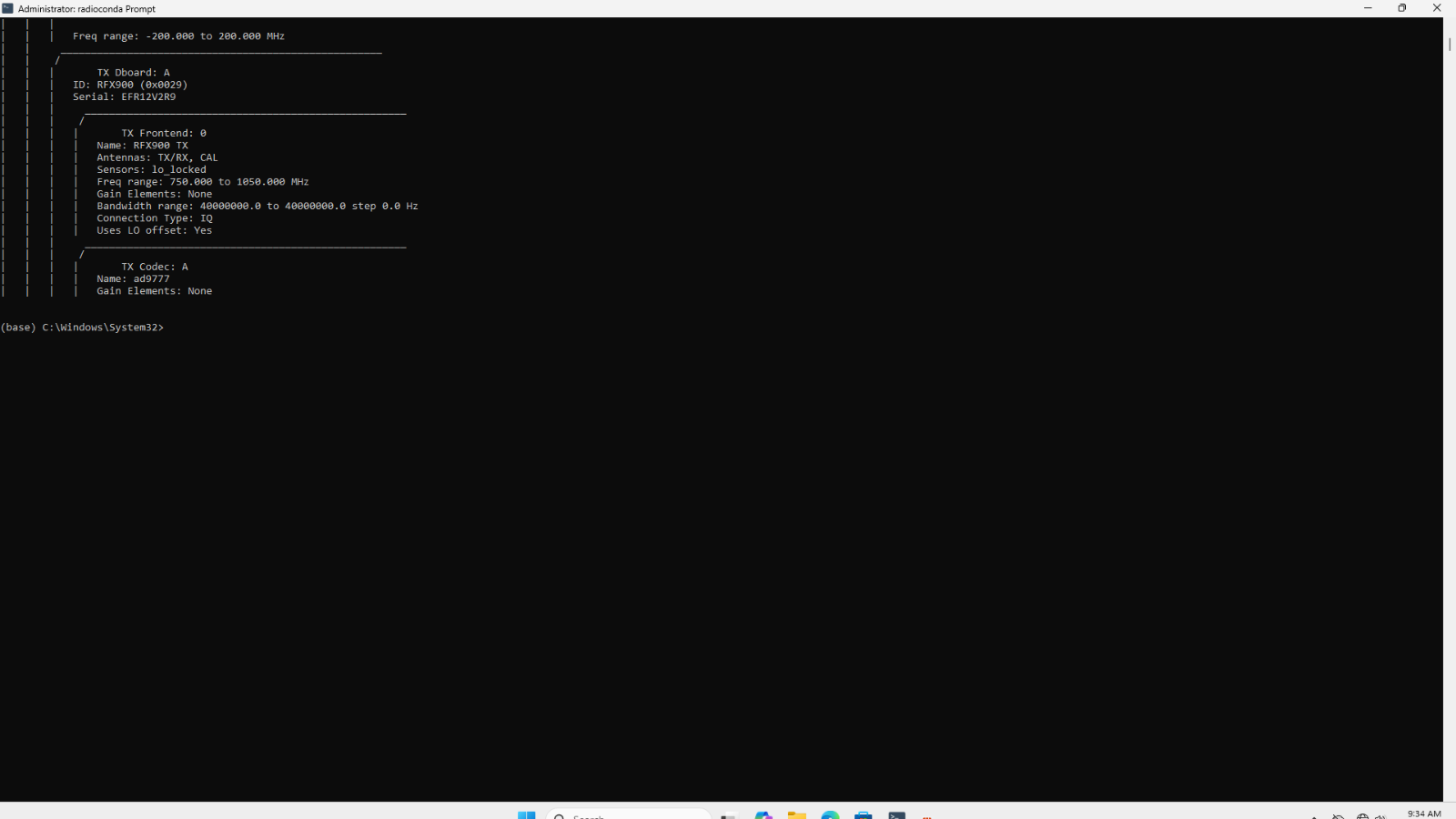

Tested w/ RadioConda works see photos. Includes a FLEX900 / RFX900 daughter board. See photos for the specs.
System only includes the USRP N210 no peripherals seen in photos are included. Does not include a PC or monitor, that was shown for testing purposes only.
From Ettus,
"The USRP Network Series offers high-bandwidth, high-dynamic range processing capability. The Gigabit Ethernet interface of the USRP Network Series allows high-speed streaming capability up to 50 MS/s in both directions (8-bit samples). These features, combined with plug-and-play MIMO capability make the USRP Network an ideal candidate for software defined radio systems with demanding performance requirements."
N210
50 MHz of RF bandwidth with 8 bit samples
25 MHz of RF bandwidth with 16 bit samples
Gigabit Ethernet connectivity
MIMO capable - requires two or more USRP N210 devices as motherboard has one daughterboard slot (1 RX + 1 TX connectors)
Onboard FPGA processing
FPGA: Xilinx® Spartan® 3A-DSP XC3SD3400A
ADCs: 14-bits 100 MS/s
DACs: 16-bits 400 MS/s
Ability to lock to external 5 or 10 MHz clock reference
TCXO Frequency Reference (~2.5ppm)
Optional internal GPS locked reference oscillator
FPGA code can only be changed with the paid version of the Xilinx® ISE® Design Suite tools
Frequency range: DC - 6 GHz with suitable daughterboard
