Gamry ECM8 Electrochemical Multiplexer w/ Gamry Framework Software TESTED

Gamry ECM8 Electrochemical Multiplexer w/ Gamry Framework Software TESTED

Regular price $2,950.00 USD
Regular price Sale price $2,950.00 USD
Sale Sold out
Shipping calculated at checkout.

Gamry Instruments ECM8 Electrochemical Multiplexer w/ Gamry Software TESTED

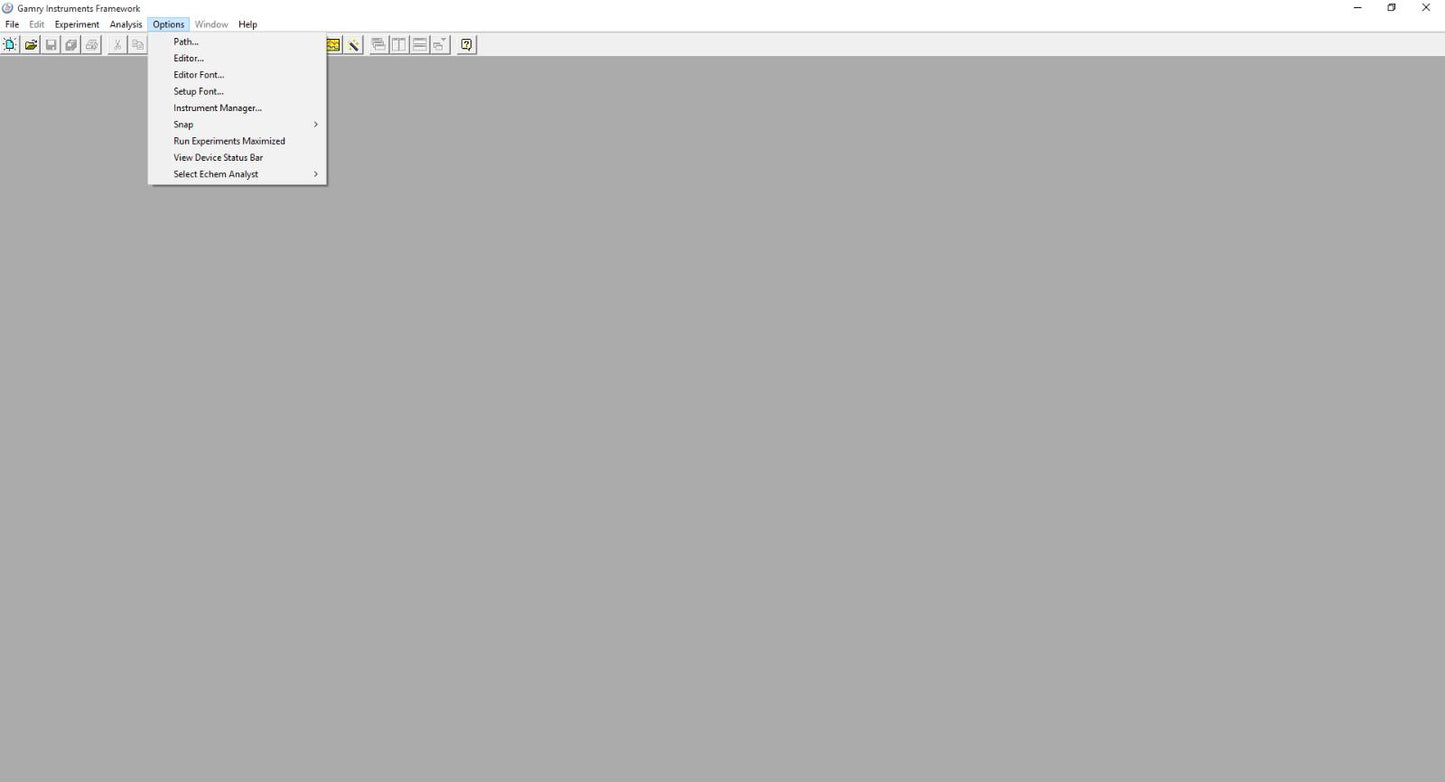

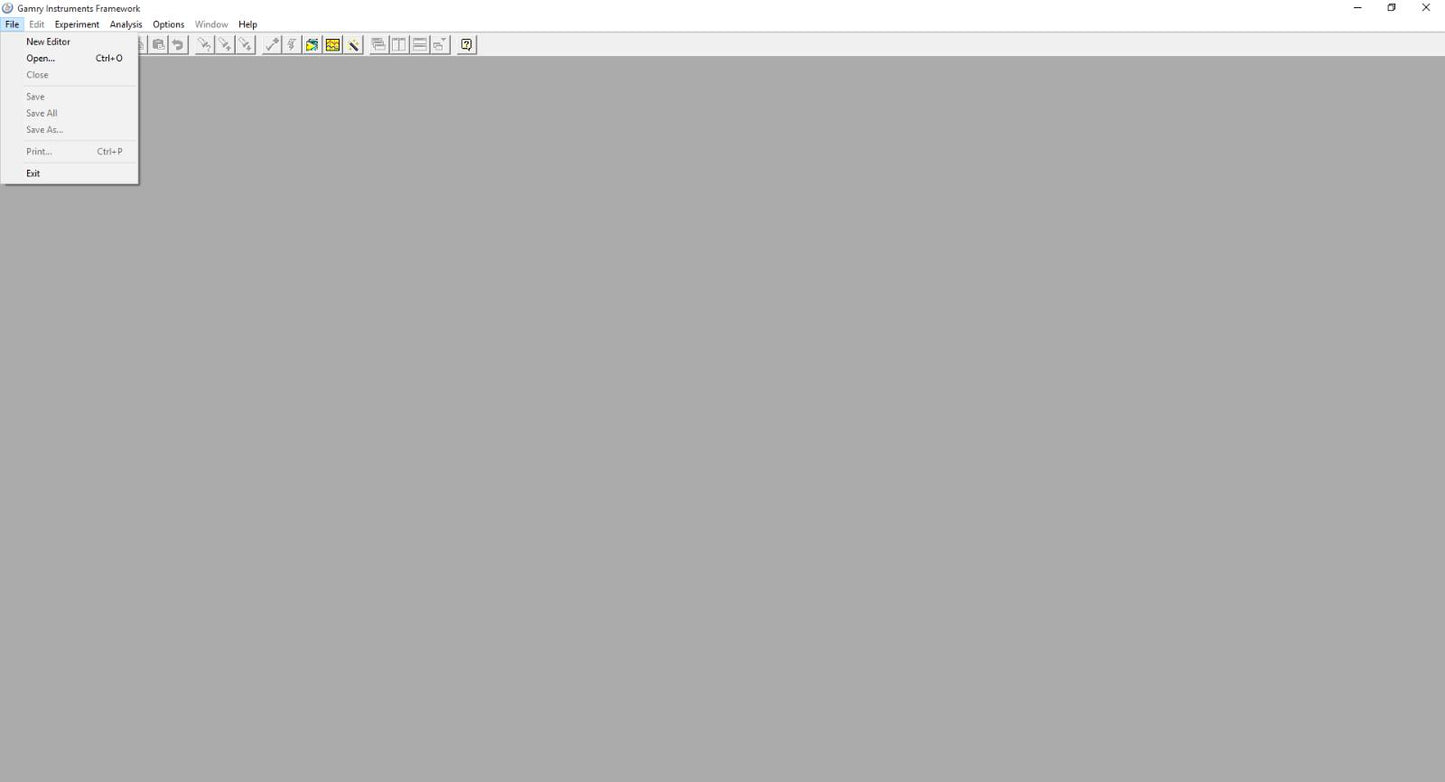

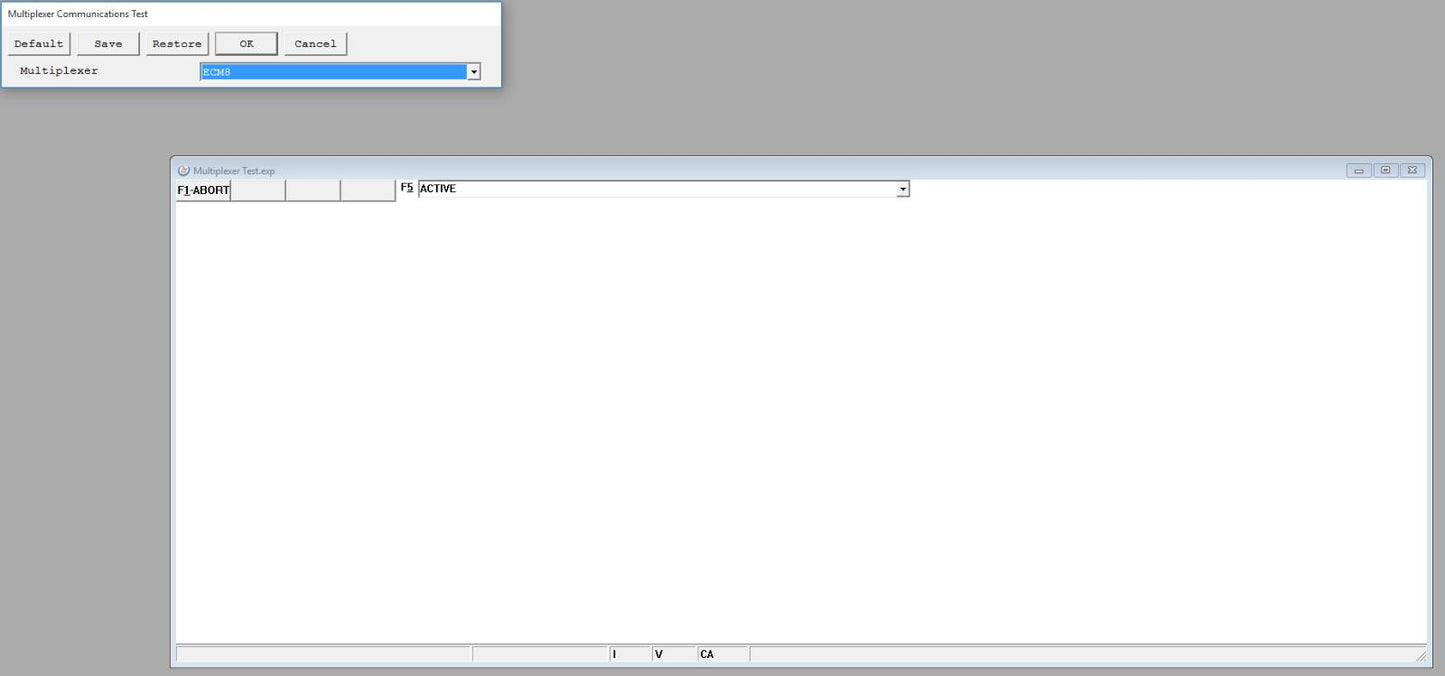

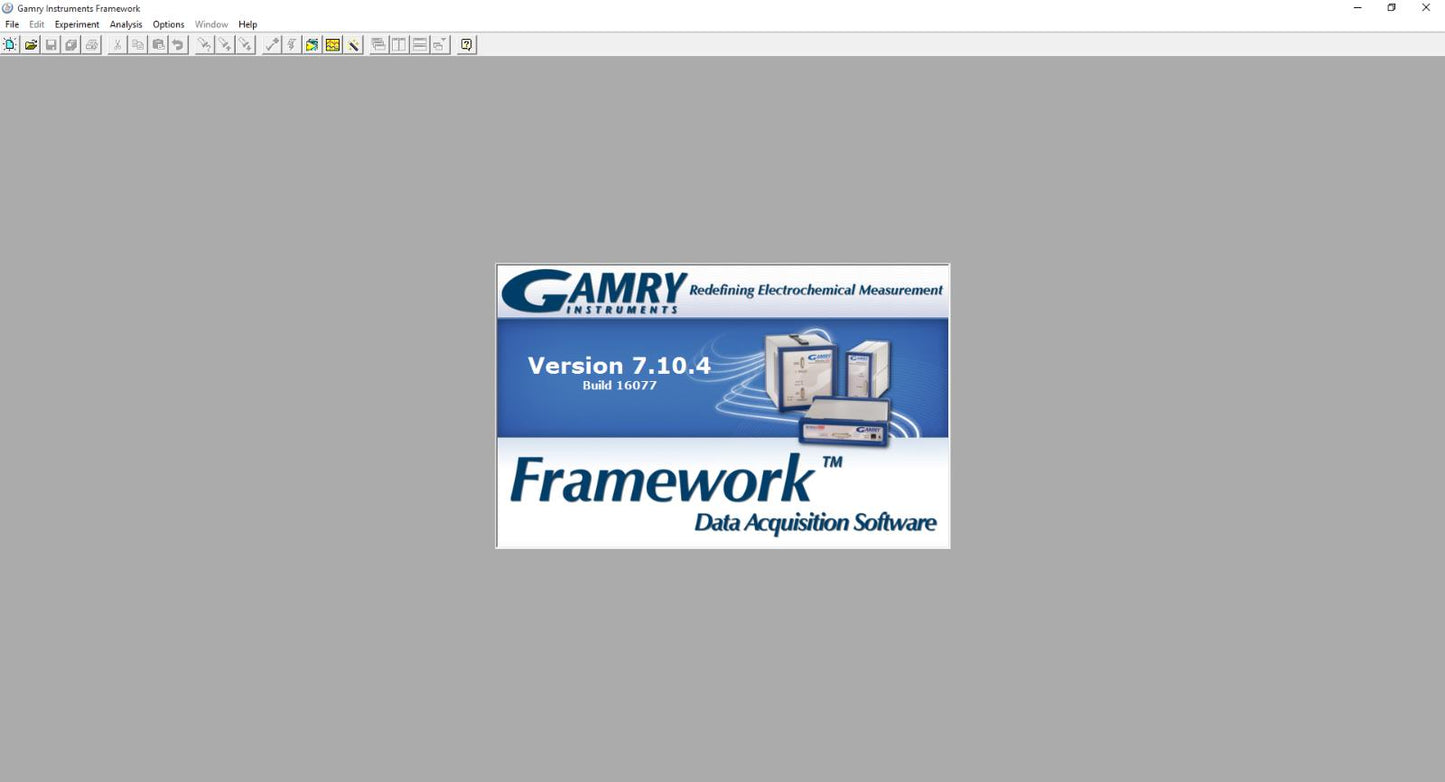

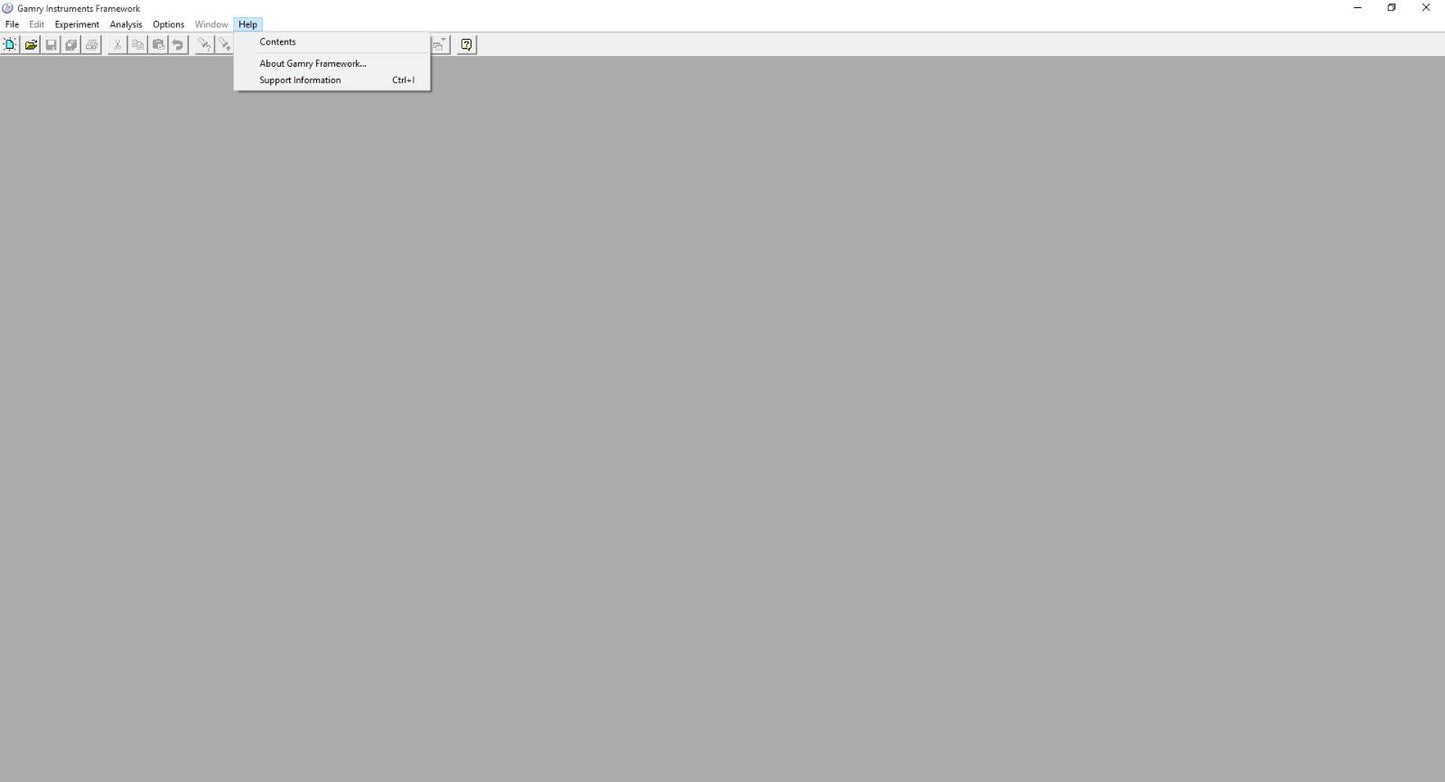

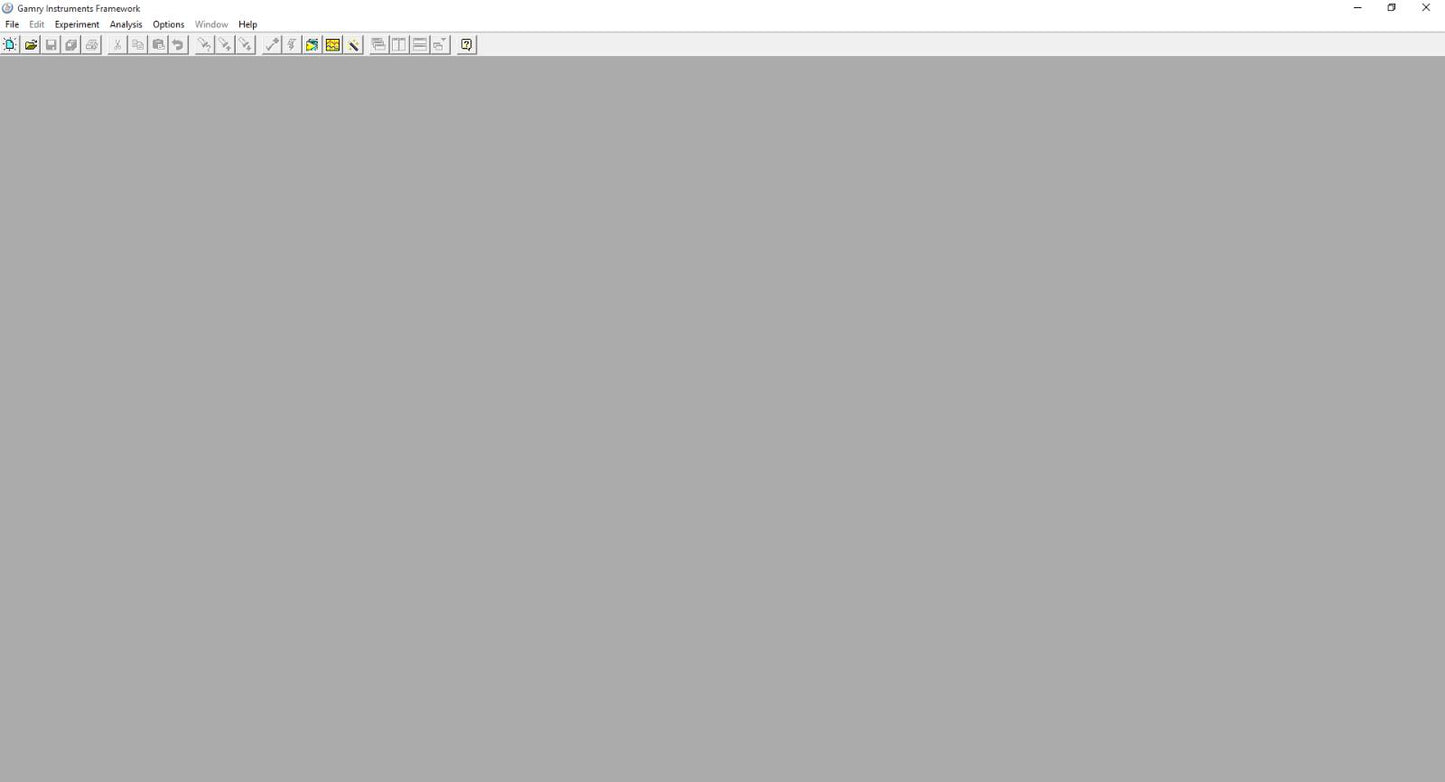

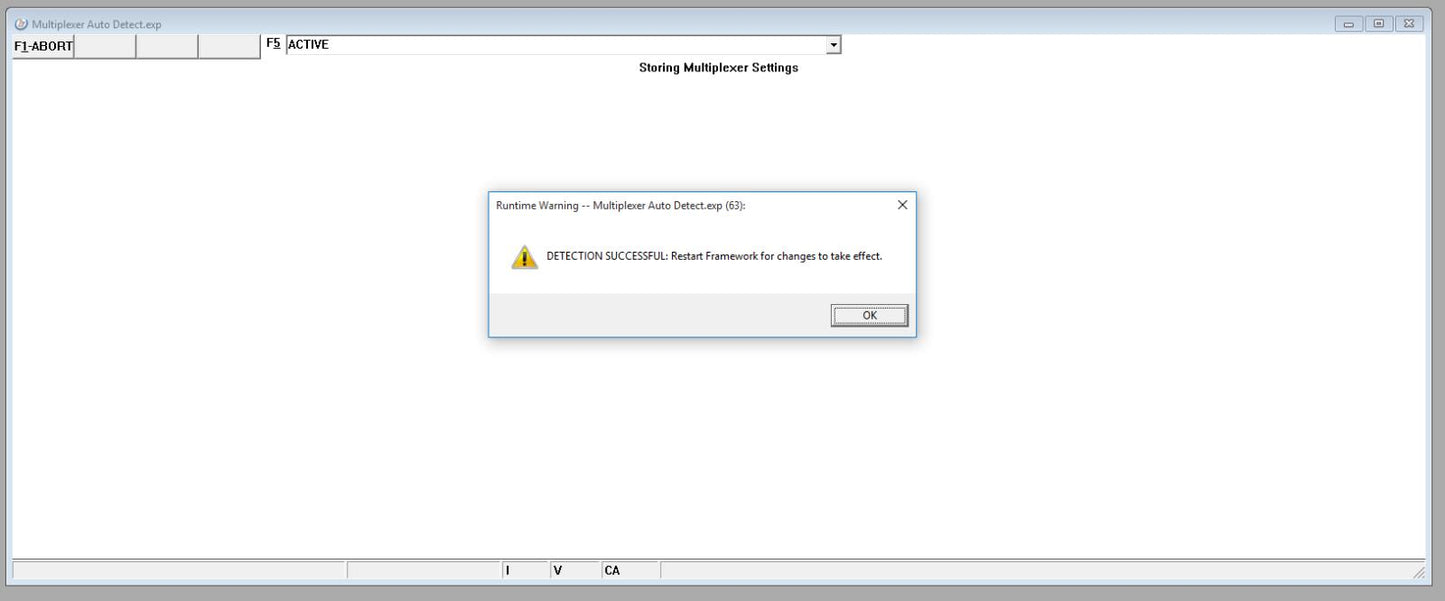

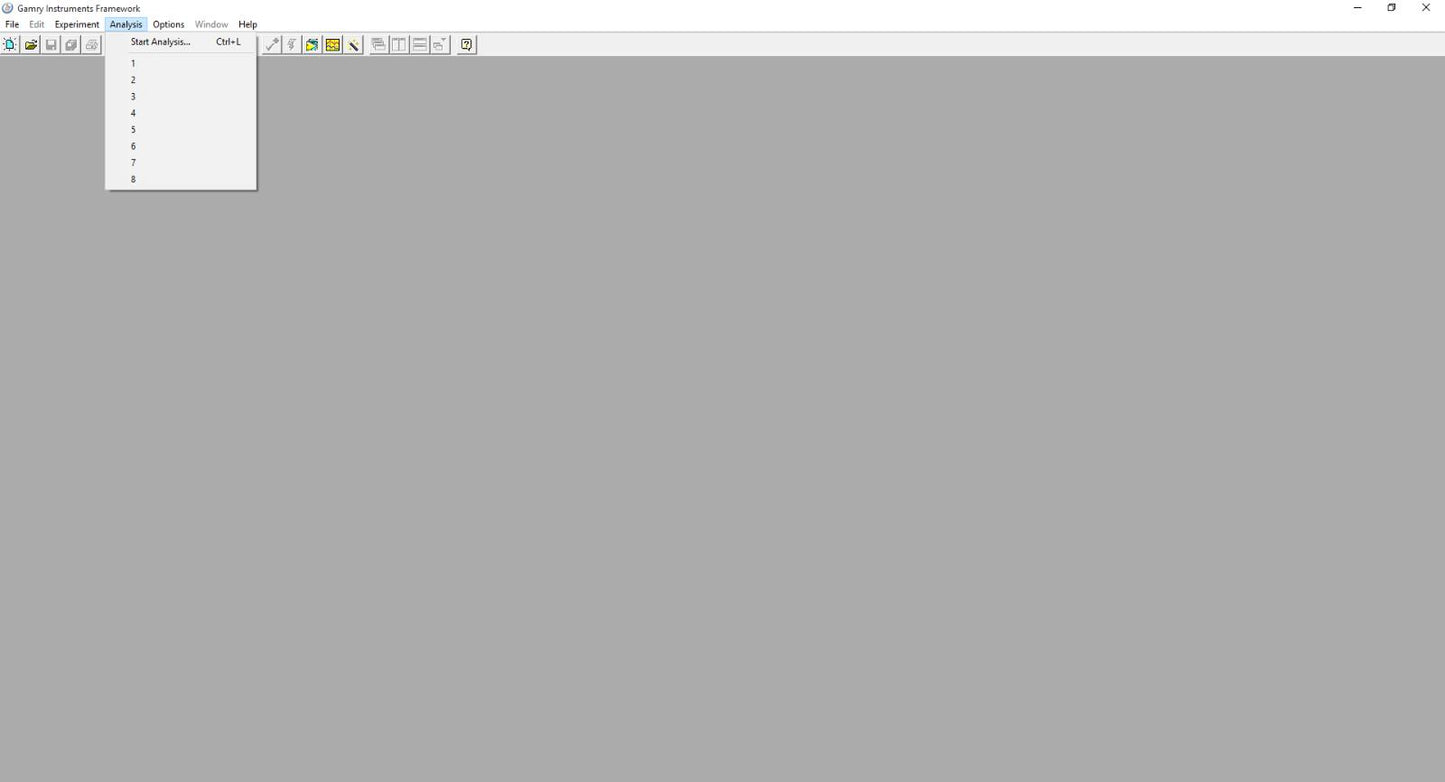

See last two photos for test: Gamry Framework recognizes the multiplexer, it runs through the self-test utility without issue and is recognized by the control computer.


We also took a video of the self-test, which can be found here: youtube.com/watch?v=Ht2QQwjleDU

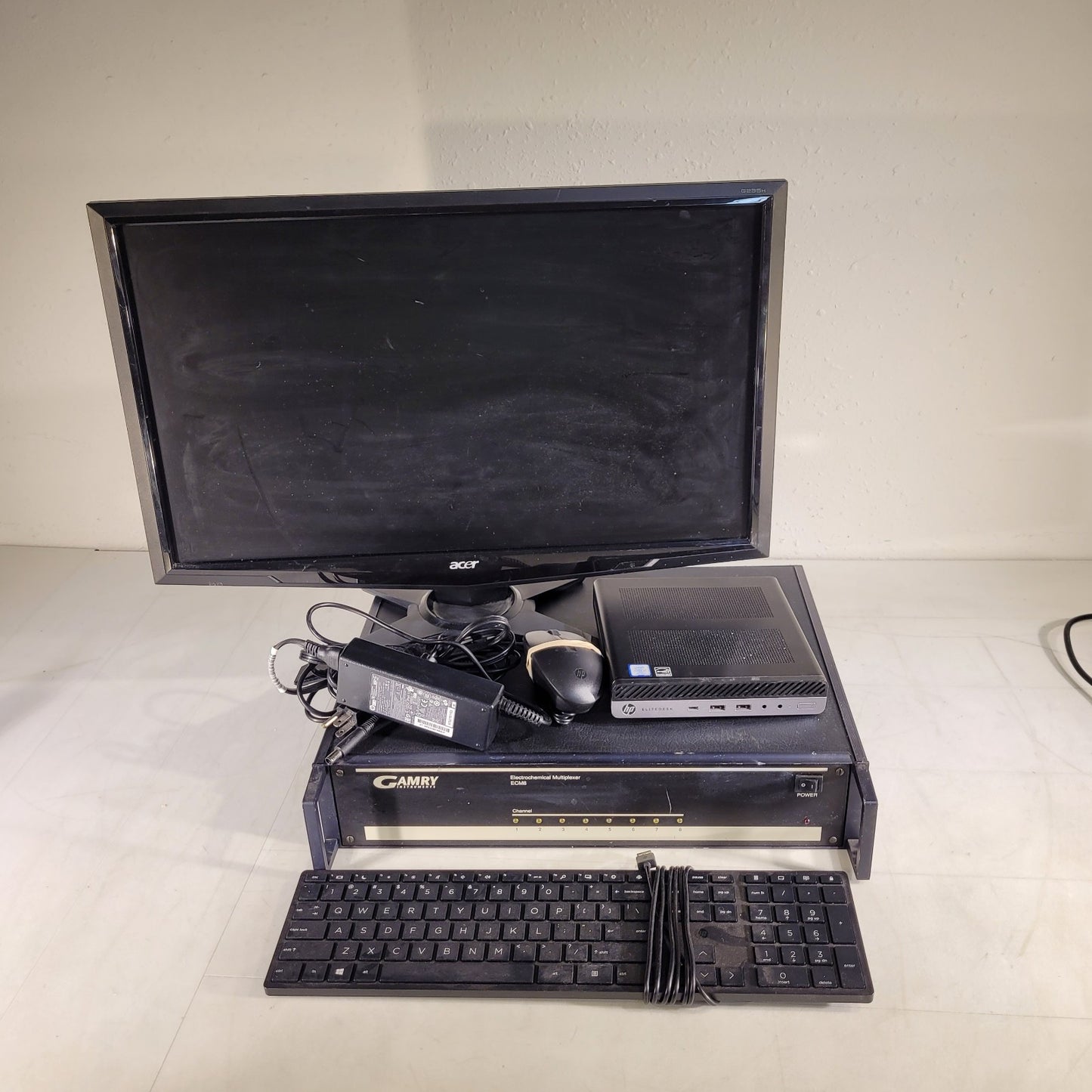

The following is included in purchase:
-Control PC, with Gamry Framework software pre-installed
-Gamry ECM8 Multiplexer
-Computer monitor, and cables to connect it to the control computer
-Serial cable to connect the mux to the control computer via USB

In order to make this a functional electrochemical experimental setup, you will need the following: a potentiostat (preferably a Gamry one that is plug-and-play compatible, though the Gamry Framework software supports many of the name brand potentiostats), electrochemical cells, cell cables (we have some Gamry brand cables for sale separately in our webstore), and a mouse and keyboard to interact with the computer.

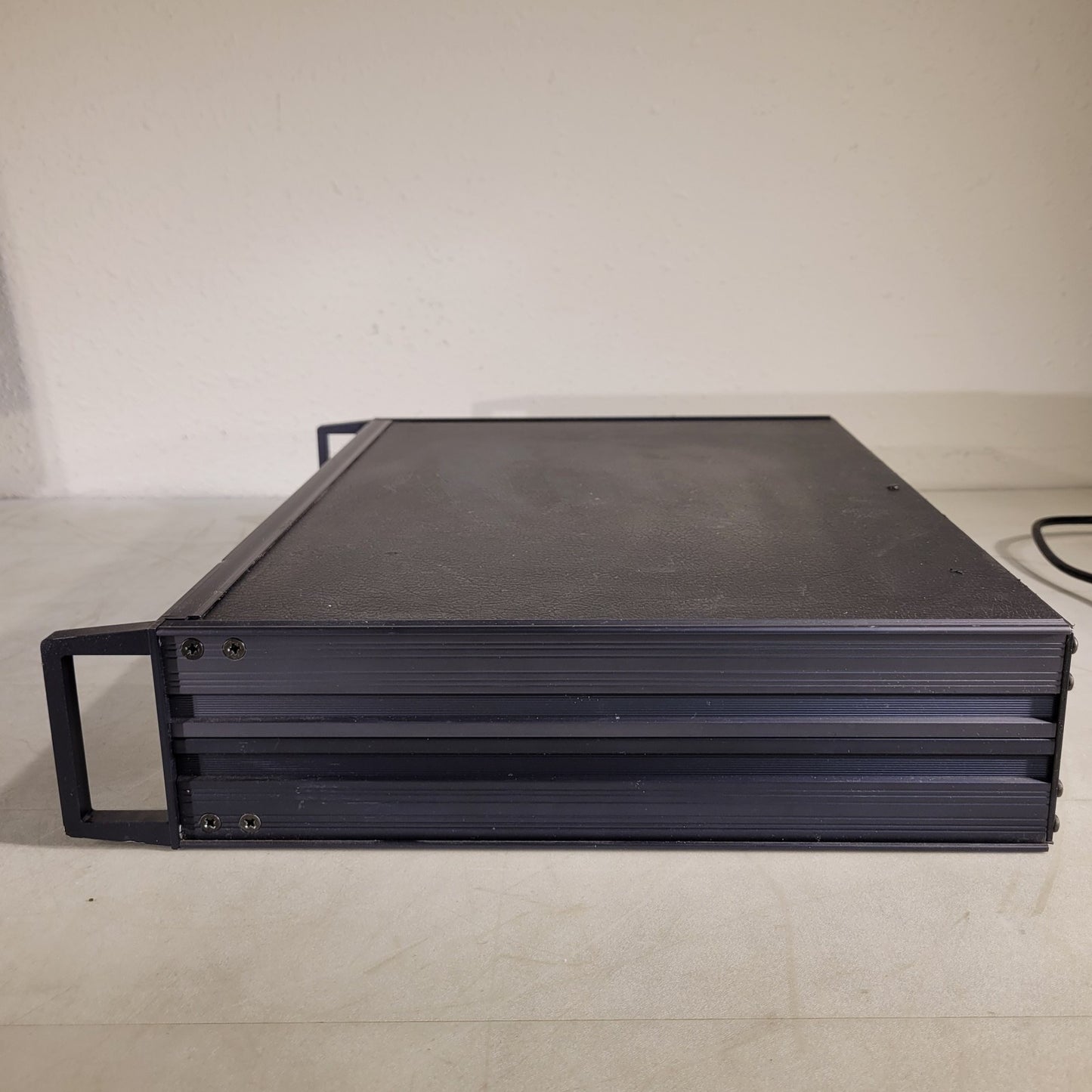

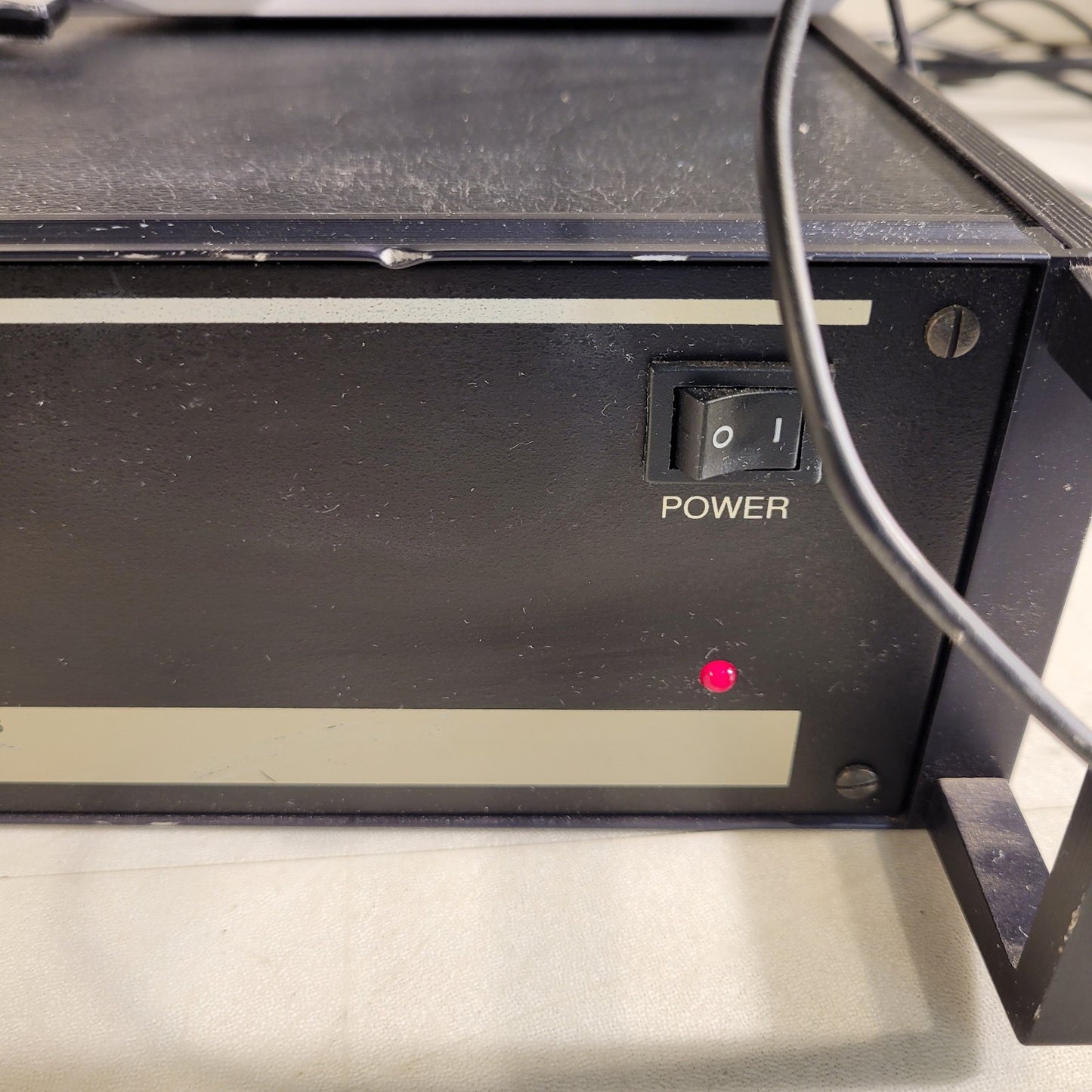

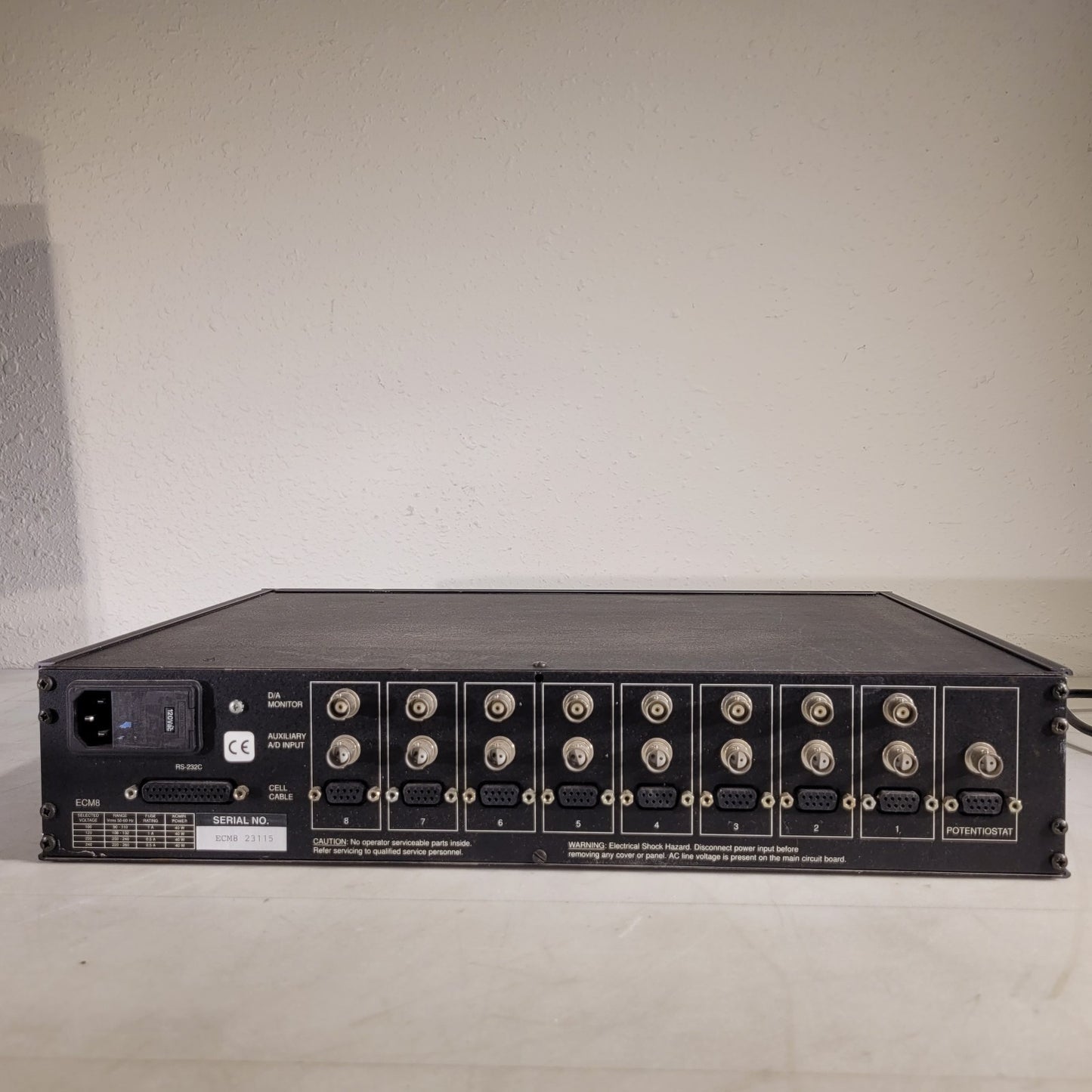

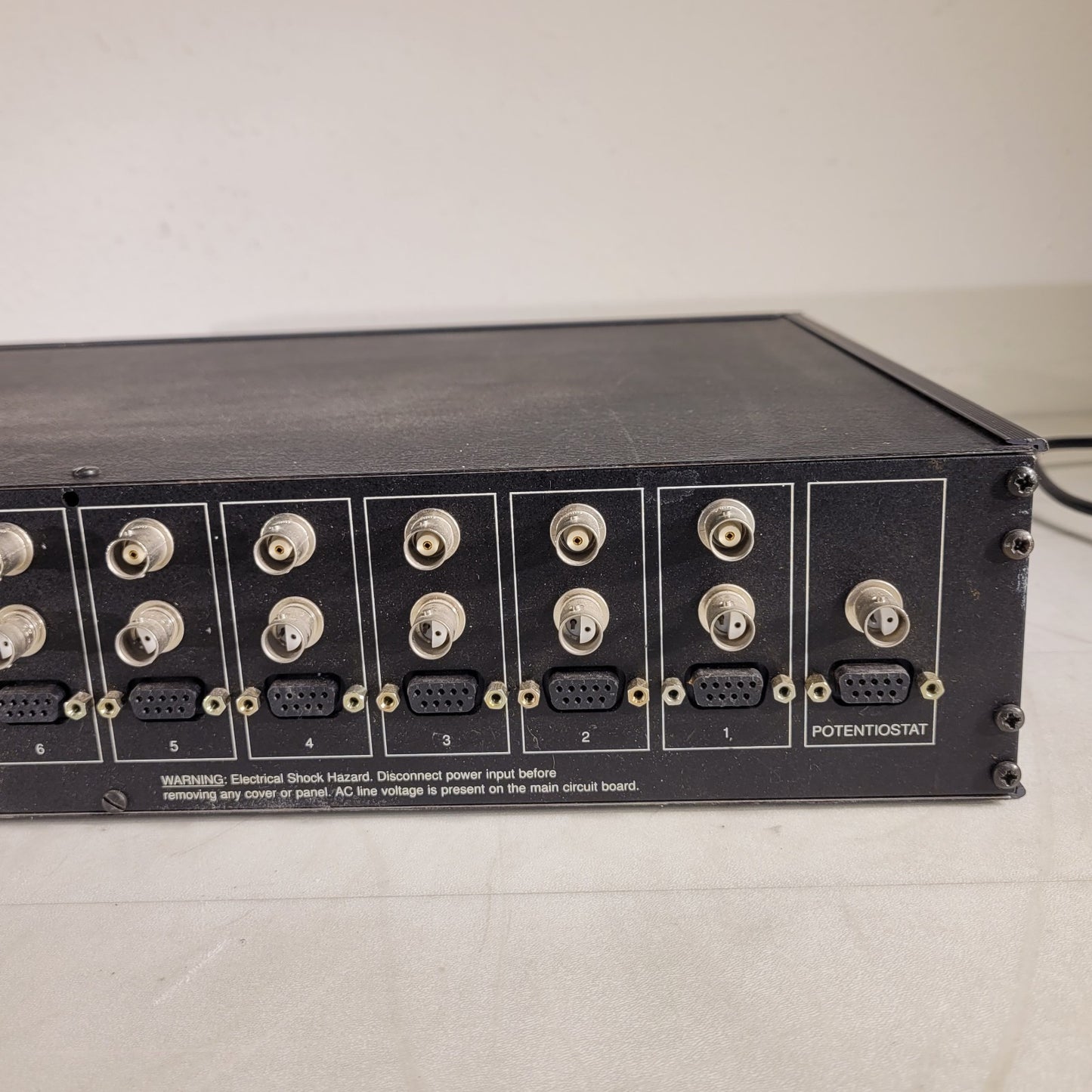

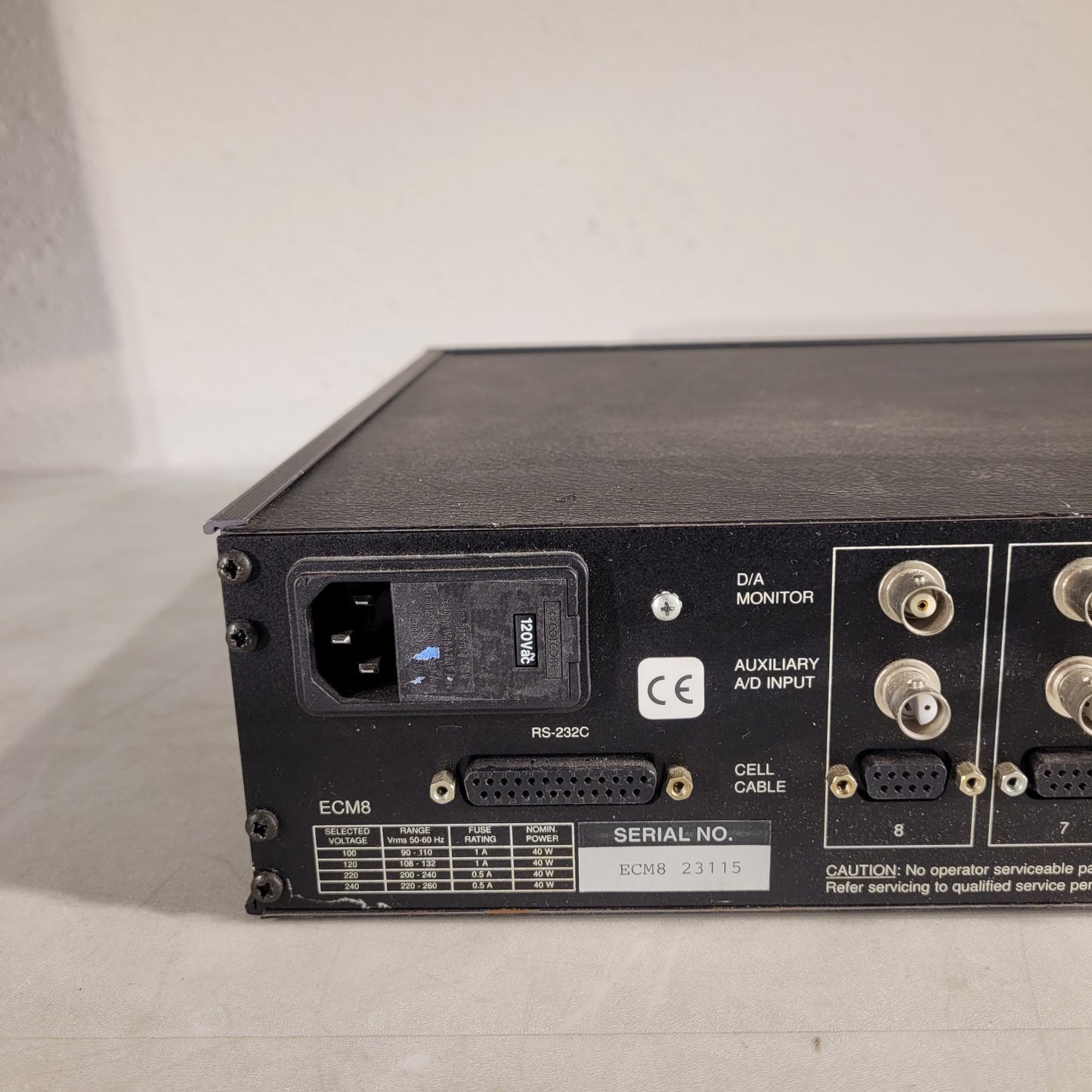

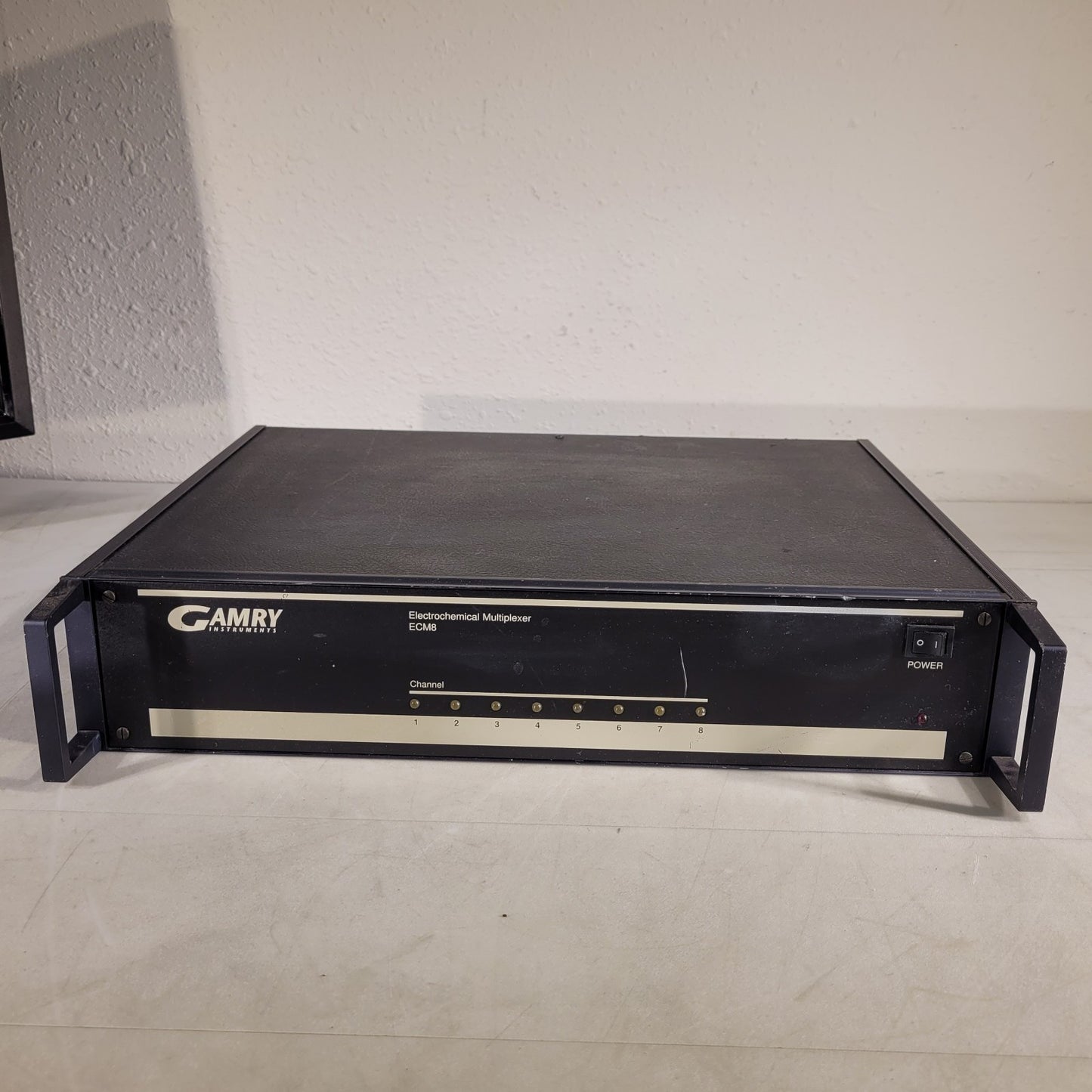

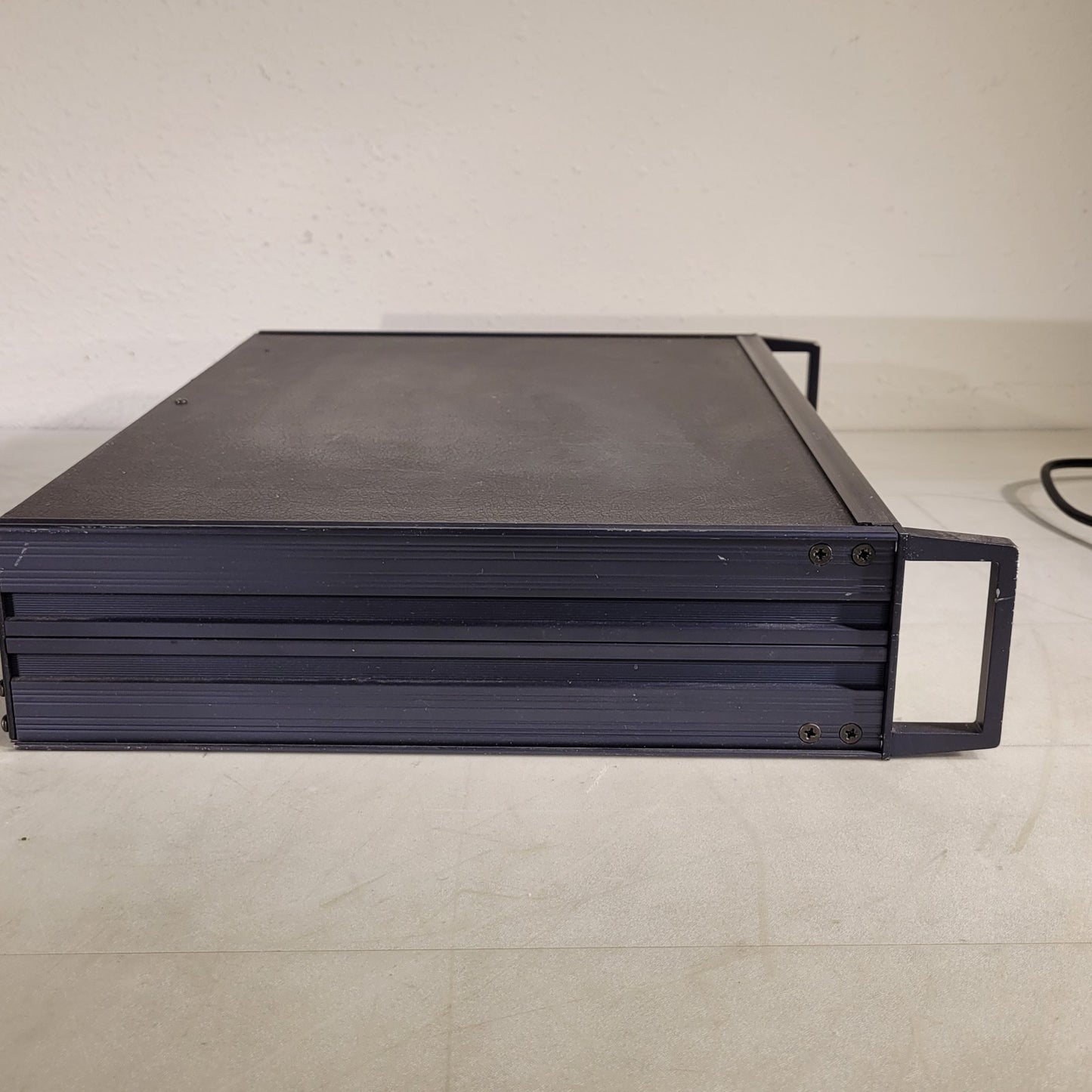

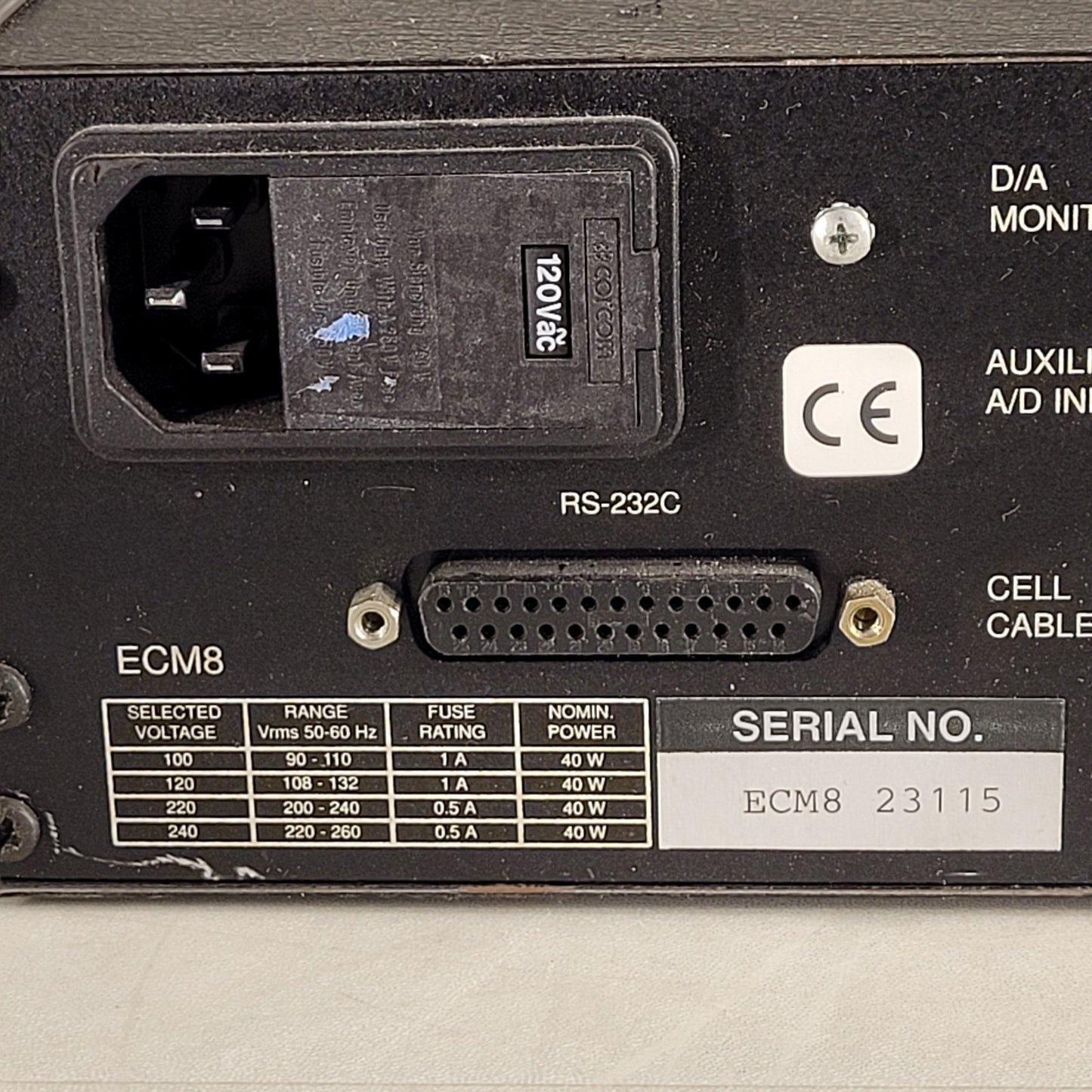

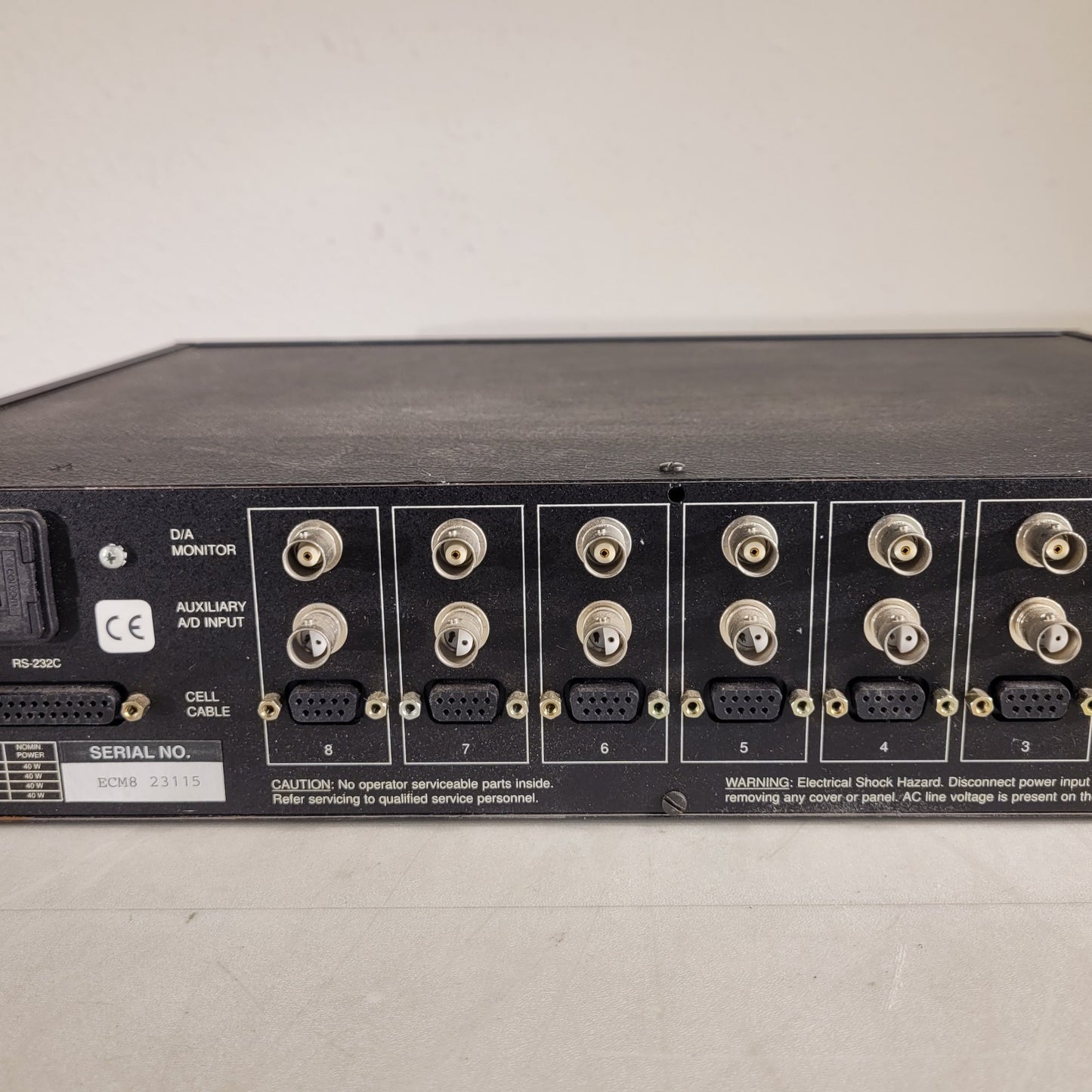

Used, in very good shape, you'd be hard pressed to find one in better condition; no corrosion on the rear connectors at all. See photos.


Computer specs:

• Running on Windows 10

• CPU 3.6 Ghz

• RAM 16 GB

• HDD 512 GB


System will be partially disassembled for shipping.



From the manufacturer: "The ECM8™ is an affordable way to expand the throughput of your lab. Experiments can be sequentially multiplexed on up to 8 channels. The ECM8™ is ideal for corrosion inhibitor testing, EIS evaluation of paints/coatings, monitoring of field probes for corrosion tests, and chemical sensor development.


Key features include:


8-channel for sequential measurements

DC and AC experiments

Industry standard multiplexed experiments


Overview


The ECM8™ Electrochemical Multiplexer partners with a Gamry Potentiostat to convert a single potentiostat into a powerful instrument suitable for sequential multichannel operations. It allows you to sequentially take measurements on up to eight electrochemical cells. The ECM8™ Multiplexer is great for automating repetitive experiments, and for increasing throughput on long-term experiments where data can be taken periodically. Each of the eight Multiplexer channels also incorporates a "local" potentiostat to polarize the sample when not participating in the electrochemical experiment. The ECM8™ is not usable for simultaneous multichannel experiments across multiple cells. For simultaneous multichannel experiments see the multichannel potentiostat.


*Note that EIS through the multiplexer is limited to 100 kHz


Applications

Corrosion Inhibitor Testing

Paint/Coating Evaluation

Galvanic Corrosion

Corrosion Monitoring

Chemical Sensor Development


Standard Features

8-channel for sequential measurements.

DC and AC experiments.

Includes industry standard multiplexed experiments.

8 Local Potentiostats – Inactive channels can be set to open, short, or polarized."
