Haglaf VL400 Vertex Laser Quality Ultrasonic Measurement Device w/ Tilt Sensor 10.5yds - 437yds

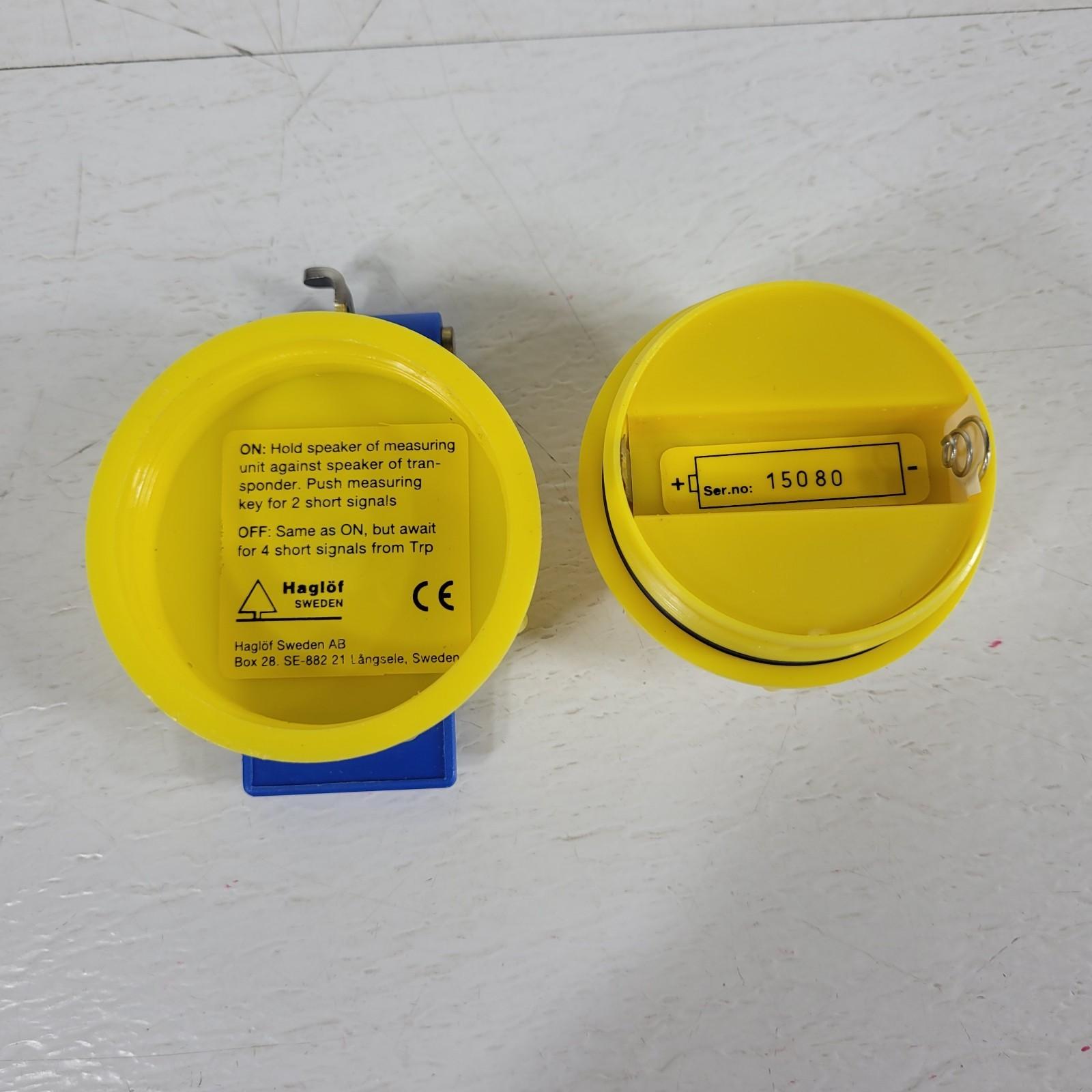

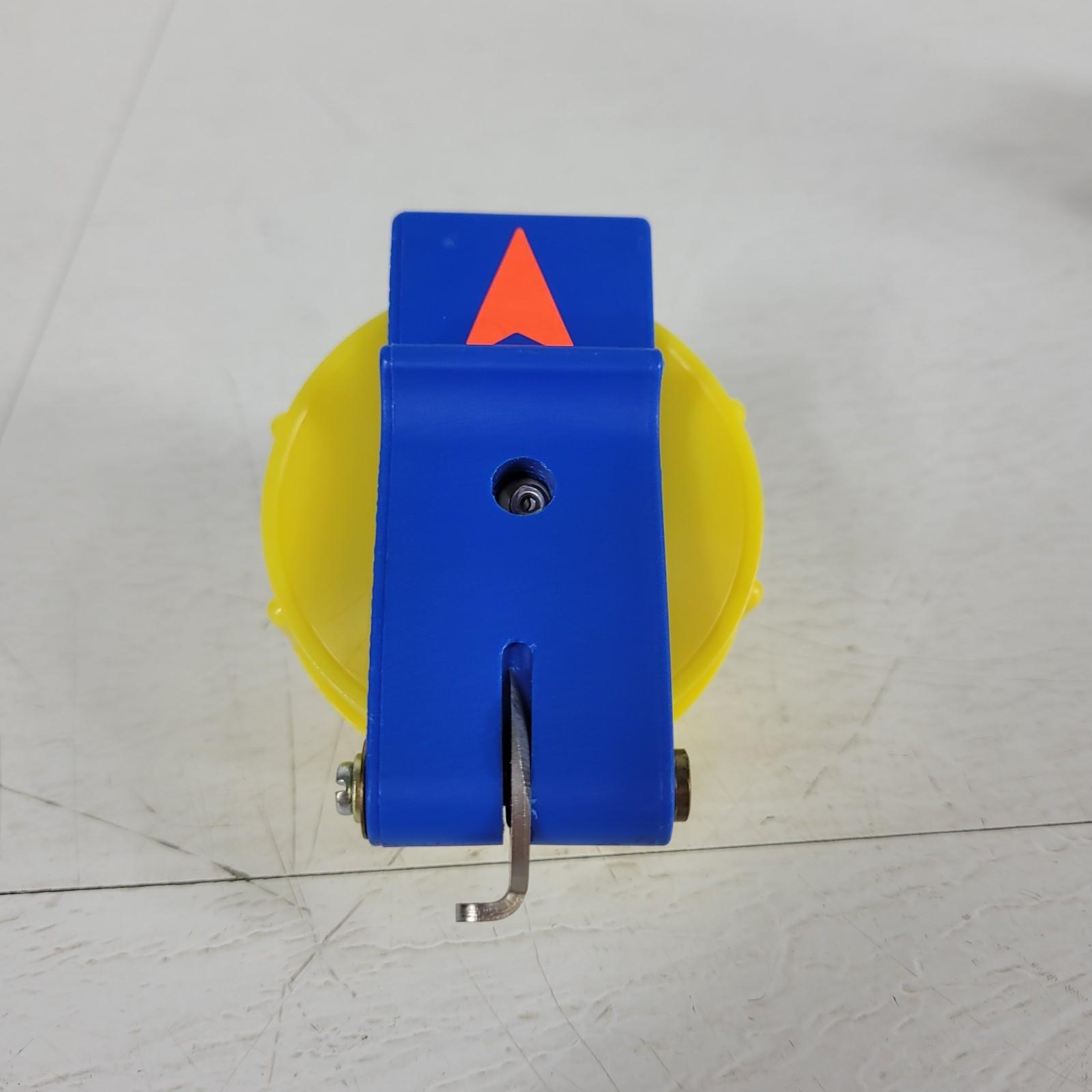

Haglöf Vertex Laser VL400 field hypsometer/rangefinder for fast, accurate height, distance, and angle measurements. Popular with forestry, arborists, and survey crews for tree height checks, plot work, and general field ranging. This unit combines laser + ultrasonic + a built-in tilt sensor so you can work reflective targets at long range and still have a solid ultrasonic option with a transponder. This setup includes the T3 transponder.

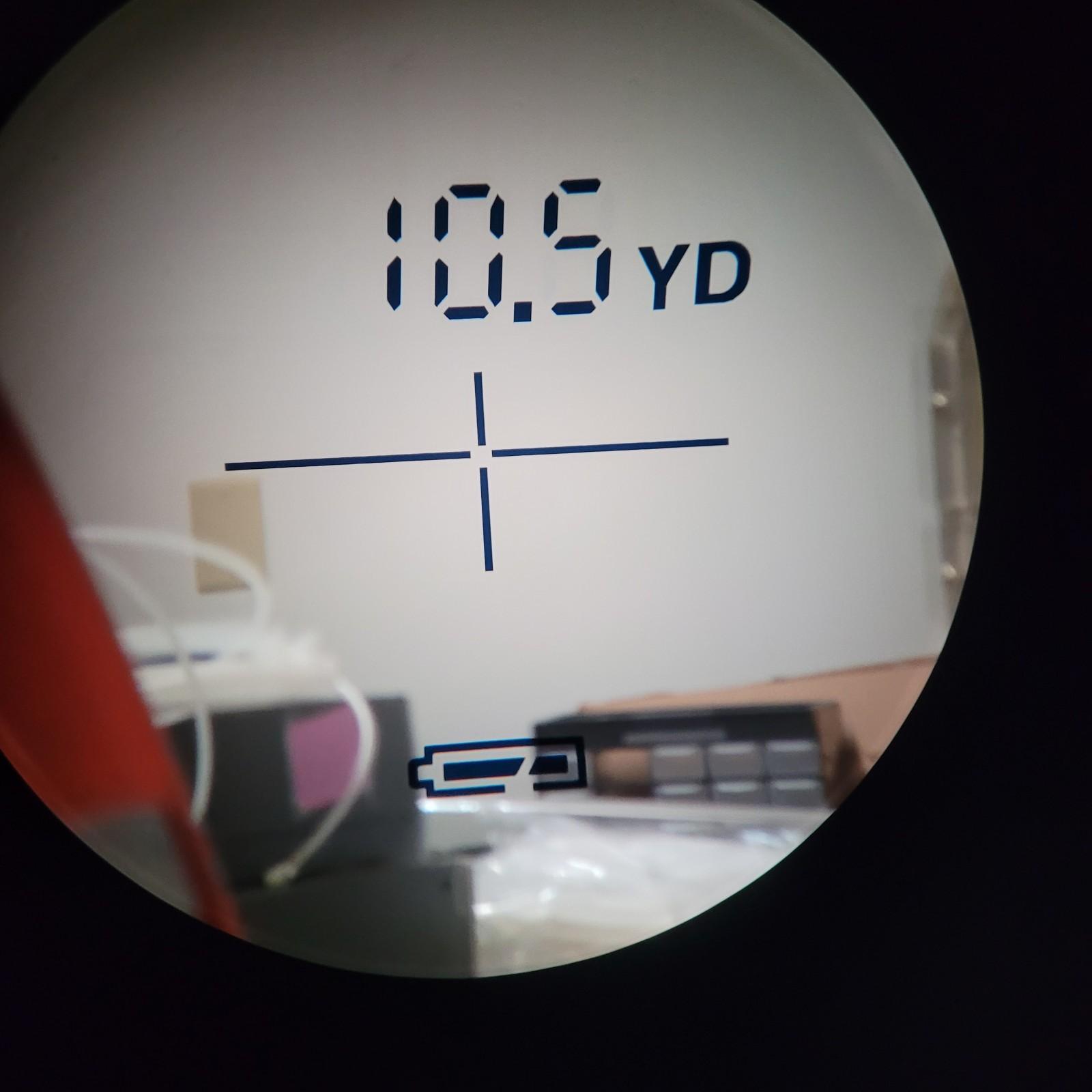

Minimum range of 10 yards. Under that, it doesn't take measurements.
What it does (in plain English):
-Measures distance by laser (and by ultrasound when used with a T3 transponder)

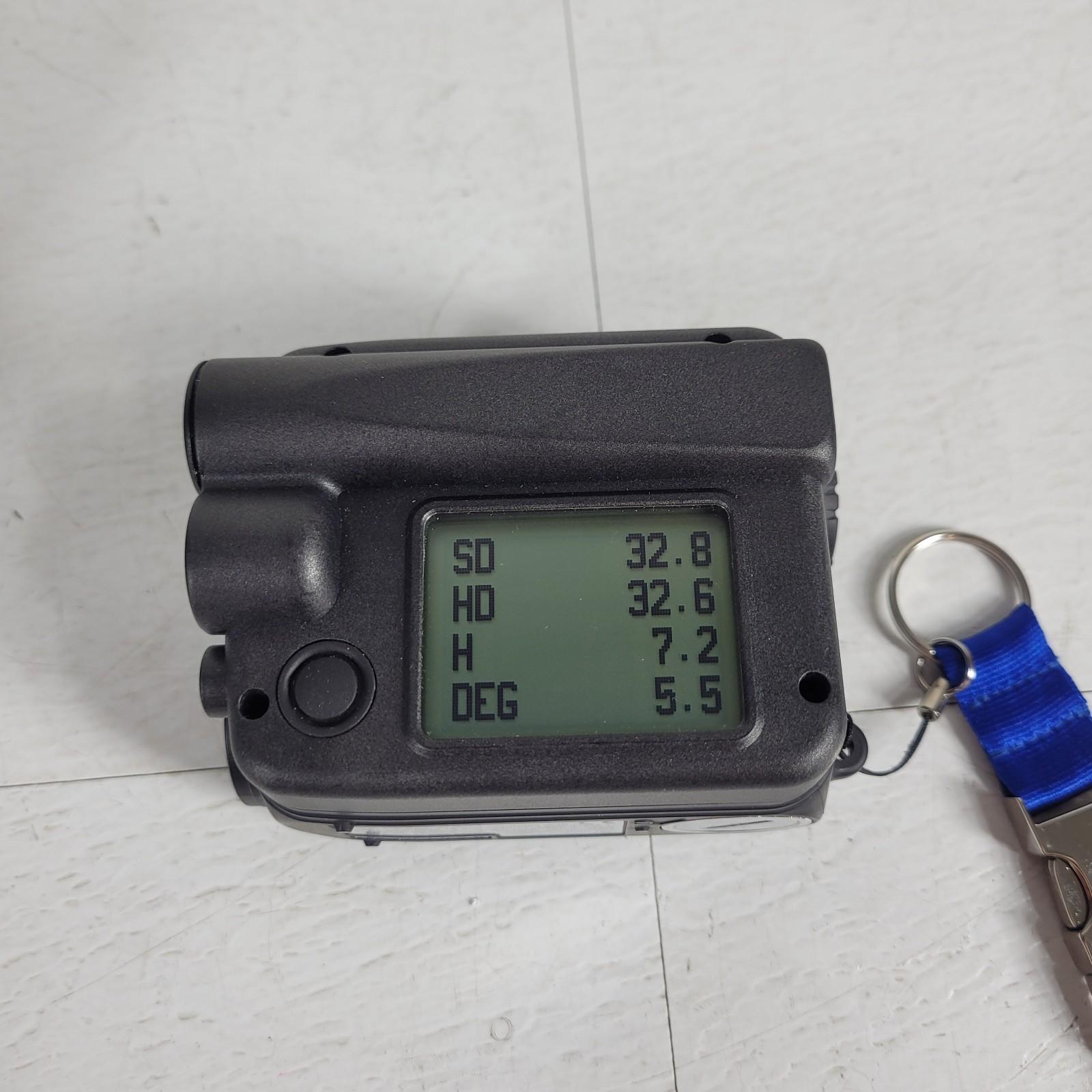

-Measures angle/tilt; then calculates height using 2-point/3-point height modes
-Handy field features like scan/continuous measuring, rain mode, and IR data output
Key specs (factory):
-Height range: 0 to 999 m/ft; display resolution 0.1 m/ft
-Angle range: -55° to +85°; resolution 0.1°; typical accuracy 0.1°

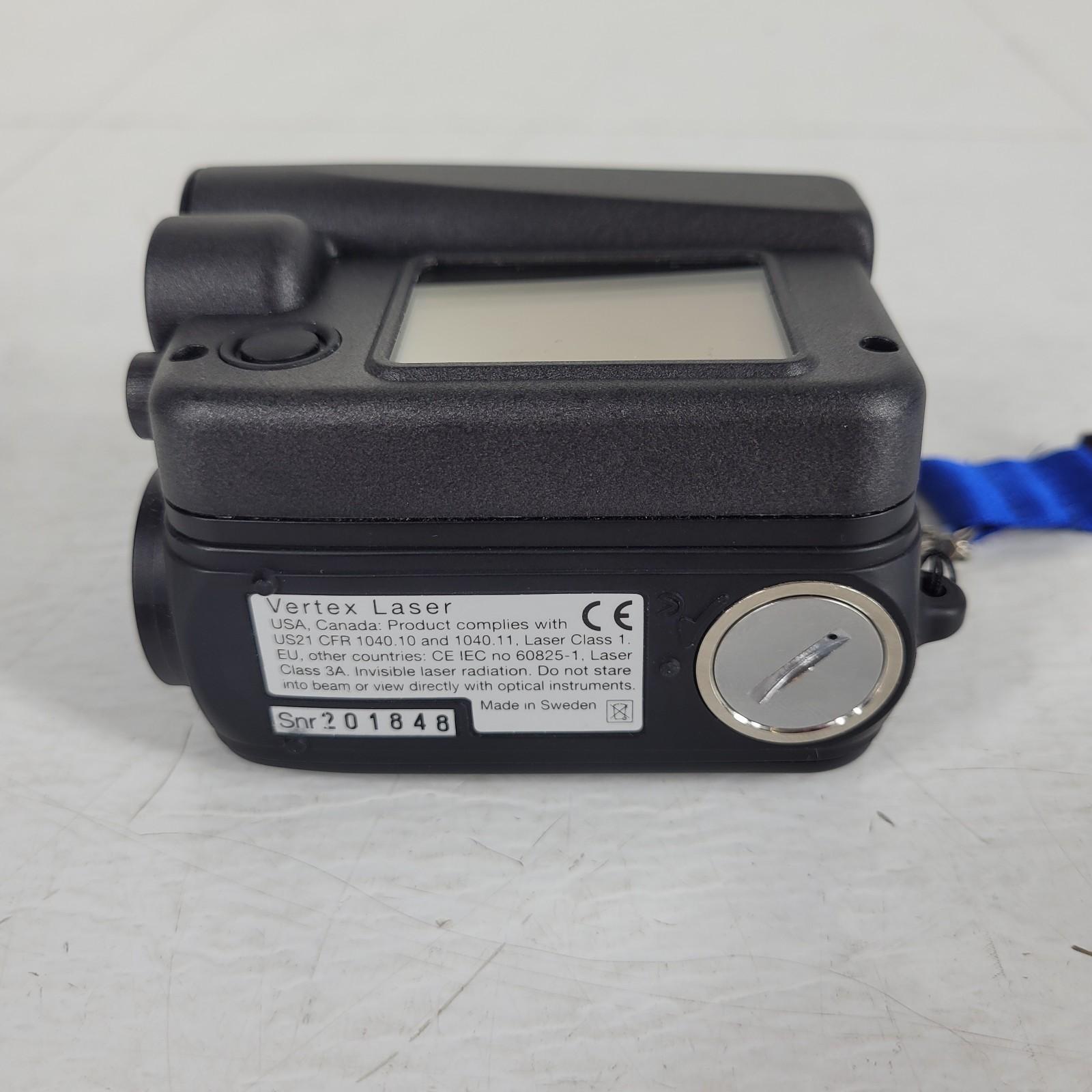

-Laser class: FDA Class 1 (US/Canada); EN60825-1 Class 3A (EU/other)
-Laser distance: up to 350 m (non-reflective); ~130 to 900 m (reflective target)
-Laser resolution/accuracy: 0.5 m (<100 m) then 1 m; accuracy ±0.4 m (<100 m) then ±1 m
-Ultrasonic distance (with T3): >30 m / 100 ft (or >20 m / 60 ft with 360° adapter); resolution 0.01 m; accuracy 1% or better
-Power: 1x CR2 3V lithium; approx ~3000 measurements per fresh battery (varies with temps/usage)
-Size/weight: 95 x 72 x 58 mm; 260 g (battery in)
-Operating temp: -15°C to +45°C
Condition and testing (this specific unit):

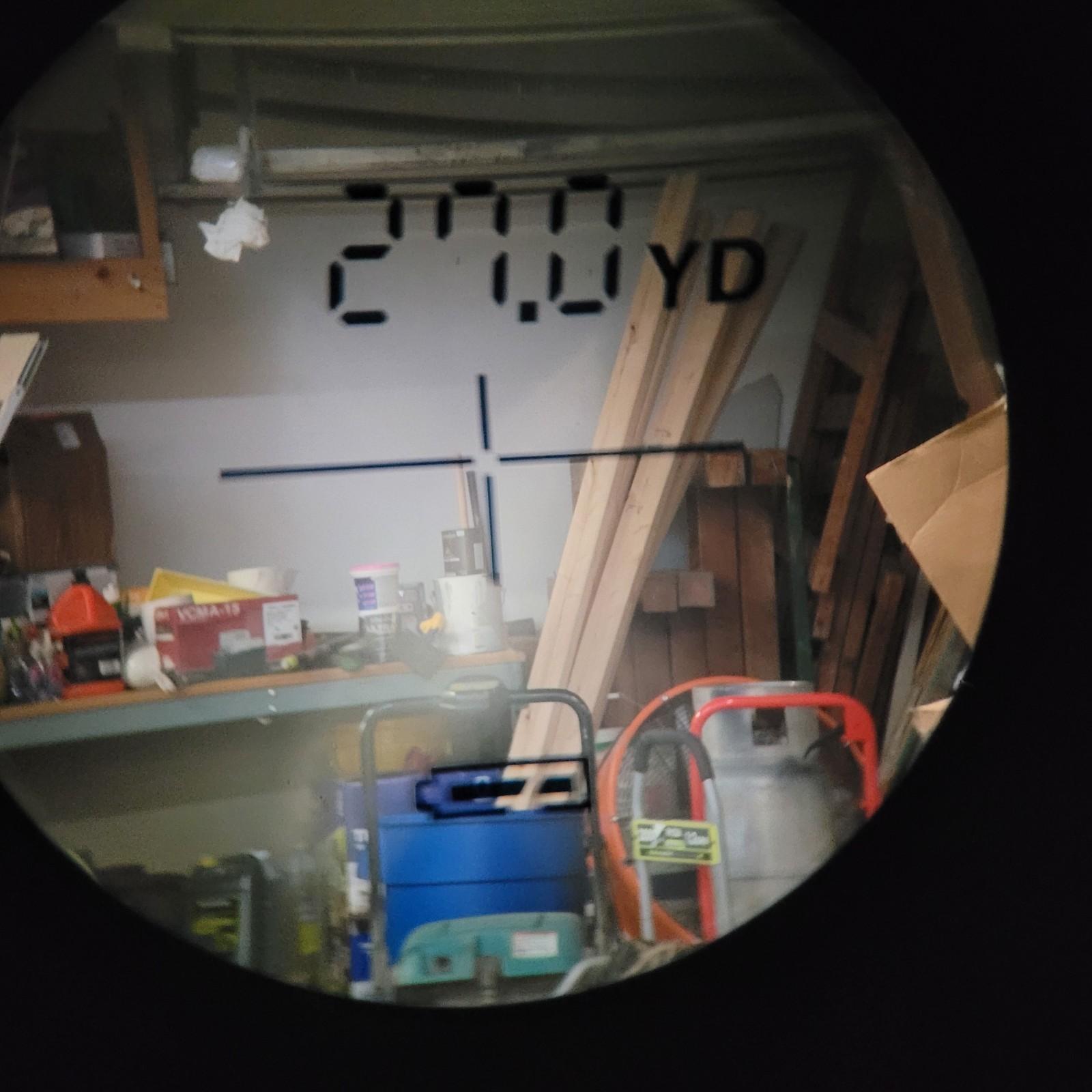

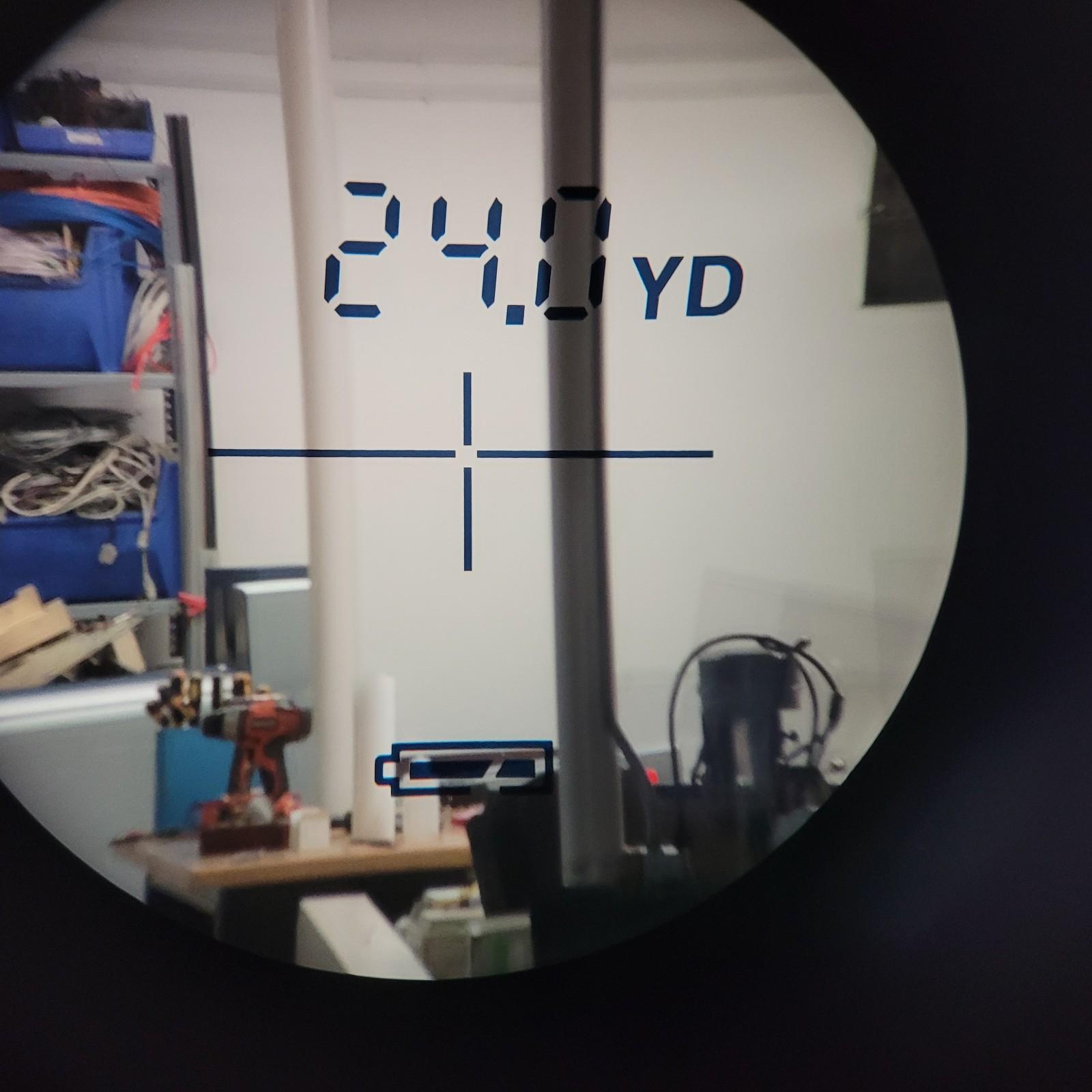

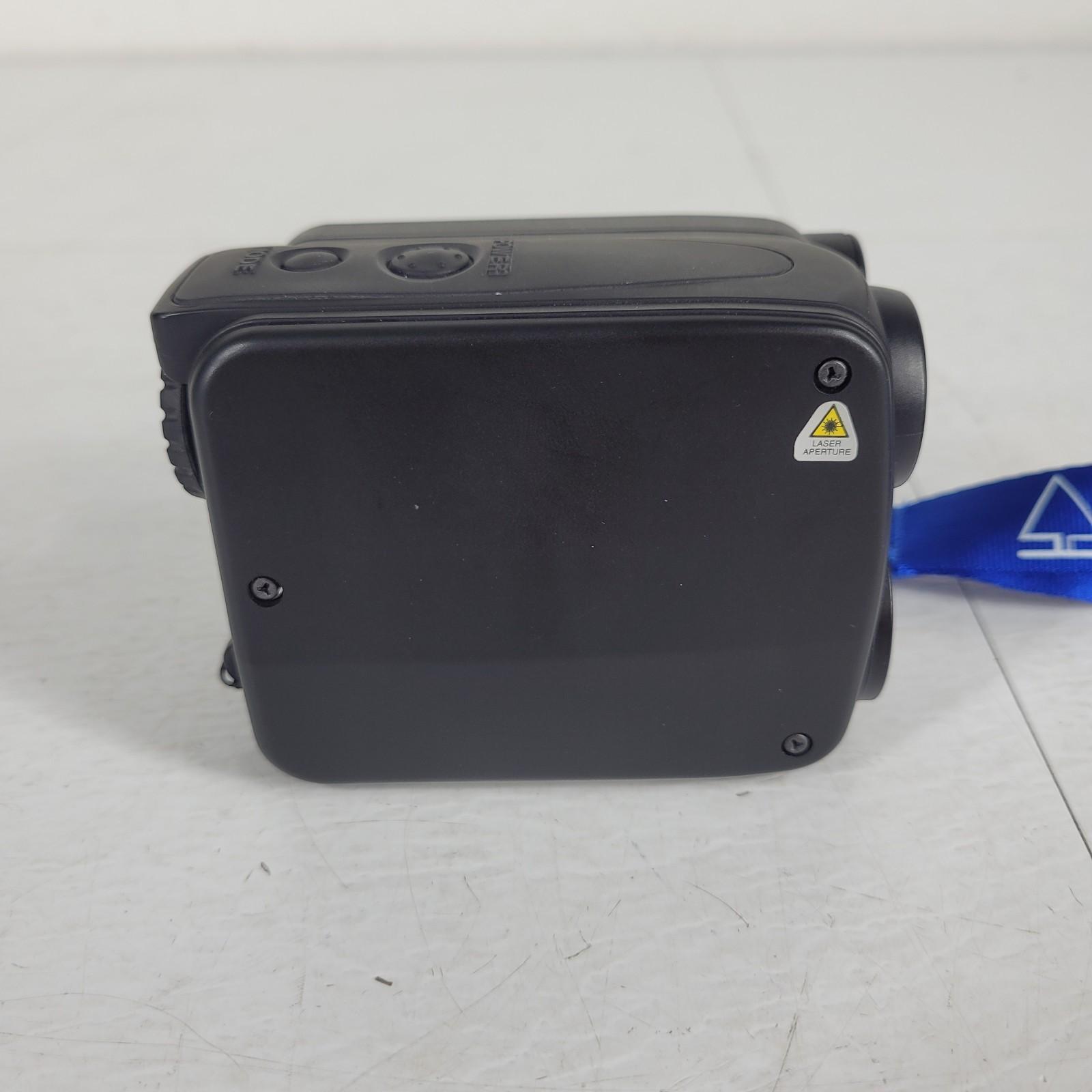

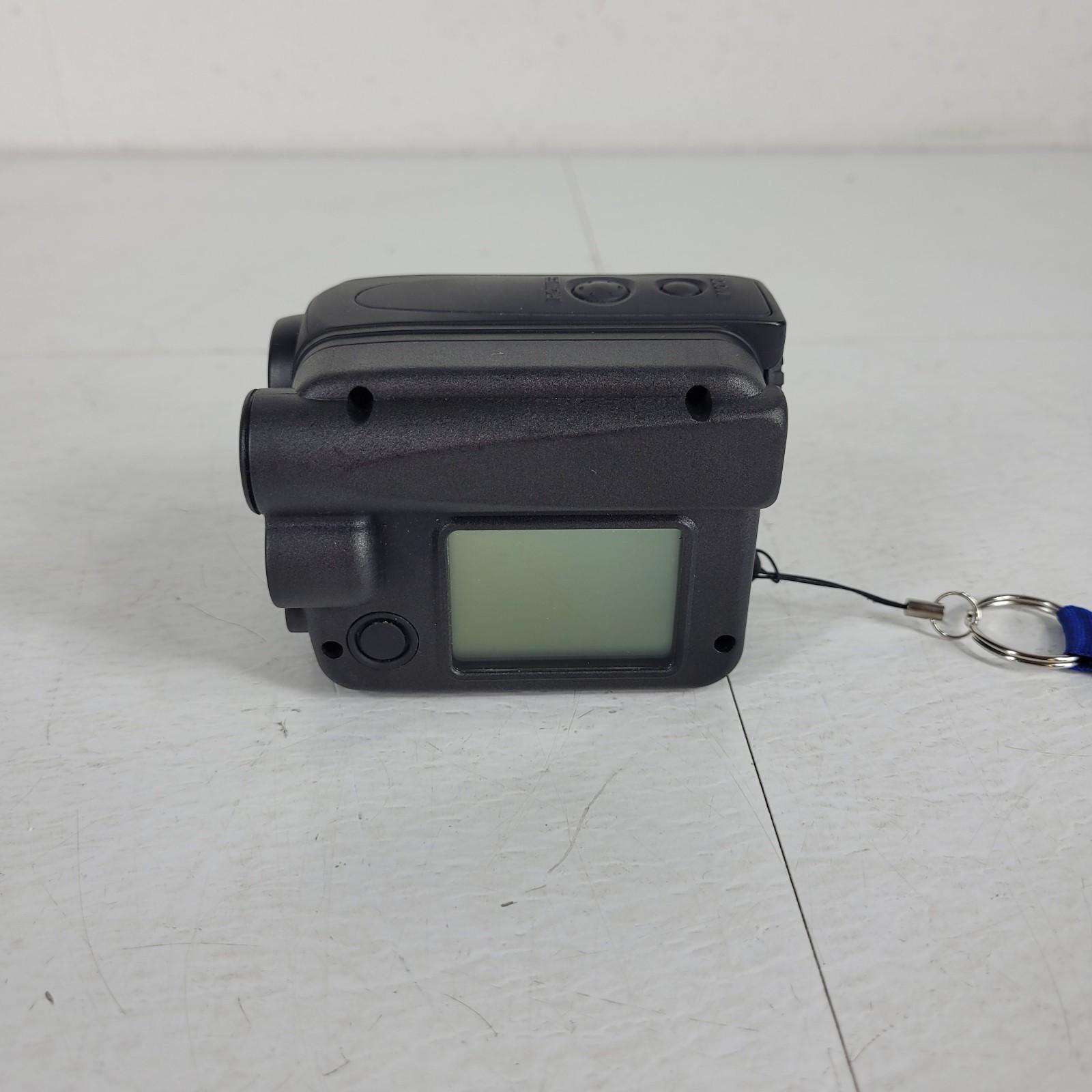

Used condition with normal field wear. We fully tested it in-house; it powers on, buttons/menu operate correctly, display is clear, tilt/angle reads correctly, and ranging functions work great. It’s ready to deploy straight into the field; see photos for the exact cosmetic condition.
Included:

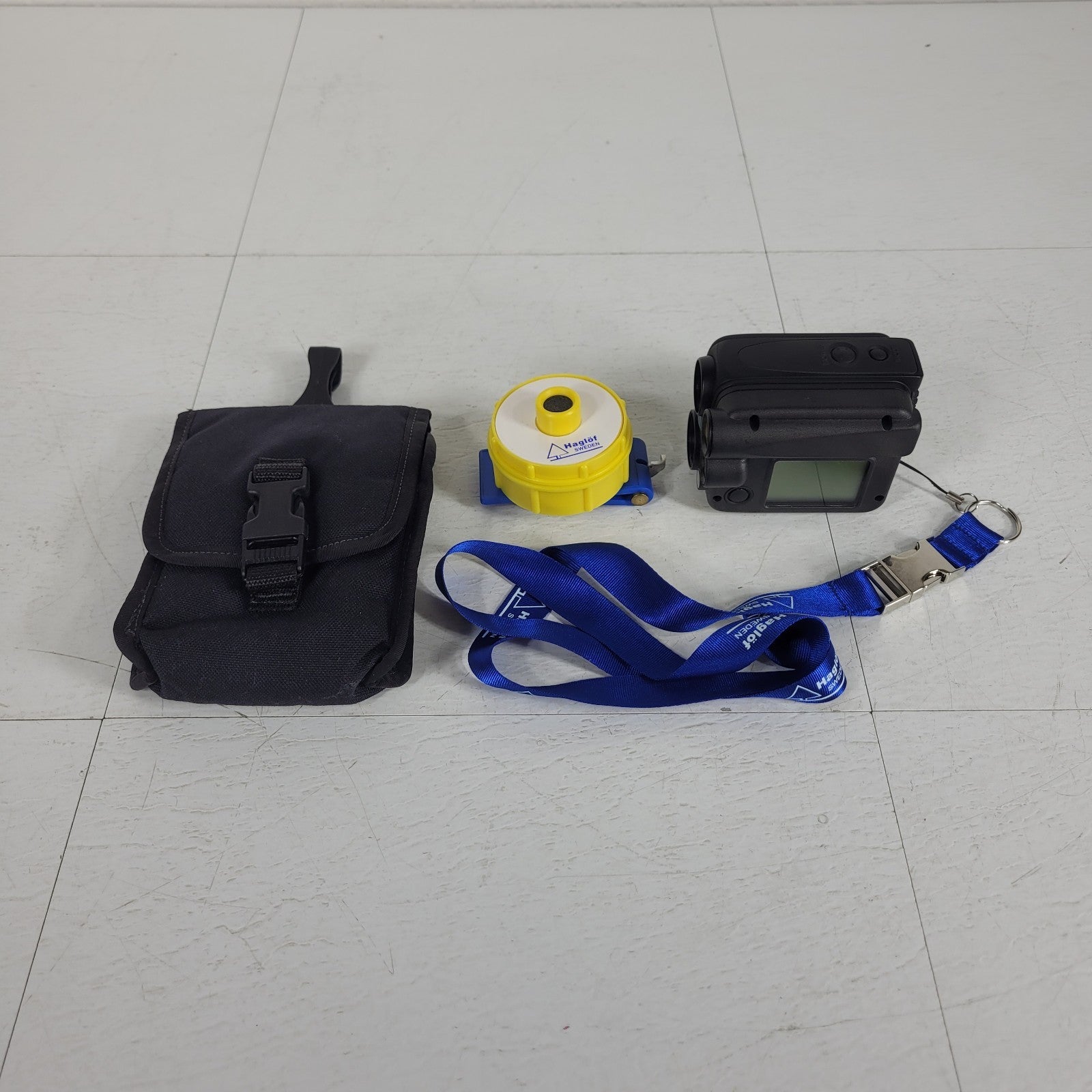

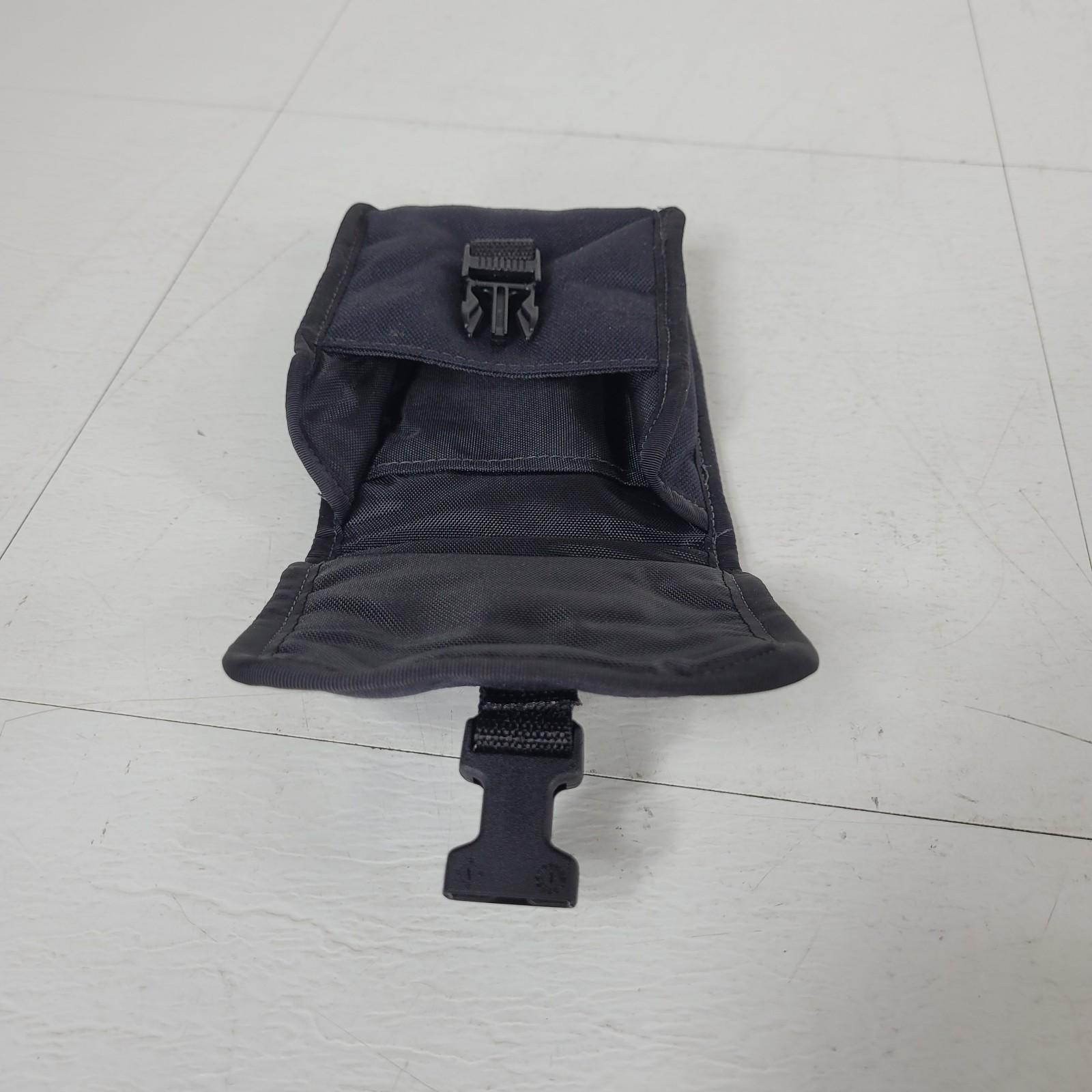

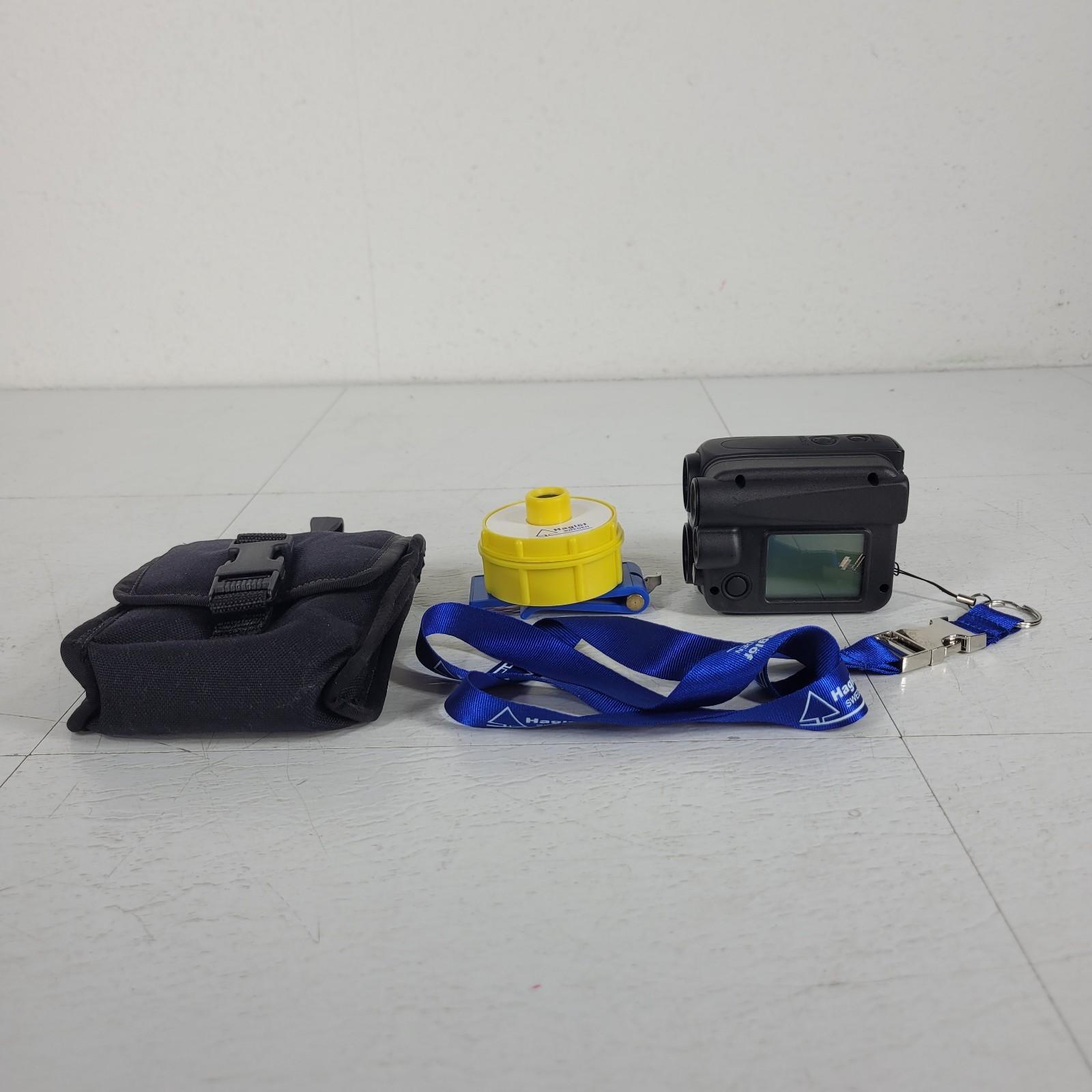

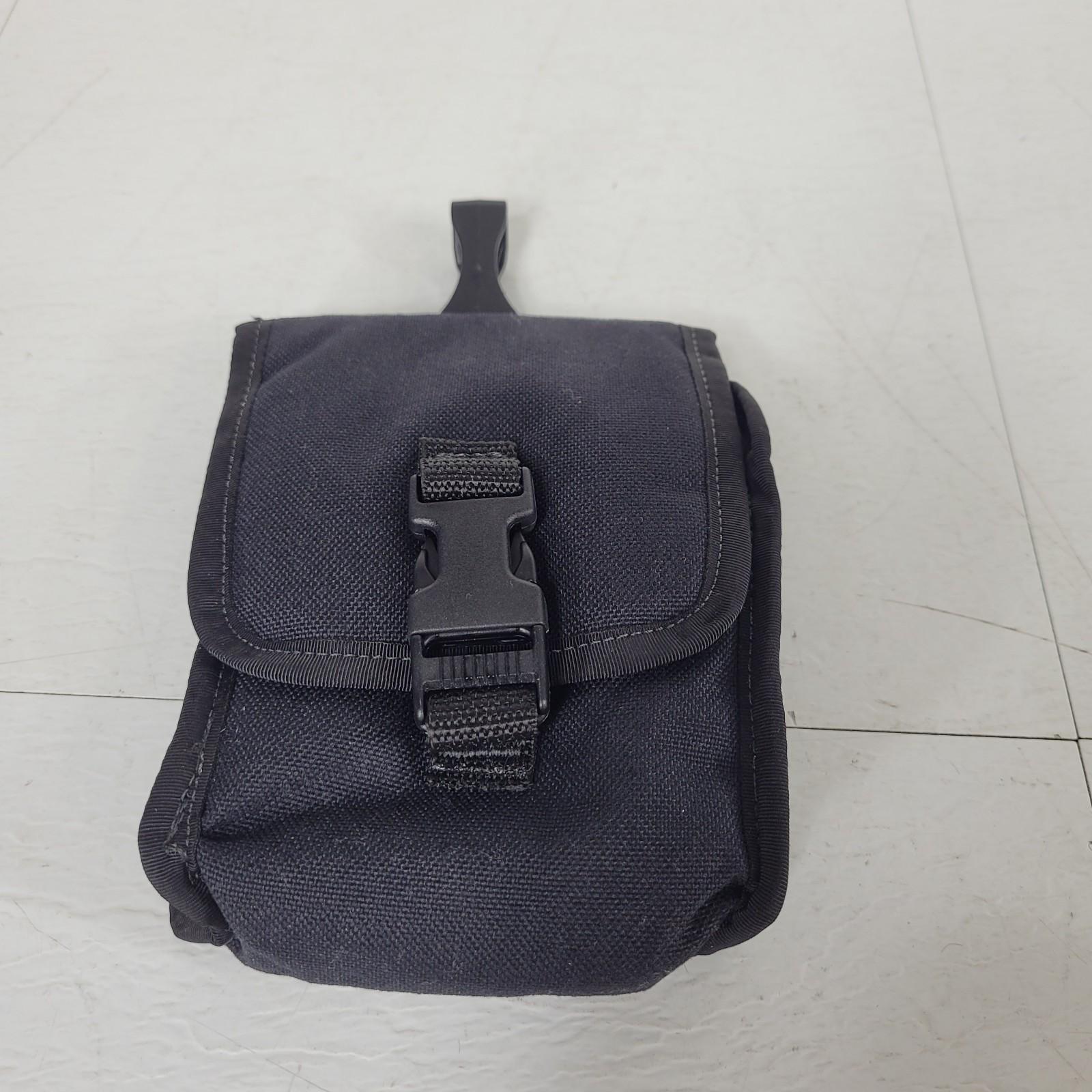

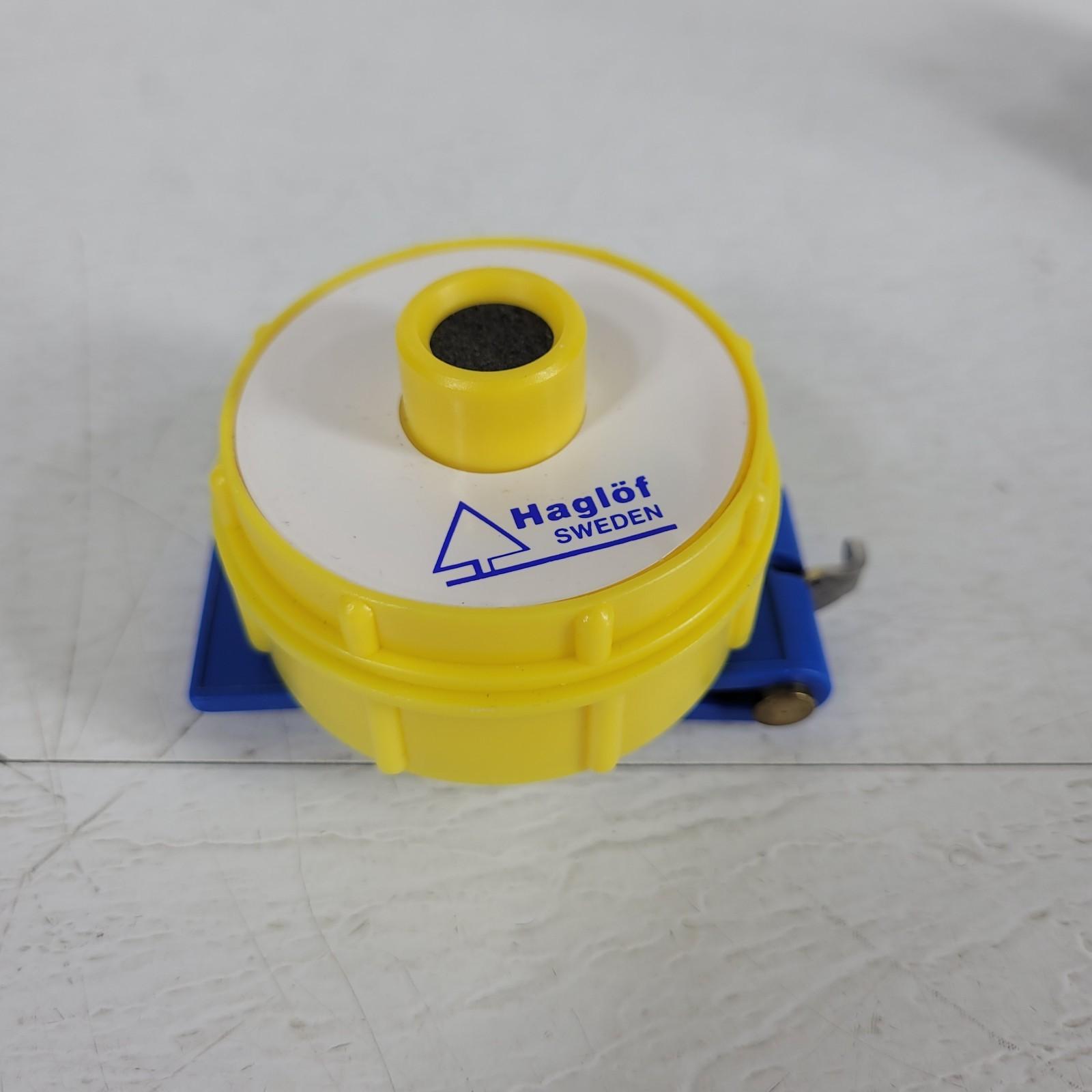

You will receive exactly what’s shown in the photos (no extras). Includes case, lanyard, T3 transponder, and battery (charge state not guaranteed). Does not include staff or anything else not shown in the photos.
