High Vacuum ISO-K 63 Turbo Pump Station Varian TV-70 w/ Roughing Pump, Tee, Hose

High Vacuum ISO-K 63 Turbo Pump Station Varian Turbo V-70 w/ Roughing Pump, Tee

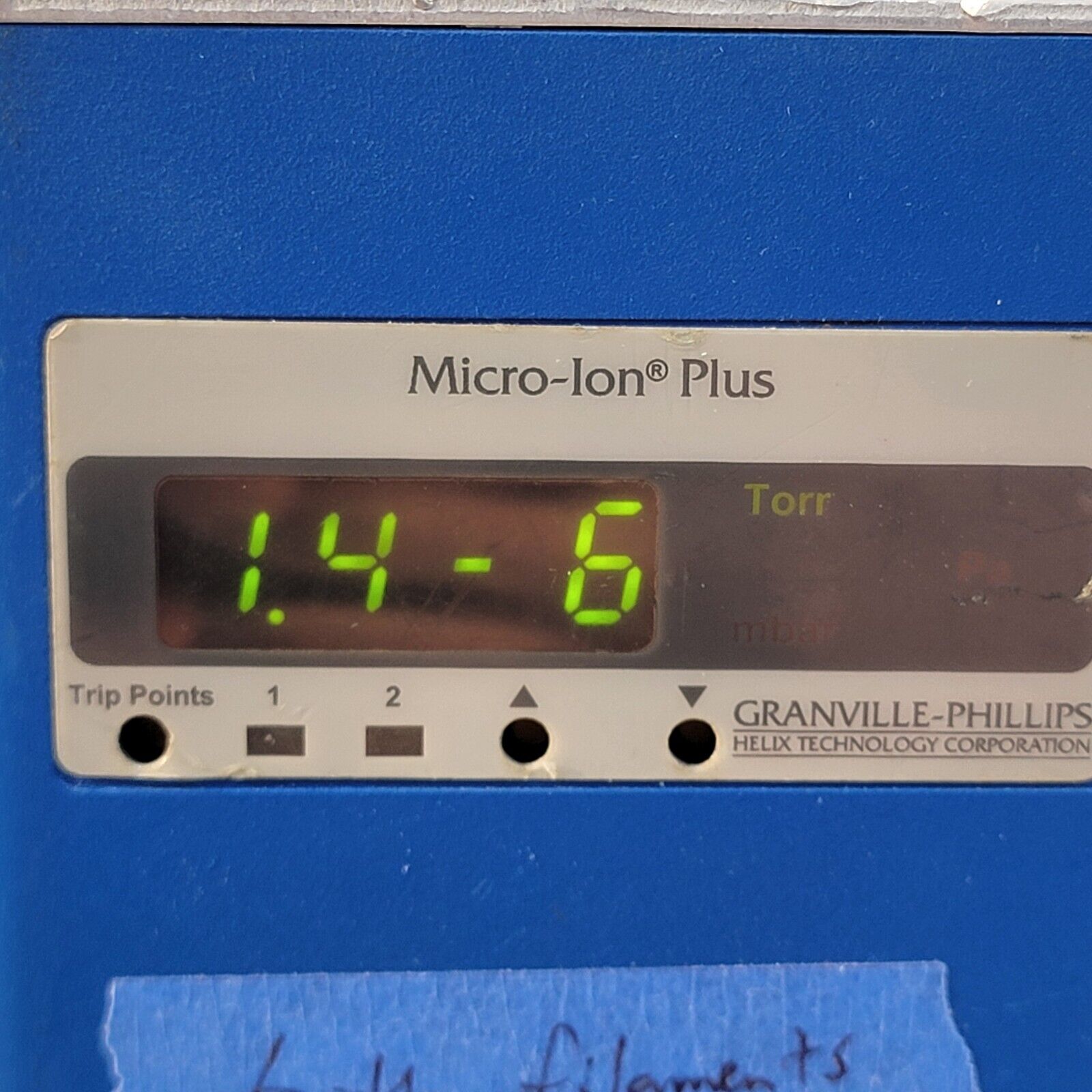

Used, in good shape. Once the turbo is turned on for a few hours, it pumps down to ~1E-6 Torr (mbar). Could go lower with proper leak-checking.

Includes the following:

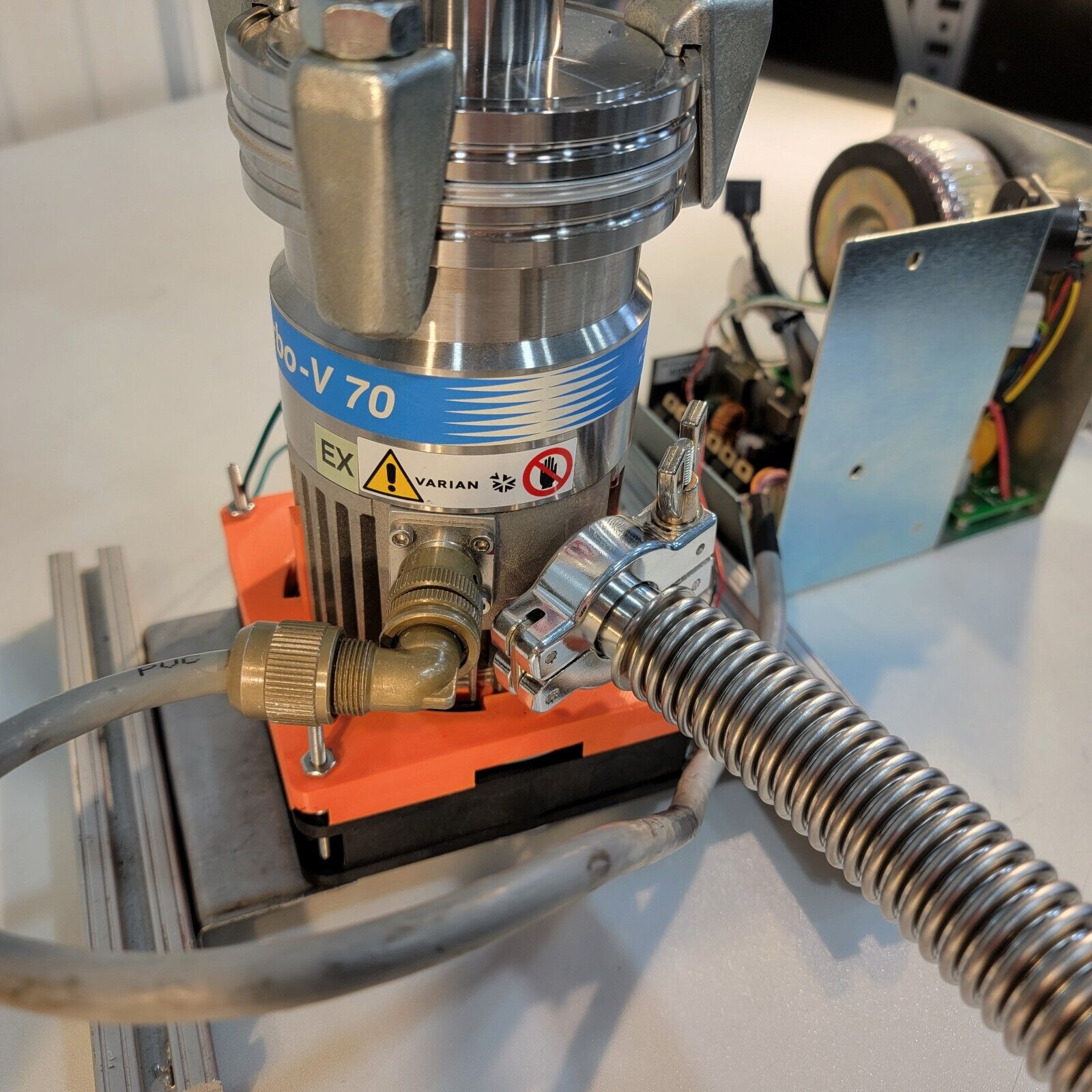

•Varian Turbo-V 70 Turbomolecular vacuum pump

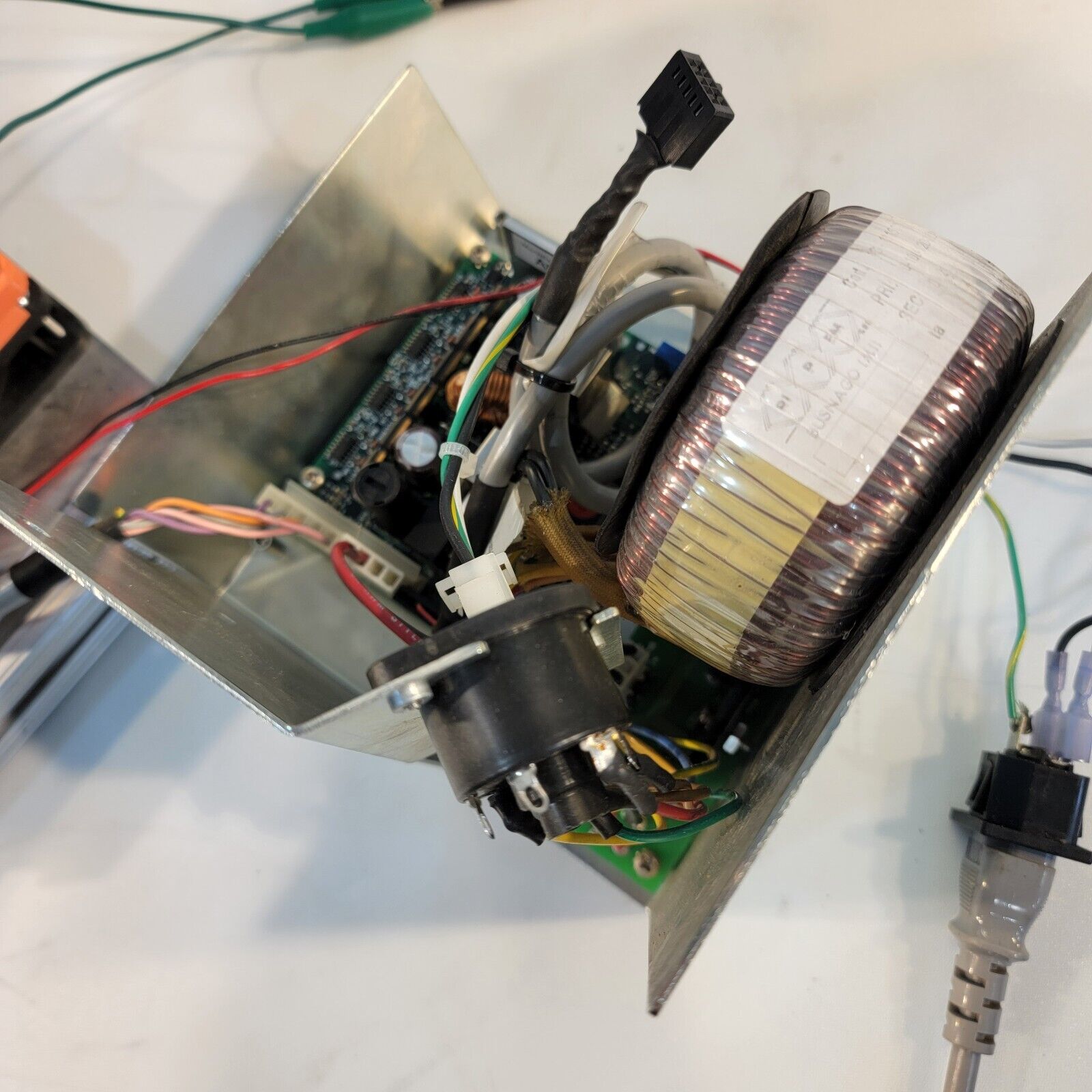

•Varian Turbo-V 70 power supply

•Fan + Tabletop mount system

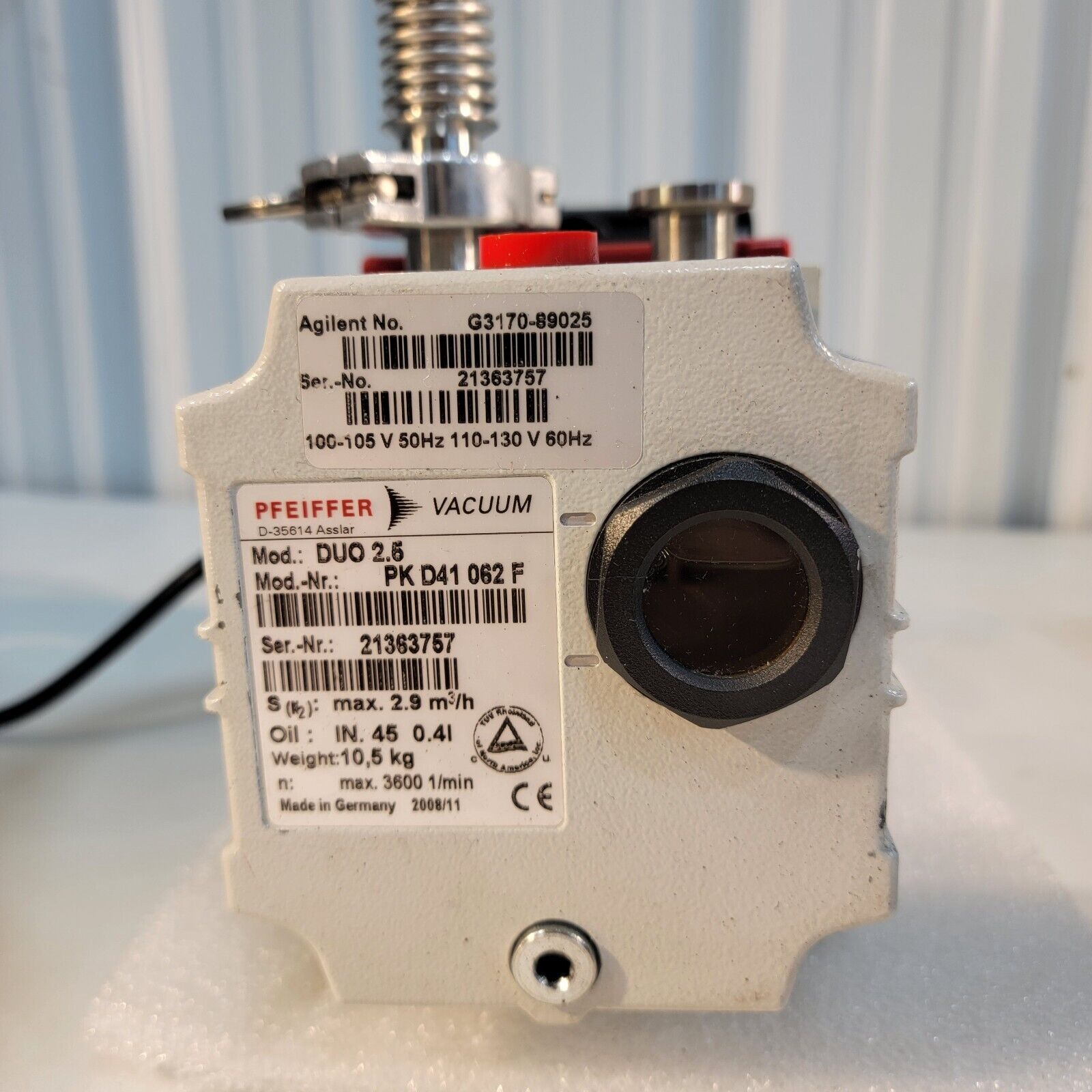

•Pfeiffer DUO 2.5 backing pump

•KF16 flexible Bellows hose to connect backing pump to Turbo pump

•ISO-K 63 to KF50 adapter

•KF40 tee Reducer (KF25 on side)

•Includes all hardware to connect above components, including clamps, centering rings, o-rings, and Claw clamps for ISO-K flange.

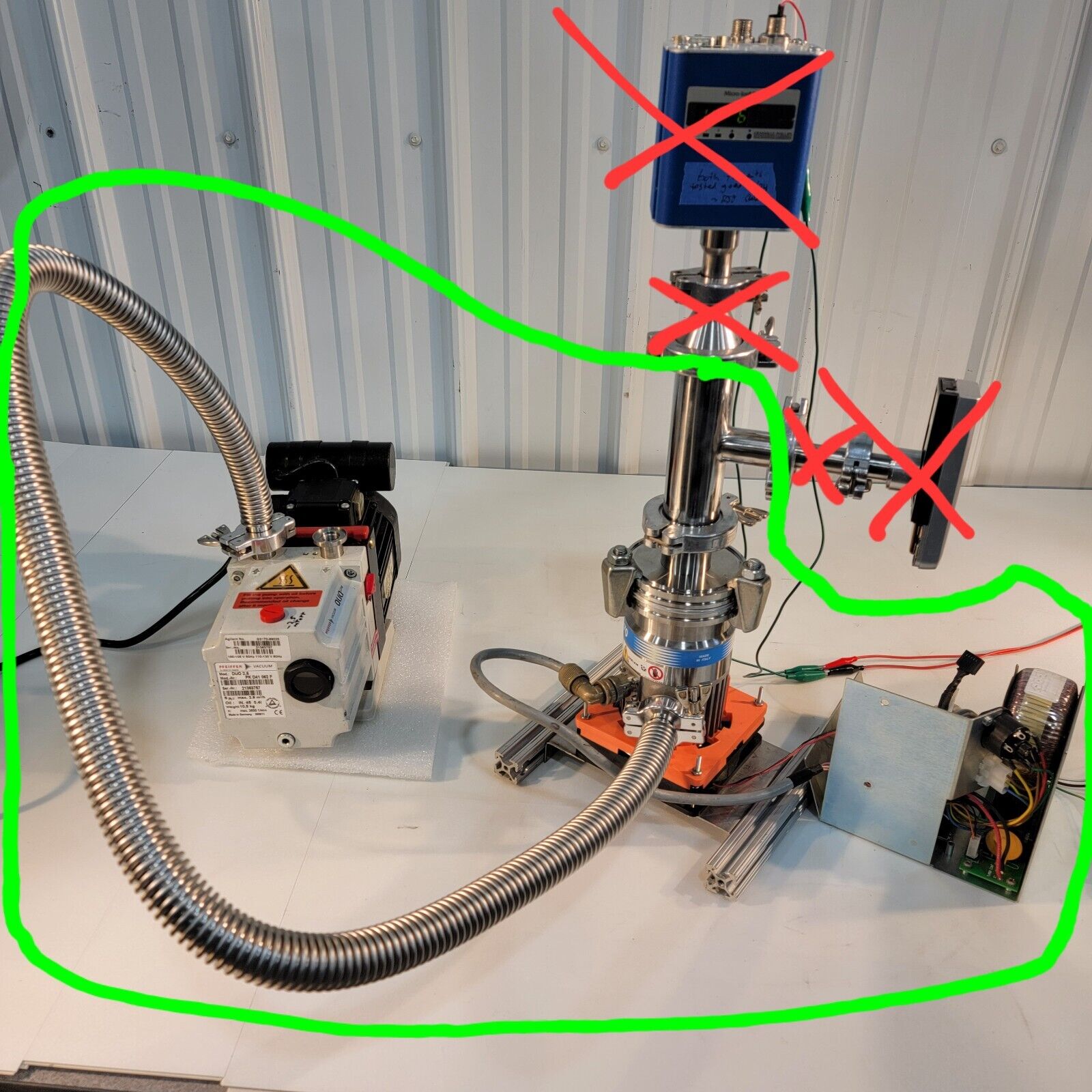

See last photo for a diagram of what is included. Vacuum gauges and adapters that connect them are not included, those are for sale separately in our store if you need some.

Backing Pump will be drained of oil for shipment. It will need to be filled with pump oil before operating it.
