Innovative Technology 6-Solvent Purification System Glove Box PureSolv w Storage

Innovative Technology 6-Solvent PureSolv Purification System Glove Box Port w/ Flammabke Cabinet Storage

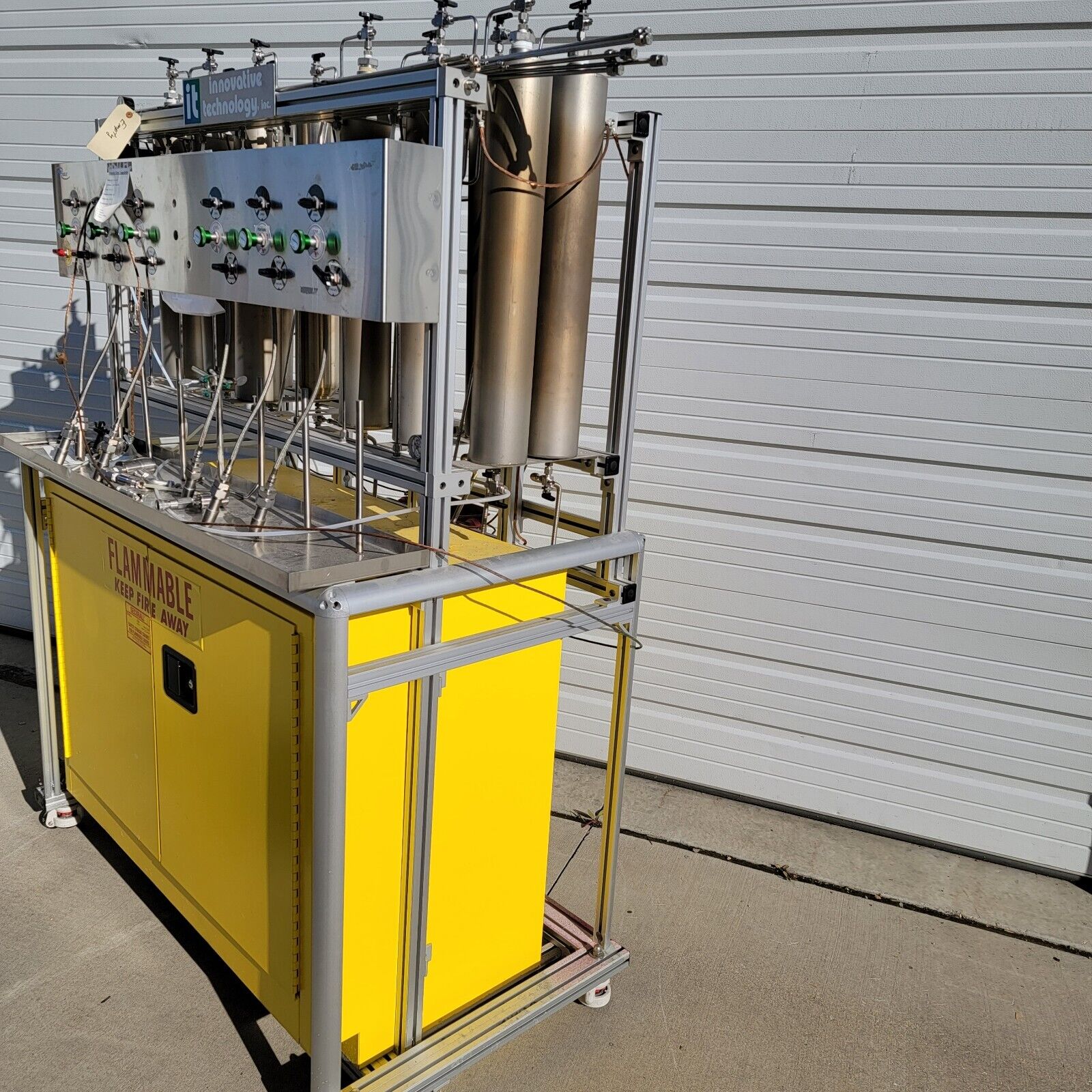

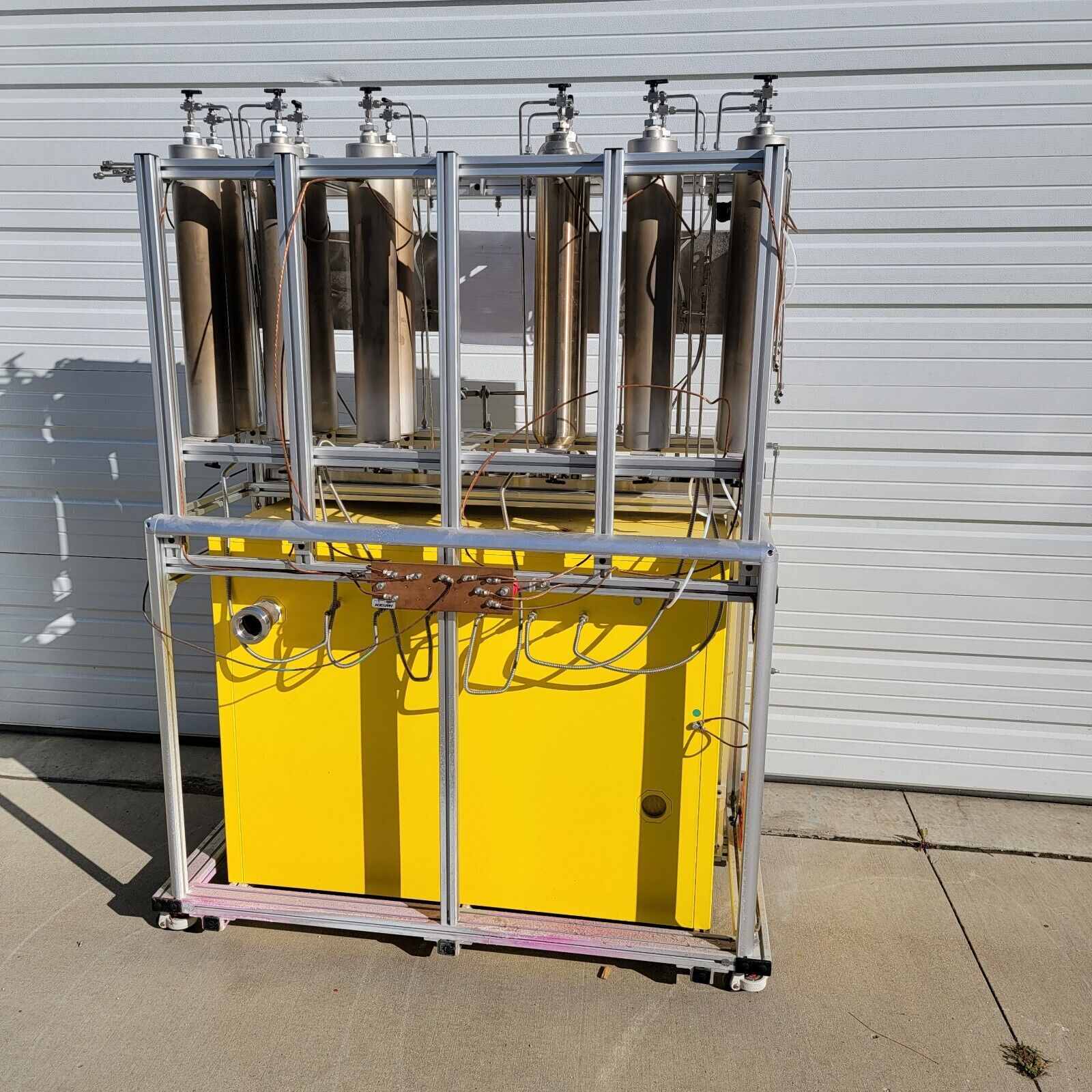

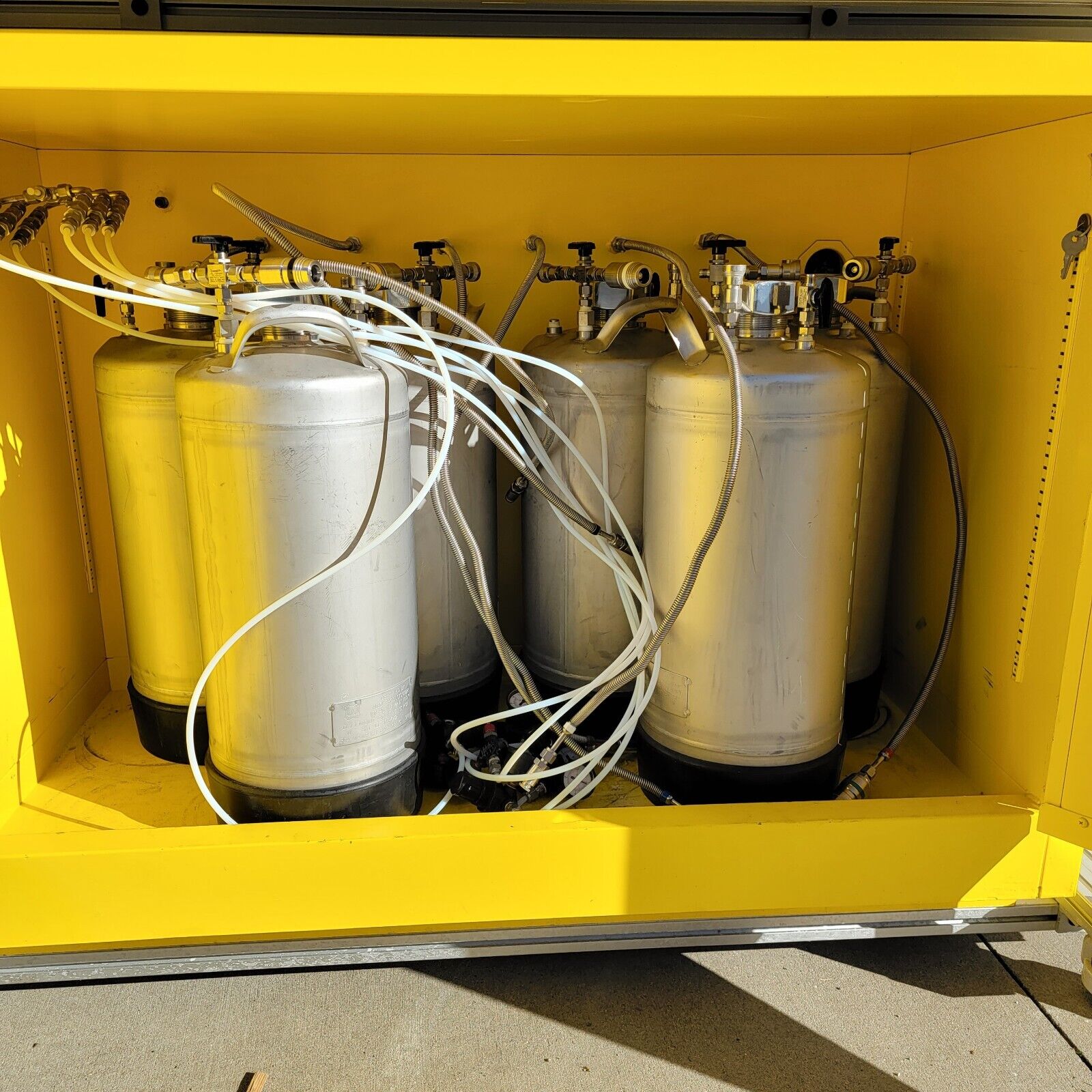

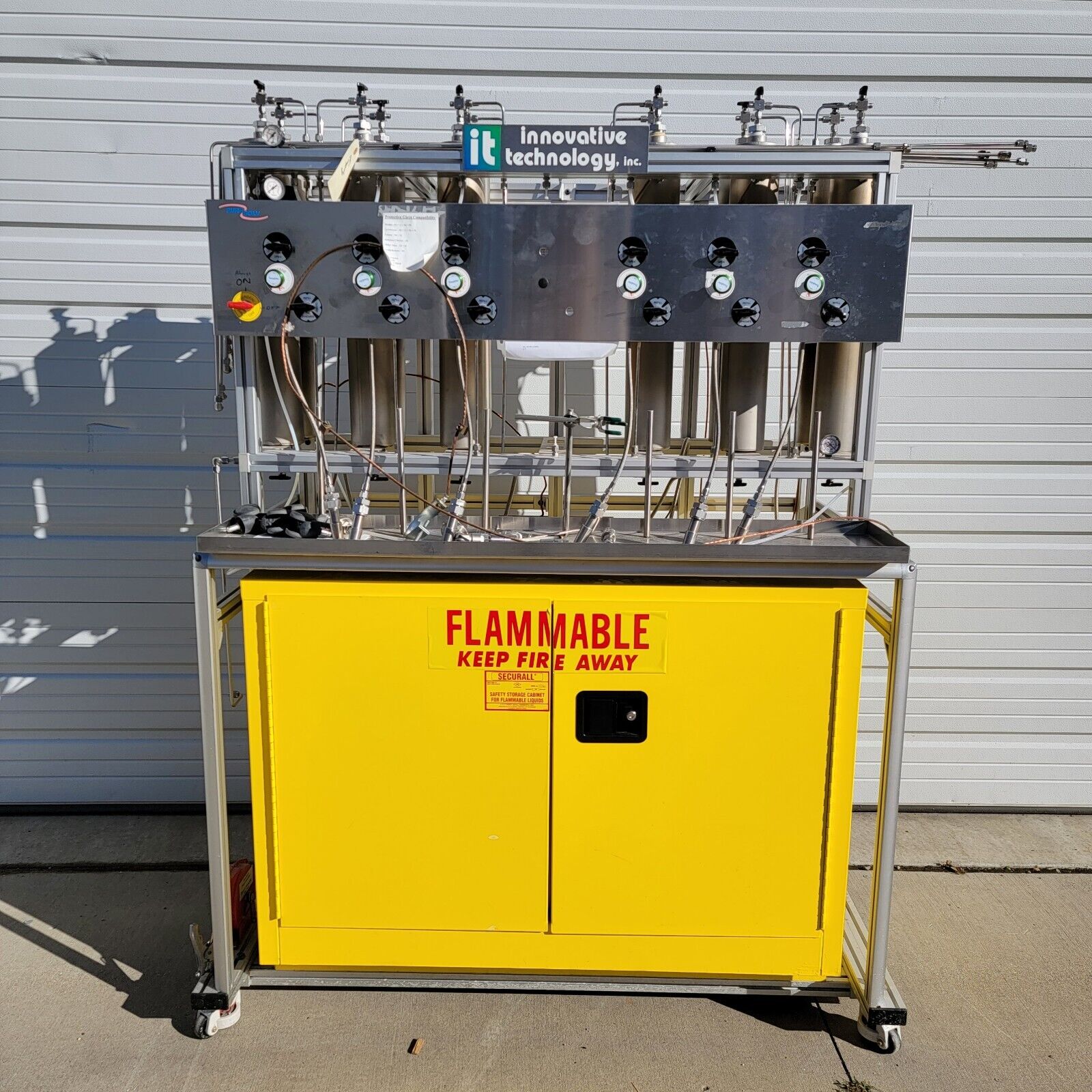

Includes lower pressure vessels in flammable cabinet for solvent storage. Includes everything pictured: Swagelok plumbing for a glove box, glass neck bottle connectors, solvent purifying columns filled with alumina, valves, flammable cabinet, frame, everything pictured.

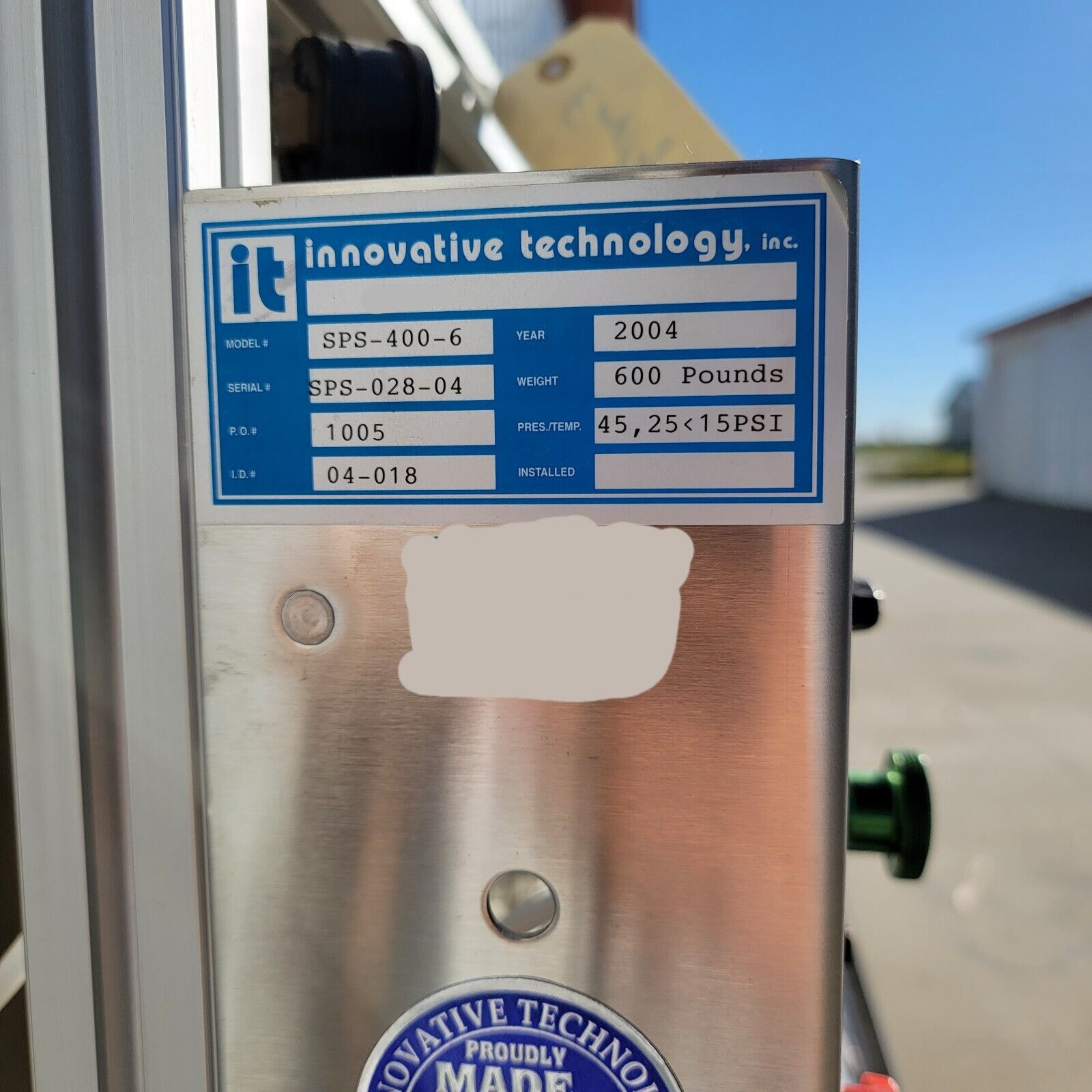

It is an innovative technology IT model SPS-400-6

The Pure-Solv 400 Solvent Purification System can purify 400 liters of solvent before column replacement or regeneration is necessary. Available in free standing, bench top or wall mounted models. These sys Gas Supply

All solvents can be dispensed simultaneously using one main inert gas supply. A red colored 2-way Swagelok valve located on the main gas supply allows operator to shut off all pressure to system in an emergencytems can be designed to mount on top of flammable storage cabinets, as well as inside existing or new fume hoods.

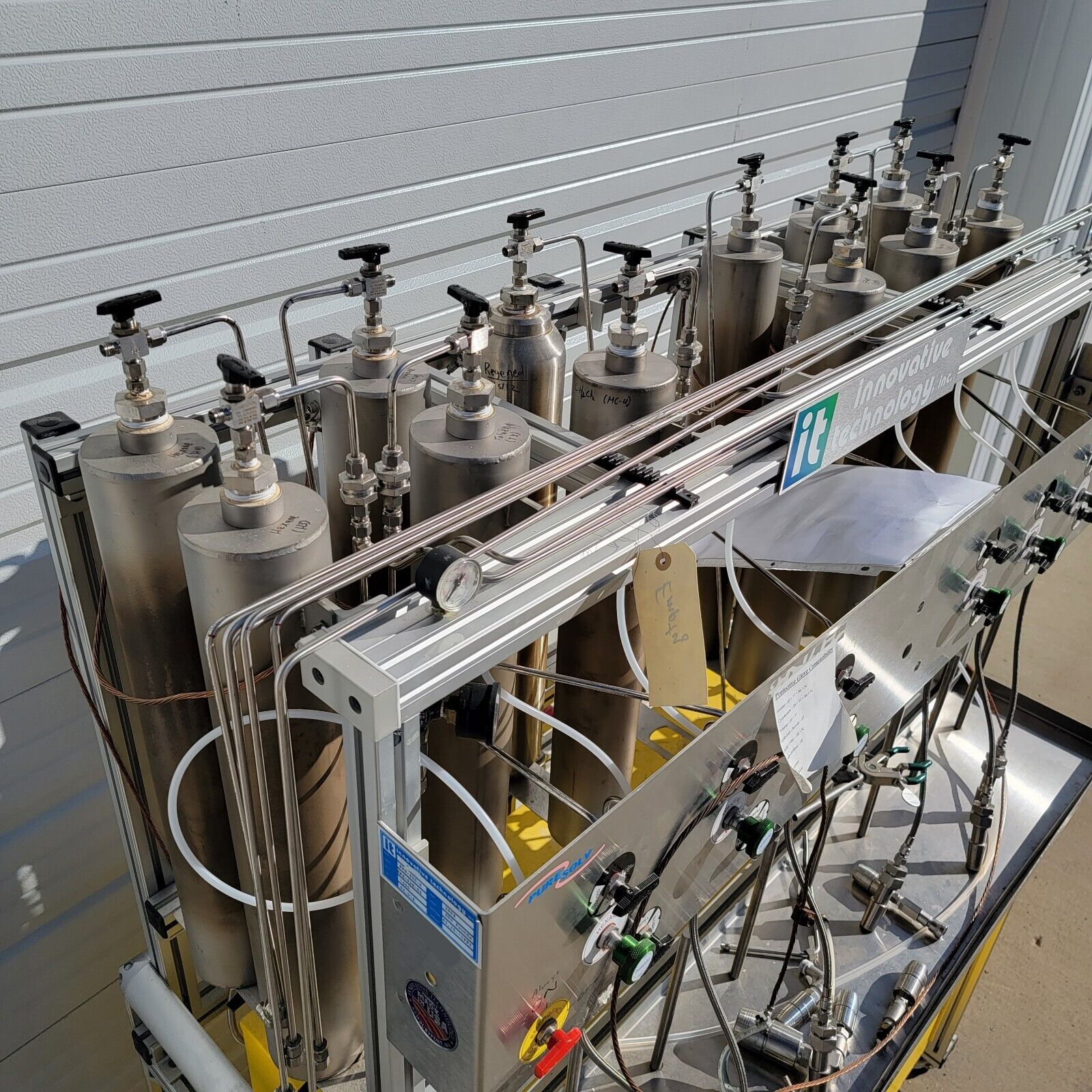

Dual Stainless Steel Column:

Two pressure tested stainless steel columns per solvent, 400L processing capacity until spent. Columns are supplied fully conditioned, ready for use. Spent columns are replaced with new columns

Manifolds, Vacuum & Gas:

Internal vacuum and gas manifolds are built into the extruded aluminum frame of the system. Includes a vacuum indicator and gas regulators and pressure relief valves dedicated to each of the solvent flasks to prevent over pressurization of glassware.

Gas Supply:

All solvents can be dispensed simultaneously using one main inert gas supply. A red colored 2-way Swagelok valve located on the main gas supply allows operator to shut off all pressure to system in an emergency

Check Valve:

Each solvent has it's own in-line check valve to prevent back flow, thus eliminating cross contamination of solvents

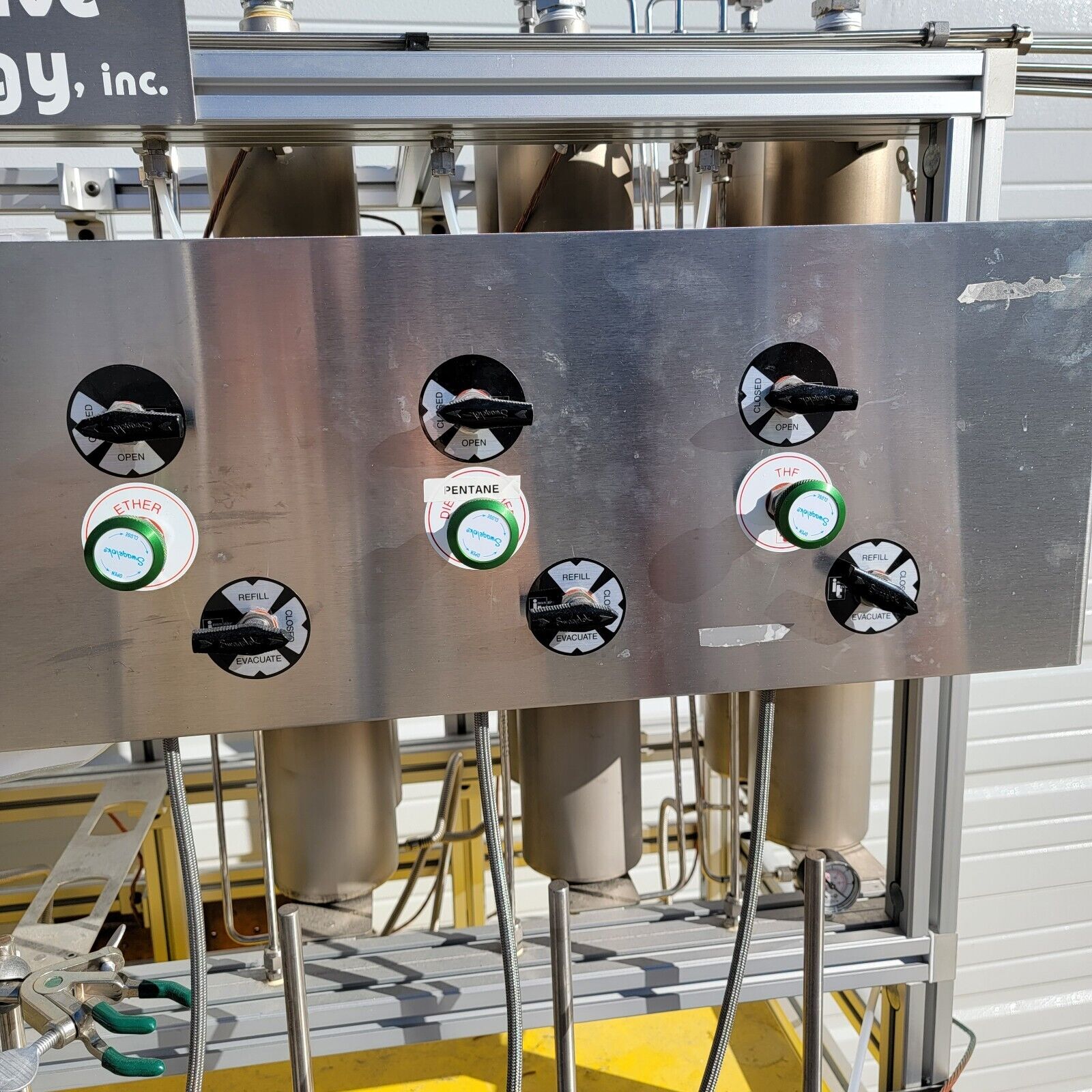

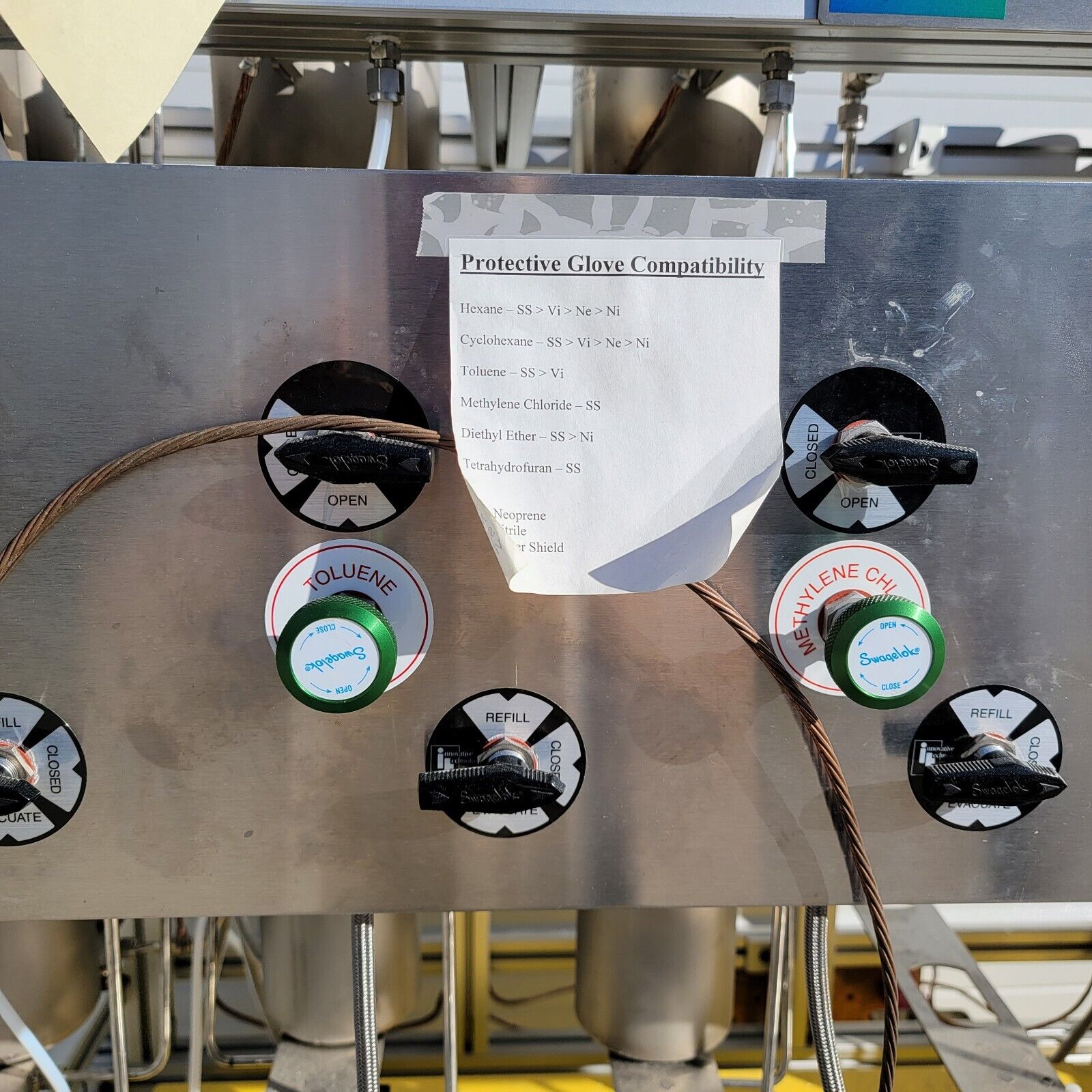

3-way valves:

Each solvent includes both 2-way and 3-way Swagelok directional valves to control flow of solvents and inert gas

Dispensing Line:

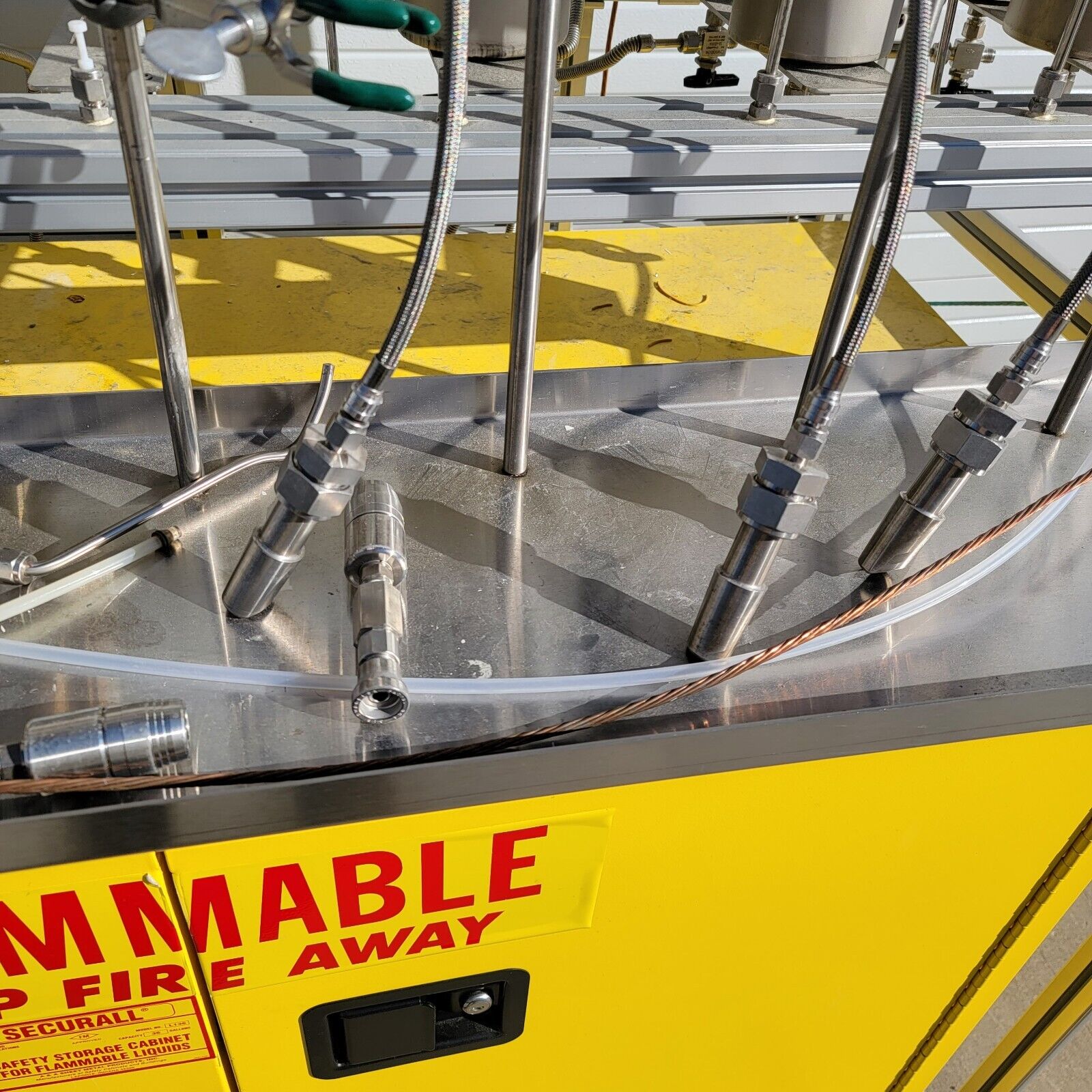

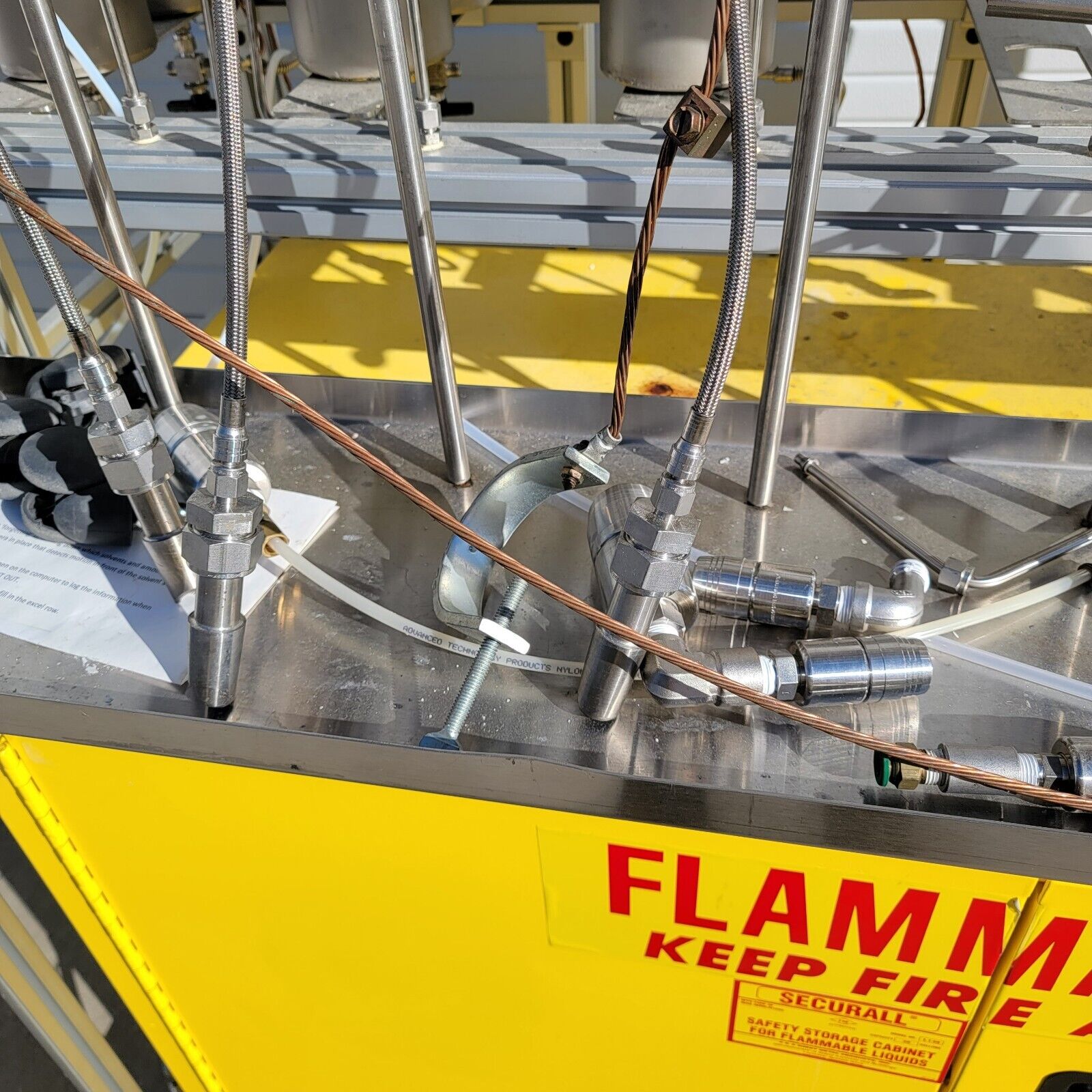

A Swagelok metering valve allows a controlled flow of solvent from a braided stainless steel flex line connected to a 24/40 joint. A glass solvent storage flask mounts to the joint for dispensing solvents using standard syringe techniques

In-line Particle Filter:

0.2 micron stainless steel particle filter to catch packing material particulates.

The SPS-400 is a purification system that has been designed to purify HPLC grade solvents and to remove moisture and oxygen. This procedure offers a safe alternative to distillation and vacuum transfer of organic solvents without the use of alkali metals, hybrid reagents, or a heat source. This system can also be applied to the purification of ethers, aromatics, alkanes, and halogenated solvents. In addition, this purification system has a 400 L purification capacity before column regeneration is necessary when used with HPLC grade solvents. It arrives preassembled, and it is configured to meet individual application requirements. It can also be mounted in a hood or on its own stand.

System is large and will have to be shipped via freight. Buyer is responsible for freight shipping.
