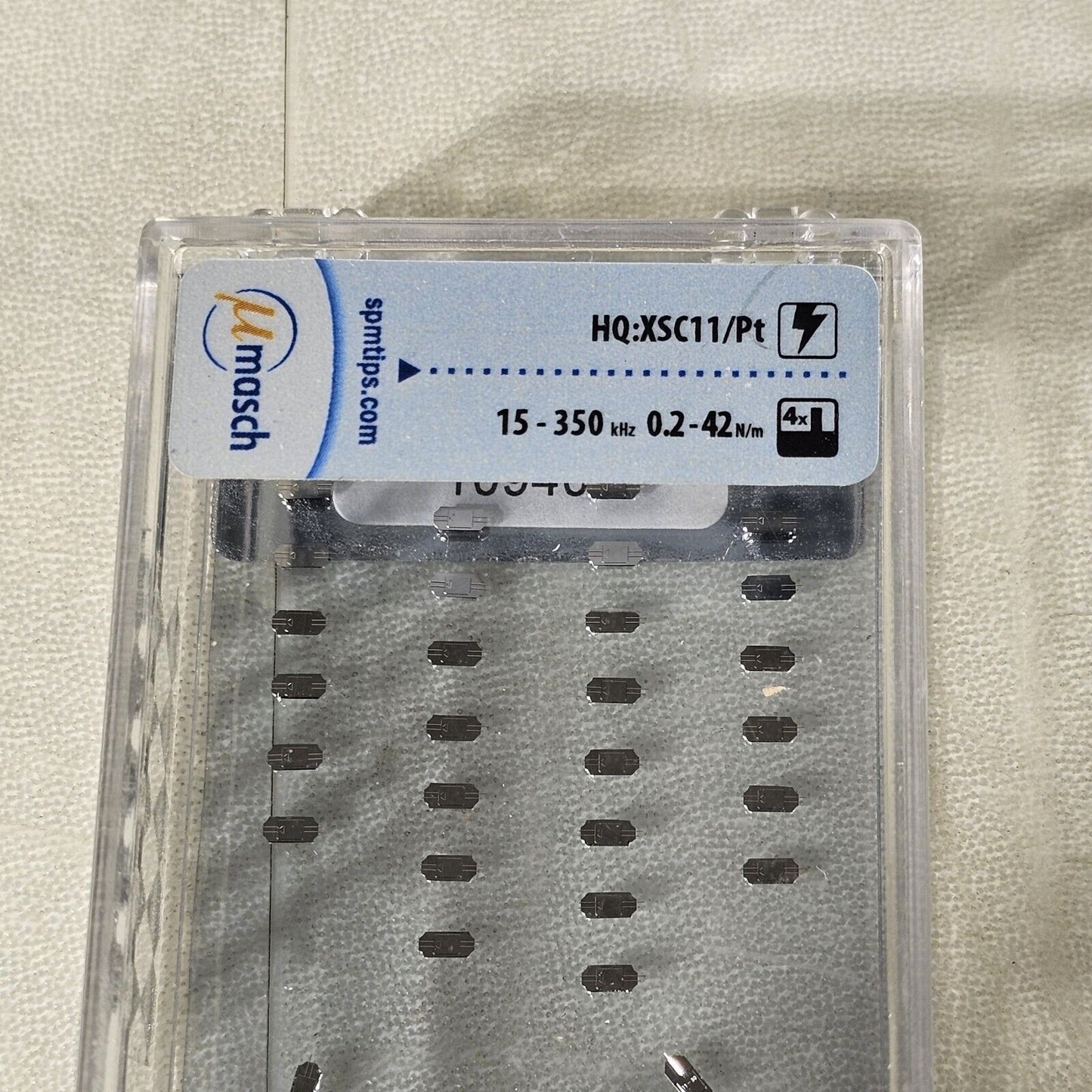

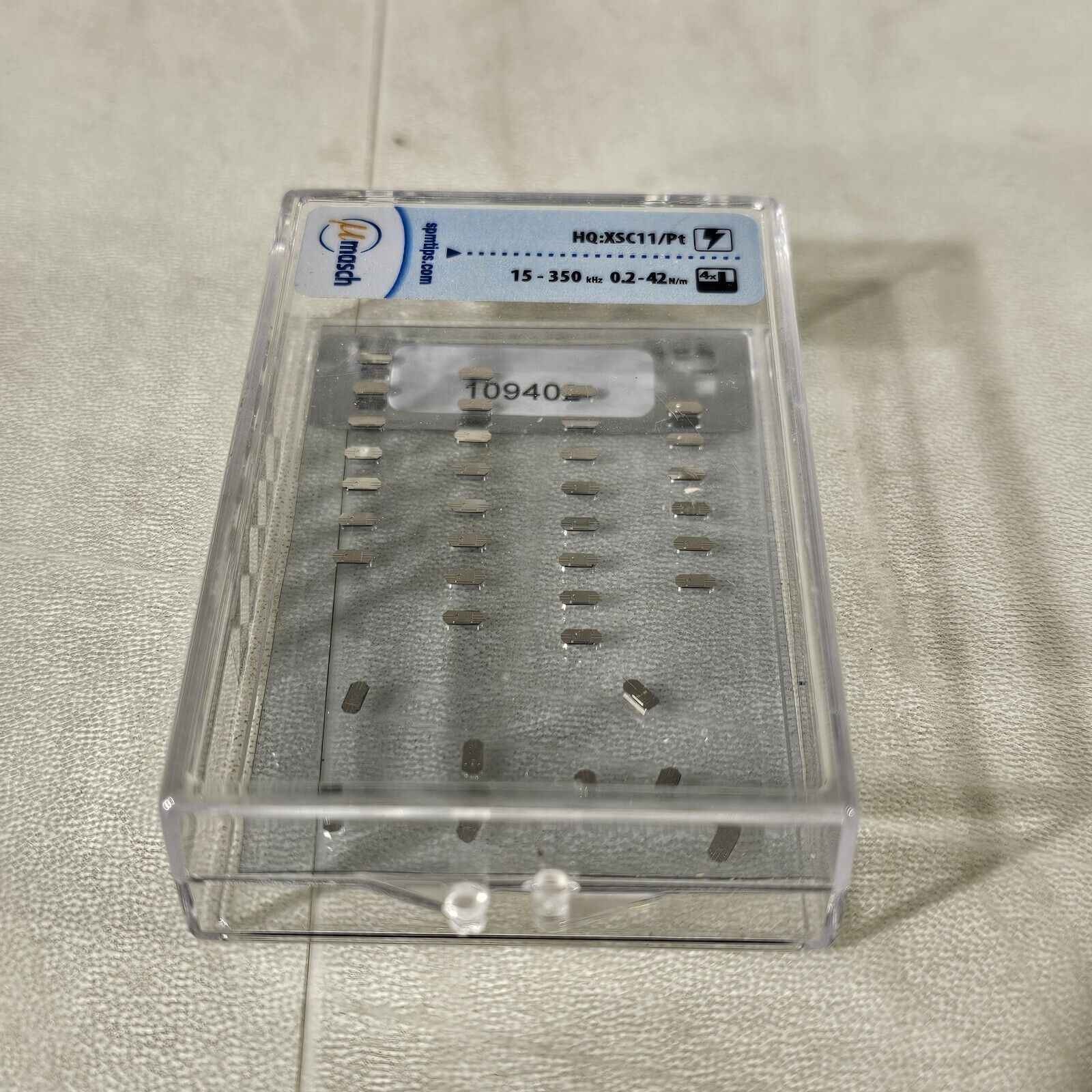

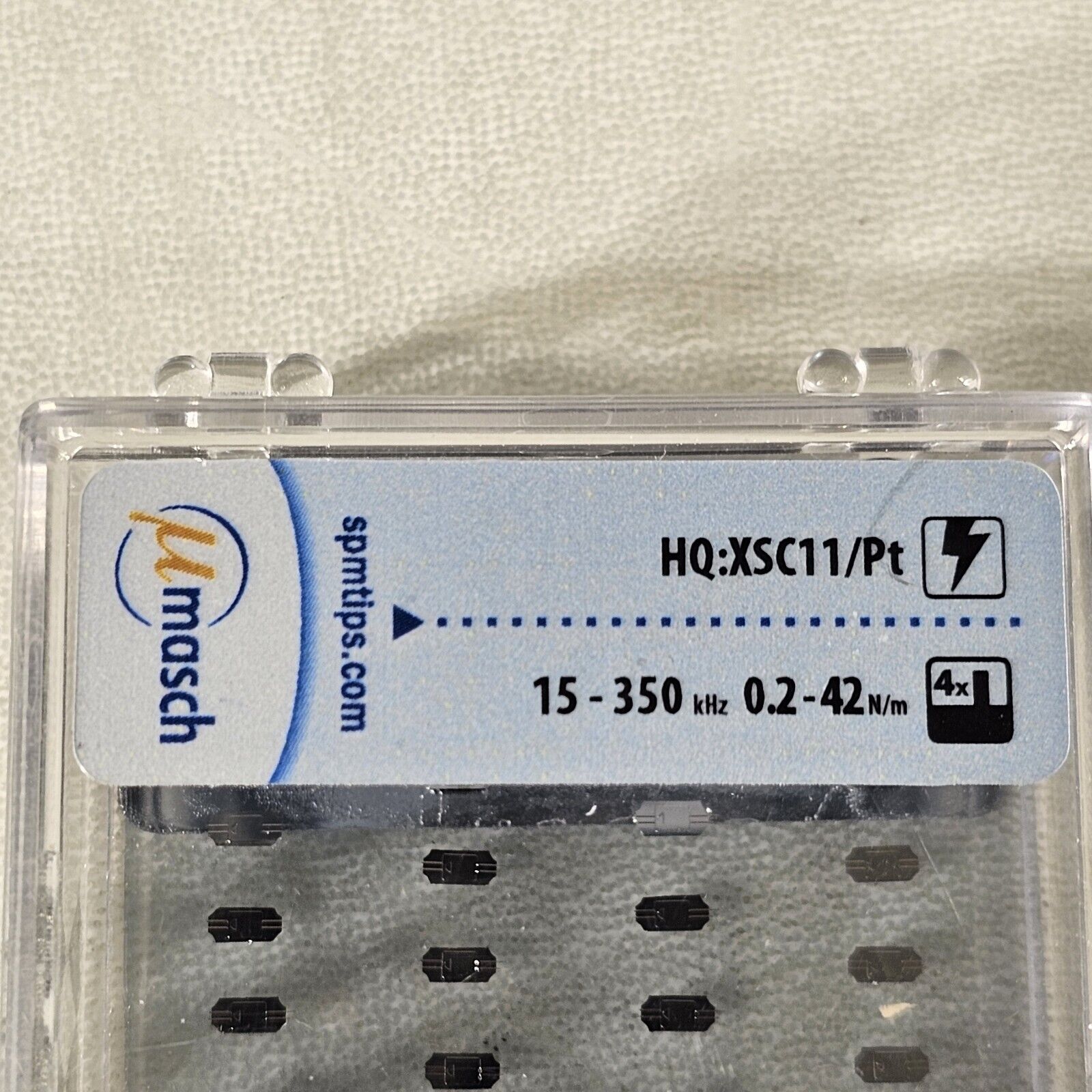

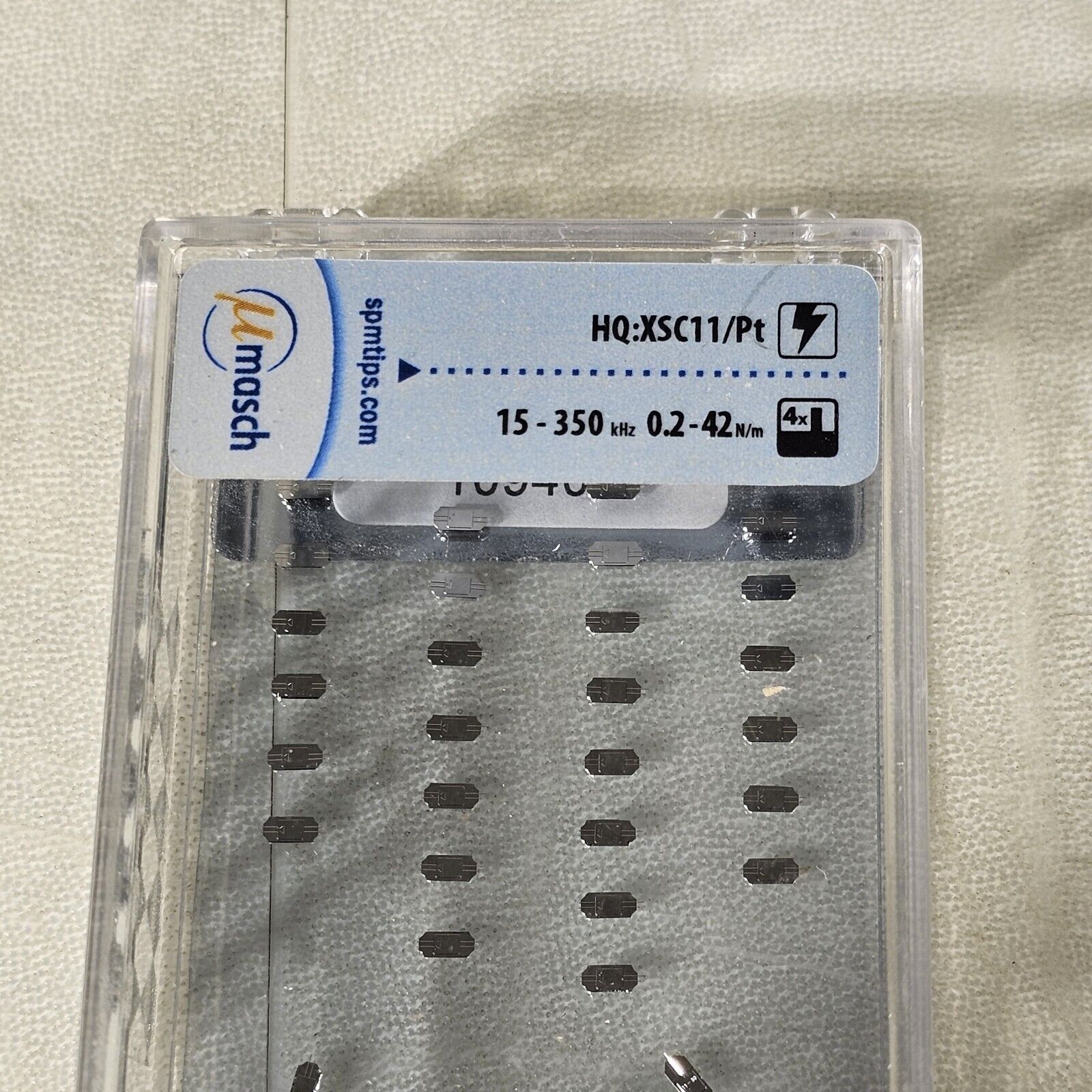

MikroMasch HQ:XSC11/Pt Pack of 29 AFM Cantilevers 4 Tips Per Probe uMasch SPM

MikroMasch HQ:XSC11/Pt Pack of 29 AFM Cantilevers 4 Tips Per Probe uMasch SPM

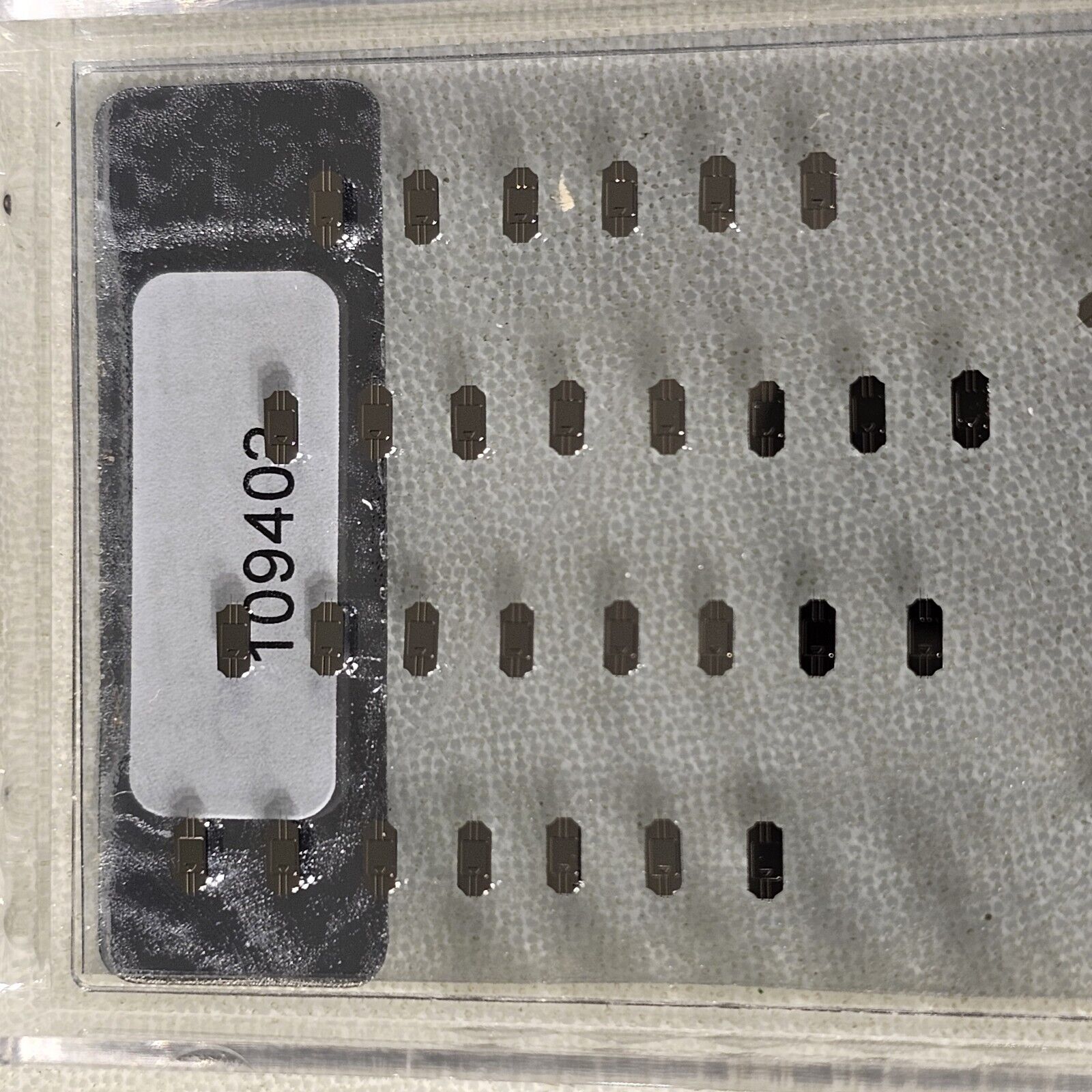

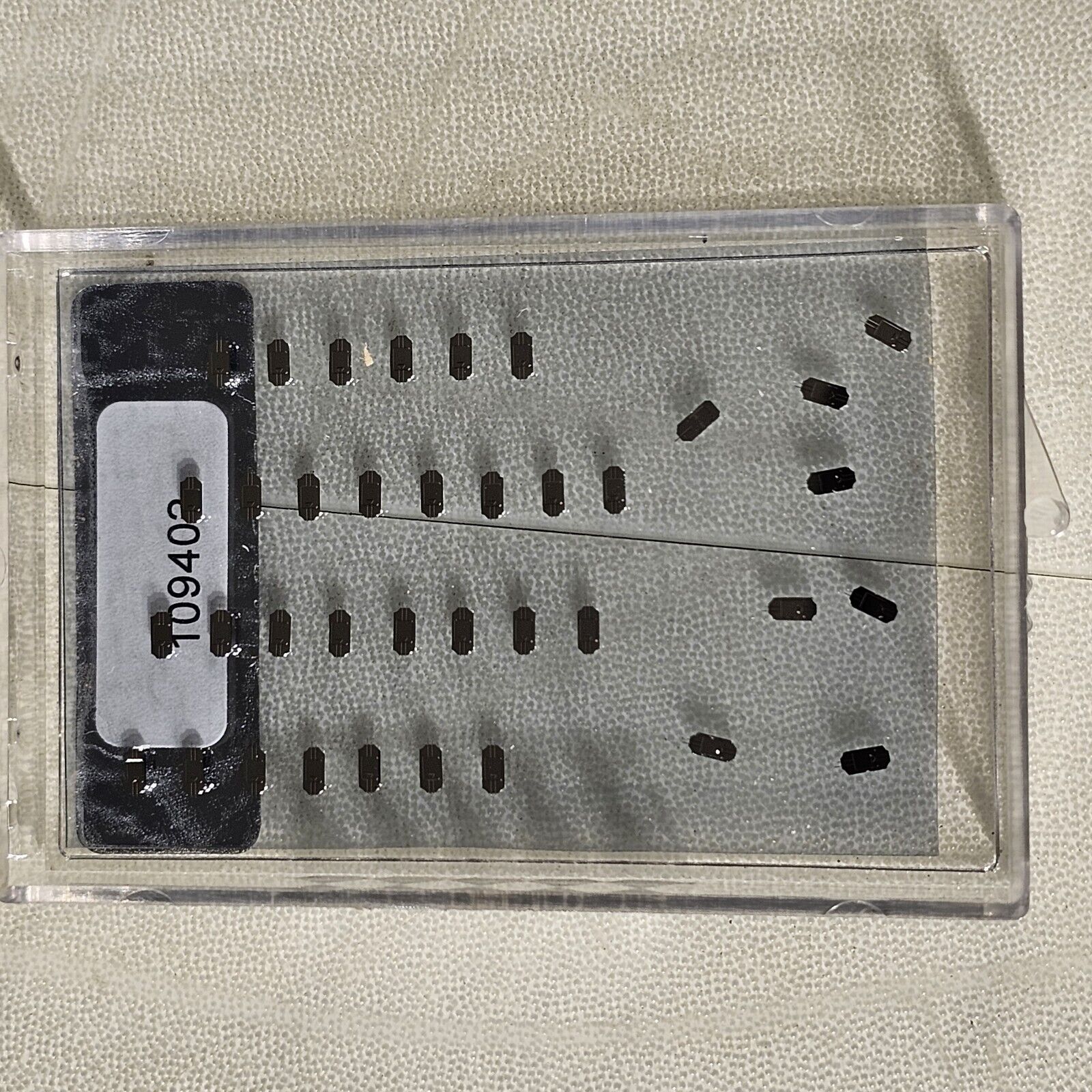

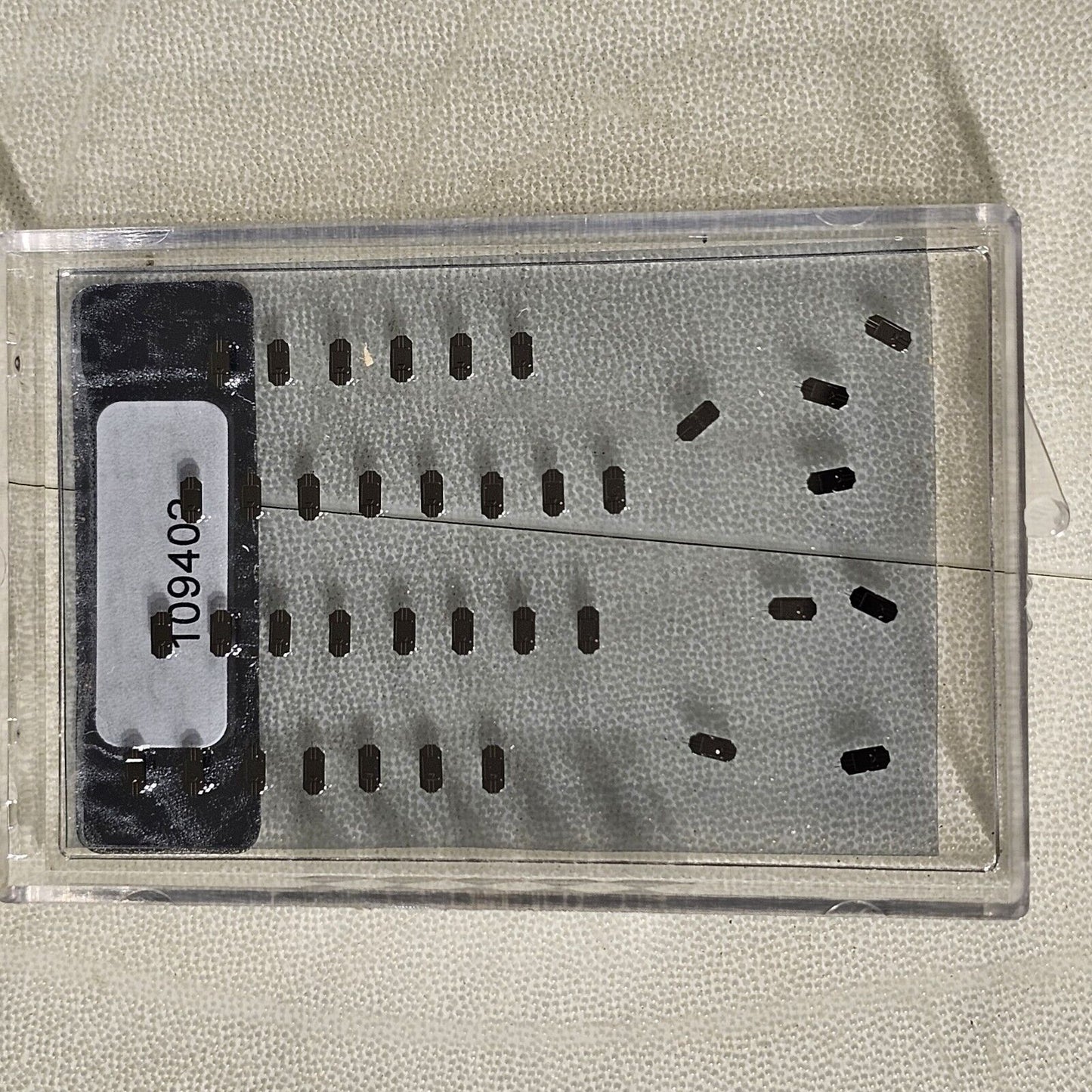

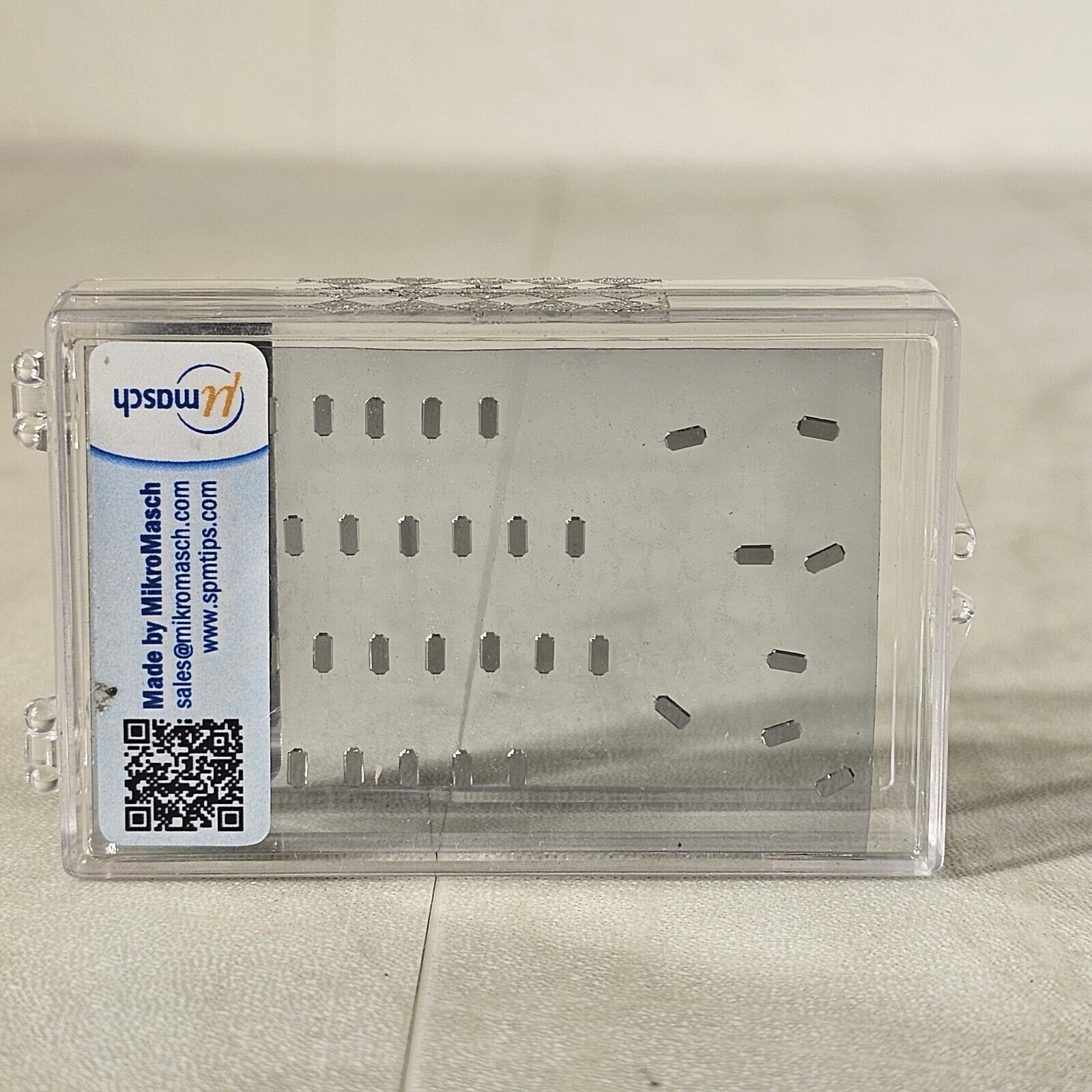

Includes 29 new in box never used AFM probes. Also includes 8 bonus used probes. These used probes mostly have two of the four tips broken off as seen in the photos. The 29 new cantilever chips have all 4 tips still on them. These are highly versatile, capable of proving most any sample due to the selection of four different tips depending on the properties of the sample.

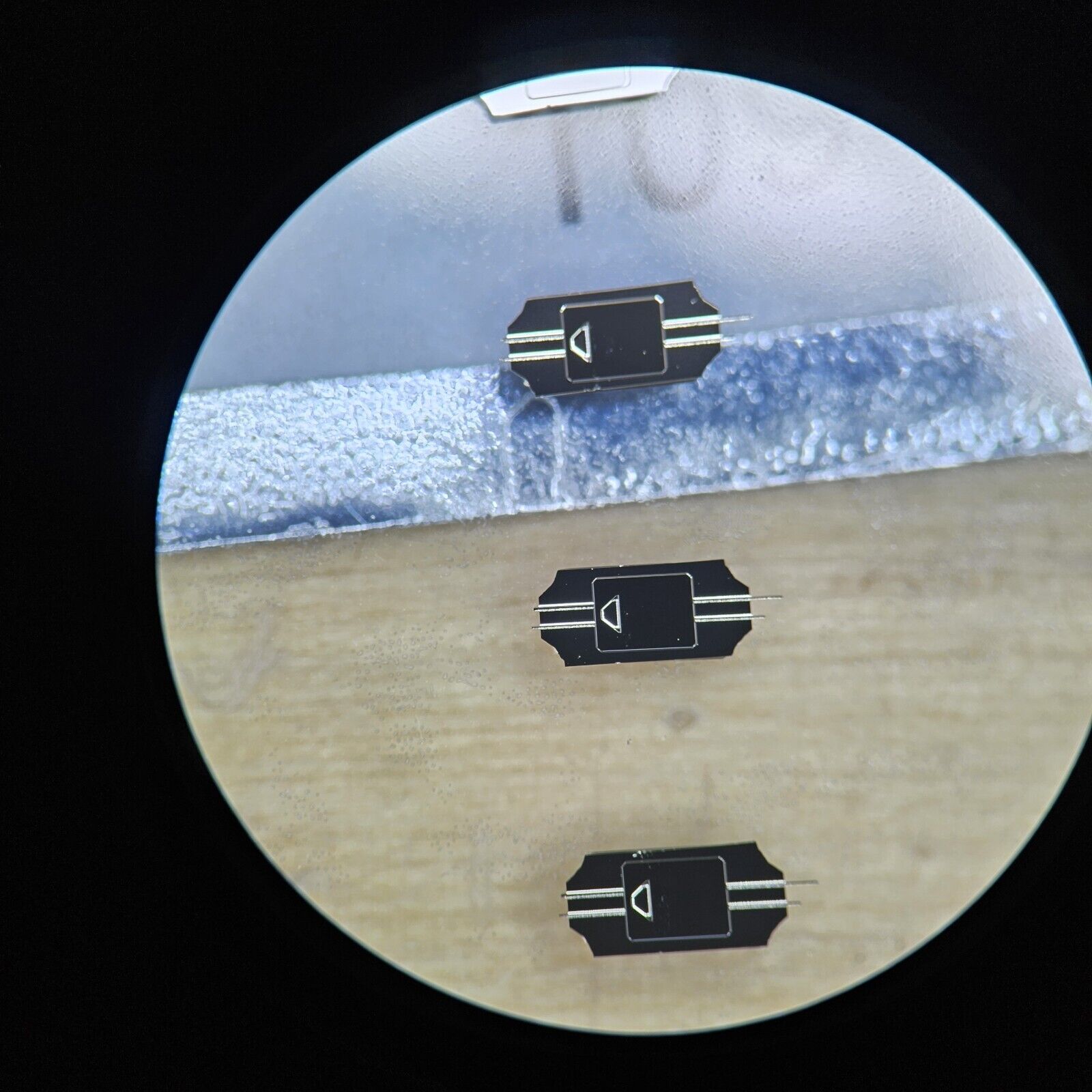

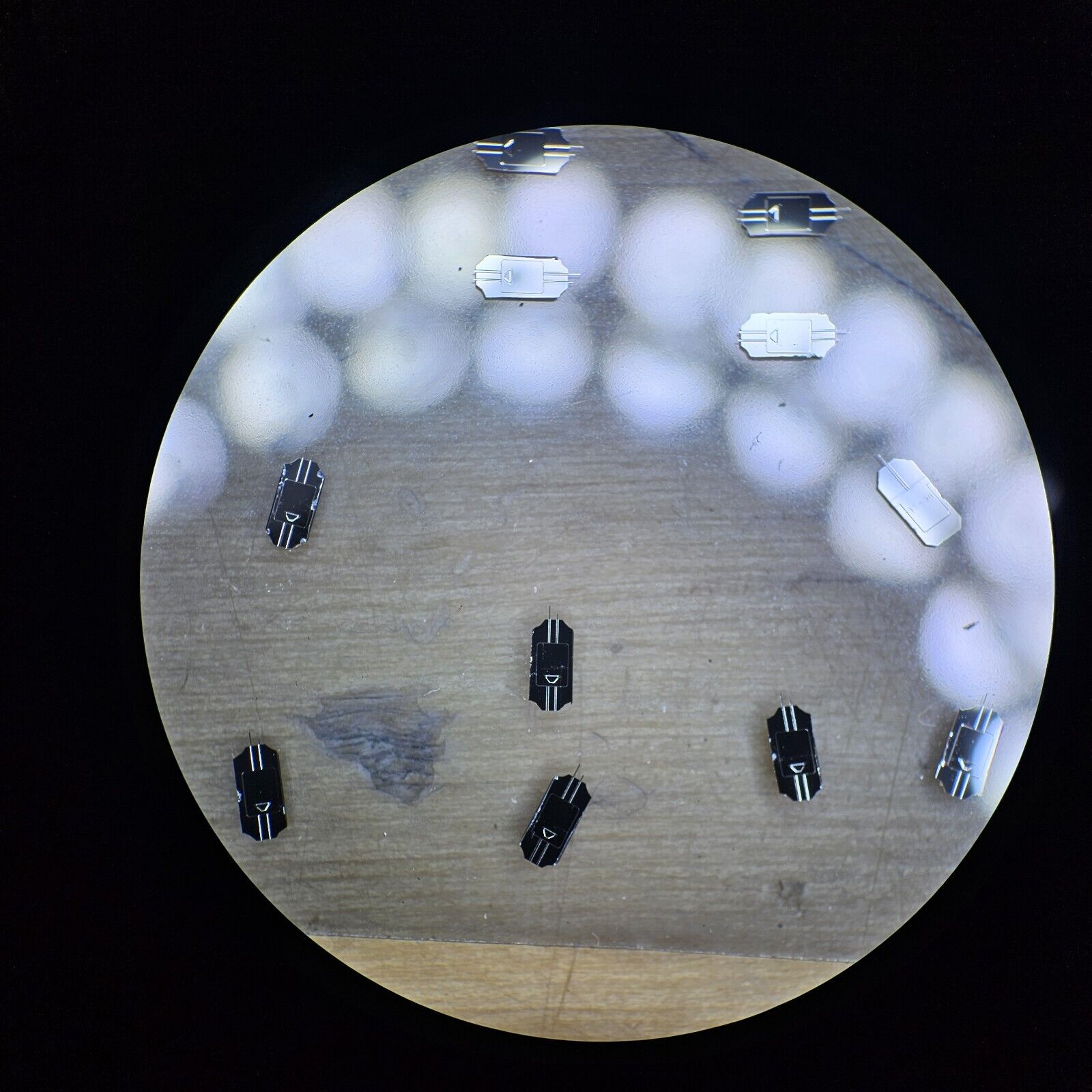

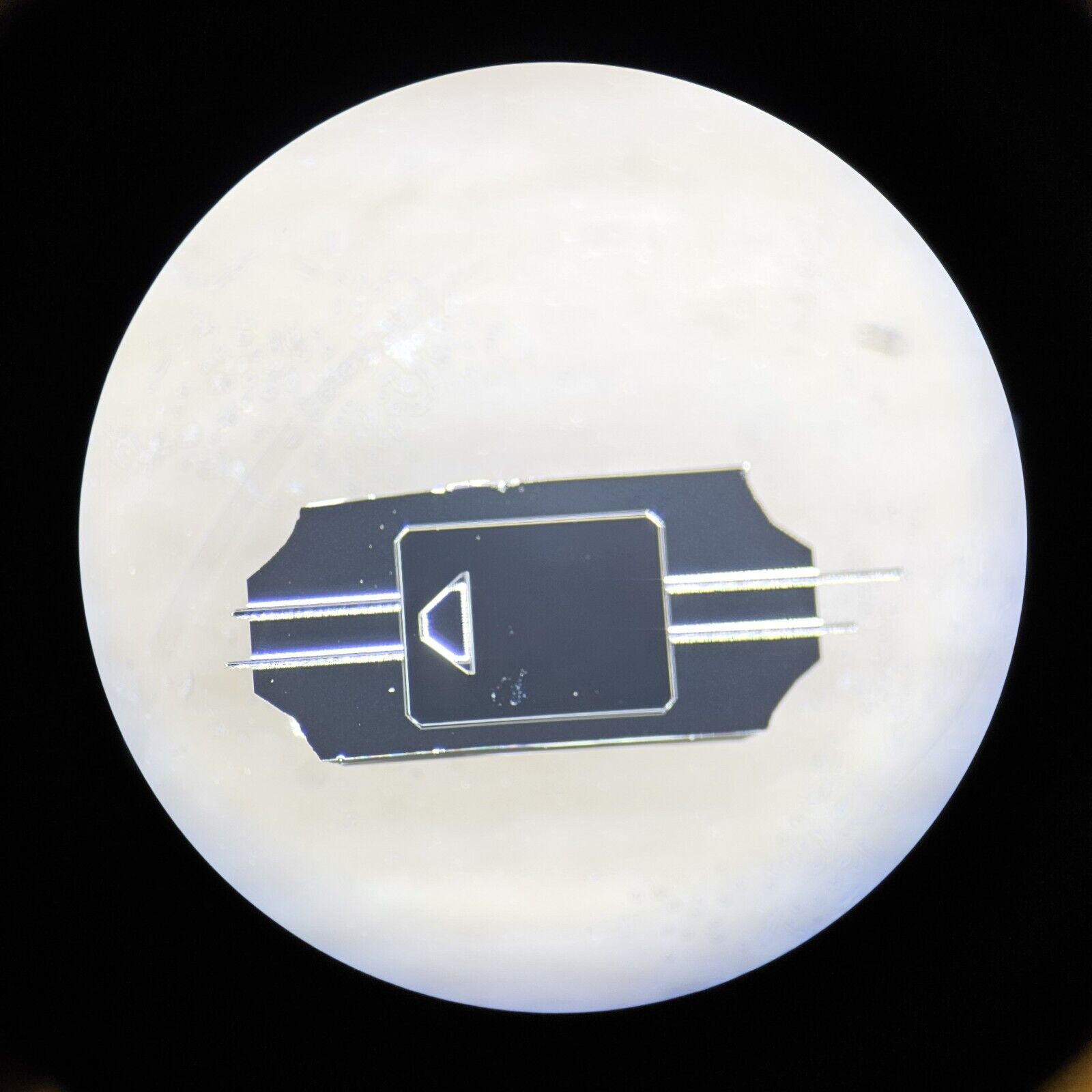

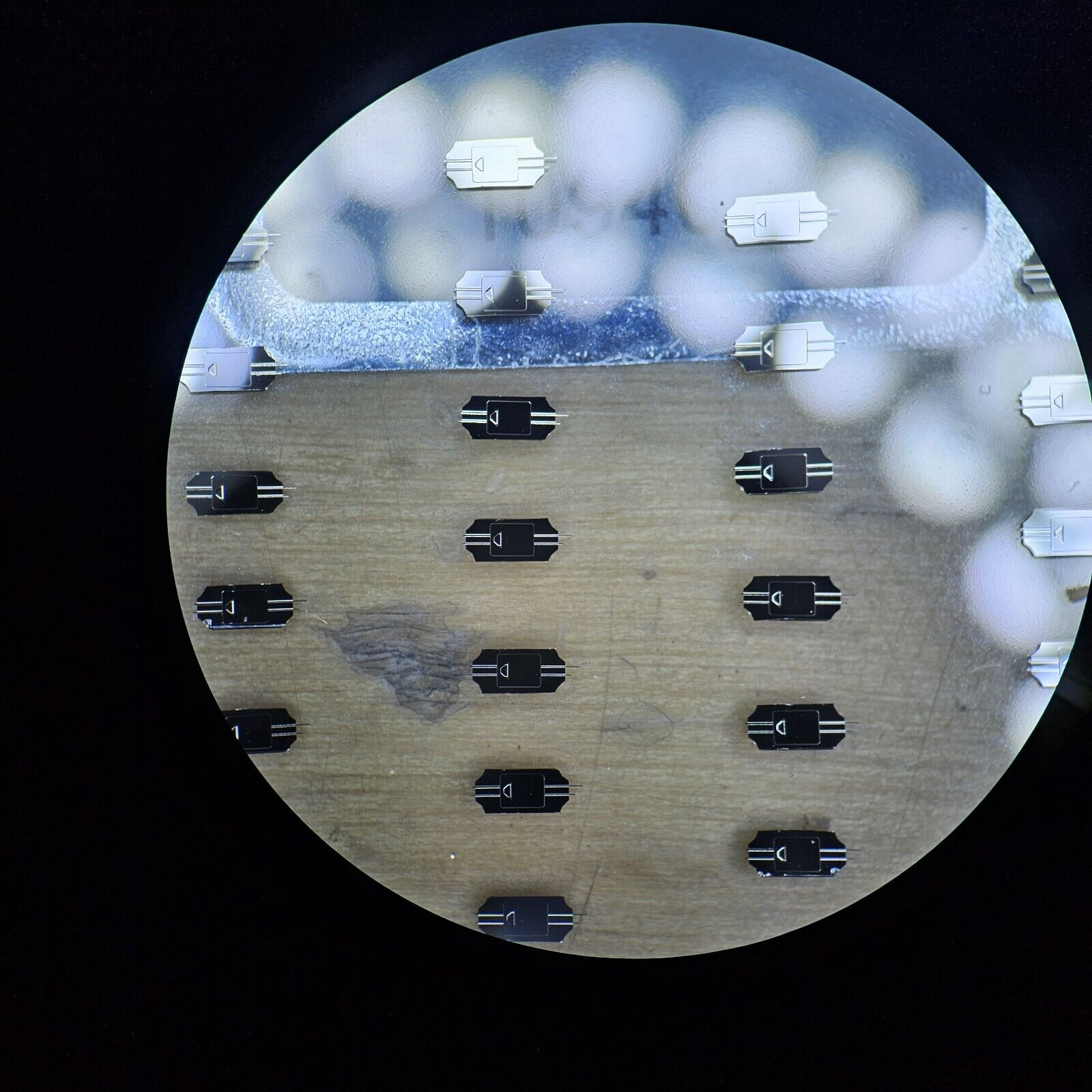

See photos to see the tips under the optical microscope.

From the manufcaturer:

AFM Probe with 4 Different Conductive AFM Cantilevers

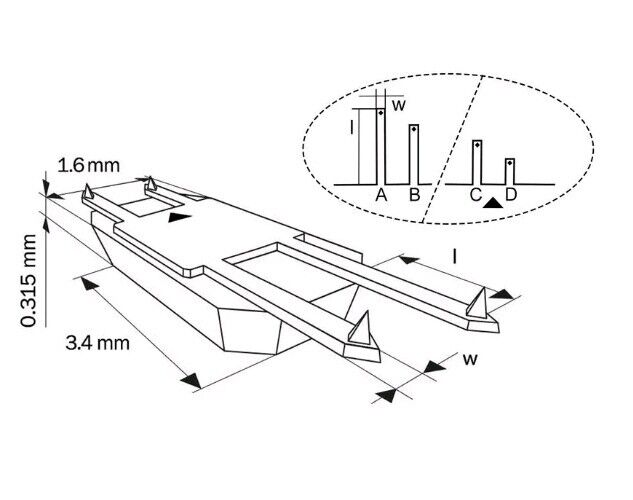

AFM probes of the HQ:XSC11 series have four different AFM cantilevers, two on each side of the holder chip. They can be used in various applications.

The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.

The overall 30 nm platinum coating is electrically conductive and chemically inert. It also enhances the laser reflectivity of the AFM cantilevers. The resulting coated AFM tip radius is below 30 nm.

AFM Probe Specifications

AFM Tip

Shape

Rotated

Height

15 µm (12 - 18 µm)*

Full Cone Angle

40°

Radius

< 30 nm

AFM Cantilever

Cantilever

Cantilever A

Shape

Beam

Force Const.

0.2 N/m(0.1 - 0.4 N/m)*

Res. Freq.

15 kHz(12 - 18 kHz)*

Length

500 µm(1 - 505µm)*

Width

30 µm(27 - 33µm)*

Thickness

2.7µm(2.2 - 3.2 µm)*

Cantilever

Cantilever B

Shape

Beam

Force Const.

2.7 N/m(1.1 - 5.6 N/m)*

Res. Freq.

80 kHz(60 - 100 kHz)*

Length

210 µm(1 - 215µm)*

Width

30 µm(27 - 33µm)*

Thickness

2.7µm(2.2 - 3.2 µm)*

Cantilever

Cantilever C

Shape

Beam

Force Const.

7 N/m(3 - 16 N/m)*

Res. Freq.

155 kHz(115 - 200 kHz)*

Length

150 µm(1 - 155µm)*

Width

30 µm(27 - 33µm)*

Thickness

2.7µm(2.2 - 3.2 µm)*

Cantilever

Cantilever D

Shape

Beam

Force Const.

42 N/m(17 - 90 N/m)*

Res. Freq.

350 kHz(250 - 465 kHz)*

Length

100 µm(1 - 105µm)*

Width

50 µm(47 - 53µm)*

Thickness

2.7µm(2.2 - 3.2 µm)*

* typical values
