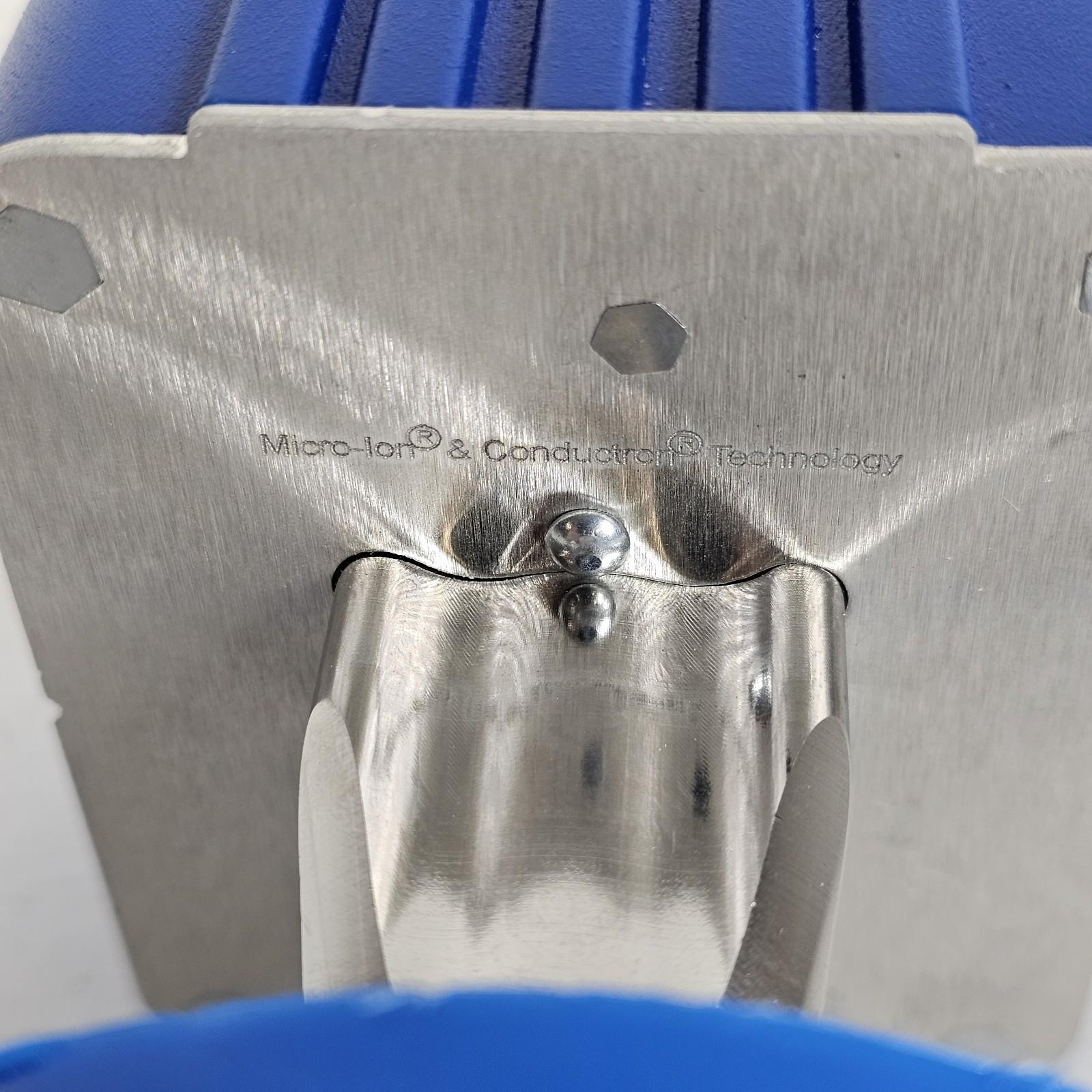

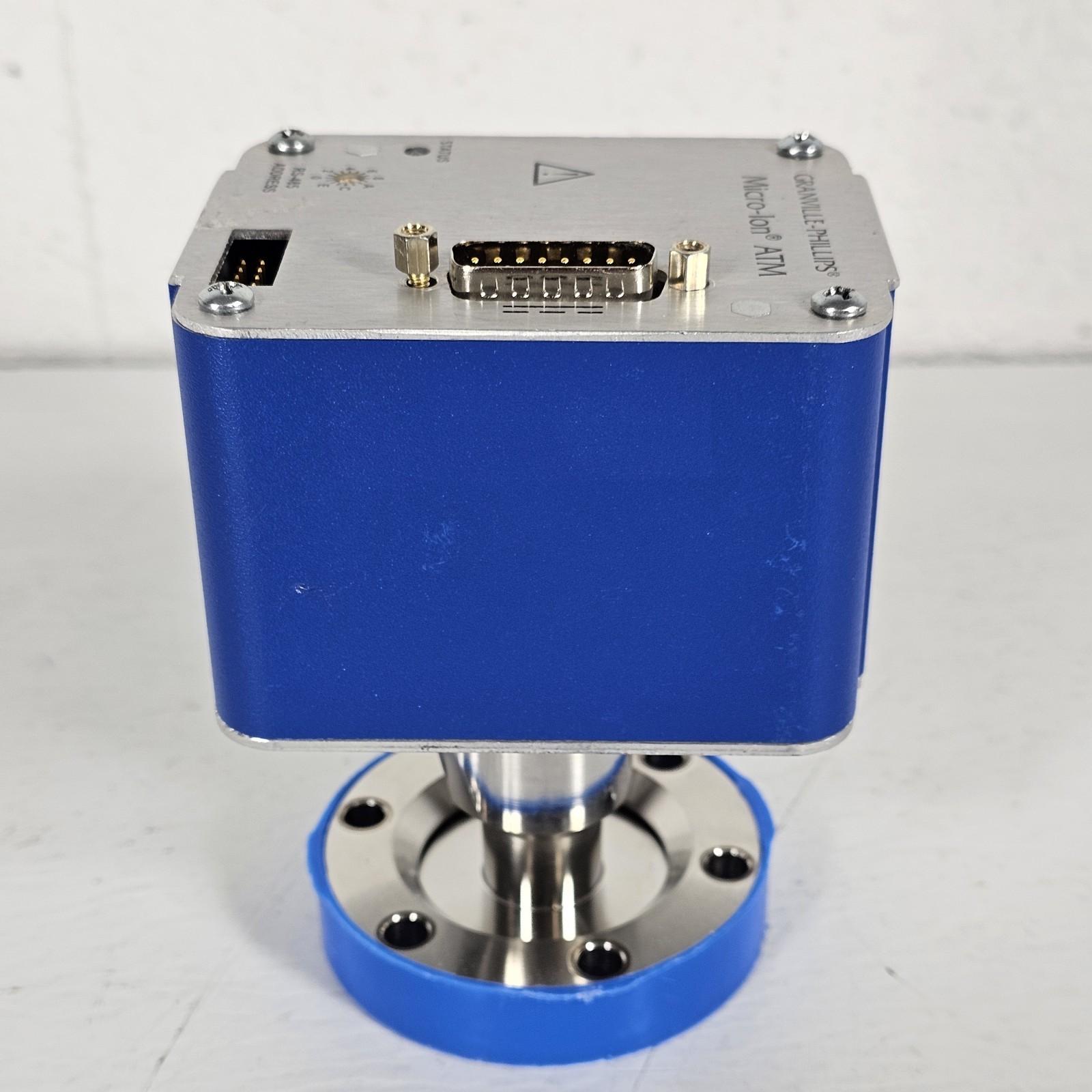

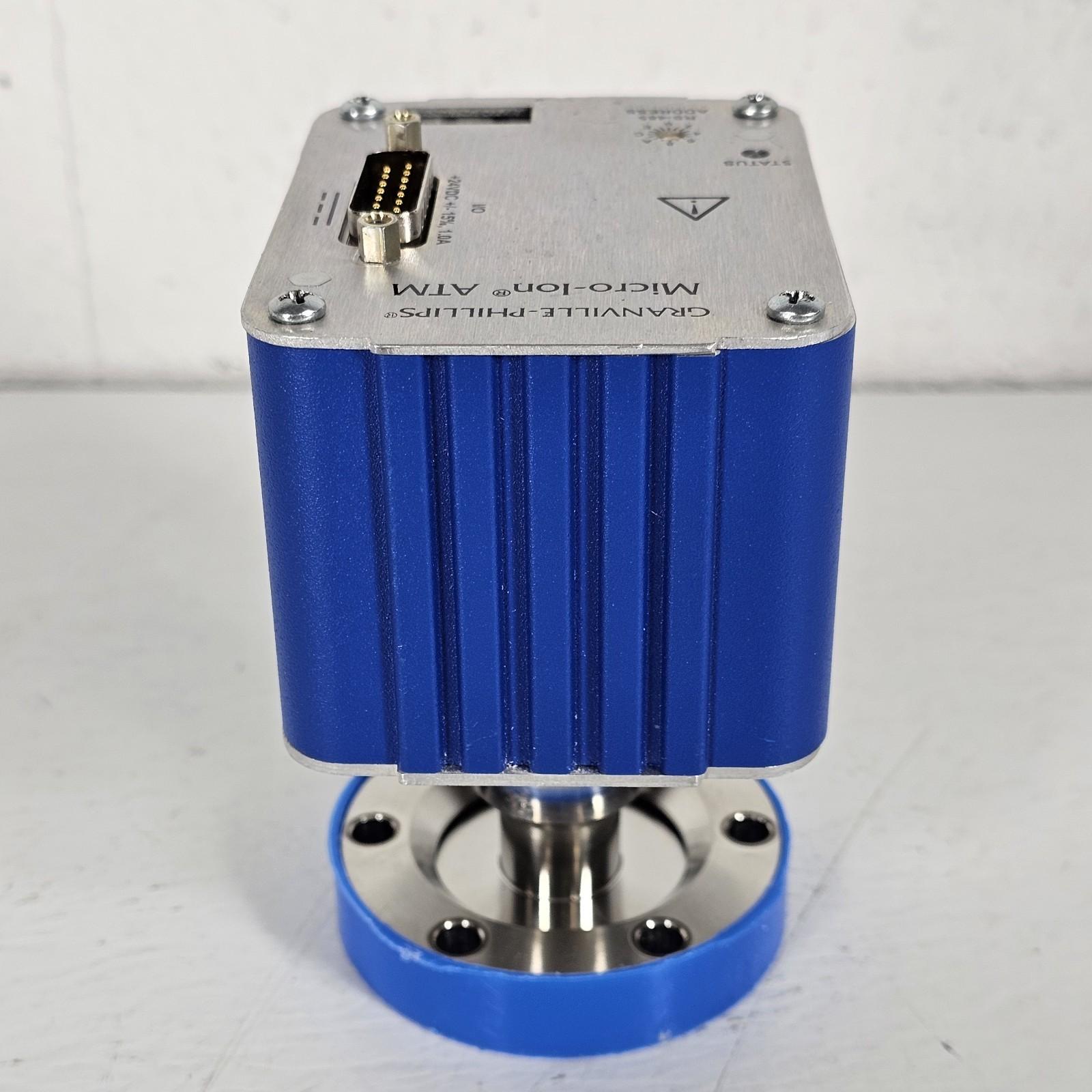

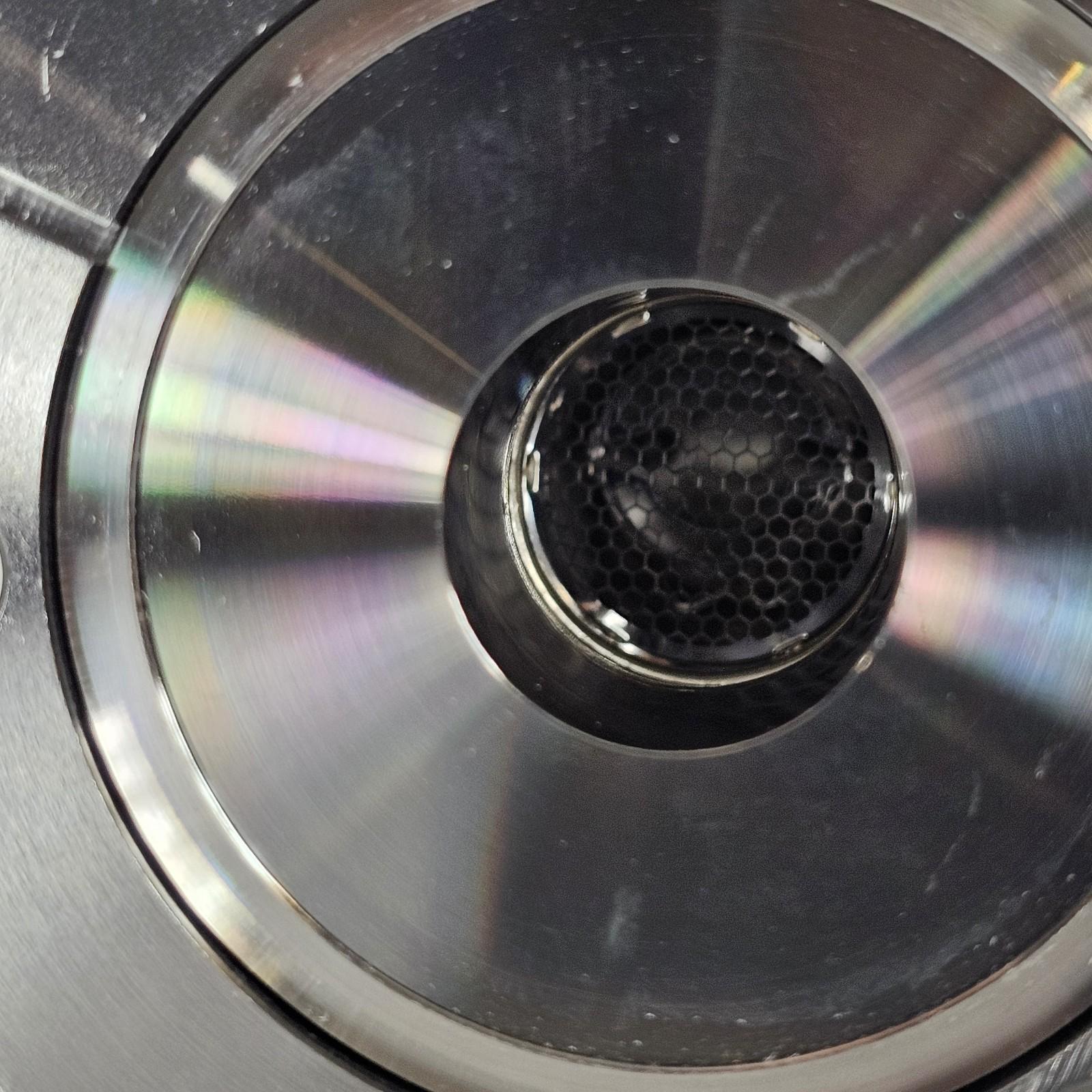

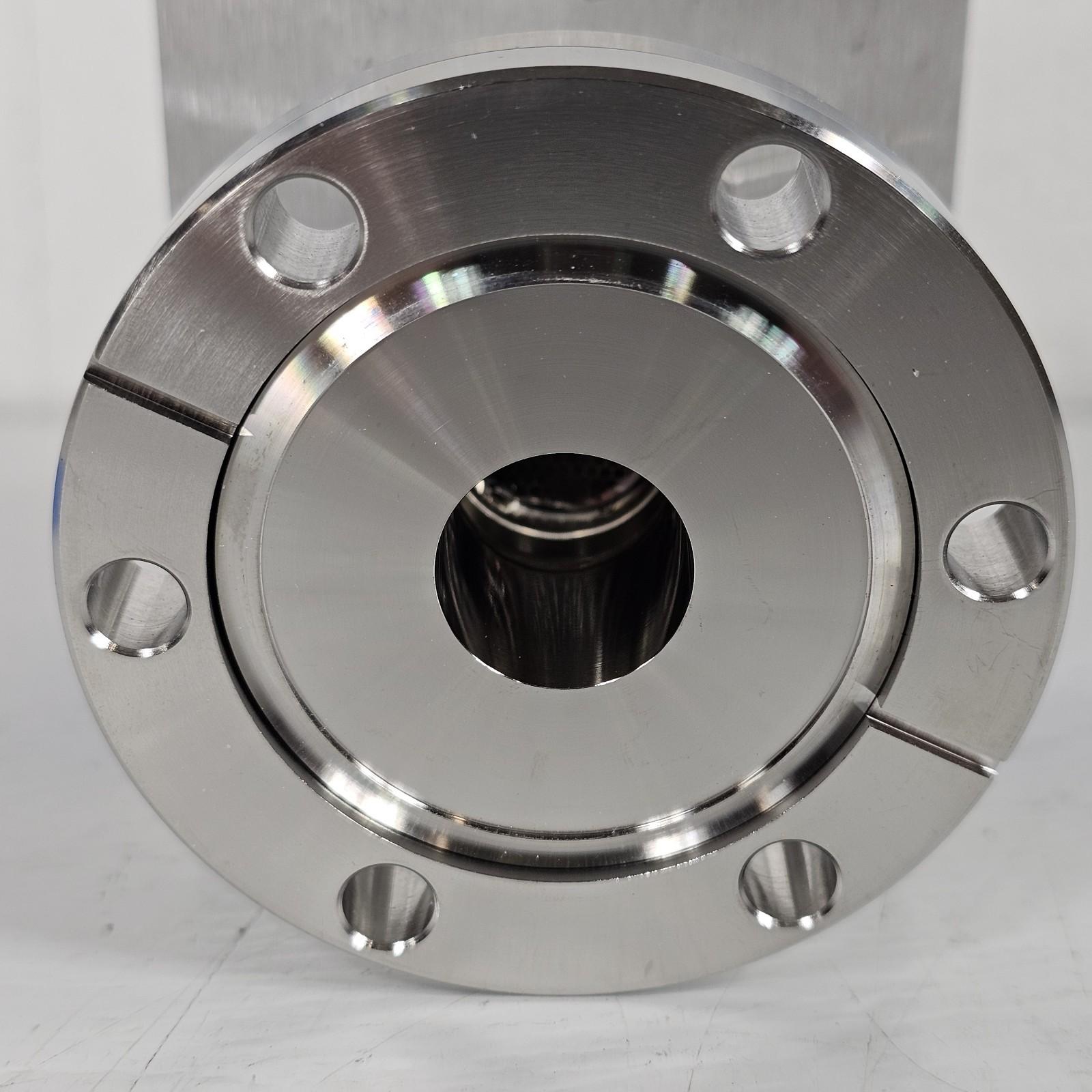

For sale is an MKS Granville-Phillips GP 390510-2-YG-T Micro-Ion ATM vacuum gauge controller/module with Micro-Ion gauge tube installed (390100-YG). This is the RS-485 + analog output version with (2) setpoint relays, no front display, and a 2.75” ConFlat NW35CF / DN35CF flange tube assembly. Clean and in excellent shape. Knife edge is free of any dents or dings and holds UHV without any issues.
Fully tested across multiple decades (real vacuum readings we performed on our test stand). We verified stable analog output at these points, corresponding to the pressure decades below (Torr):

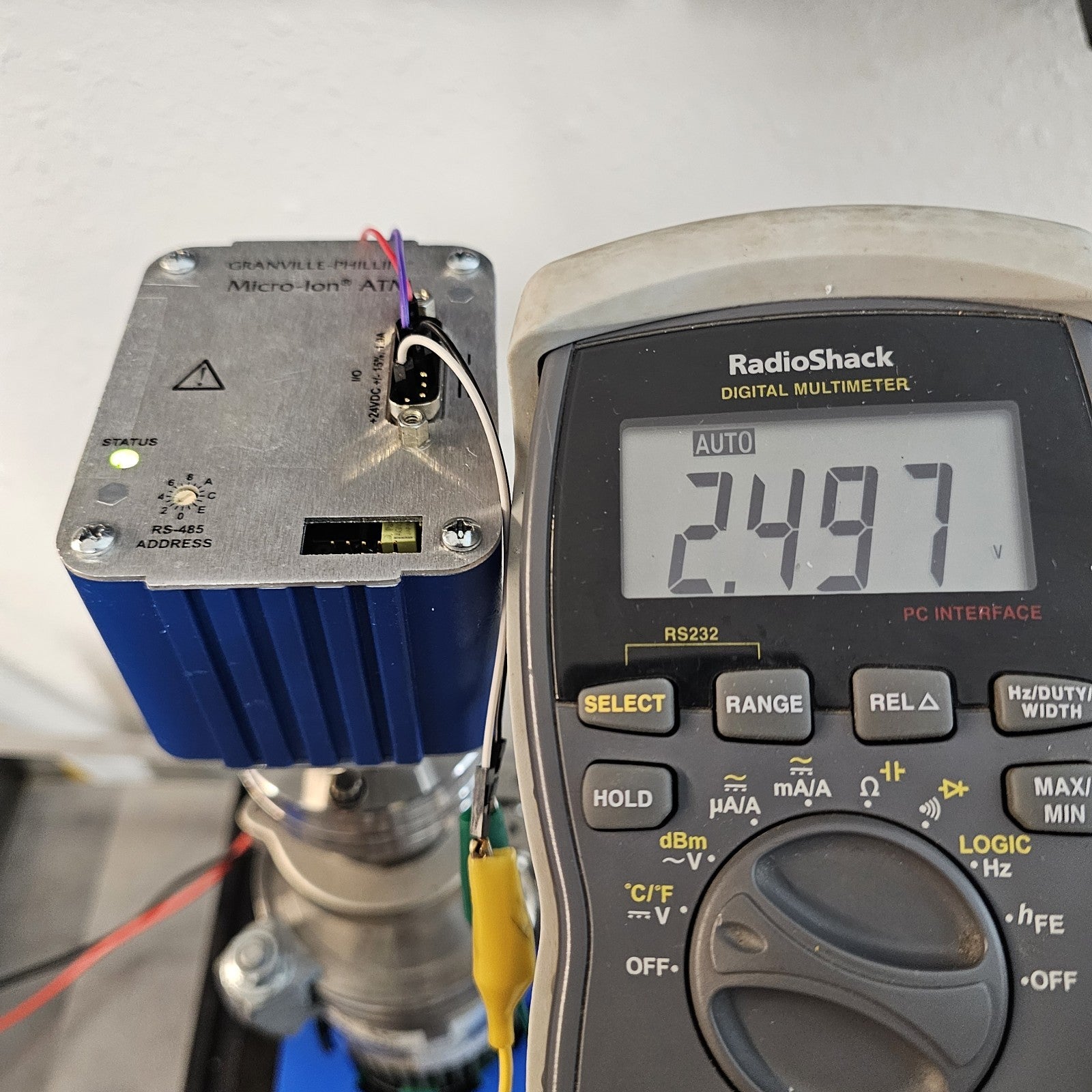

2.497 V ≈ 1e-6 Torr decade (just under 1e-6; per GP-390 log output curve)

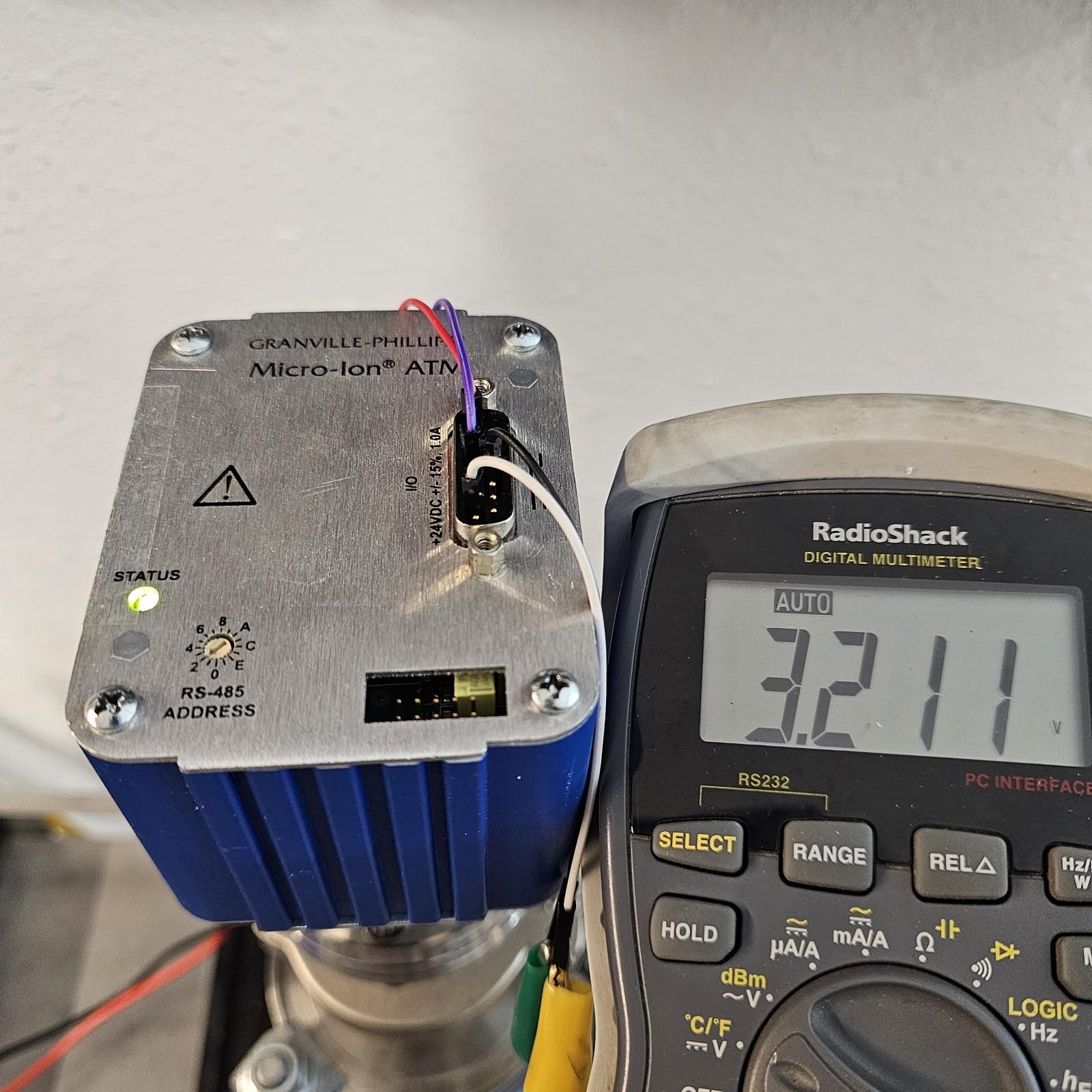

3.2 V ≈ E-5 Torr decade

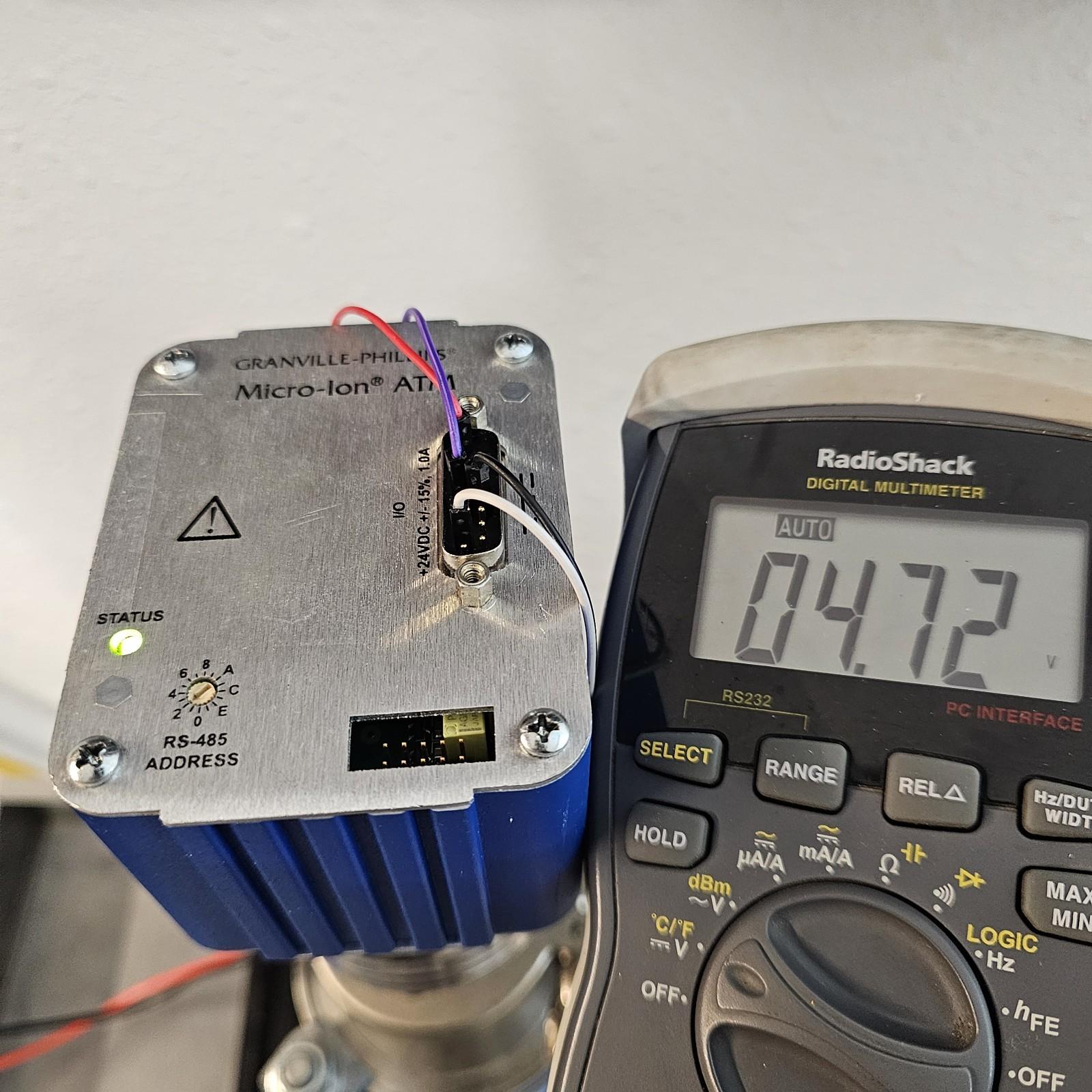

4.7 V ≈ E-2 Torr decade

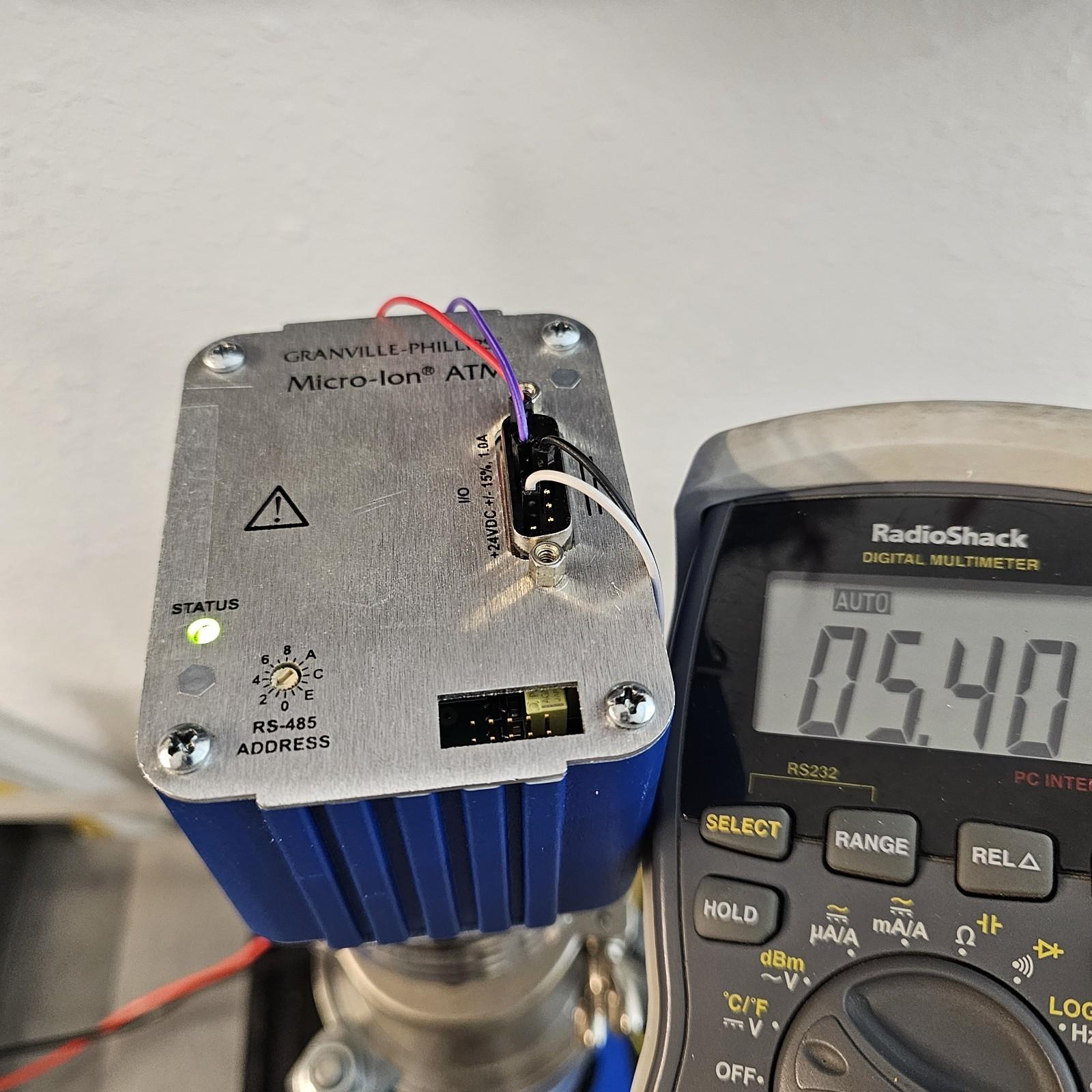

5.4 V ≈ E-1 Torr decade

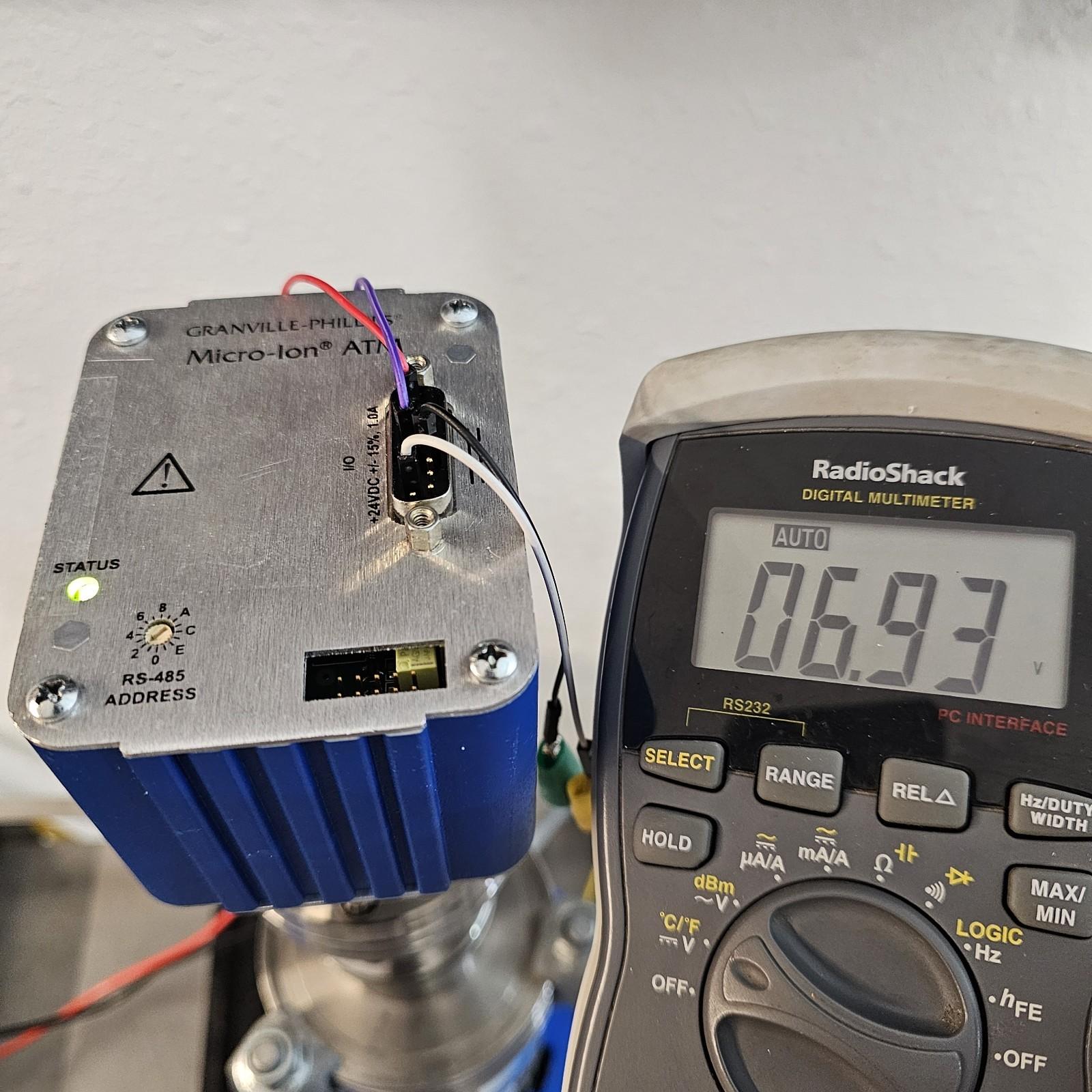

6.93 V ≈ E+2 Torr decade / near-atmosphere region
(Analog output follows the Granville Phillips-390 logarithmic transfer function) This gauge can go even lower with the right vacuum equipment.
What’s included:

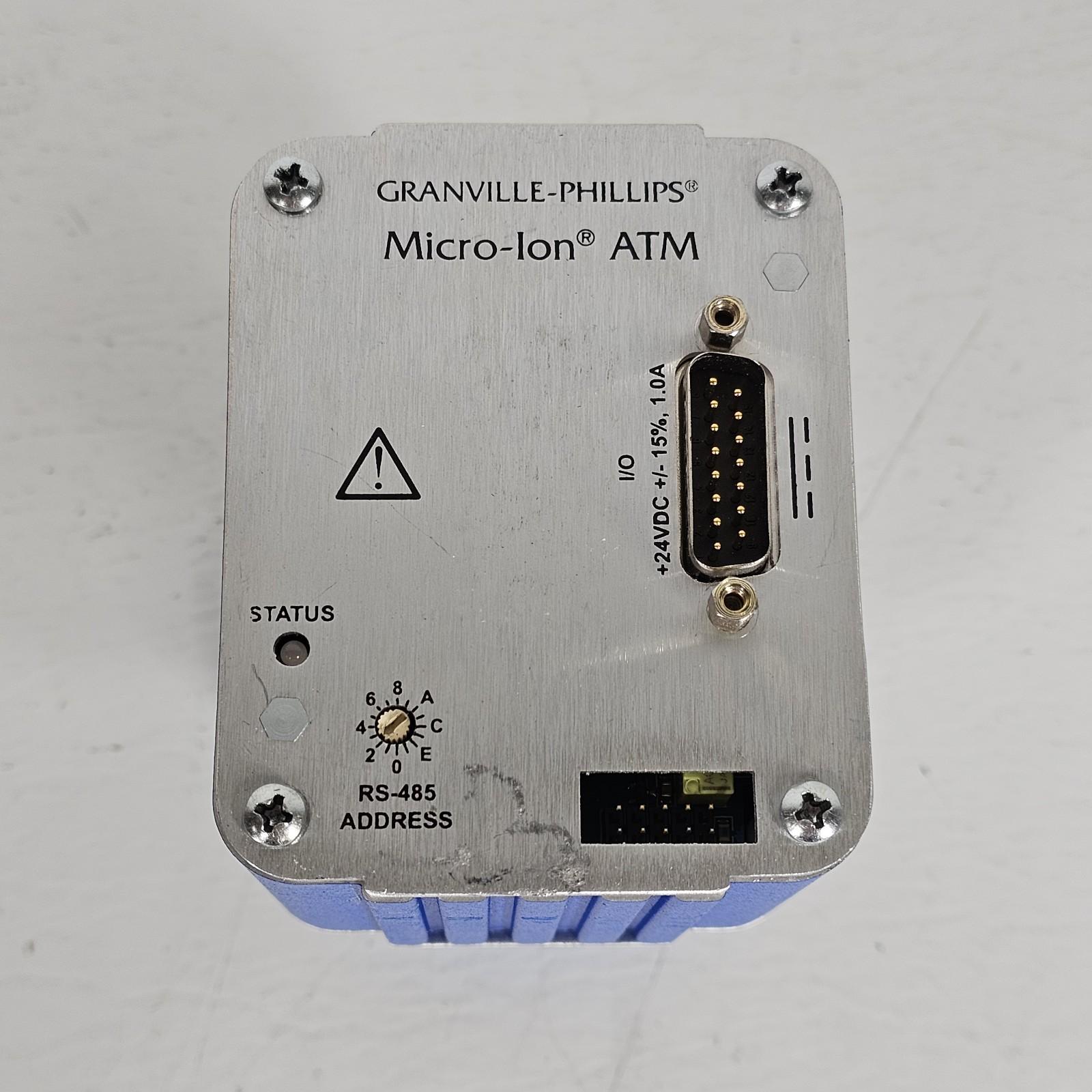

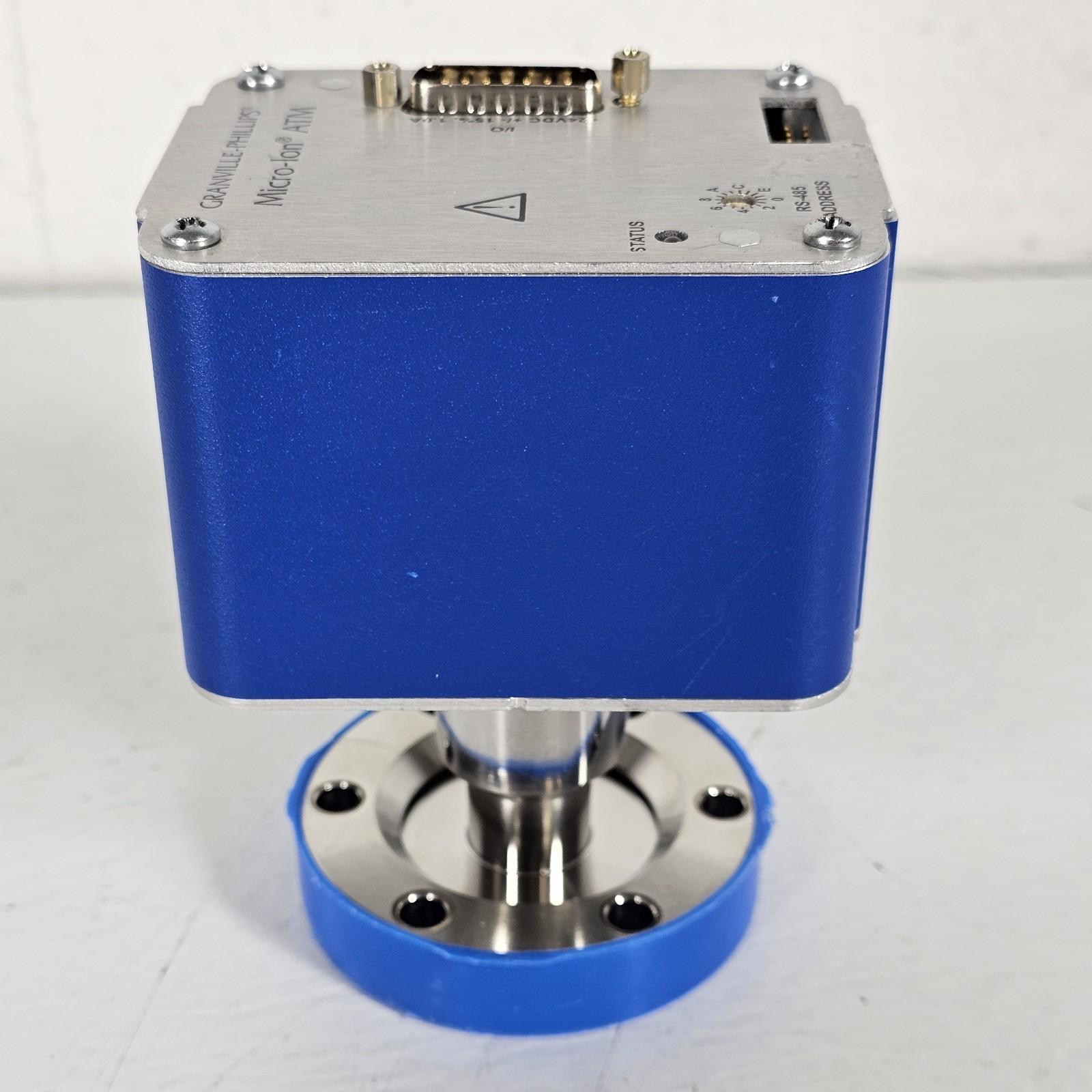

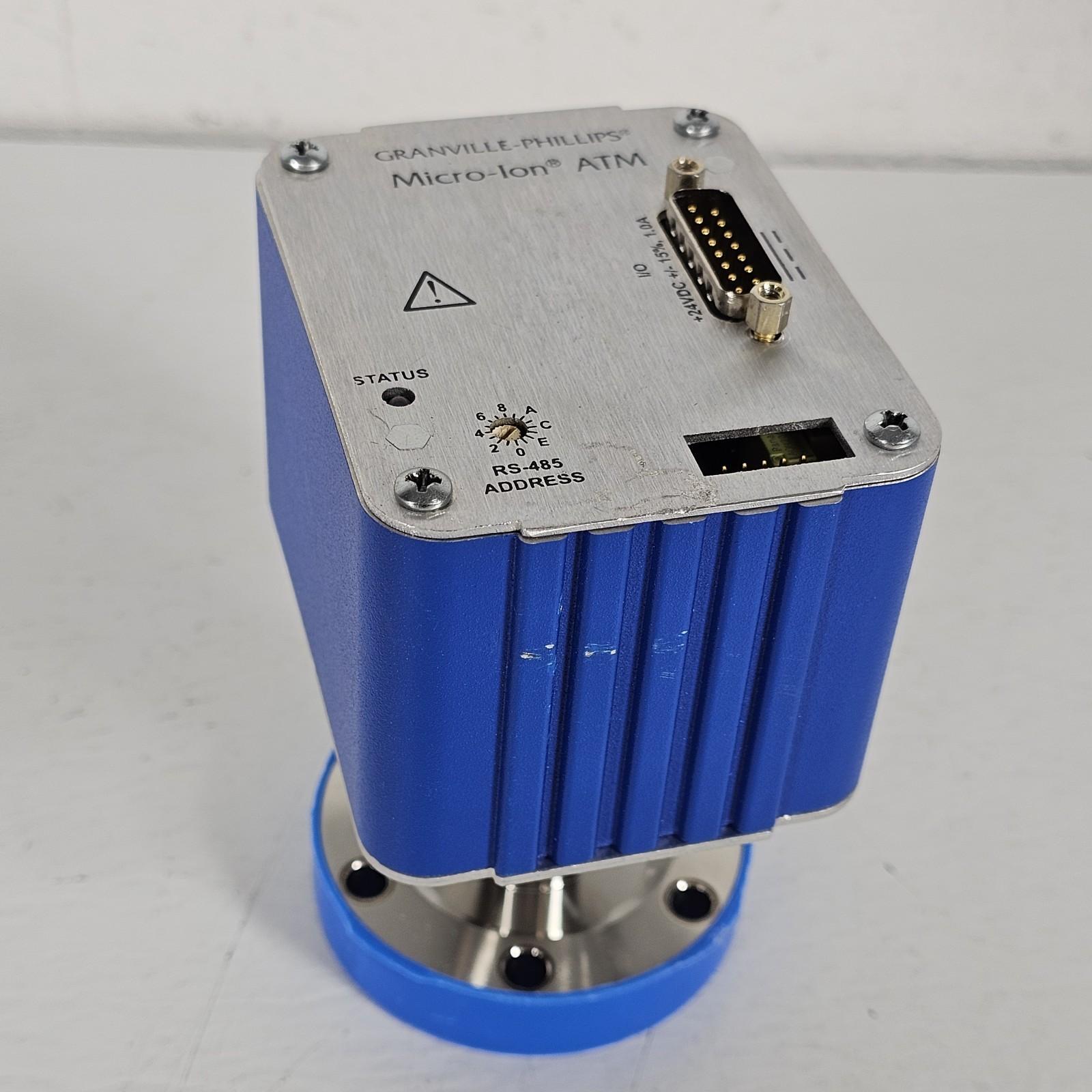

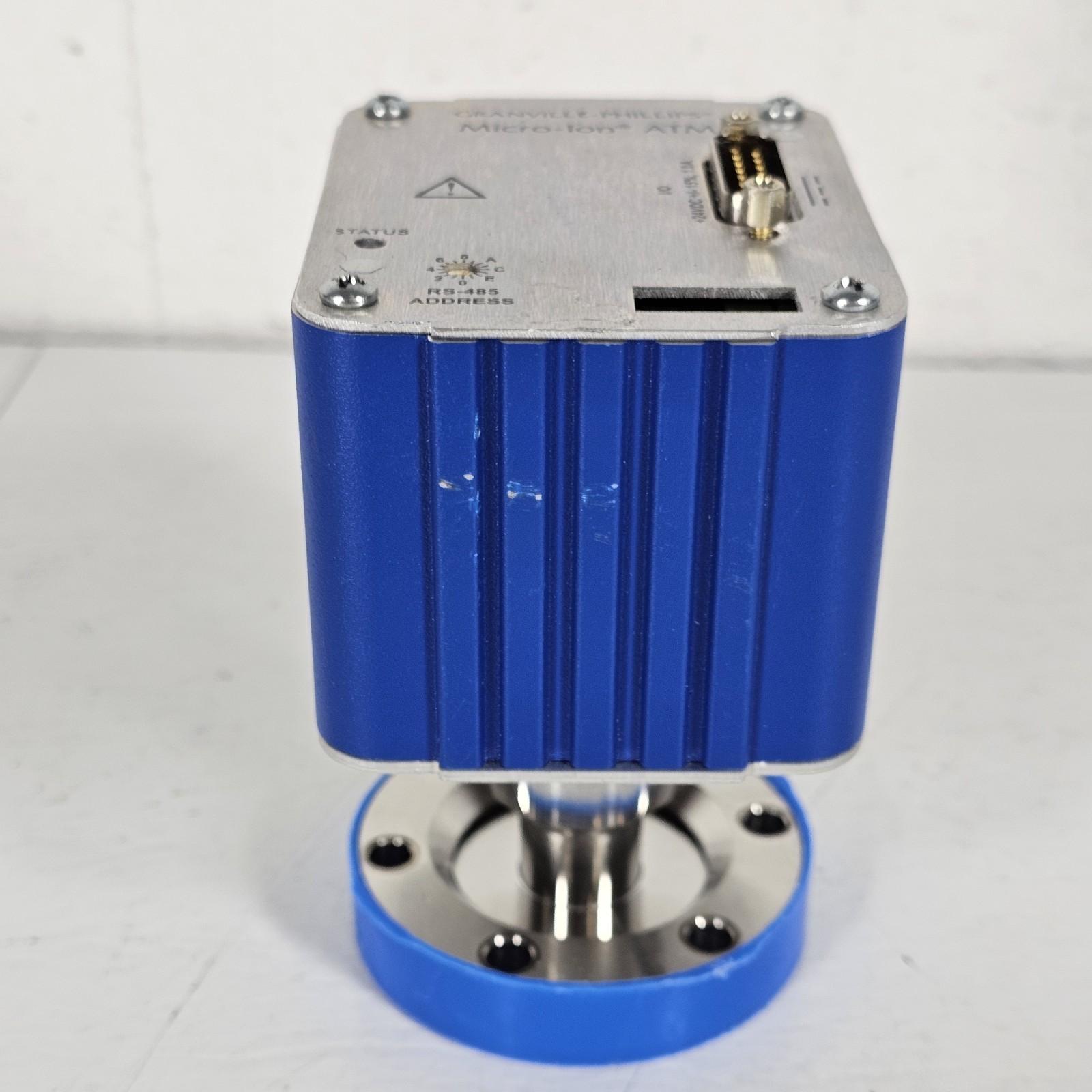

-Granville Phillips 390 module/controller (no display)
-Micro-Ion ATM gauge tube assembly installed (390100-YG)

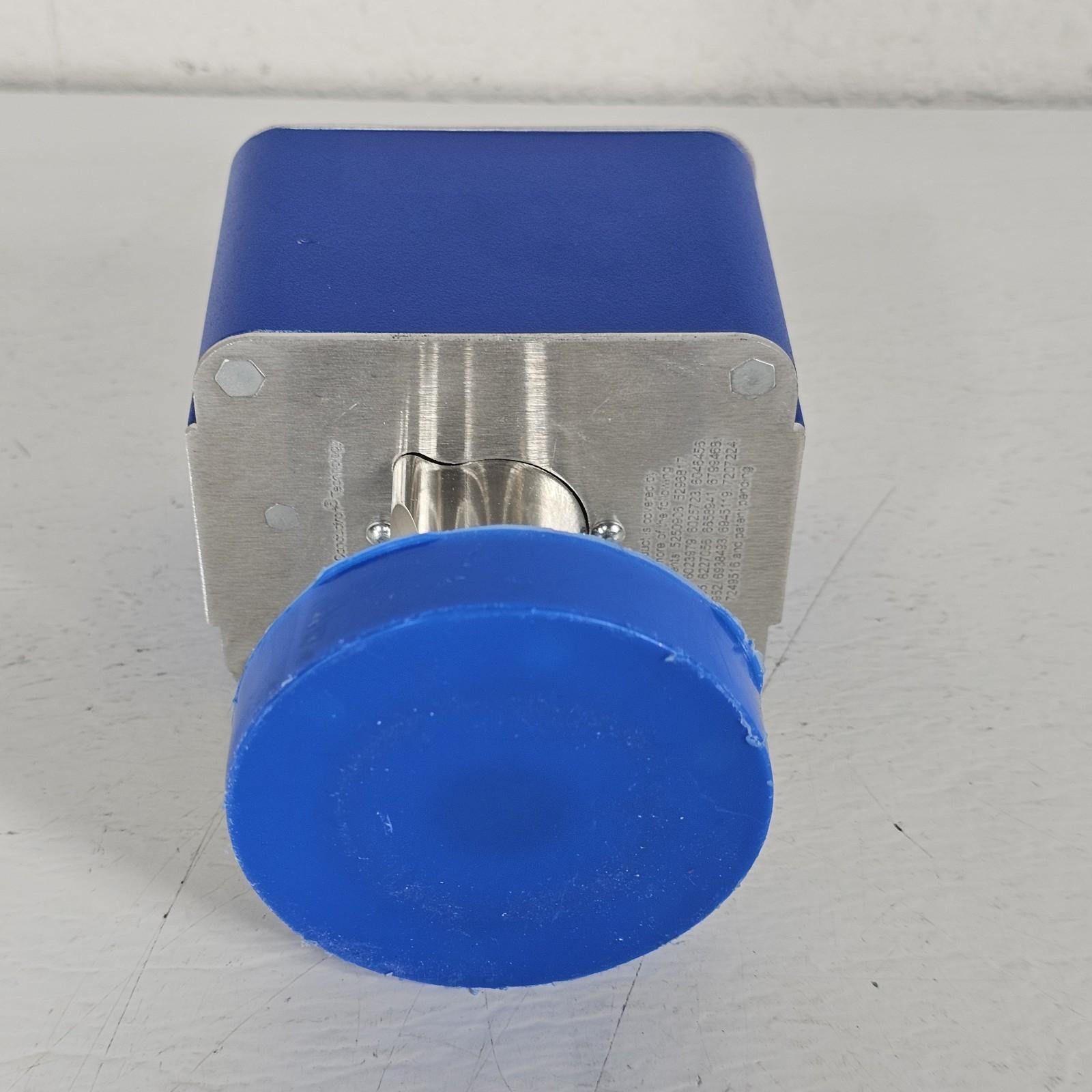

-DN35CF plastic protecting cover
Does not include our vacuum test stand, the voltmeter readout, or any cables or connectors.

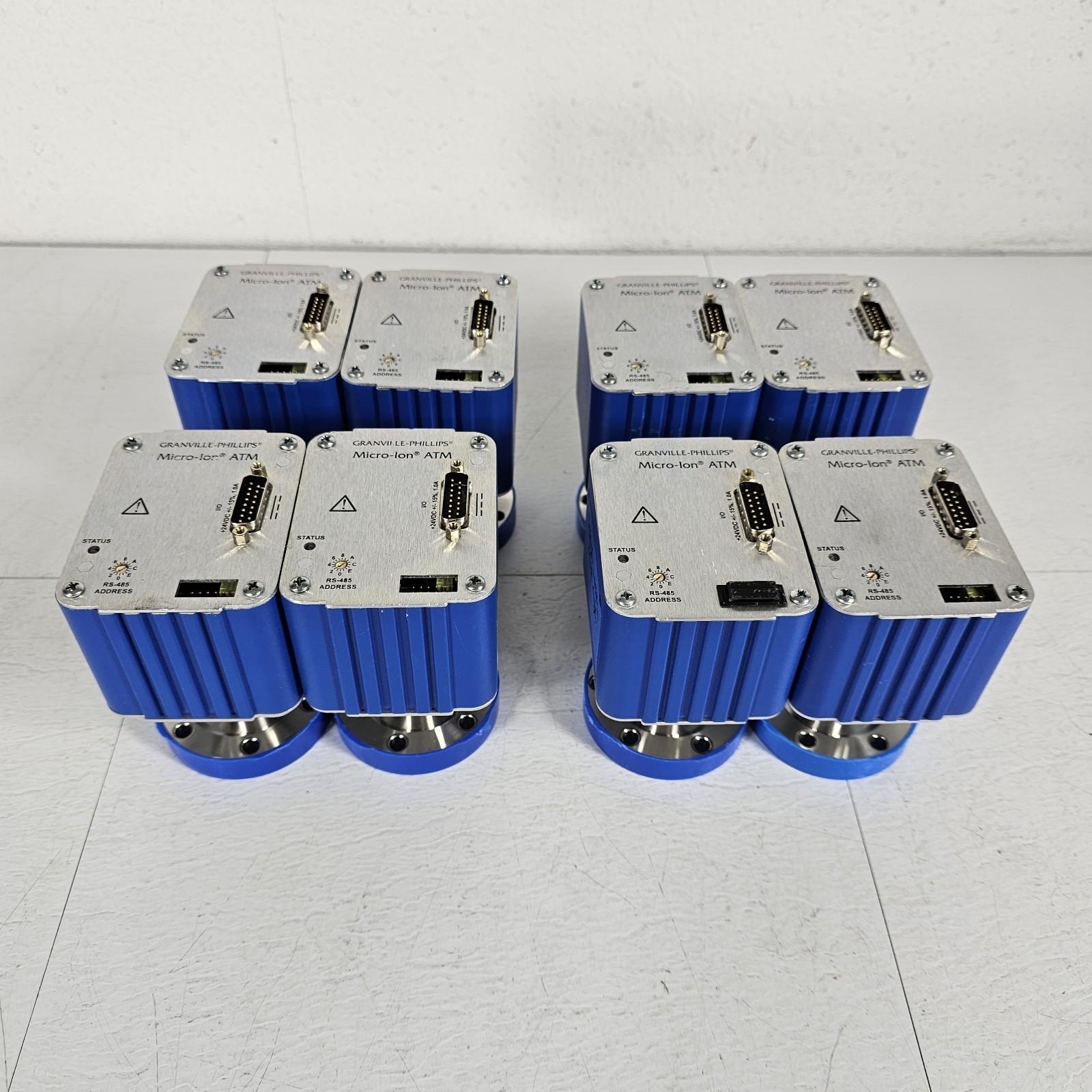

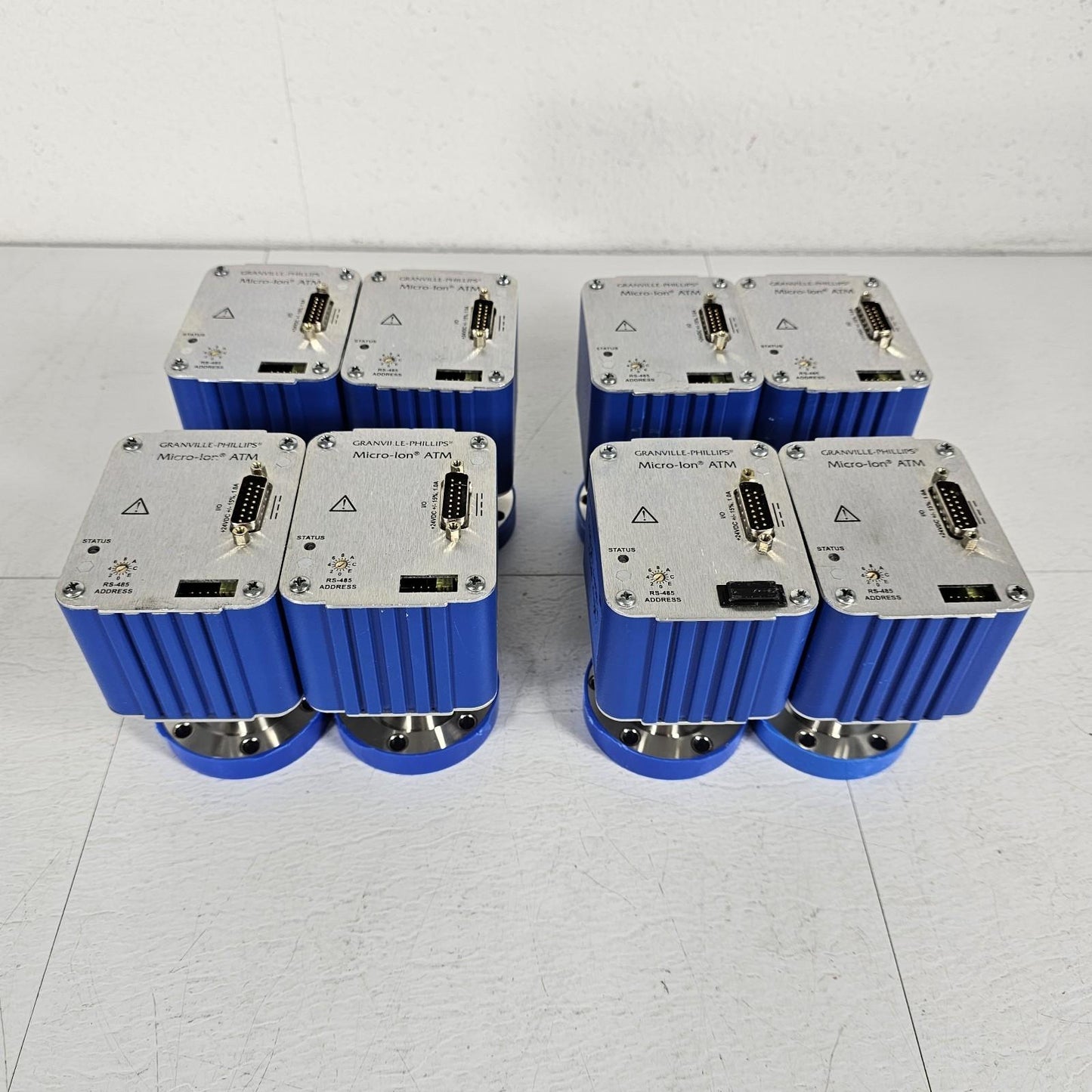

As you can see in the last photo of the listing, we have multiple of these gauges at the time of listing. They are all in similar condition and all have been tested. If you need multiples of these or other gauges or high vacuum needs, please reach out to us at Lab Liquidators LLC.
Notes:
This is ideal when you want both analog output and RS-485 comms, plus relay setpoints for interlocks (turbo enable, vent valve logic, roughing permissive, etc.).
Packed well and shipped fast; we are experts in vacuum equipment.
If you want a specific wiring pinout callout (DB15) or want us to verify your exact readout scaling on your DAQ, message us and we’ll help.
