"Tilt Platform, Two-Axis, 65 x 65 mm Platform, 8-32 & 1/4-20

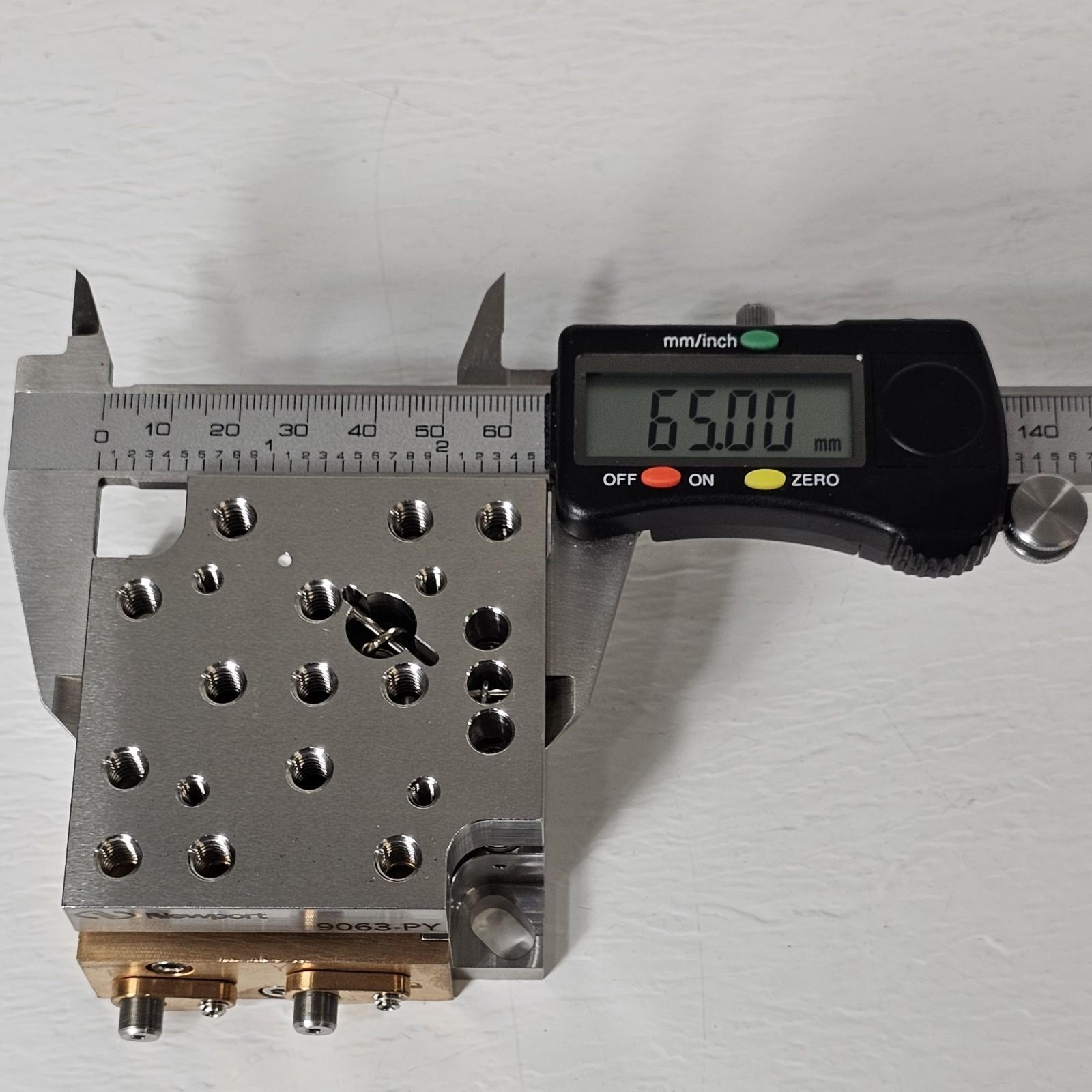

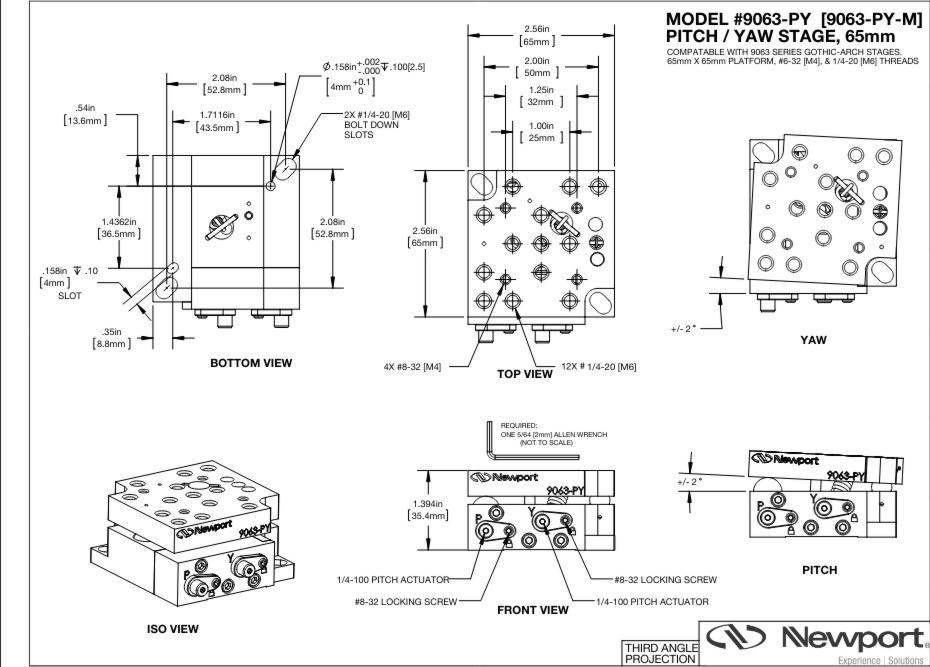

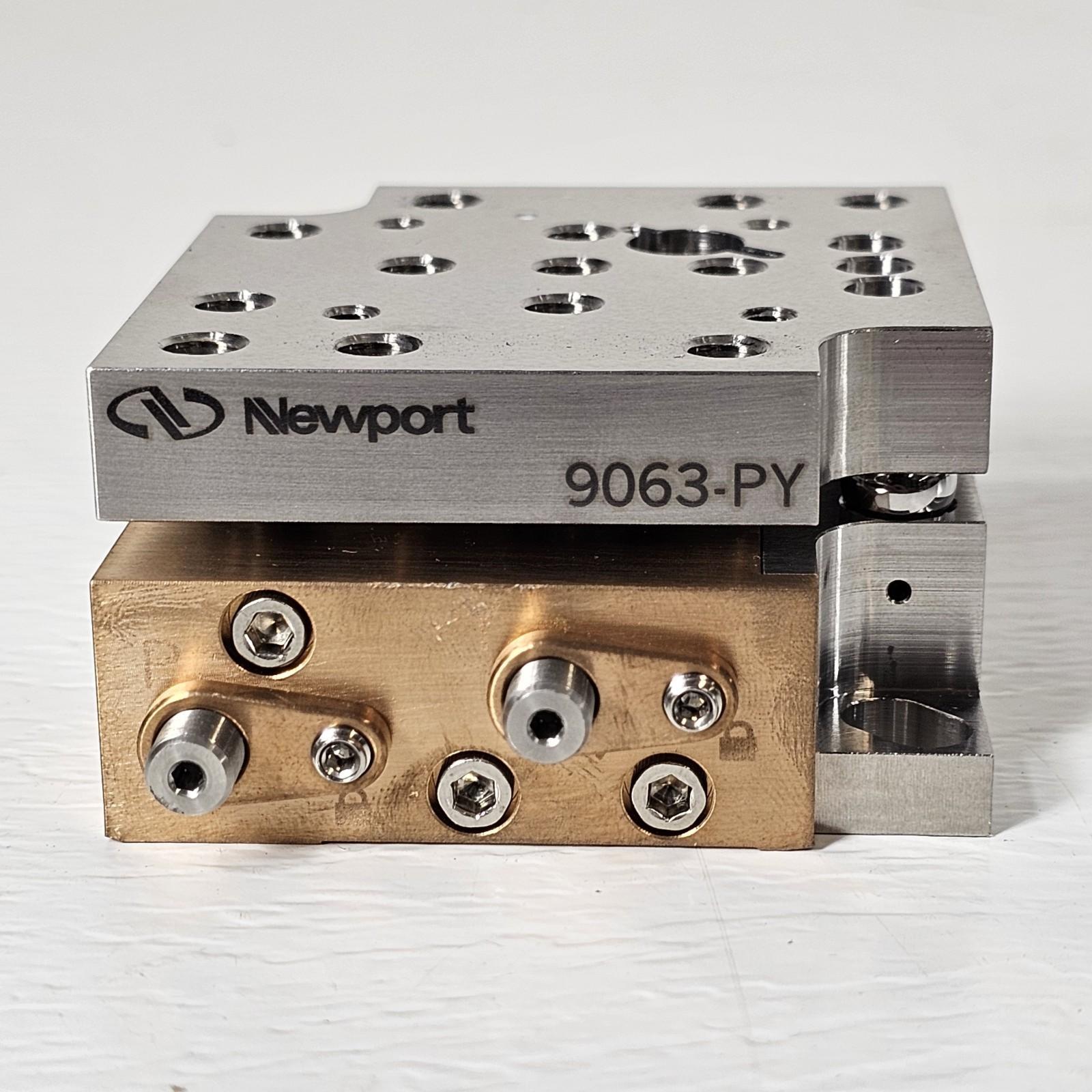

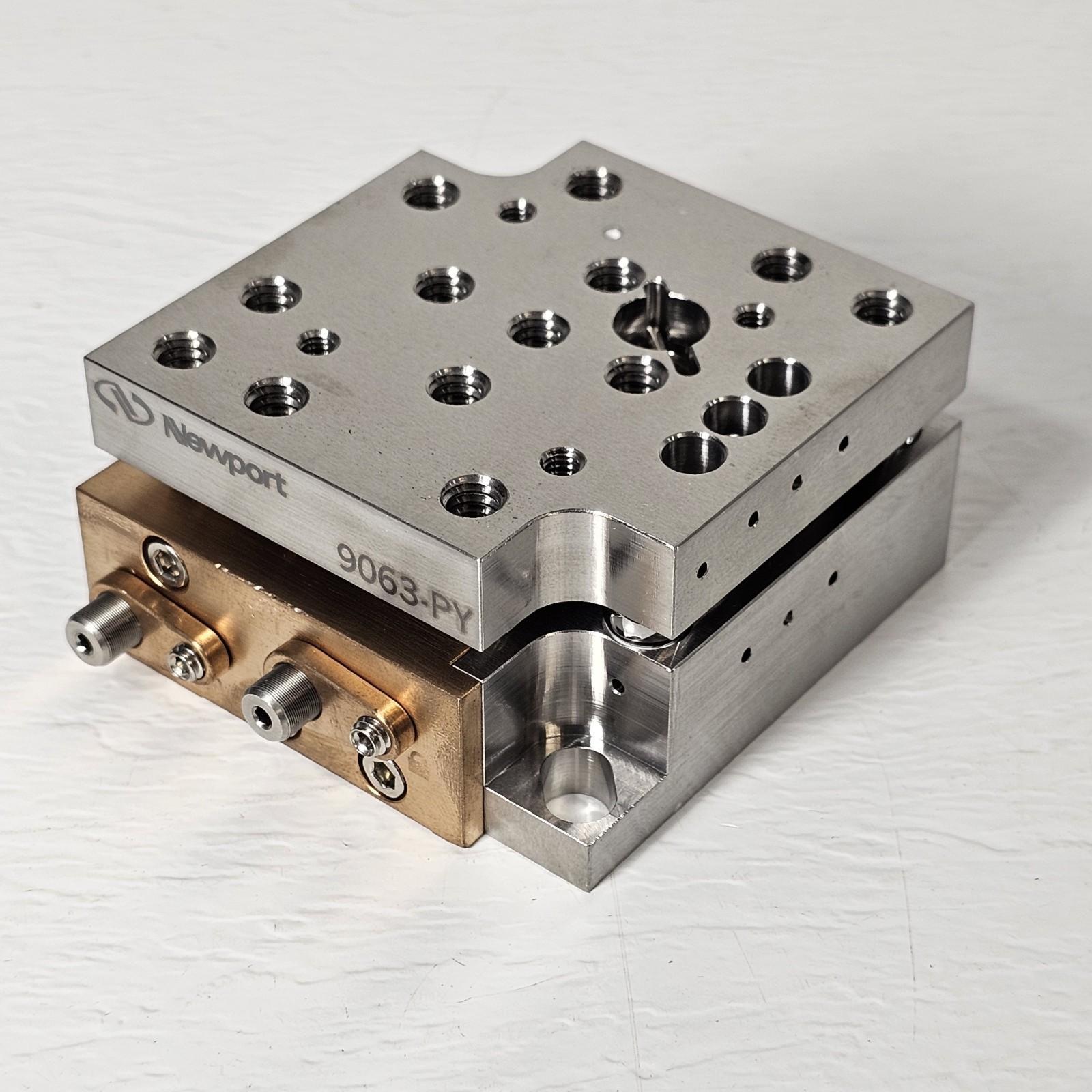

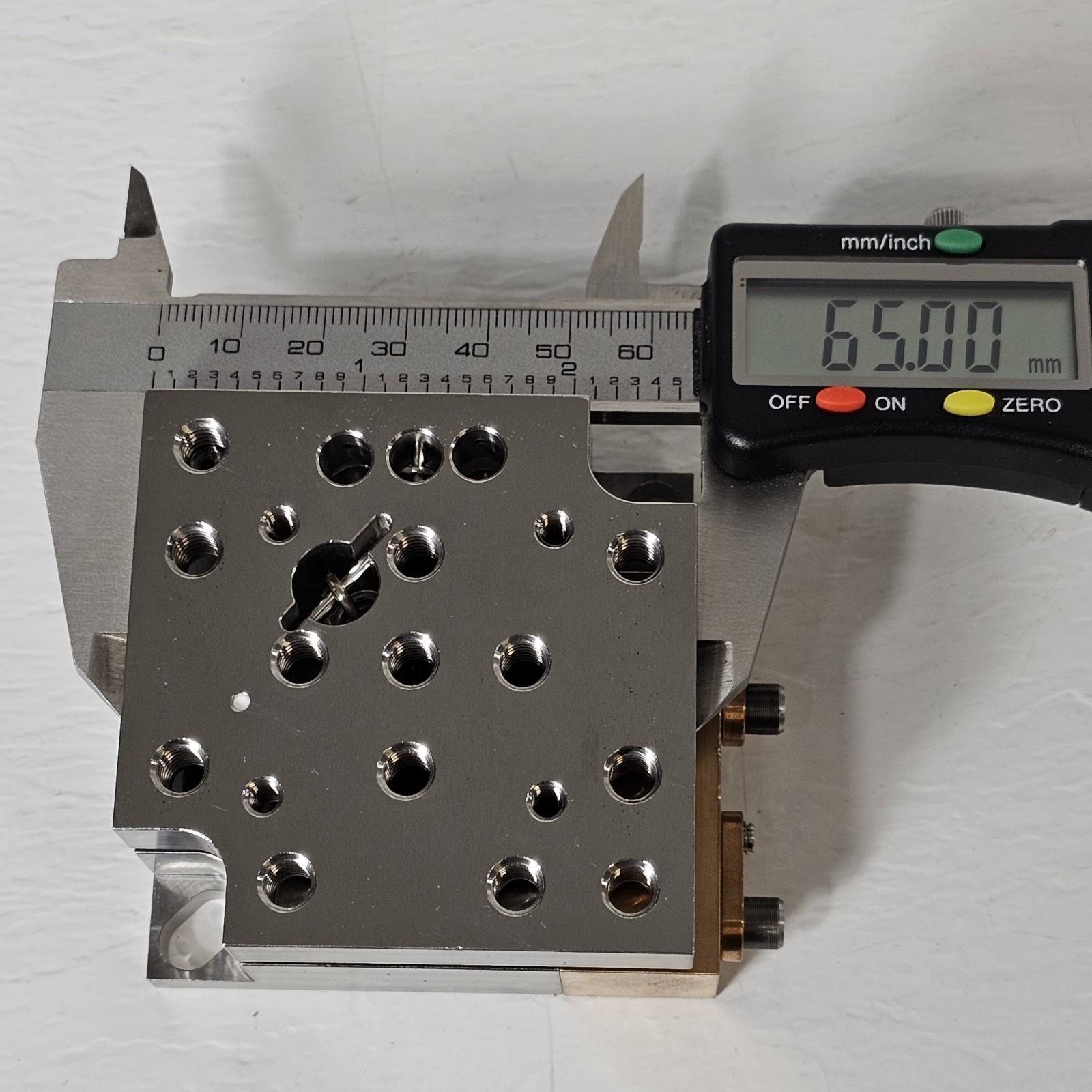

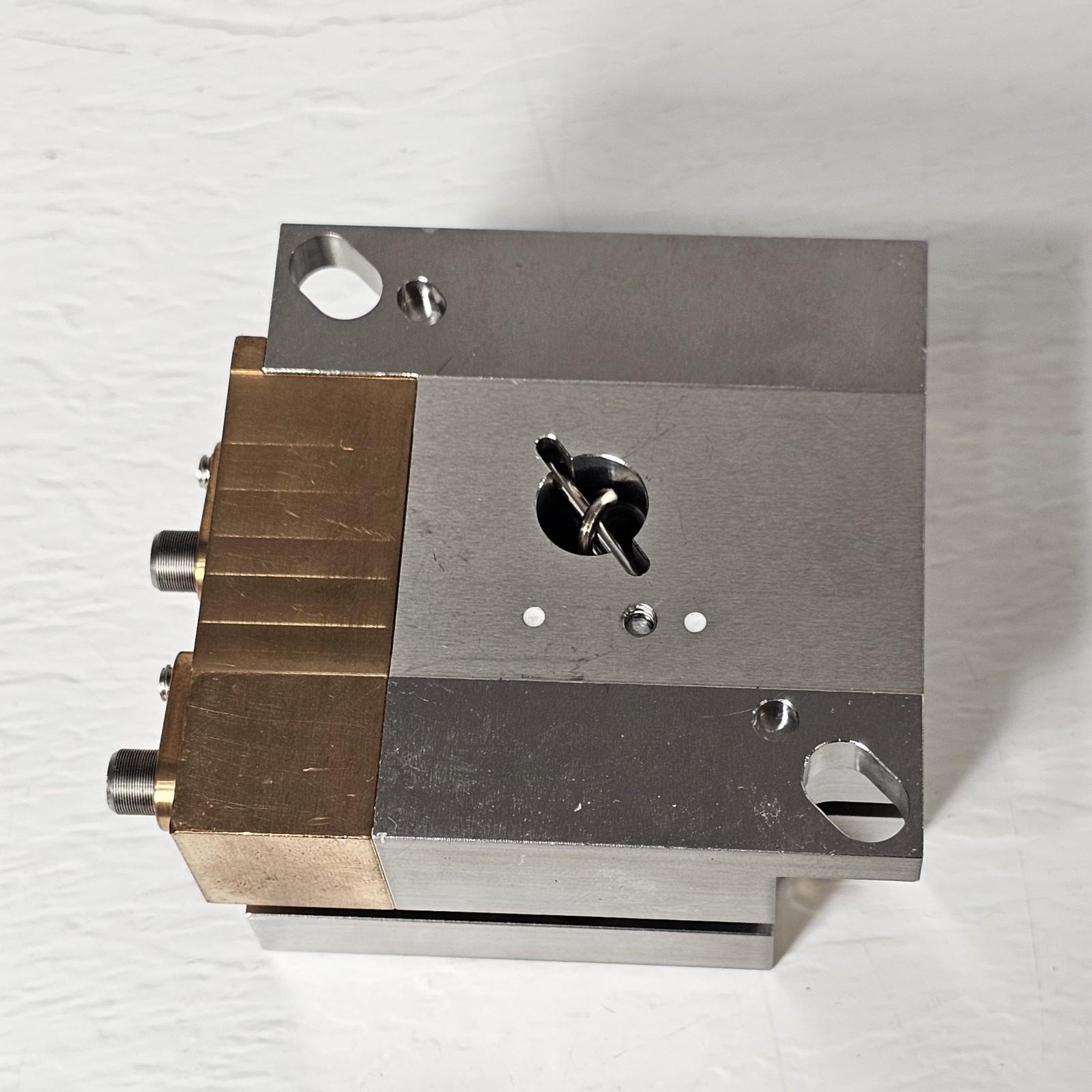

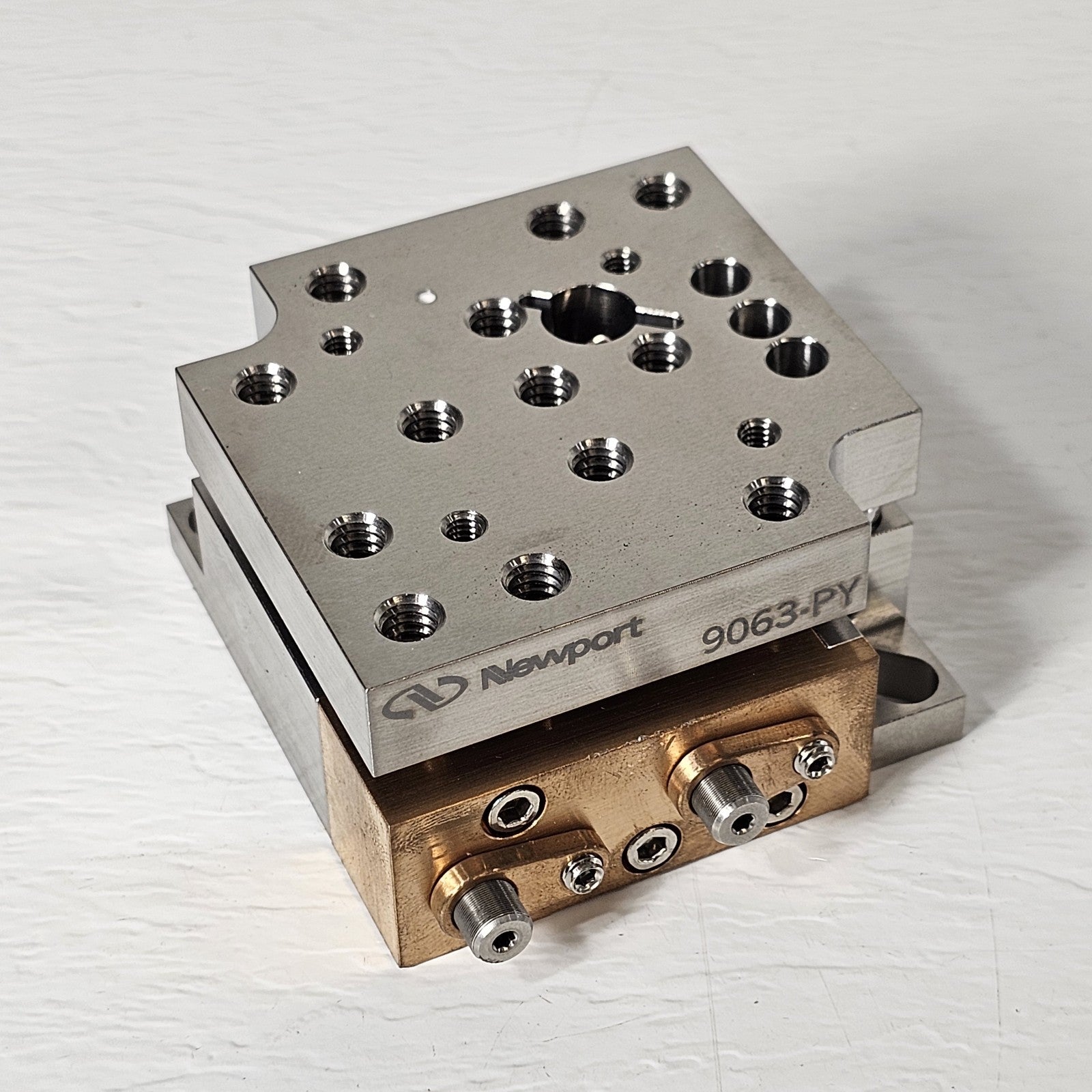

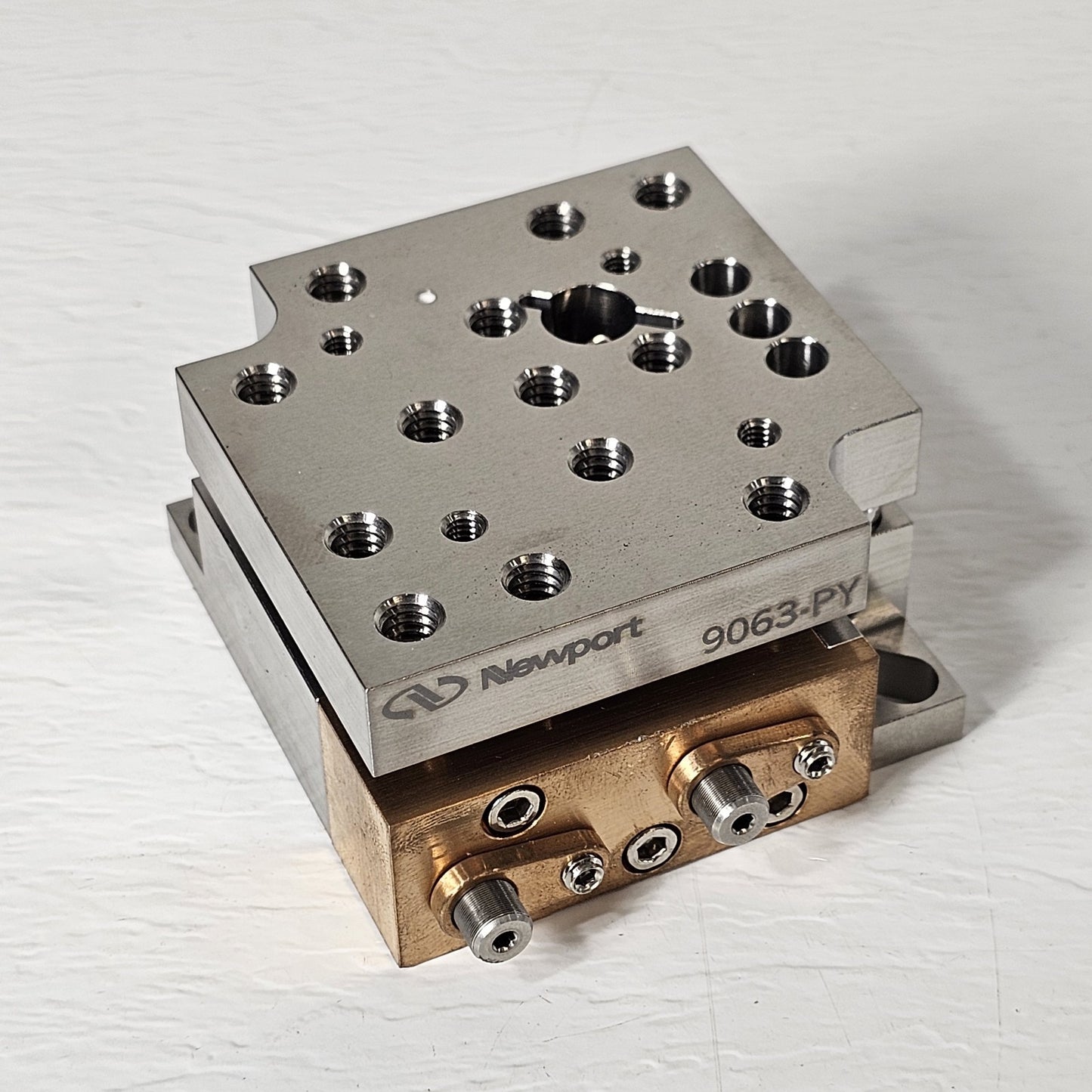

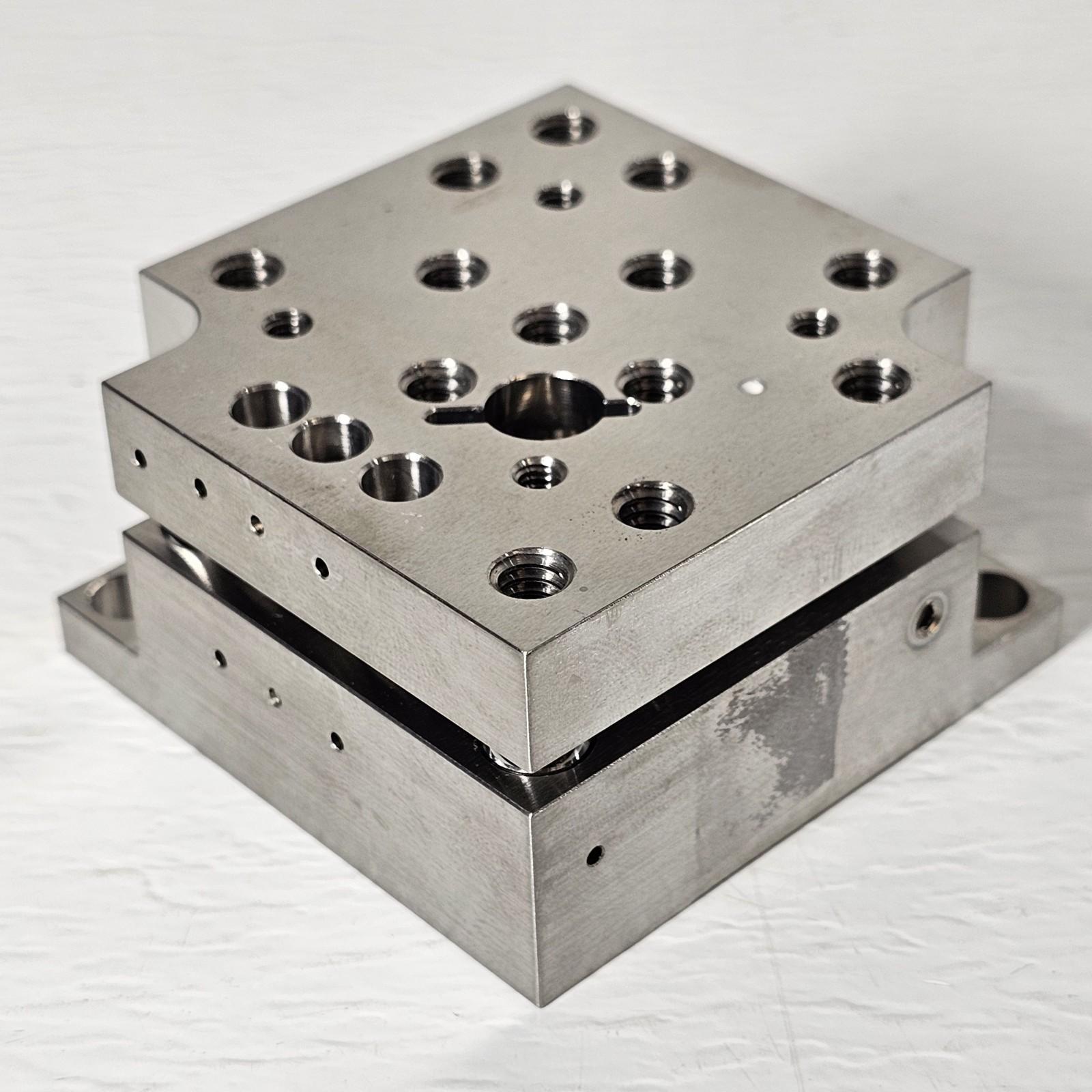

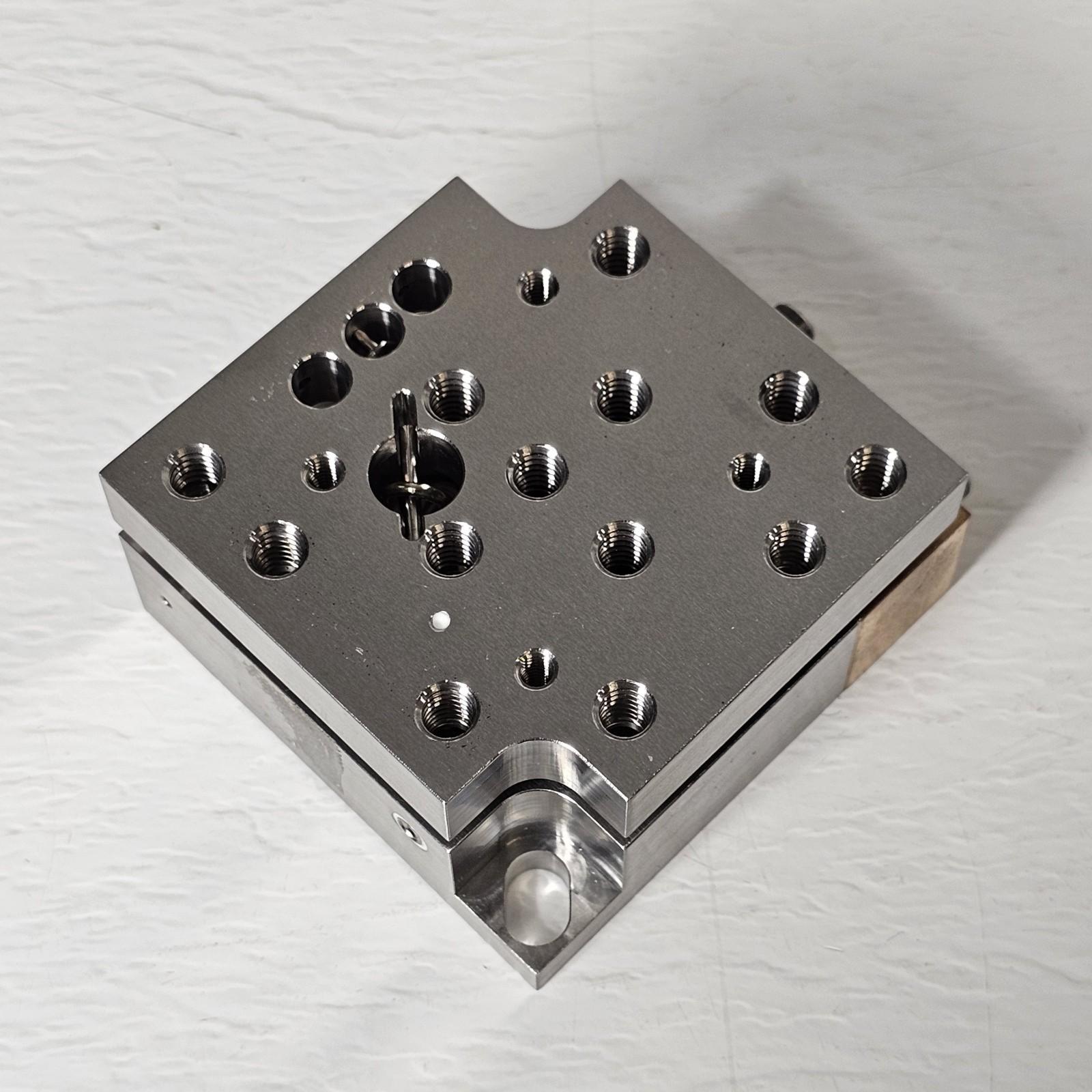

The 9063-PY Stainless Steel Tilt Platform is designed to provide precise Pitch and Yaw adjustments for optimal control over the orientation of mounted optics. The 9063-PY is a small 65 x 65 mm tilt platform with 8-32 threaded holes constructed out of Stainless Steel for superior stability. The 9063-PY also has locks for set-and-forget applications and is designed to fit the 9063-COM stage.
The compact 906x-PY platforms provide ±2° of Pitch and Yaw adjustments with two actuators and locking capabilities all located on the same side of the platform.
Newport’s Industrial Pitch and Yaw Stages can be mounted on top of 906x series Gothic Arch Ball Bearing Steel Linear Stages. Shown here is a 9062-PY Pitch and Yaw stage mounted on a 9062-XY linear stage for complete pitch, yaw, X, and Y adjustment.
