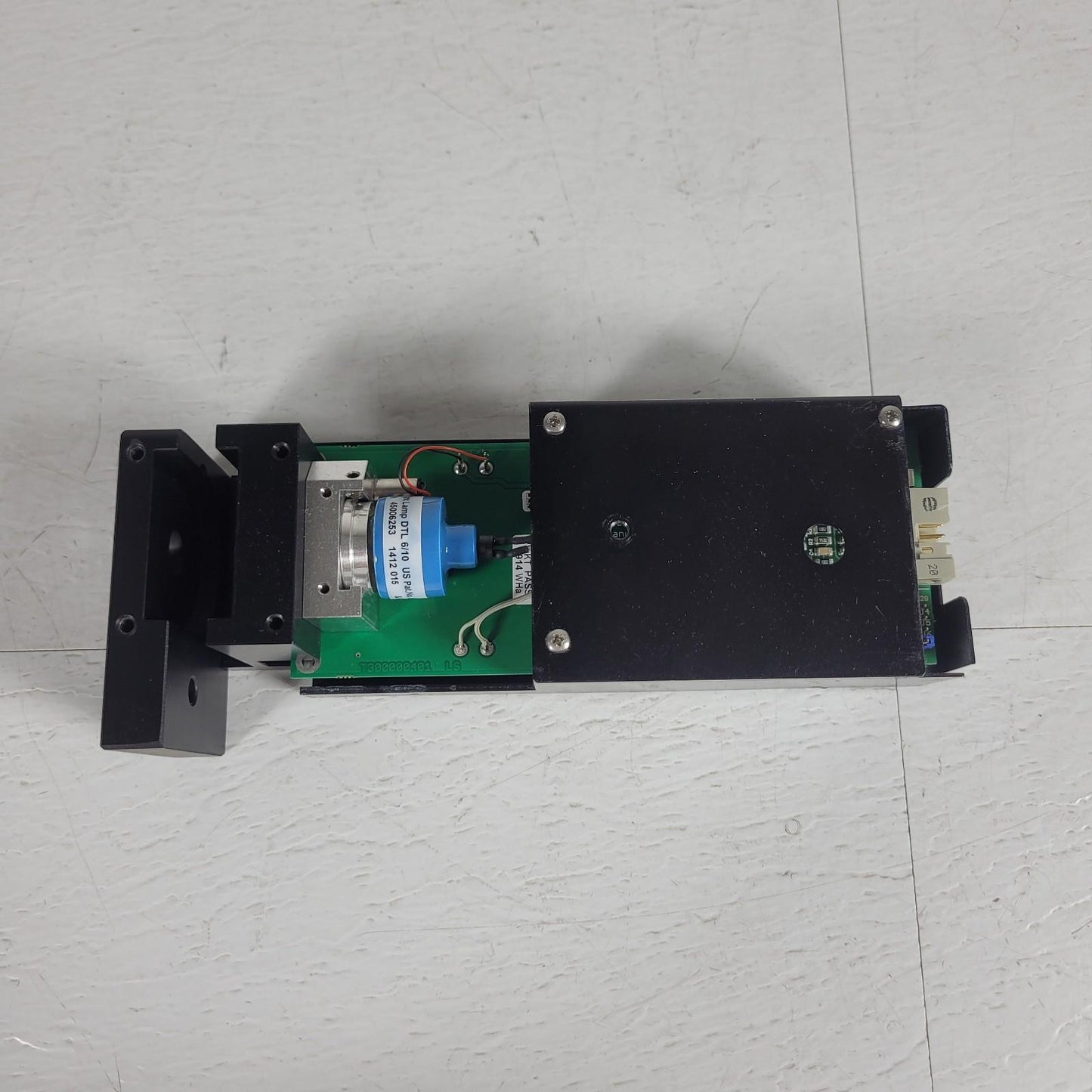

Heraeus Noblelight 45006253 Fiberlight D2 Compact UV-Vis Light Source 200–1100nm Spectra

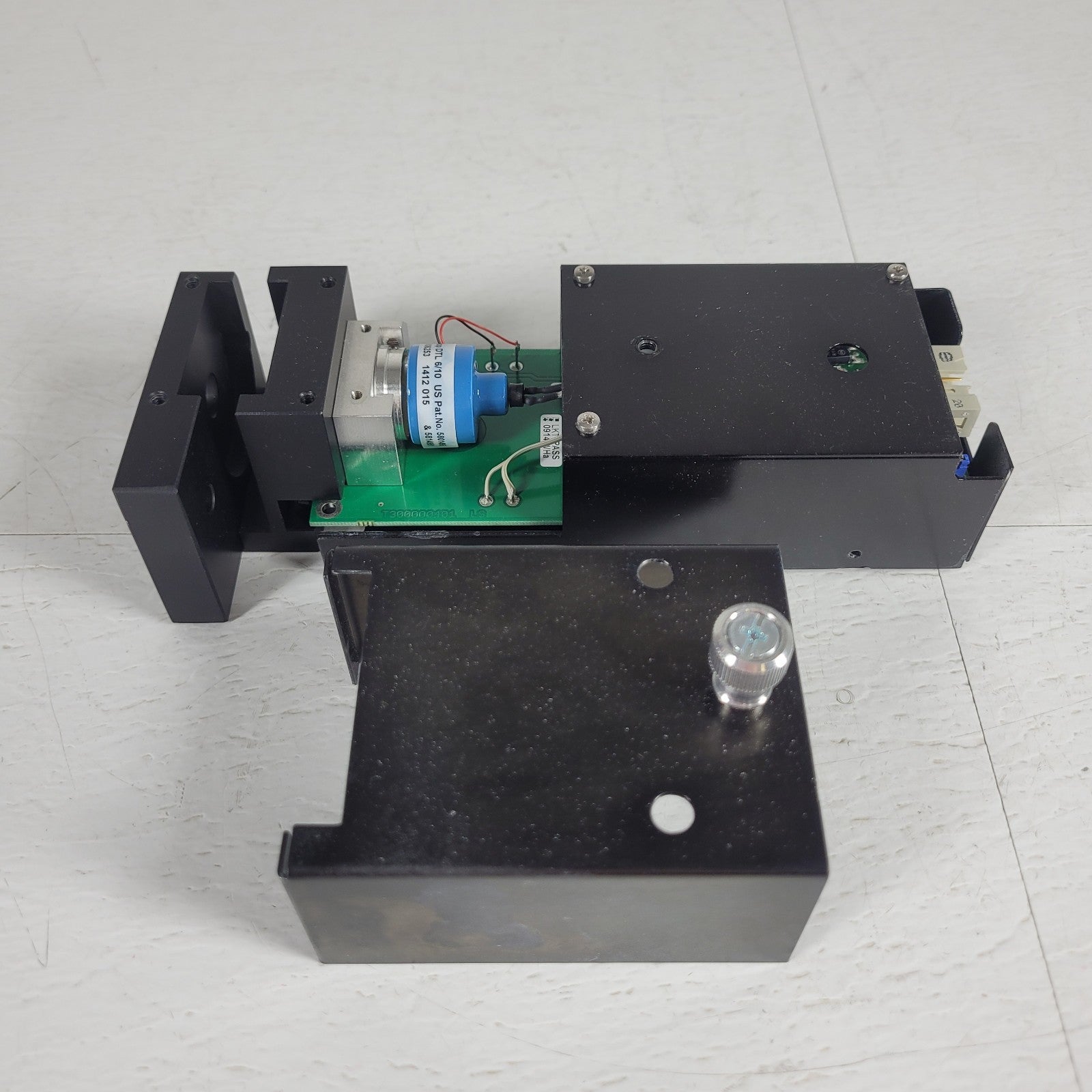

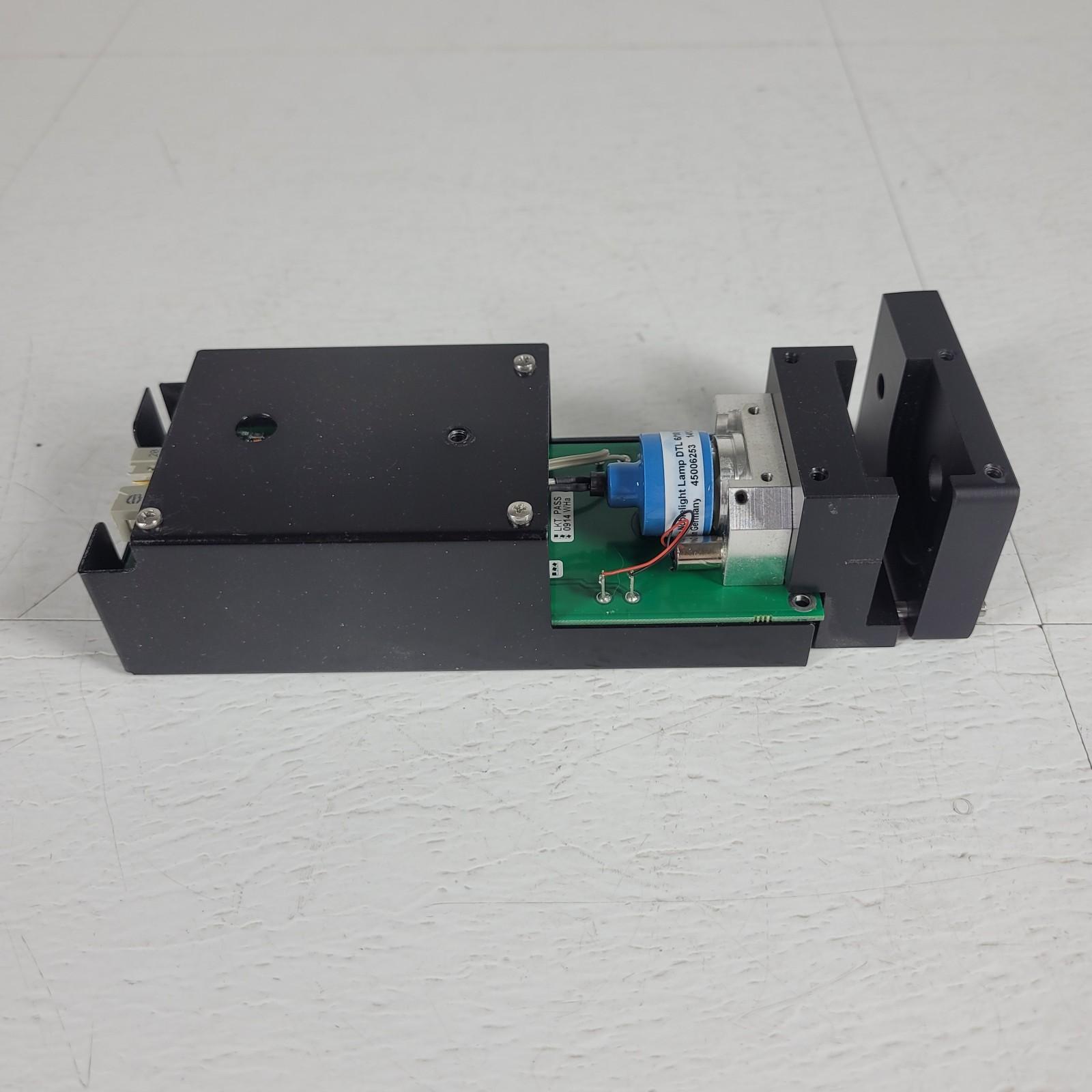

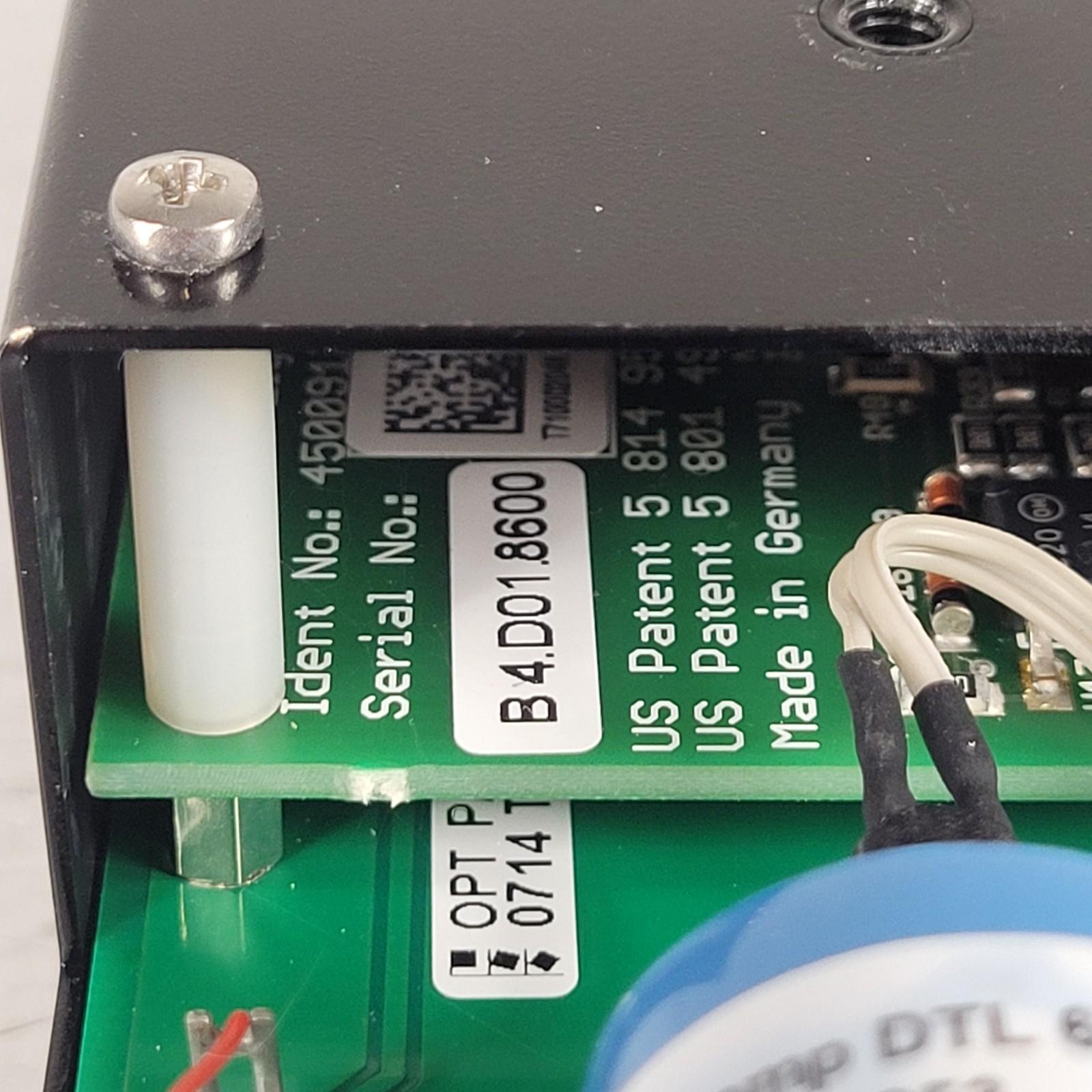

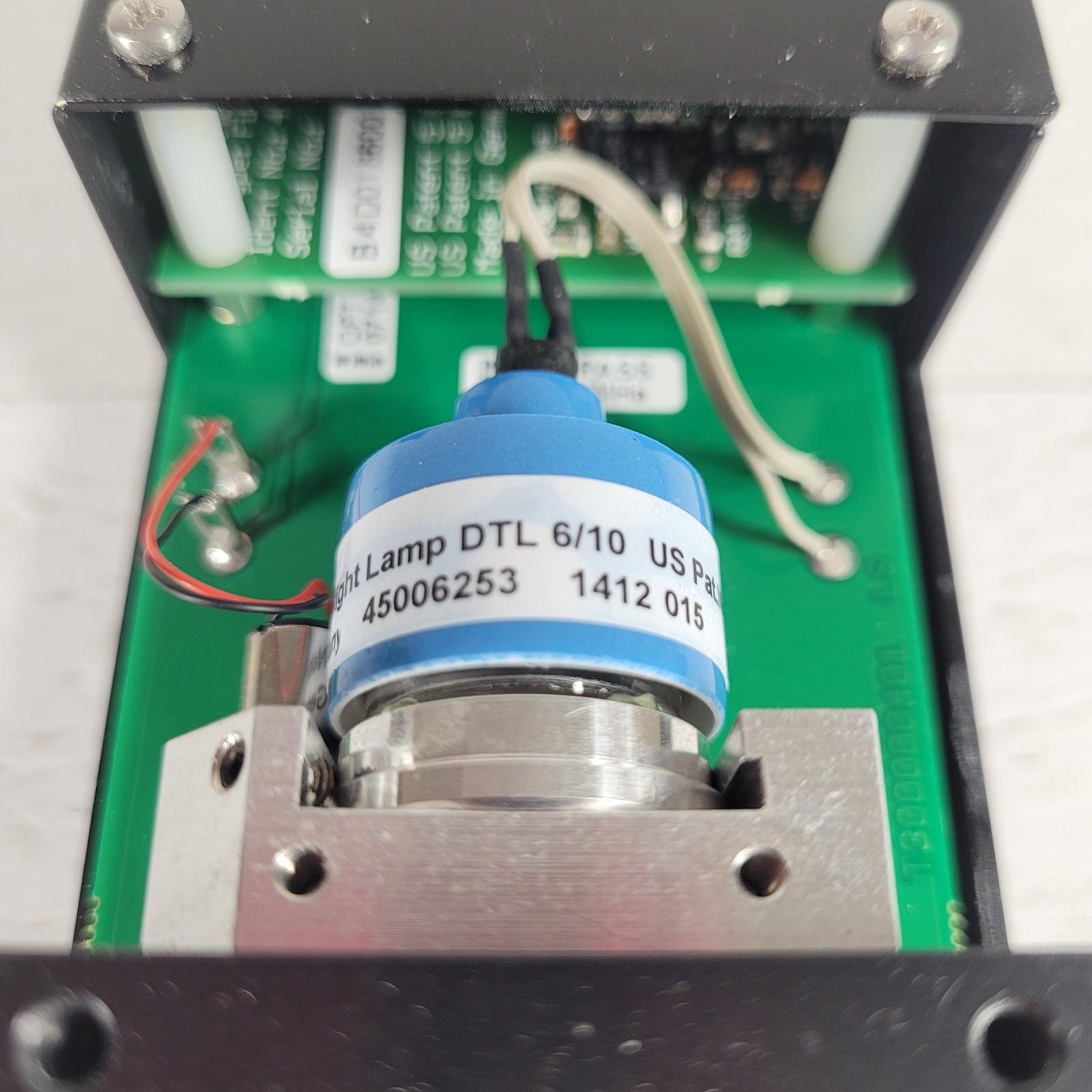

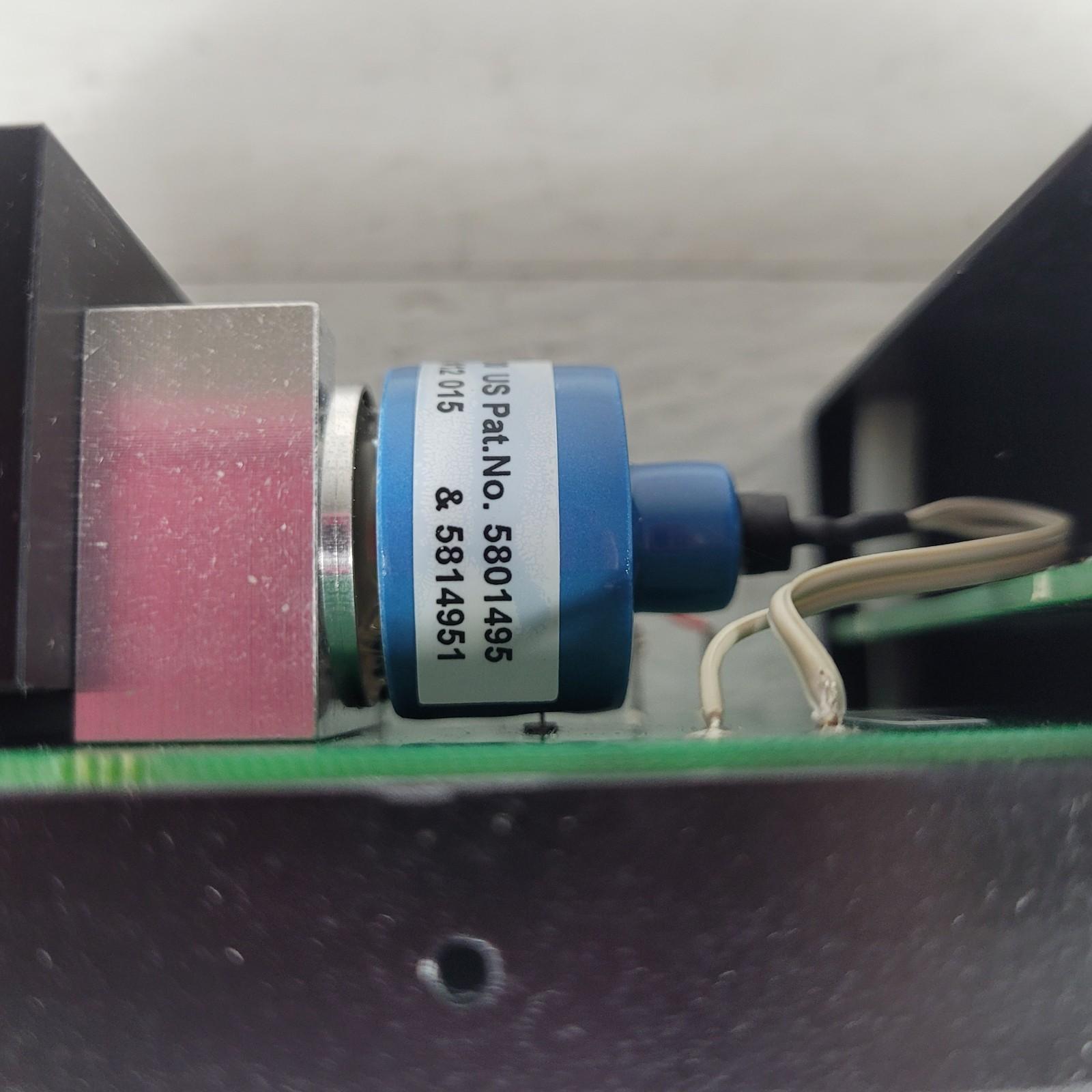

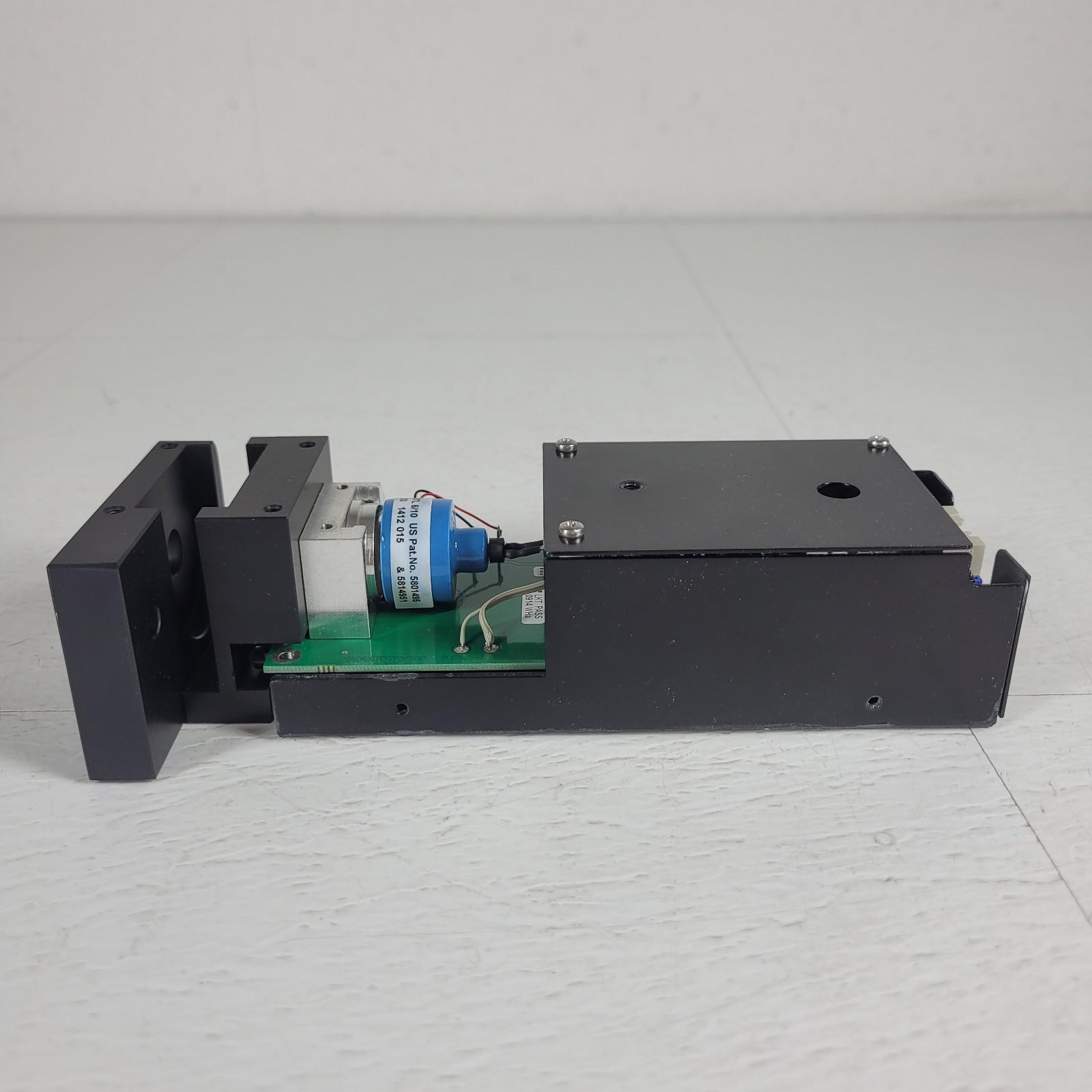

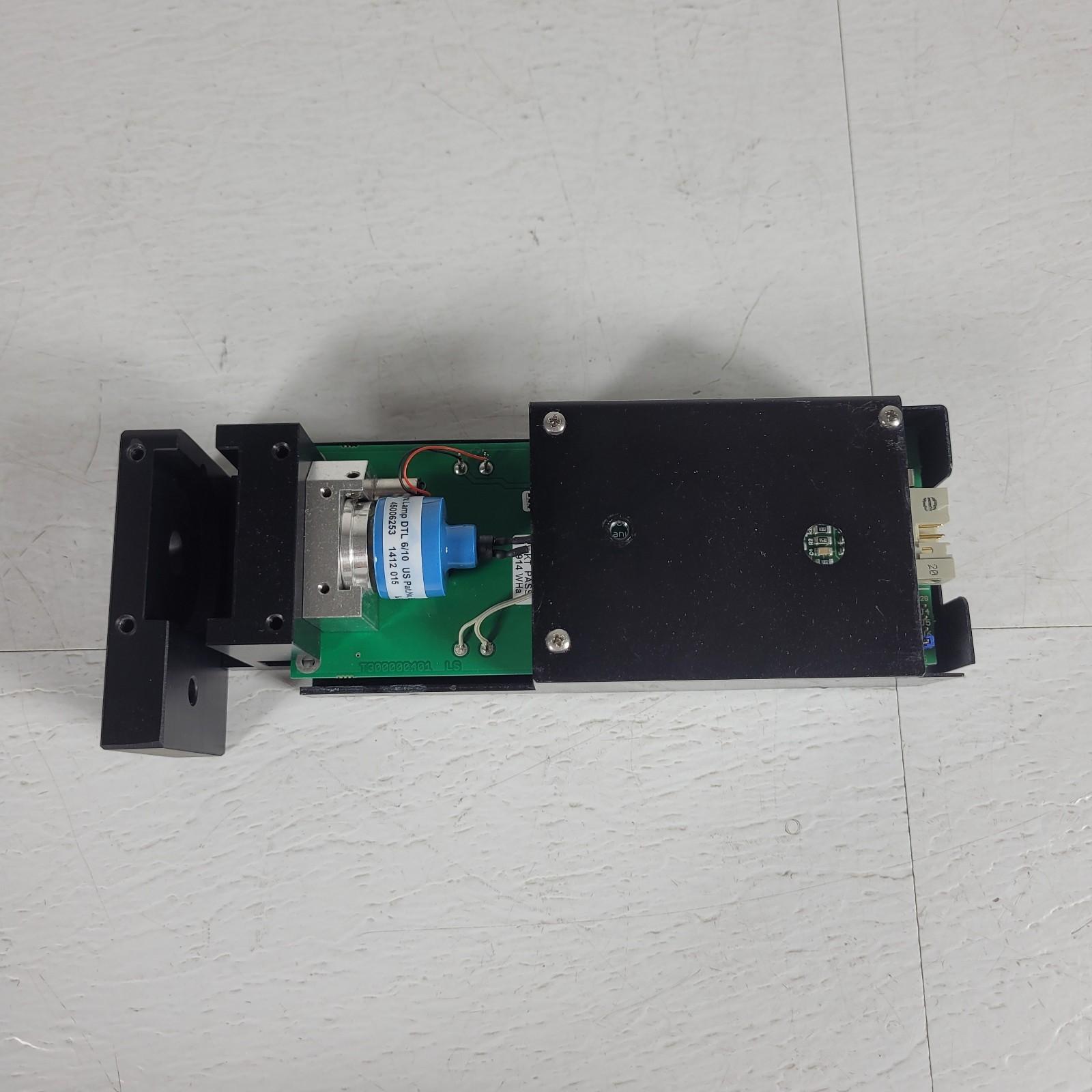

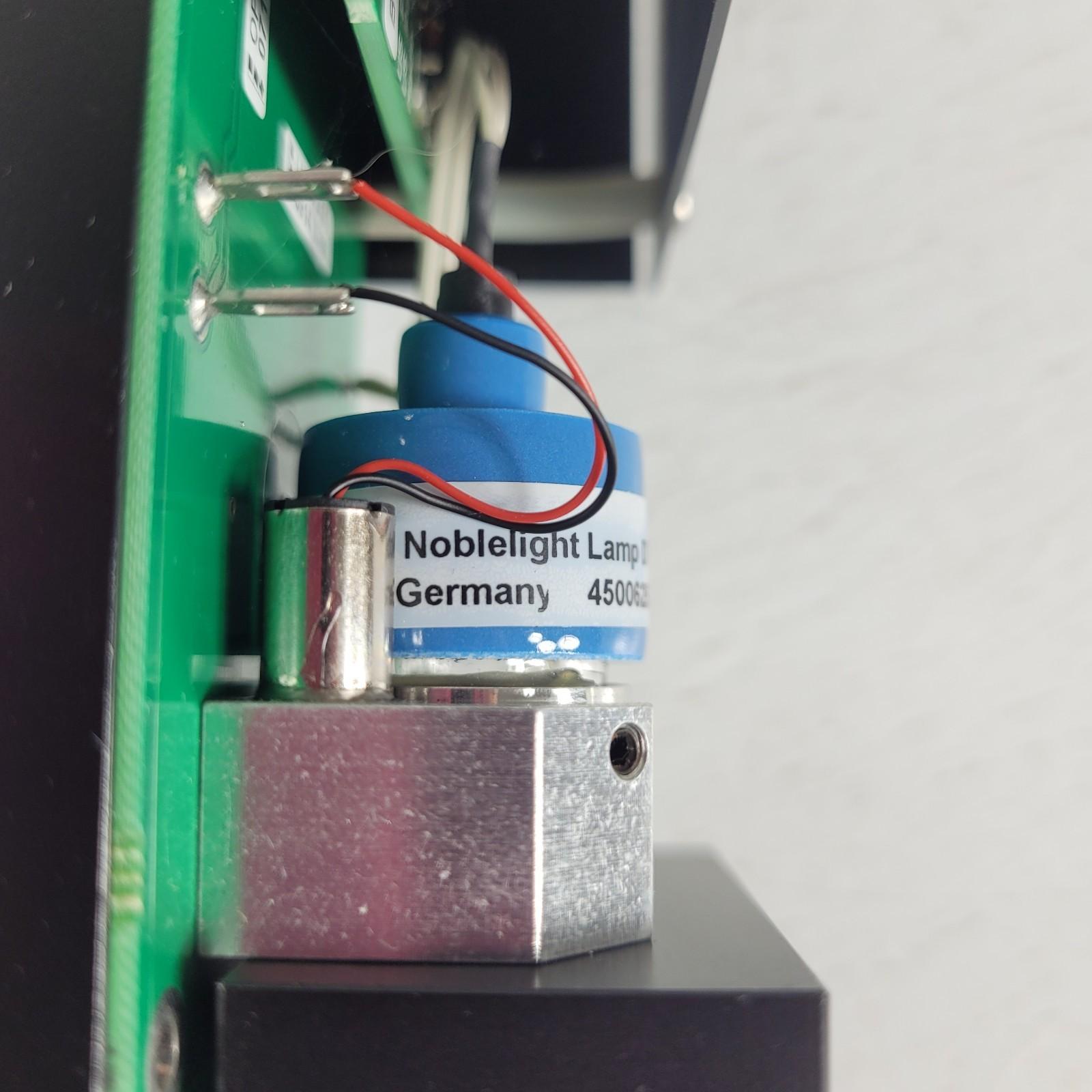

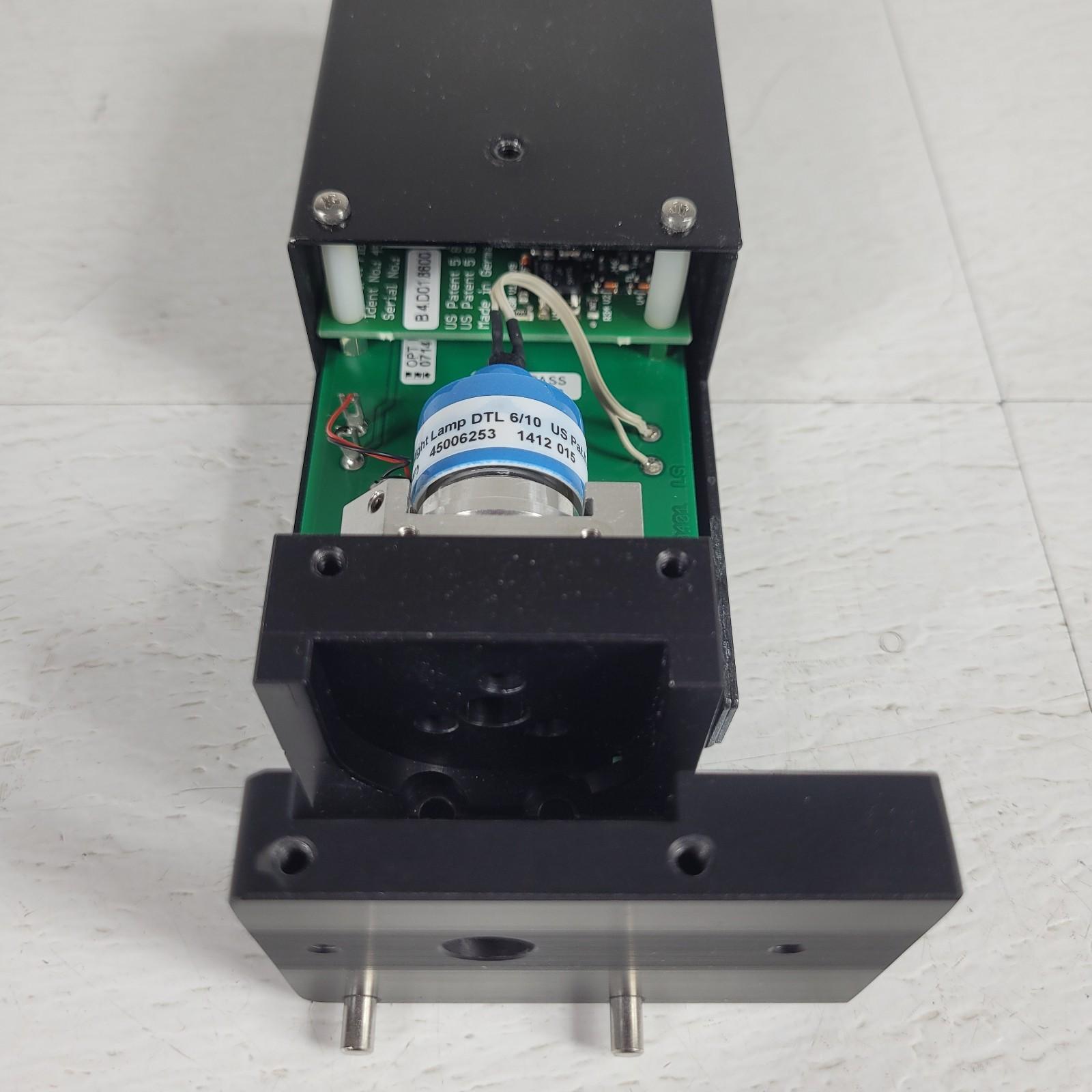

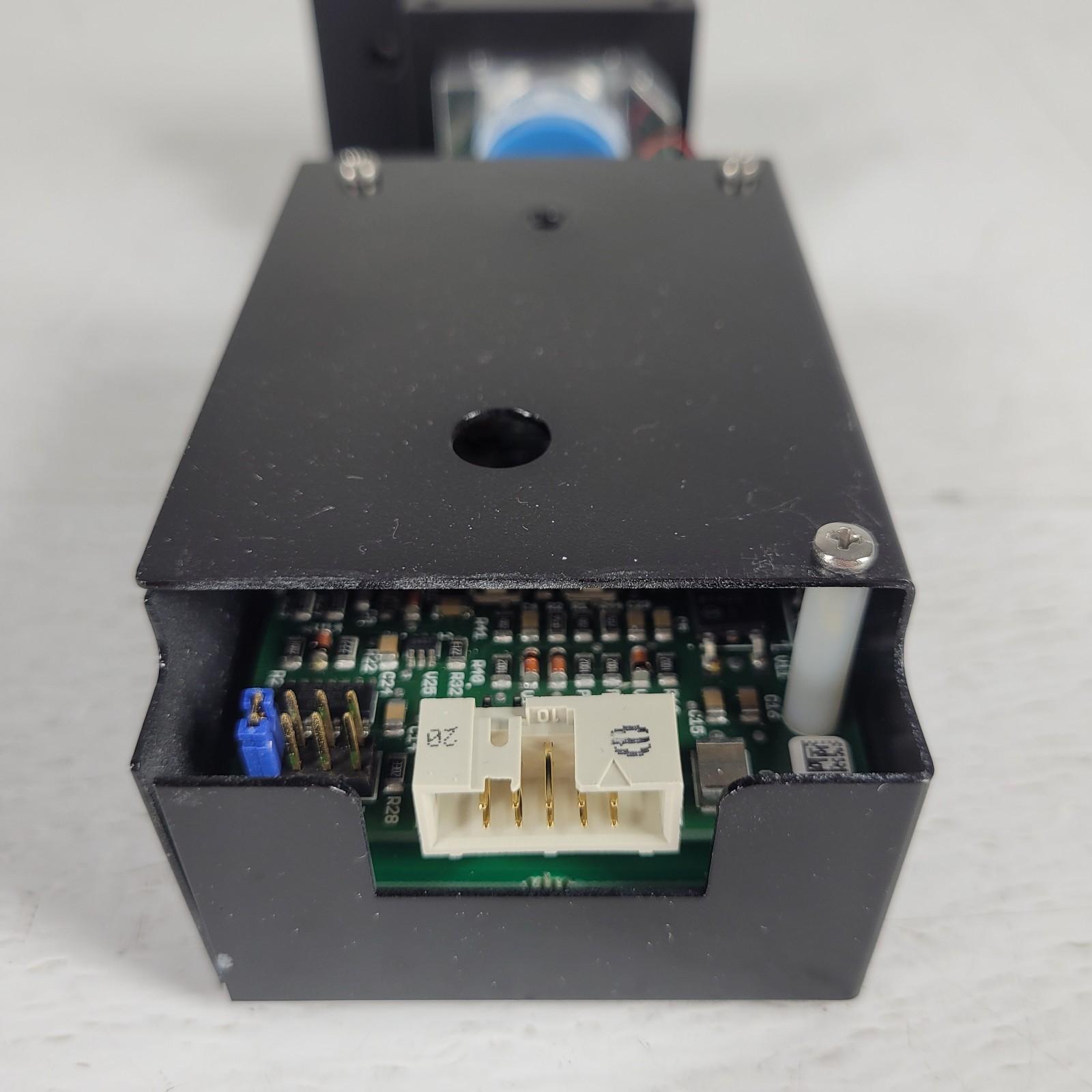

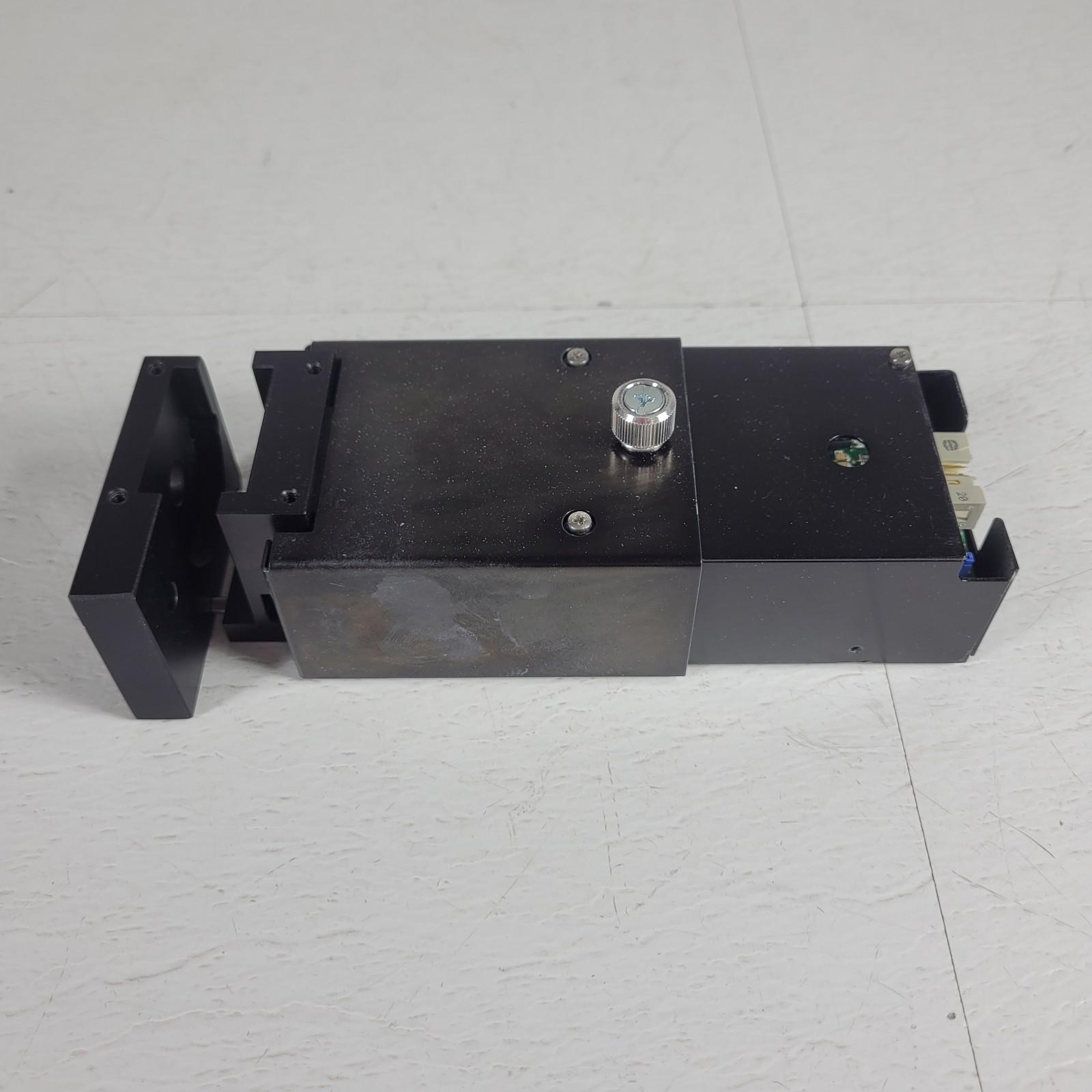

Used see photos.
Removed from a Grace Revelaris flash chromatography system.
Technical Specifications from supplier:
Parameter FiberLight® D2
Spectral distribution 200–1100 nm, optional 185–1100 nm
Power consumption 6 Watt
Power requirements 12 Vdc / 0.6 Adc
Operating ambient temperature 5–35°C
Relative humidity max. 90%, non condensing
Dimensions (L × W × H) 157 × 55 × 37mm
Weight 130 g
Shutter Yes
Tungsten Lamp Yes
External control Lamp (D2, W-Lamp) ON/OFF independently,
shutter open/close, green LED is lit when
the 12 Vdc supply voltage is applied
Light exit Focused or collimated beam
Optical fiber diameter 100 µm, 200 µm, 600 µm, 1000 µm
Optical fiber connector SMA 905
Numerical aperture NA D2 lamp 0.245, W-lamp 0.057
Cooling Not required
