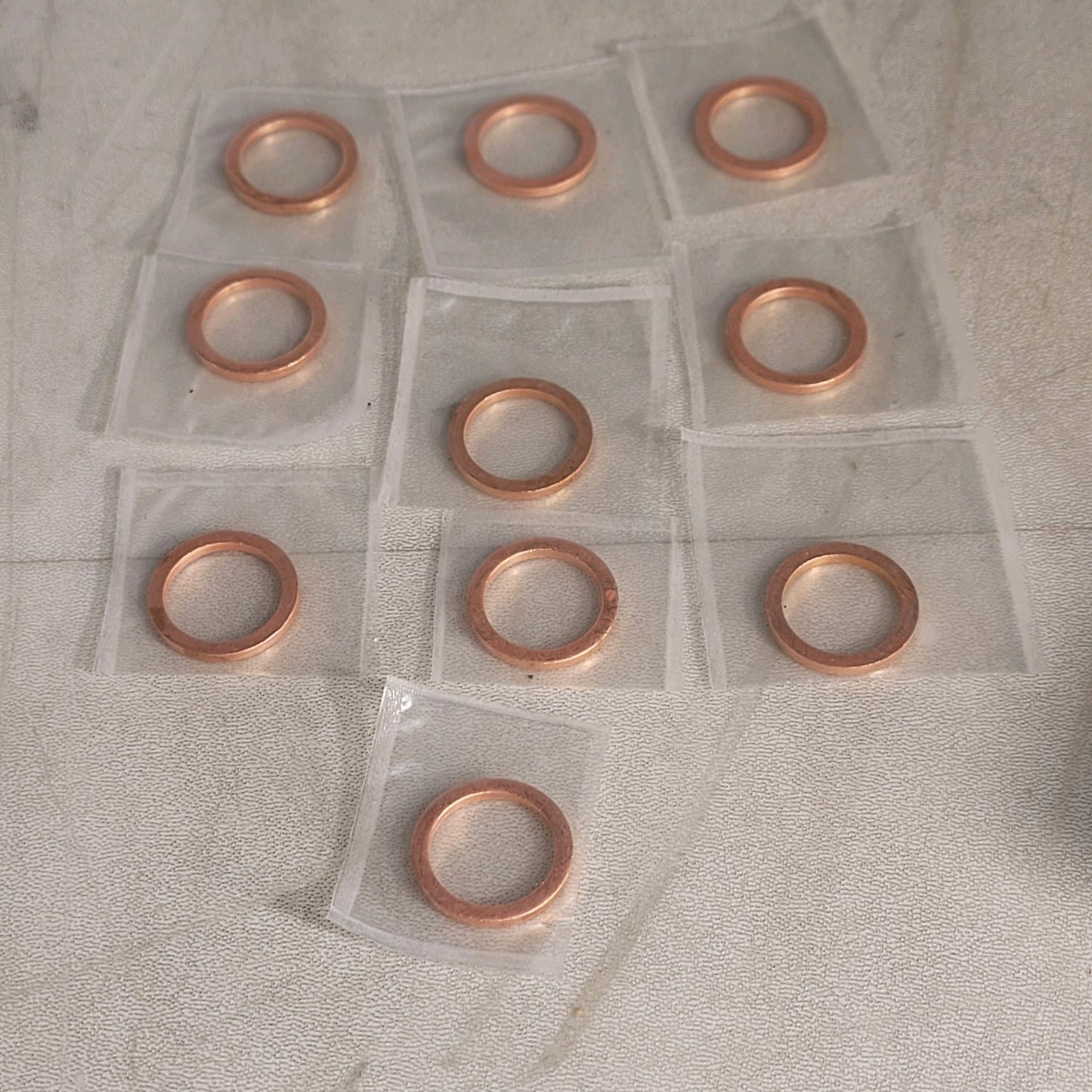

OFHC Copper Gasket CF 1.33" DN16CF Conflat Flange CF16 UHV Vacuum Seals - Pack of 10
Brand new, unopened gasket. Includes 10 gaskets per item quantity.

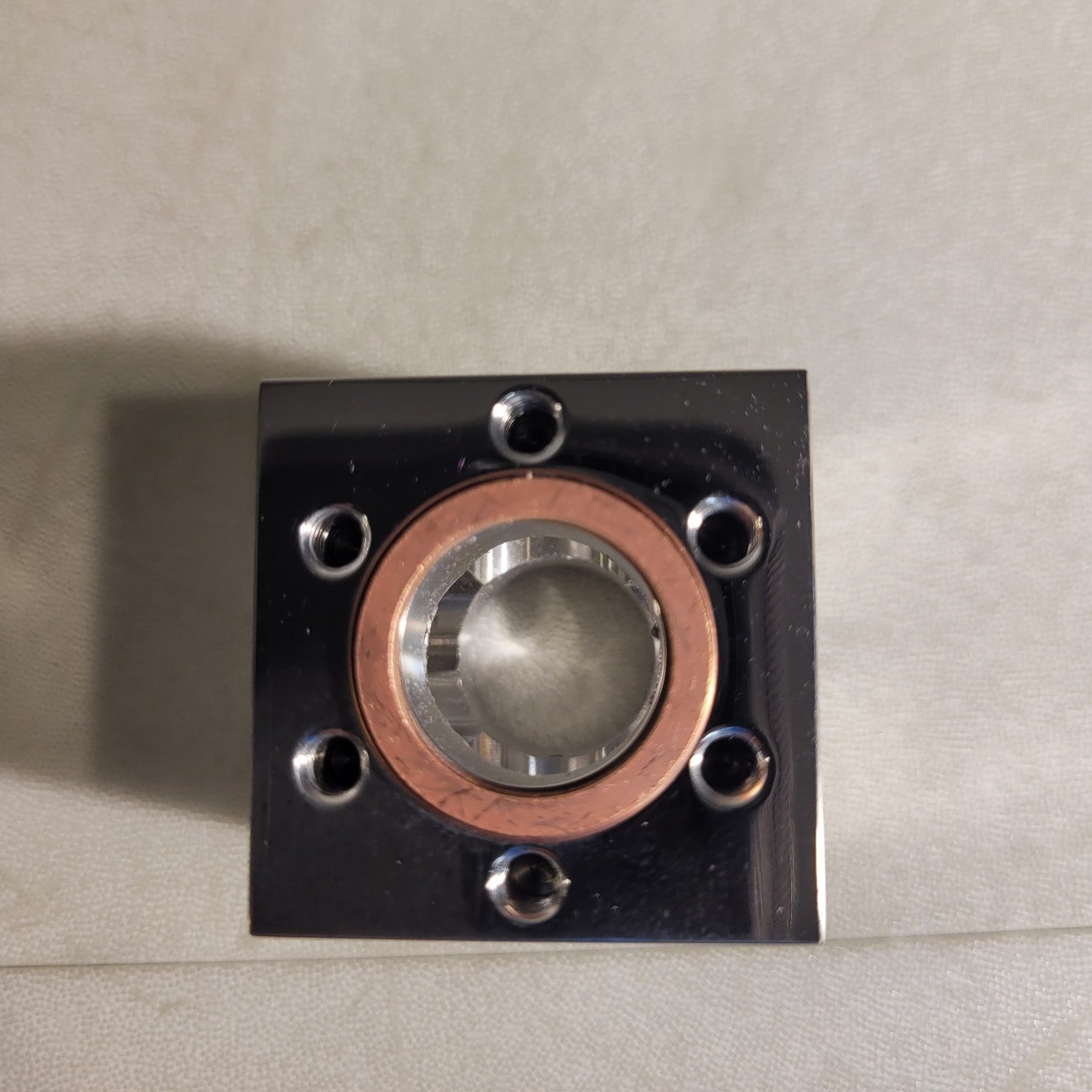

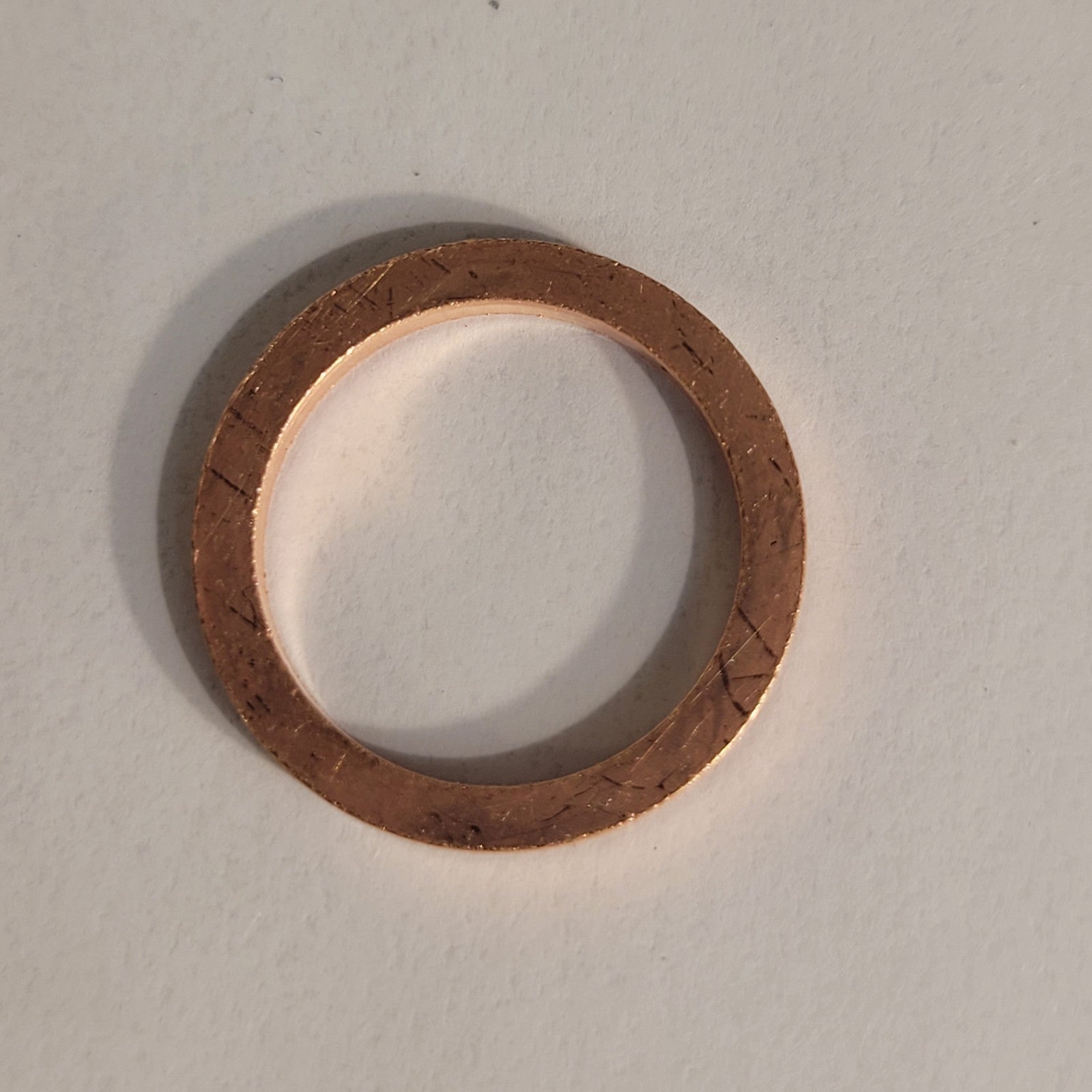

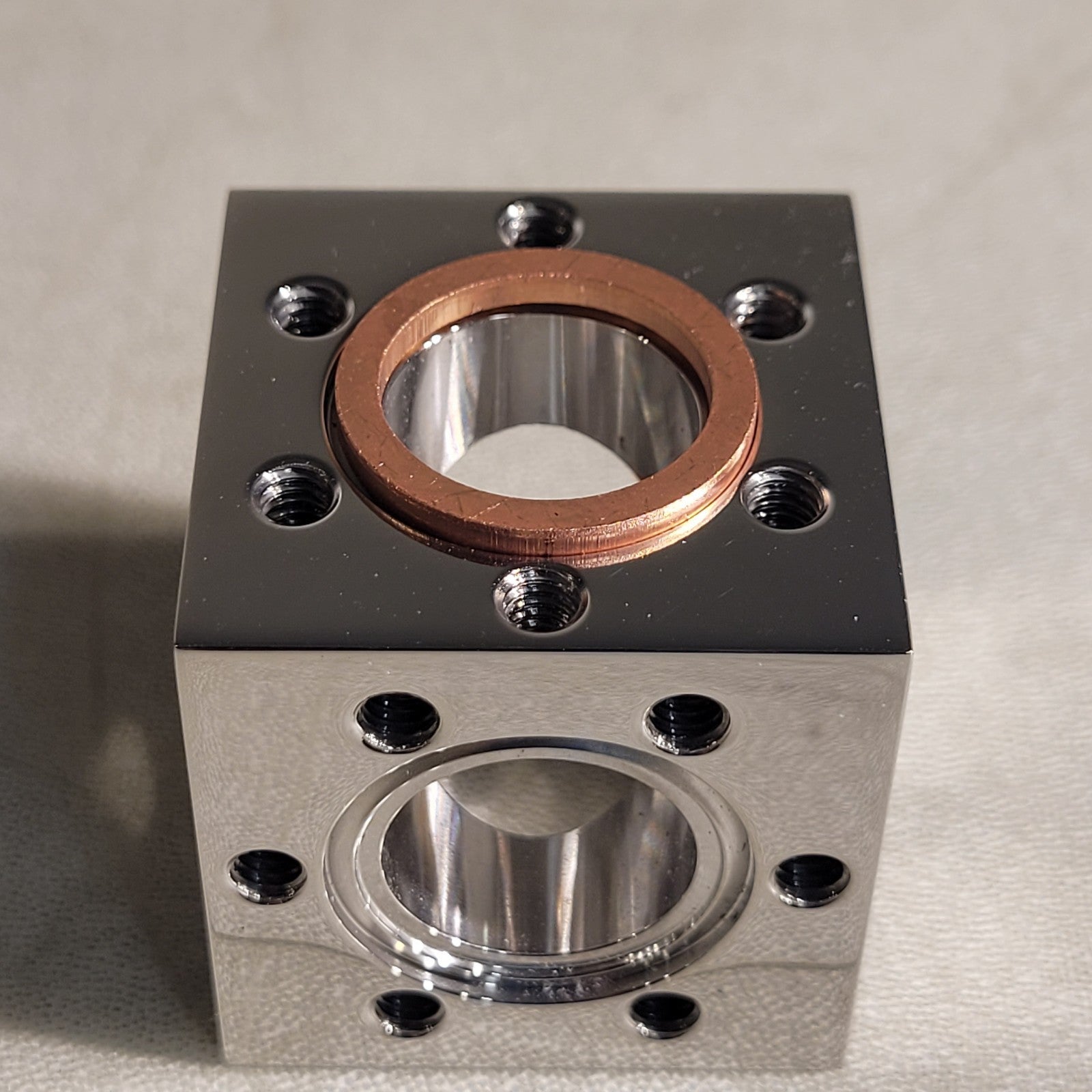

The most commonly used gasket for stainless steel CF flanges. Punched from hard, high purity, oxygen-free (OFHC) copper stock. The gaskets are then cleaned and processed to minimize scratches and burrs. Maximum Bake-out Temperature is 450° C.

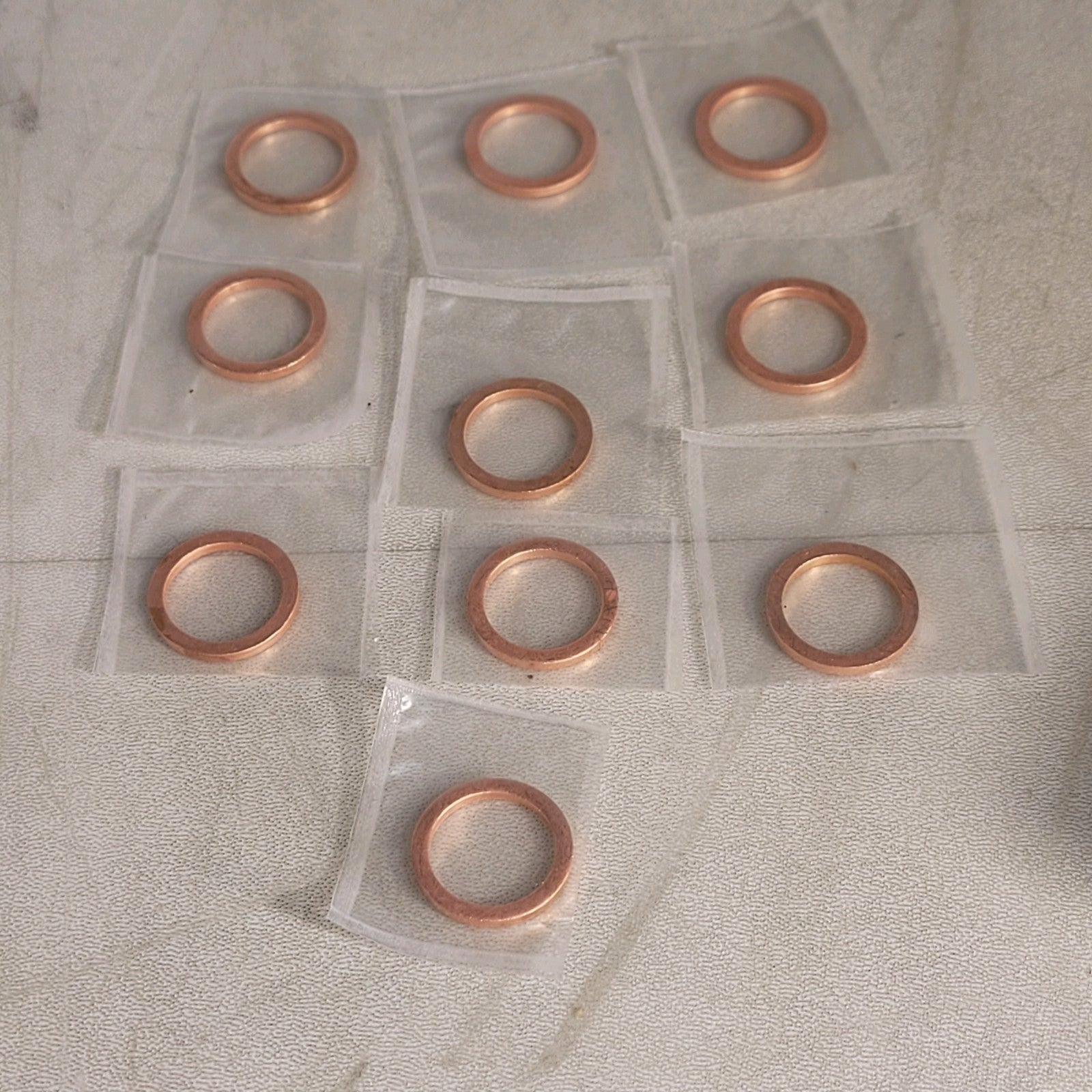

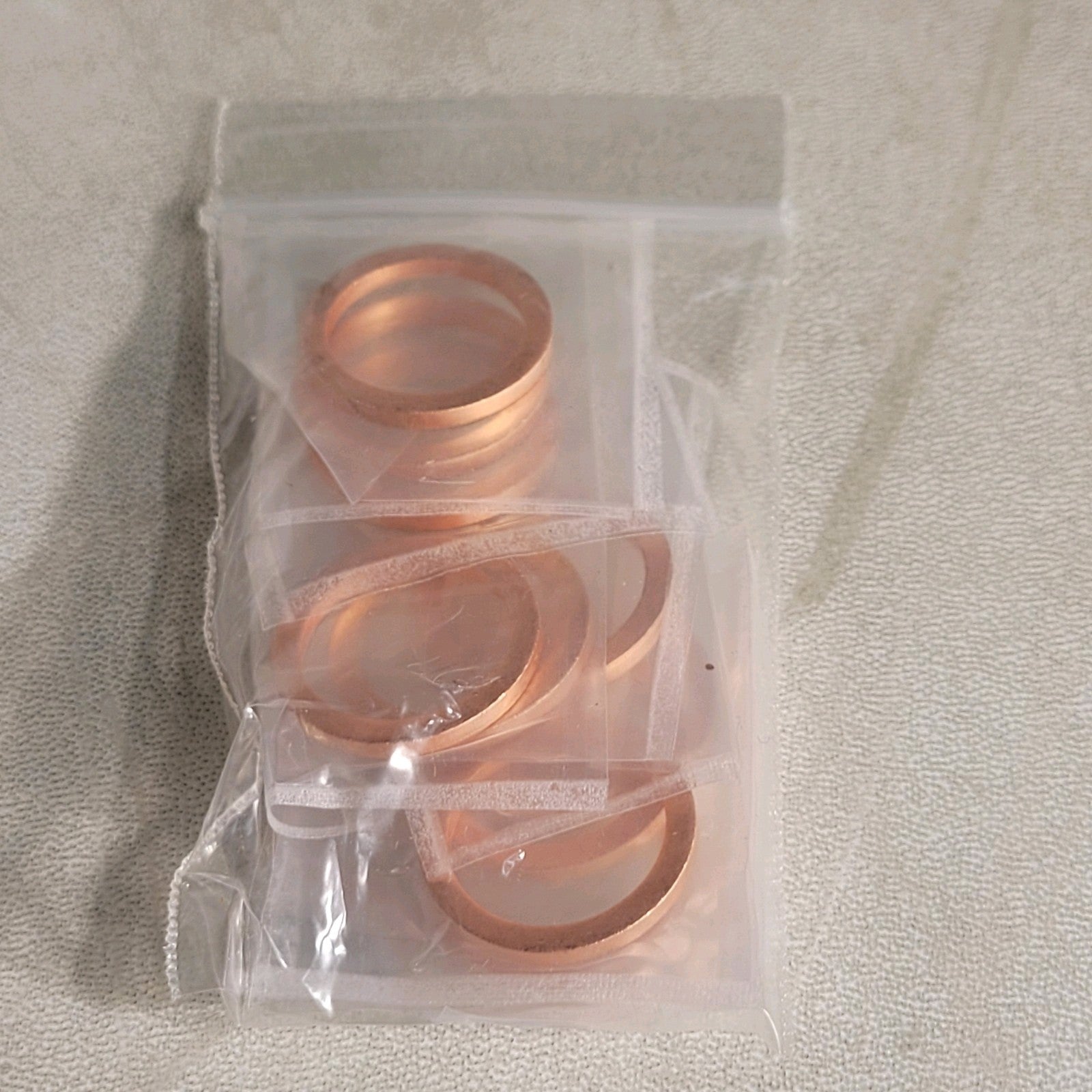

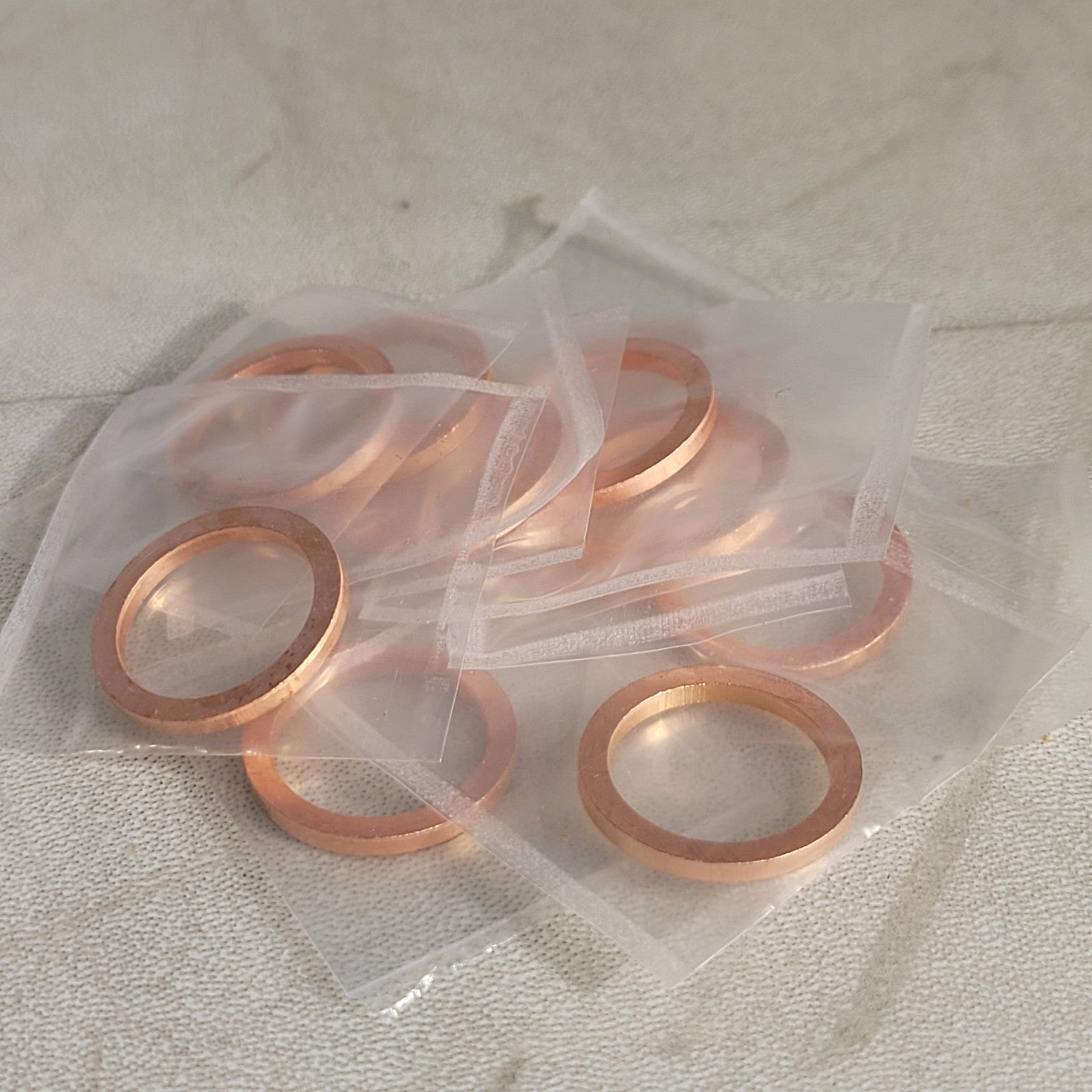

All-metal gaskets are individually packaged.
Material: OFHC Copper

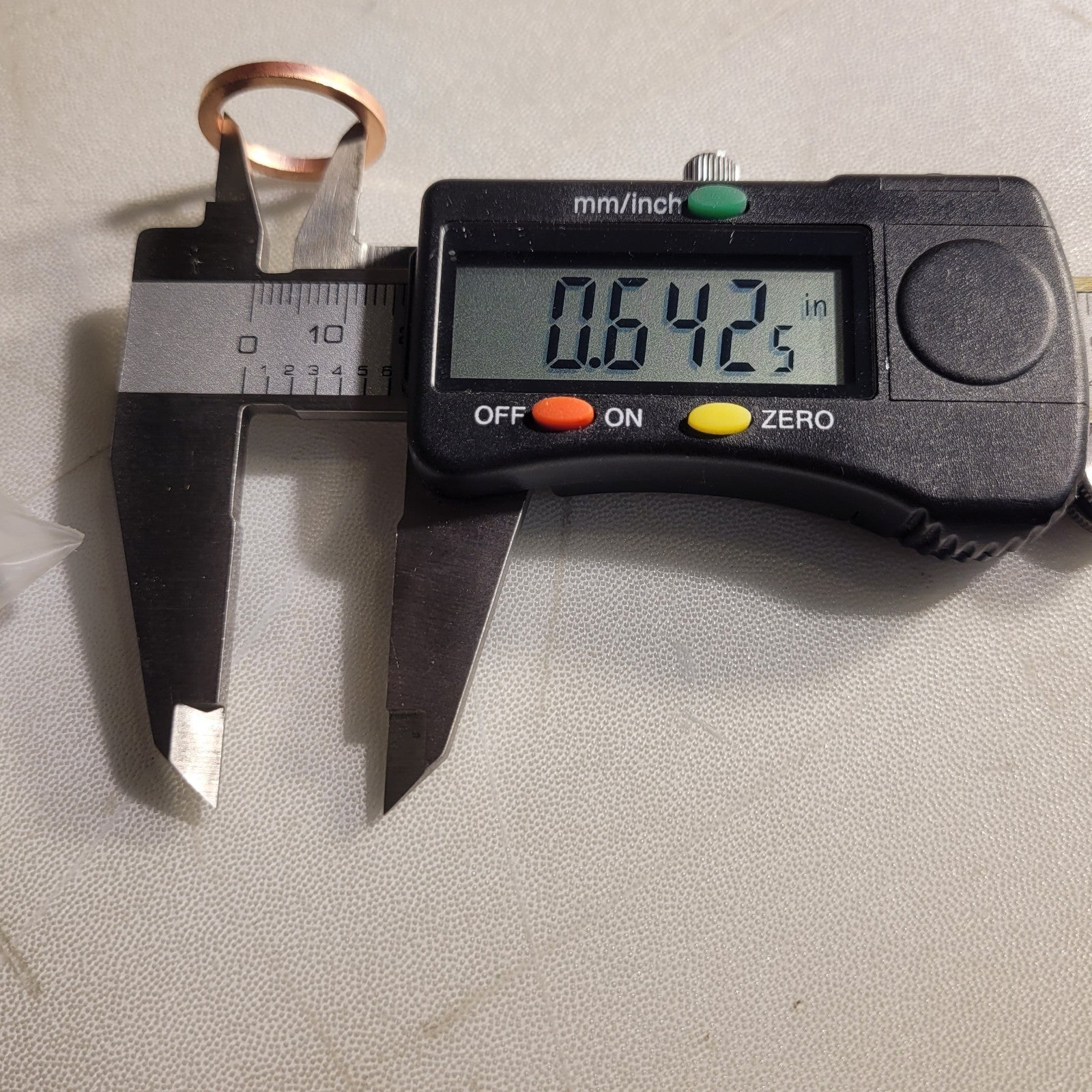

Gasket ID: 0.642 in.

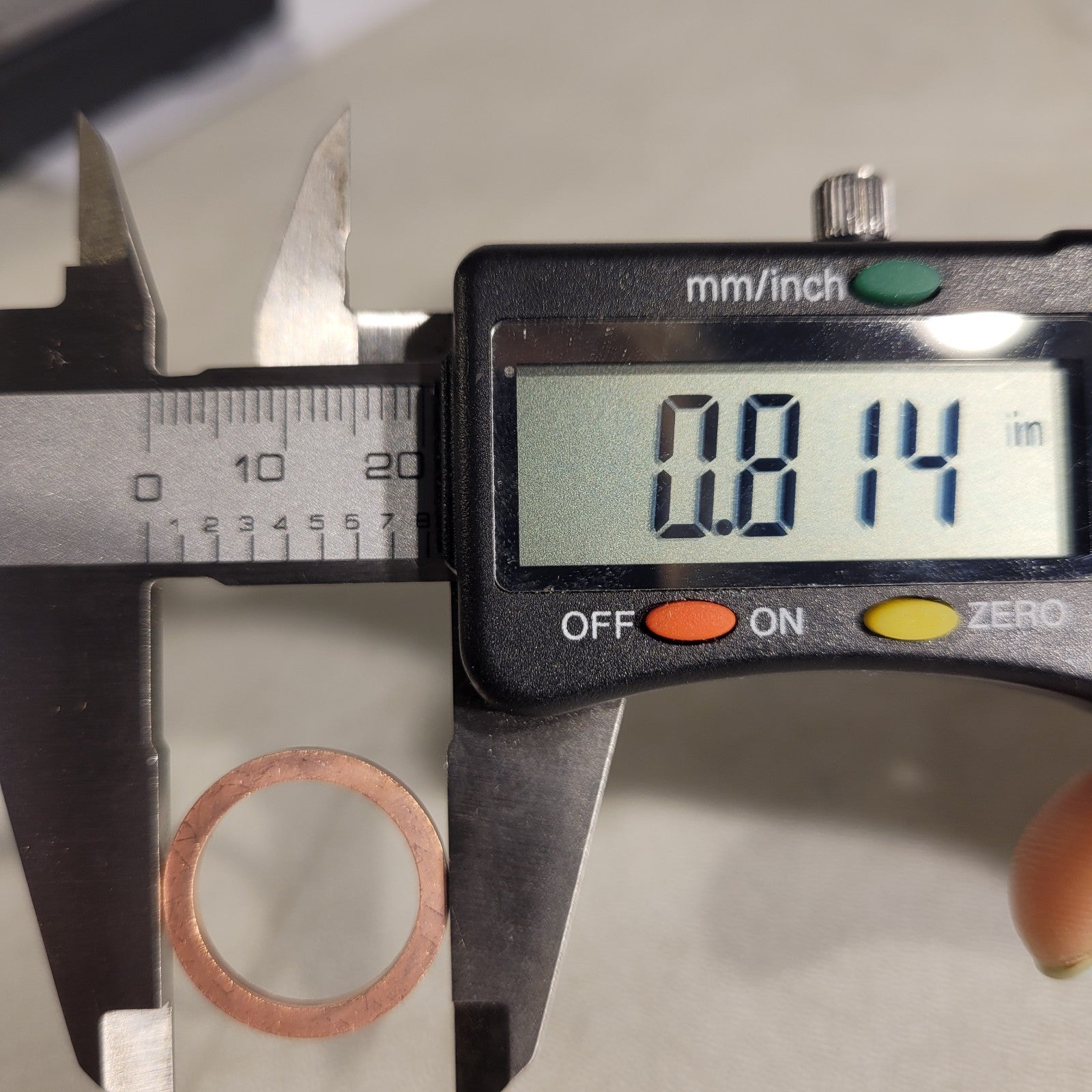

Gasket OD: 0.815 in.

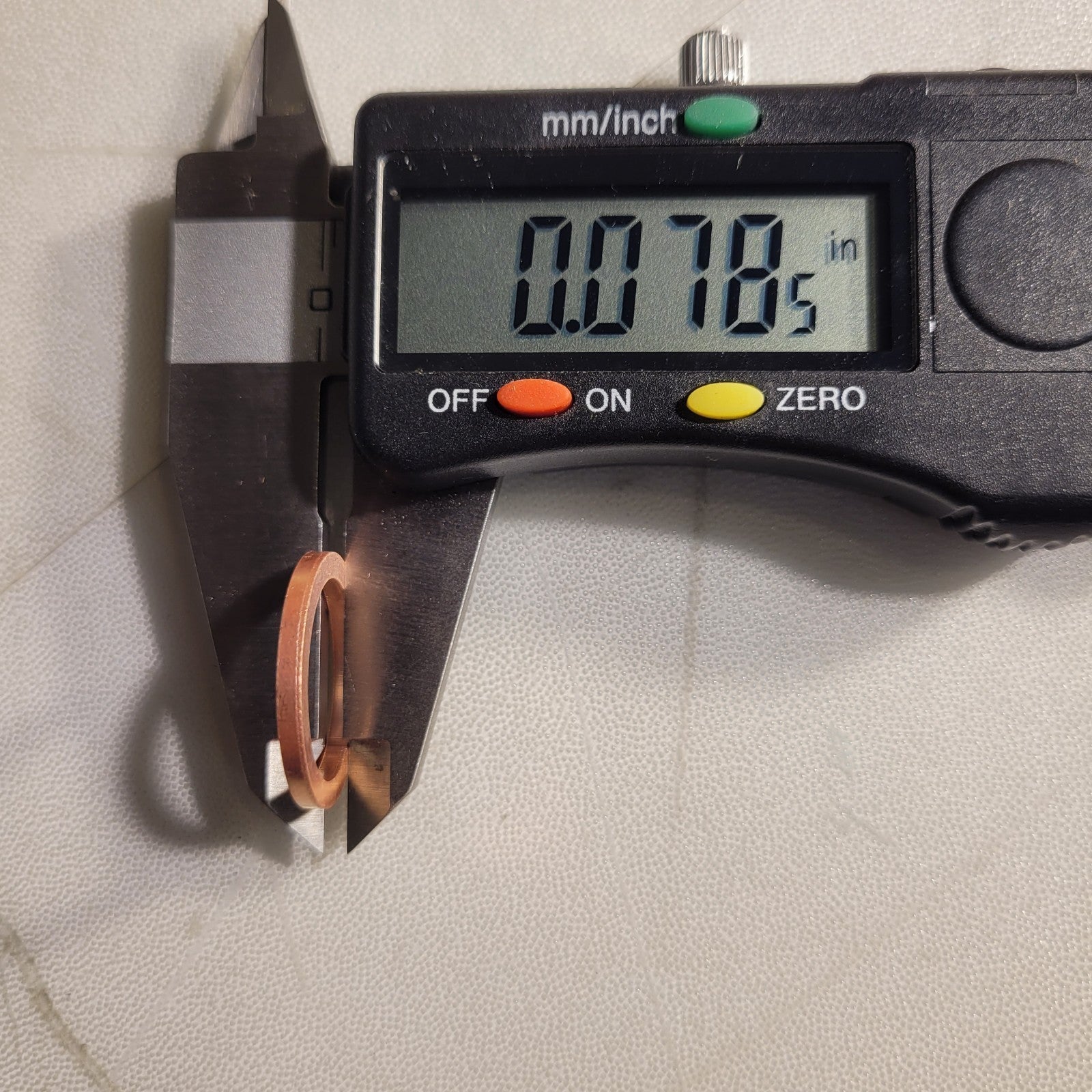

Gasket Thickness: 0.08 in.
Max vacuum pressure: approximately 1.0E-13 Torr
Cross-reference part numbers: GA-0133 200730 G-133 50-100019 100889103 P102277 191000 VZCUA16 CF133-GA-CO-SD 0604020 CF1.33-CU CF133-GA-CO 133-CG G-0133
1.33" OD CF Conflat Flange Equivalents: 133CF, CF16,CF133, DN16CF, NW16CF
