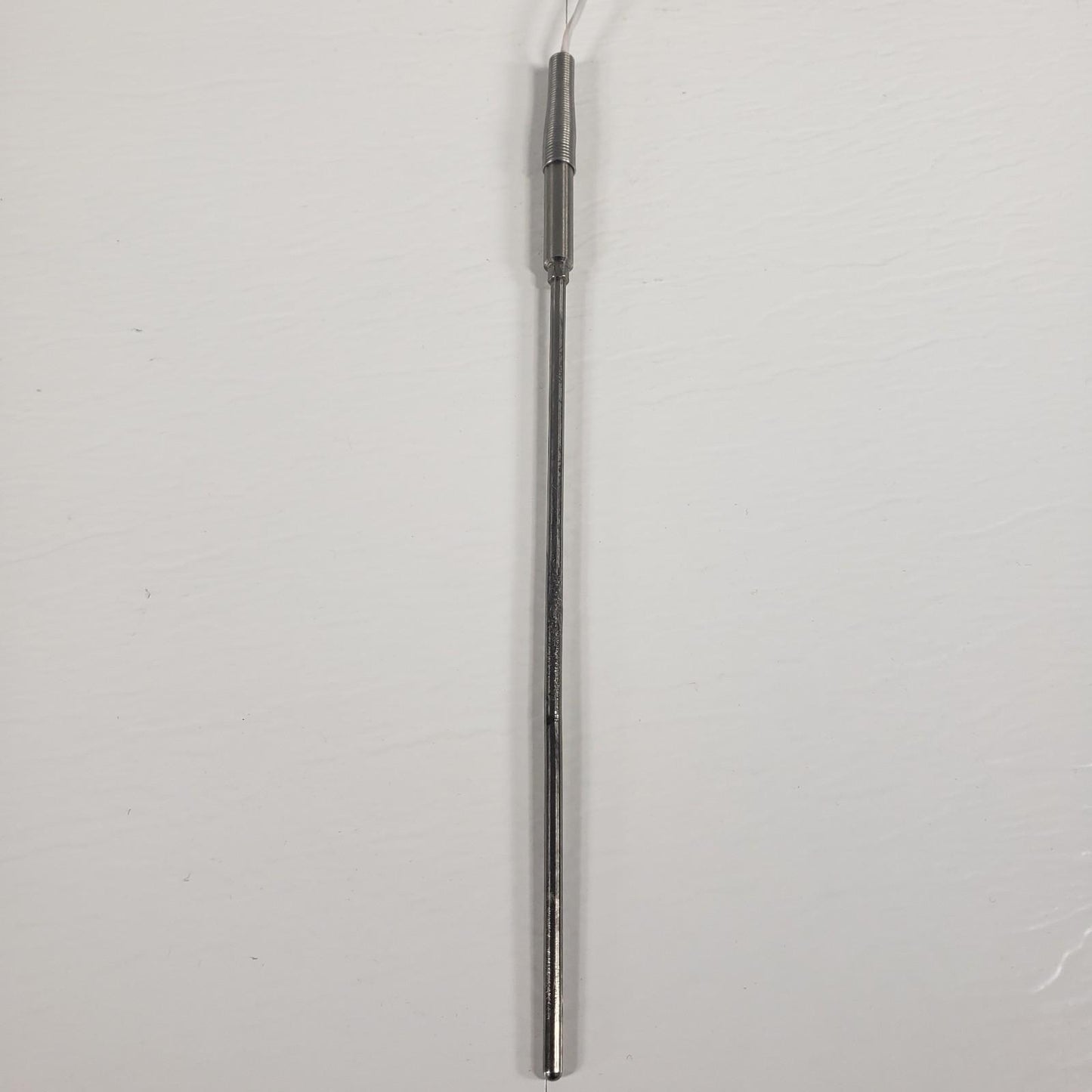

Omega Engineering PR-11-2-100-1/8-6-E Resistance Temperature Detector 6" Probe 6-inch-long, 1/8-inch-diameter stainless immersion Pt100 RTD probe, 3-wire, Class A, DIN/IEC 60751, with PFA lead cable and spring strain relief. Dwyer Omega.

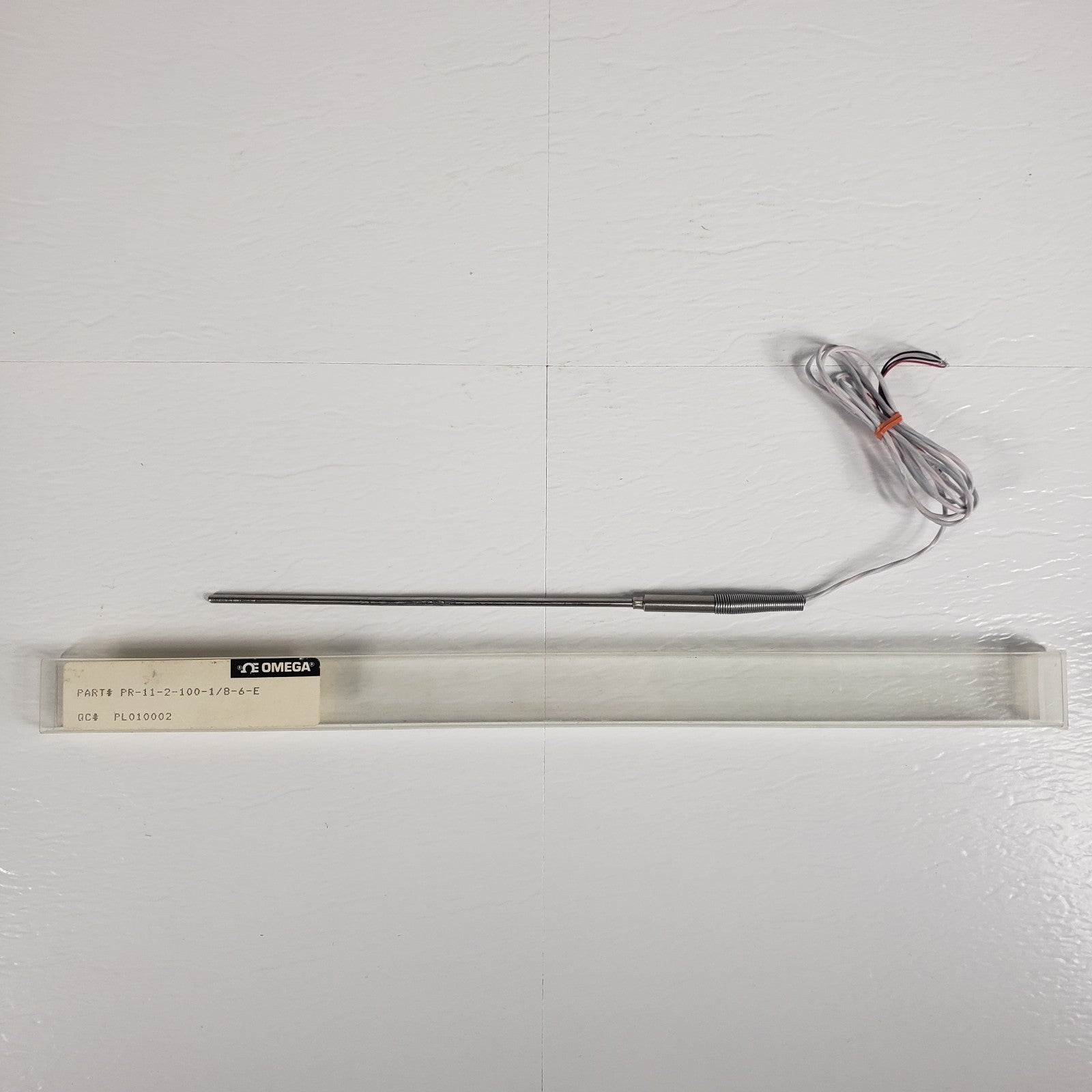

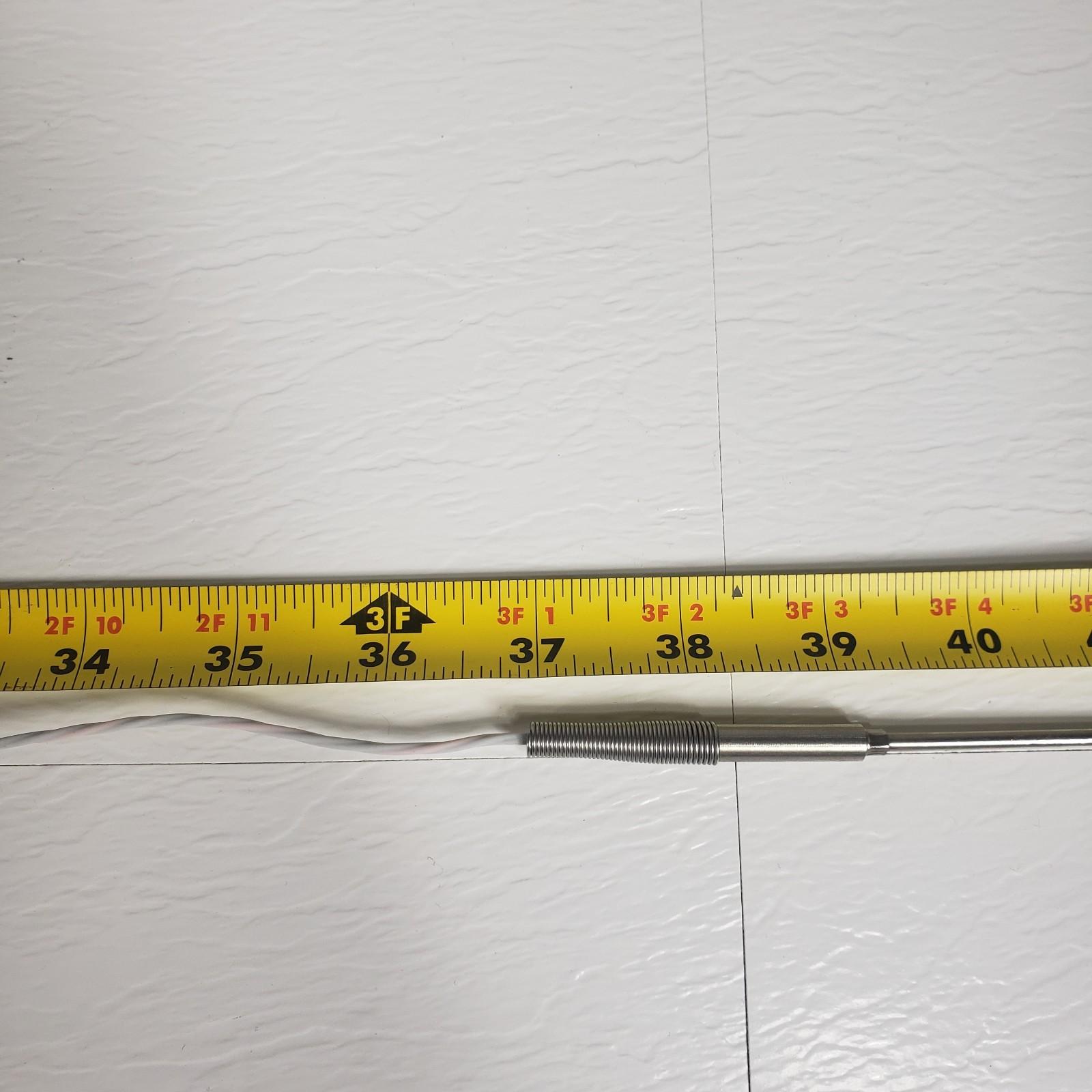

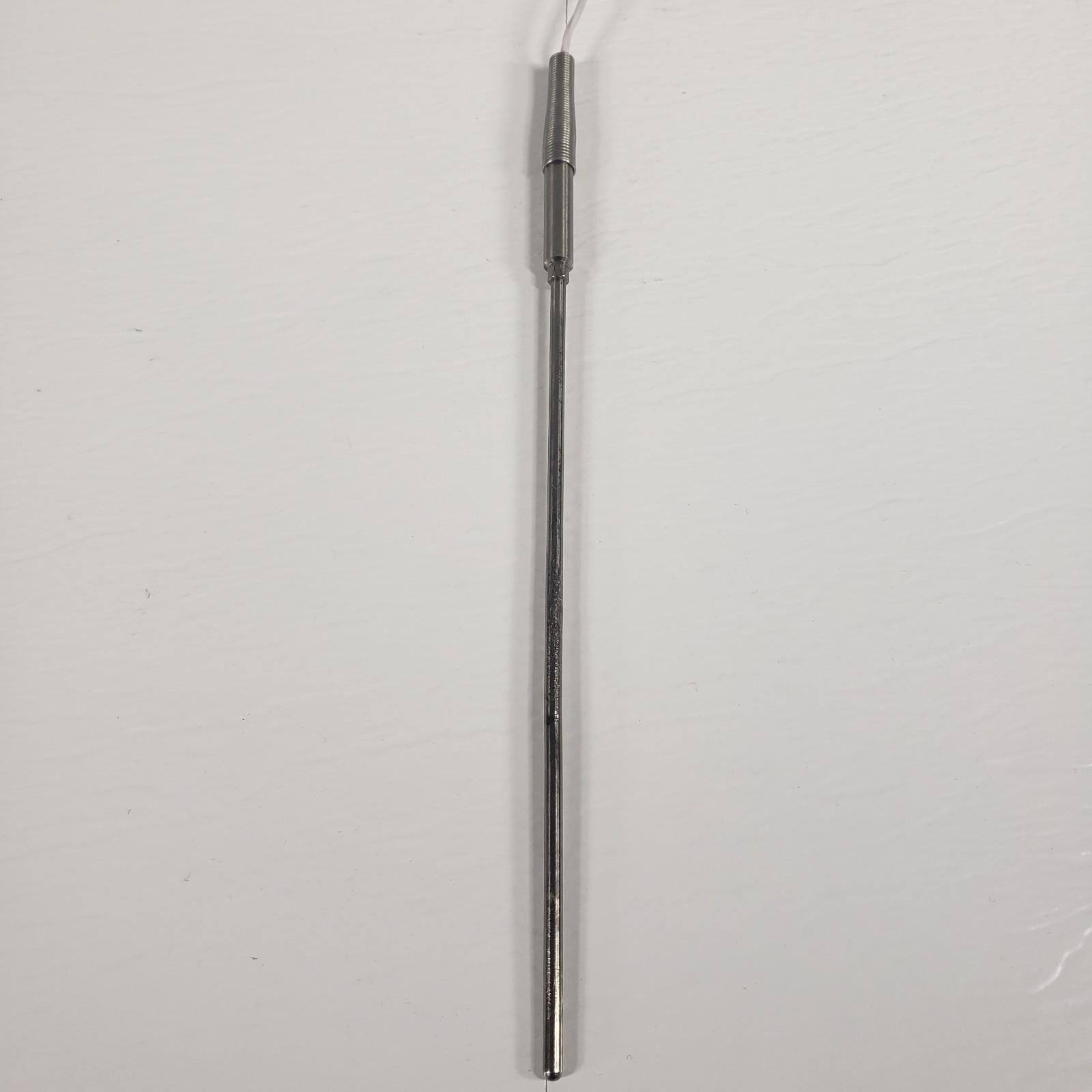

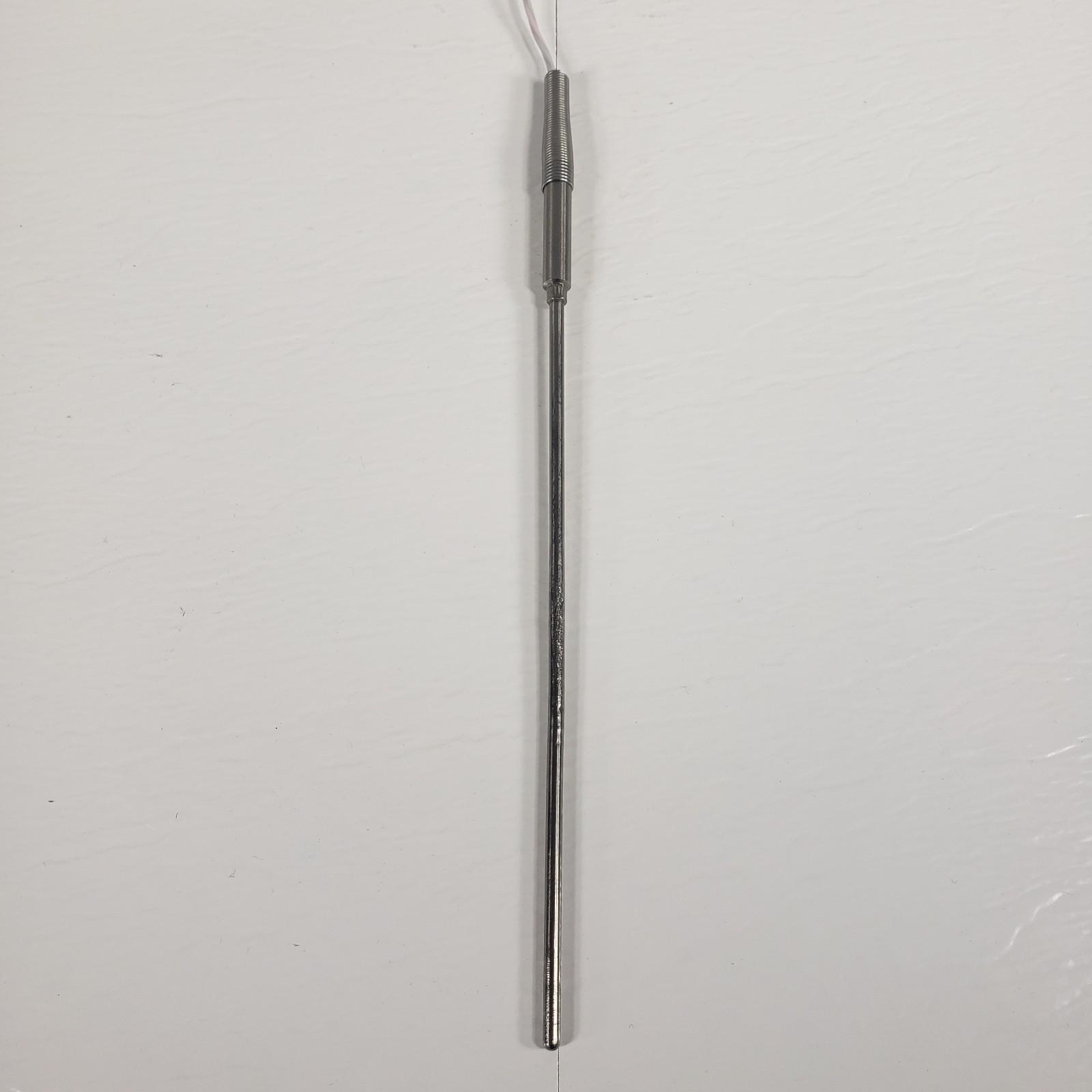

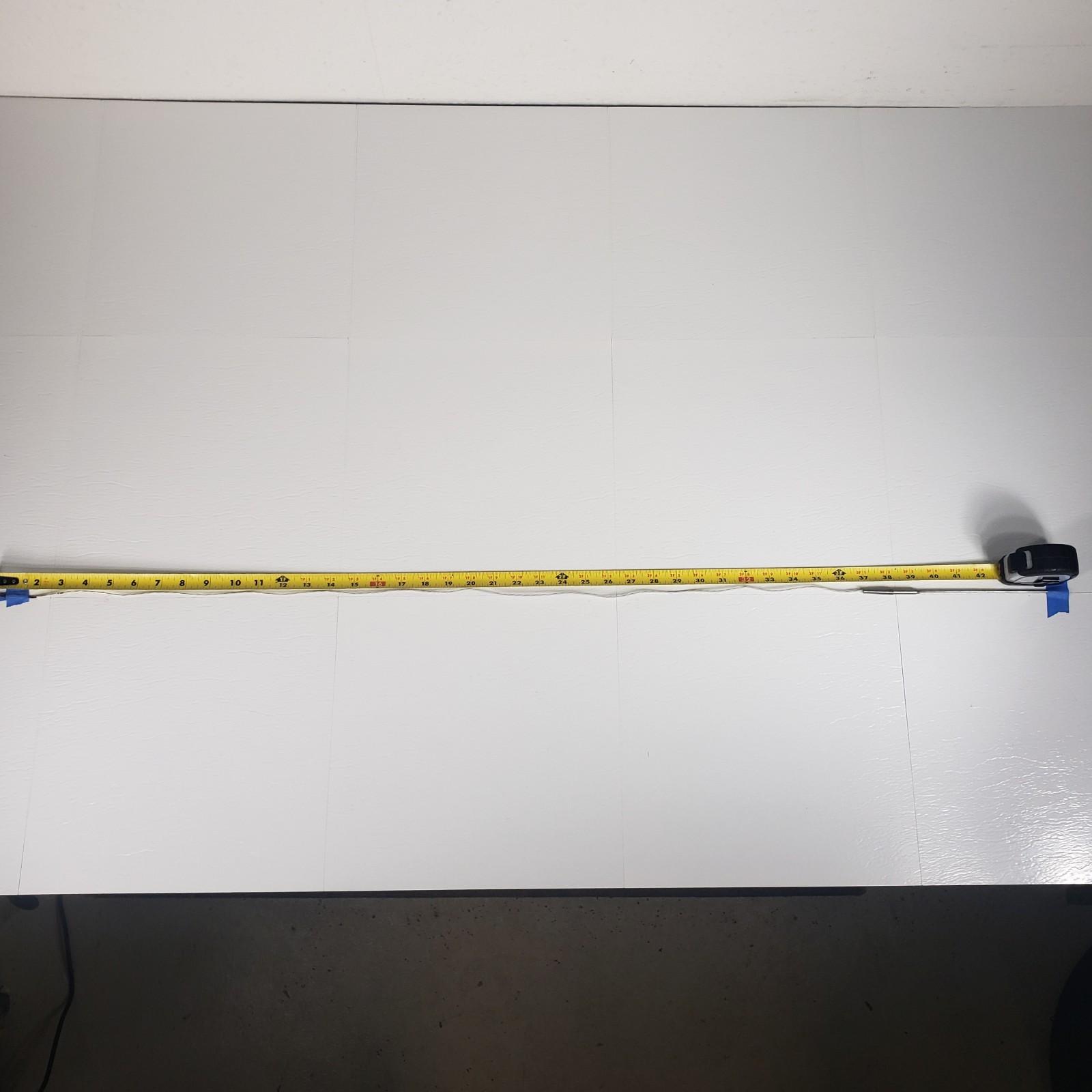

Used, see photos
Omega PR-11-2-100-1/8-6-E is a PR-11 immersion-style RTD probe with transition/strain relief, built around a 100 Ω platinum RTD, Class A, IEC 60751 / DIN curve, α 0.00385 Ω/Ω/°C. The official PR-11 sheet lists the series as high-accuracy wire-wound 100 Ω Class A DIN platinum, with temperature range -200 to 600 °C, though the transition and cable are limited to 260 °C max.

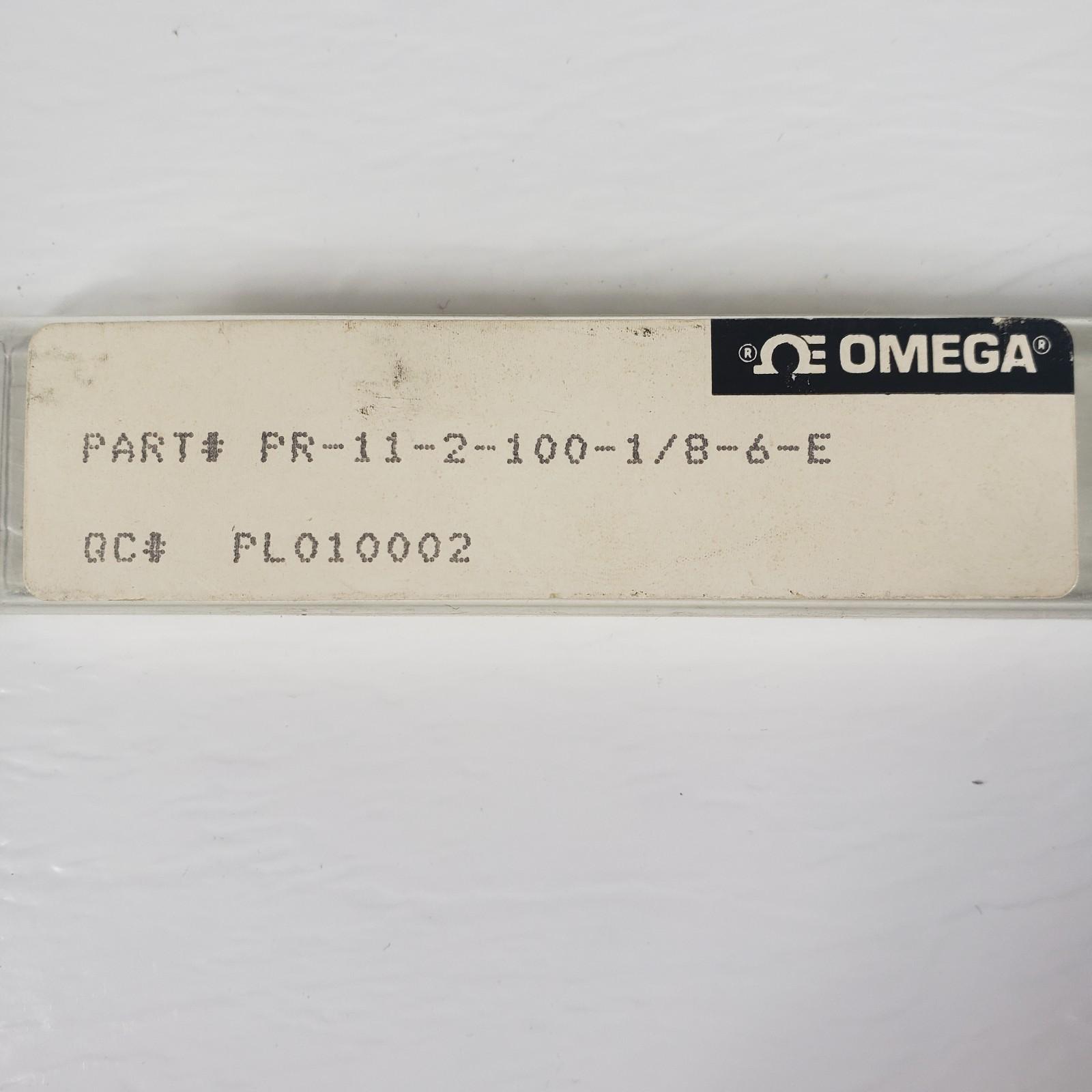

Part-number decode, per Omega’s own model builder:
PR-11 RTD probe with transition;

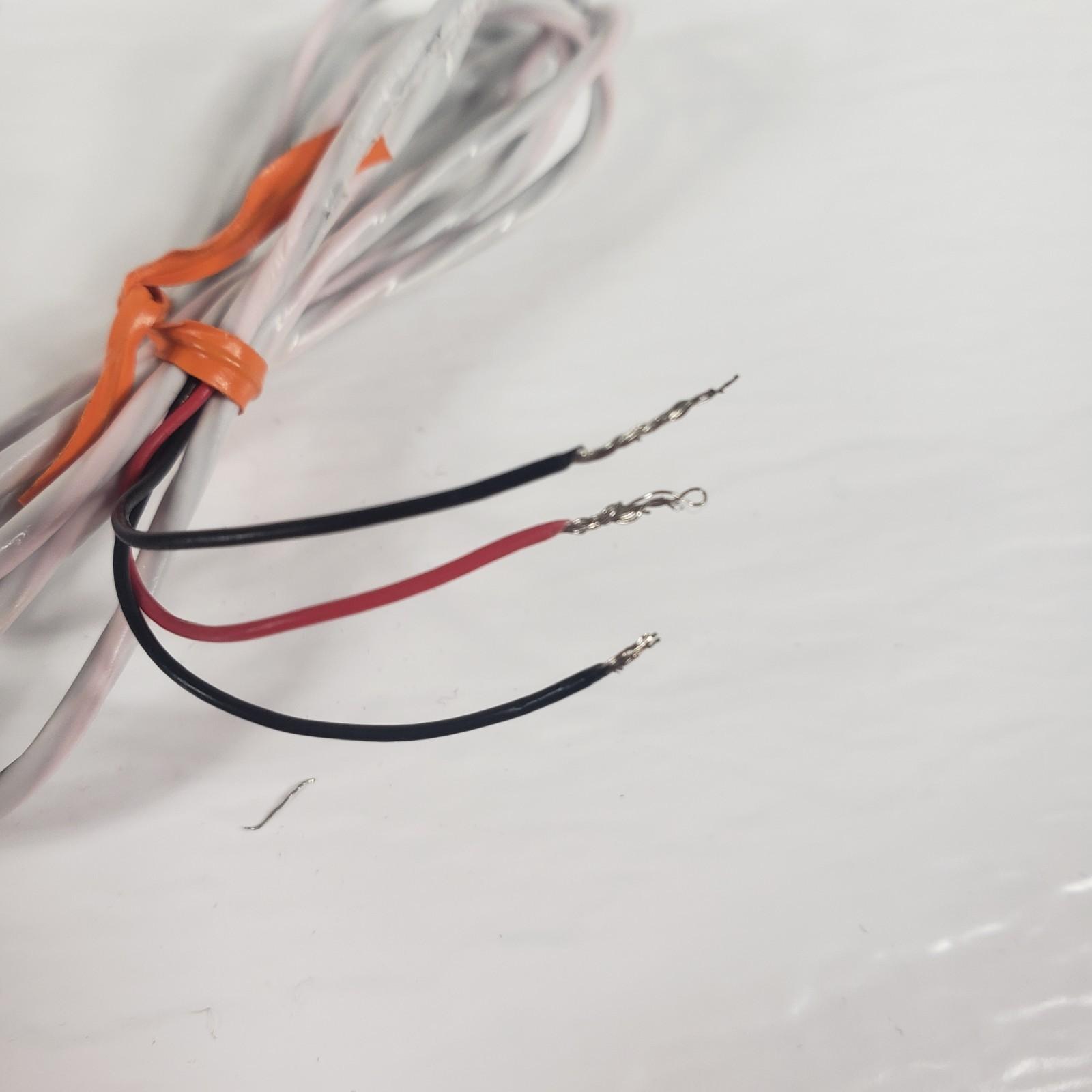

2 3-wire construction in Omega’s nomenclature;
100 100 Ω at 0 °C;

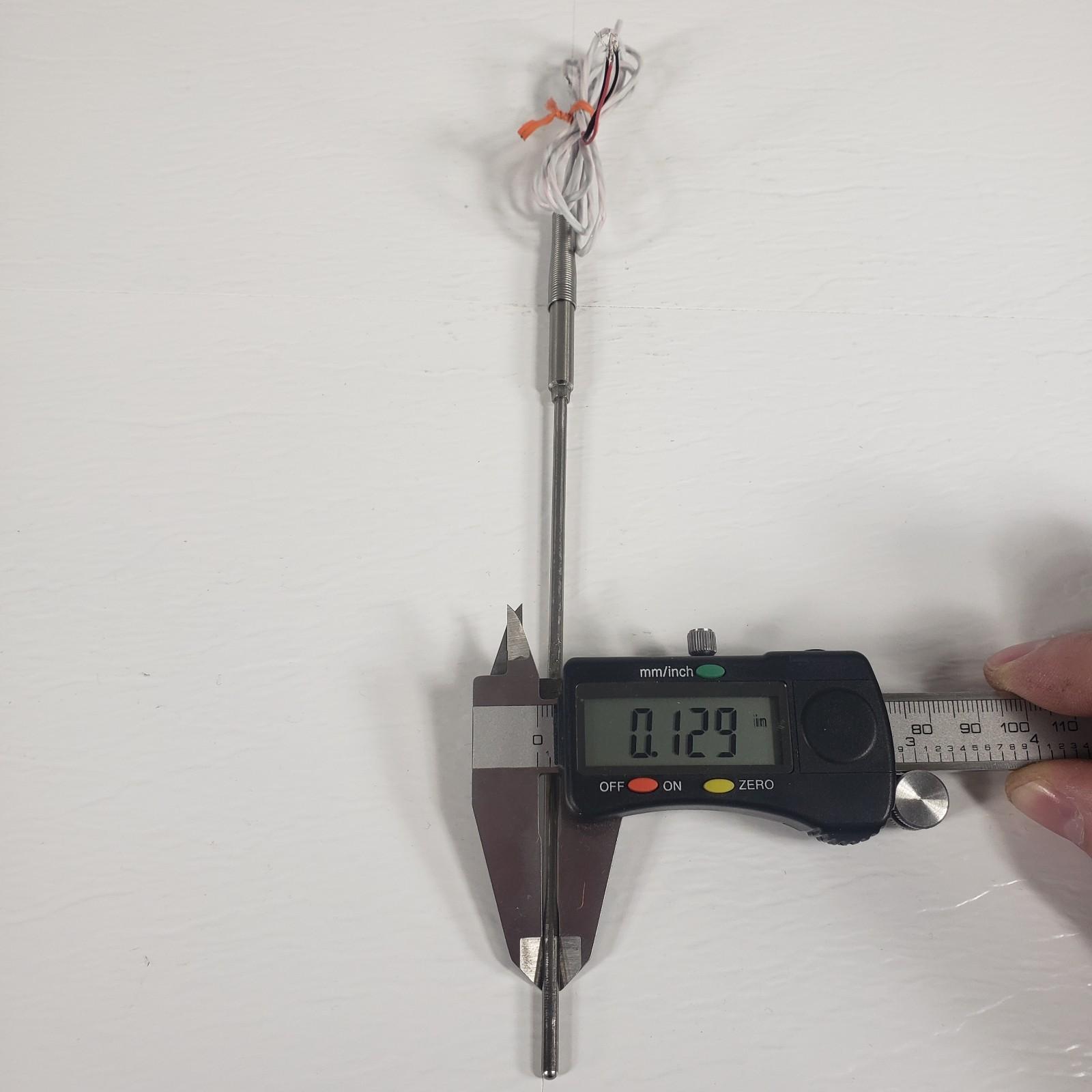

1/8 1/8 in sheath diameter;

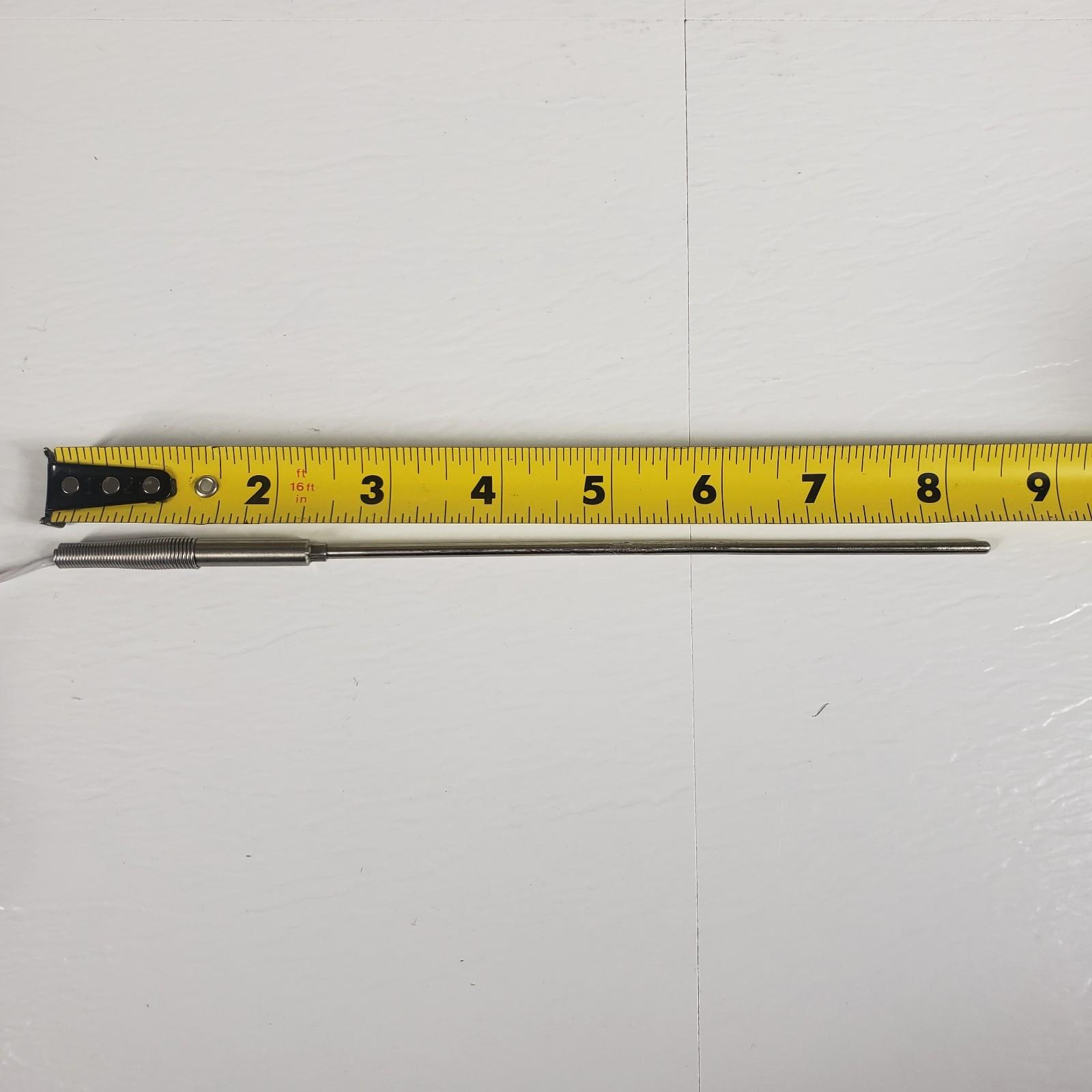

6 6 in sheath length;
E European curve, α 0.00385.
- BJ
