*Pack Of 20* di Digital Instruments Bruker Veeco NP-20 SPM Sensor SiN Multi Tip 4-Lever AFM Probe di Bruker
NP-20 is the classic soft, triangular si₃n₄ workhorse for contact/force in air or liquid.
Highlights of these chips:
-Material/geometry: silicon nitride, triangular lever(s) with oxide-sharpened pyramidal tip. four levers per chip with different dims (a–d), so you pick stiffness/f₀ per experiment.
-Tip: nominal ~20 nm radius (literature often reports ~20–60 nm depending on batch/wear).
-Mechanics (typical): k ≈ 0.06–0.32 n/m across the lever set; lengths ~120/205 µm seen in common configs.
-Modes it likes: contact mode in air/fluids, tapping in fluid, and low-force force–distance work on soft stuff (cells, gels, polymers).
What people use NP-20 for:
-Soft-matter/biology imaging in buffer (gentle k, low damage), e.g., cells, biofilms, hydrogels.
-Force spectroscopy/adhesion/elasticity on compliant samples where sub-nN to low-nN control matters.
-General contact-mode topography on polymers/oxides/films when you don’t need an ultra-sharp Si tip.

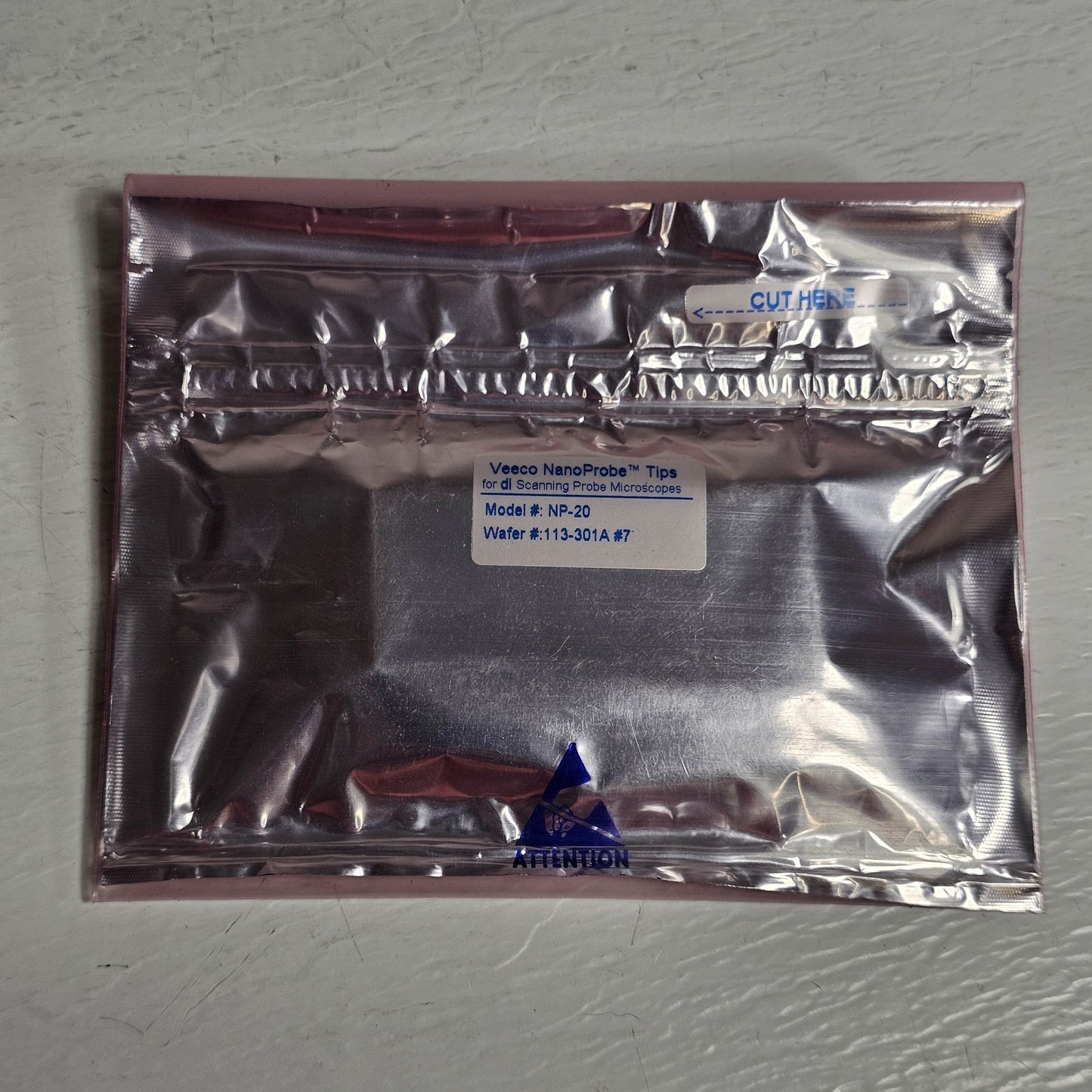

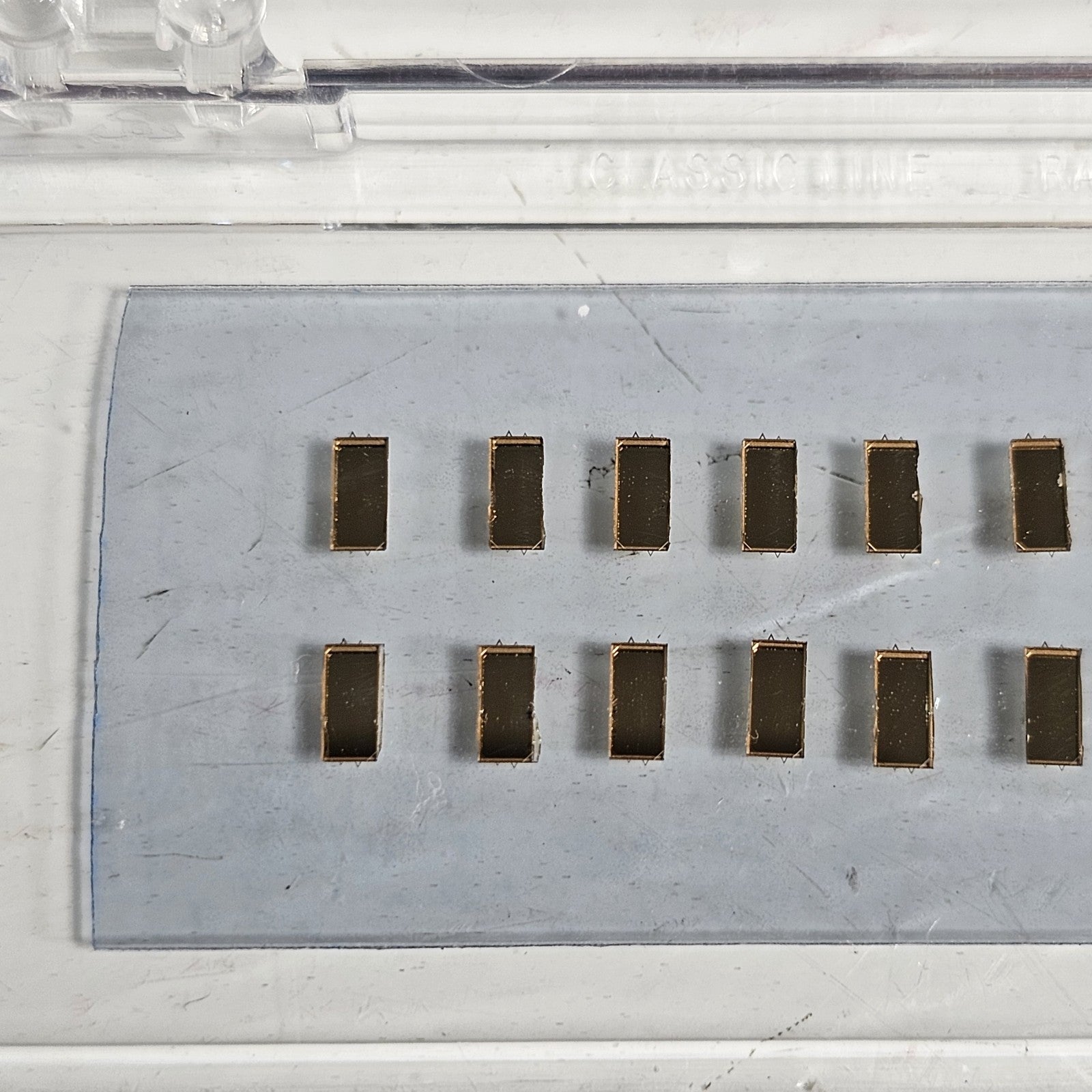

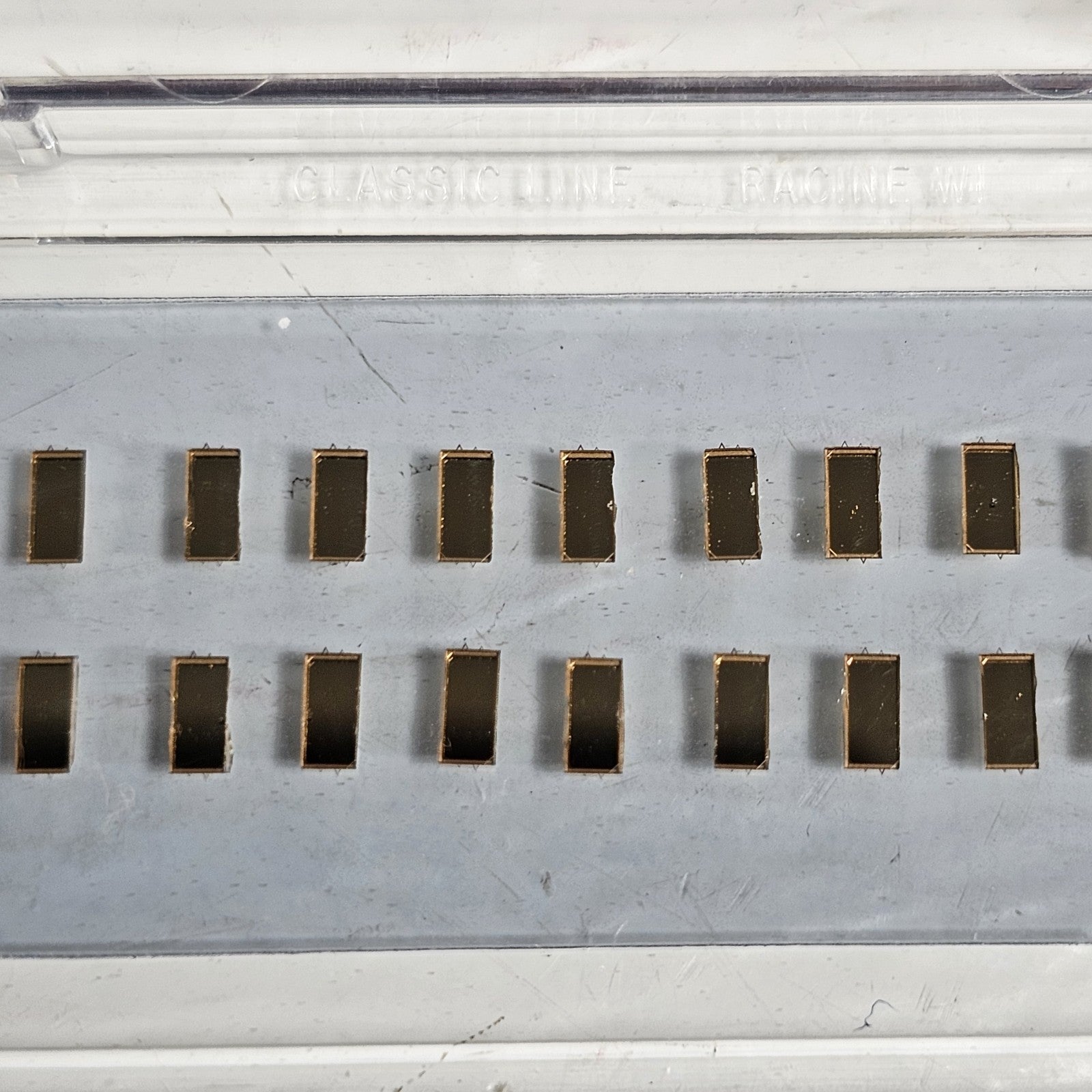

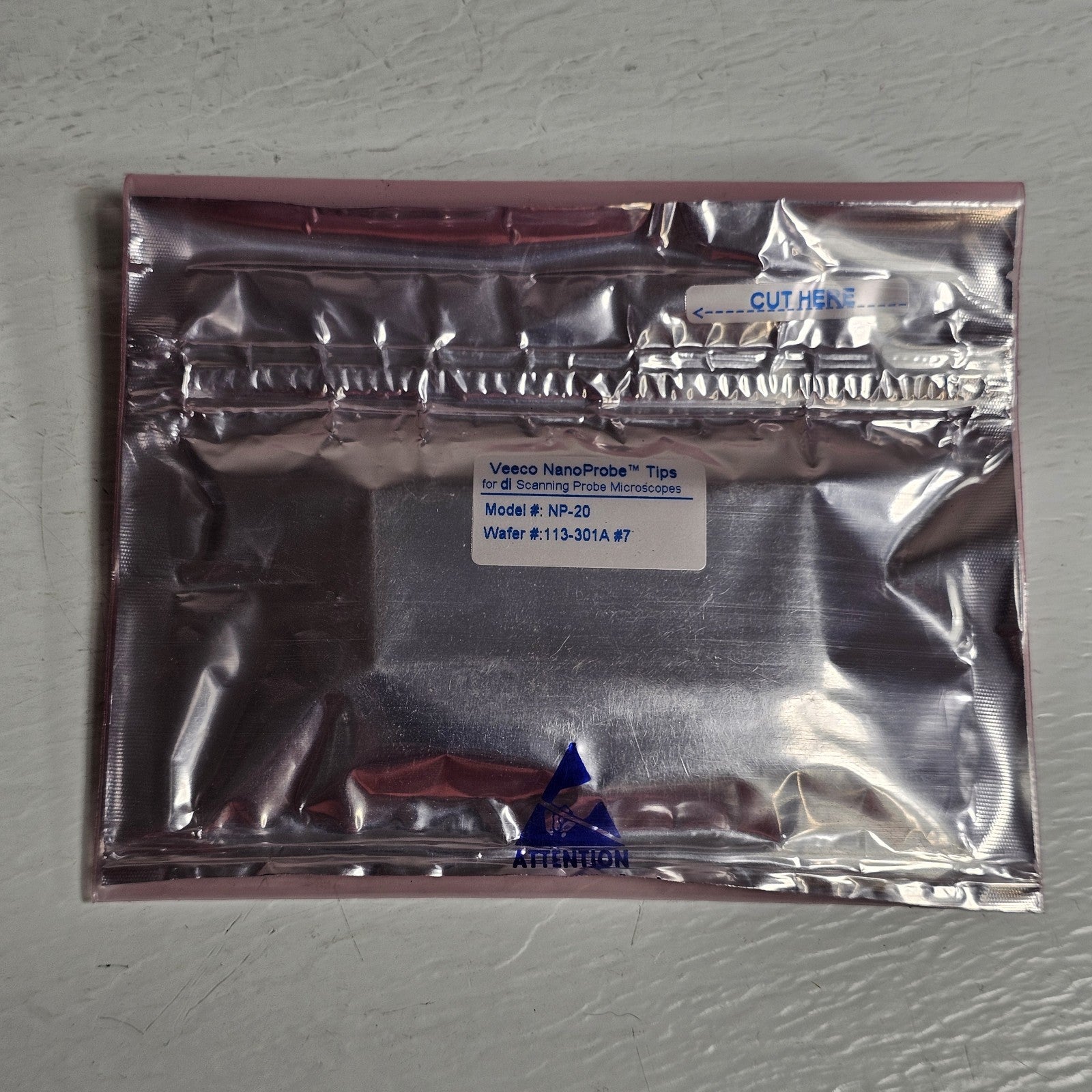

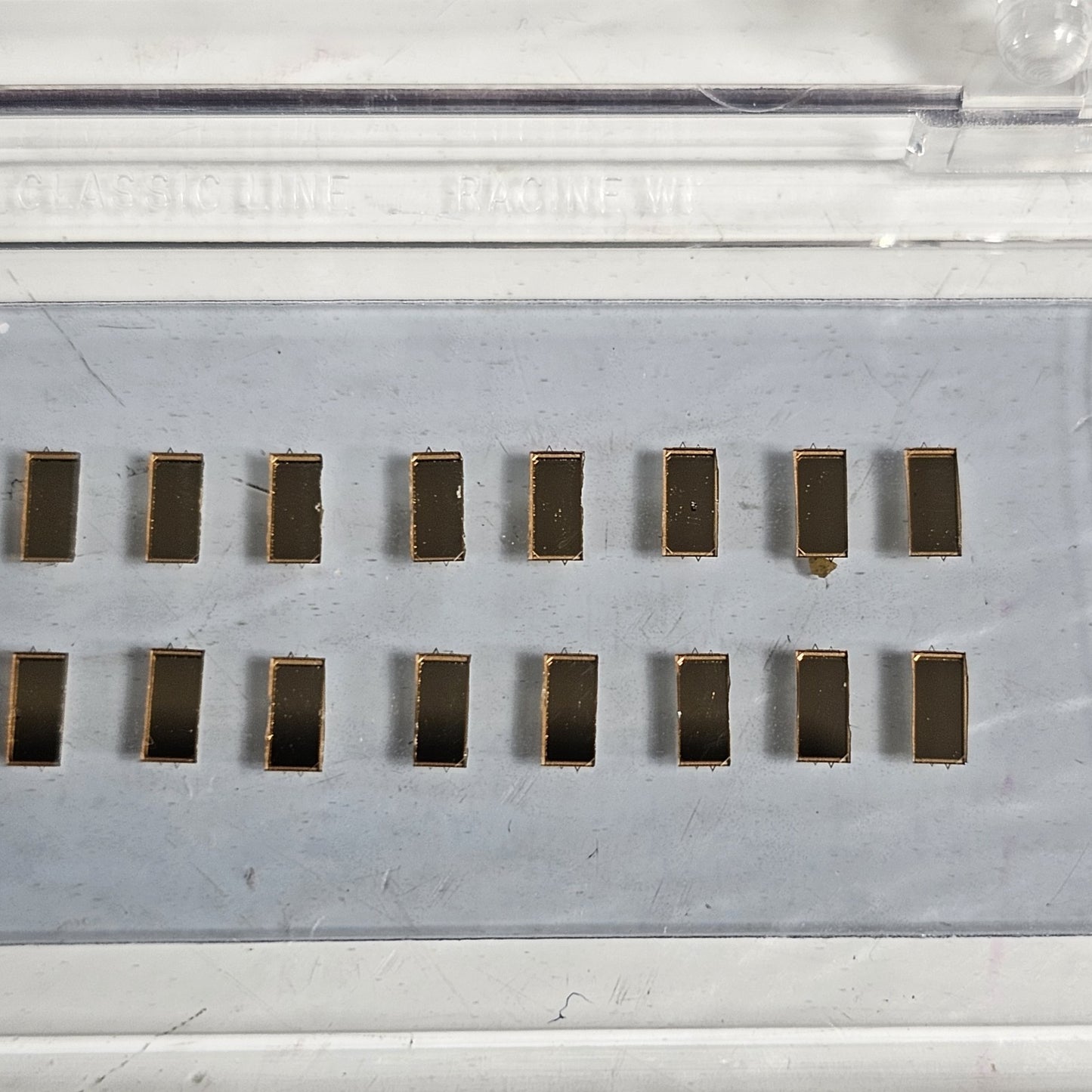

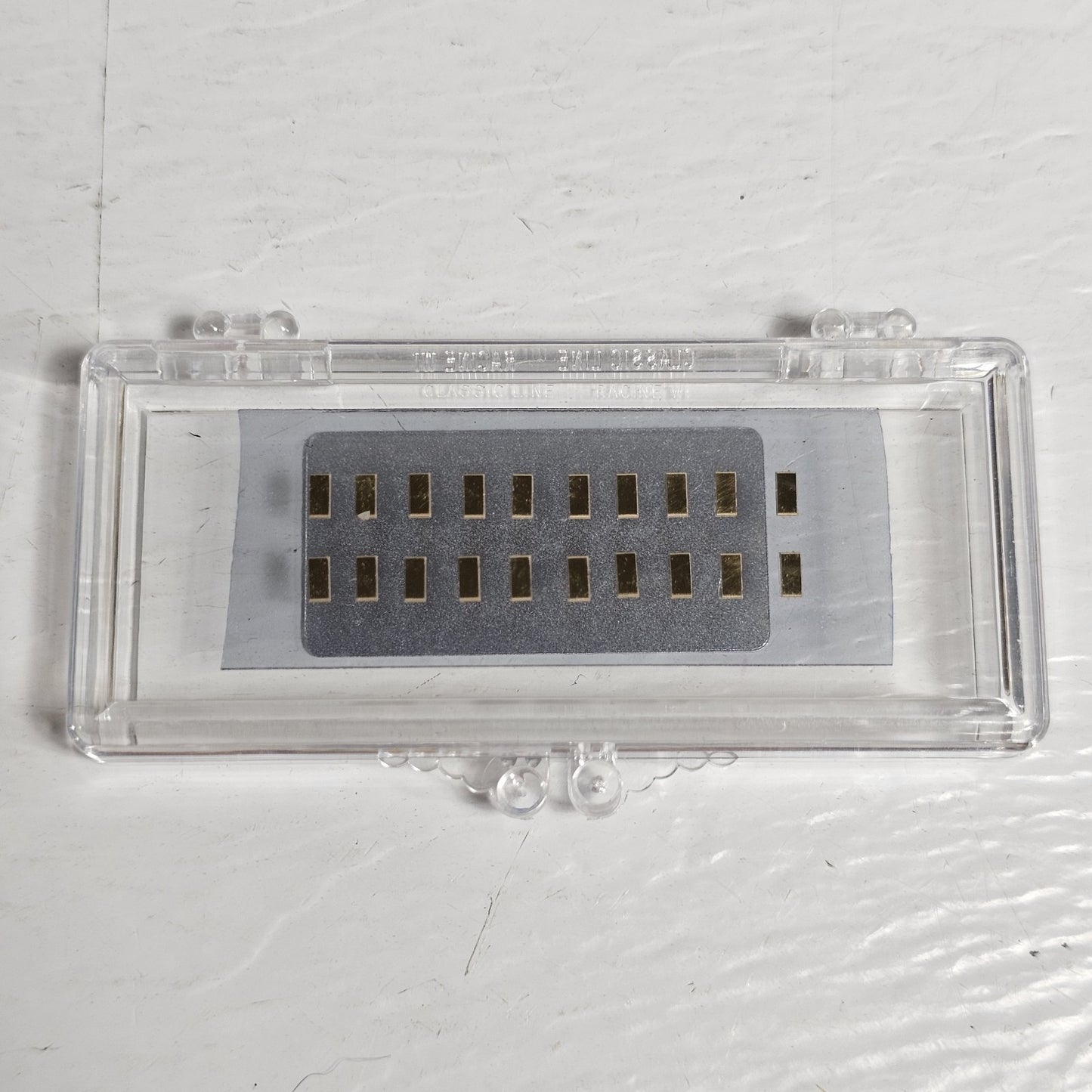

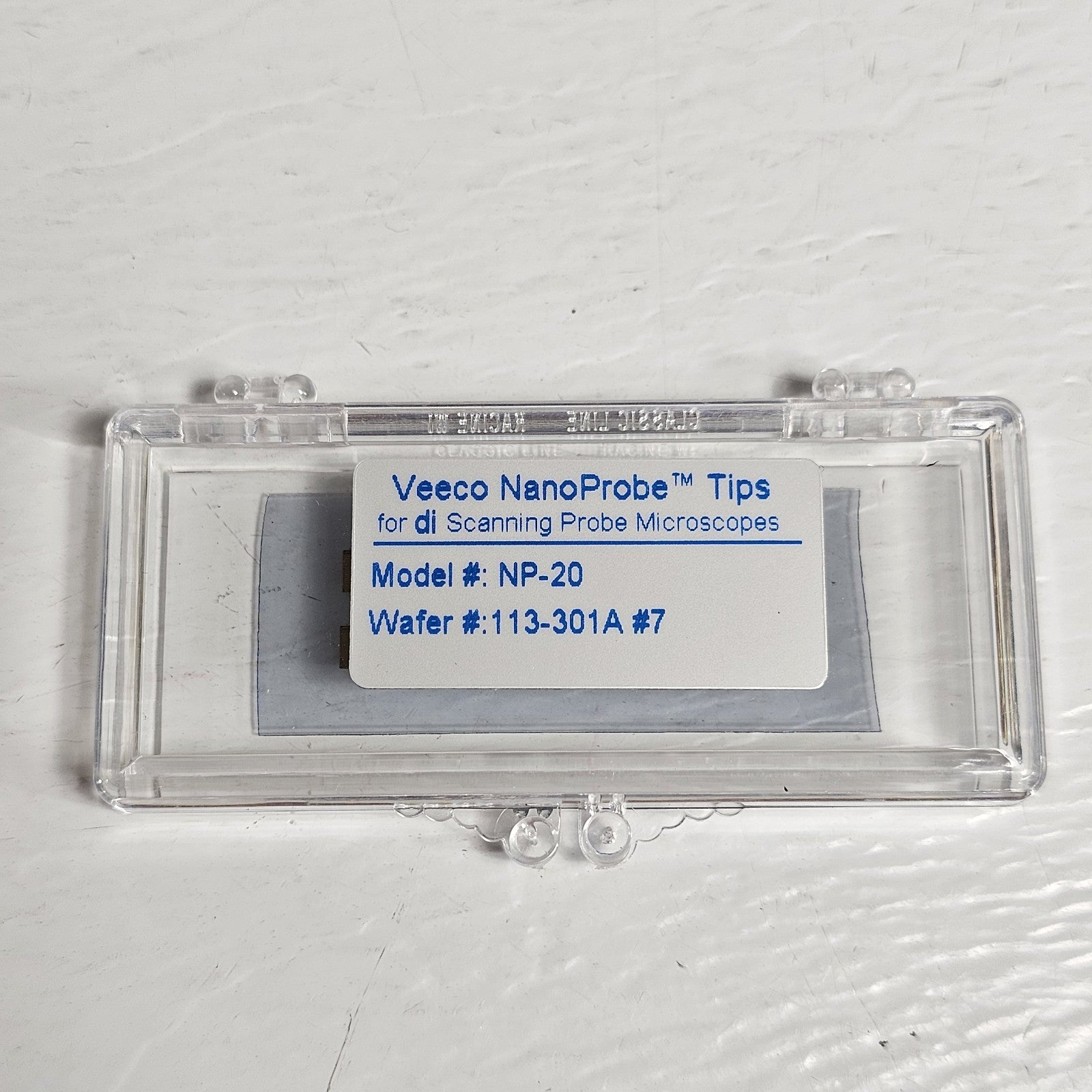

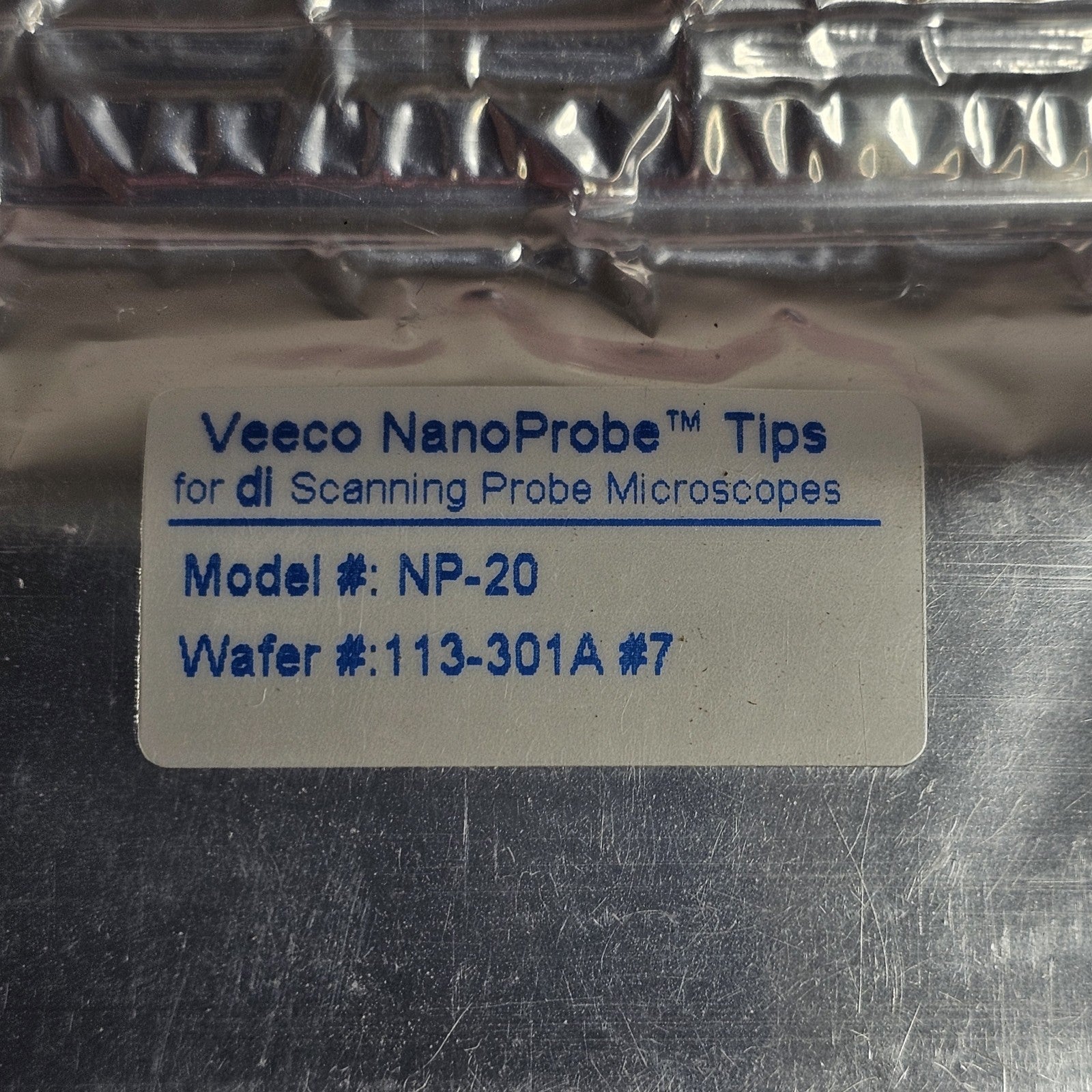

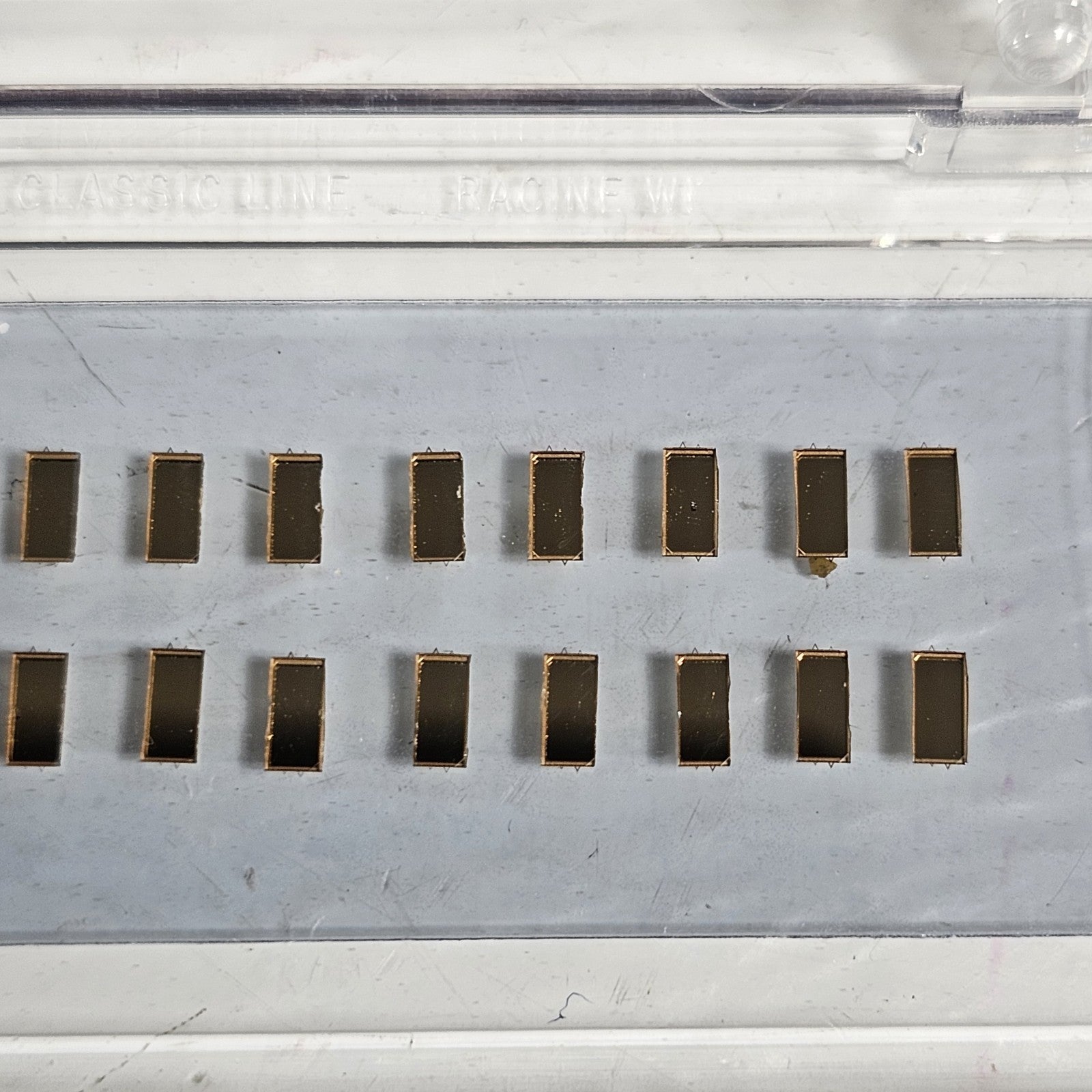

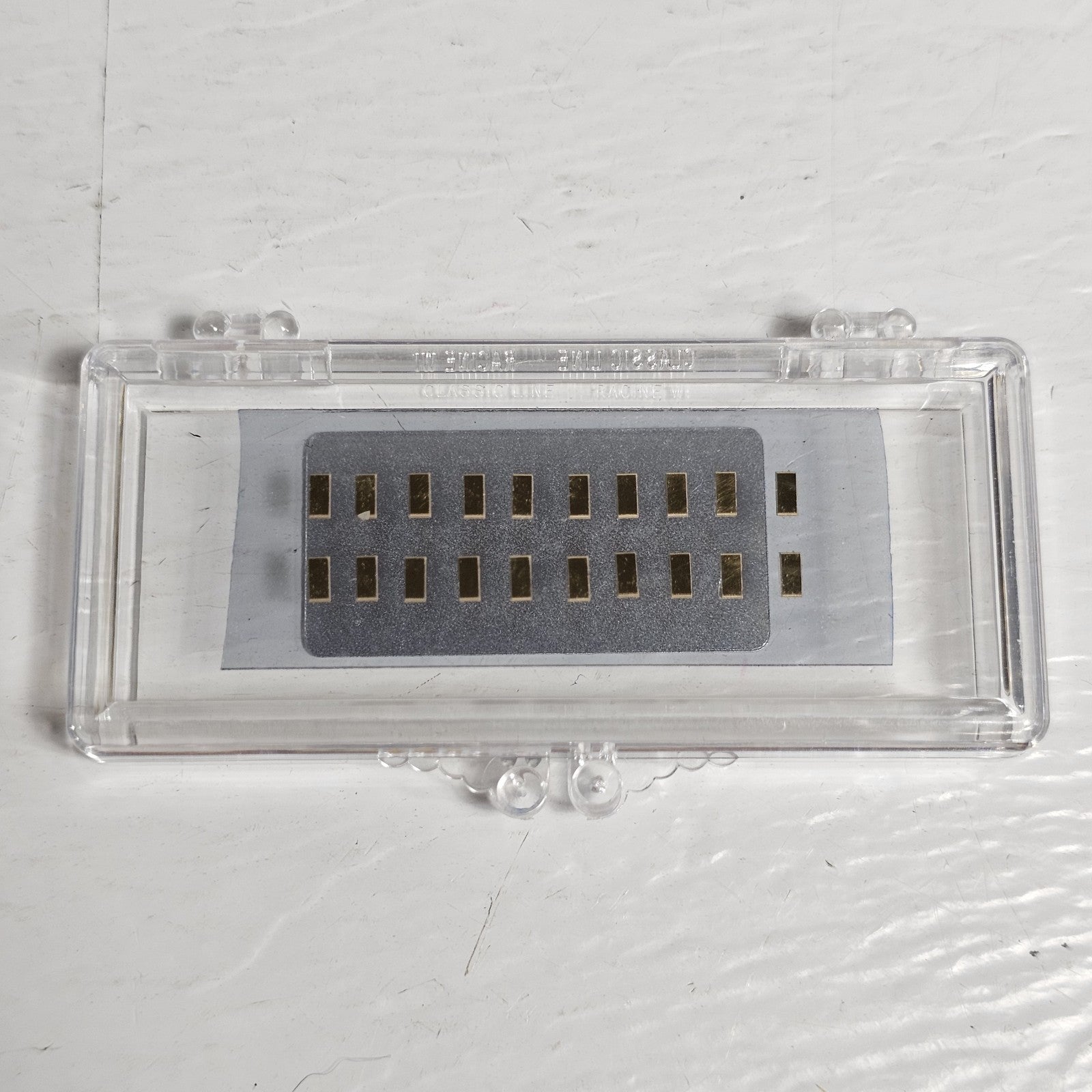

See photos. Brand new, seal was broken on one of the two we have in-stock to take photos. Box has 20 tips.

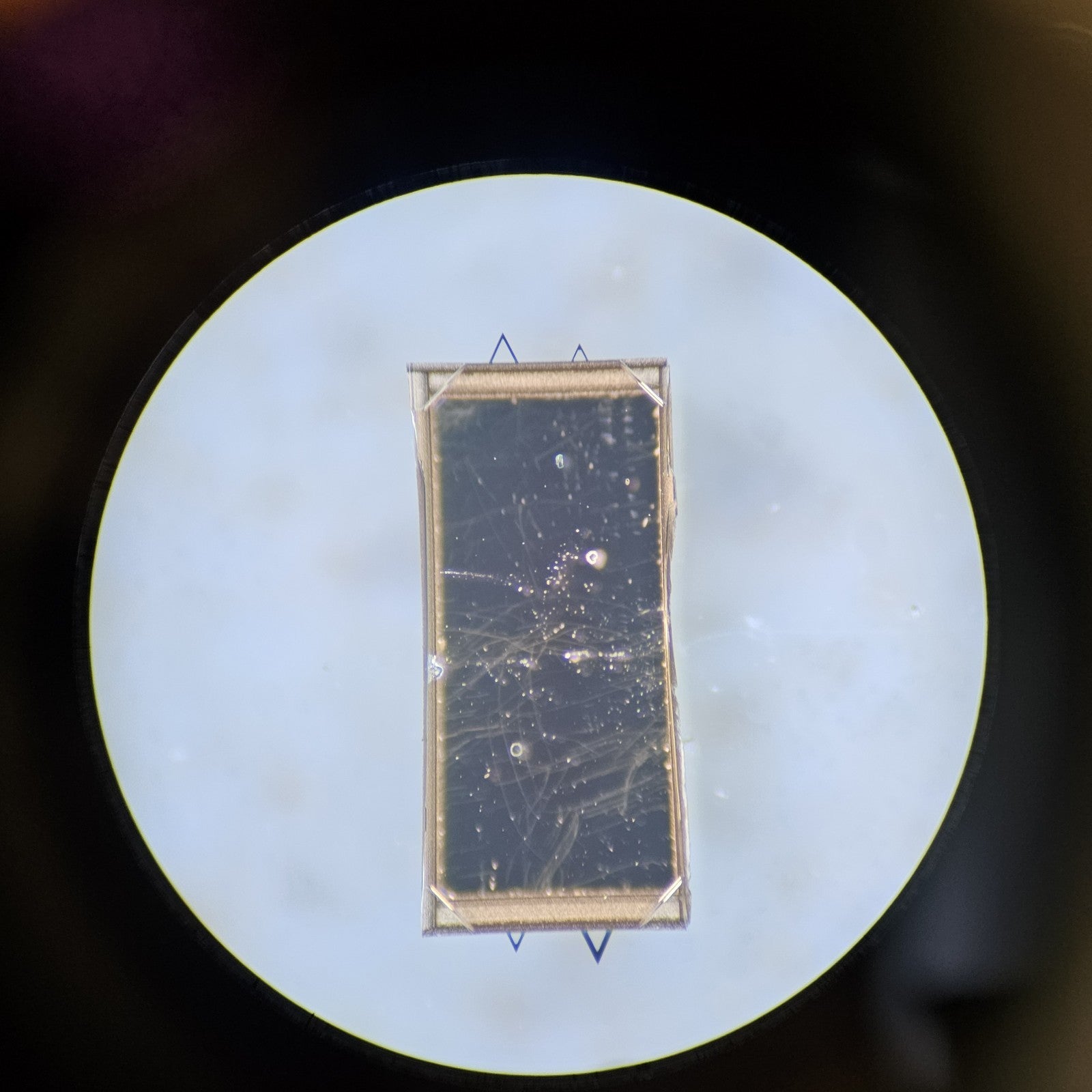

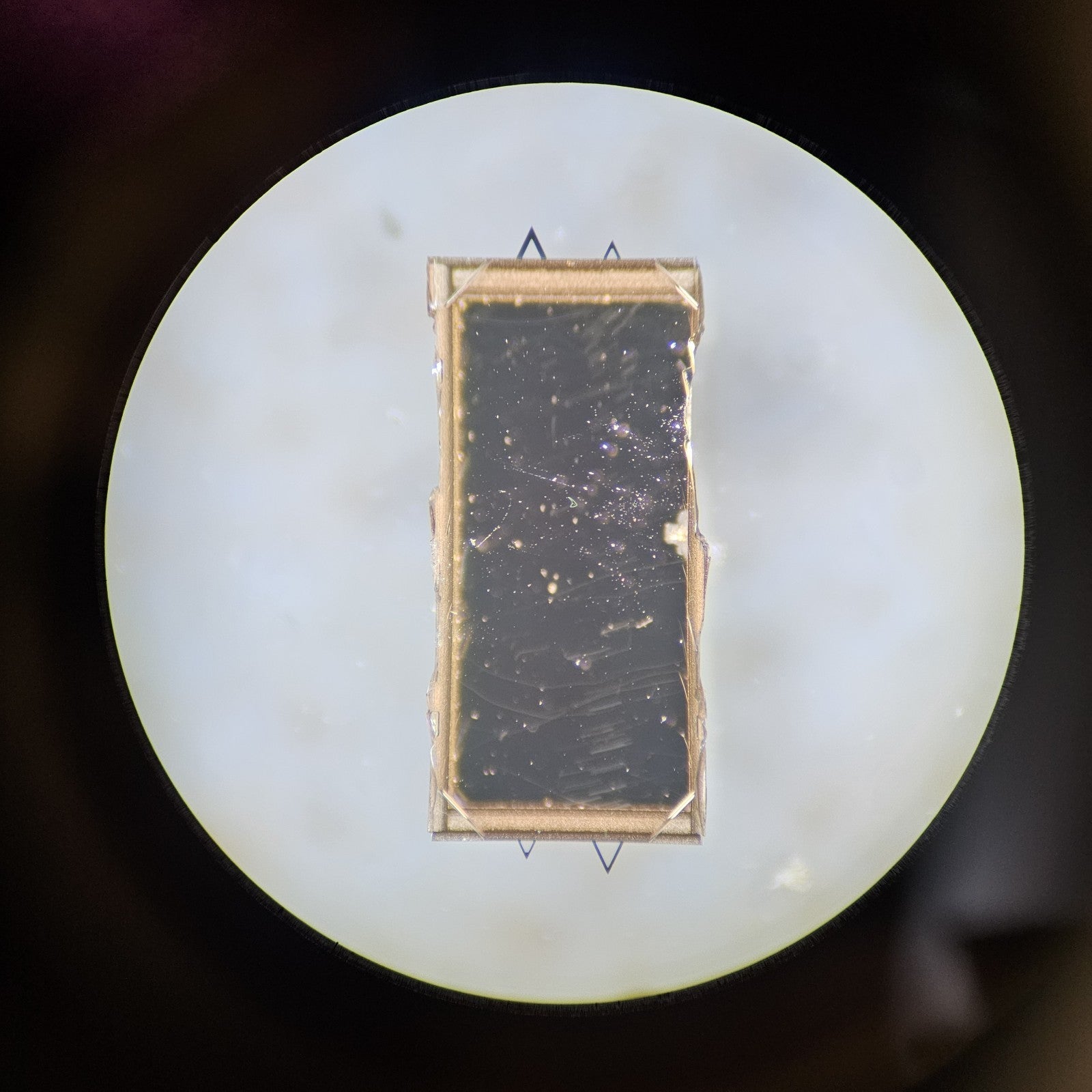

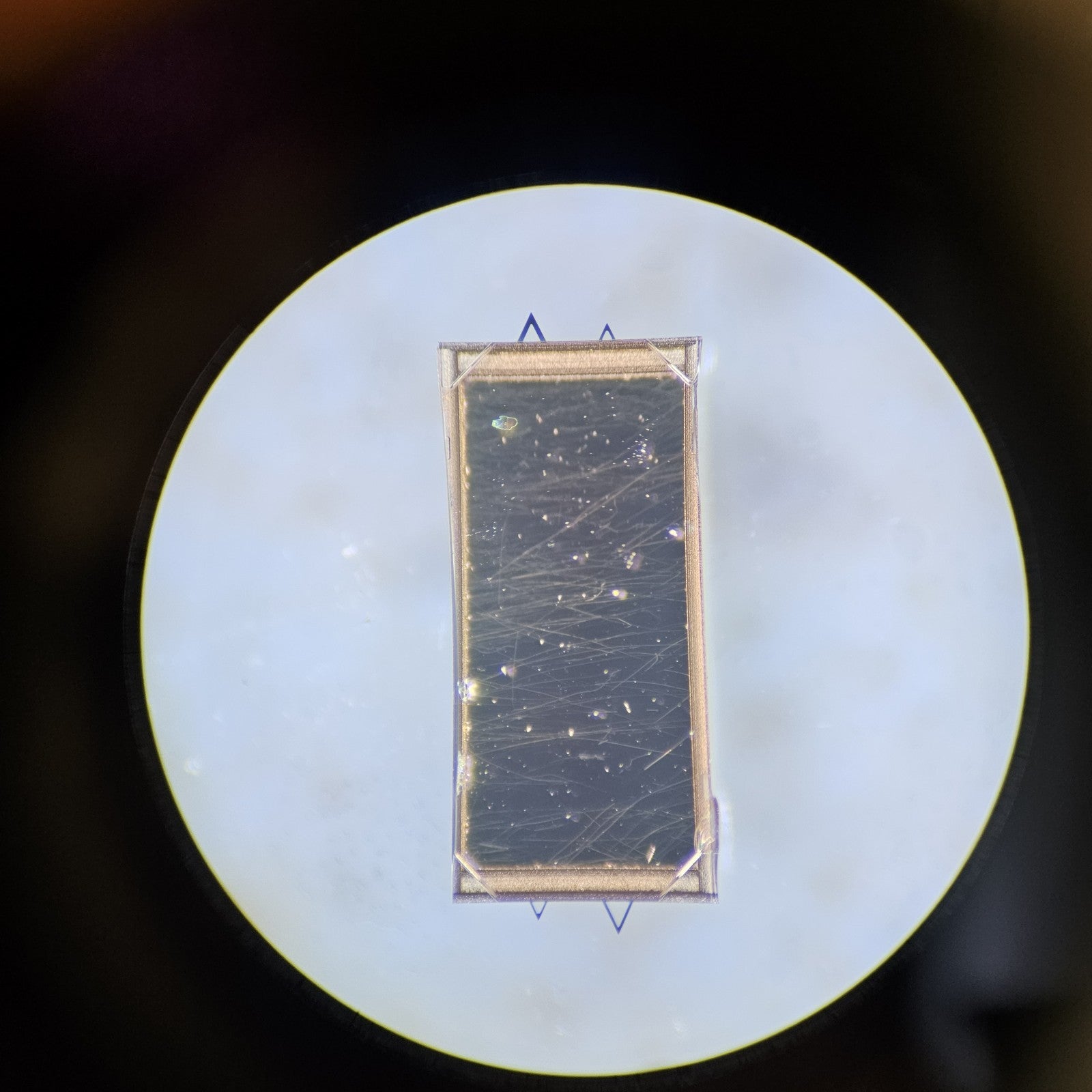

Photos of some representative tips were taken under the microscope and attached to the product listing.
