*Price Per 10 FT* Reliable Access Control Cable 22AWG 2C 4C 18AWG 4C RWC-P4E-SEC

Reliable Access Control Cable 22AWG 2C 22AWG 4C 18AWG 4C RWC-P4E-SEC *PER FOOT*.

Price is per 1 foot. Never used, new old stock.

Please indicate how many feet of cable you want by increasing the quantity. Minimum order quantity is 10 feet.

If you order a larger quantity, send us a message to let us know how you would like it cut.

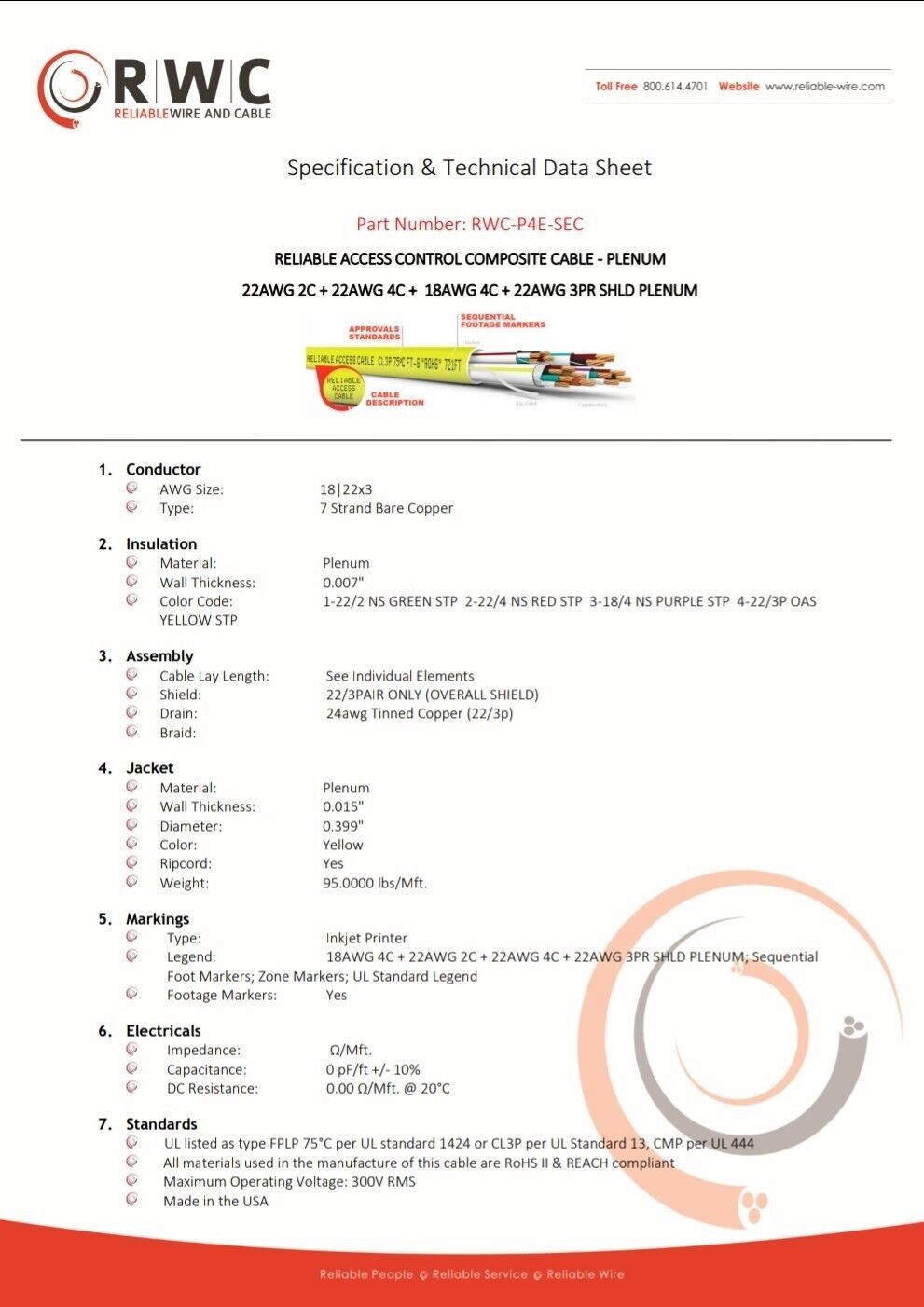

From the data sheet (data sheet attached as last photo):

RELIABLE ACCESS CONTROL COMPOSITE CABLE - PLENUM

22AWG 2C + 22AWG 4C + 18AWG 4C + 22AWG 3PR SHLD PLENUM.

Conductor

AWG Size: 18|22x3

Type: 7 Strand Bare Copper

2. Insulation

Material: Plenum

Wall Thickness: 0.007"

Color Code: 1-22/2 NS GREEN STP 2-22/4 NS RED STP 3-18/4 NS PURPLE STP 4-22/3P OAS

YELLOW STP

3. Assembly

Cable Lay Length: See Individual Elements

Shield: 22/3PAIR ONLY (OVERALL SHIELD)

Drain: 24awg Tinned Copper (22/3p)

Braid:

4. Jacket

Material: Plenum

Wall Thickness: 0.015"

Diameter: 0.399"

Color: Yellow

Ripcord: Yes

Weight: 95.0000 lbs/Mft.

5. Markings

Type: Inkjet Printer

Legend: 18AWG 4C + 22AWG 2C + 22AWG 4C + 22AWG 3PR SHLD PLENUM; Sequential

Foot Markers; Zone Markers; UL Standard Legend

Footage Markers: Yes

6. Electricals

Impedance: Ω/Mft.

Capacitance: 0 pF/ft +/- 10%

DC Resistance: 0.00 Ω/Mft. @ 20°C

7. Standards

UL listed as type FPLP 75°C per UL standard 1424 or CL3P per UL Standard 13, CMP per UL 444

All materials used in the manufacture of this cable are RoHS II & REACH compliant

Maximum Operating Voltage: 300V RMS

Made in the USA
