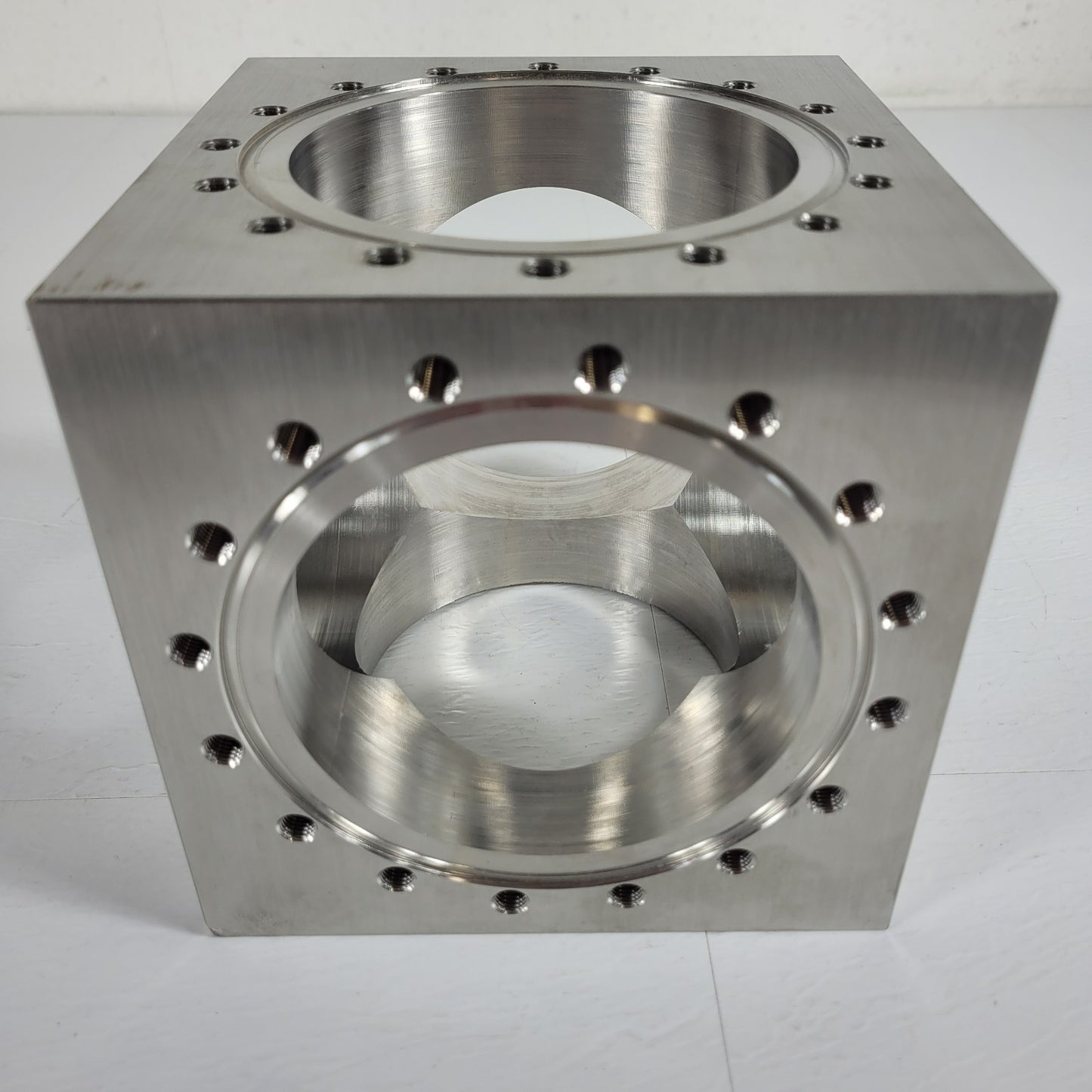

READ** Conflat UHV 6-Way Cube 6" Flange Ultra High Vacuum Chamber 304SS DN100CF

Conflat UHV 6-Way Cube 6" Flange Ultra High Vacuum Chamber 304SS DN100CF CF100 CF600 DN100CF NW100CF 600CF 100CF

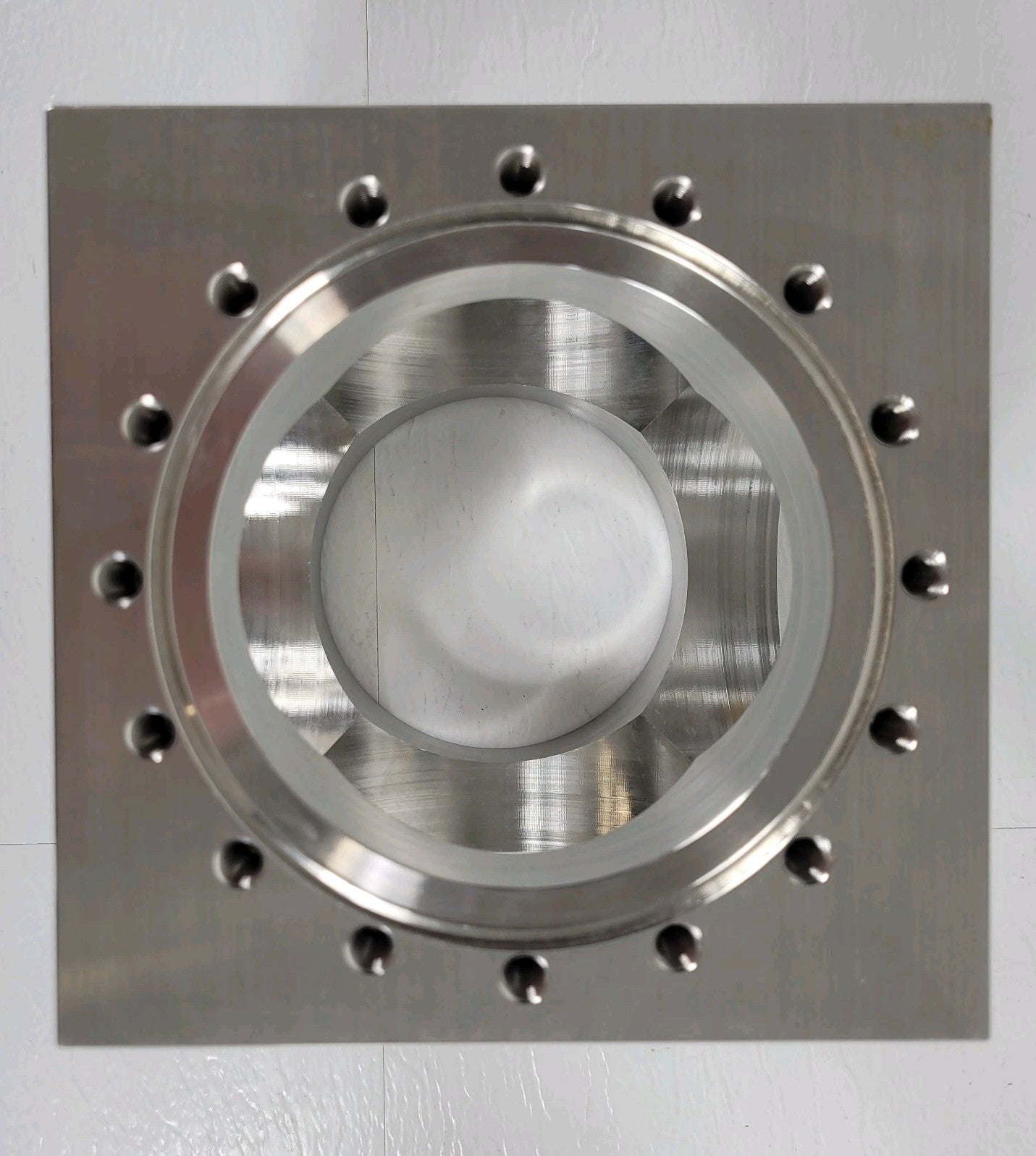

Brand new, never used, but has some quirks so please read the paragraph below. Fits standard size 6" conflat flanges. Threads are the standard imperial 5/16-24 size for this type of flange.

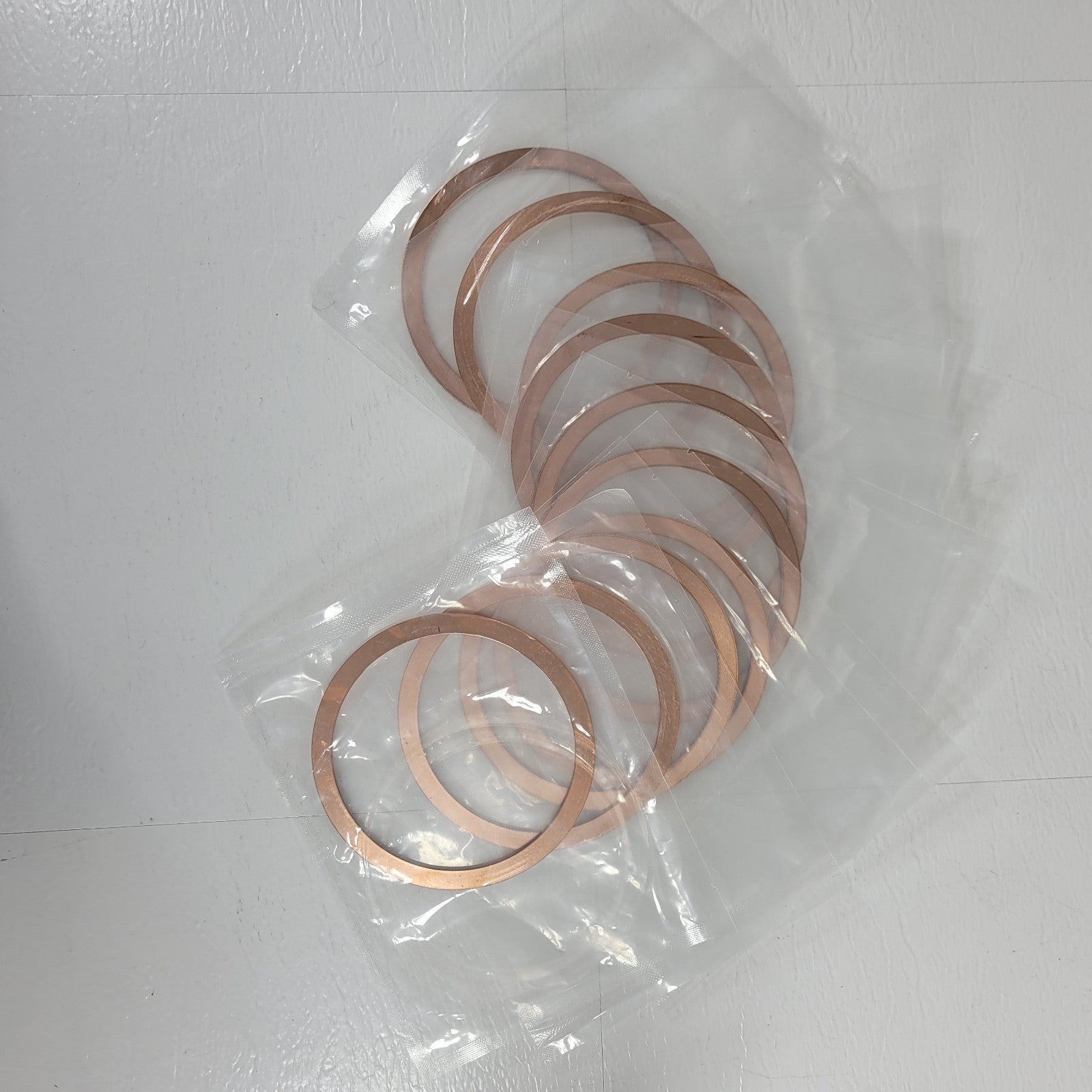

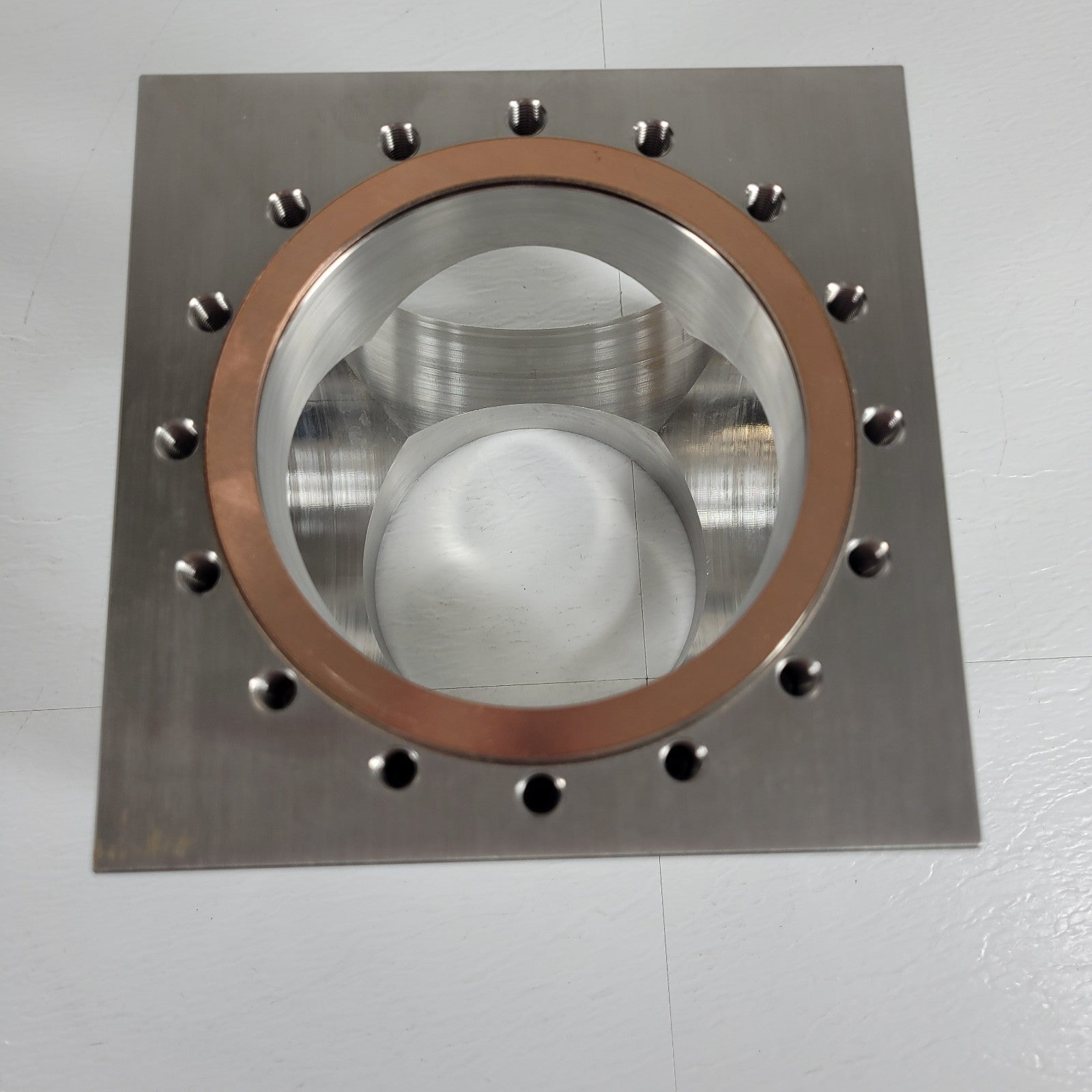

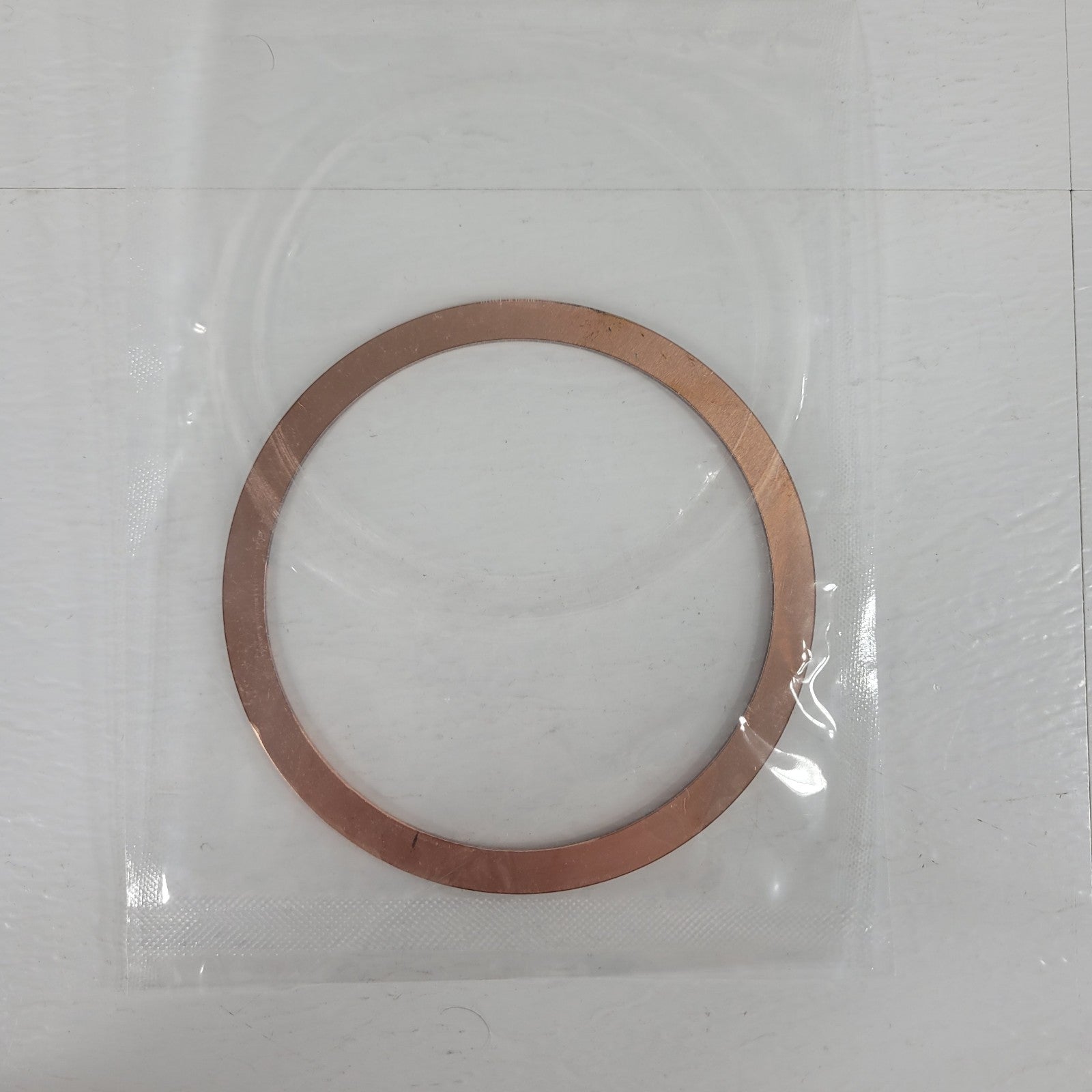

These cubes (six of them at the time of listing) have one or multiple slightly under-sized gasket seating mounts. As such, the flange(s) with the undersized gasket seating areas may not fit standard spec copper gaskets. To compensate for this, we are including 10 copper gaskets that will fit onto the(se) undersized flange(s). If more are needed at a later date, we will support making the slightly undersized gaskets for a cost into the future. Most of the flanges on the chambers will fit regularly sized gaskets. We recommend using the flanges with undersized gasket seats on areas that won't see a lot of cycling on and off (if there are flanges permanently attached to a turbo pump or blank, for instance, those are the best candidates to reduce having to source or make more of these smaller gaskets). May have some other minor dents or dings in the body, but the knife edges are guaranteed to be in perfect shape and seal to UHV without issues. These are the reasons for the discounted pricing. We also have some DN100CF cubes on-hand that are correctly sized for sale separately if you are interested.

Material: Pure 304 stainless steel.

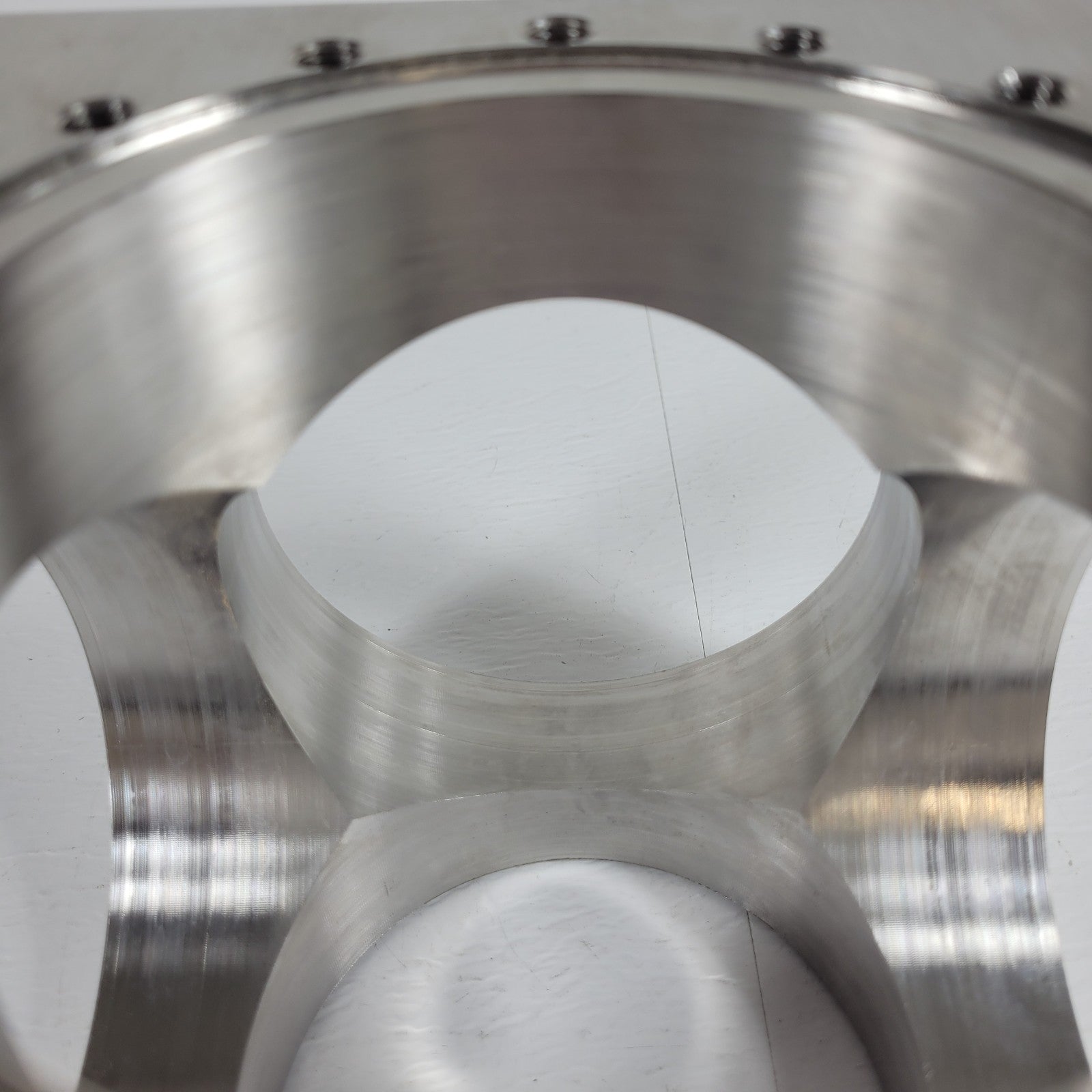

Main bore: 4" in diameter.

Ultimate vacuum: Approximately 1.0E-13 Torr (UHV-XHV range)

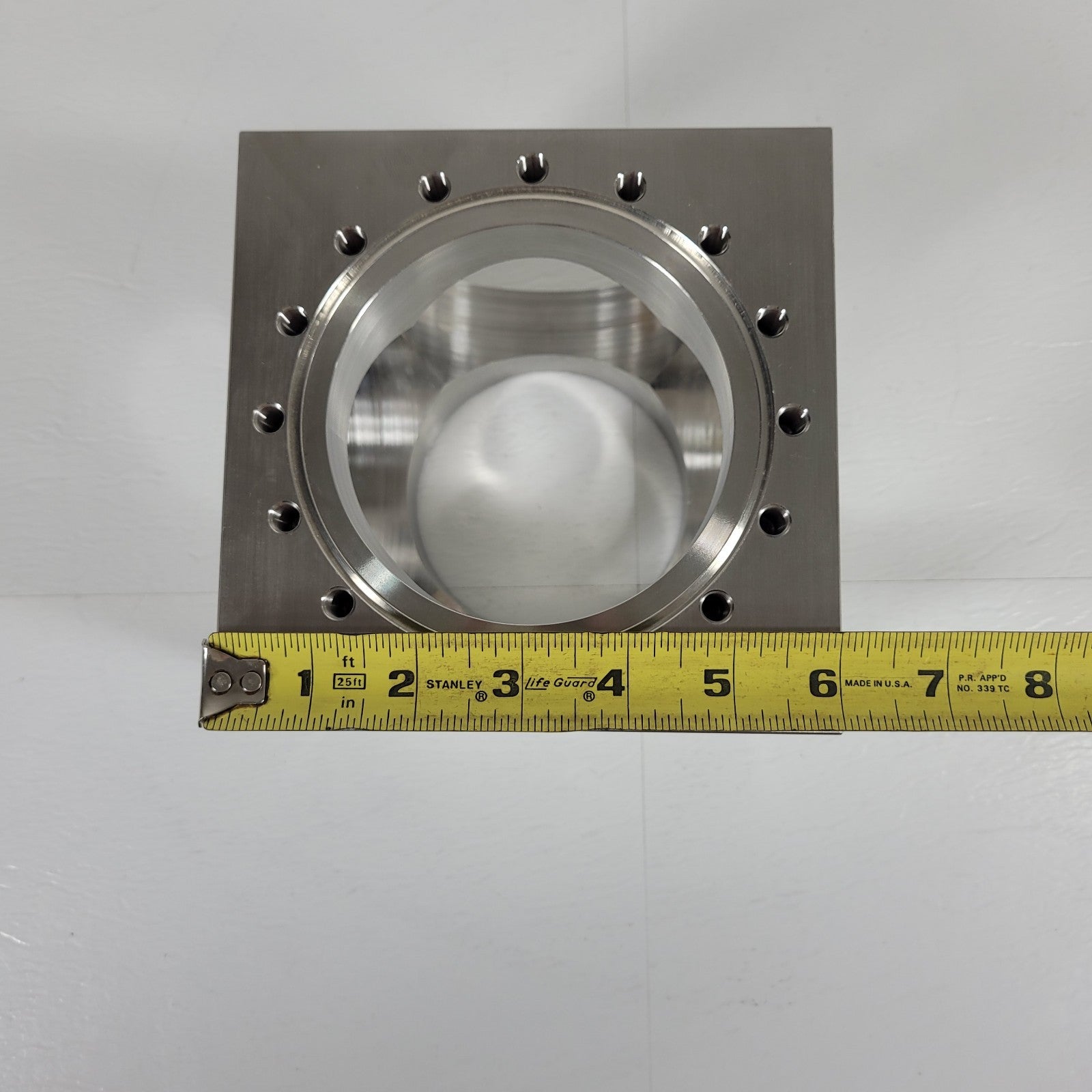

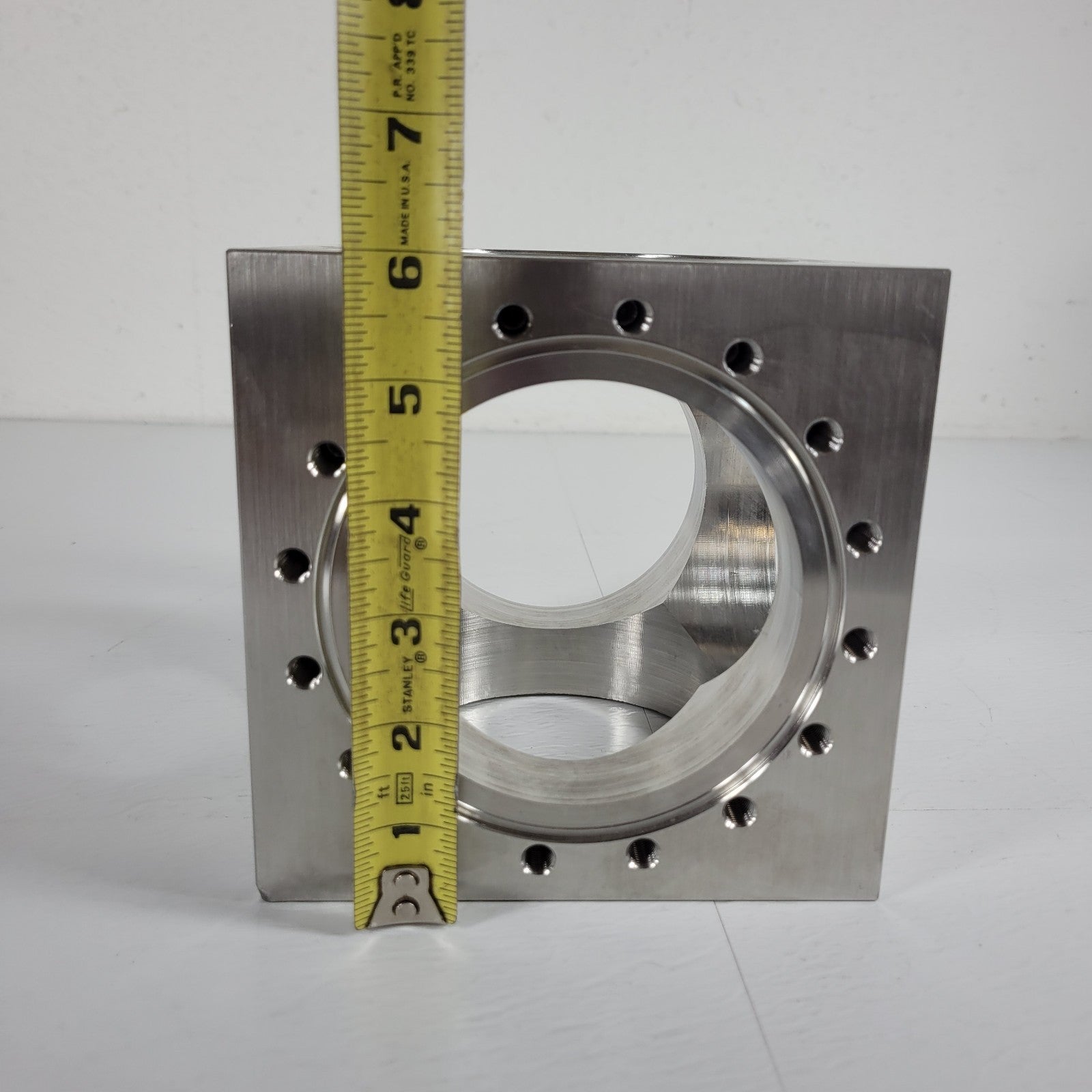

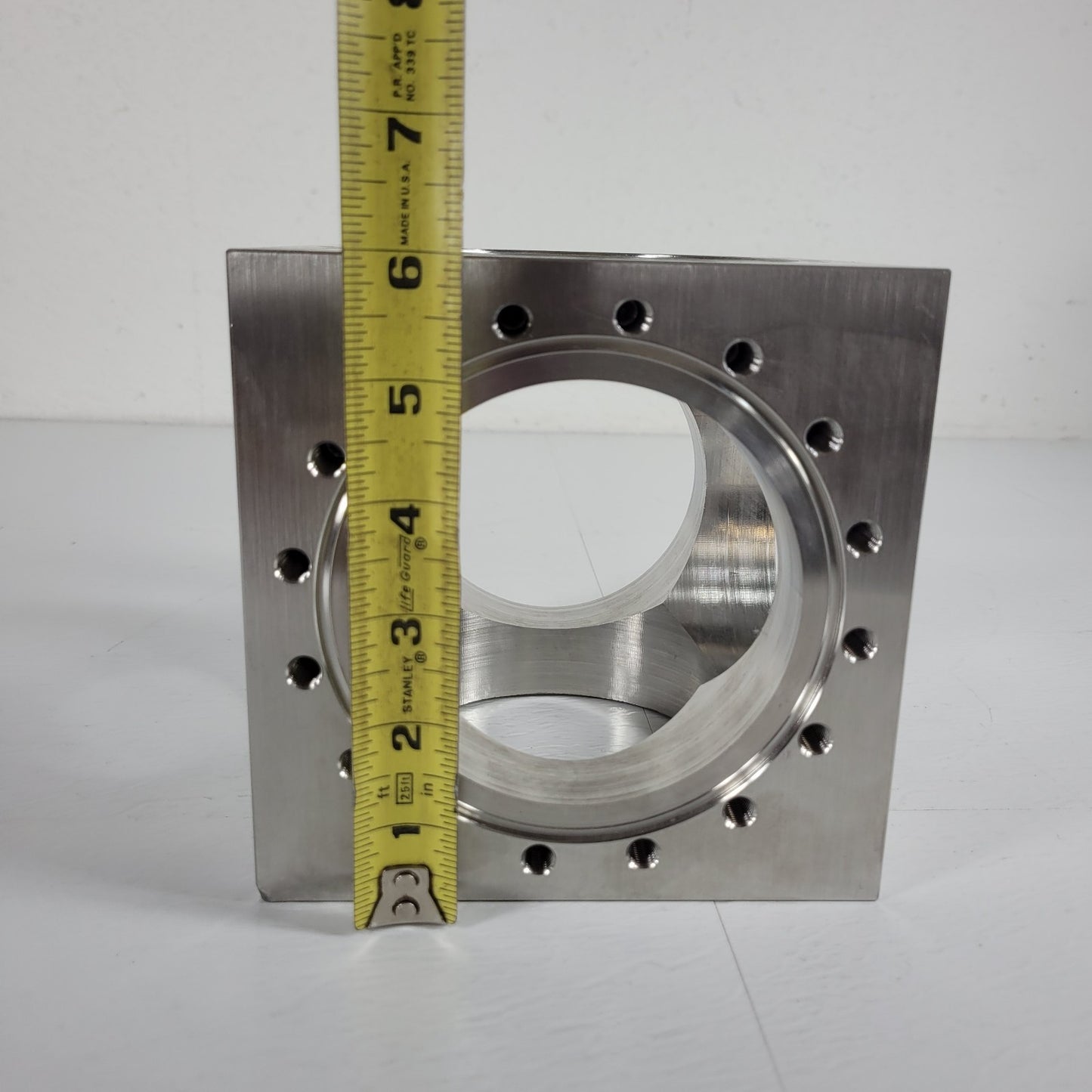

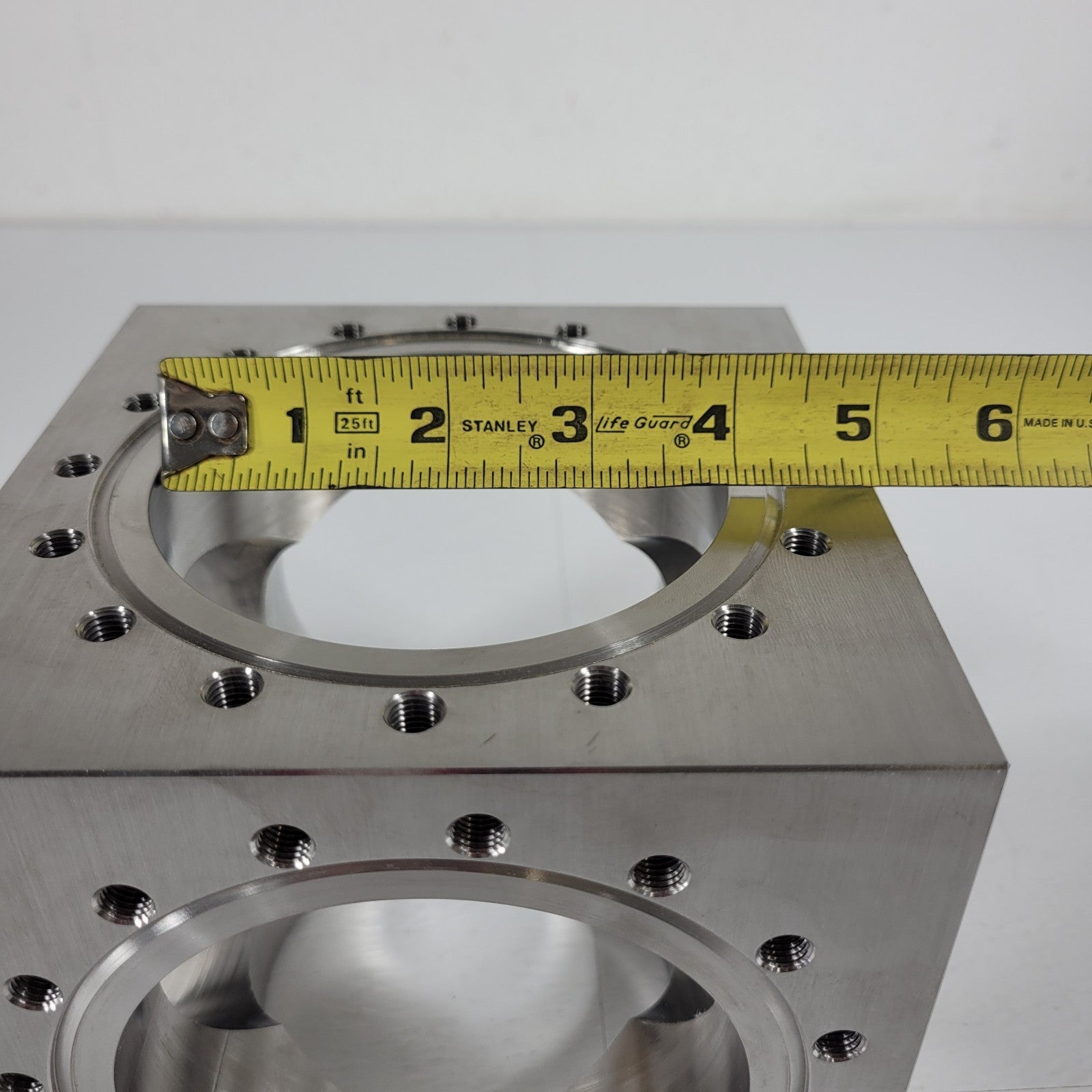

Tape measure, gasket, and bolt not included in purchase. Those are for demonstration purposes only.

Free shipping to the continental USA.

We also sell 6" copper conflat flanges in our webstore if you need some to accompany this piece. Contact us if you need the undersized gaskets. They will be the same pricing as the standard sized gaskets.

Part number cross-reference: CU6-0600 P106497 408004 CF600-CU DN100CF-Cube 600-CU CFCUBE-600

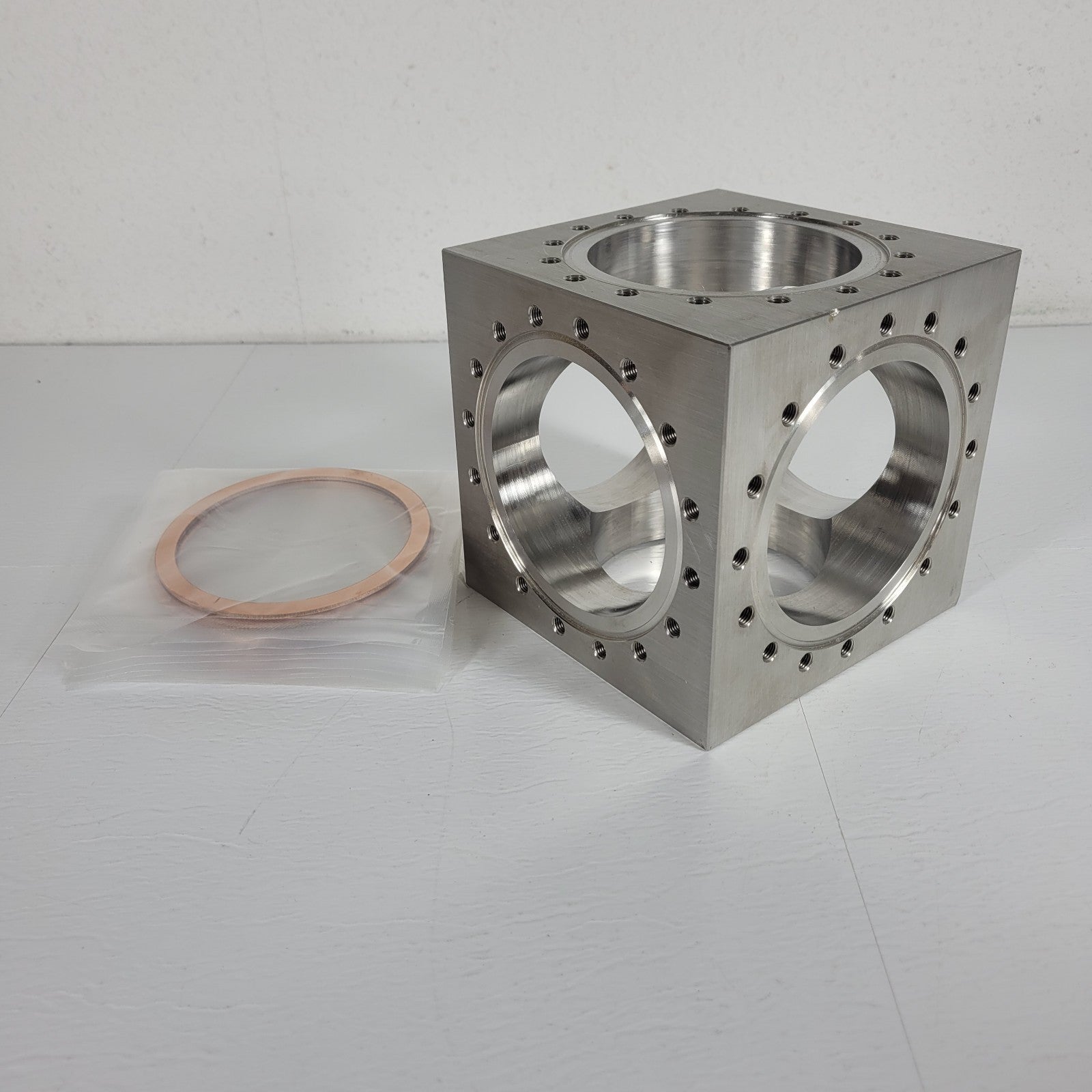

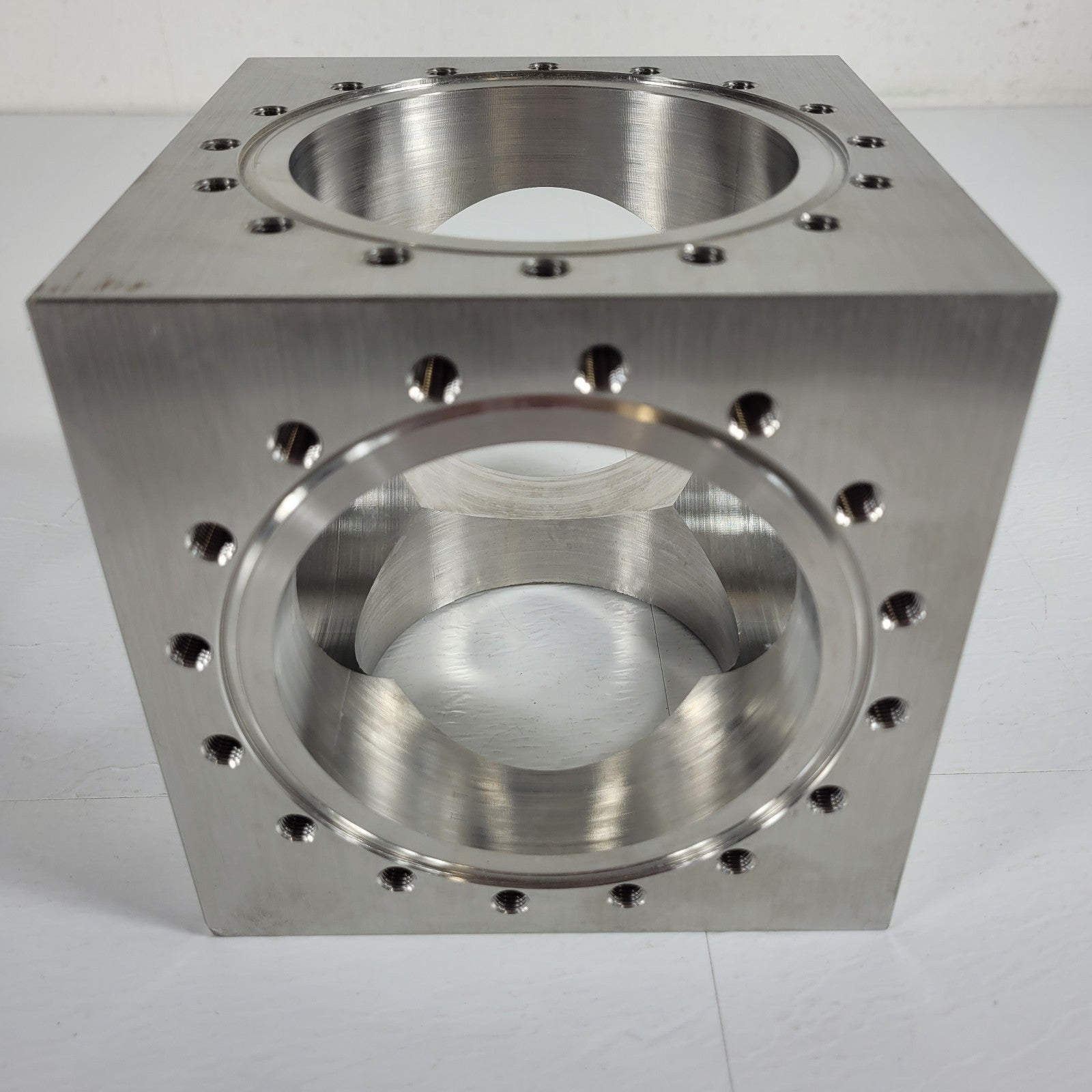

This ConFlat / CF 6-way cube vacuum chamber is a stainless steel UHV chamber body with six DN100CF / CF100 / 6" CF flange ports for high vacuum and ultra-high vacuum system builds. The cube-style six-port layout is useful for vacuum instrumentation, ion gauges, viewports, feedthroughs, manipulators, shutters, evaporators, deposition sources, spectroscopy setups, beamline components, surface science experiments, plasma systems, mass spectrometry, electron/ion optics, and custom research chamber configurations. CF knife-edge flanges with copper gaskets are widely used for bakeable, all-metal UHV seals, making this chamber suitable for laboratory vacuum systems where low outgassing, modular port access, and rigid stainless construction are required. Includes the 6-way cube chamber and ten DN100CF copper gaskets shown. Used condition; inspect photos for knife-edge and sealing surface condition. No bolts, nuts, blank flanges, viewport, gauges, pumps, valves, adapters, stands, or additional accessories are included unless pictured.
