*READ* Vision Research Phantom v711 High Speed Camera 7530 FPS WXGA Color 16GB

*READ* Vision Research Phantom v711 High Speed Camera 7530 FPS WXGA Color 16GB

Used see photos. Please read the whole listing description before purchasing.

We took a video of us using the camera and a few high-speed videos on the camera itself (showing the defect), which can be viewed at the following link: youtube.com/watch?v=A3_xez7SUGg

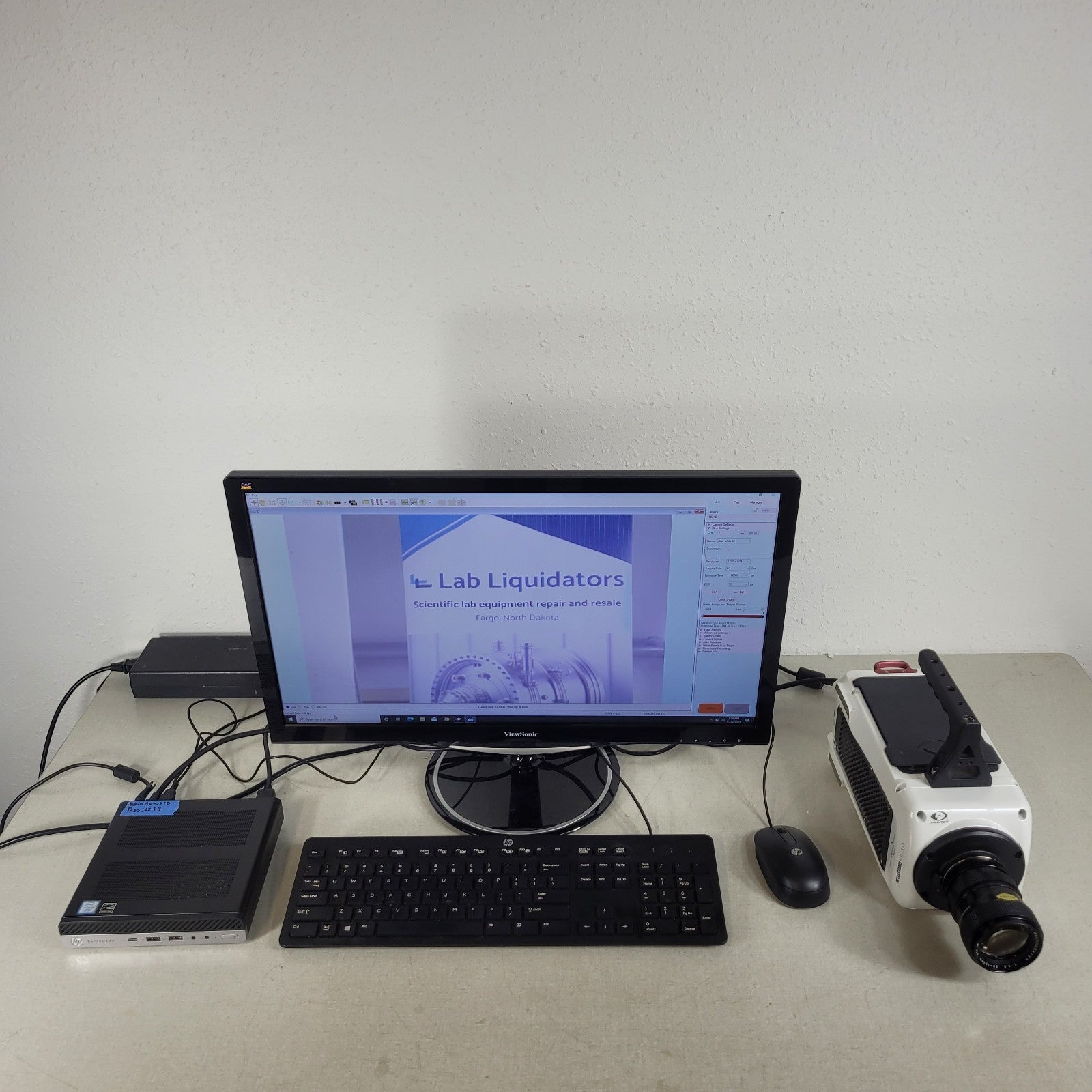

System includes:

1x ) Phantom v711 High Speed Camera

1x ) HP EliteDesk mini pc - with Windows 10 and PCC control software and video viewer pre-installed.

1x ) Cambron 501441 Lens - zoom lens.

1x ) Rugged camera case

1x ) Ethernet adapter cable to connect the computer to the camera

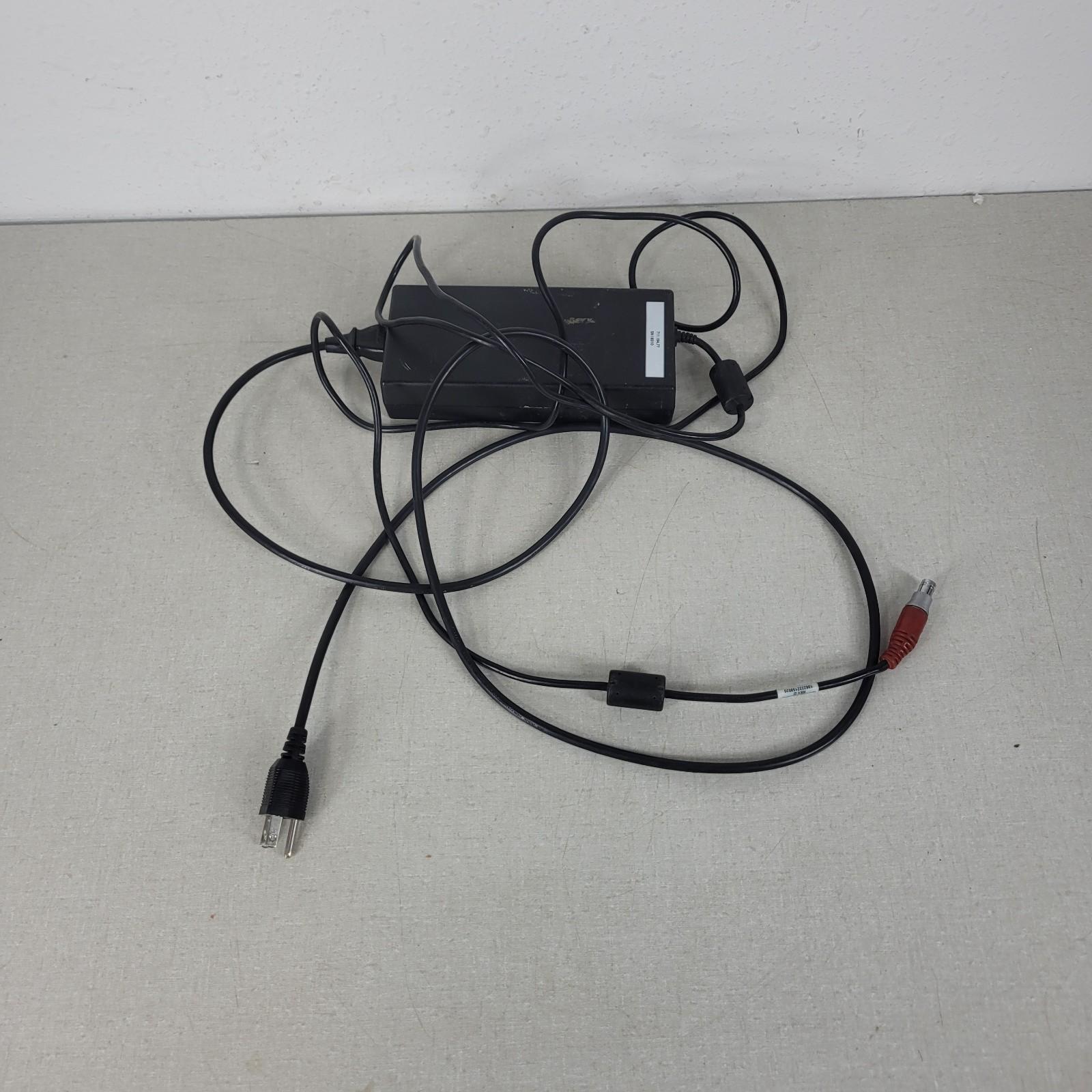

2x ) Power Cables - one for the PC, and one for the camera

Sensor (or some part of the sensor reading circuit) is damaged: see photos and video. There are lines the run vertically across the upper half of the captured image. The color of those lines appears differently with different color balances of the image settings, so it is believed to not be dead pixels on the sensor itself, especially since when the resolution is changed the lines will adjust with the image. These lines show up in the image preview on the computer, the SDI outputs, and also in the saved captured video in the end product (unless the video cropped before or after saving the video). The main way to get rid of the lines is to either crop the image and just use the lower half of the image (many high speed cameras already have a wide FOV, so this is not beyond reason). Alternatively, you can delete those pixels in the final video (select them by color) and "smooth" the pixel space where those lines used to be by making them the average of the neighboring pixels.

We tested this camera and it works excellently (with the exception of the lines shown down the top half of the image): it collects images at up to 1,511,111 frames per second (at a reduced resolution of 128x8) as it is equipped with the FAST option. It operates at full resolution at a max frame rate of 7,530 frames per second. The SDI outputs both work as does the ethernet connectivity. The shutter works, and all features we tested in the software work well. See the video above for all software options and functions. This camera is equipped with 16gb of high-speed internal RAM.

From the manufacturer:
"Smaller and lighter than its predecessor and including additional on-camera and connectivity controls requested by users, the Phantom v711 is housed in a white body keeping it cooler when shooting in direct sunlight.

The sensor and its capability

The Phantom v711 includes wide screen 1280 x 800 CMOS sensor, which allows moving targets to be kept in the frame longer and so to see more of the event being recorded. The wide sensor also enables true 1280 x 720 HD images from a 1Mpx camera. With the v711, a maximum speed of 7530 frames-per-second can achieve at full resolution. At reduced resolutions, the camera can deliver up to 680,000 frames-per-second or up to 1,400,000 fps with the FAST option.

Output

The camera offers Versatile Dual HD-SDI that can provide 4:4:4 video (except at 60 fps), or two single 4:2:2 HD-SDI ports – one for playback and one always live. It is also capable of recording direct to CineMag at up to 800 megapixels/second saving time with this direct recording opportunity.

Image acquisition

Additional features that set the Phantom v711 apart from competitors include the Extreme Dynamic Range feature, which gives the ability to acquire two different exposures within a single frame so areas that would otherwise be over-exposed now contain image detail. Additionally, the Auto Exposure function lets the camera automatically adjust to changing lighting conditions. The ability to trigger from motion in an image with the unique Image-Based Auto-Trigger feature is now standard as is an Internal Mechanical Shutter which eliminates the need to cap the lens manually during a black balance.

Model Phantom v711

Resolution Wide screen 1280 x 800 8- and 12-bit depth

Sensor CMOS. 25.6 mm x 16.0 mm. 20 µm pixel size Color

Video Out Analog video (NTSC or PAL) available on Capture Cable

Component viewfinder port

Versatile Dual HD-SDI can provide 4:4:4 video (except at 60 fps), or can be two single 4:2:2 HD-SDI ports, one for playback and one always live

Interface Gb Ethernet. 10 Gb Ethernet via CineStream X2SR

Frame Rate Max speed at full resolution of 1280 x 800 is 7530 fps. Max speed at reduced resolution of 128 x 8 is 680,000 fps (standard), 1,400,000 fps (optional)

Memory 8 GB, 16 GB, or 32 GB optional high-speed internal RAM. CineMag for non-volatile storage (128 GB, 256 GB, or 512 GB). Segment memory for up to 63 cines in multi-cine mode

Mount Type Nikon F-mount standard; Canon EOS mount optional; PL-mount optional; C-mount optional

Operating Temp 0°C - 40°C"
