SciLog SciPure 200 Automated Single-Use TFF System NovaSep GMP QuattroFlow 2010

SciLog SciPure 200 Automated Single-Use TFF System NovaSep GMP QuattroFlow 2010

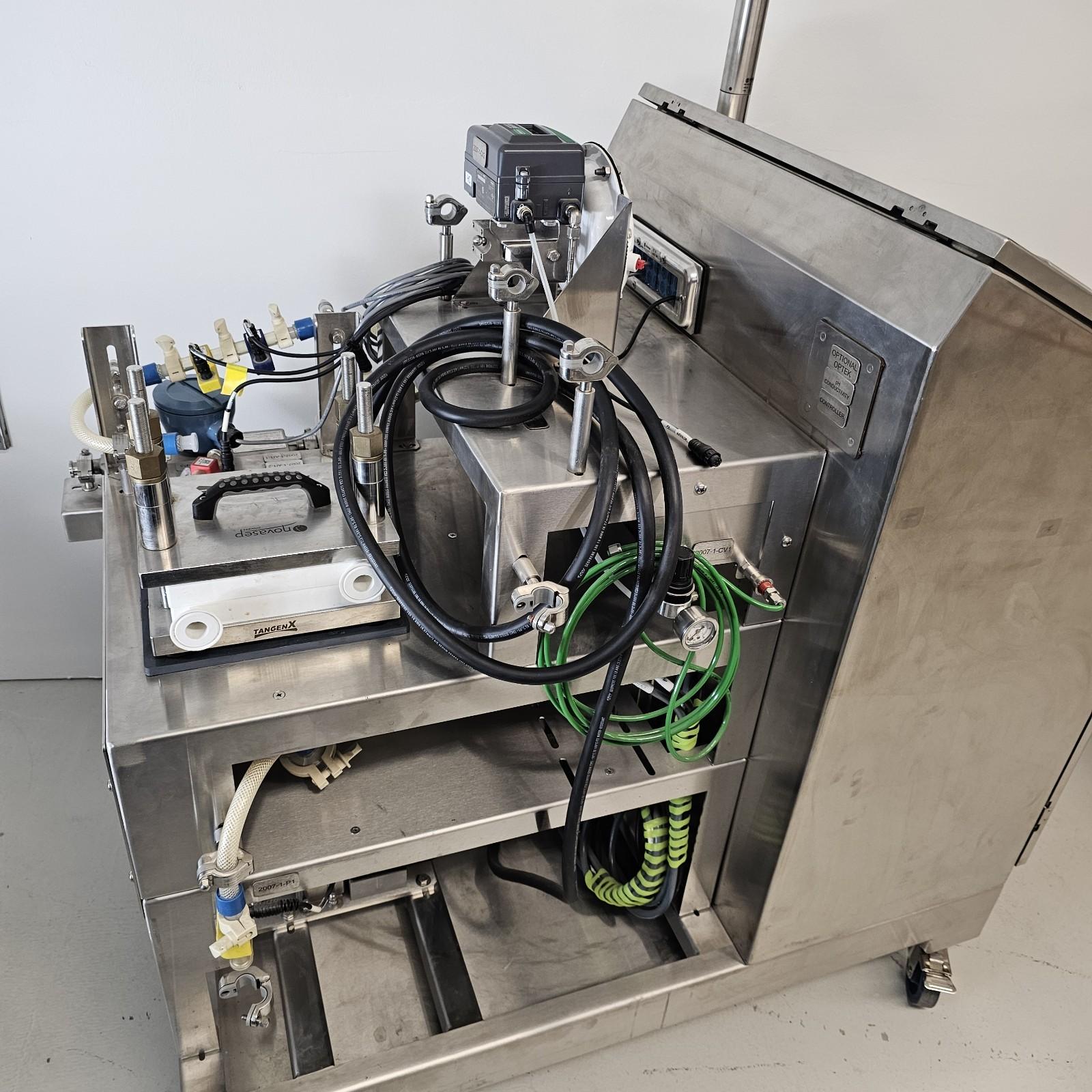

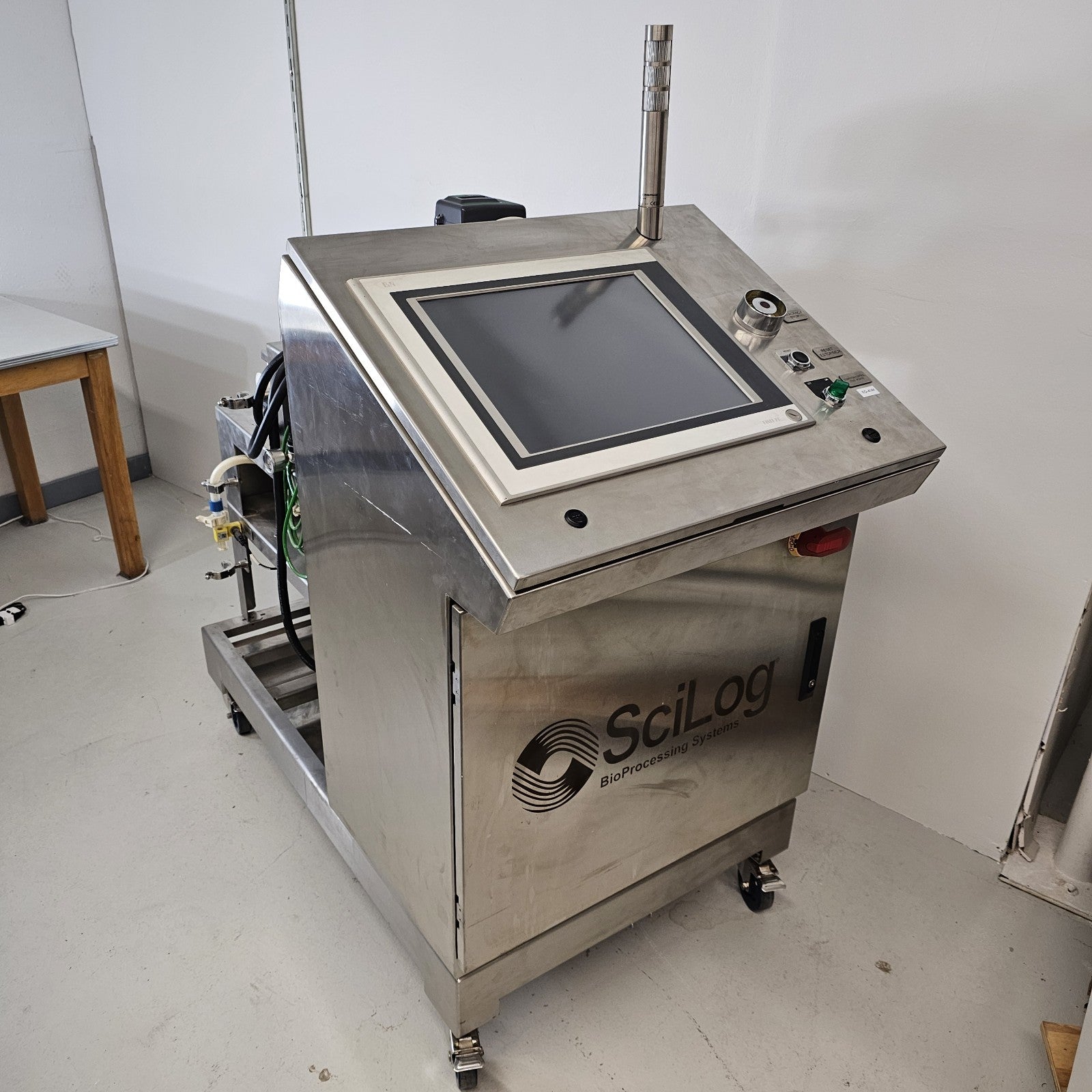

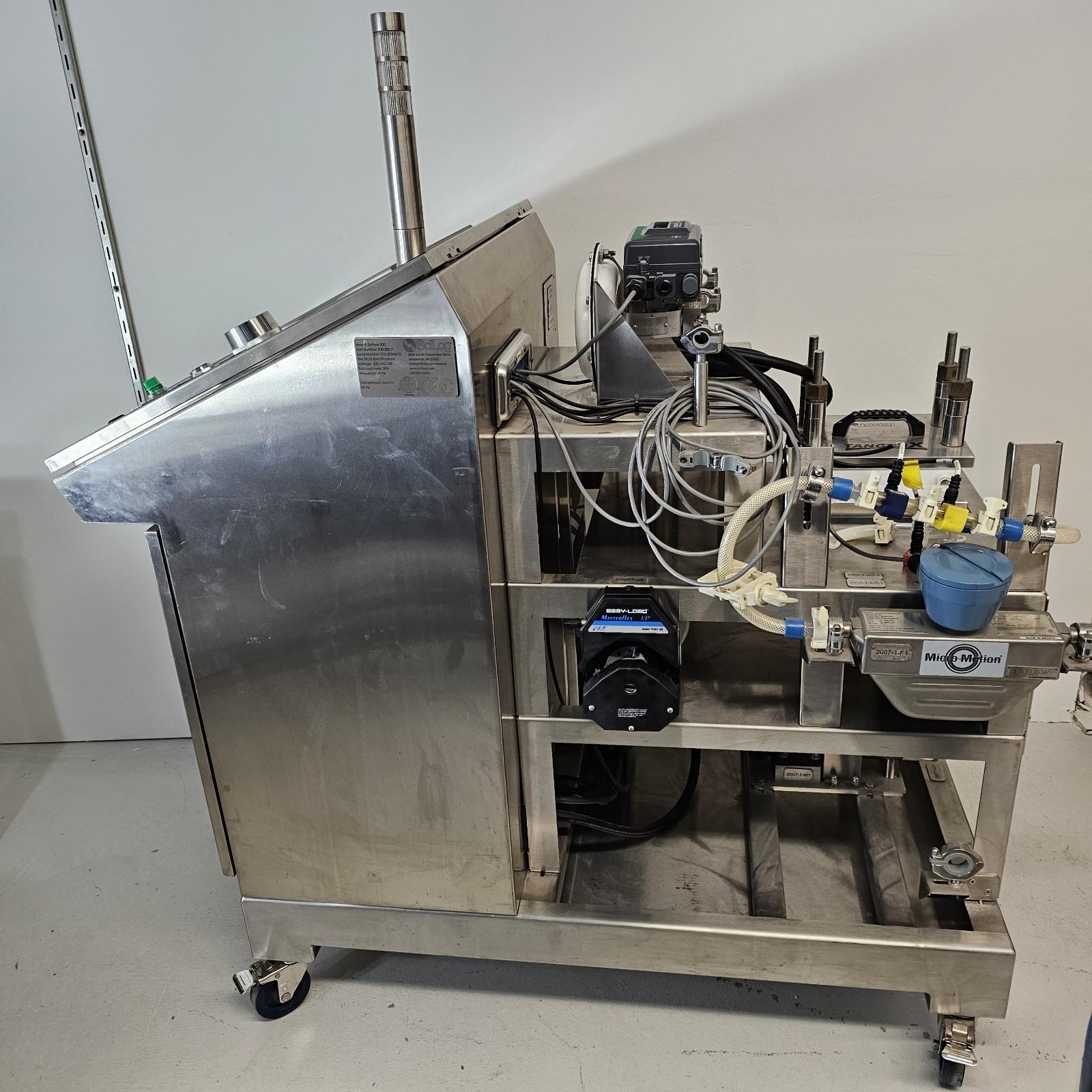

See photos. Used condition. Was decomissioned around 2021 and hasn't been powered on since. We do not have 3-phase power to fully test the system.

Everything shown in photos is included. All of the control electronics, pumps, manuals, etc. Briefly, the system is equipped with:

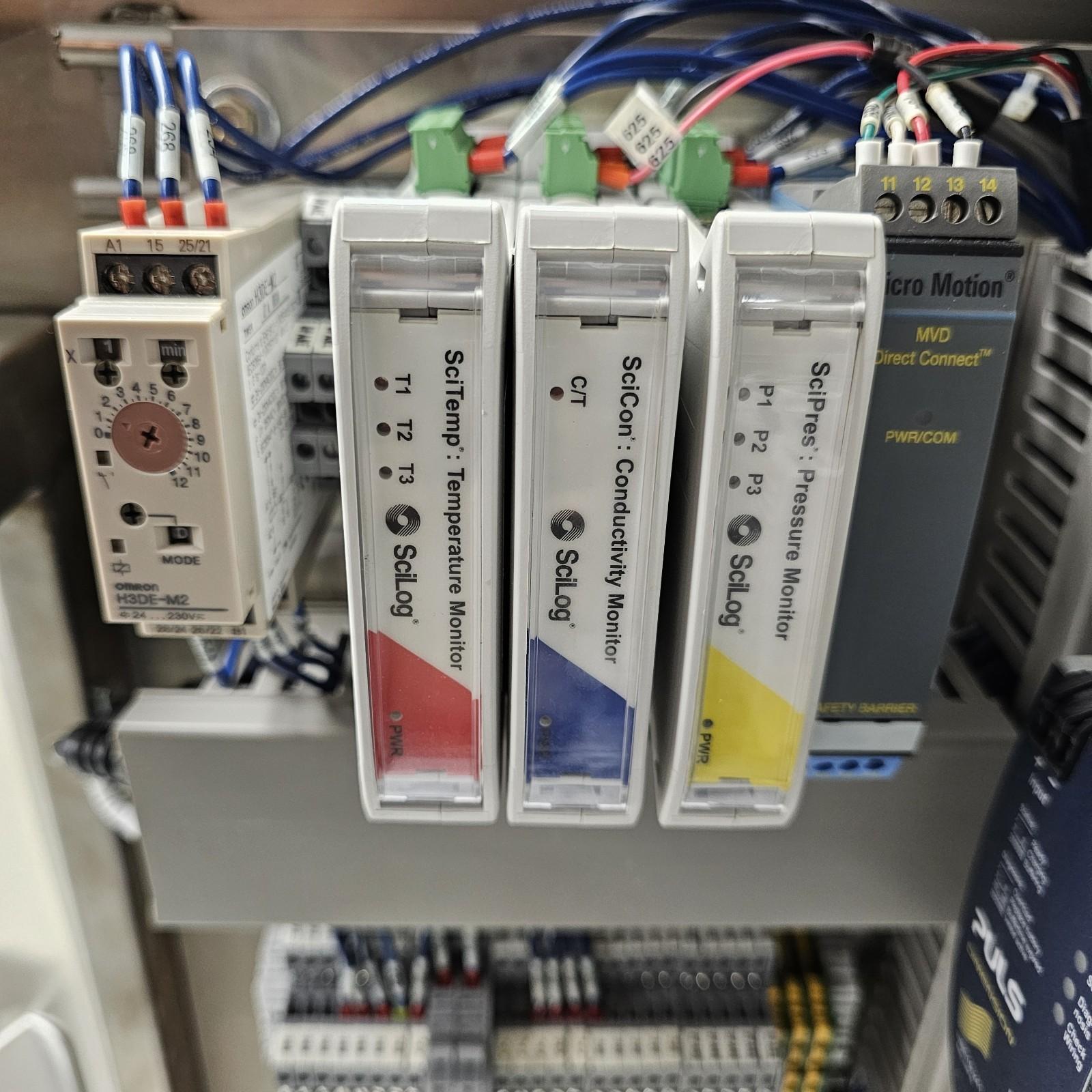

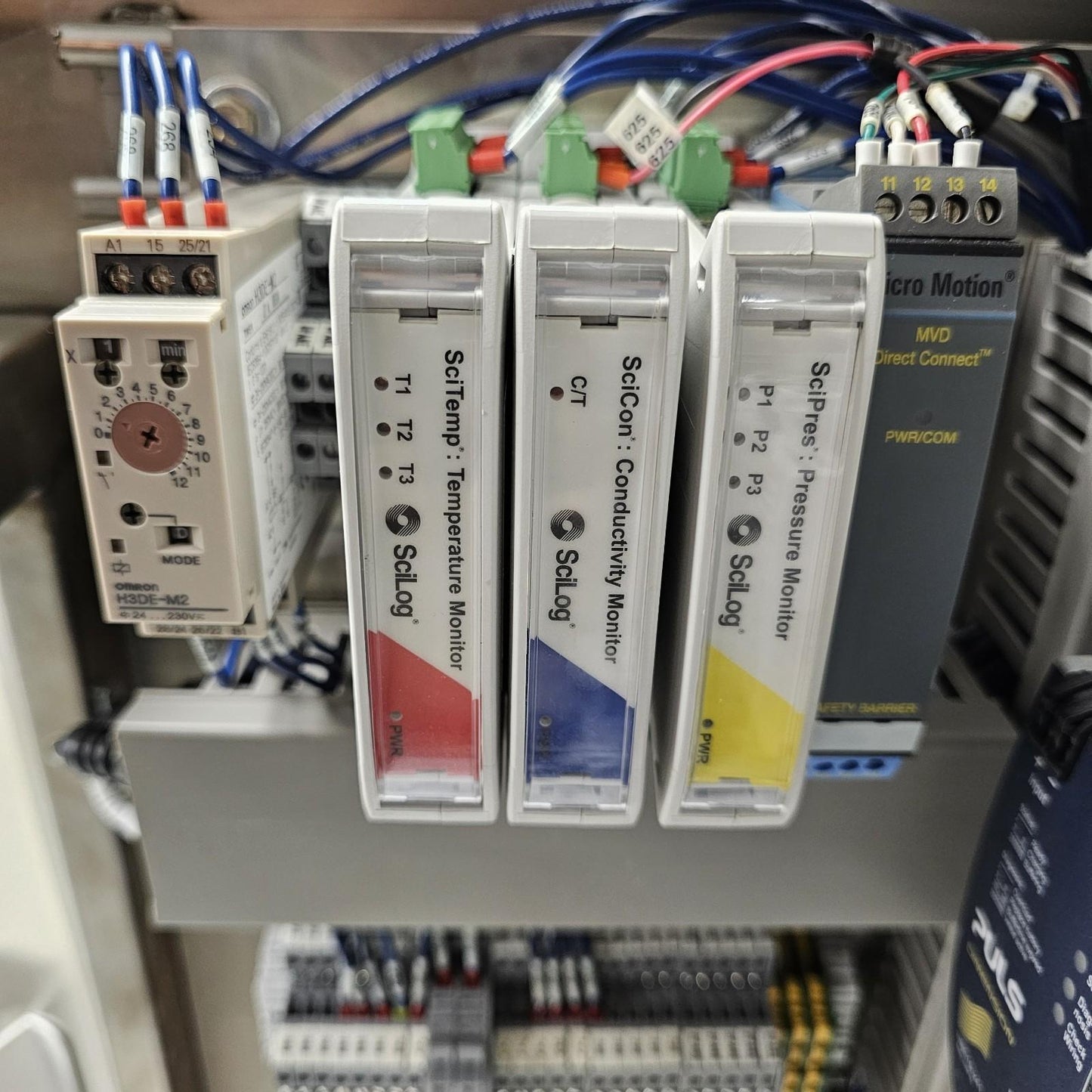

-3x SciLog sensor systems (SciPres pressure monitor, SciCon conductivity monitor, and SciTemp temperature monitor) to include sensors and controllers

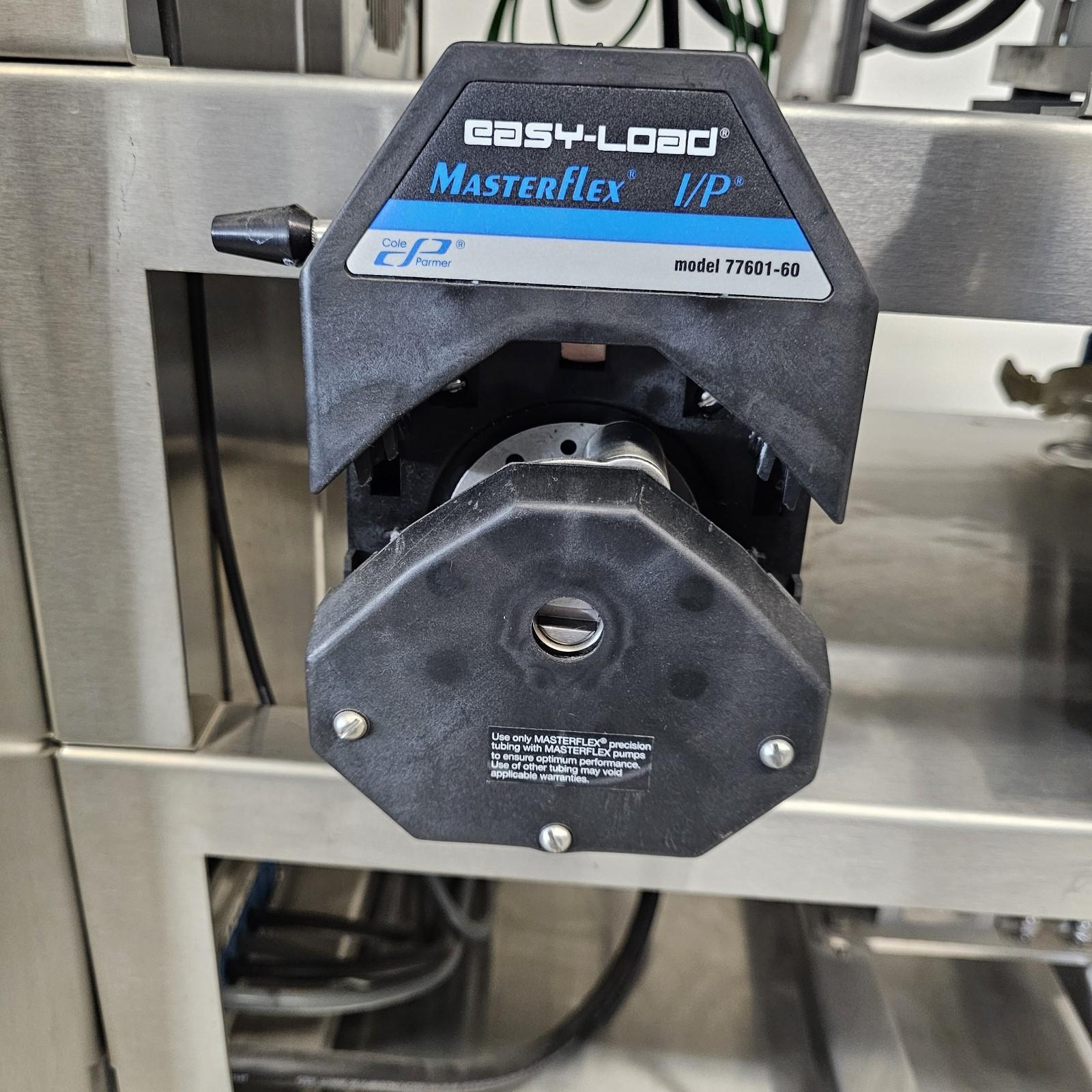

-1x MasterFlex I/P 77601-60 Easy Loaf pump

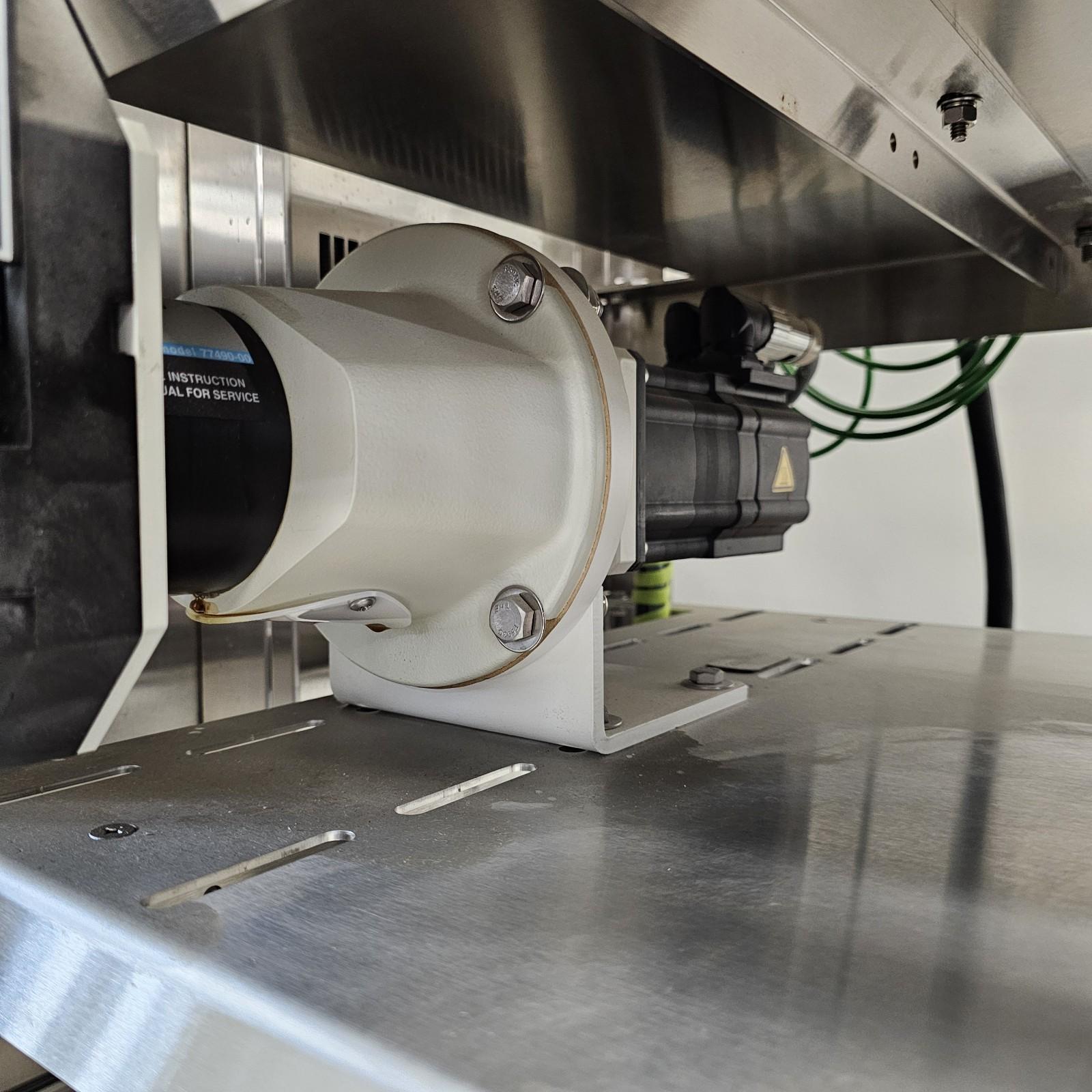

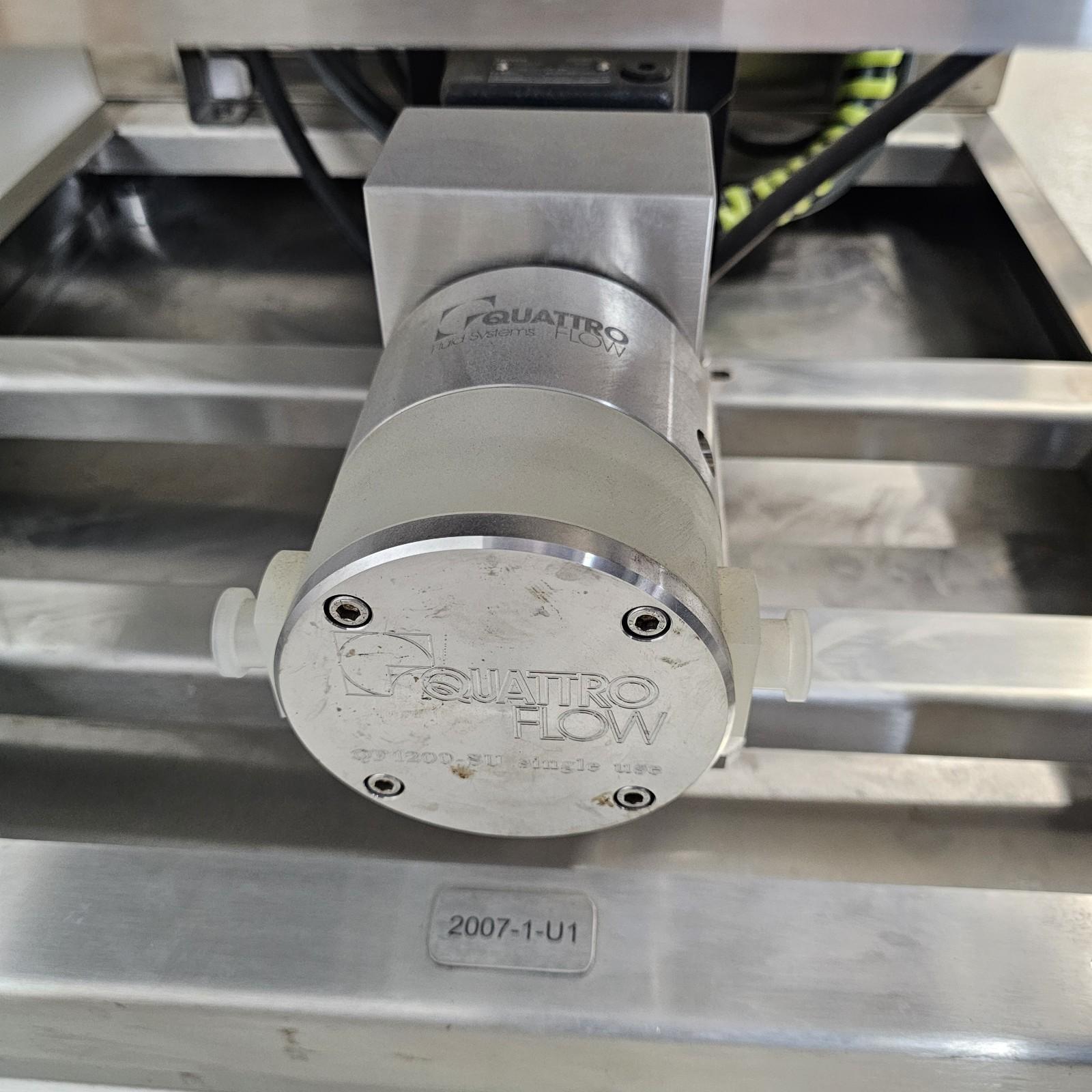

-1x Quattroflow 1200 pump head QF1200-SU single use fluid system

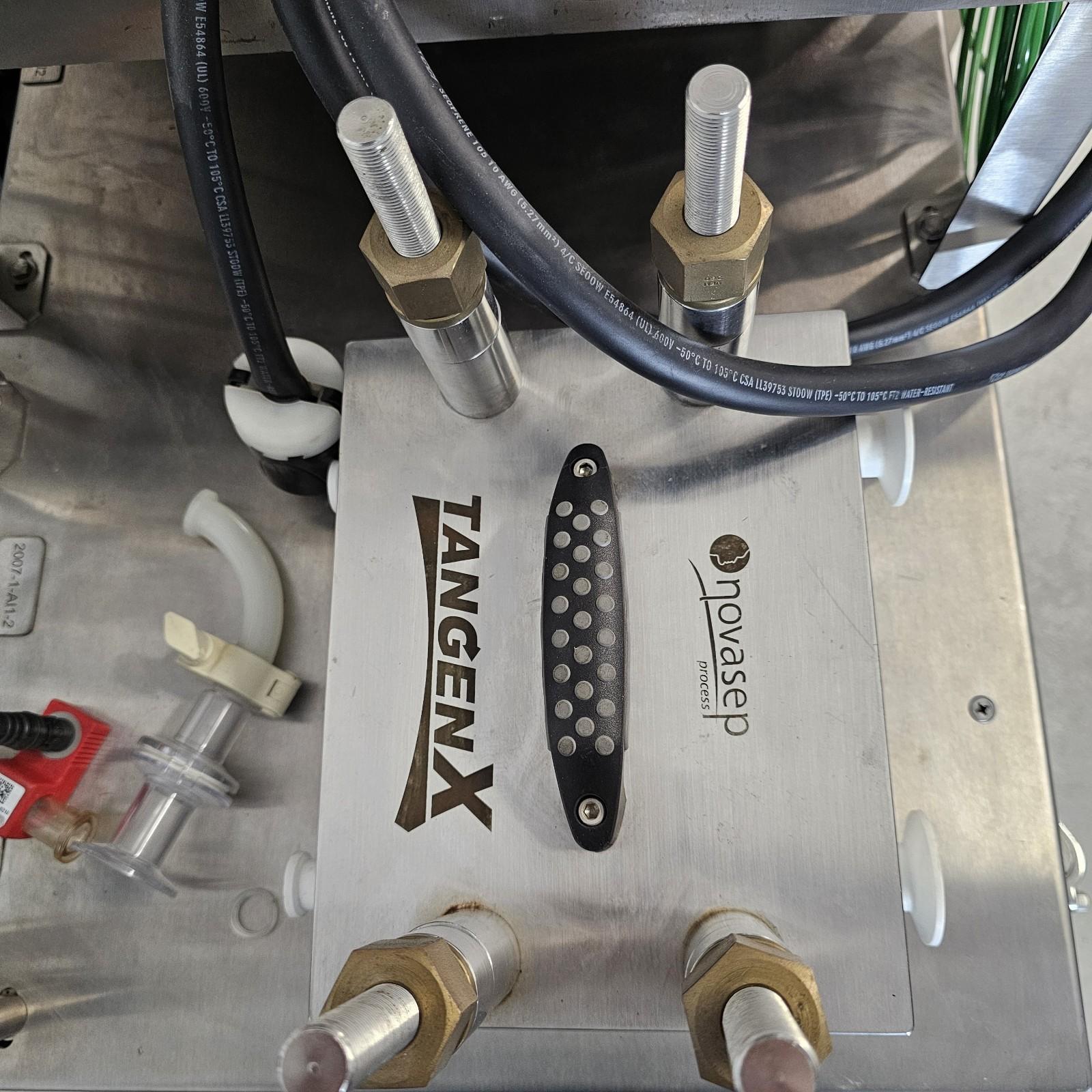

-NovaSep Process TangenX TFF single-use tangential filter

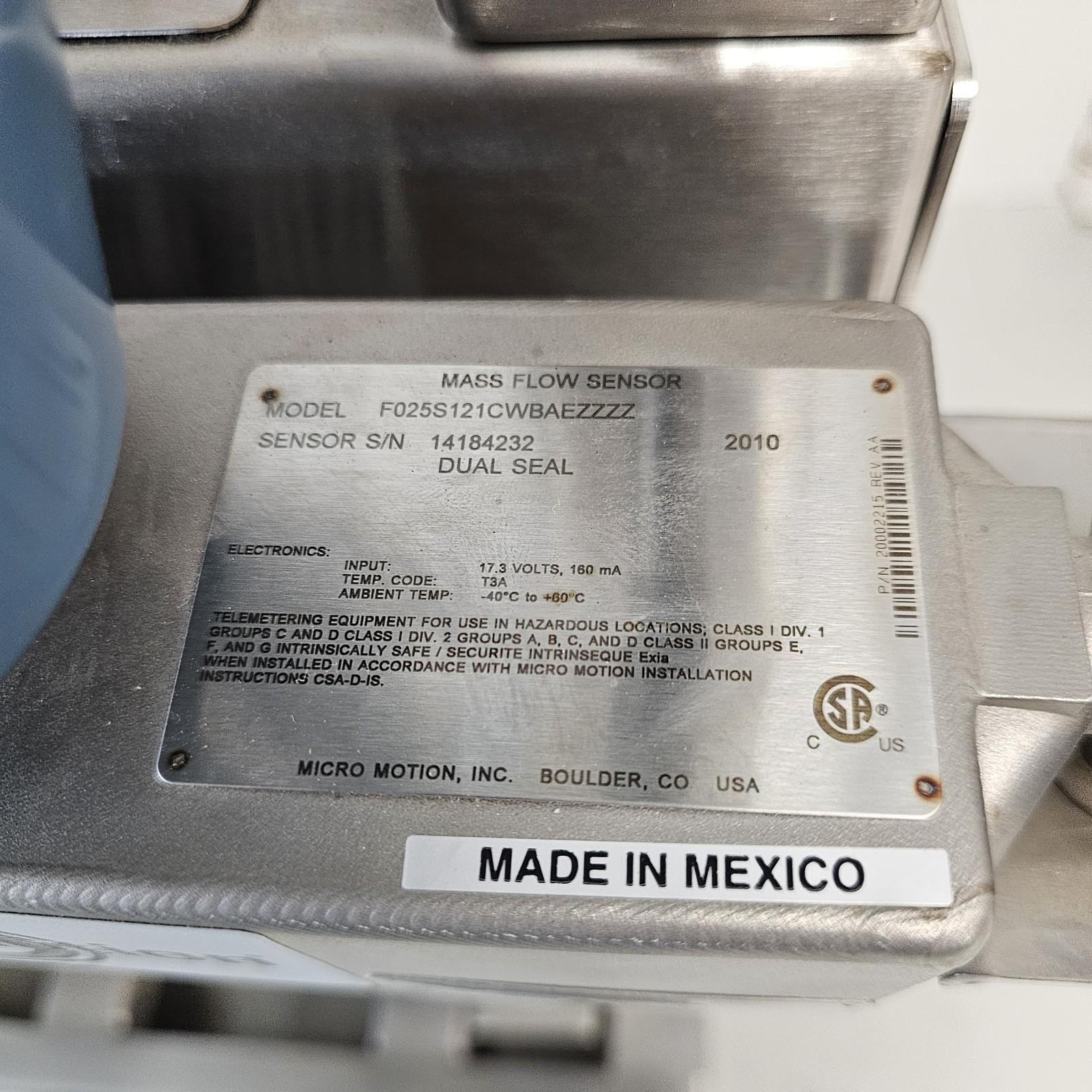

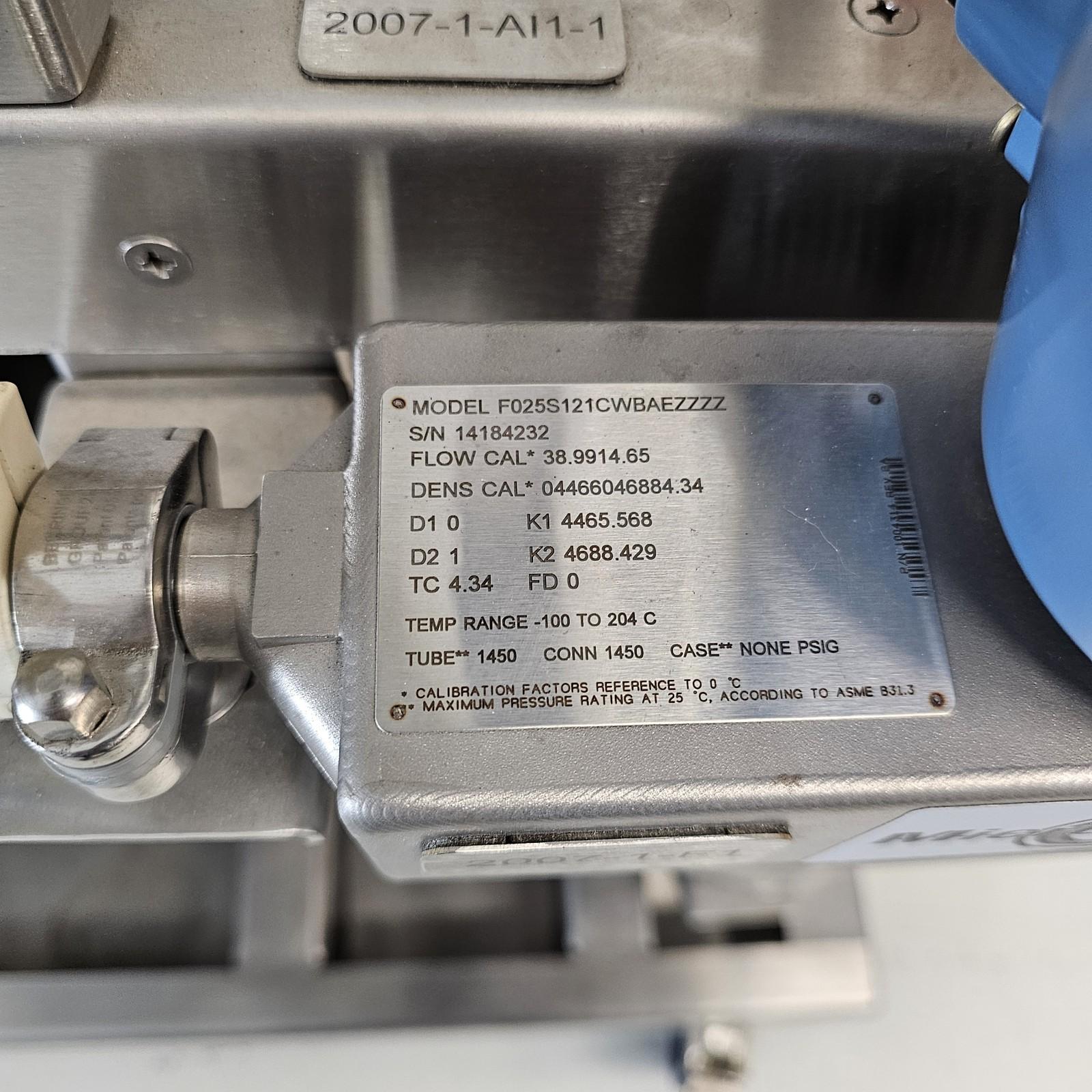

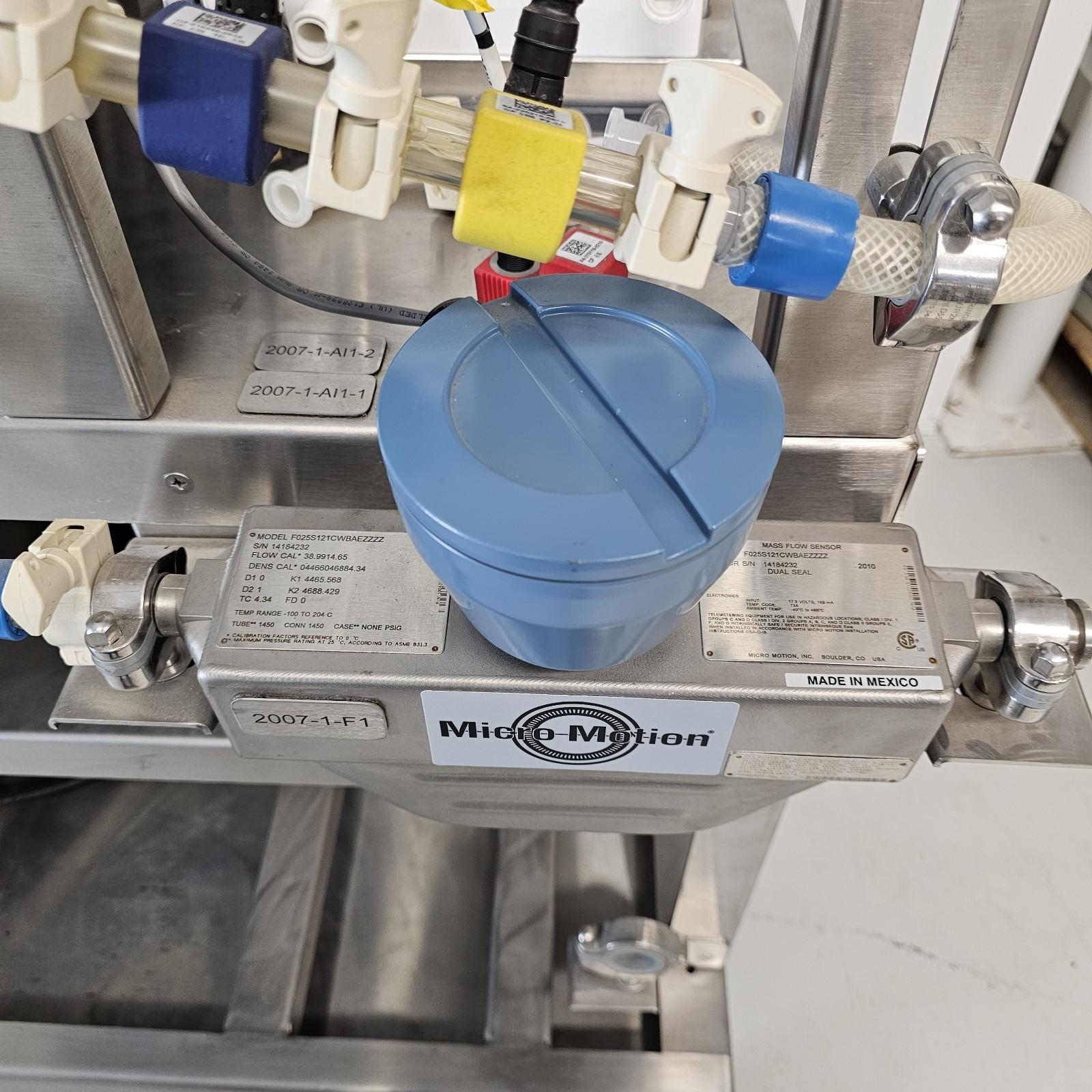

-MicroMotion F025S121CWBAEZZZZ mass flow sensor

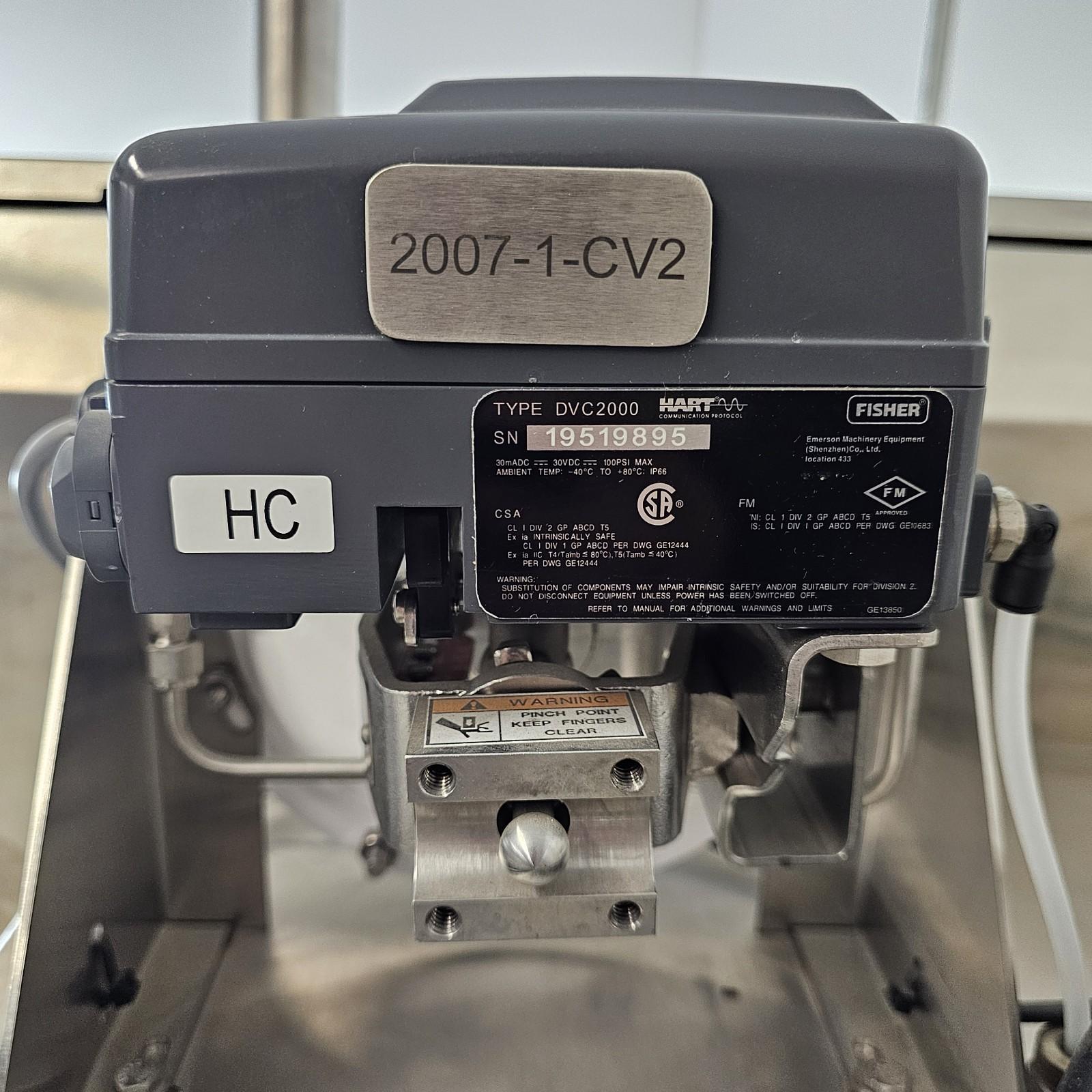

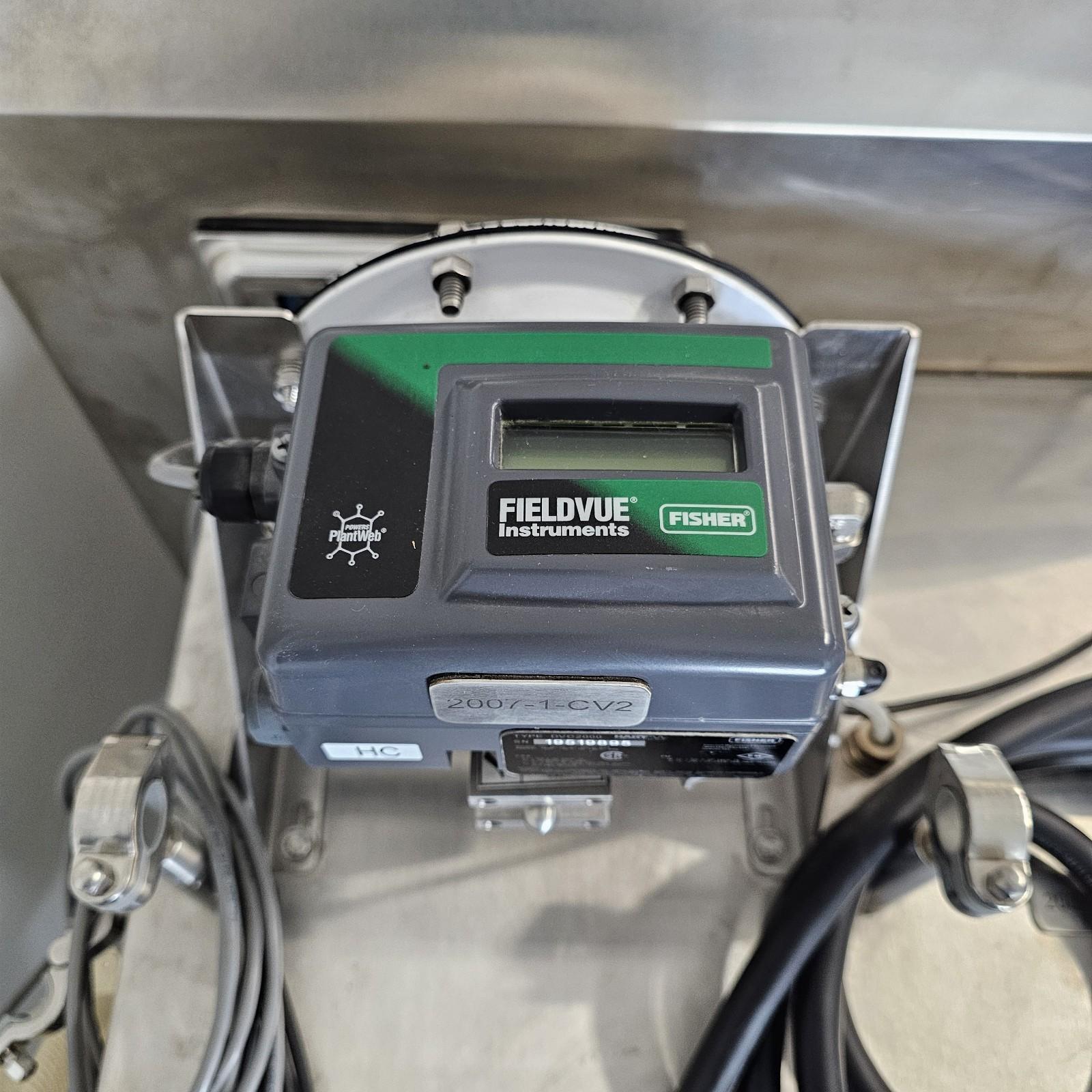

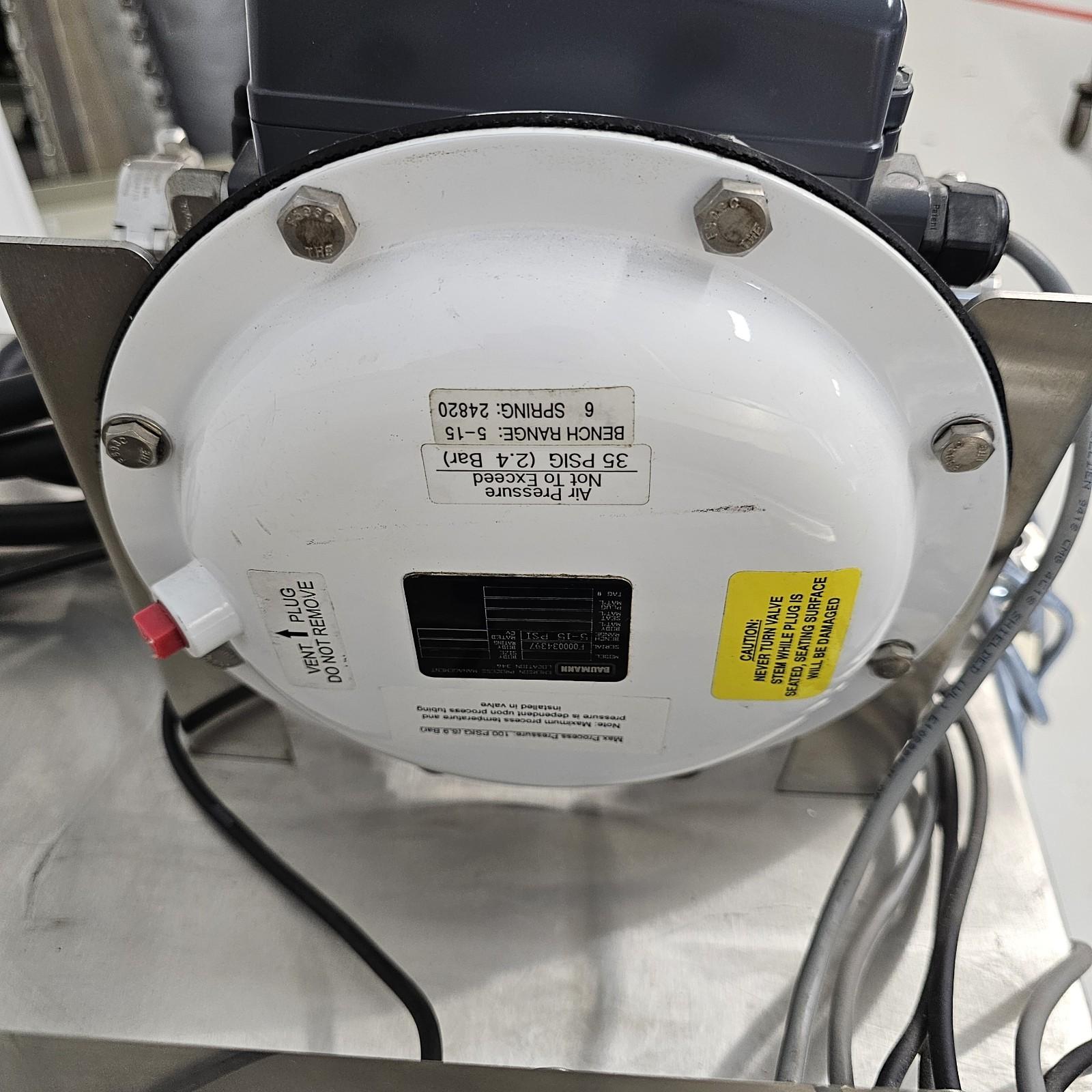

-Fisher DVC2000 Fieldview with Baumann valve

-Werma 69400055 indicator light

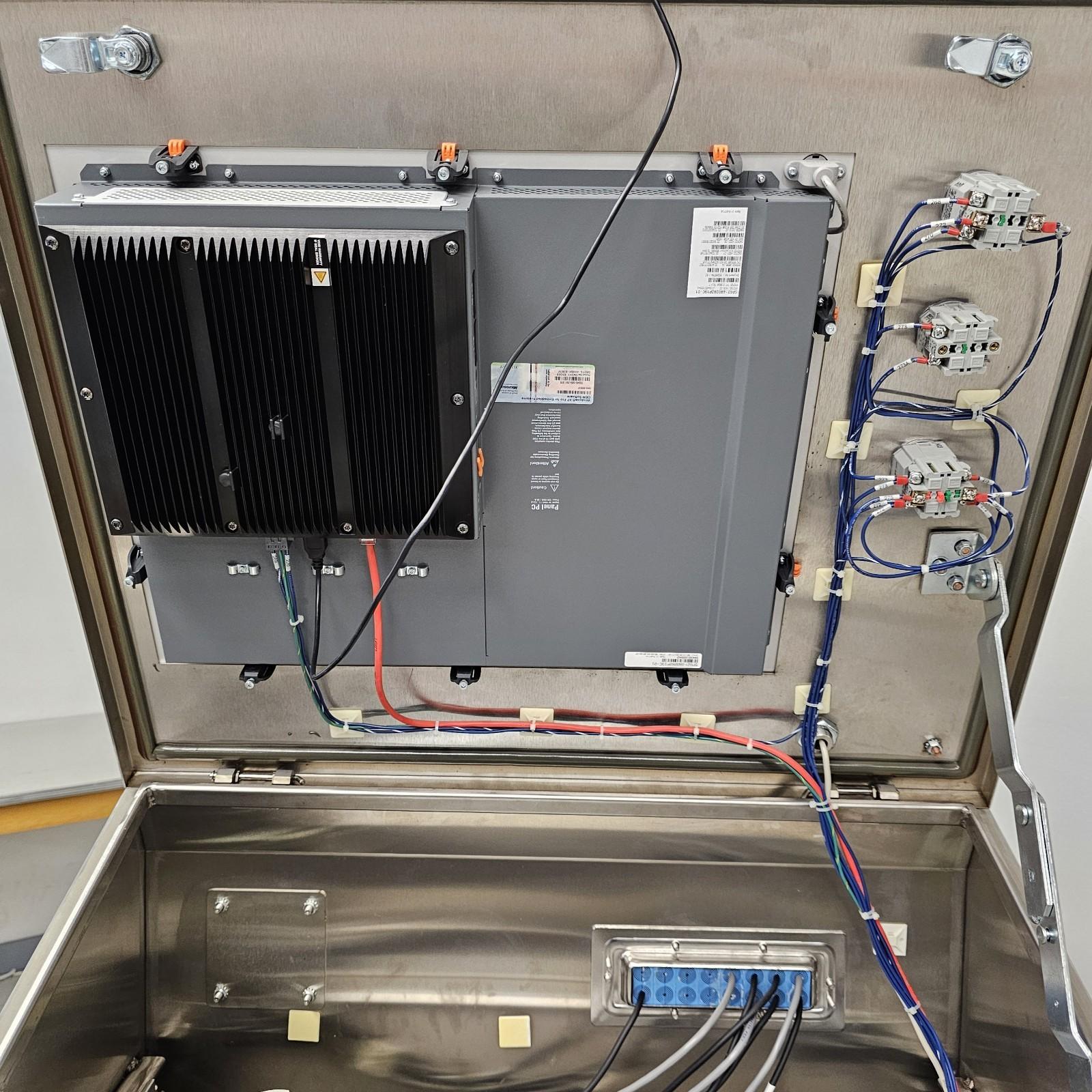

-B&R panel PC SPC720 5P62 Control PC

-2x manual binders with SciPure Software 2.1 CD Disk

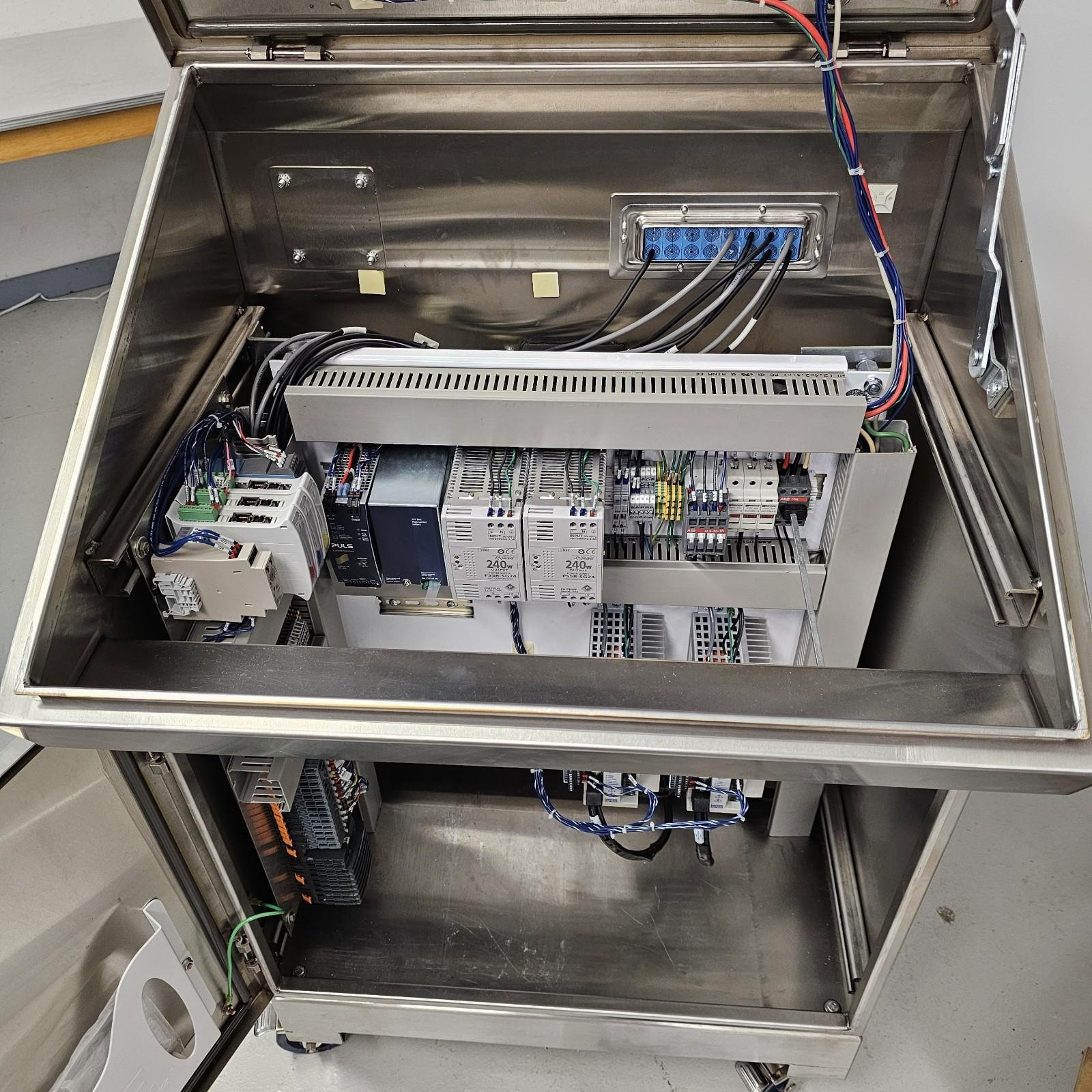

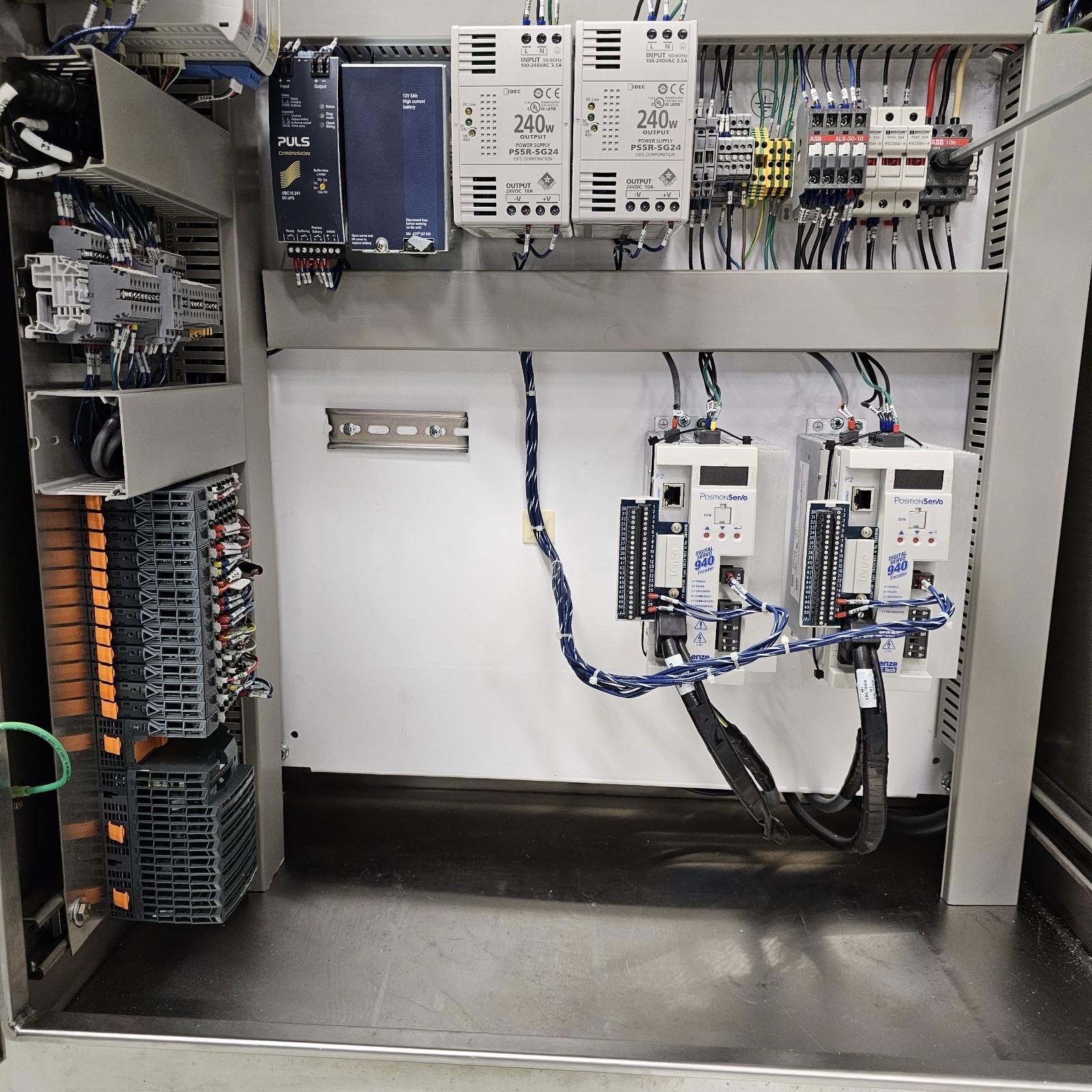

-Many Industrial controllers, power supplies, drivers, switches, etc.

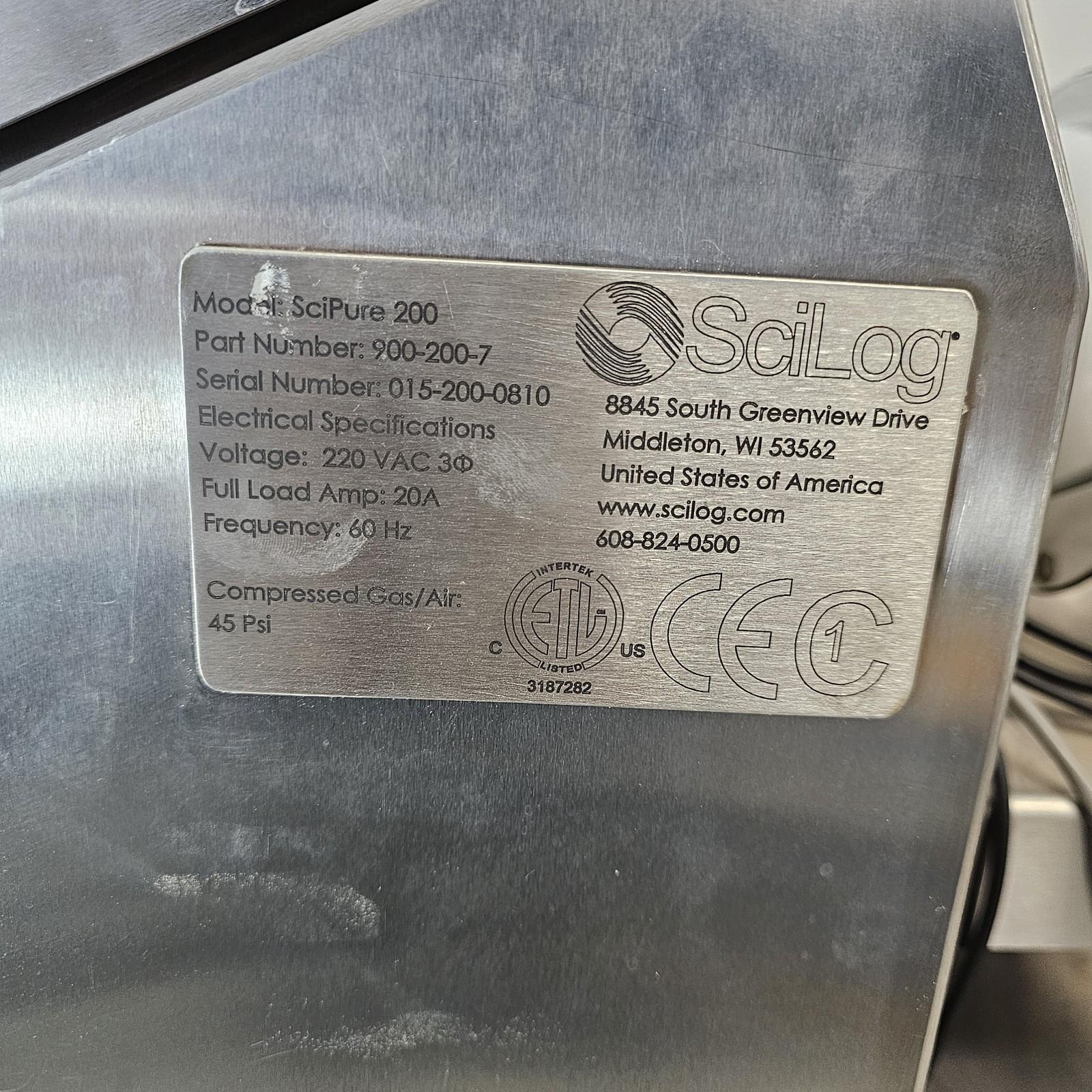

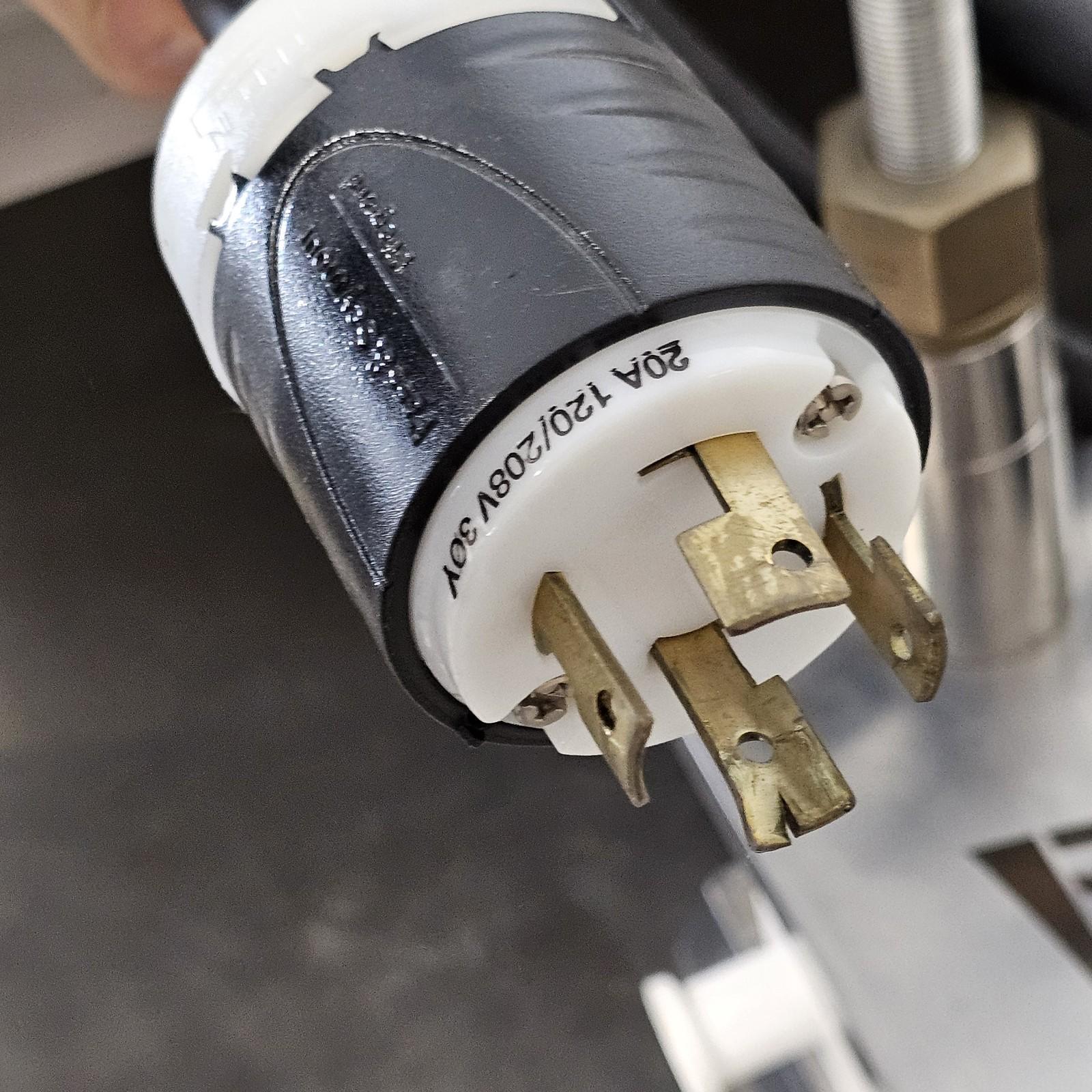

Some parts will be tucked into the main cabinet to avoid being lost. Runs on 3-Phase 220v power.

Due to the size and weight, system will need to be shipped via freight. Buyer is responsible for freight shipping costs to their location.

From the manufacturer:

"SciLog's Commitment To Our Customers:

• SciLog is committed to providing customers with high-quality, Automated Tangential Flow Filtration (TFF) systems in a cost & time responsive manner.

• SciLog's TFF systems are designed to meet our customer's application specific performance criteria.

• SciLog Products are Made and Assembled in the United States

SciLog's Automated TFF Technologies:

SciLog has made significant and sustained investments in the development of automated Tangential Flow Filtration technology. The Company's technology position encompasses TFF devices and methods as well as application specific software.

Control System:

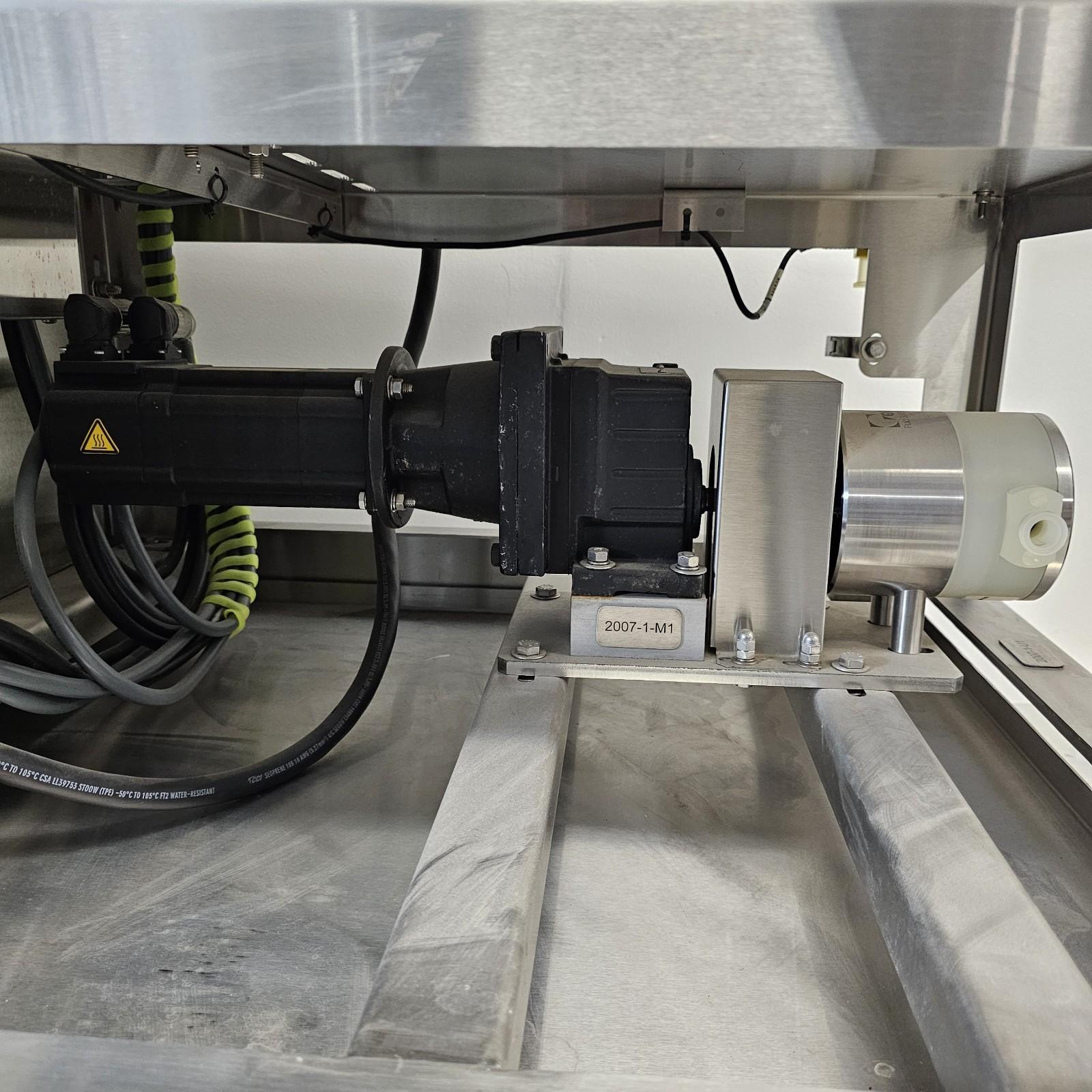

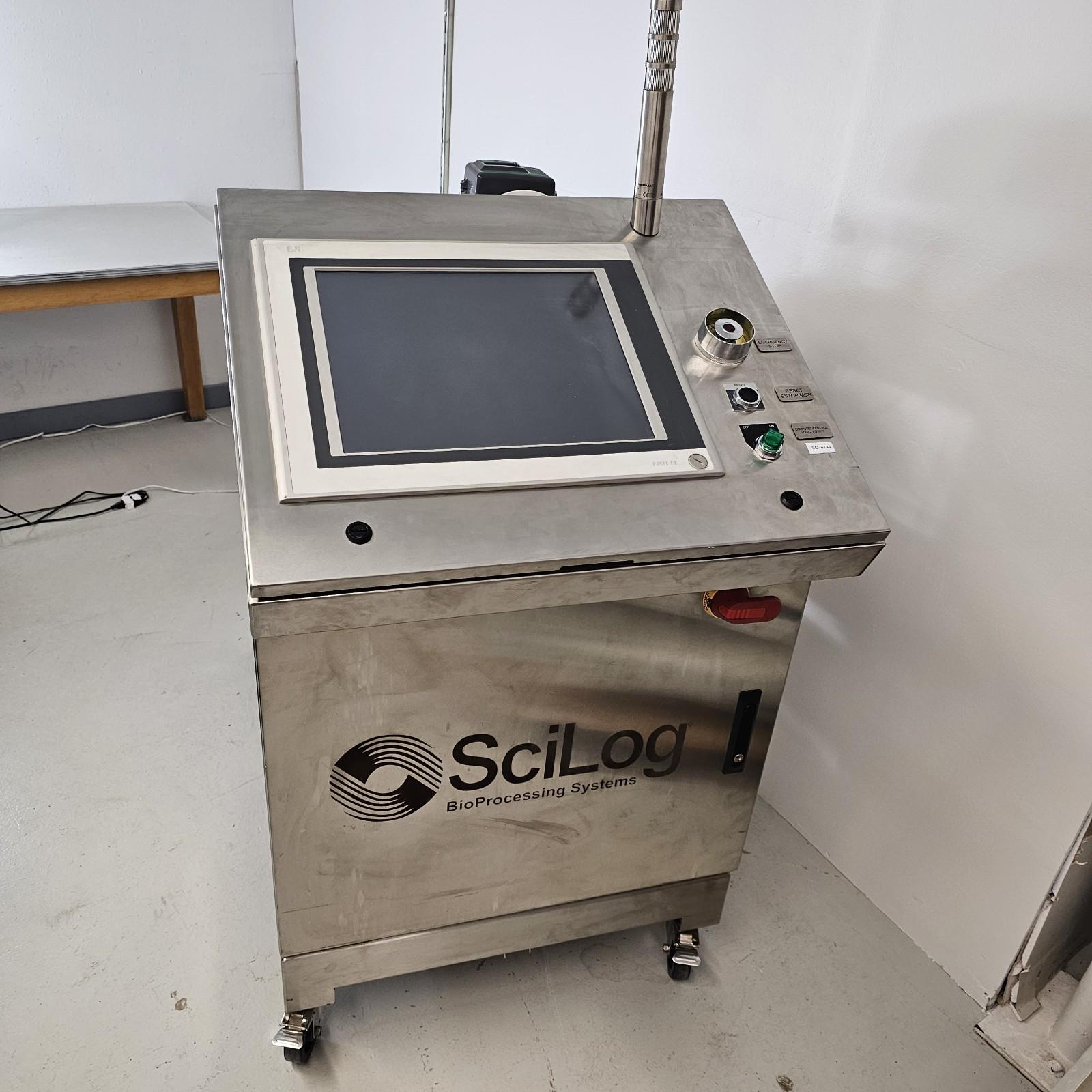

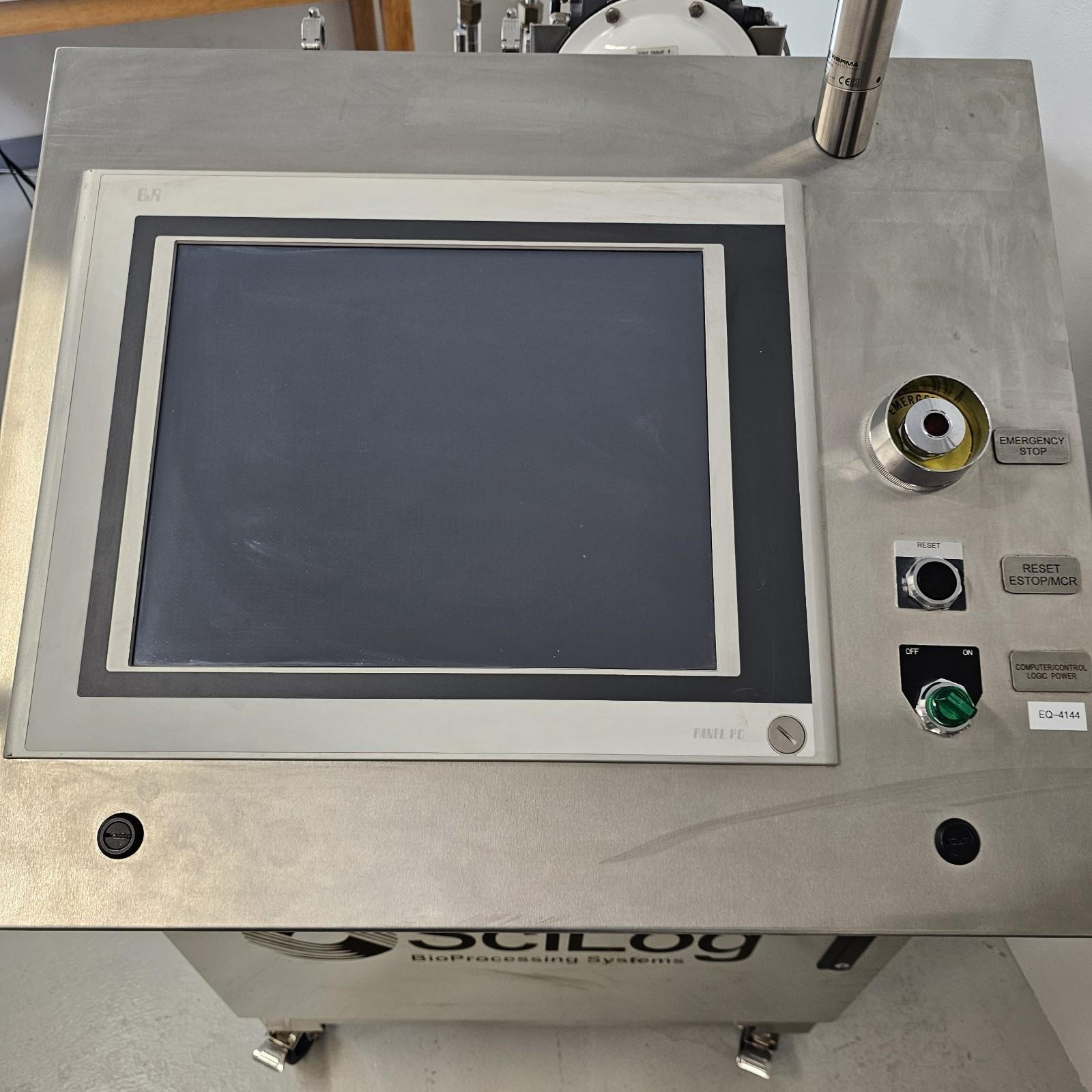

• Industrial PC-Based Controller, 19" Touch Screen HMI Display u irrtno . 304 Stainless Steel, NEMA-4x Cabinet, IP65 Rated . Industrial Servo Drive, 4,050 RPM (Rated), 1.6 KW Motor Vo1q of bol. Stack Light Monitoring Indicator 8 3200 6

Softwar Gen

Skid Tube Set: (2 complete tube sets included) • Elemental Tubing with Single-Use Reinforced Pharmaceutical Grade Tubing or Elemental Tubing

Skid Base: 291612

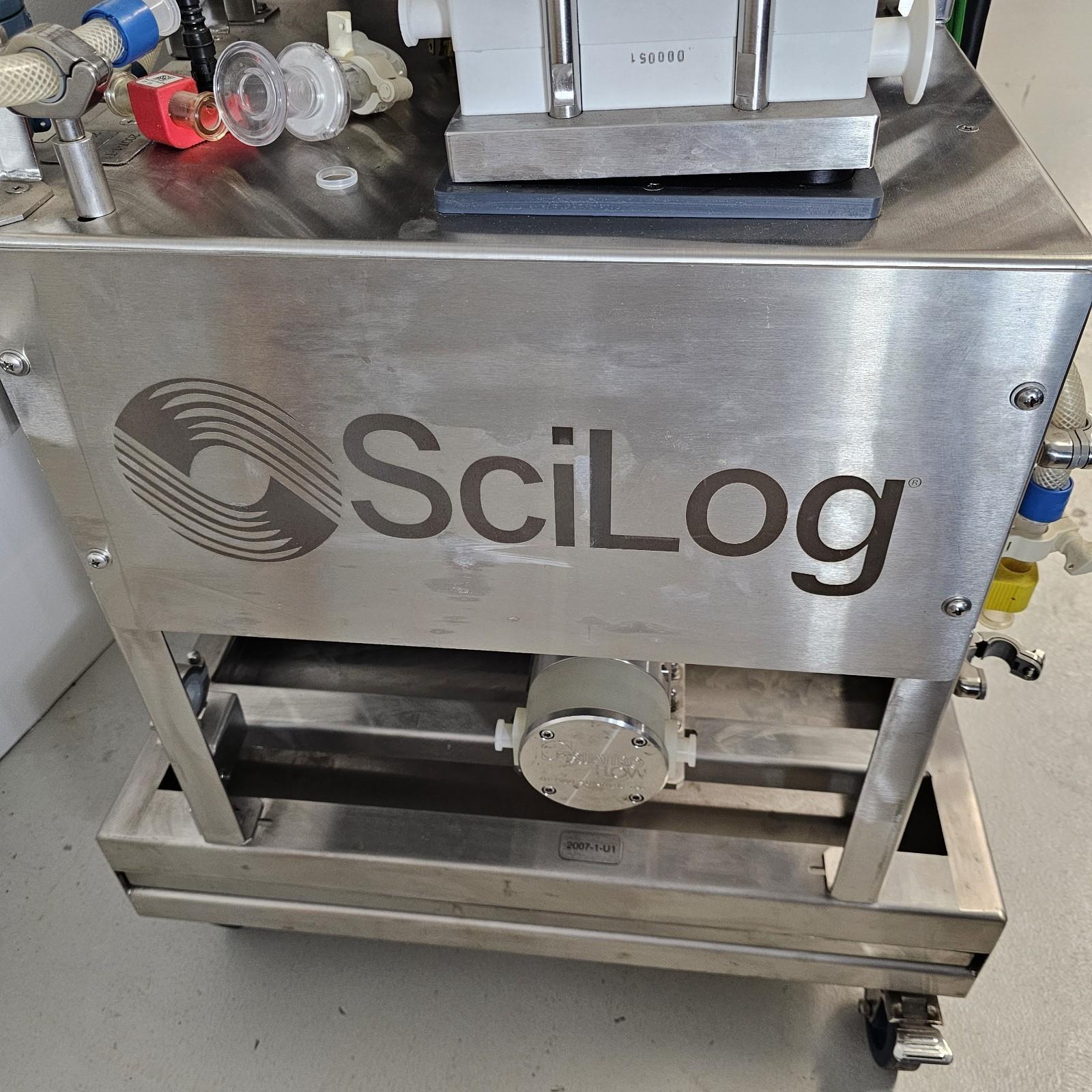

  • Modular 304 Stainless Steel Platform, 30" x 48.5" Footprint

  • Designed for Easy Access to Components In/et Line: Pump Head: Quattro Flow Quattro Disp 3" Cam Pump Head 912V2 -1 T I U122930u2 ima12y2 aviznoqzaR A . Sensors: • SciLog SciPres Pre-Calibrated Disposable Pressure sensors (0-60psi) Permeate Line:

Sensors: • Scilog SciTemp disposable Temperature sensors (0-100°C| þstomoluA 2 po. • SciLog SciPres Pre-Calibrated Disposable Pressure sensors (0-60psi) Jnsmgols SciLog SciCon Pre-Calibrated Disposable Conductivity sensors (0-200ms) MicroMotion FO25 Coreolis Flowmeter; Capacity: 45 LPM (max), 0.15% volume flow accure Retentate Line: Sensors:SciLog SciPres Pre-Calibrated Disposable Pressure sensors (0-60psi)

Va/ves: Fischer Pneumatically Proportional Pinch Valve (NC)

Diafiltration:

Pump Head: MasterFlex MasterFlex IP Easy Load Pump Head

Power Requirements: Hardware Utility Requirements: . 85 PSI with Regulator, 20V 3P 1/8 inch Barb Fitting

Software Overview: General:

. Administration . User Utilities • Security/Permission Settings . Master and Change Log View

Update

Rights: . 365 Days of Critical Software Updates Via Mail Aditional Update Options Available

Recipes:

. Recipe Configuration . Recipe Modification

uioV noirevlilaid . Master & Change Log View . Menu Driven Software Operation • Automated TFF Concentration and Diafiltration with User-Definable Recipes & Parameter • Automated, Continuous Data Collection Program for Compliance with 21 CFR Part 11 . Display of P&ID Icons with Real-Time Data Display • Process Point Recover for Paused States or Alarms

Process:

#

Process Results: • Process Results Viewing • Process Results Trending with Graph Export

System Tools: • Component Diagnostic, Dynamic PID System Test • User Selected Alarms & Trend Recordings . Manual l/O Systern Testing

####

Overall:

. Menu Driven Touch Screen Navigation . Secure User Login with Password Protected Access of . Administration Tools . Process Recipe . Process Run Modes • Post Process Data Viewing

Data Export & Collection:

. Real-Time Data Logging . Secure Data Export • Ethernet Connection to LAN . Data Archiving ◦ Automatic Safe Shutdown Sequence for Unexpected Power Loss

Customer Functional Requirement Specification / Project Scope:

Syster

Description

Value

Membrane Device:

flatsheet

Membrane & Holder Supplied By:

Customer

Membrane Manufacturer:

NovaSep

Membrane, Molecular Cutoff:

(Unknown)

Membrane Area:

1.5 m² wall

Process Volume (Initial):

5-30 Liters

Process Volume (Final):

<30 Liters

Process Concentration (Initial);

(Unknown)

Process Concentration (Final):

(Unknown)

Diafiltration Volume:

<30 Liters

Diafiltration Volume Exchanges: 2U

4+ 9T bate

Feed Rate (Maximum):

10 Liters /min. 1o),

Feed Rate (Minimum):

7.5 Liters / min.

Permeate Rate (Maximum):

3 Liters/min. 21l029)

Permeate Rate

Trans-Membrane Pressure:

20psi

Temperature Range:

4 To 20 °C

scif

*Values marked as (Unknown) represent quantities unknown or undetermined at the time of quoting.

SciPure200 Disposable Model

. P C-Based Controller, NEMA 4, IP65 Rated Cabinet with Stack Light Indicator . Inlet Feed Pump: Quattro Flow 1200 su • Flow Totalizers: Bag Holder w/ 50kg Load Cell (Retentate) , F-Series 45 L/min SS Flow Meter (Permeate) Control Valve: • Electronic Balances: None ‣ SciLog Proprietary Software

○ GMP Compliant Data Collection ○ End Point Controlled Concentration and Diafiltration Modes ○ Batch Processing for Concentration and Diafiltration Modes ○ Automated, Simultaneous Control of both TMP Pressure and Inlet Flow Rate

*System cost does not include shipping or Non-Standard Hardware (Filter Holder)"
