Steinecker Mühlheim 10kV DC High Voltage Reed Relay Relais 294-24-C072 24v Drive

Steinecker Mühlheim 10kV DC High Voltage Reed Relay Relais 294-24-C072 24v Drive

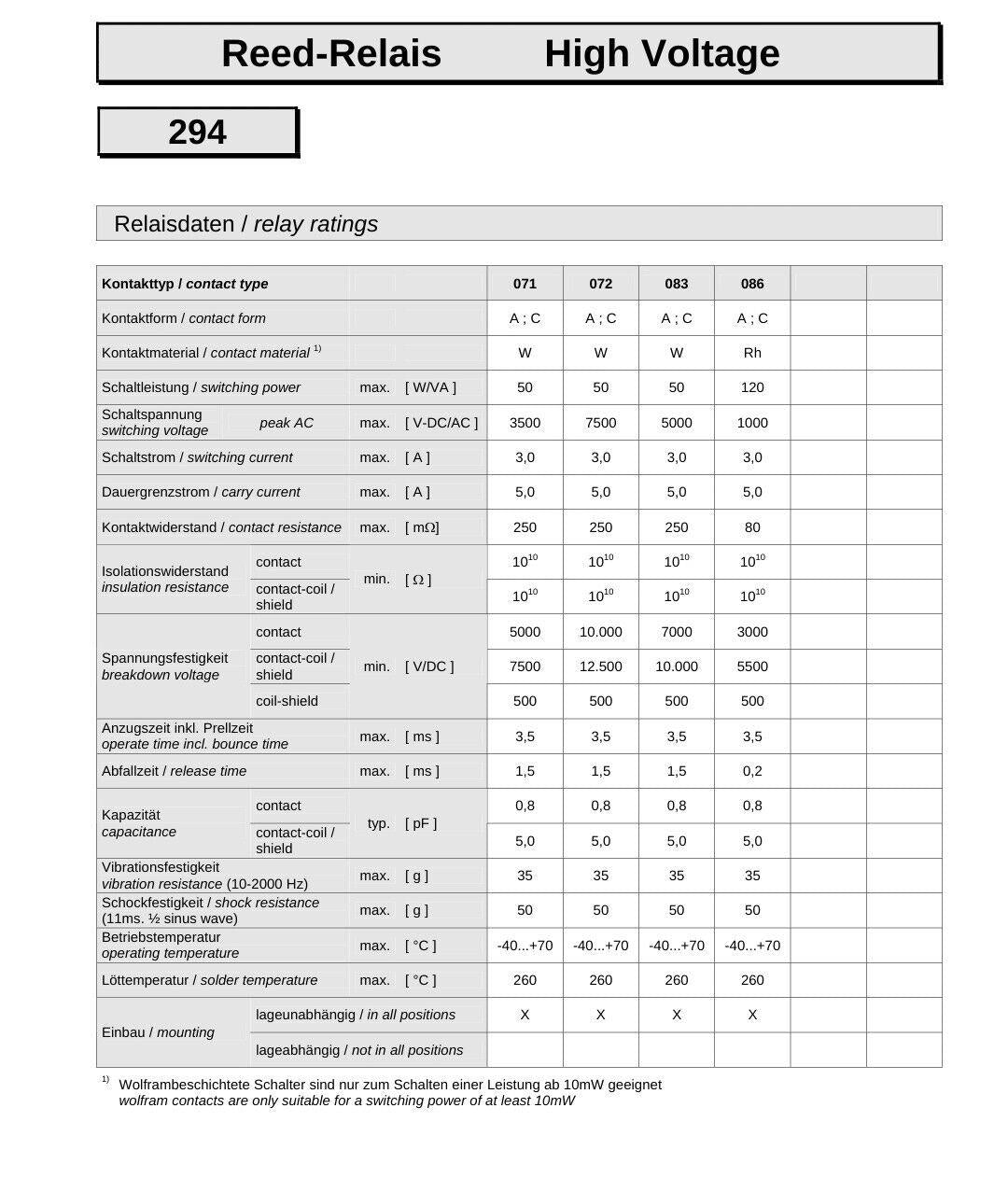

Used. See last photo for the data sheet, the second column describes this unit. The breakdown voltage is 10 kV DC and switching voltage is 7.5 kV AC.

The pull-in voltage (drive voltage) is 24 V.
