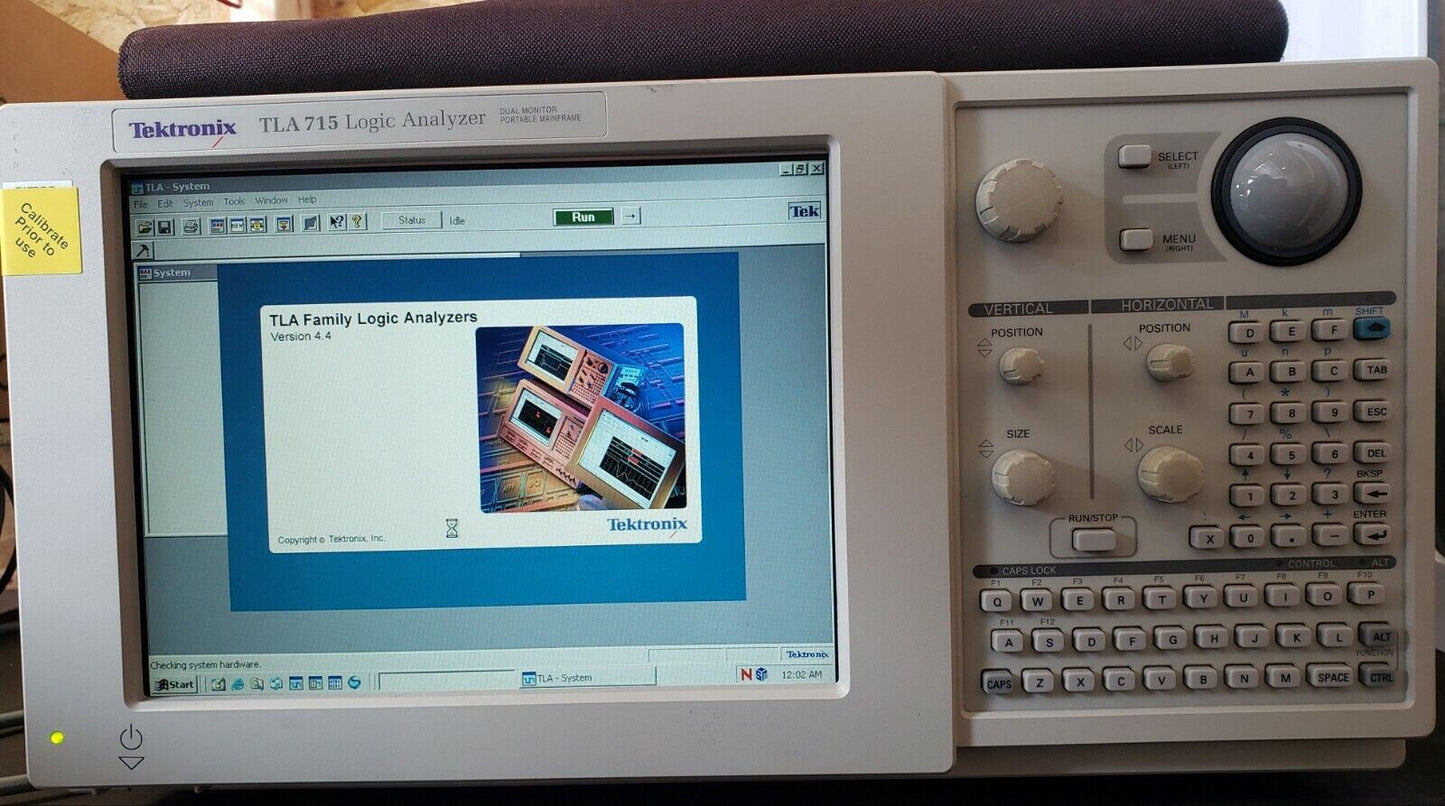

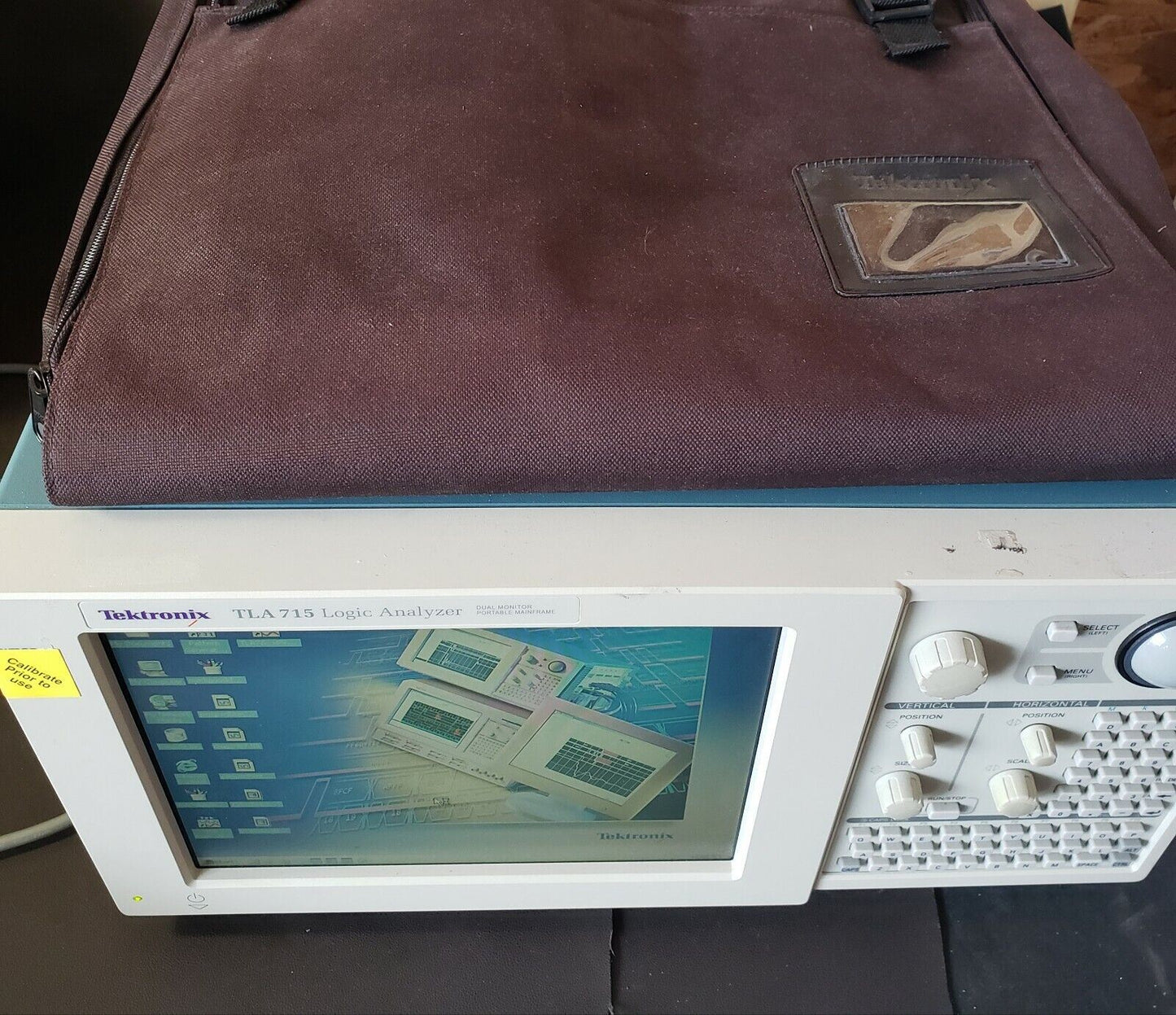

Tektronix TLA715 Logic Analyzer with TLA7AA4 Module, Manuals, Many Accessories

Tektronix TLA715 Logic Analyzer with TLA7AA4 Module, Manuals, Many Accessories.

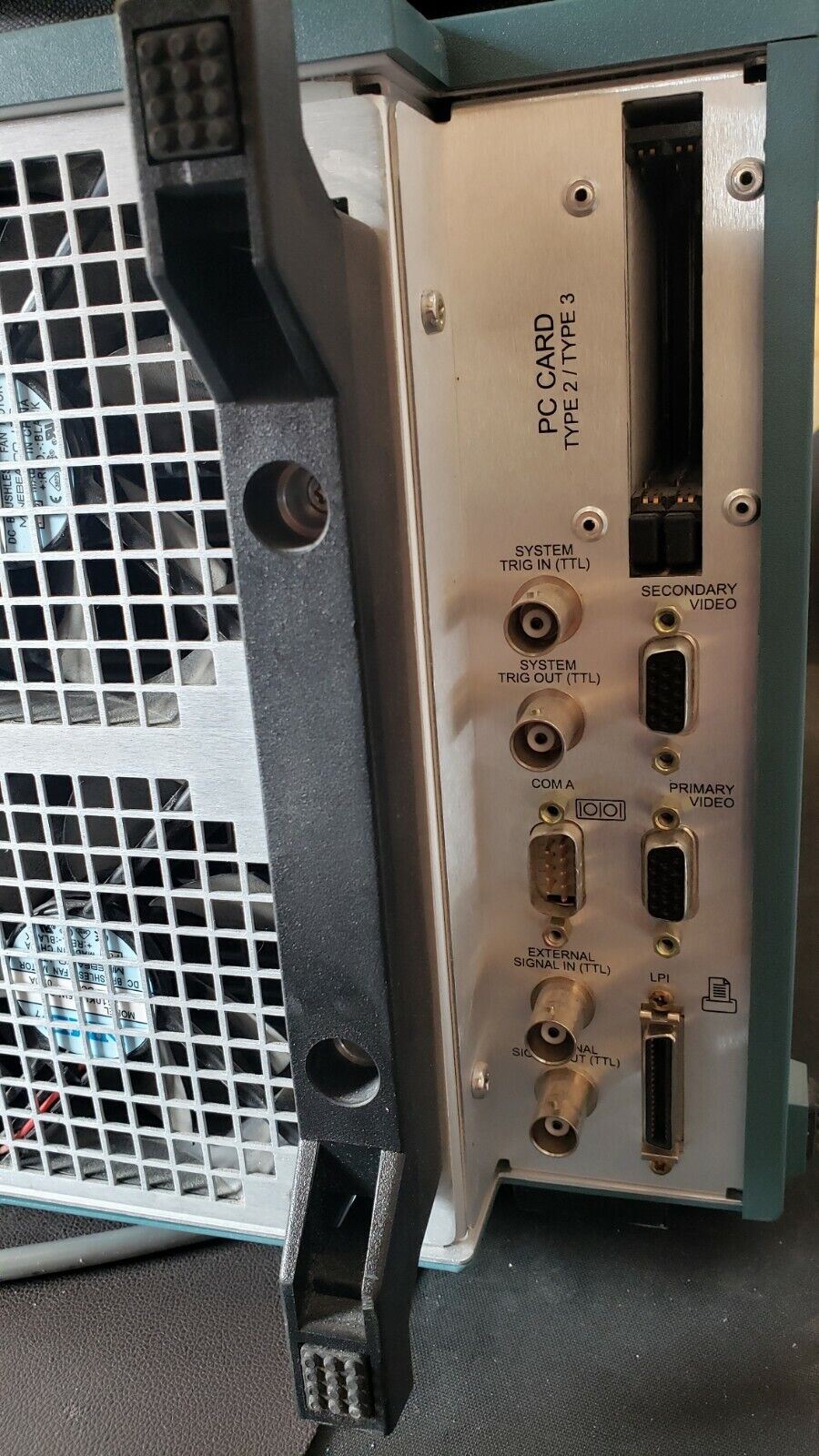

Logic analyzer has 2 USB 1.0 ports, keyboard and mouse ports, CD drive, easy hard drive removal tray, 2 PC card slots, printer interface, and video outputs for external monitors.

For full images of diagnostics as well as more images, see this folder:

https://drive.google.com/folderview?id=1fGzecE2wayrqvs4rvc_f62E7UtKoYOKi

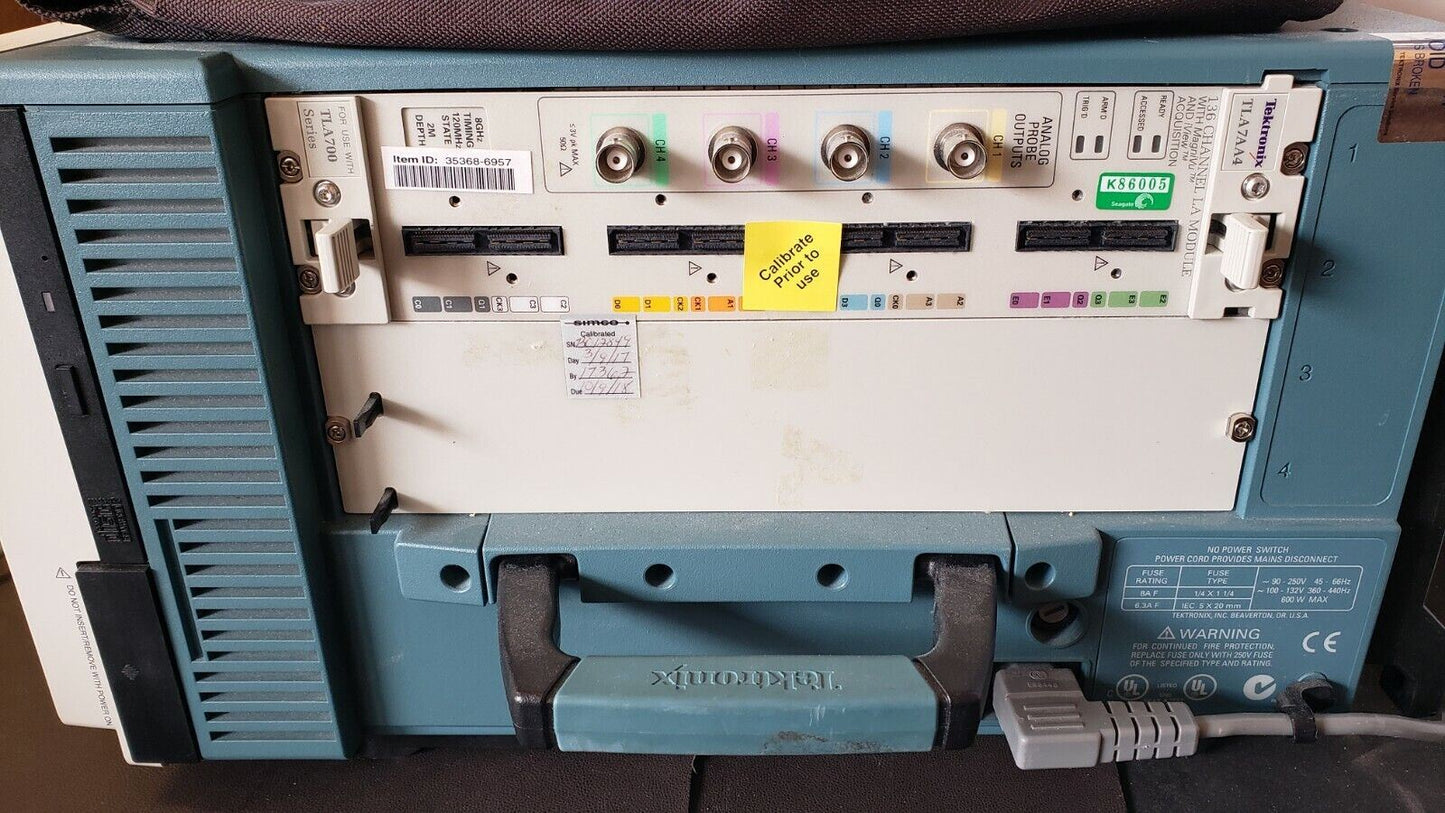

The logic analyzer has the TLA7AA4 136 channel logic analyzer module. Has a sample rate of 800 MHz with MagniVu and iView Acquisition. 4 analog probe outputs and 4 probe slots (as seen in images)

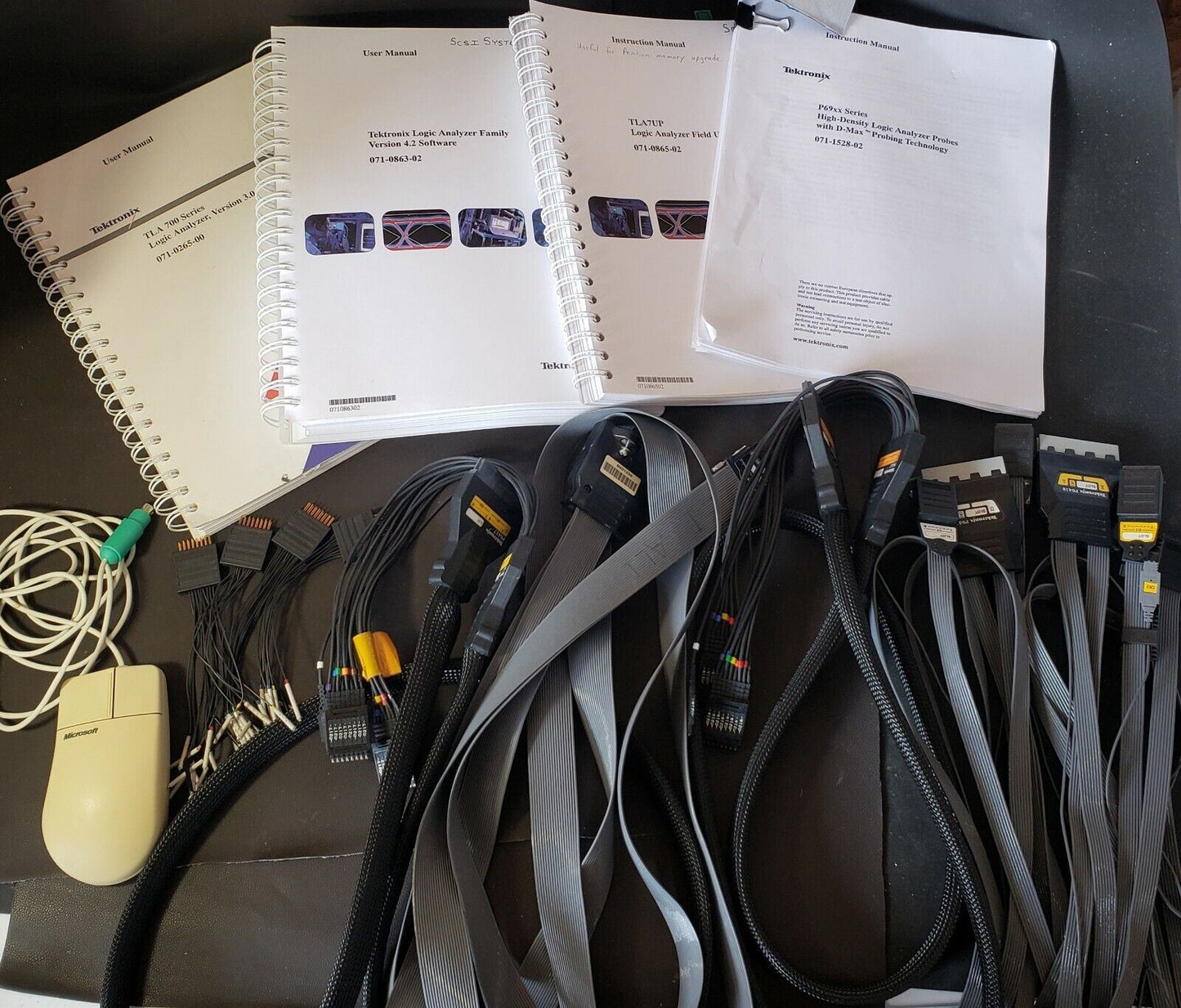

In addition to the main logic analyzer and module, list of accessories includes (not exhaustive):

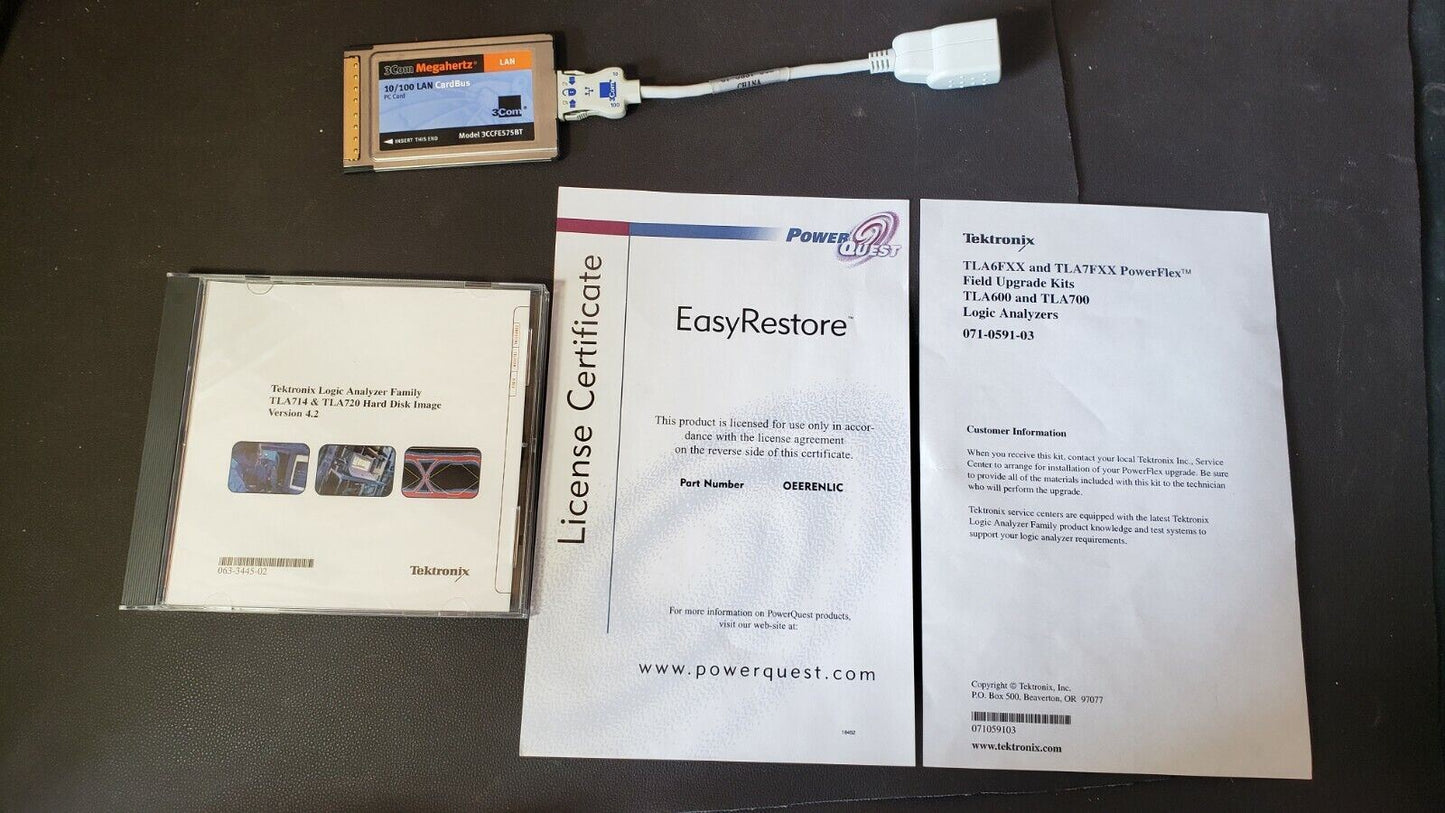

1) Tektronix TLA714 & TLA720 hard disk image CD (version 4.2)

2) Cardbus the ethernet LAN cable

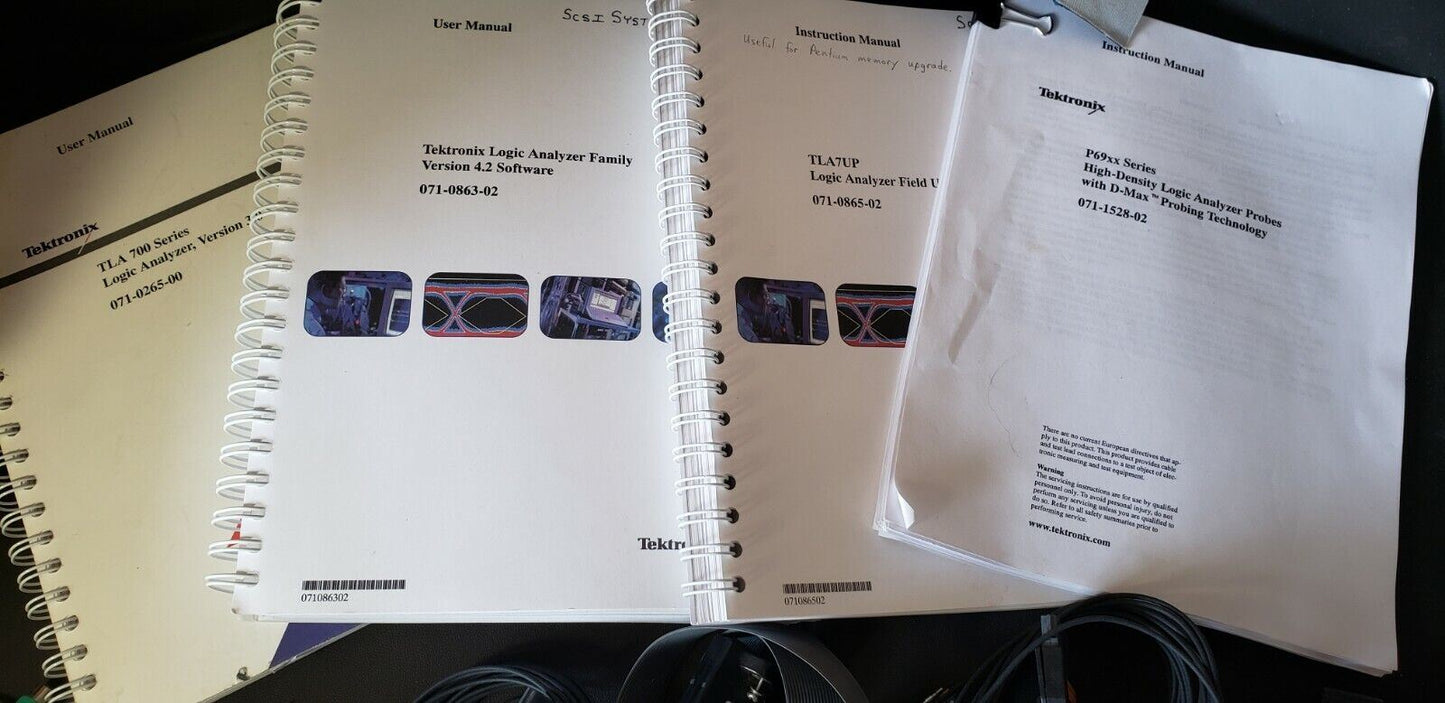

3) TLA7UP logic analyzer field upgrade kit instruction manual

4) Tektronix logic analyzer family version 4.2 software user manual

5) TLA 700 series logic analyzer, version 3.0 user manual

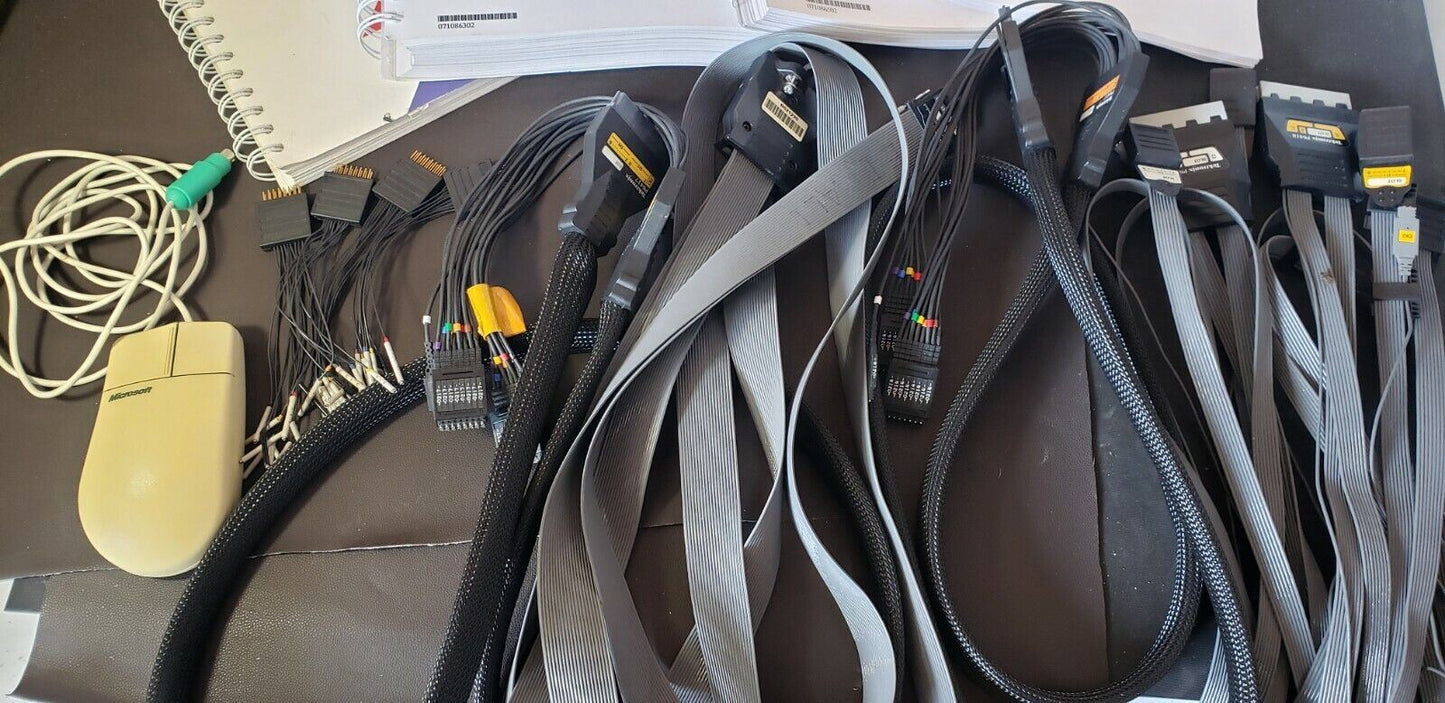

6) Tektronix P6417 CK1 probe

7) Tektronix P6418 CK2 probe

8) Tektronix P6418 CK3 probe

9) Tektronix P6960 single ended-B021230 cable

10) Tektronix P6417 CK2 probe

11) (qty 4x) probe breakout pins

12) Mouse

13) P69xx high density logic analyzer probes with D-Max probing technology instruction manual.
