Terra Universal 6701-99A Universal Modular ISO 5 Hardwall Cleanroom 8'L x 8'W x 8'H
Used see photos

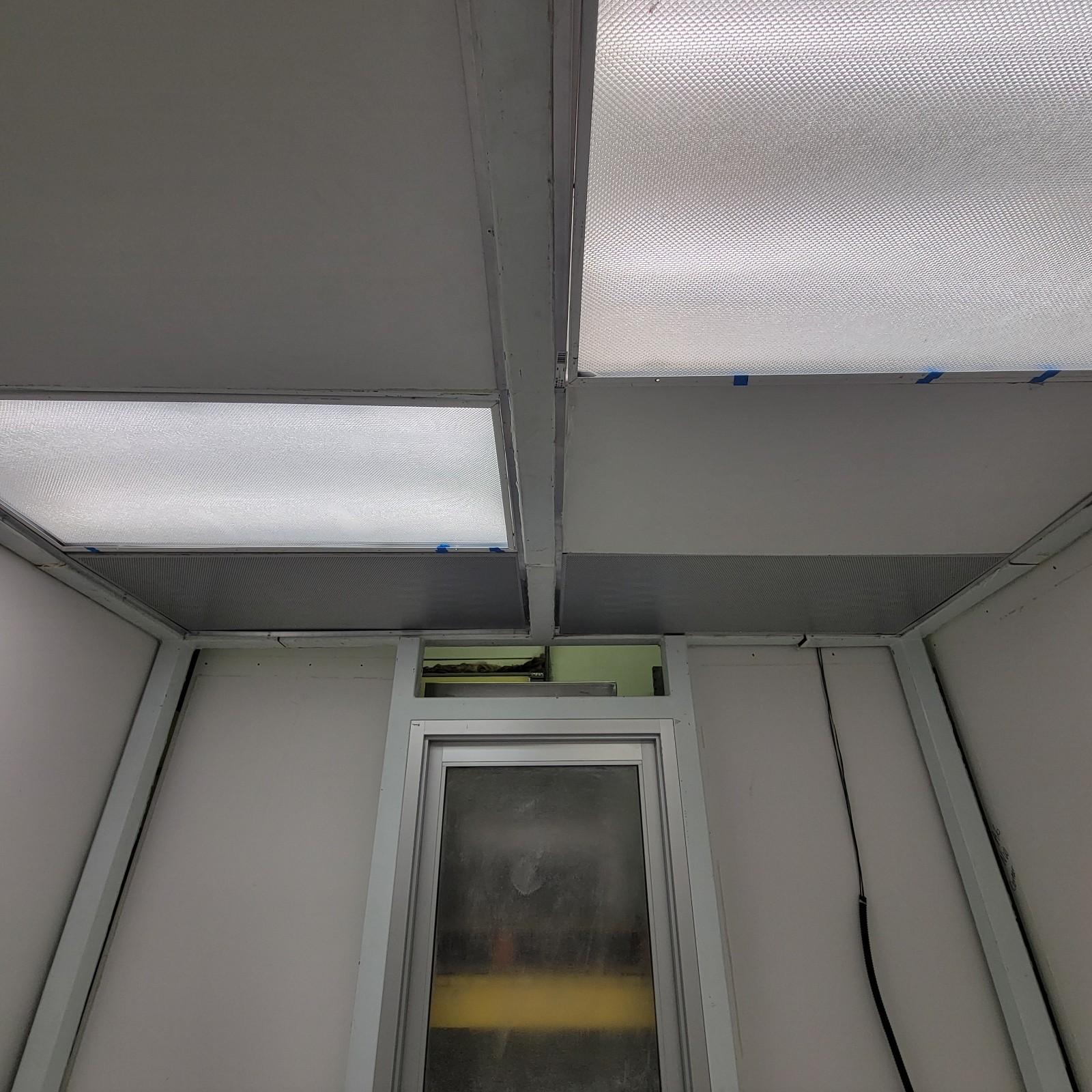

Tested works all vents, and light fixtures turn on and run

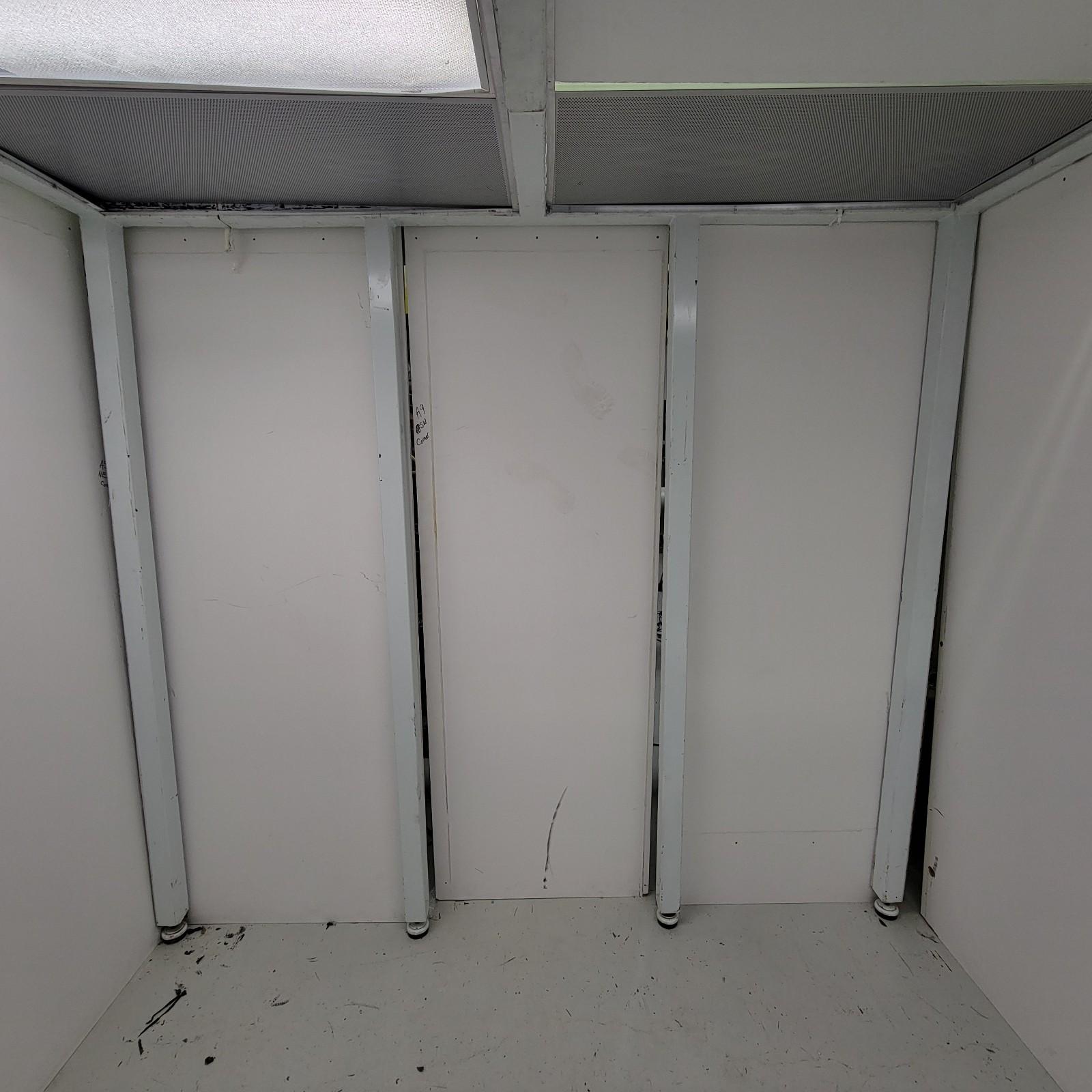

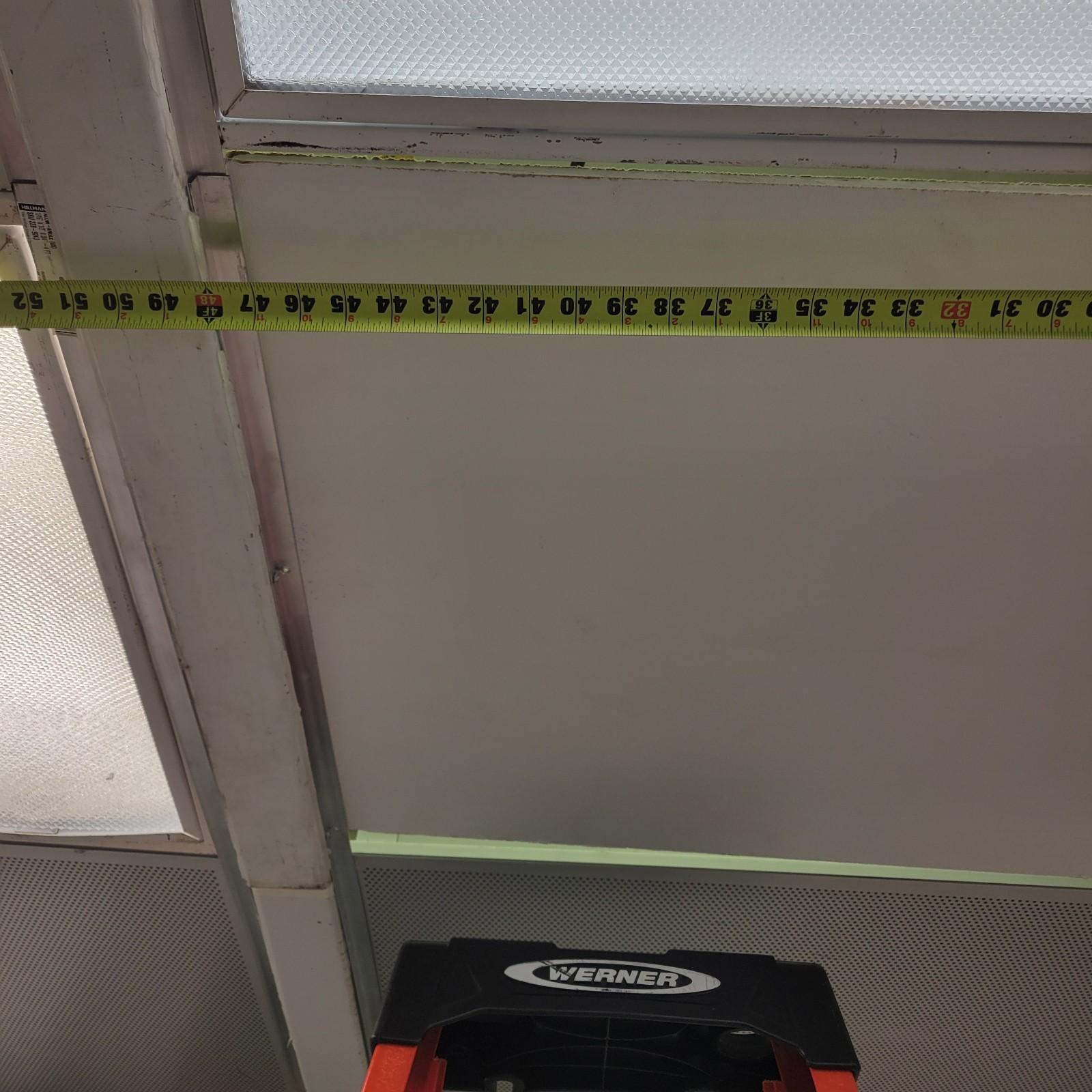

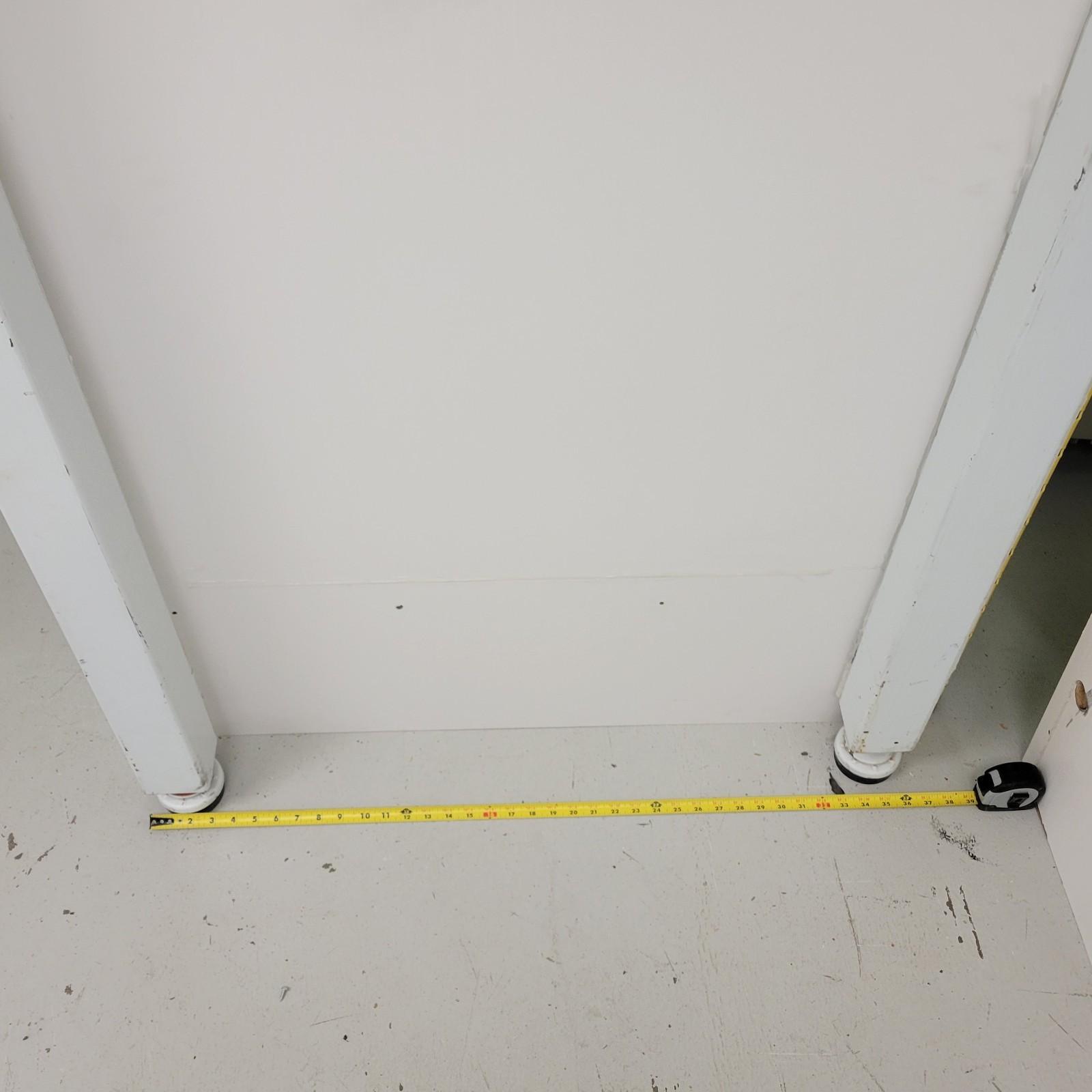

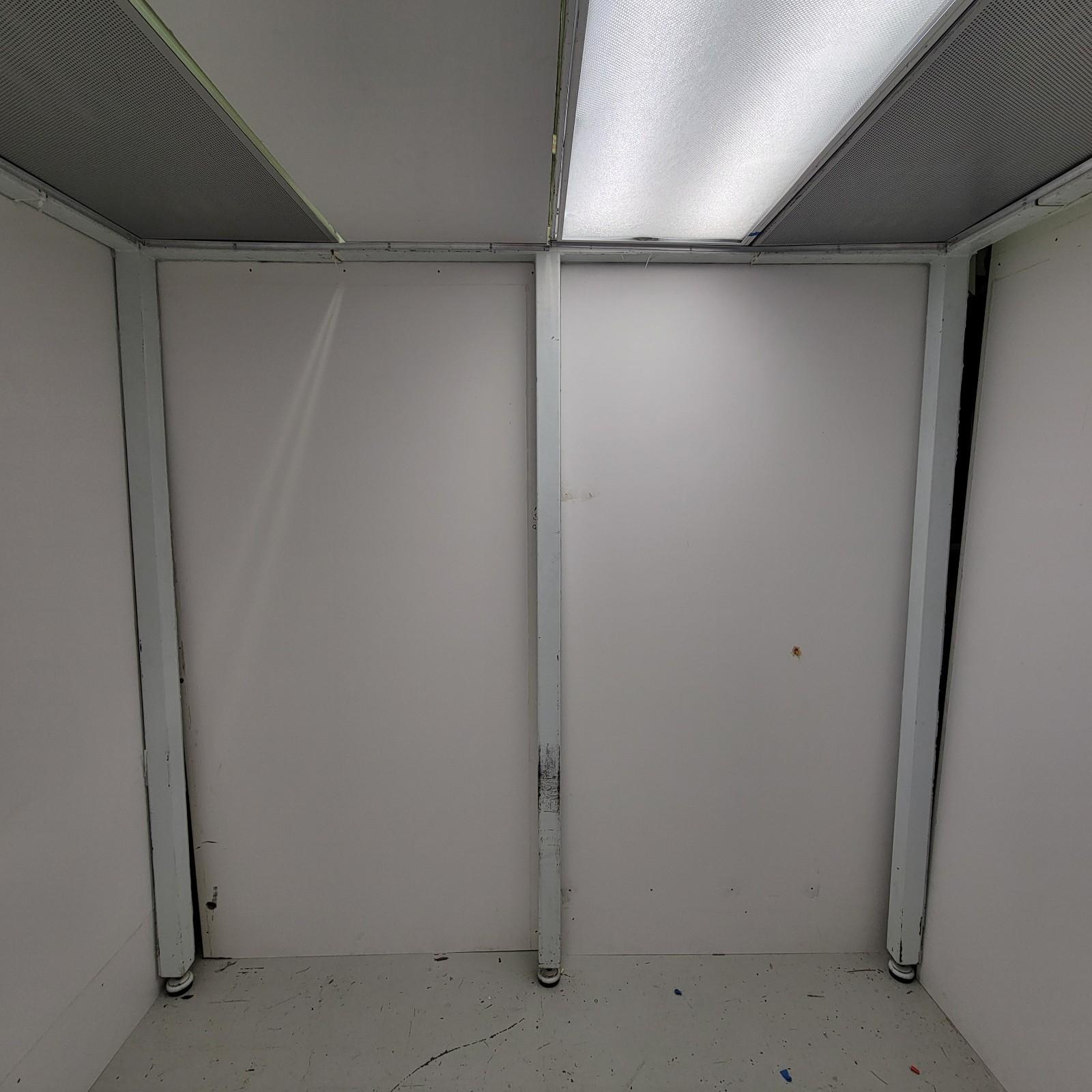

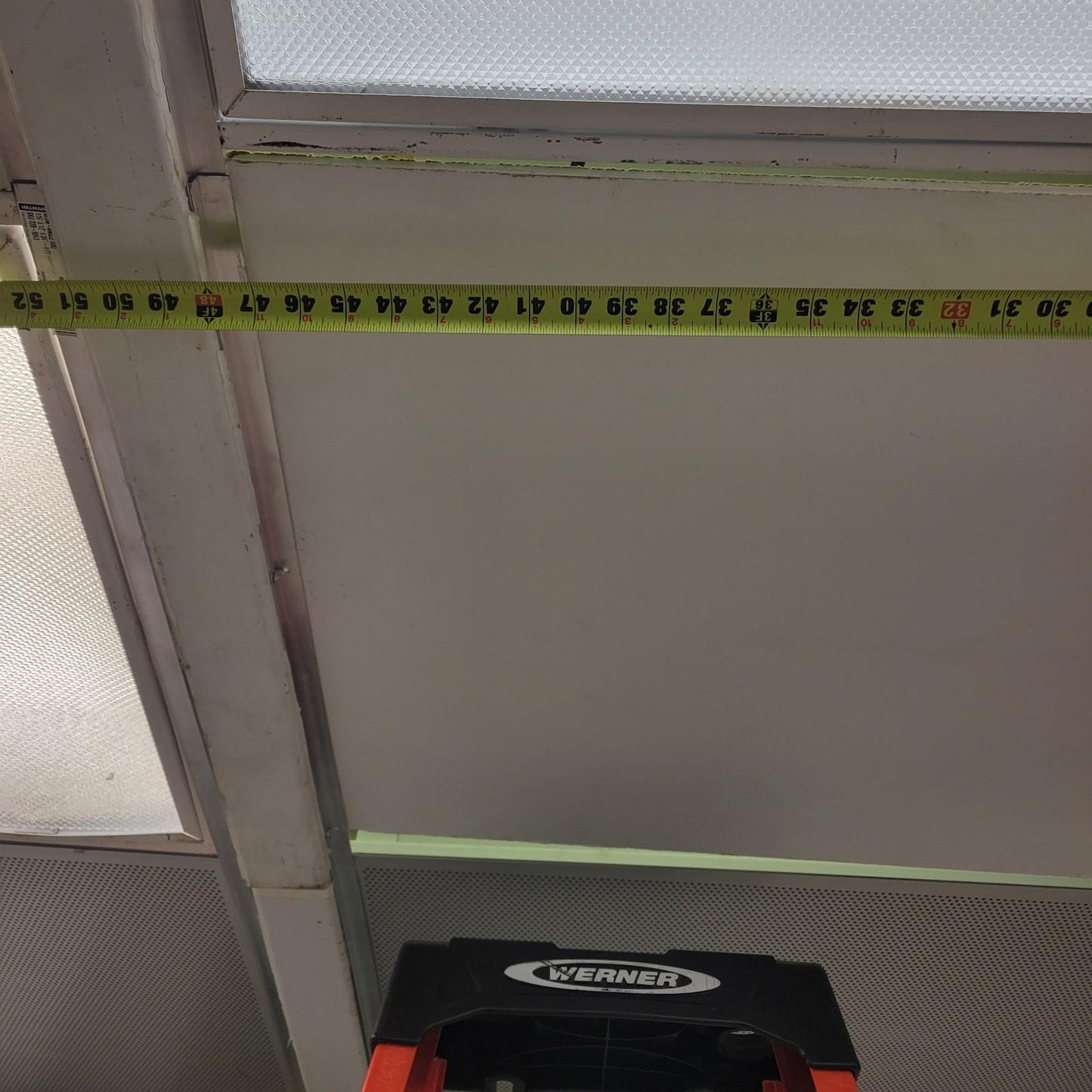

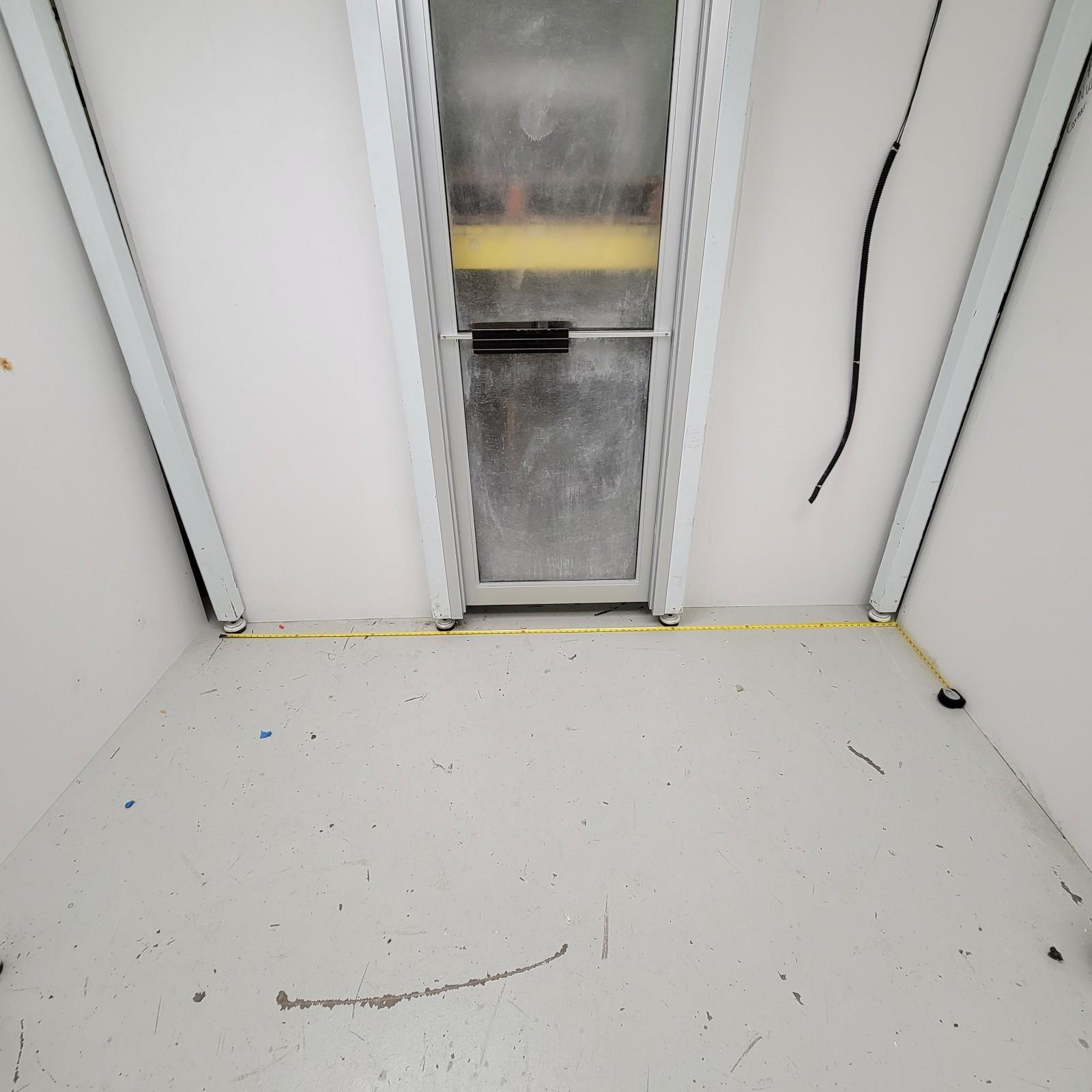

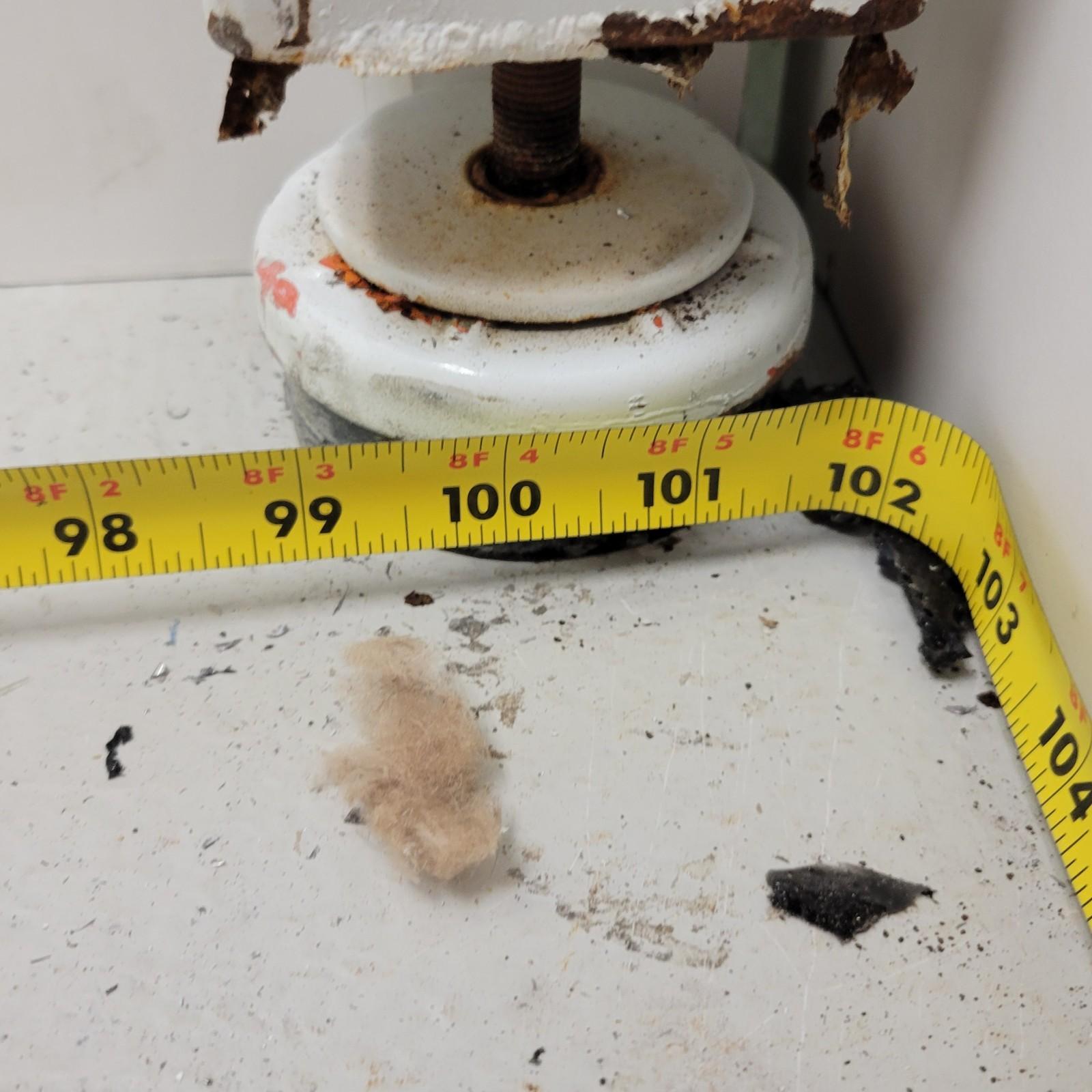

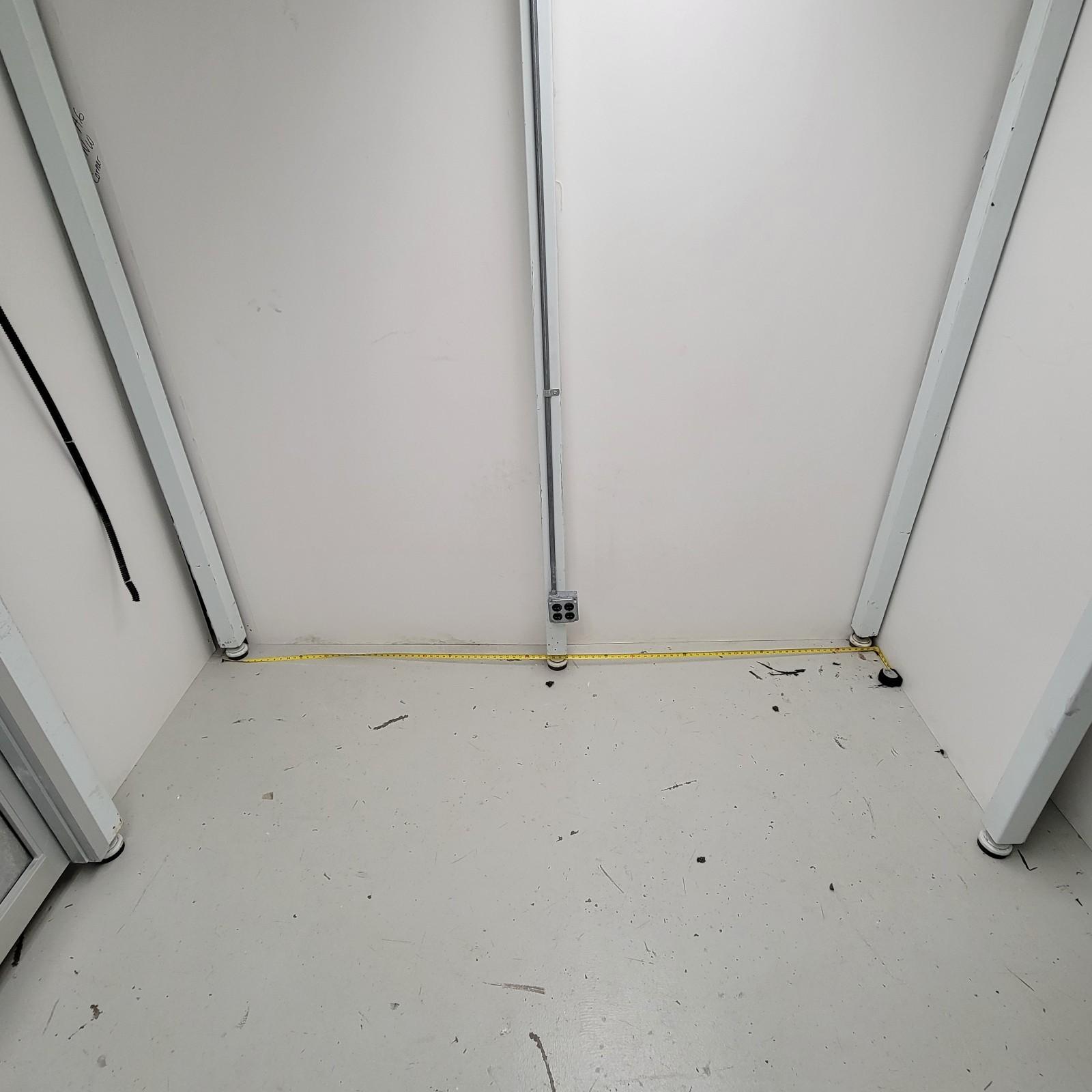

The dimensions of the cleanroom are 8'L x 8'W x 8'H

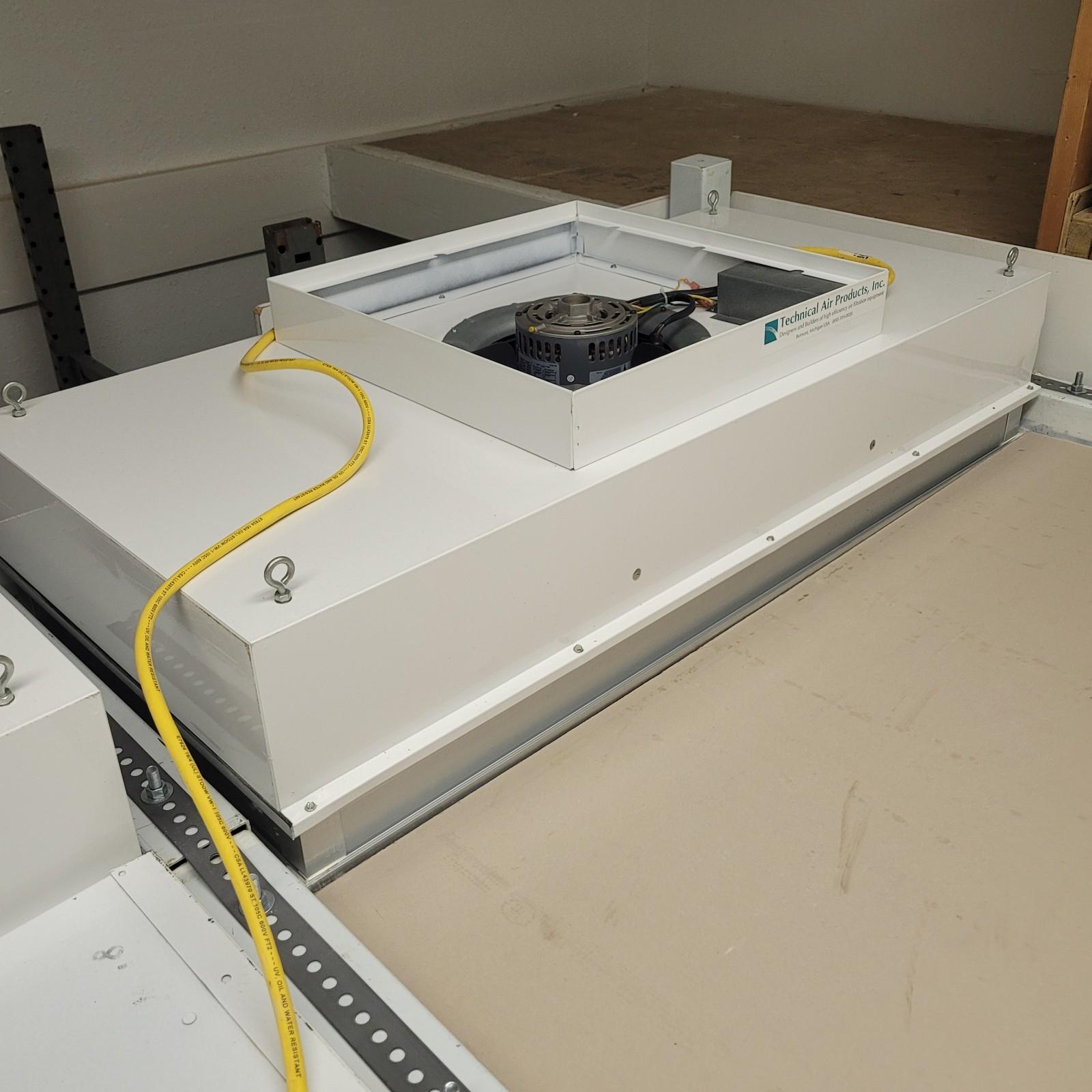

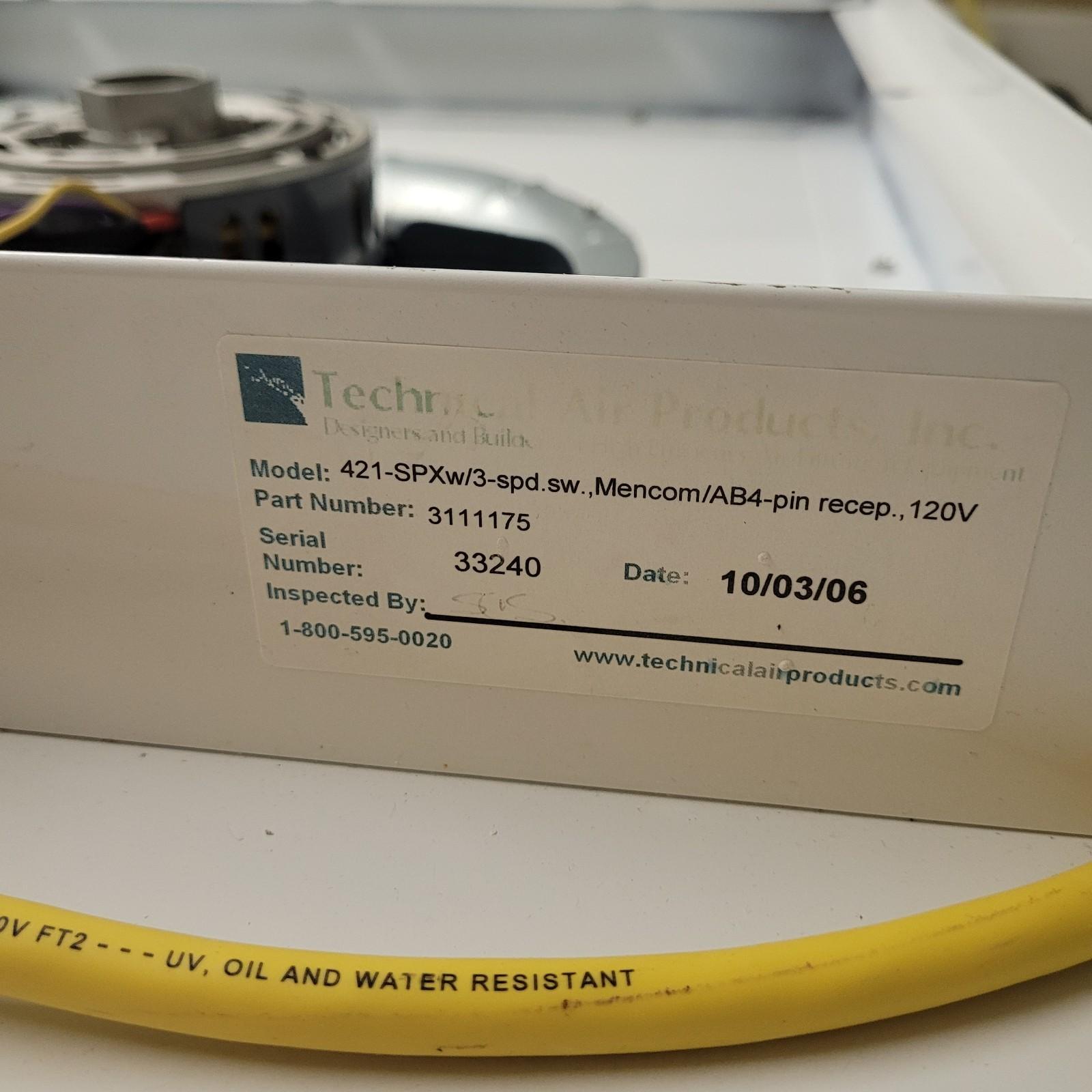

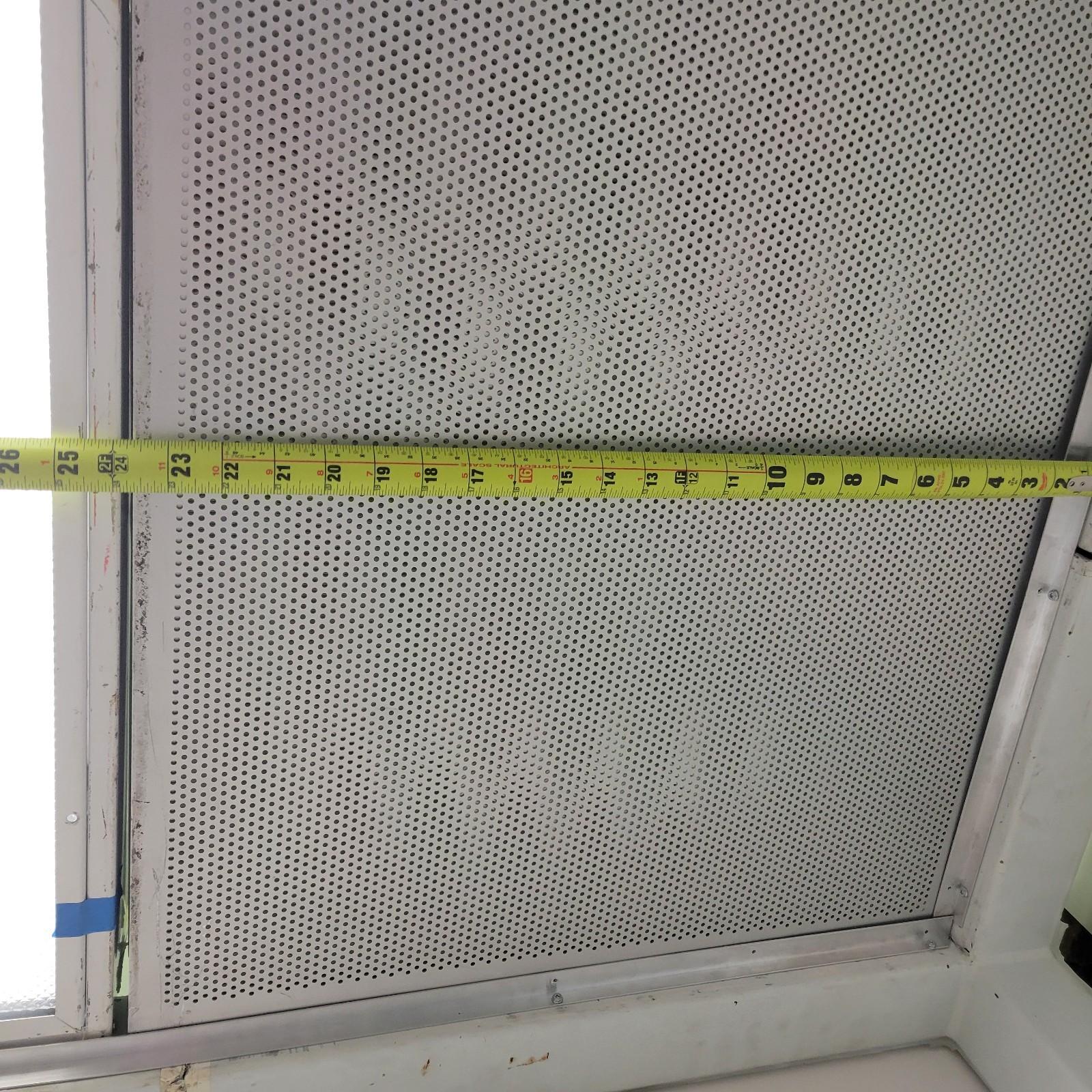

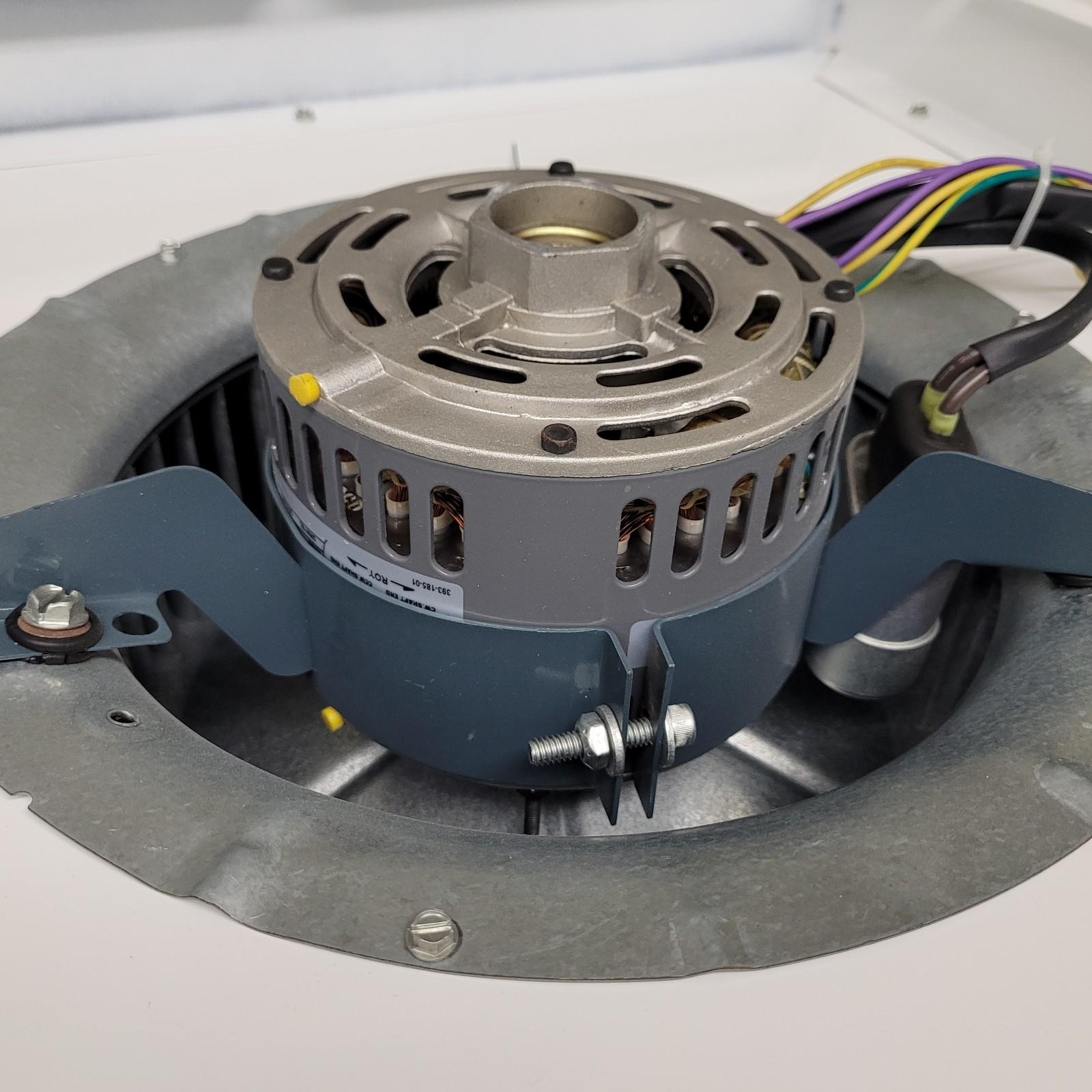

Contains four Technical Air Products Terra WhisperFlow FFU's that can filter up to 2,560 CFM: it filters the volume of this clean room every 12 seconds! That's 300 Air Changes per Hour (ACHs). They are part number 3111175 421-SPXw/3-spd.sw.,Mencom/AB4-pin recep 120v). Terra’s own “rule-of-thumb” table puts ISO 5 in the ~240–480 ACH neighborhood.
Turn a chunk of lab or shop floor into a real controlled environment without committing to a stick-built room. This Terra Universal hardwall modular cleanroom is a freestanding, self-supporting enclosure intended for ISO-grade workspaces; great for electronics assembly, metrology/inspection, optics, packaging, and any process that benefits from reduced particulate load.
Key details
- Cleanroom type: Modular hardwall enclosure (freestanding steel-frame style)
- Cleanliness target: Could hit ISO Class 5 (per ISO 14644-1) when properly configured, installed, and certified
- Overall size: 8' x 8' footprint; 8' height (approx. 64 sq ft)

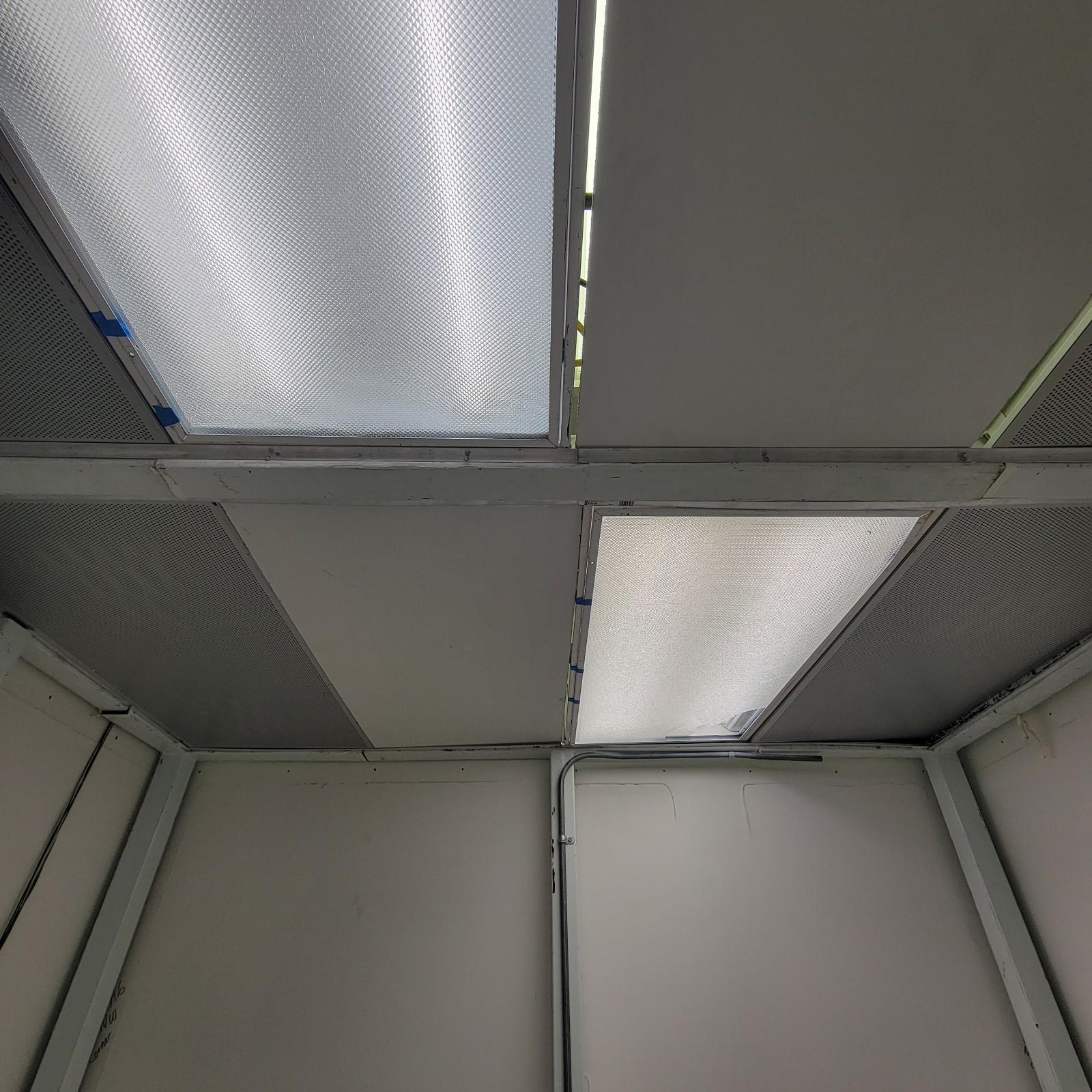

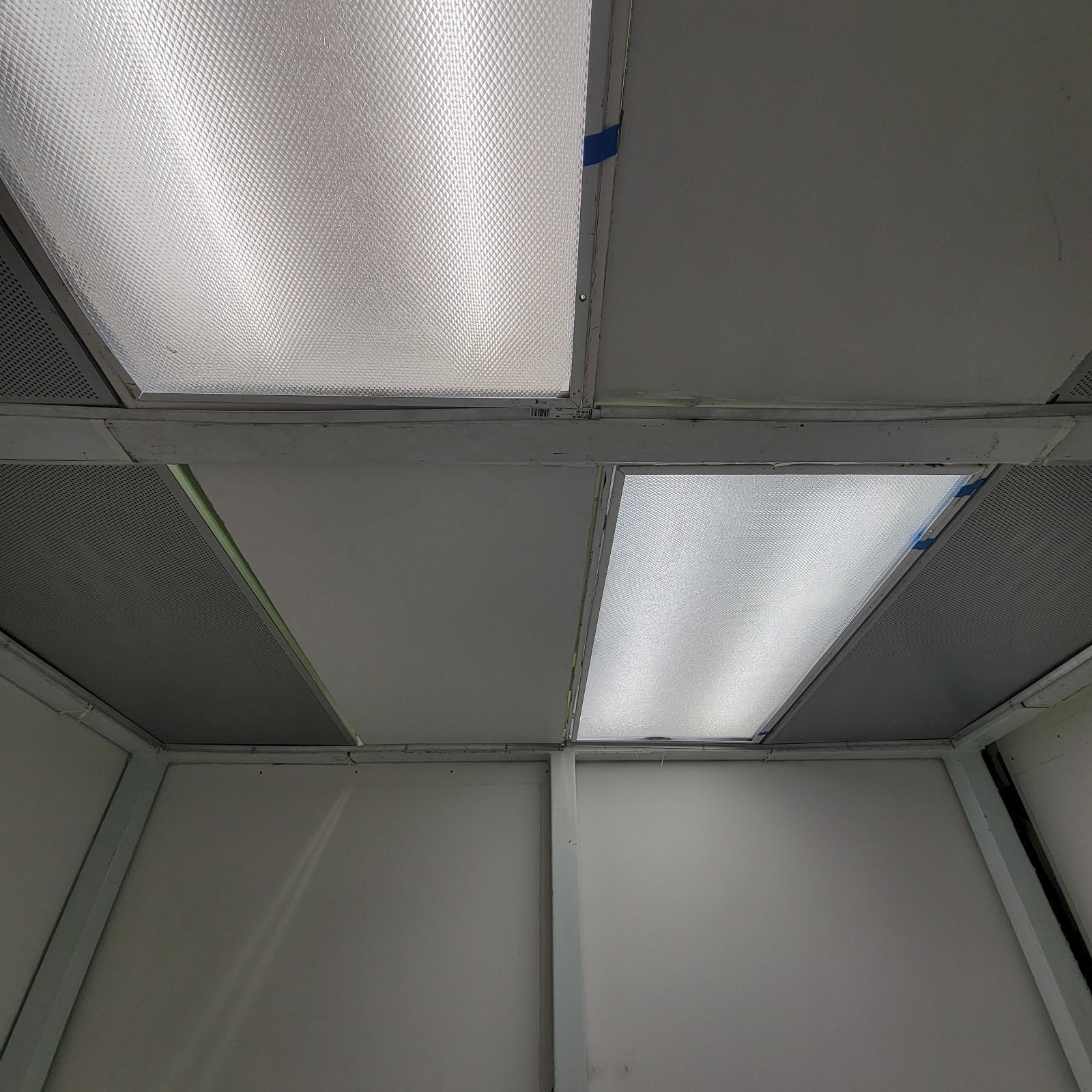

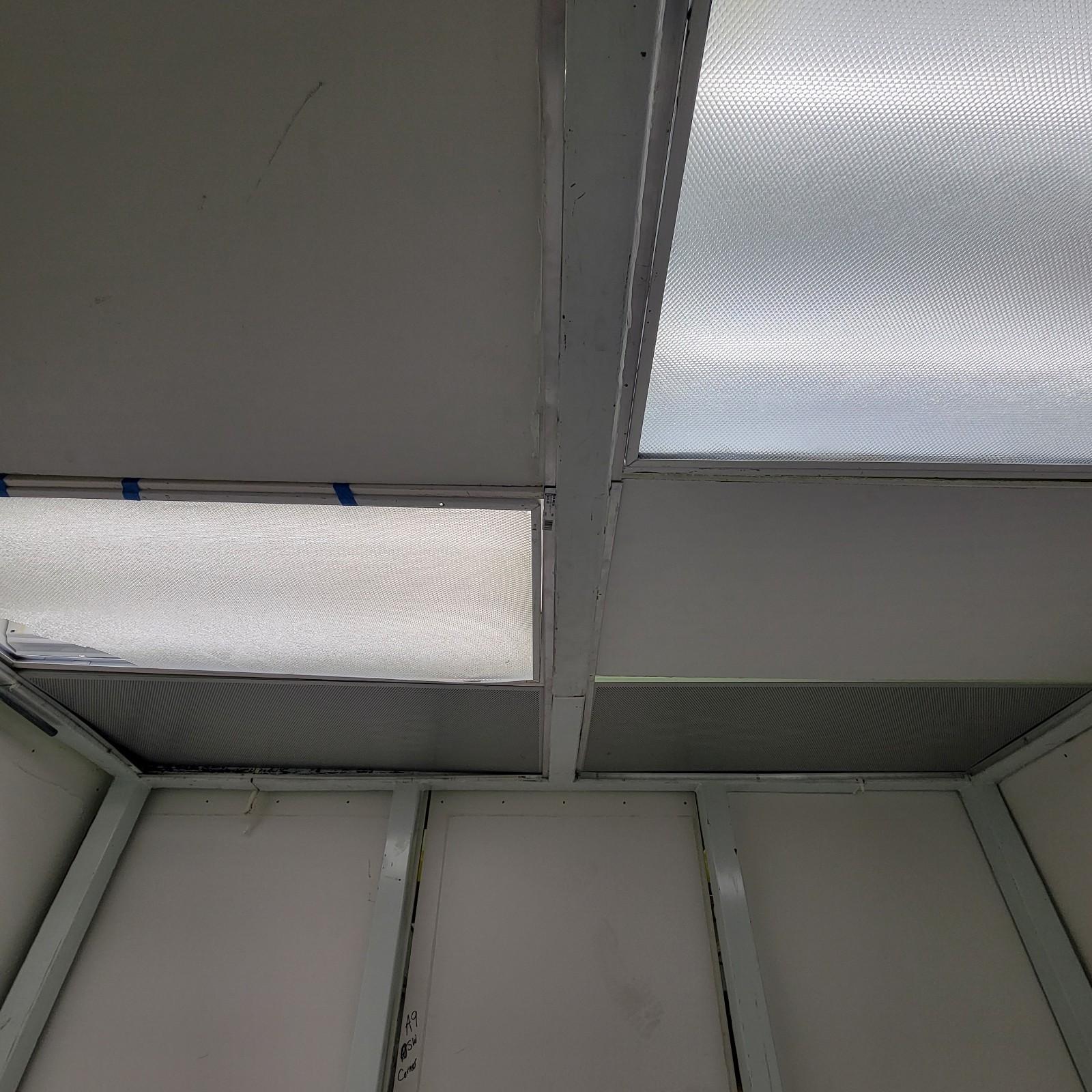

- Ceiling is designed to accept fan/filter units (FFUs) for HEPA/ULPA filtered supply air
Buyer notes (important, read this)
- ISO class is not a magic sticker; it depends on FFU quantity/type, filter condition, airflow balancing, installation, room loading, and post-install certification testing.
- If you need to pass an audit; plan to re-certify after install/relocation and budget for filter replacement on arrival.
- Large item; typically ships freight and will be moved as disassembled wall/ceiling sections.
Included
- Cleanroom enclosure components as shown (panels/frame/ceiling grid and any accessories pictured)
- Anything not shown is not included (FFUs, lighting, controls, pass-throughs, benches, etc. only if pictured/listed)
Due to the size and weight of this cleanroom, it must be shipped via freight. Buyer is responsible for freight shipping costs. We will take it down and palletize it, but will not assemble it at your location. You will receive all the components to do so (and some bonus ones!), but we do not provide assembly in this price nor instructions on how to assemble.
