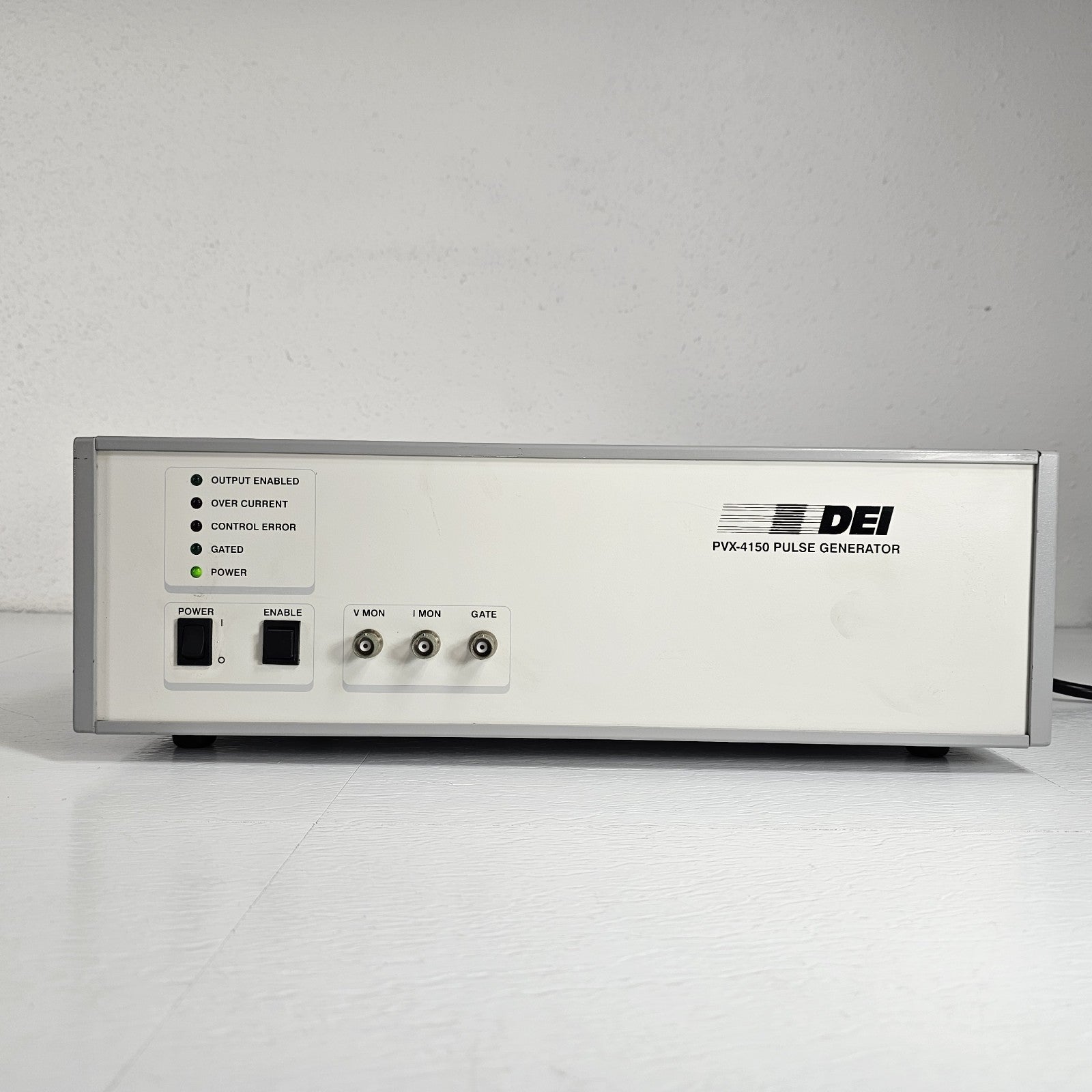

TESTED- DEI BNC Berkeley Nucleonics PVX-4150 Pulse Generator High Voltage Solid State Pulser +/-1500V

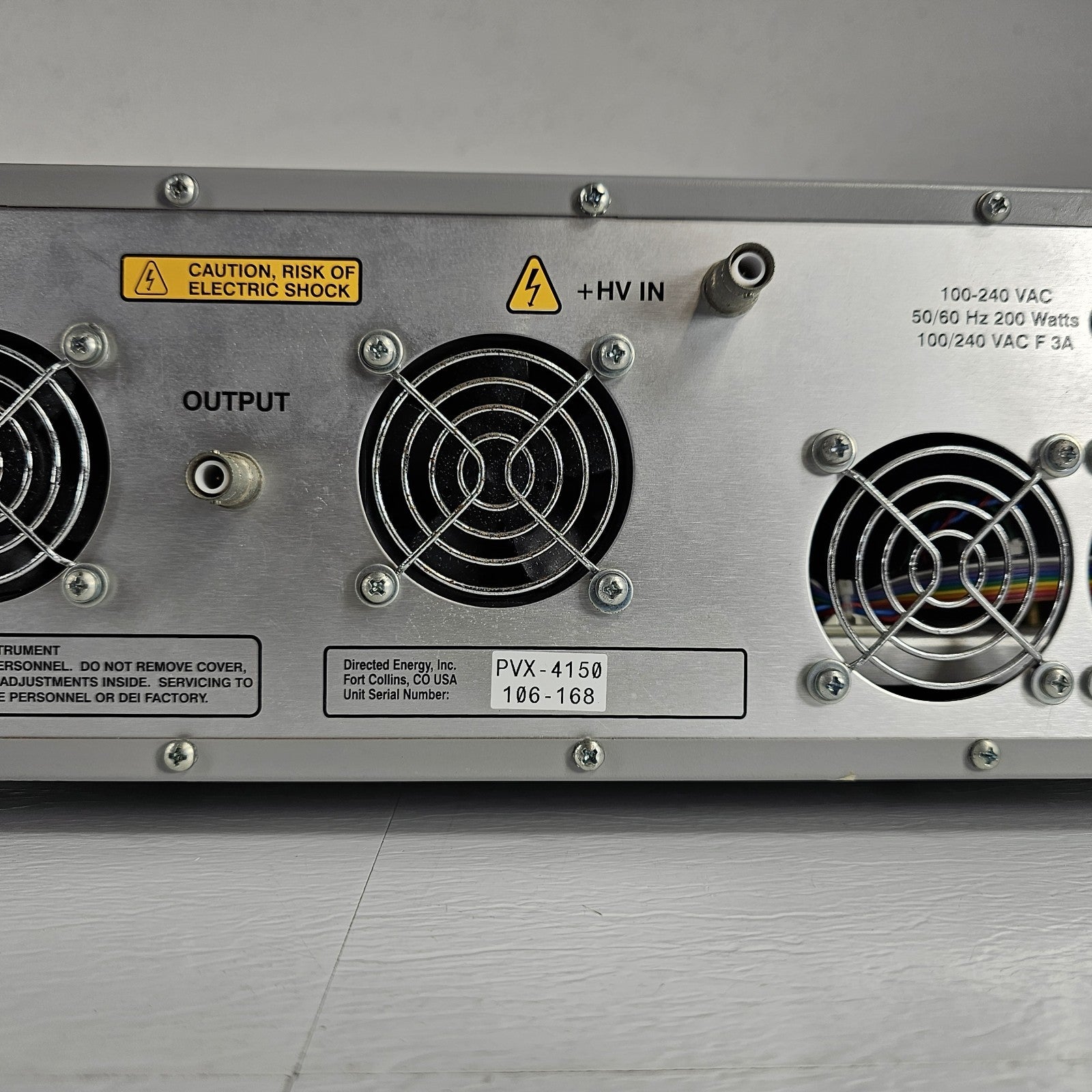

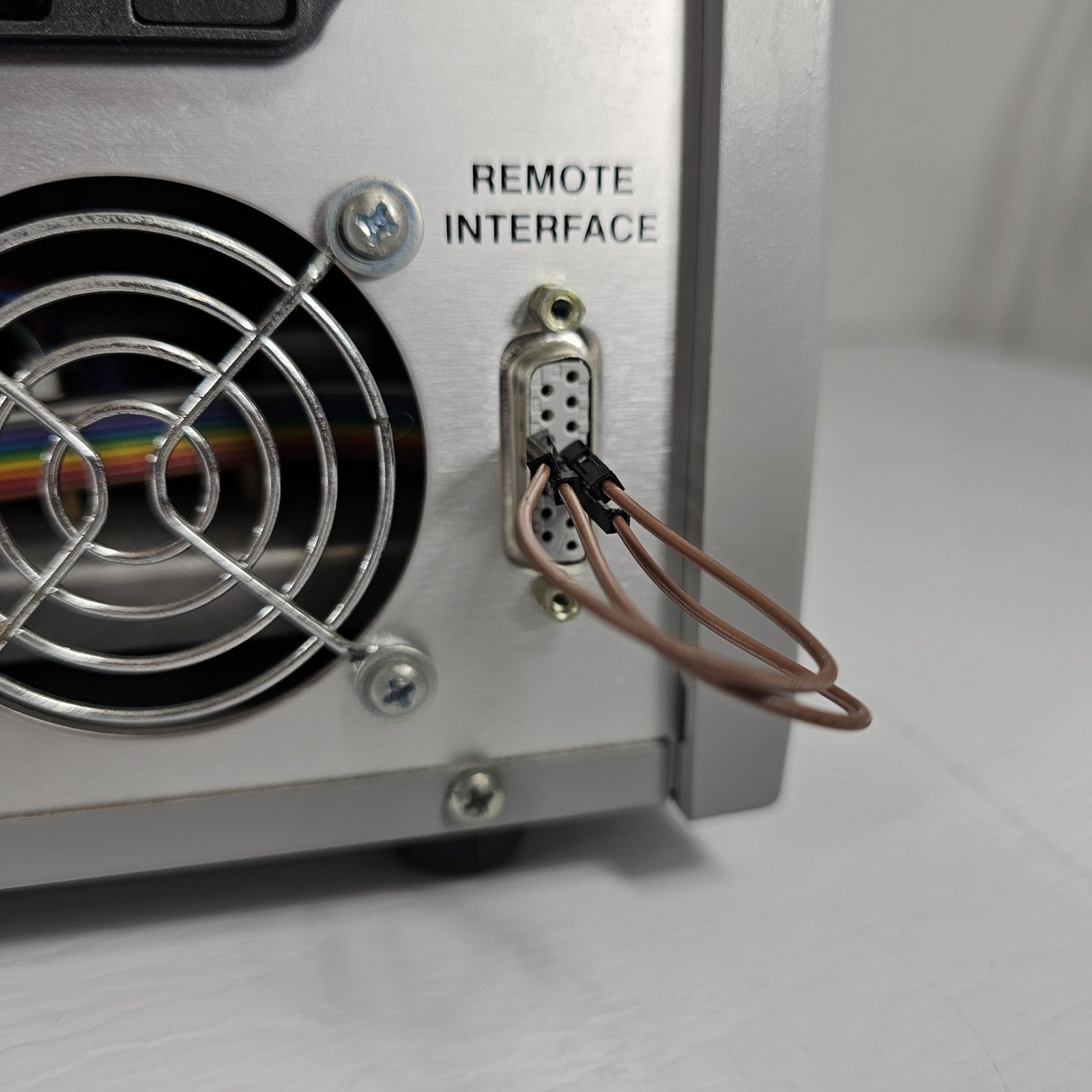

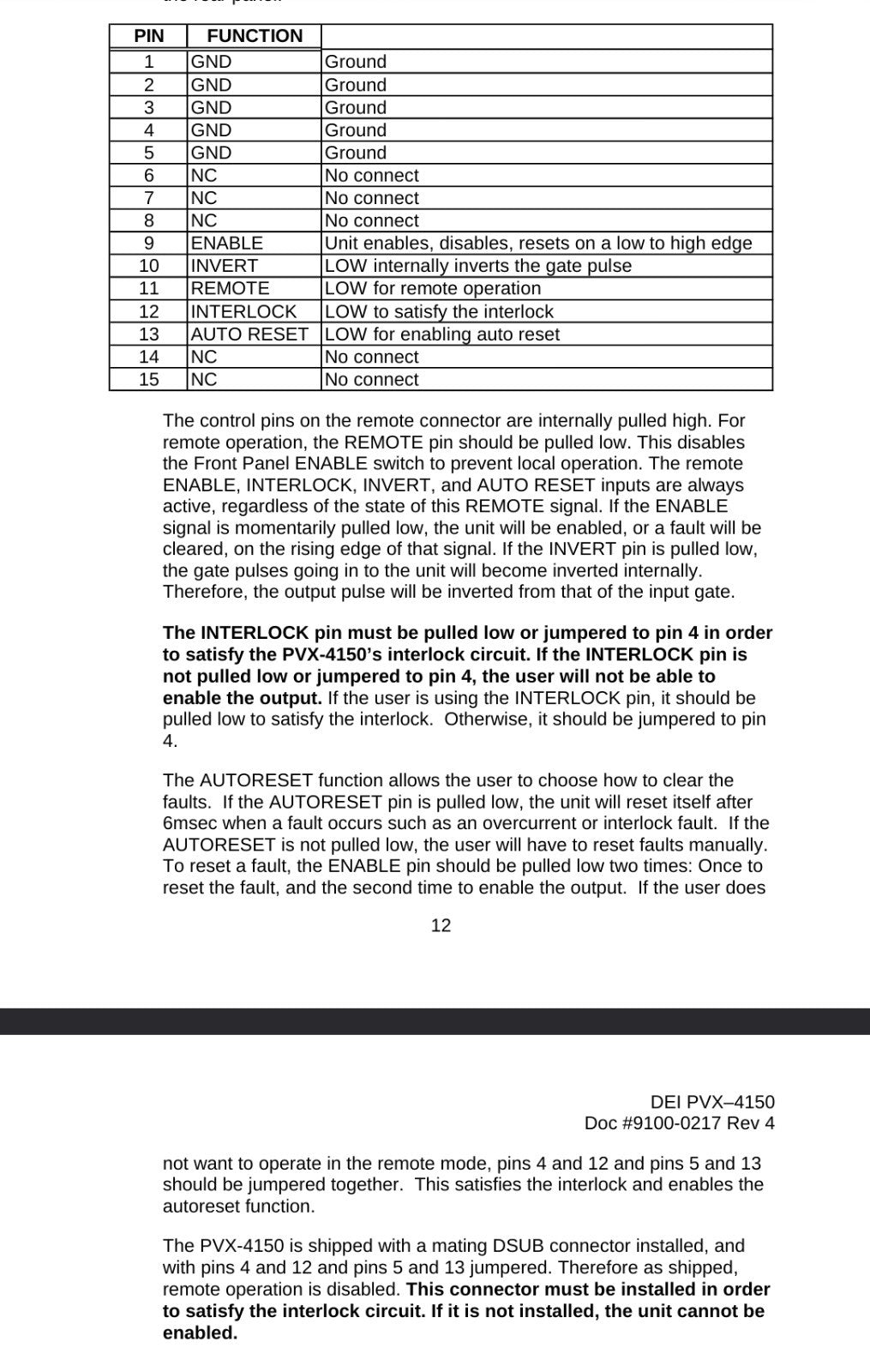

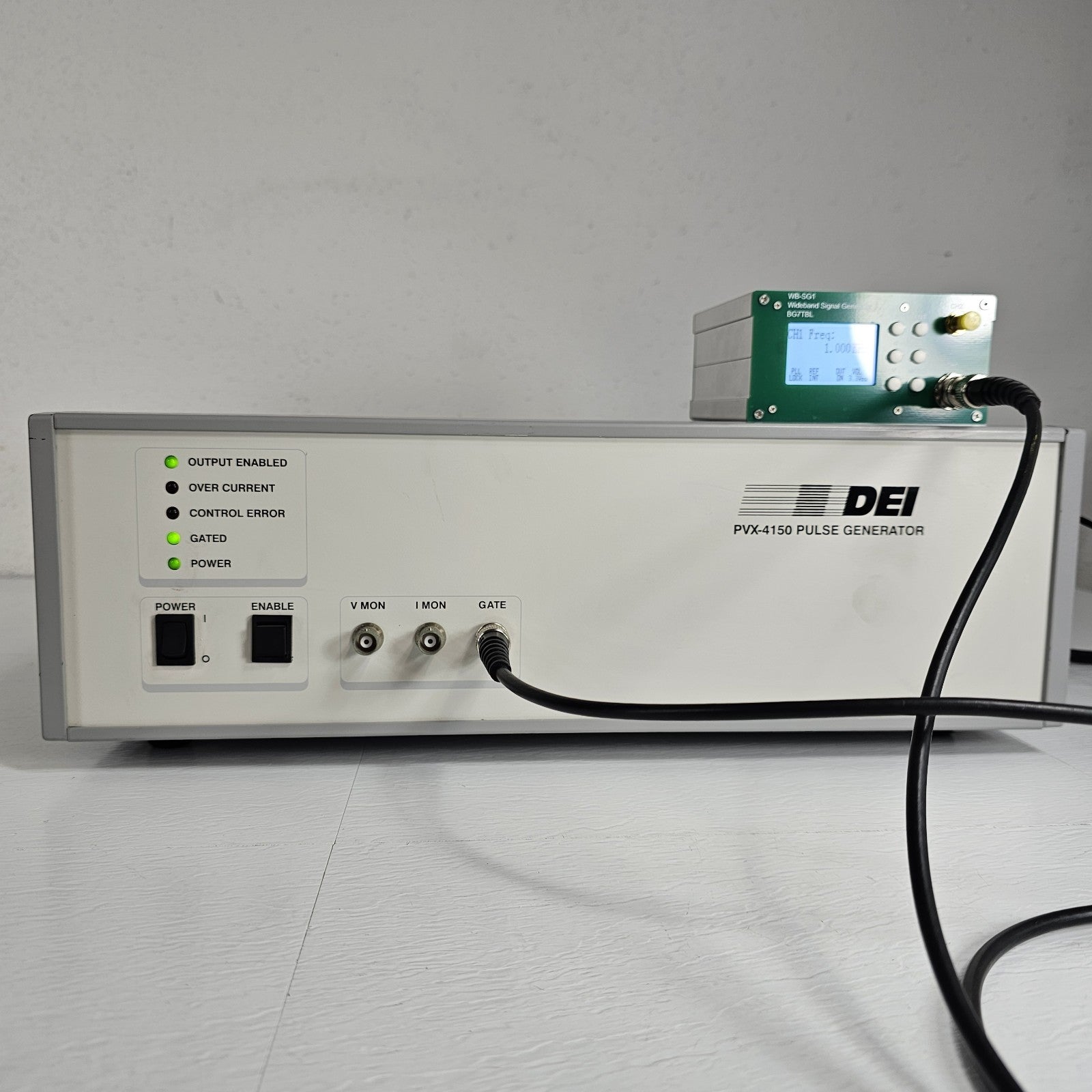

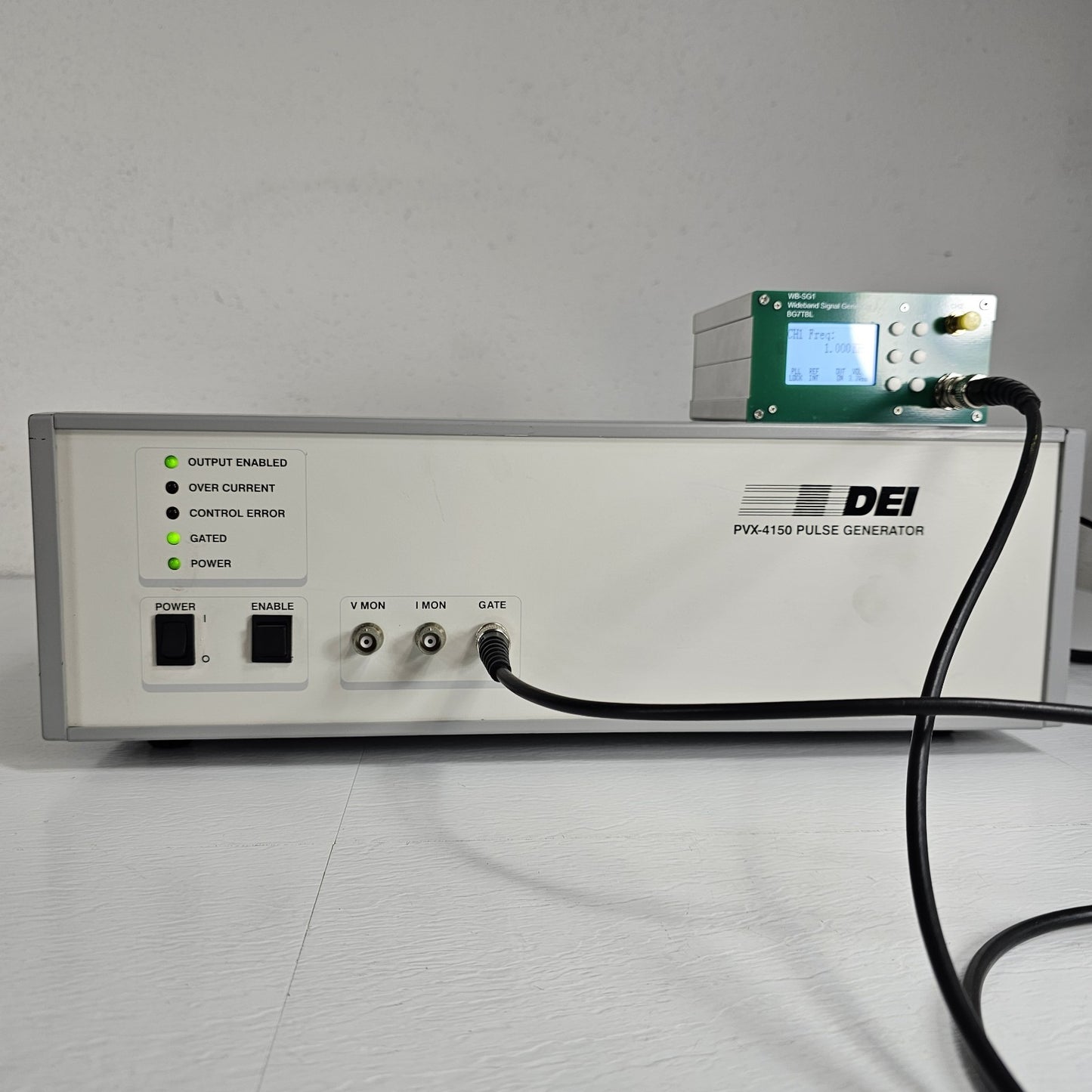

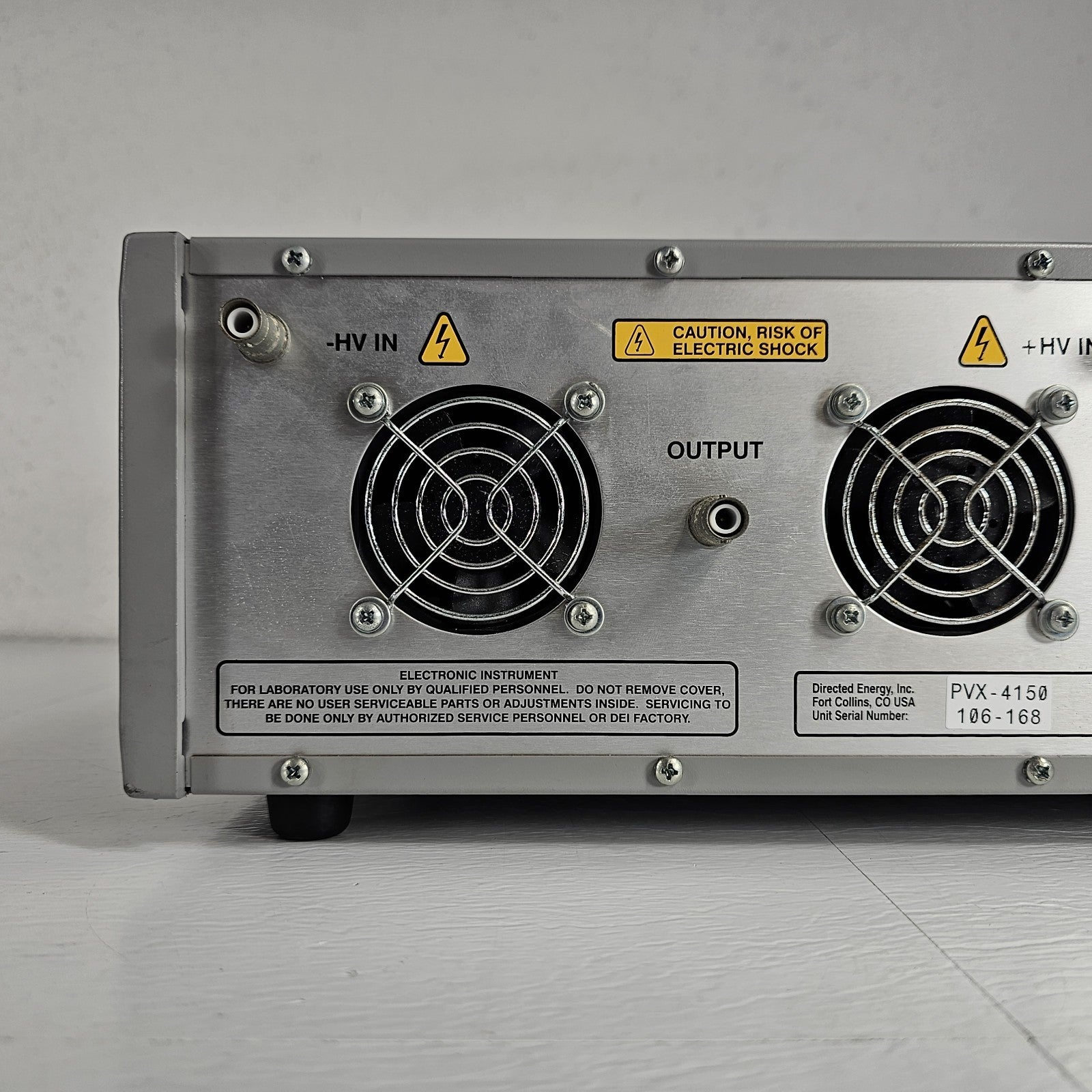

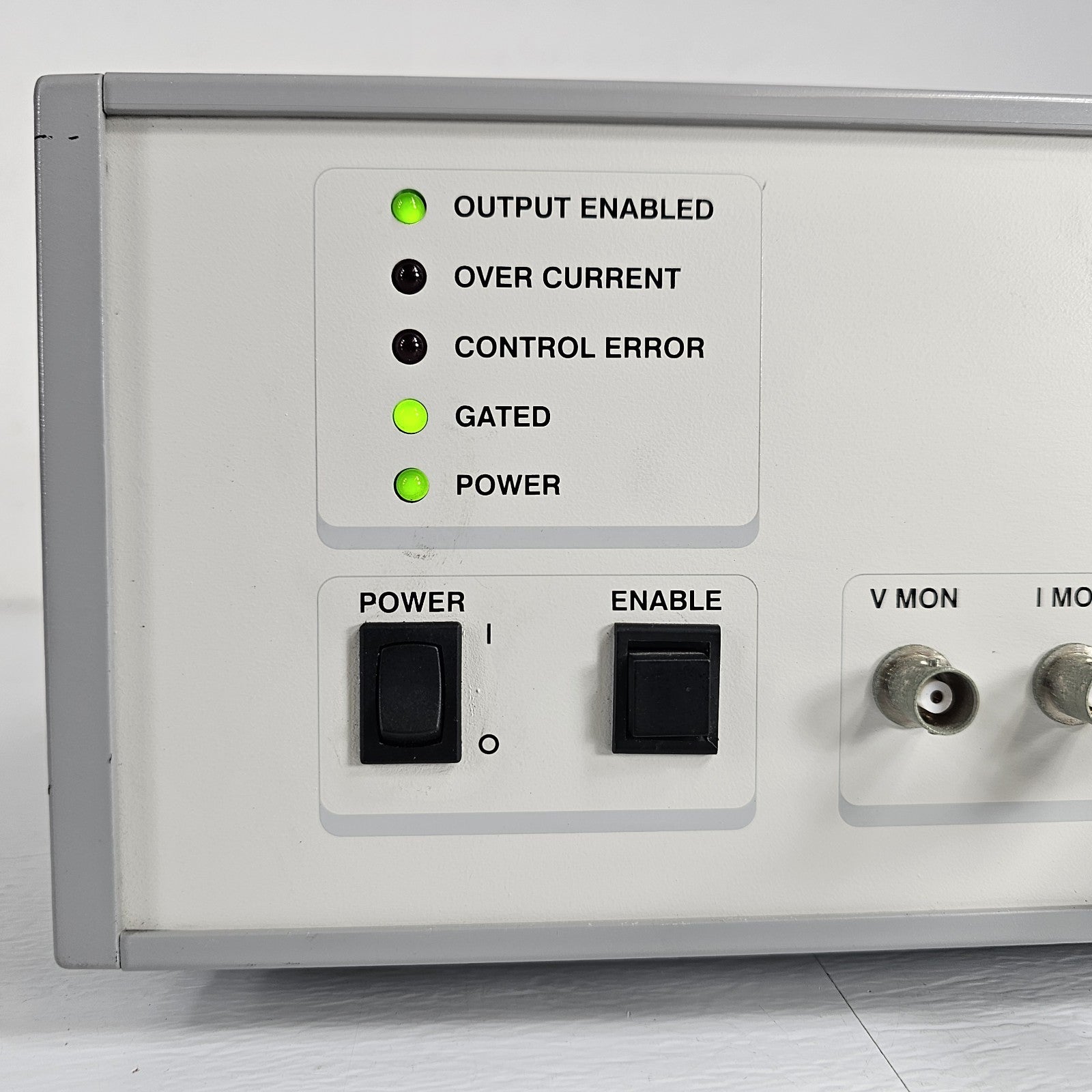

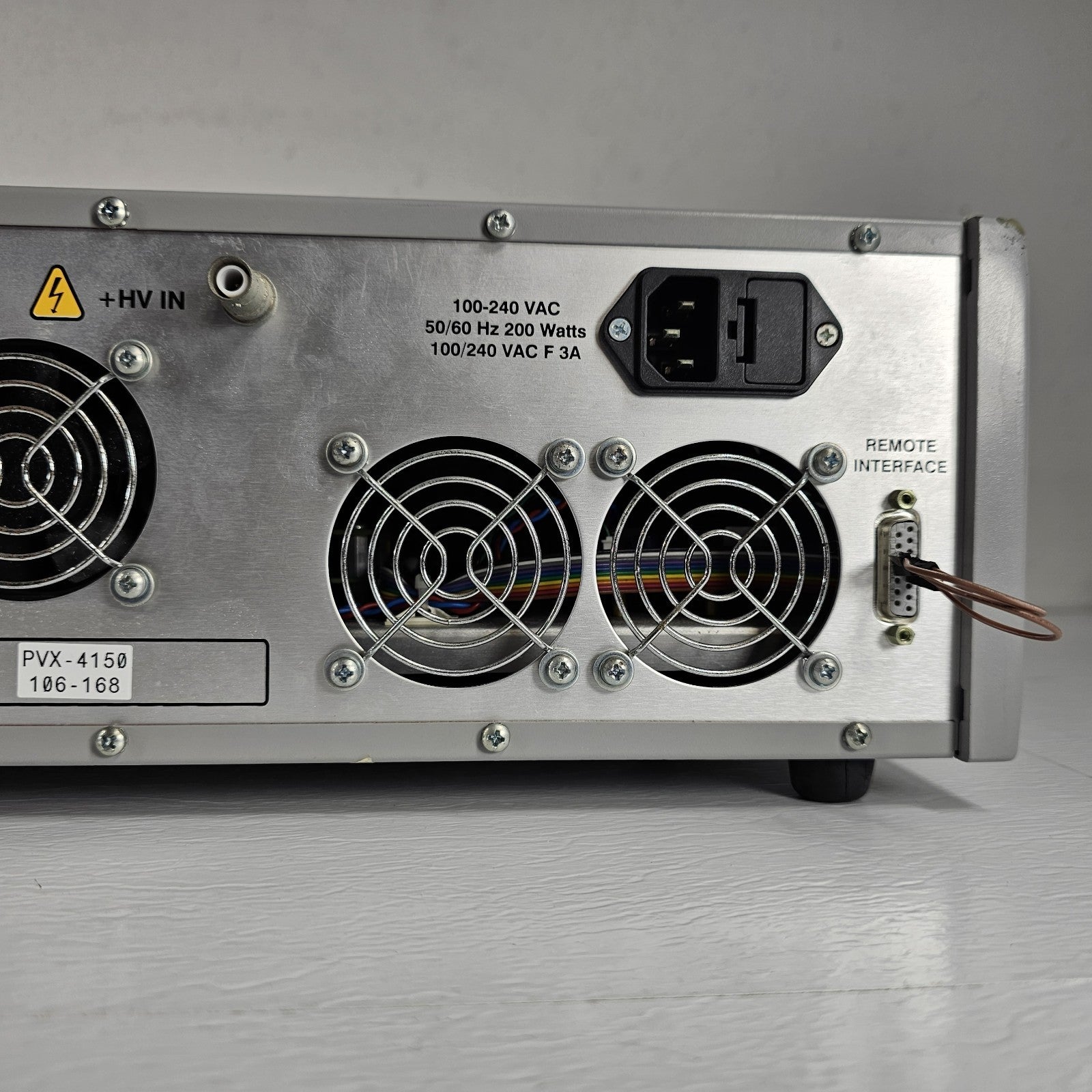

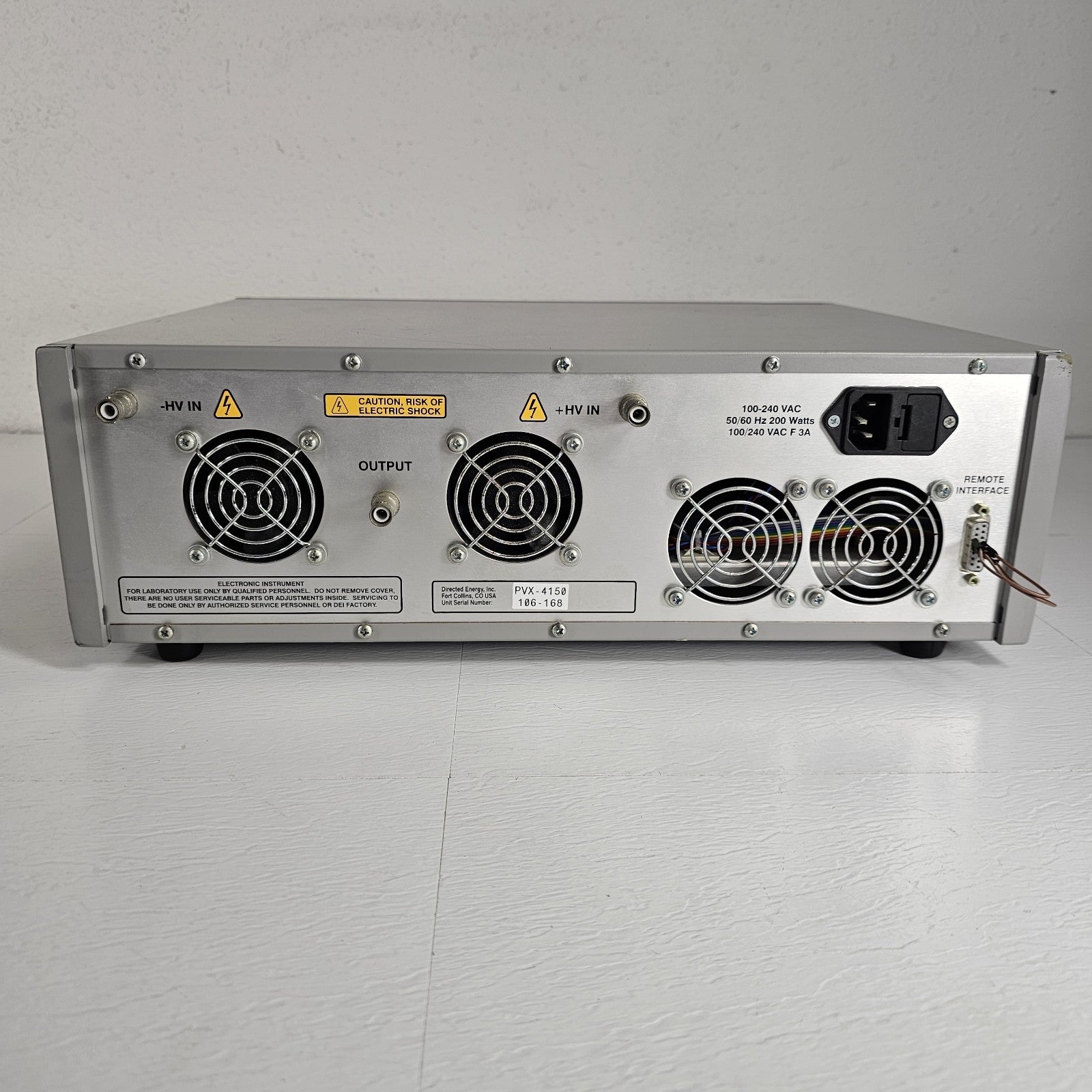

Tested- powers on and gates properly with a source. Enables properly, as described in the manual, and begins to pulse. See photos. Pulsed I/O connects via SHV connectors.
Used condition. Has some signs of use and wear, overall a high quality unit and a great example of the Made-in-America DEI brand.
Frequency generator not included in purchase. For demonstration purposes only.
From the manufacturer:
"The DEI PVX-4150 pulse generator is a high voltage solid state pulser designed to drive capacitive loads such as grids, deflection, reflection and acceleration plates. The PVX-4150 will generate an output voltage swing of 1500 volts, and output current of 16 amperes peak and .05 amperes continuous. It produces very flat voltage pulses to DC into a capacitive load. The PVX-4150 Pulser can generate single-ended output pulses from ground to +1500V or from ground to -1500V, and can also generate pulses originating from a voltage offset from ground. This offset can be from -1500V to +1500V, with a maximum power supply voltage differential (Vhigh - Vlow) <1501 V"
