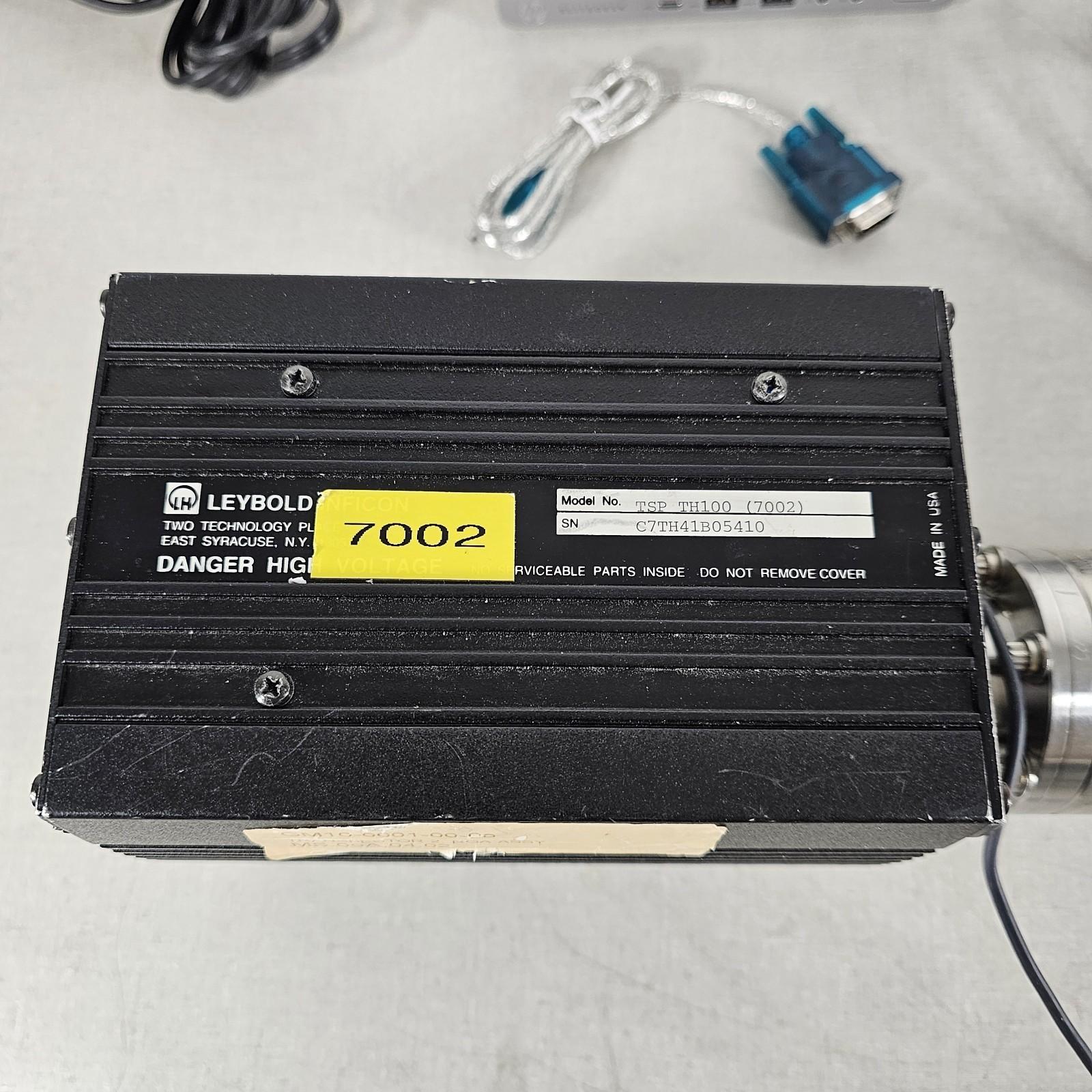

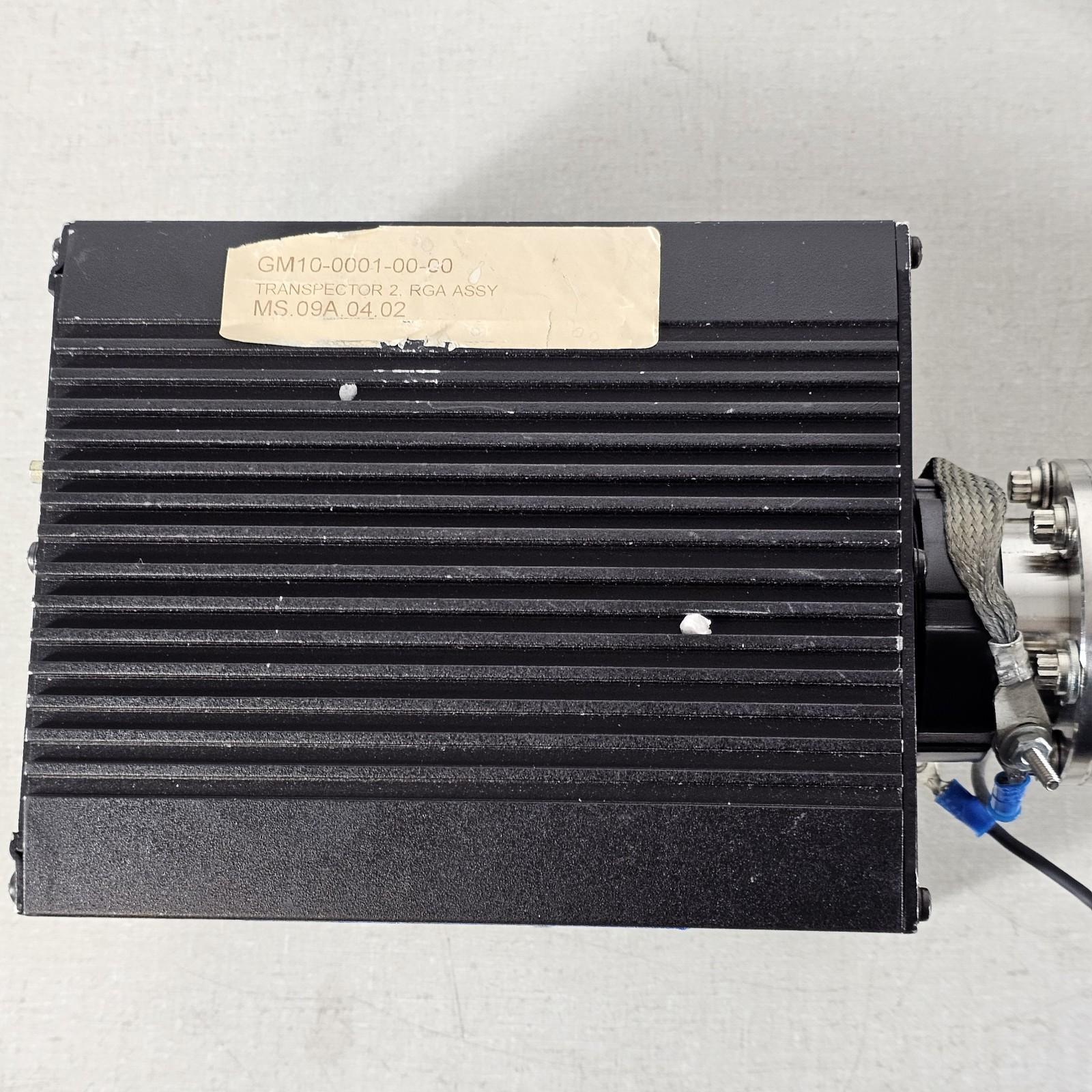

TESTED WORKS Inficon Leybopd Heraeus Transpector H100M RGA Residual Gas Analyzer w/ PC, Software Ultra High Vacuum UHV TSP TH100 911Z501-G2 GM10-0001 MS.09A.04.02 DN35CF 2.75" CF Conflat Flange

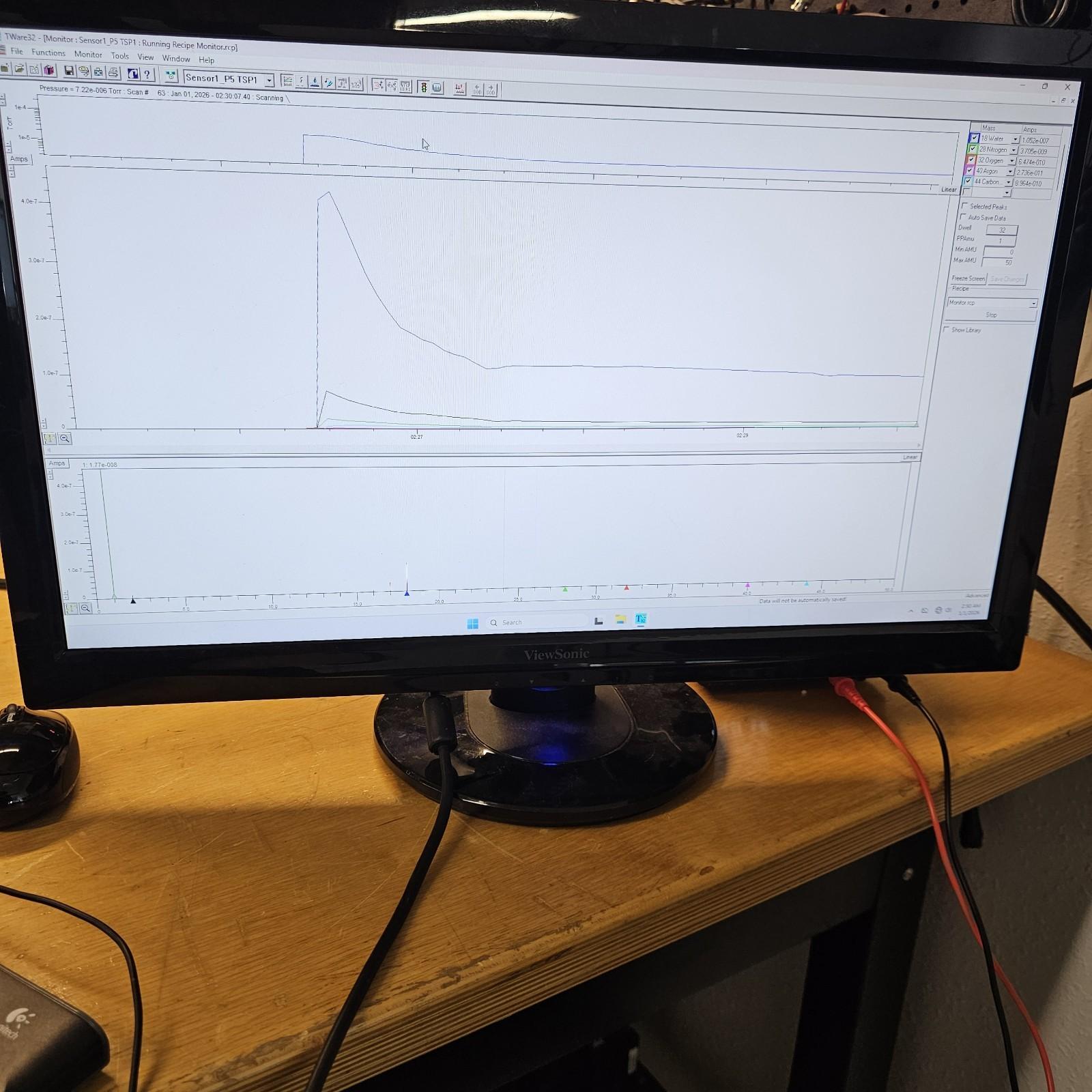

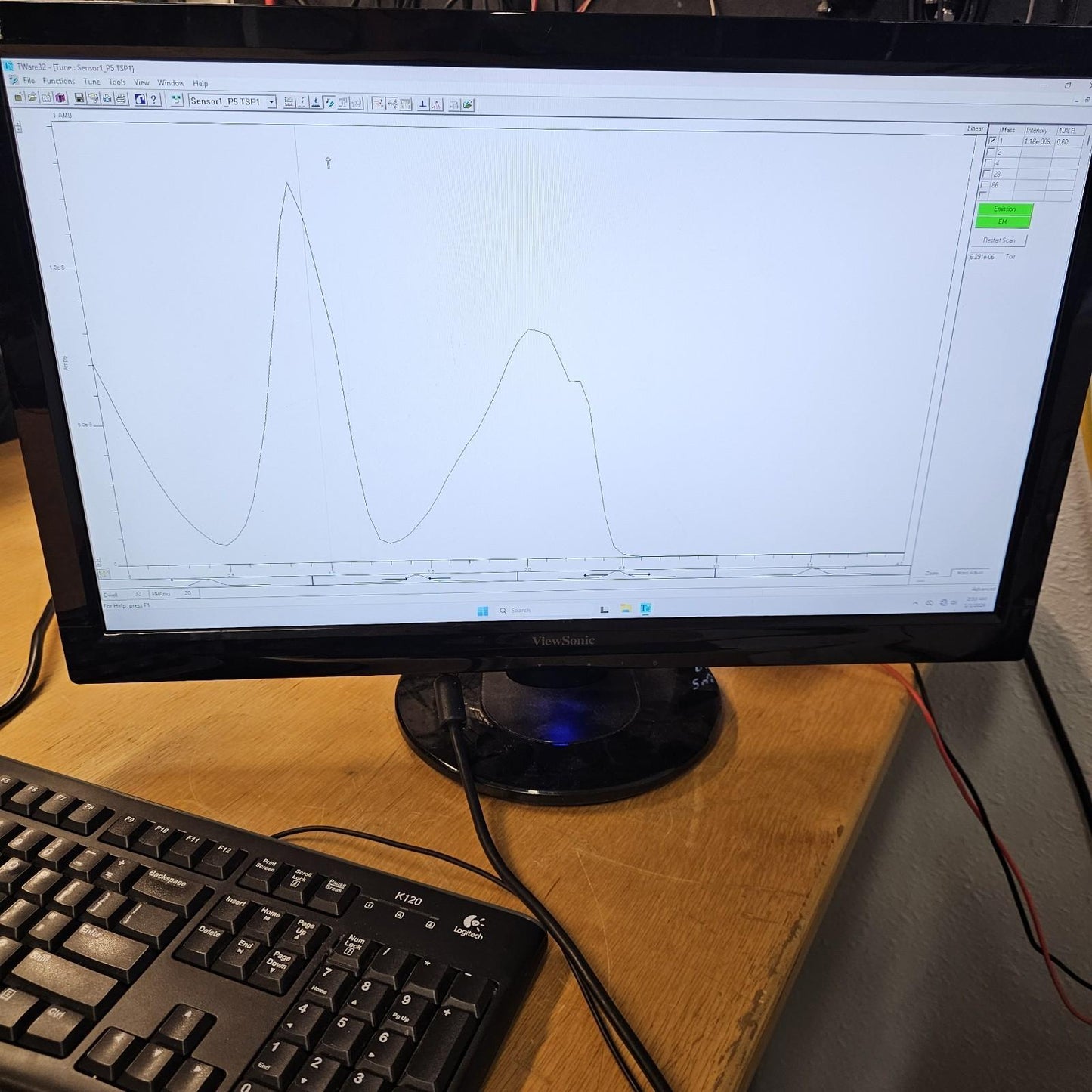

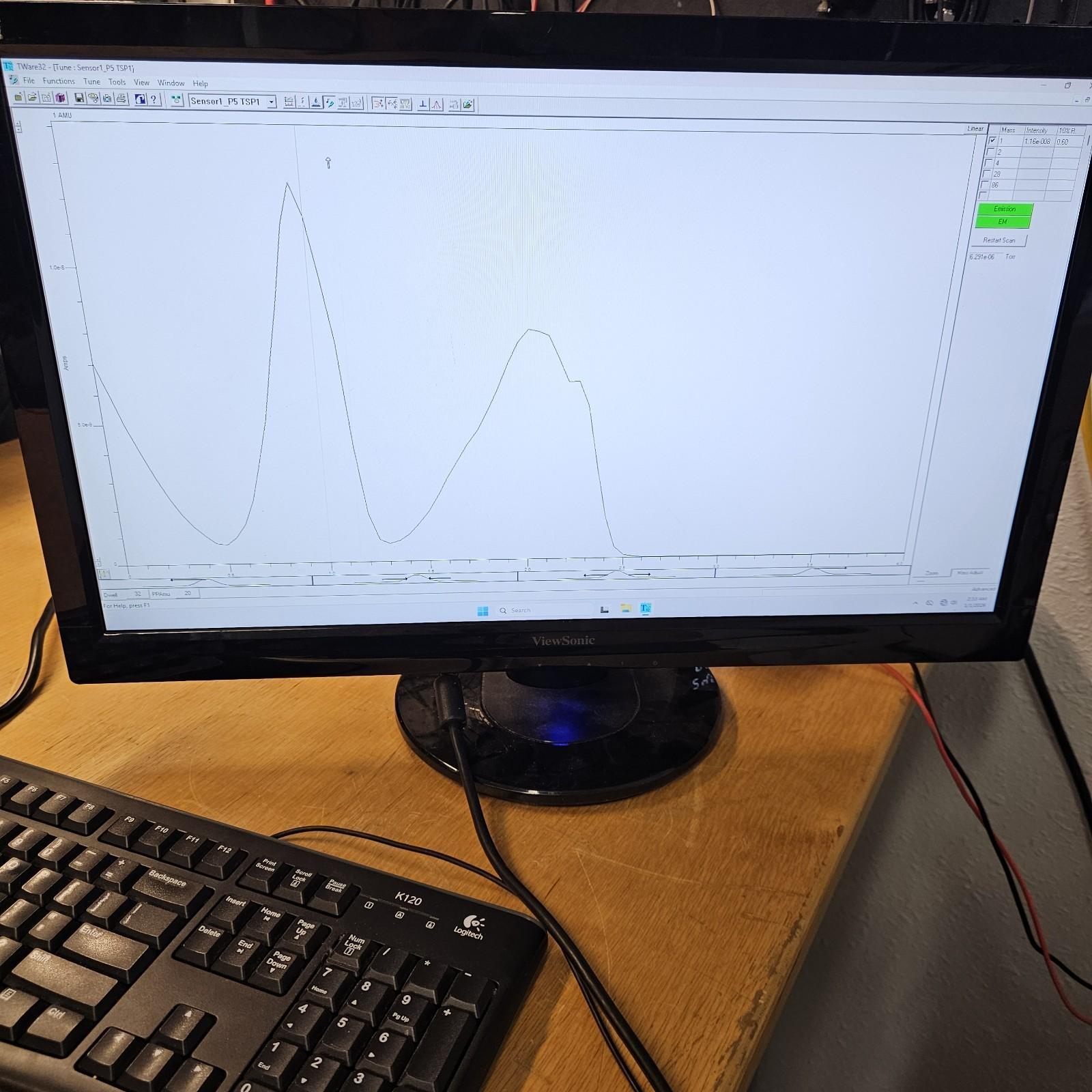

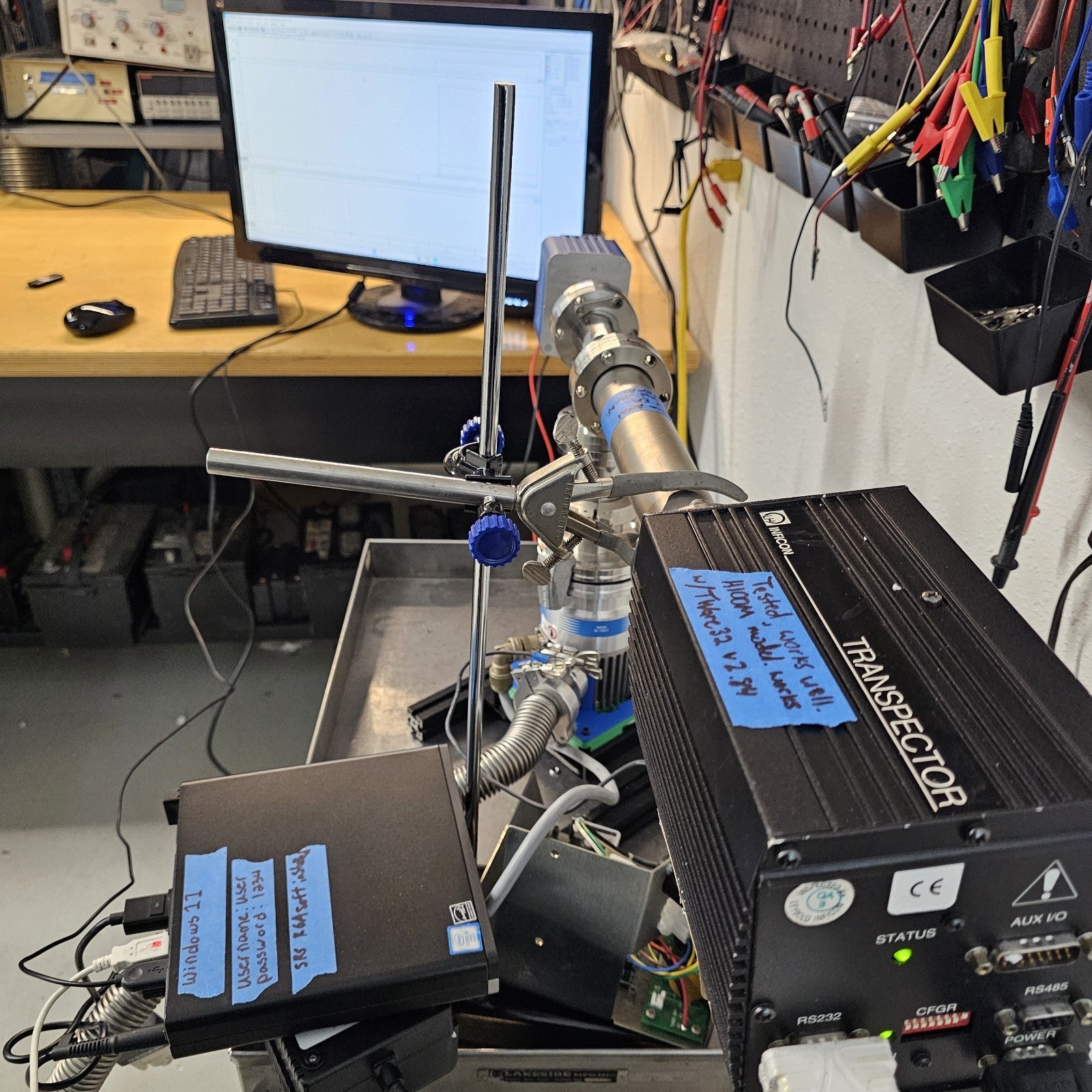

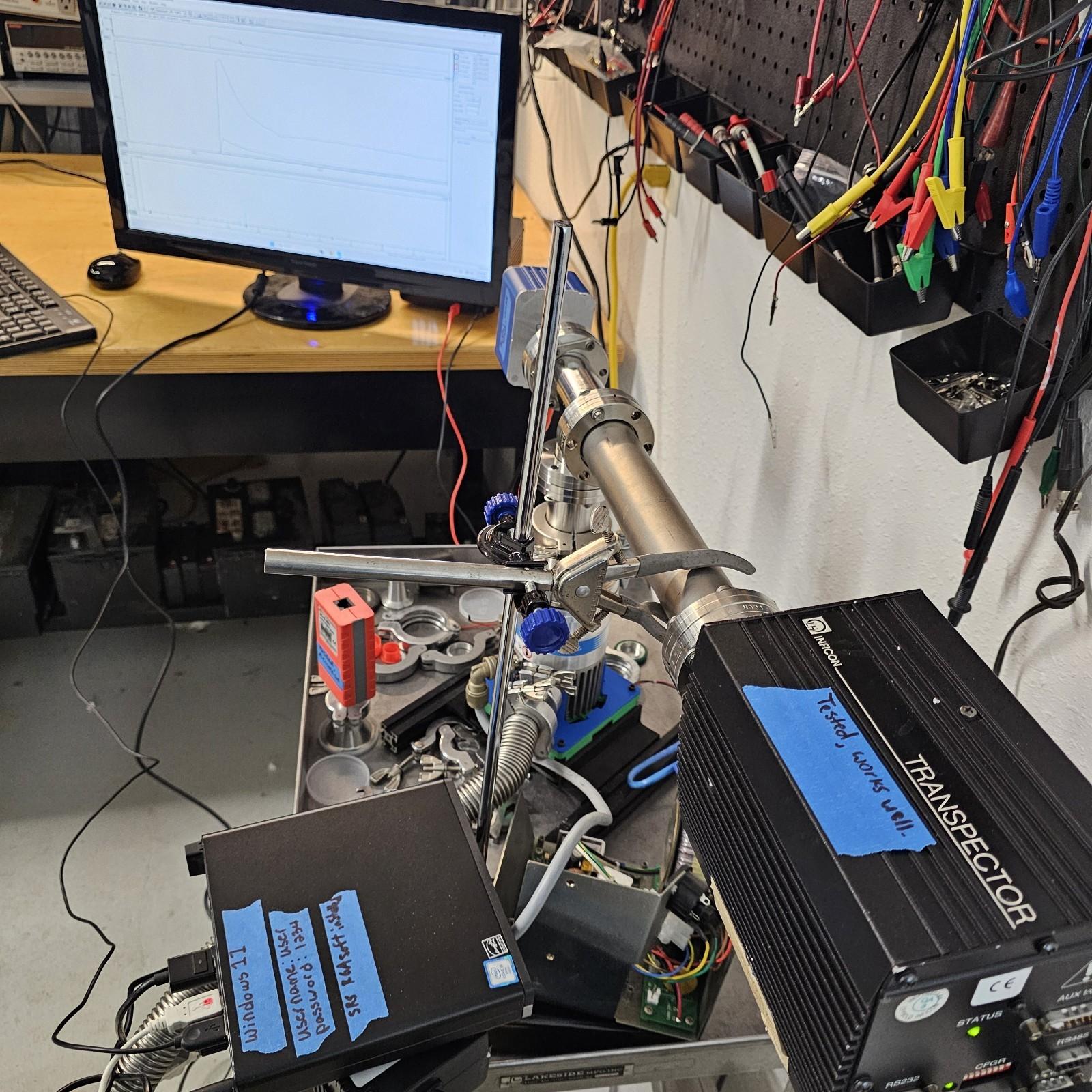

This Inficon transpector RGA is tested and worked to measure accurately the overall pressure and partial pressures of various gases in the UHV turbo-driven bench test station here at Lab Liquidators LLC's lab. Runs in all modes correctly in Inficon's TWare32 RGA controlling software.
See video to watch our technician interacting with this RGA while it is pumped down: youtube.com/watch?v=eG8ijCa6HGQ
INFICON H100M Residual Gas Analyzer (RGA) system; a quadrupole mass spectrometer (QMS) package for vacuum diagnostics and process monitoring. Configured for 1–100 AMU (100 amu) and equipped with dual detectors: Faraday cup + Secondary Electron Multiplier (SEM) / electron multiplier for wide dynamic range (Faraday for higher pressures; EM/SEM for trace-level signals).

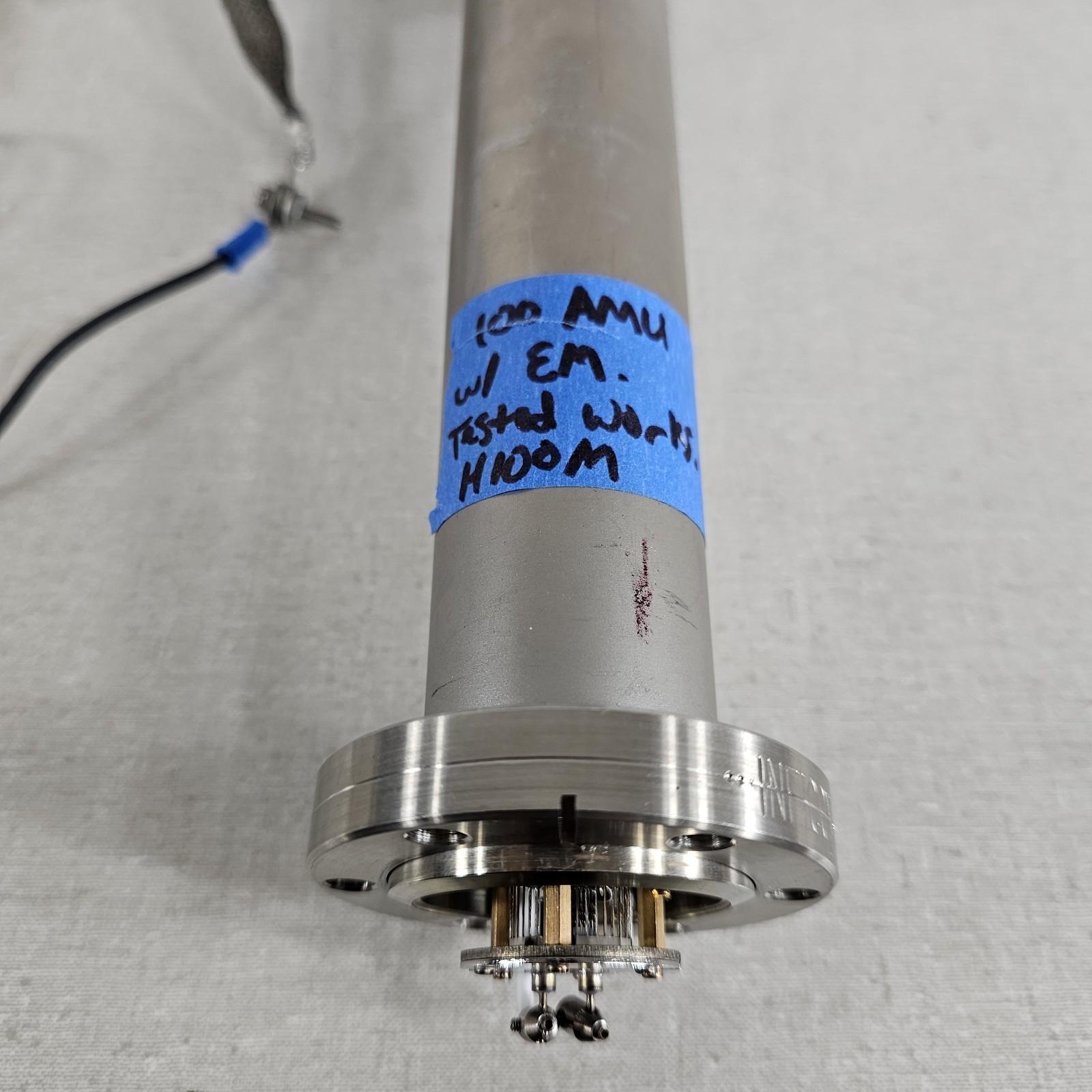

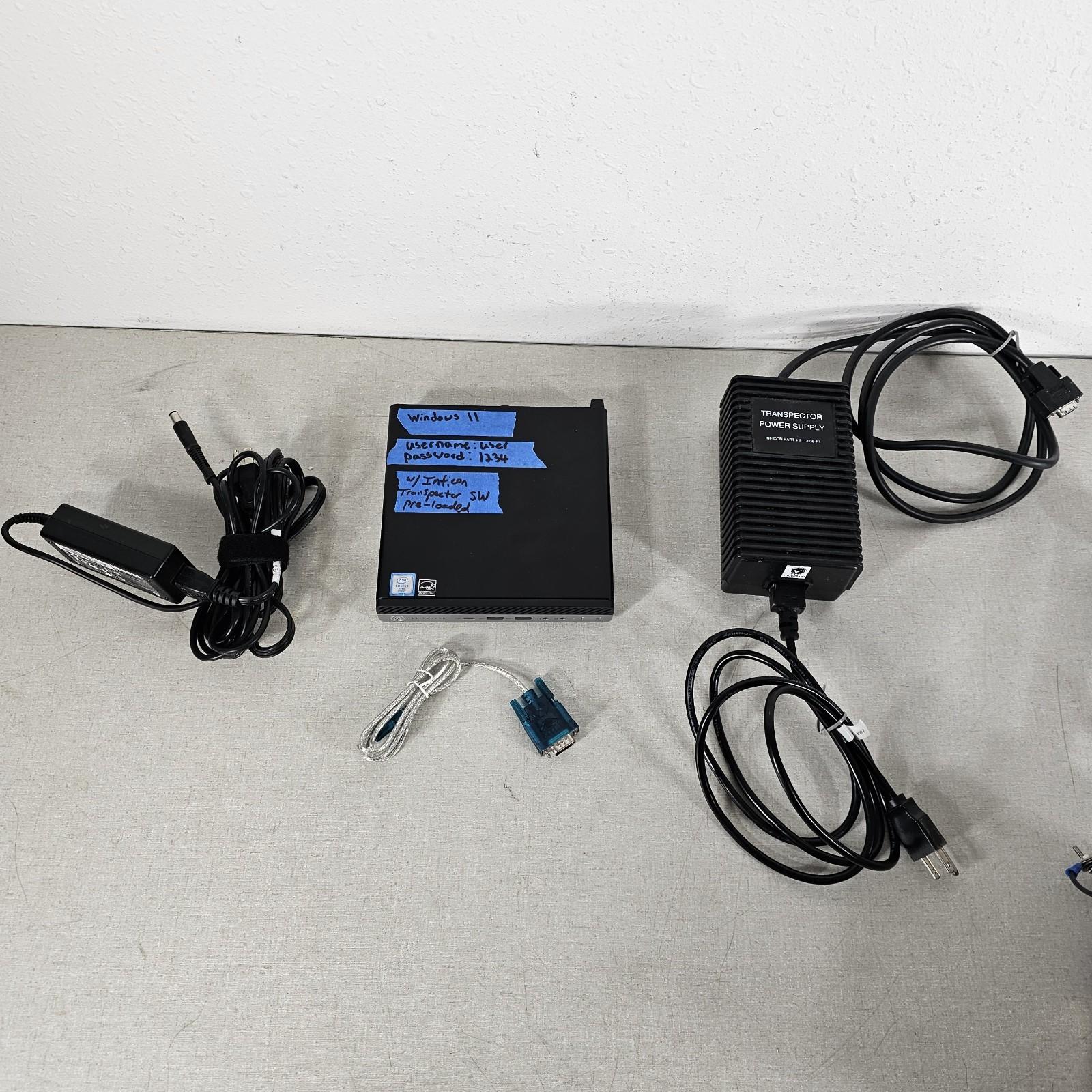

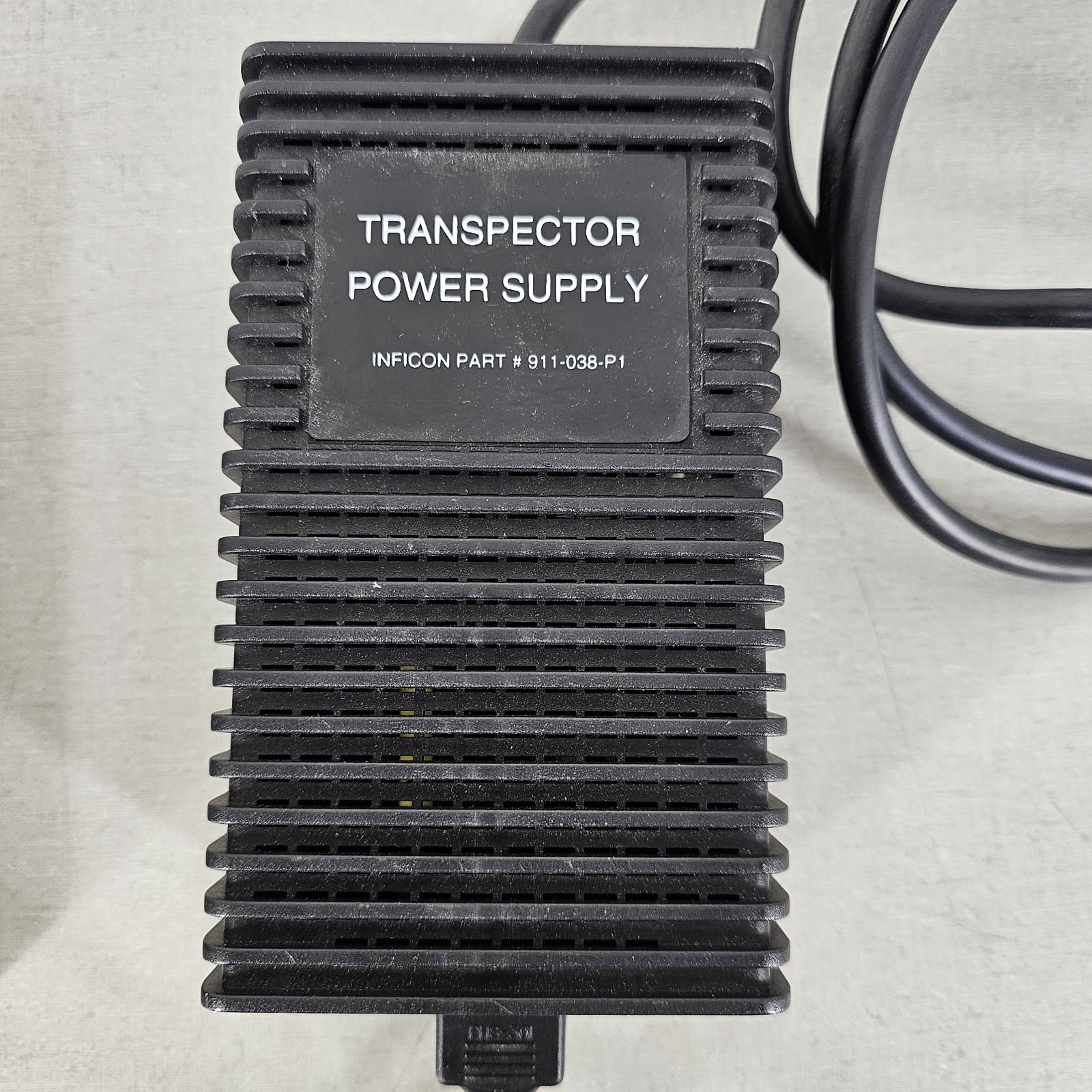

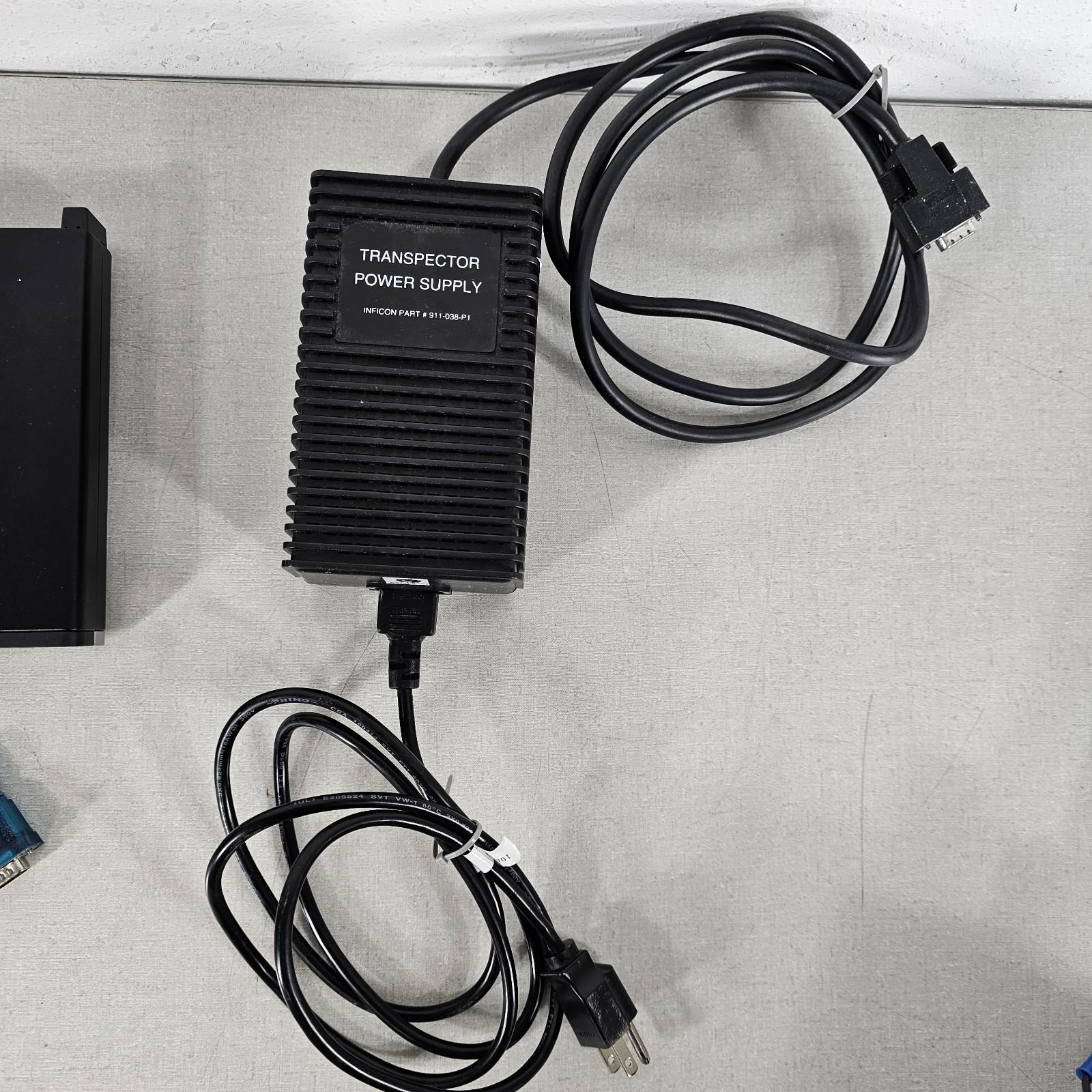

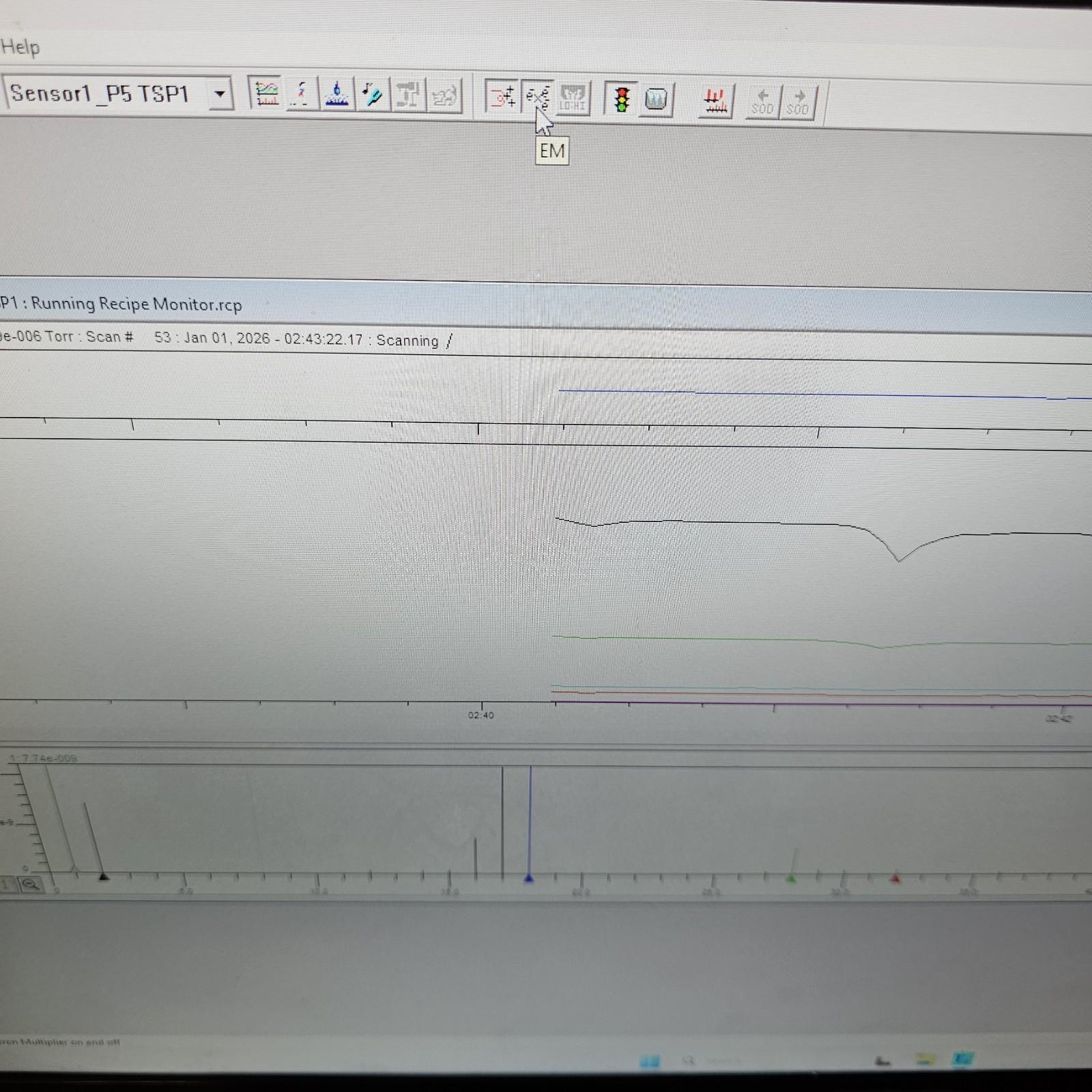

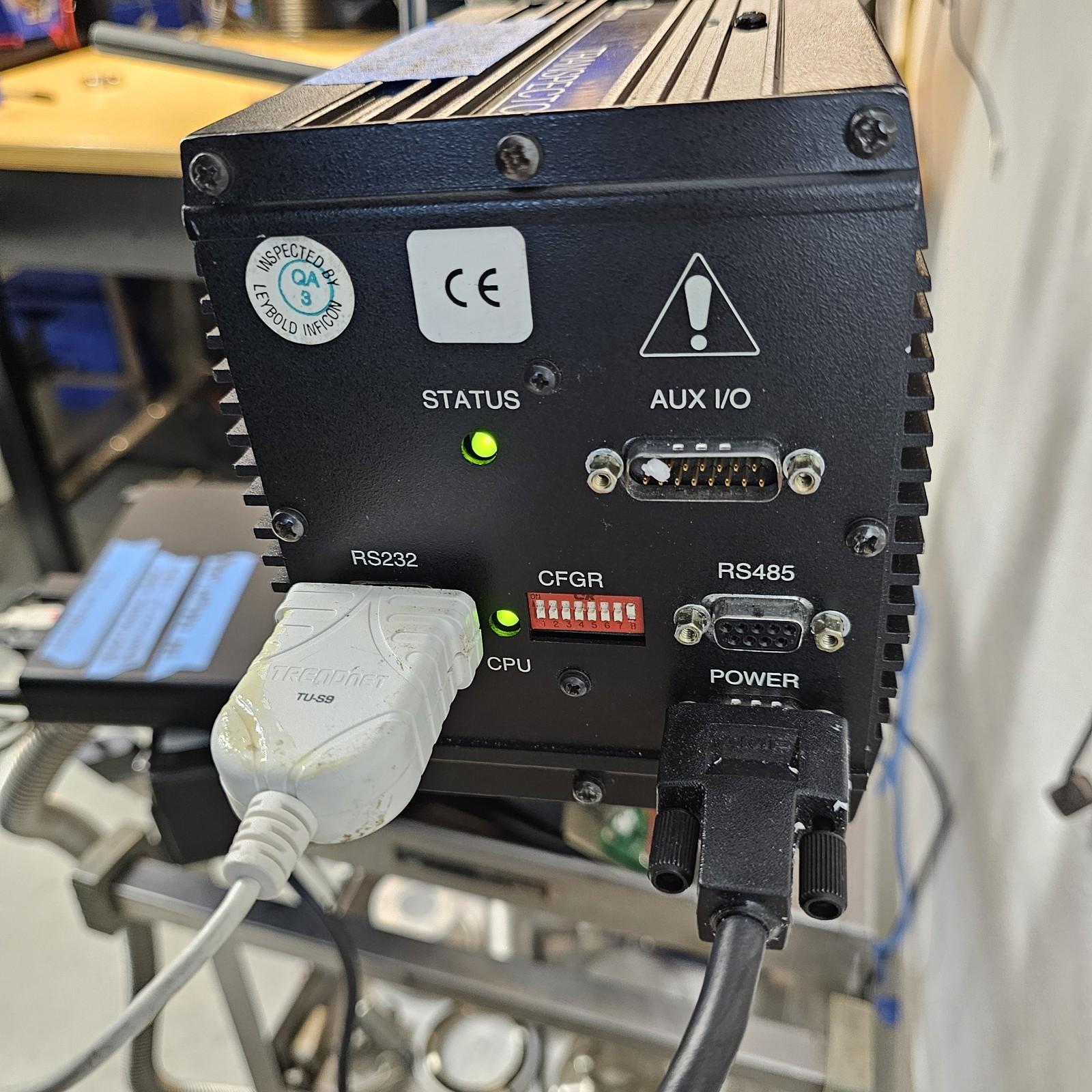

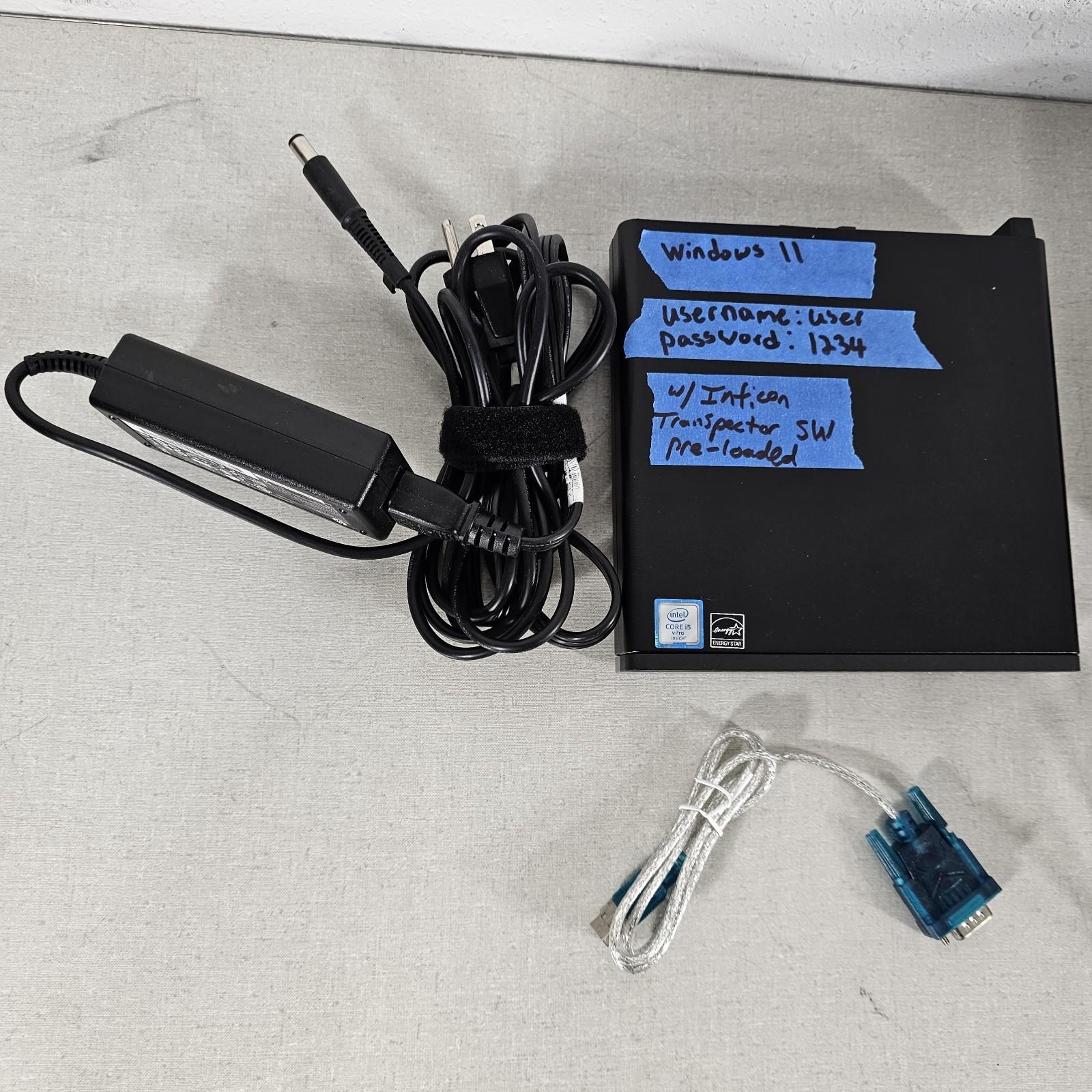

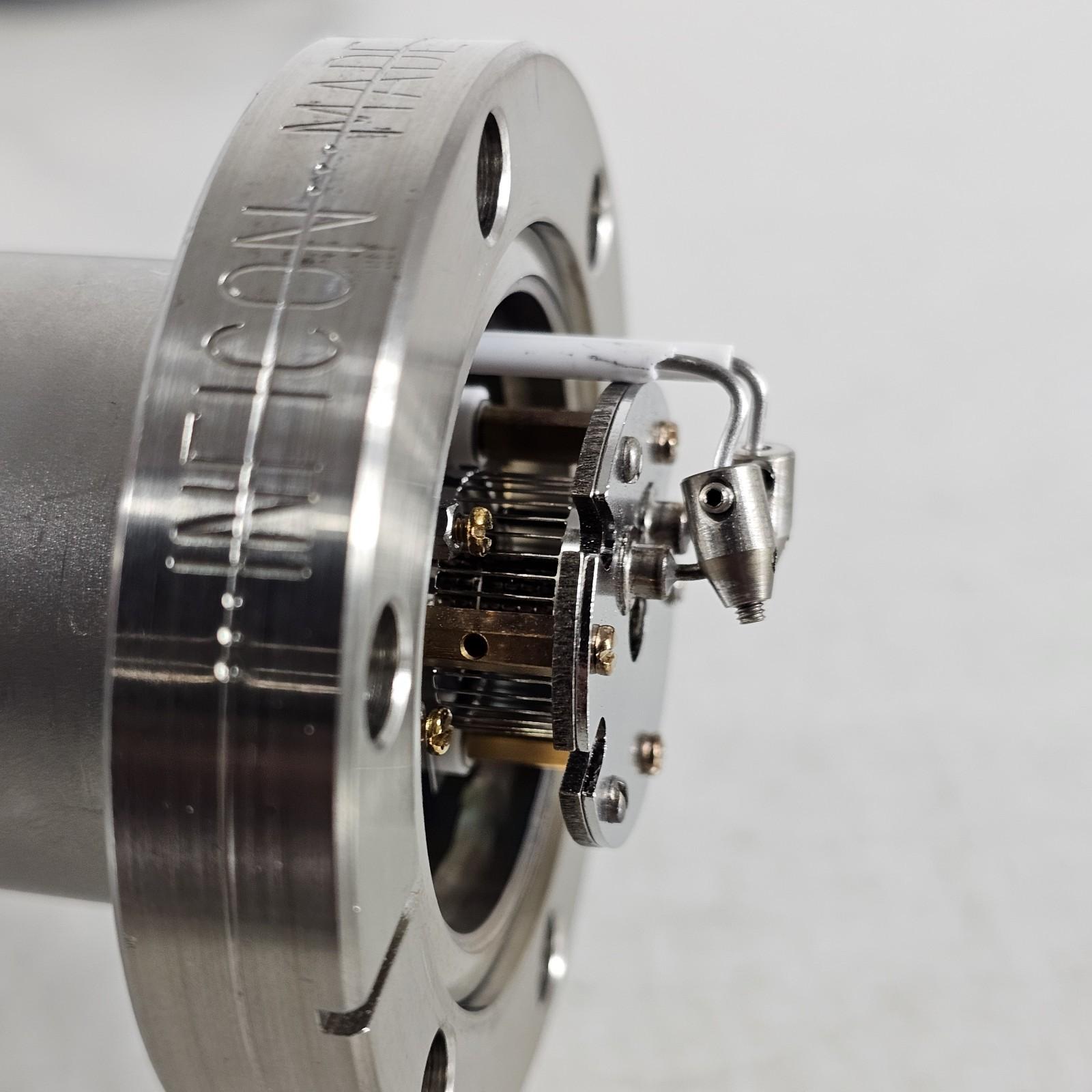

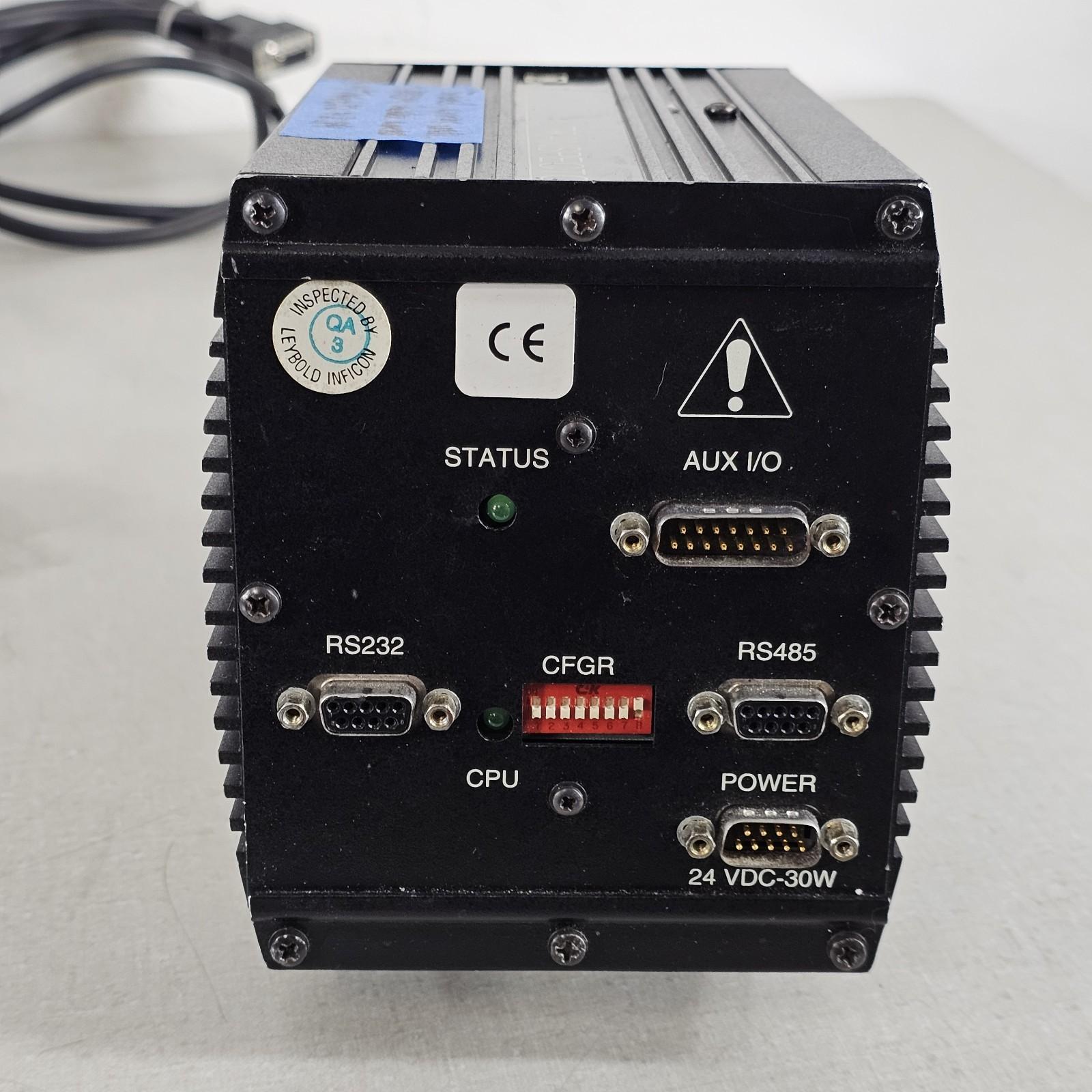

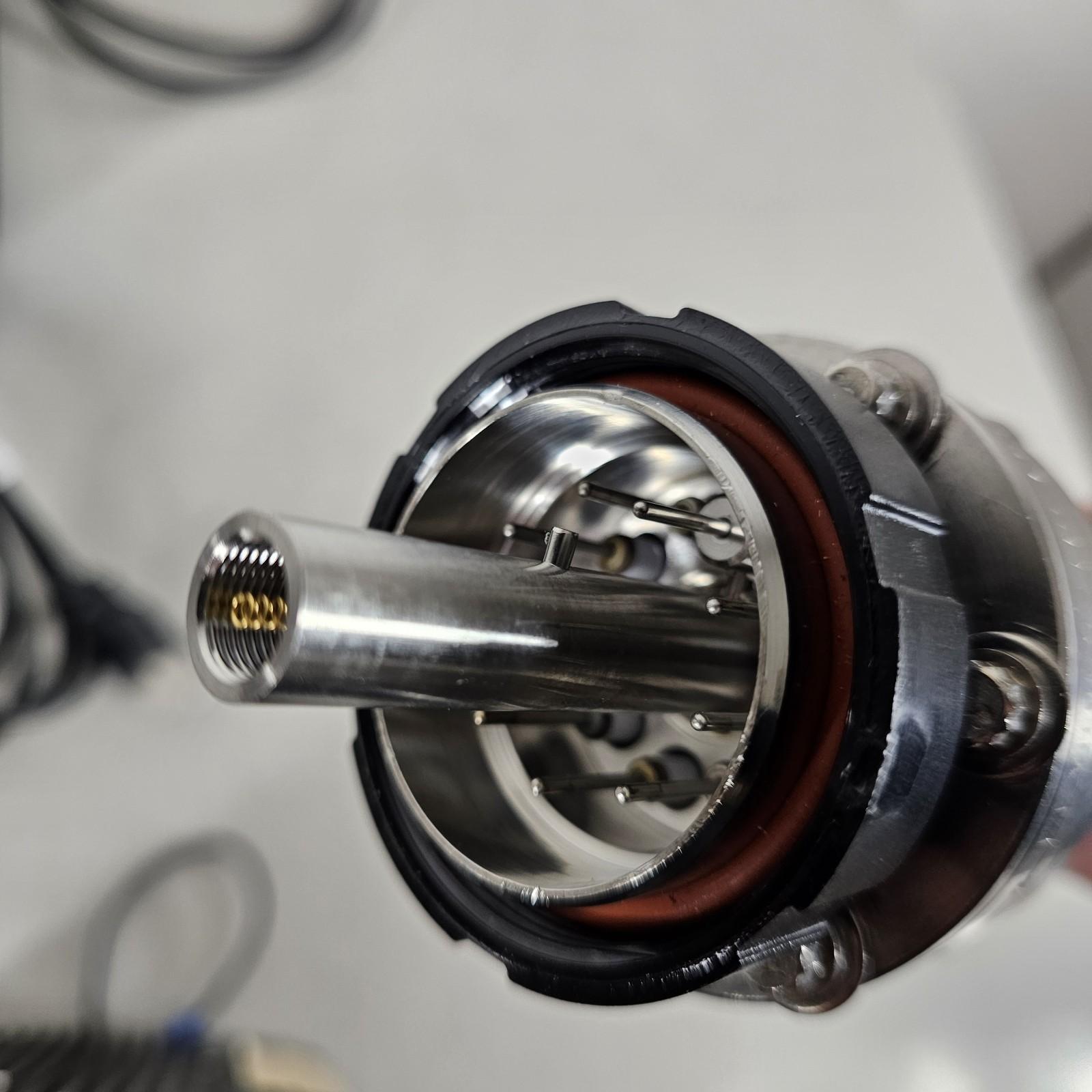

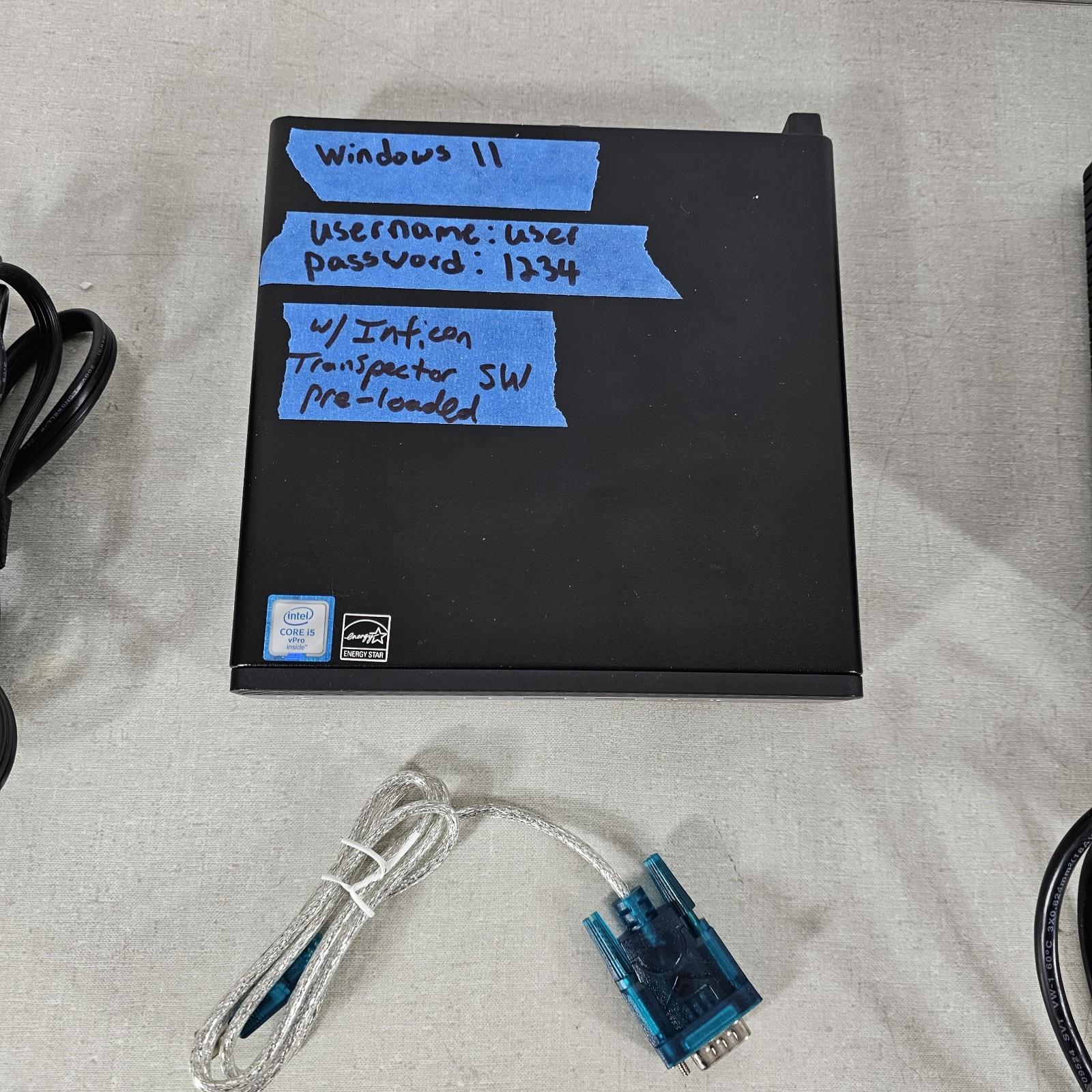

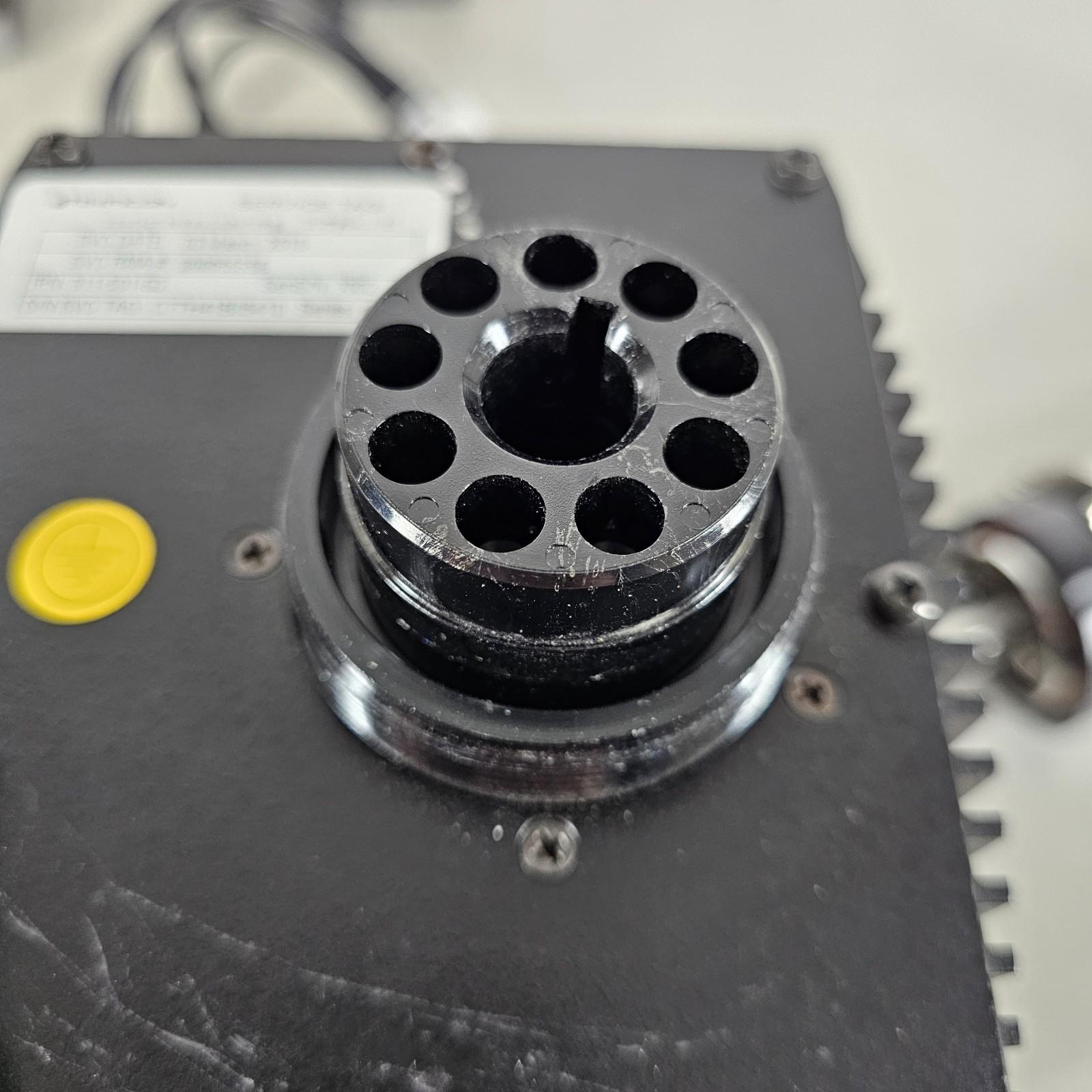

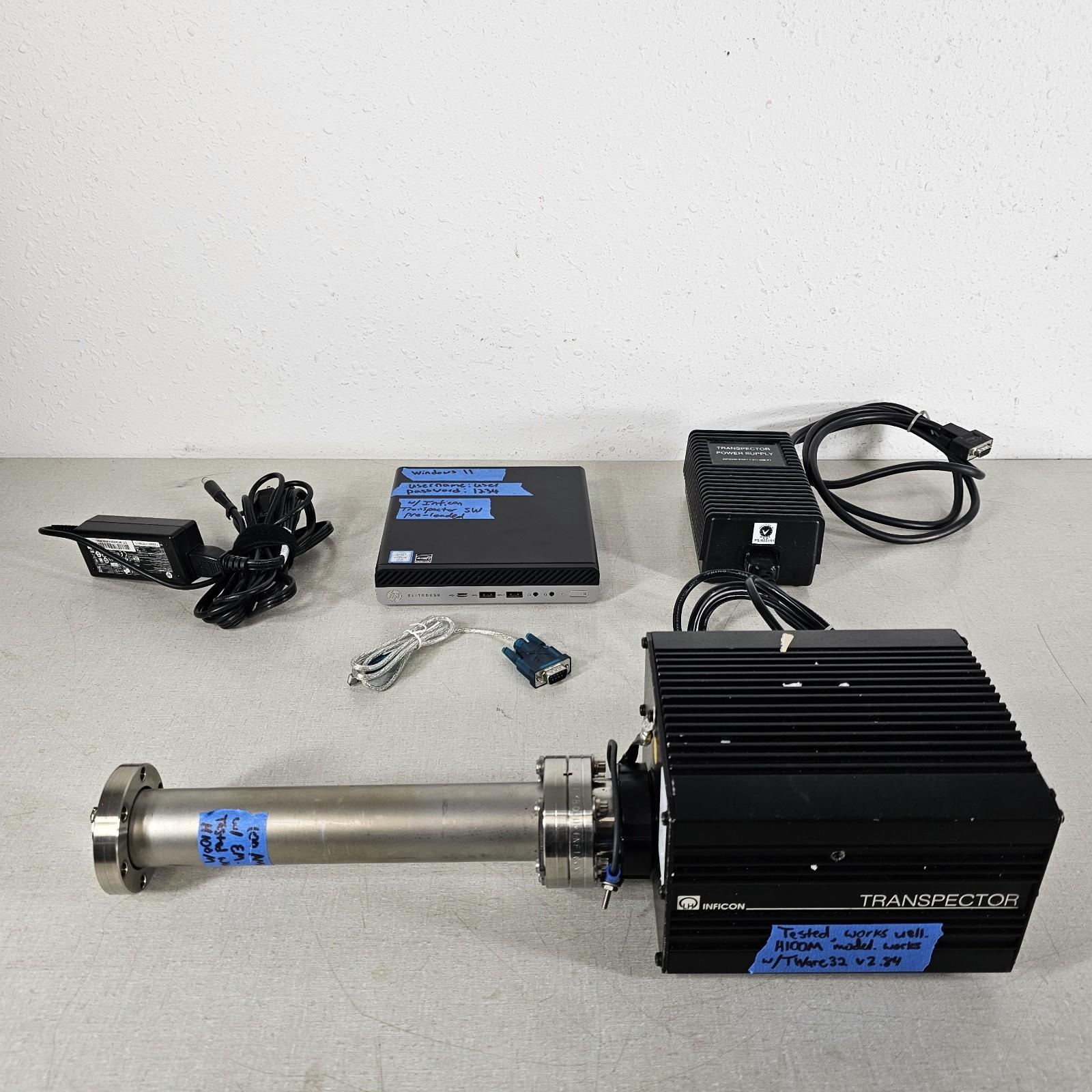

Sensor head is DN35CF (ConFlat) flange with standard filament. Sale includes the complete control stack: INFICON controller, OEM Inficon power supply (911-038-P1), communication cable, and a dedicated PC with INFICON TWare32 (TWare 32) RGA control software pre-loaded on Windows 11. We fully tested in-house: both Faraday mode and electron multiplier mode operate correctly across all built-in/set programs. Knife edge of nipple is in perfect shape, holds UHV with ease.
Common use cases: leak detection, outgassing and bakeout monitoring, contamination/hydrocarbon and water tracking, vacuum system troubleshooting, and general HV/UHV gas analysis for deposition, semiconductor, vacuum furnaces, sputtering/evap, gloveboxes, load locks, etc.
Pumps sold separately. If you need a backing pump/turbo package or vacuum fittings/adapters to match your chamber, reach out and we can quote options. Monitor, keyboard, mouse, turbo pump station, fittings other than the tube nipple are not included in purchase (those were for demonstration purposes only): if you need those, please message us and we can quote them separately.

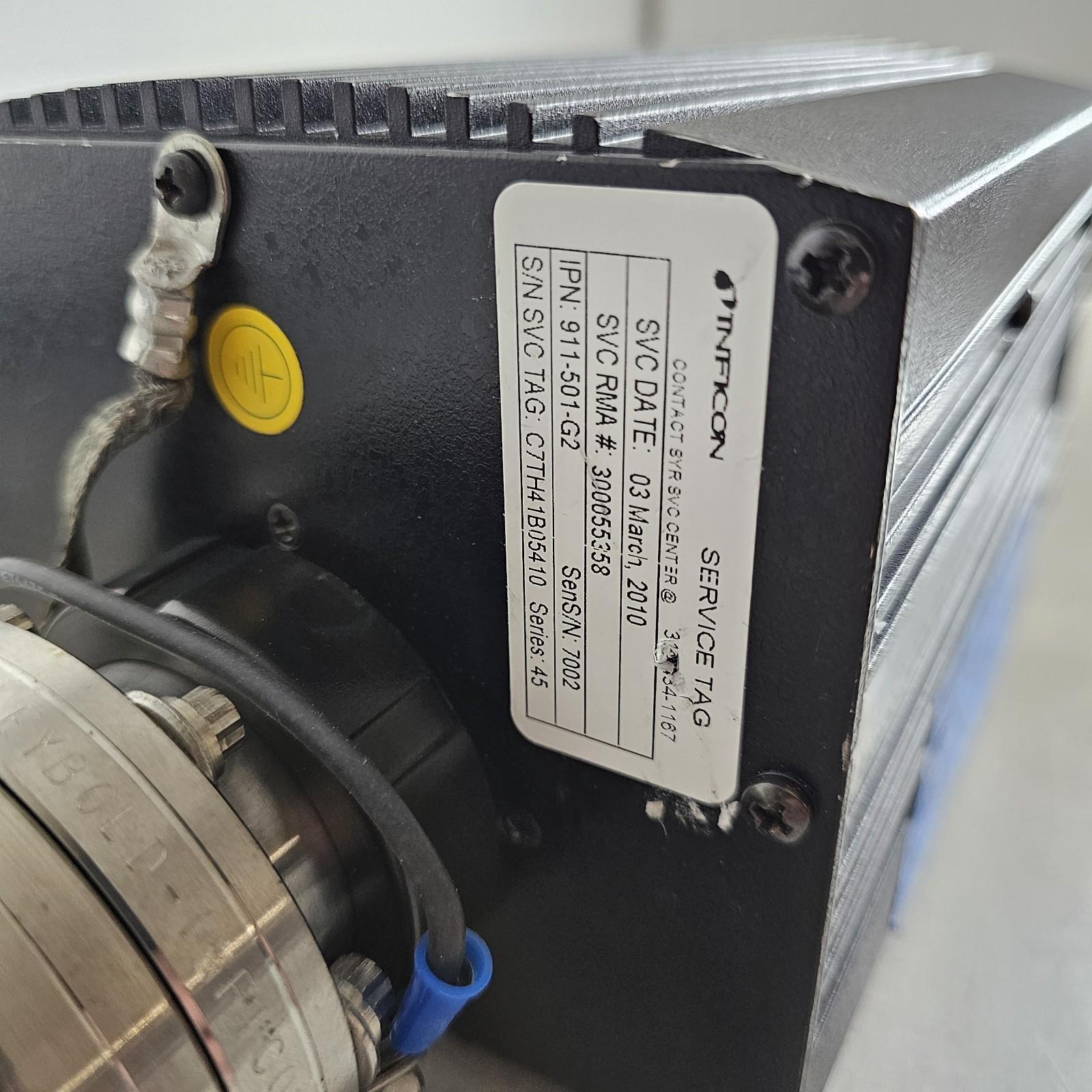

Head Part Number: 911-501-G2. Classic Inficon reliability. Made in the USA.
Stored with the tube sealed so it doesn't collect dust or contaminates.
