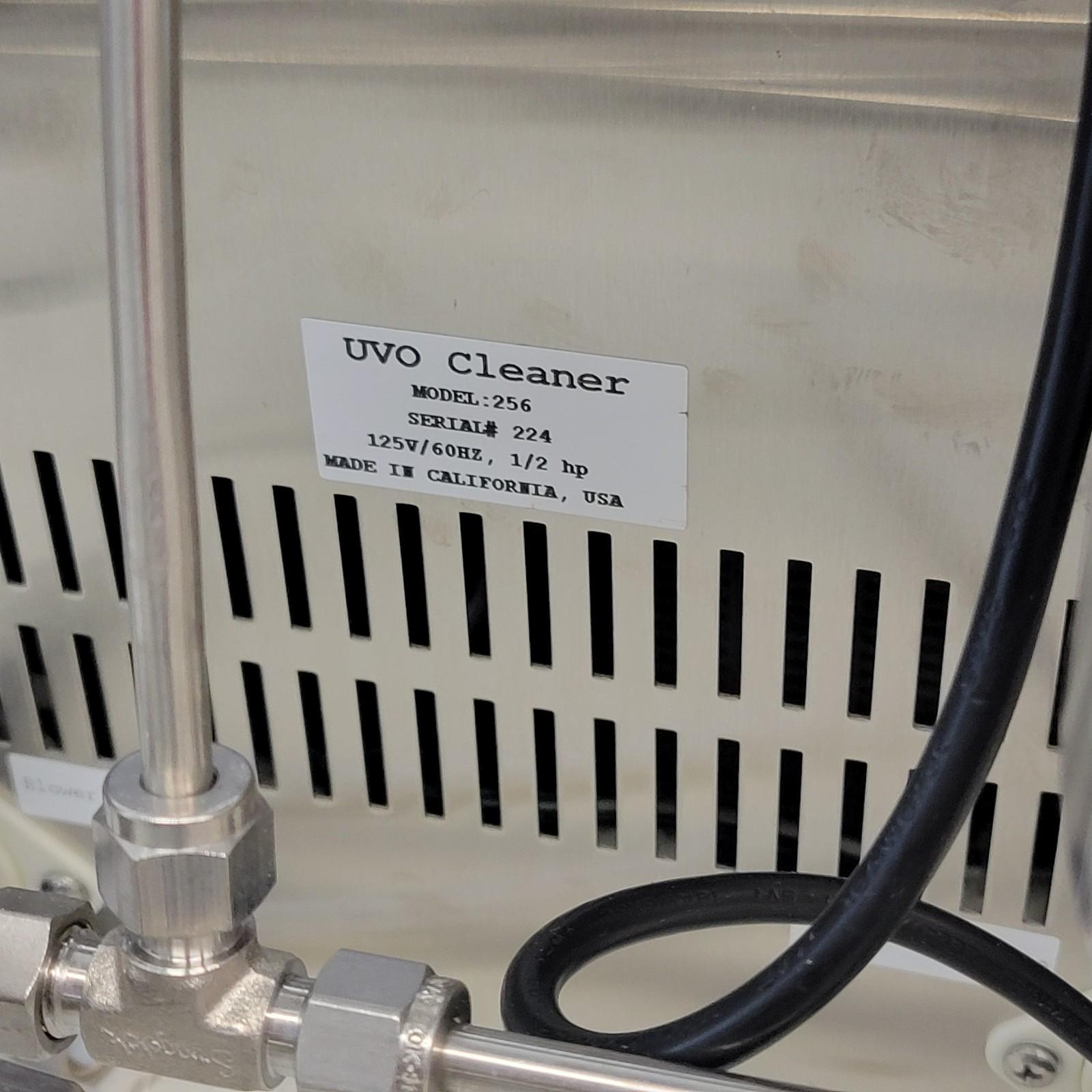

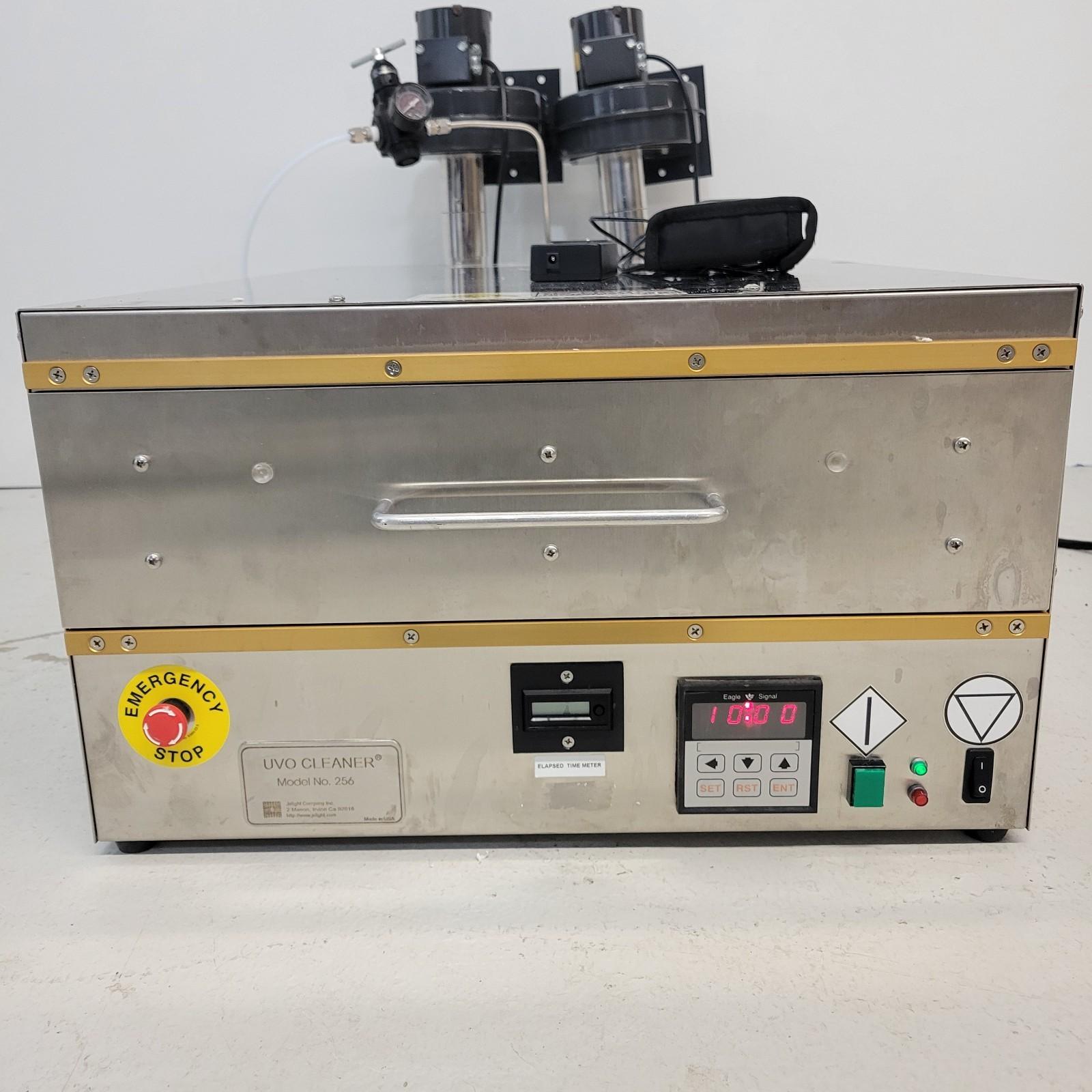

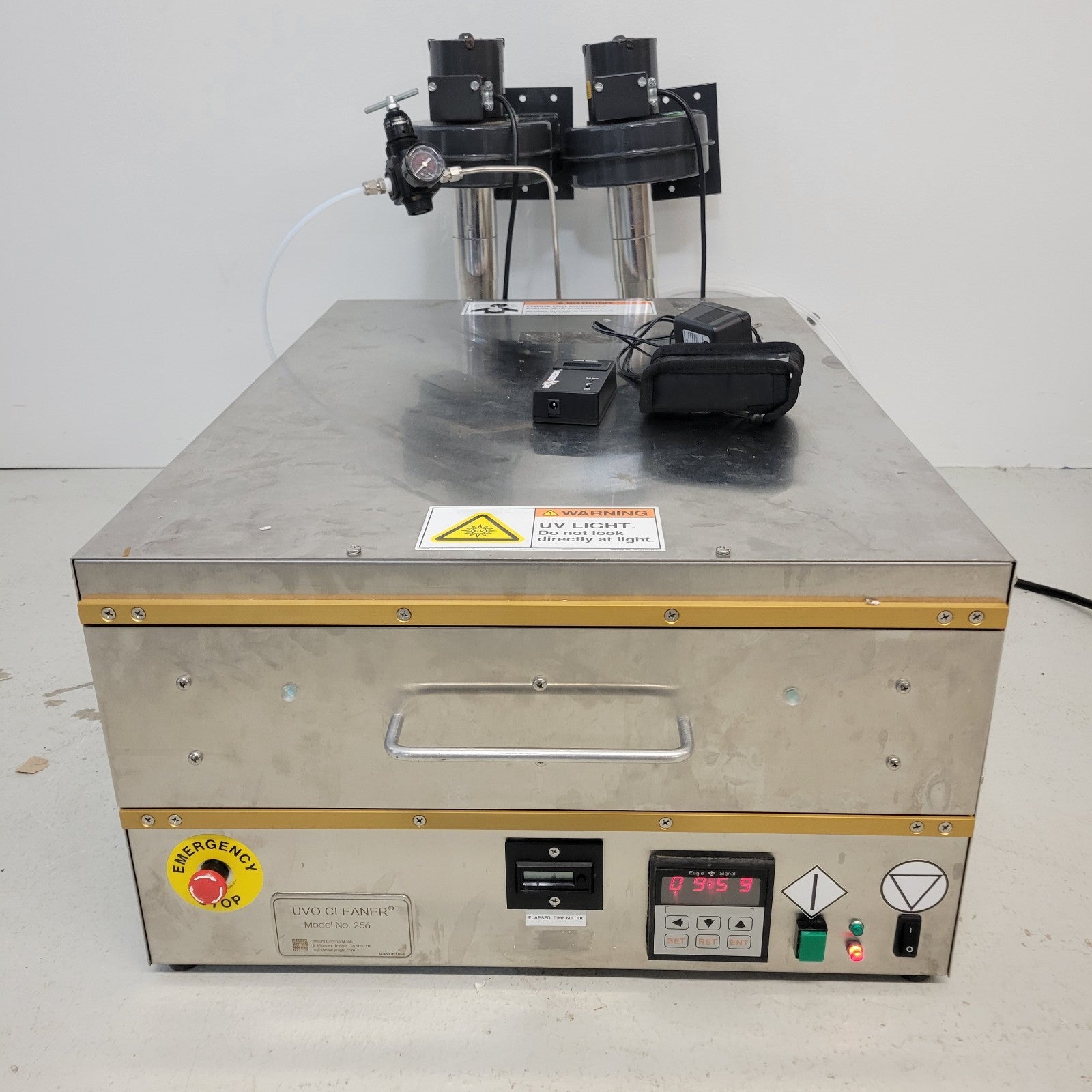

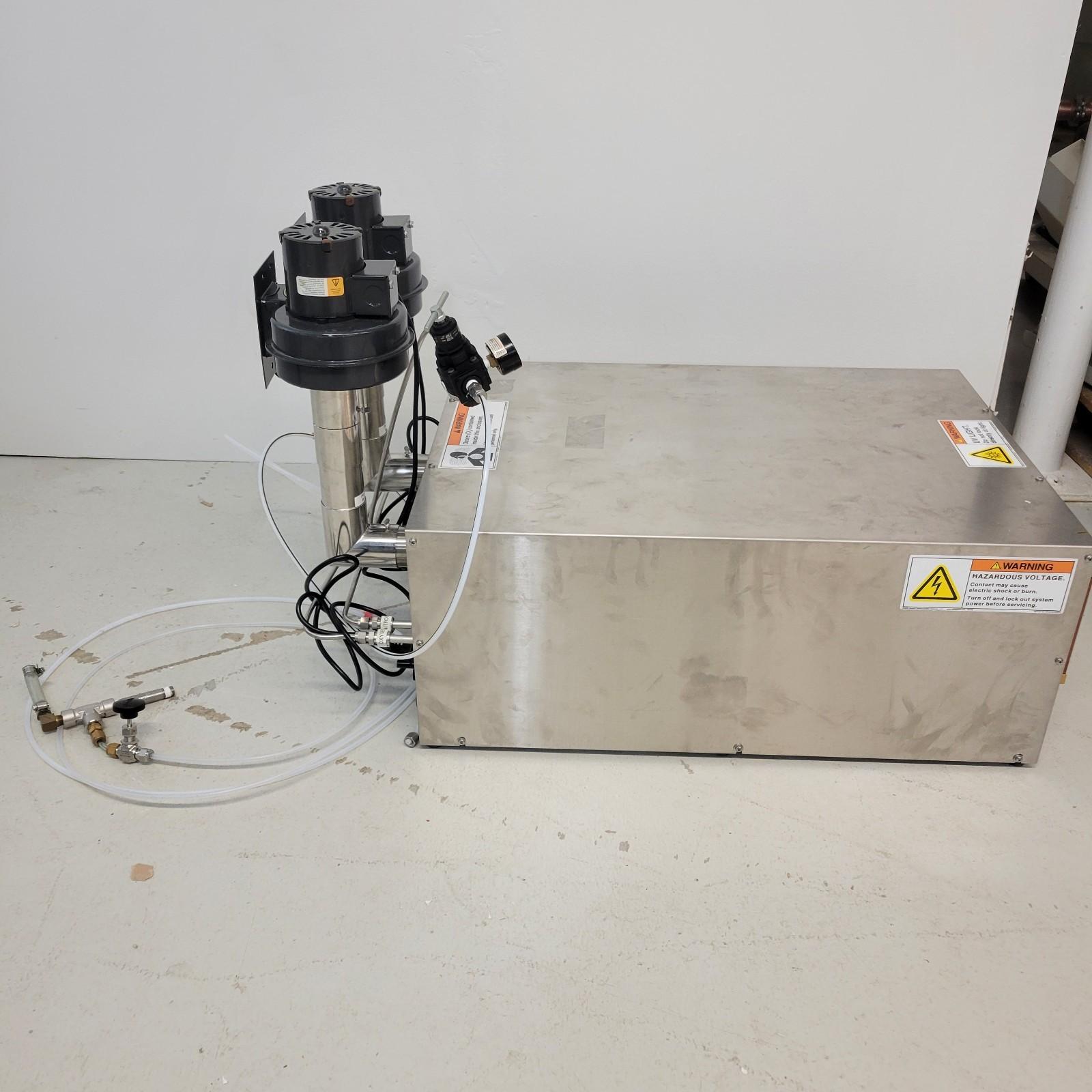

Jelight 256 UVO Cleaner 120V Blower Fan Ozone N2 Oxygen Input Ultraviolet Lamp

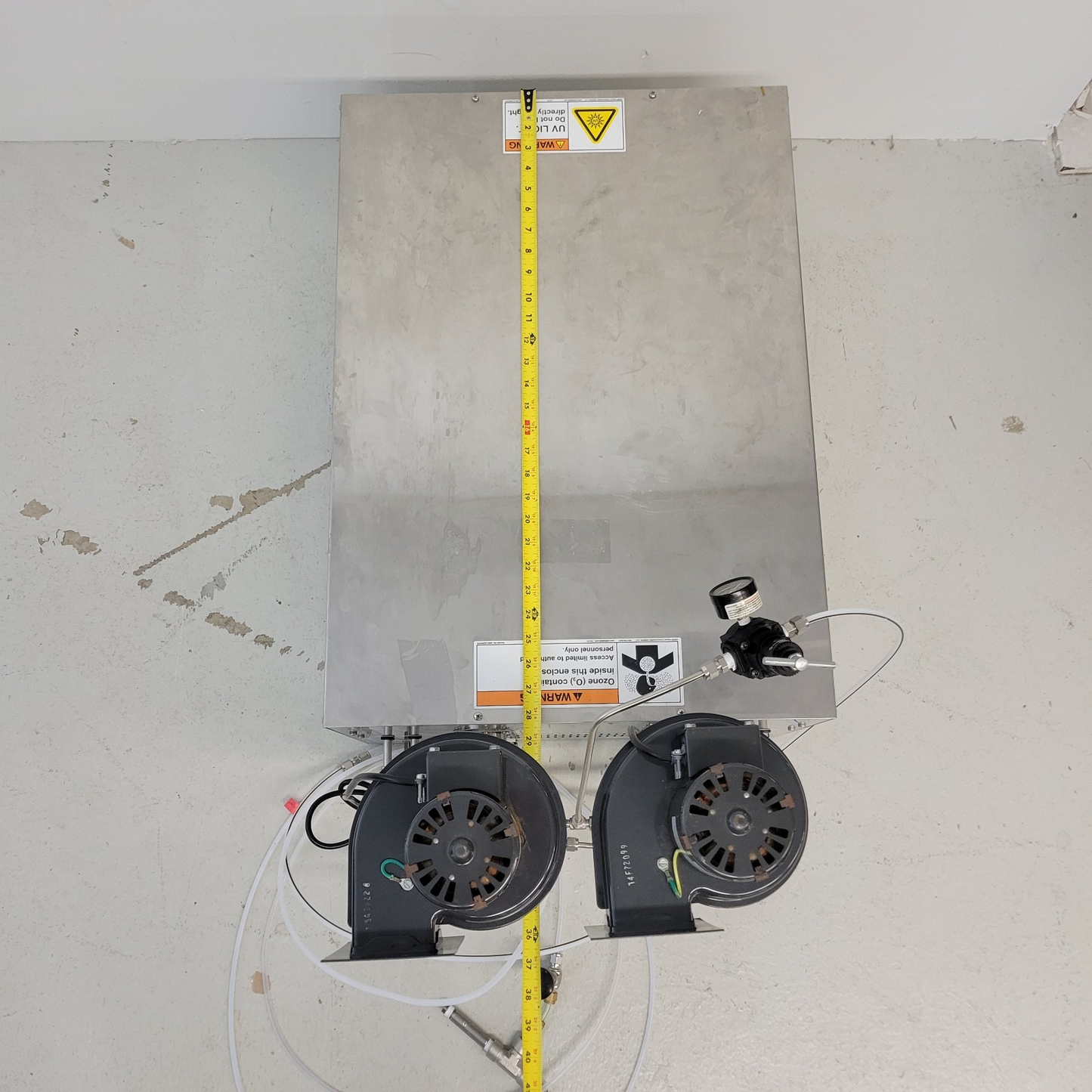

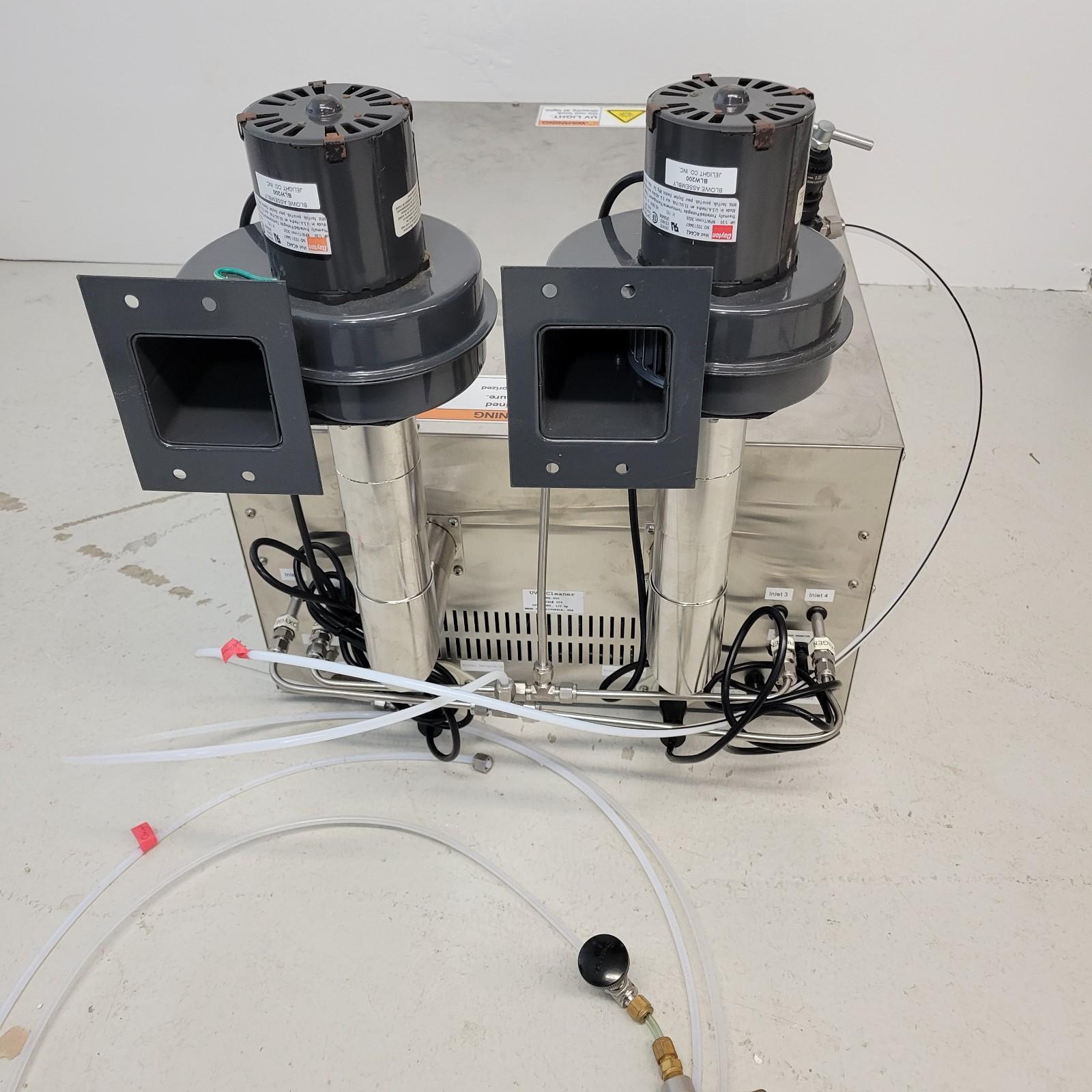

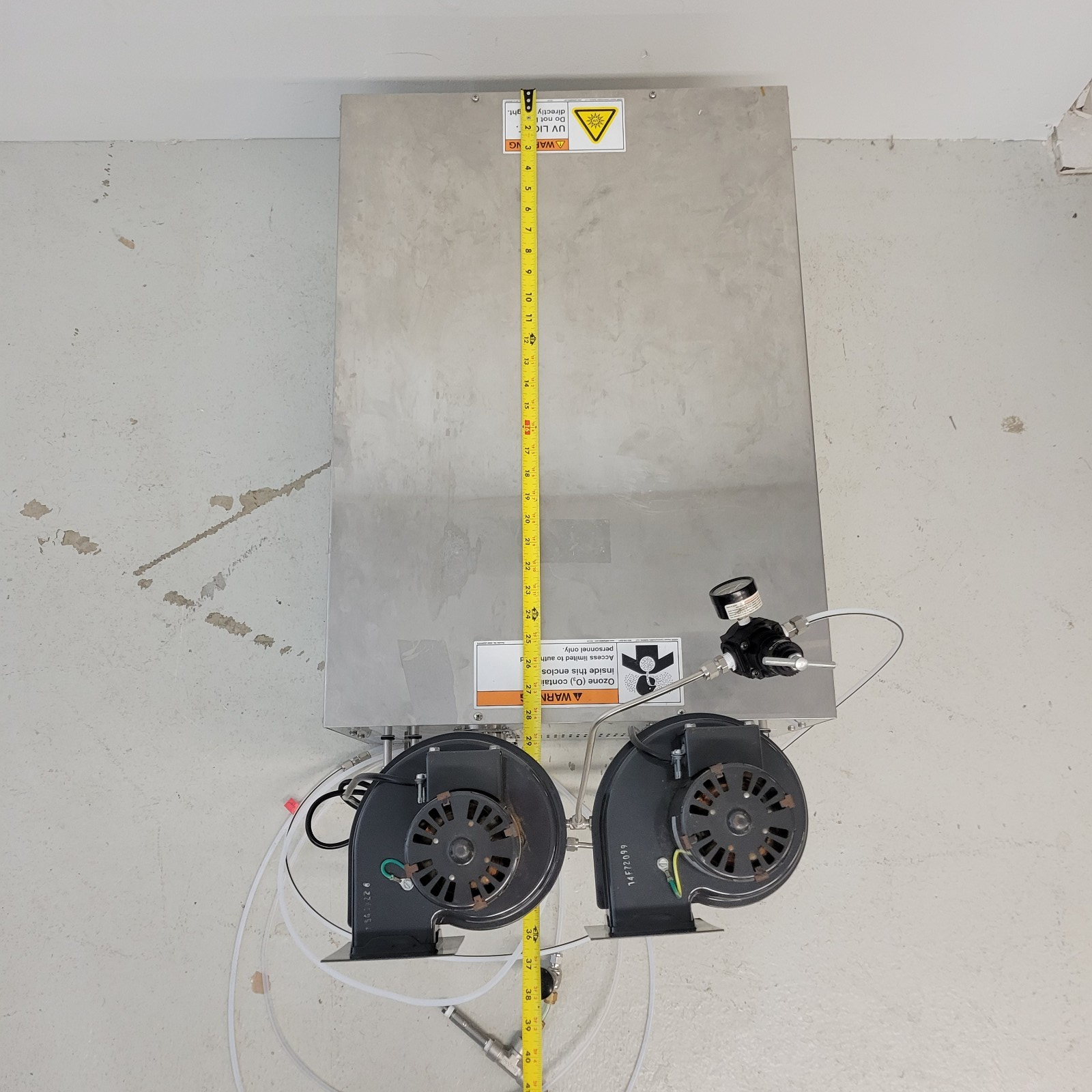

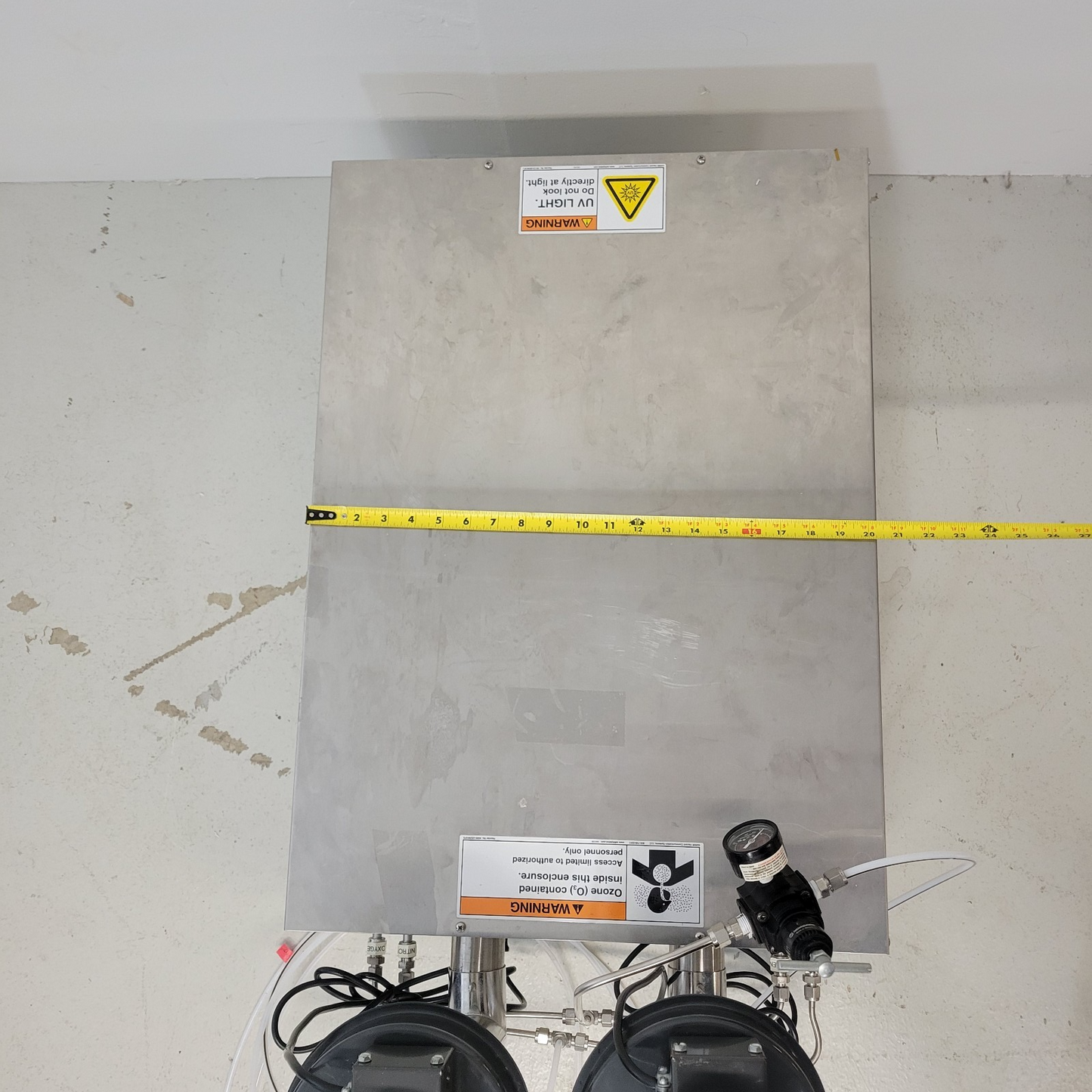

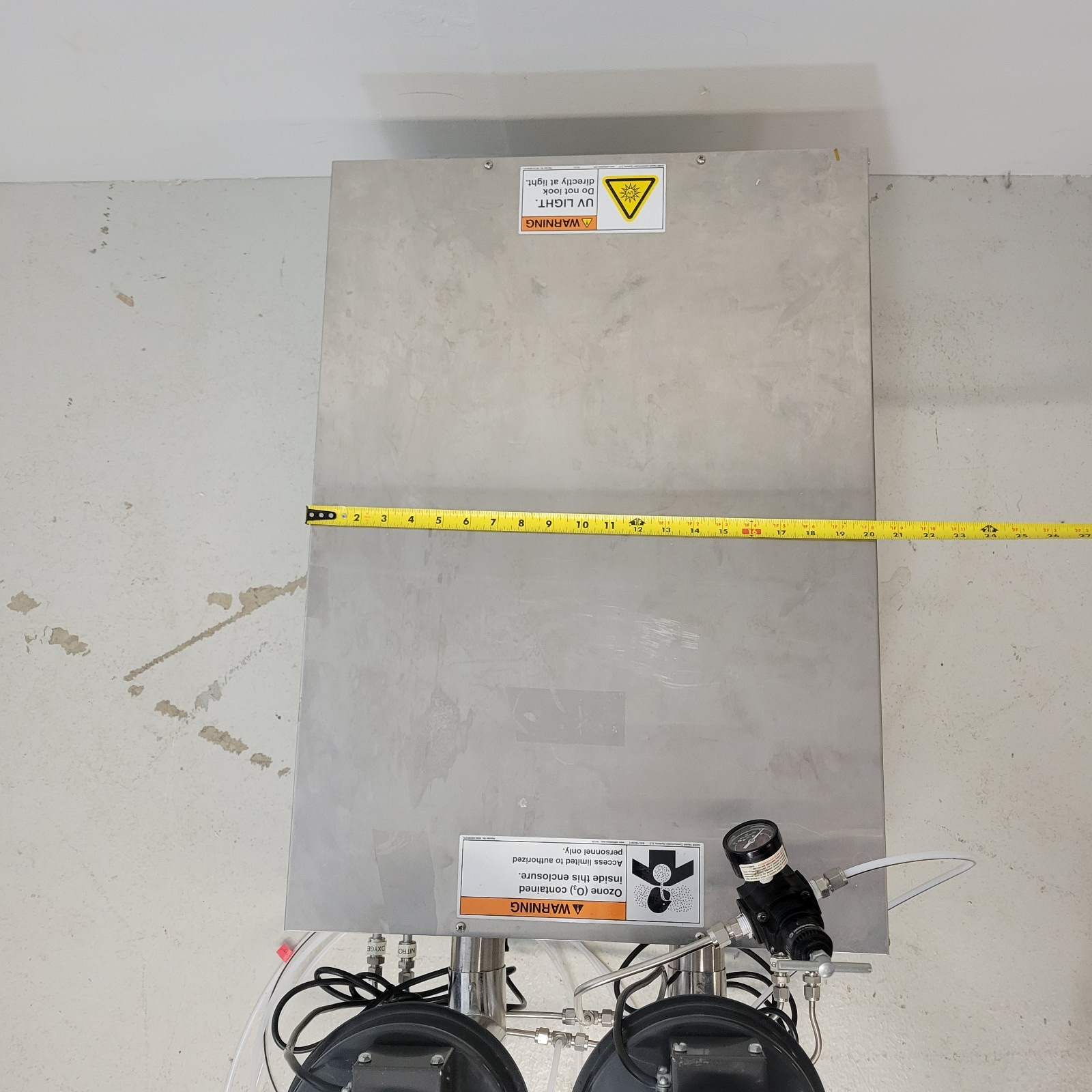

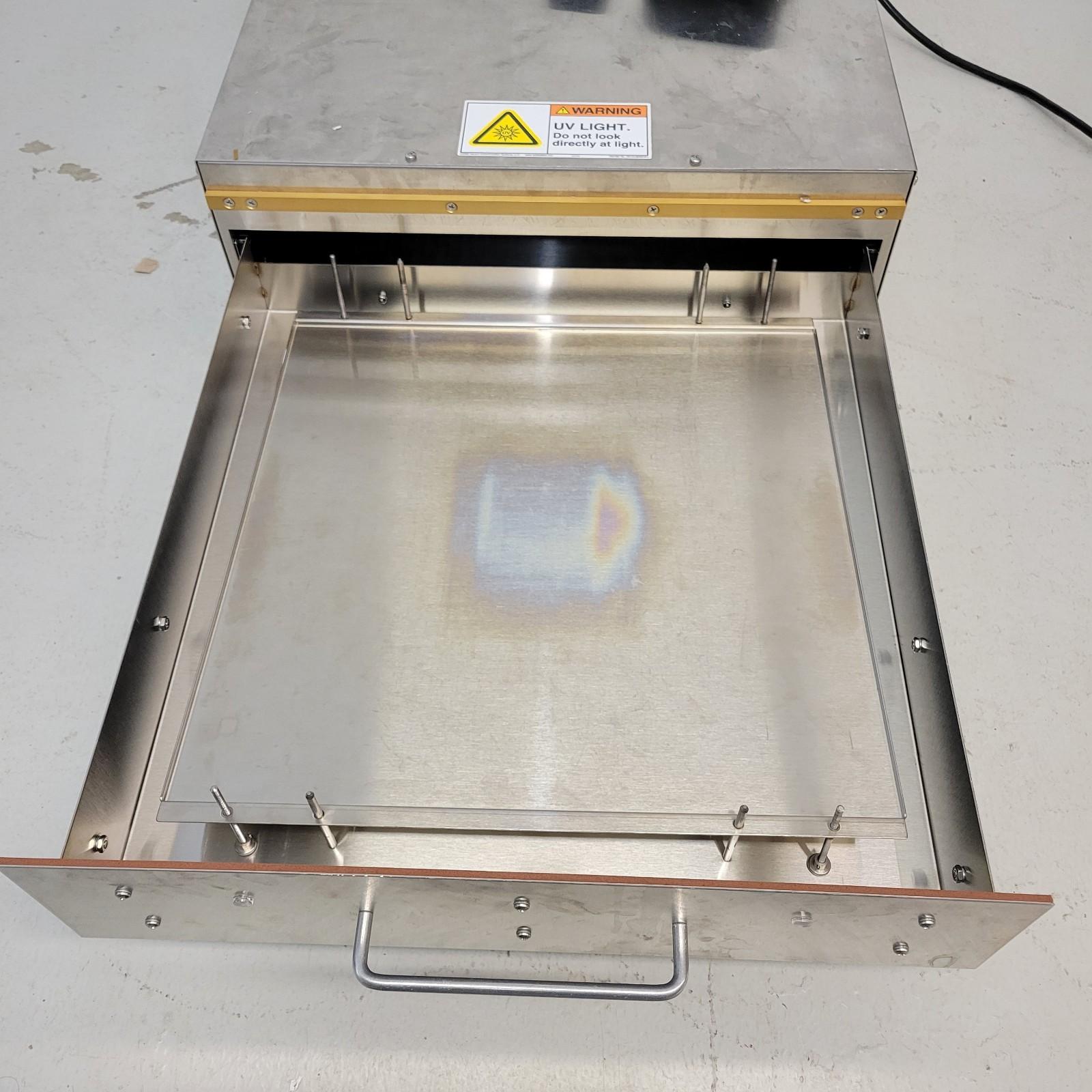

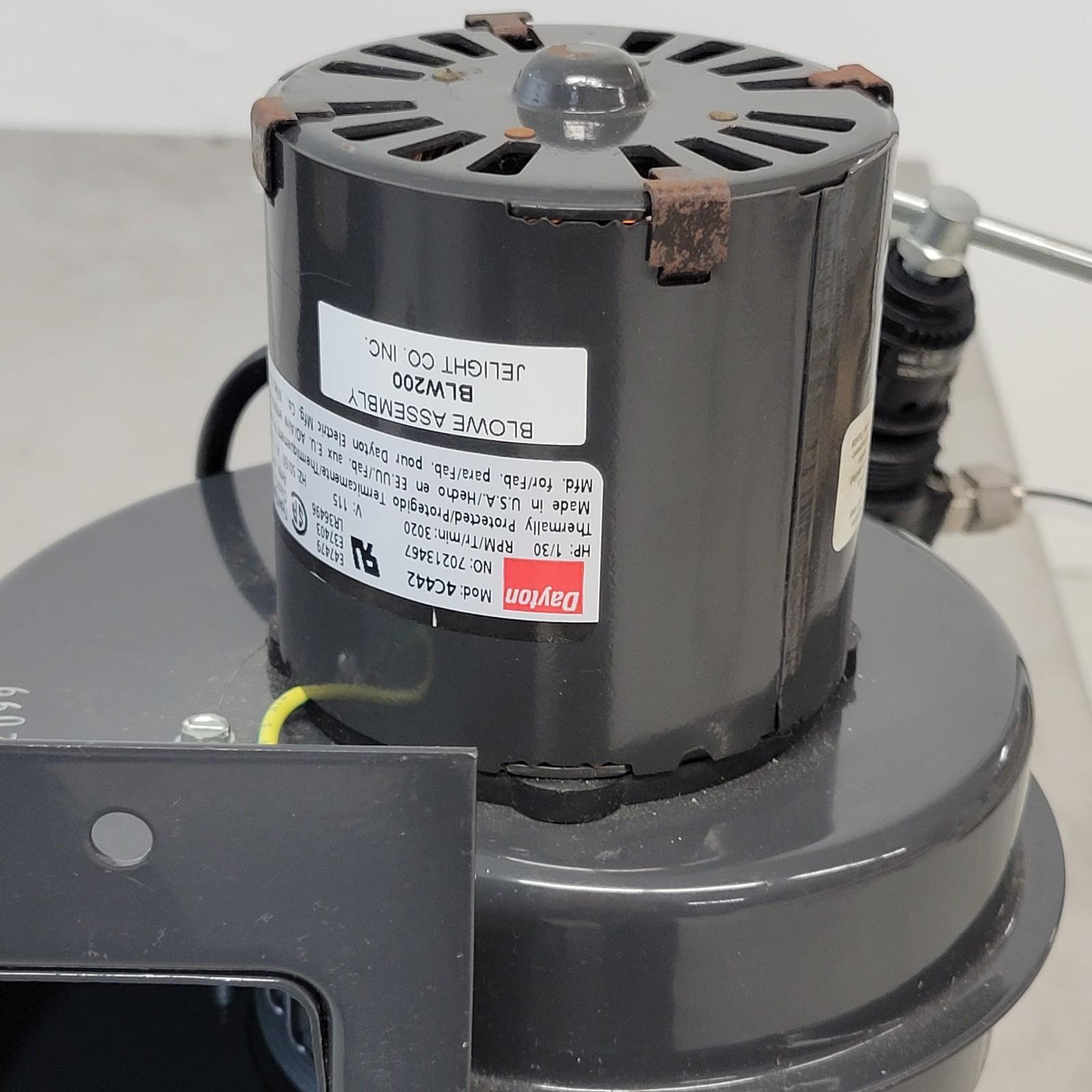

Used see photos. Tested works: blowers blow hard and UVO oven turns on (we measured it using an ozone sensor just after running it). Usable inner tray size of about 16x16 inches.
See video of us testing the Ozone generator with our sensor (not included): youtube.com/watch?v=LU6-uw-oa6w
High quality, made in the USA. Stainless steel construction.
Due to the large size and weight, system must be shipped via freight shipping. Buyer is responsible for freight shipping costs.

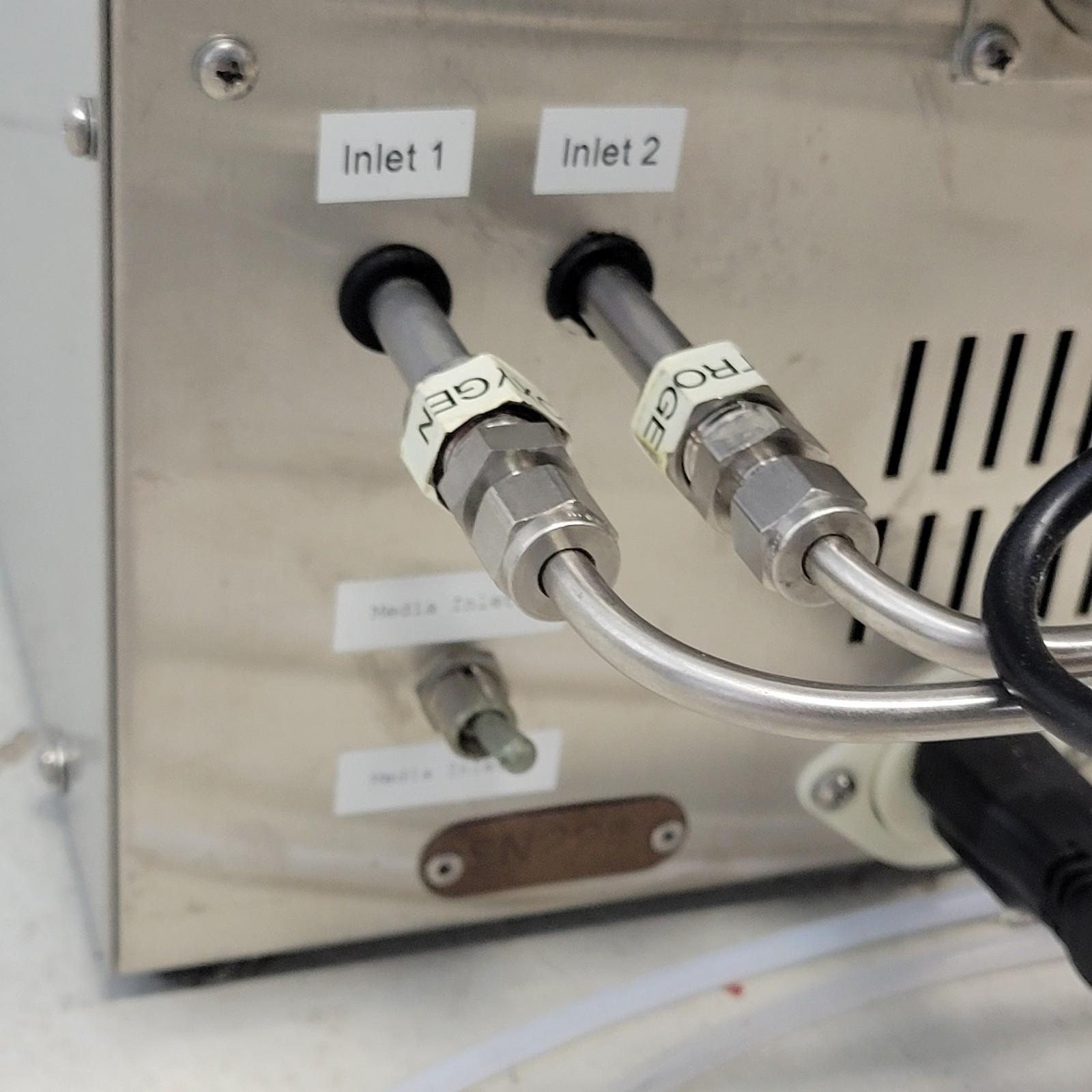

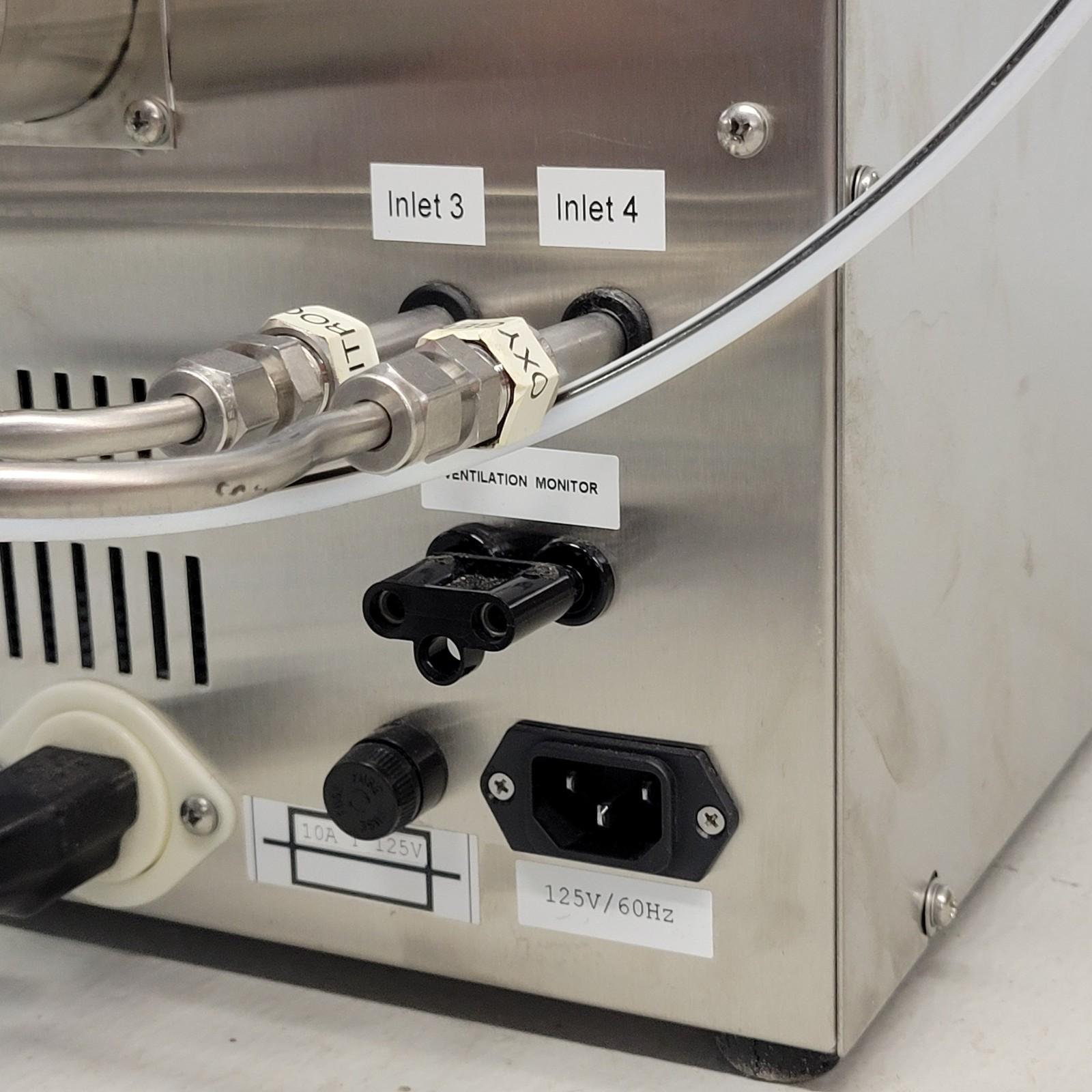

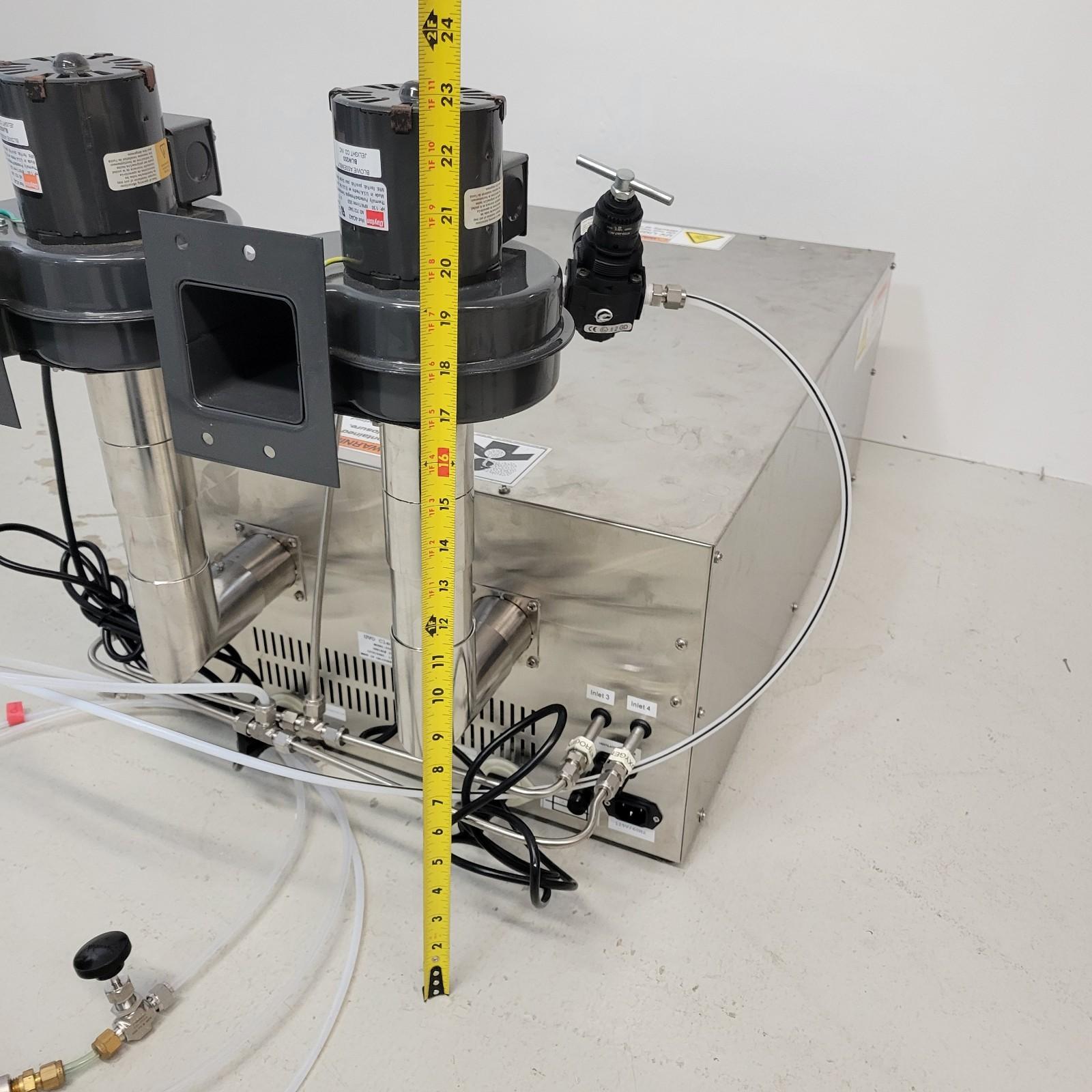

About this machine, "The Jelight Model 256 UVO-Cleaner® is a benchtop UV/ozone surface cleaning and activation system designed to remove organic contamination from substrates without abrasive contact or wet chemistry, making it useful for wafer cleaning, thin-film and coating prep, photoresist descumming, optics cleaning, adhesion improvement, surface hydrophilicity treatment, and general cleaning of glass, quartz, sapphire, ceramics, metals, silicon, and other research or semiconductor materials. It uses a low-pressure mercury vapor grid lamp operating at 184.9 nm and 253.7 nm to break down and volatilize hydrocarbons, oils, residues, and other surface organics. The Model 256 features a 16" x 16" cleaning tray, 0.25" to 3.0" tray height adjustment, approximate outer dimensions of 32.0" L x 20.25" W x 12.0" H, 2 x 2.0" exhaust ports, 4 x 0.375" media inlet ports, and typical lamp intensity of 28 to 32 mW/cm² at 253.7 nm measured 3 to 5 mm from the lamp; standard input power is listed as 120 VAC, 60 Hz, 10.0 A."
