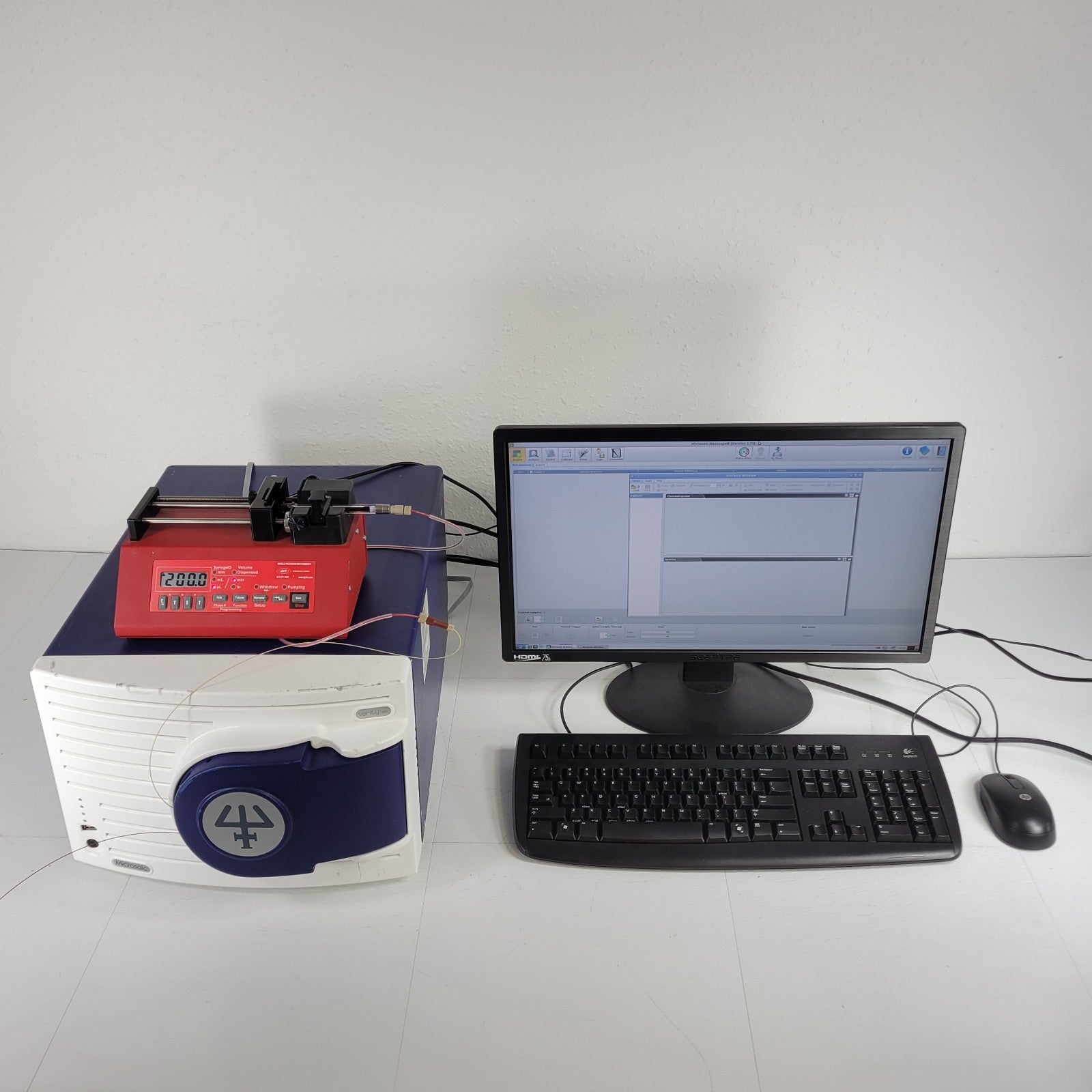

Microsaic Gilson Verity 1900 Mass Spectrometer Single Quadrupole Mass Spec w/ Integrated SplitFlow Chip, Sample pump, Integrated Control Computer and Software, License Key

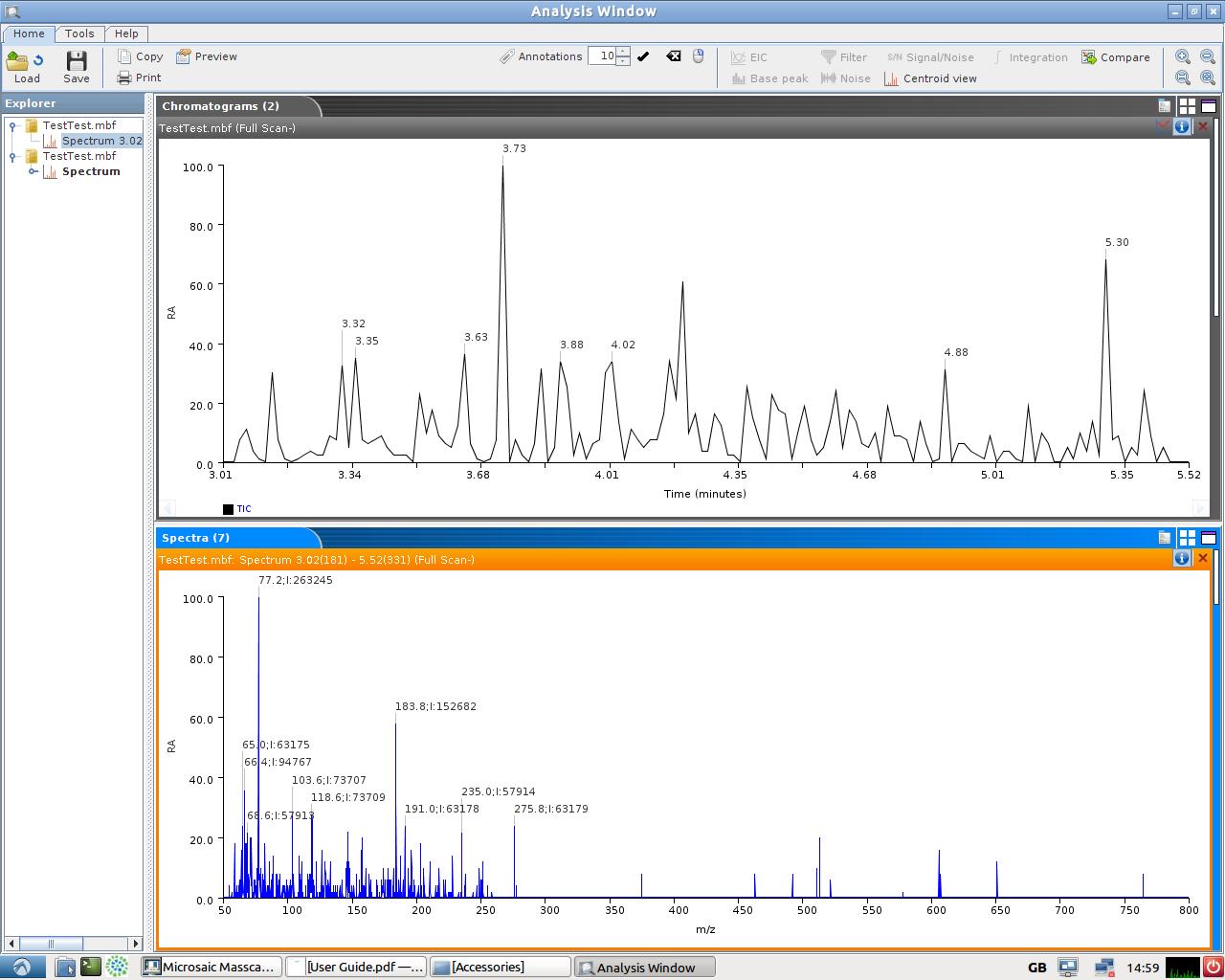

Our technician tested this system by pumping a Sodium Formate solution (not included in sale) through it and that video can be seen here: youtube.com/watch?v=jjHyMHW8Yiw

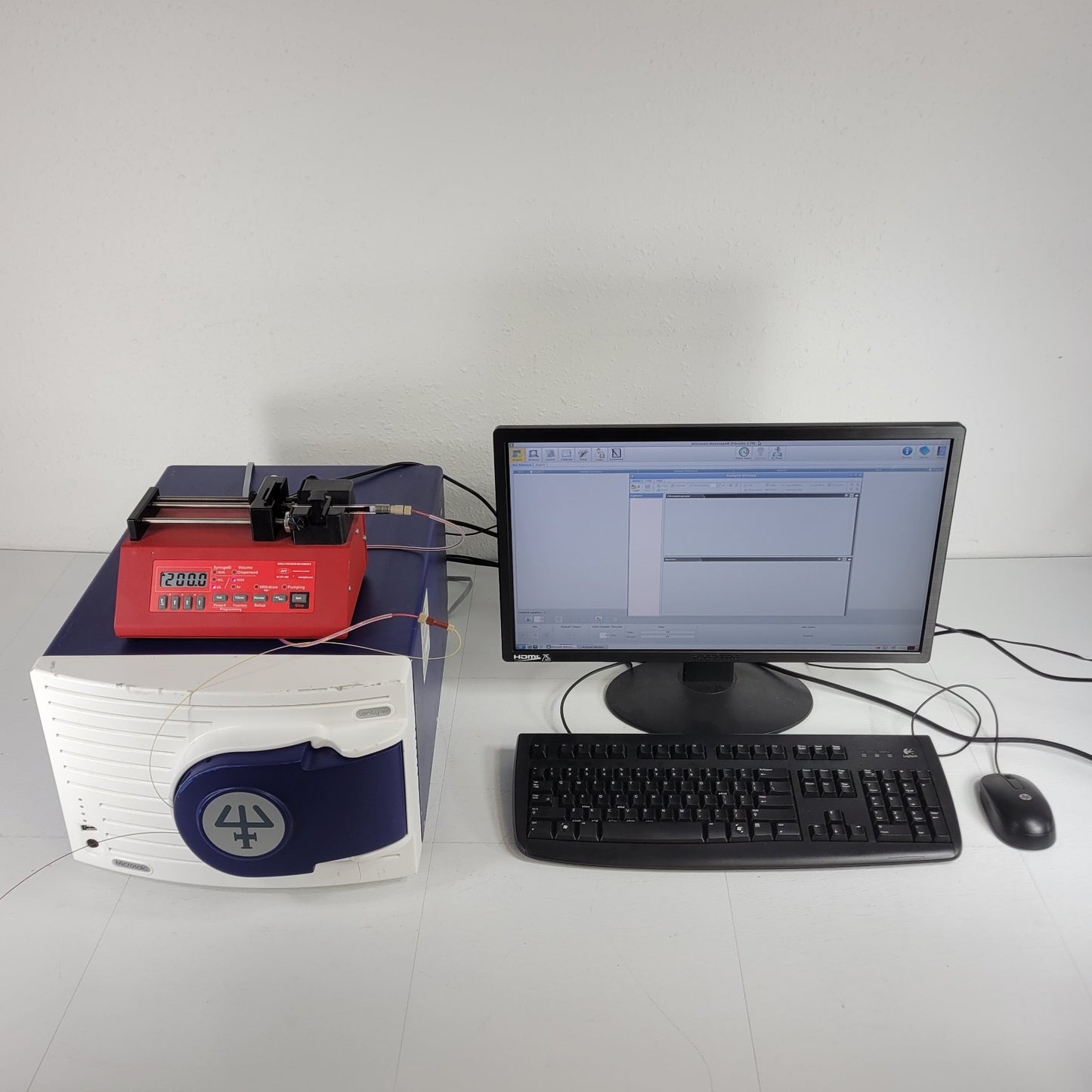

Purchase includes:

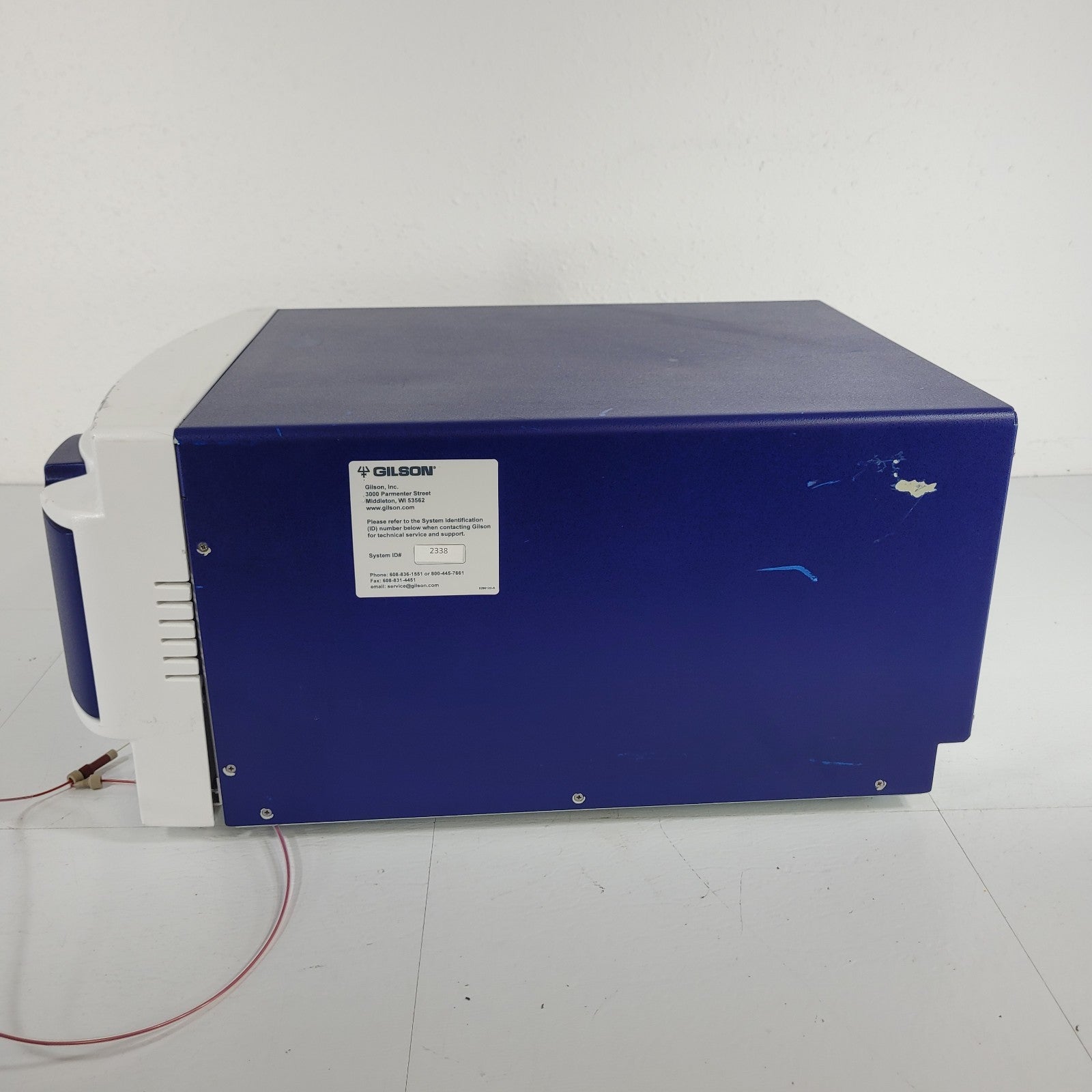

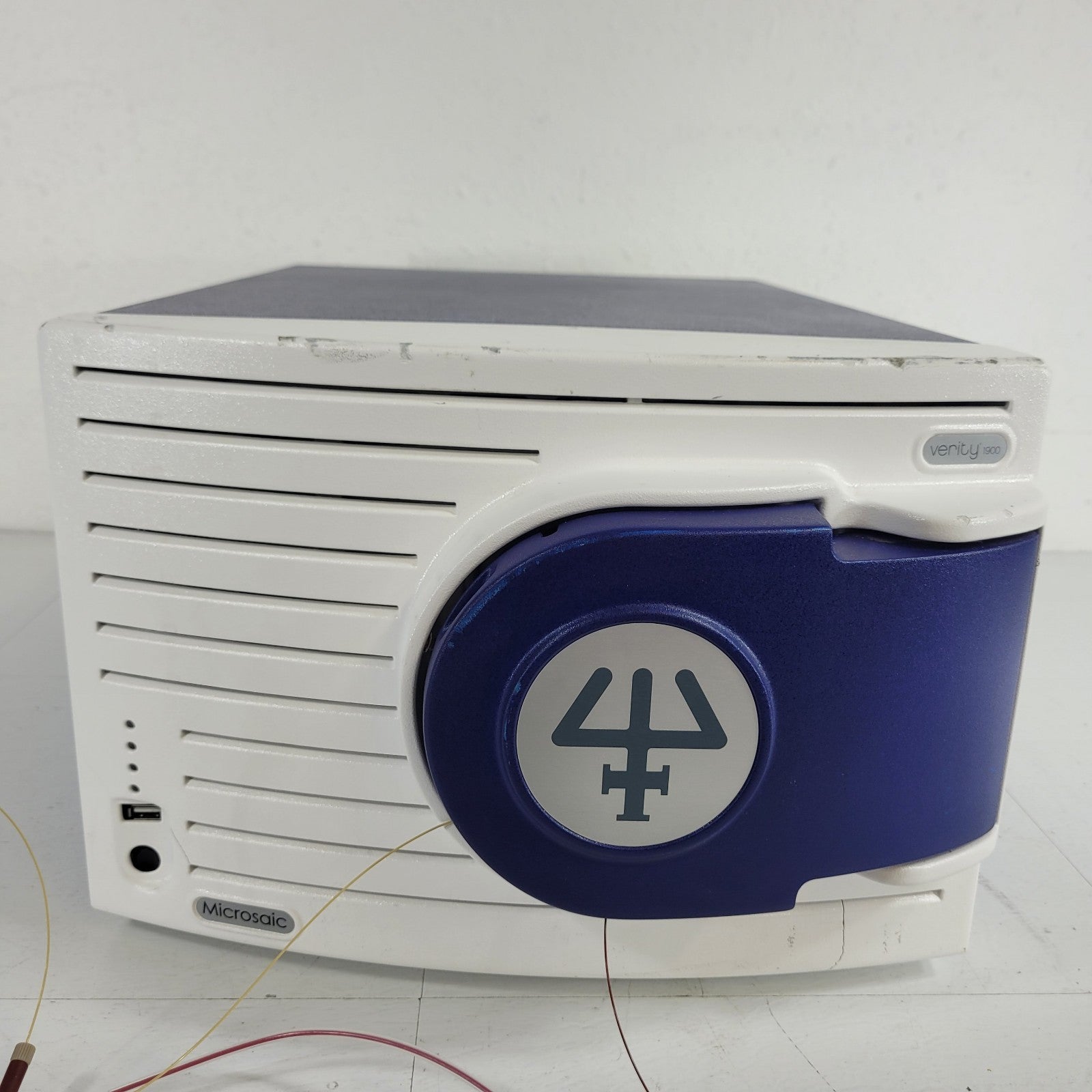

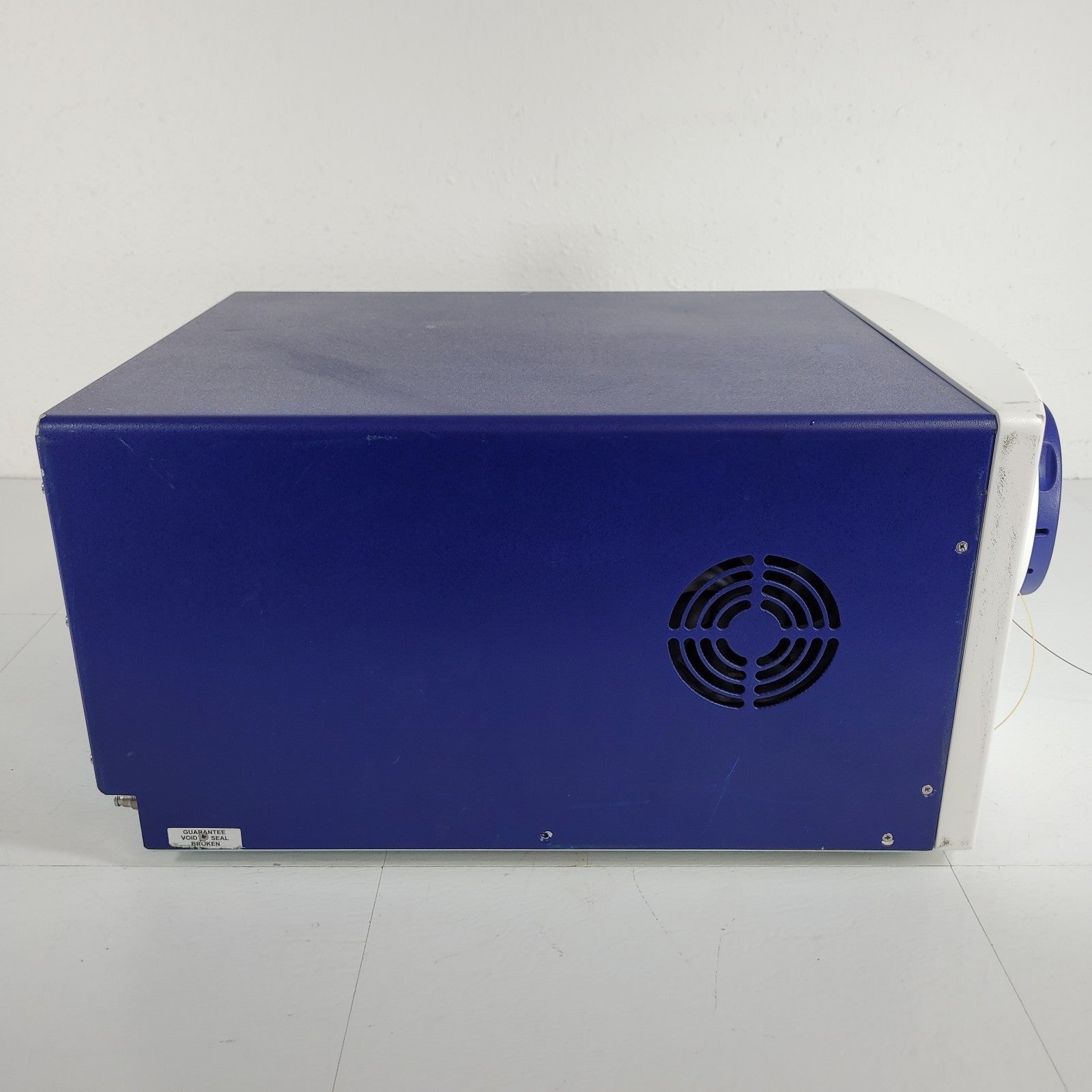

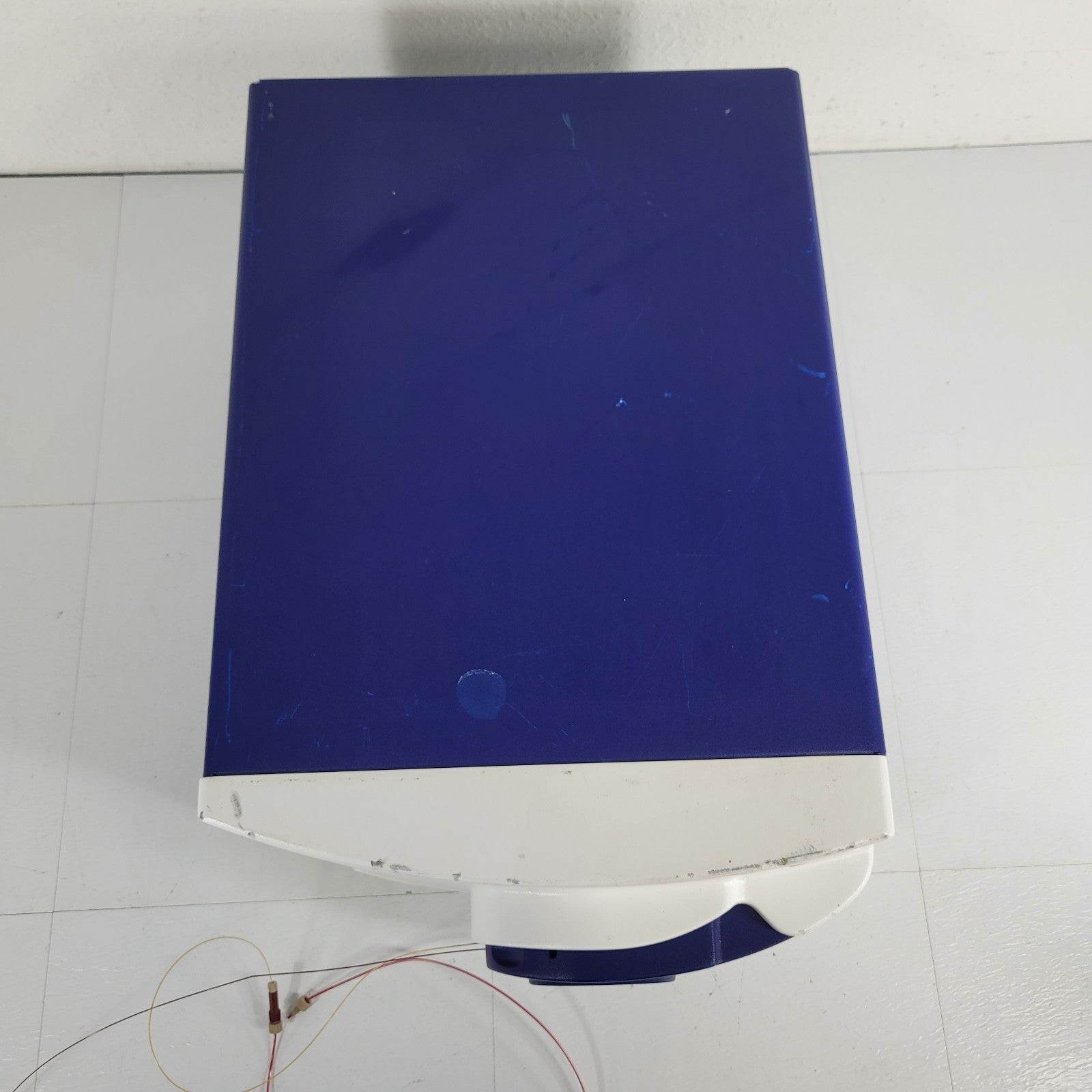

1x ) Verity 1900 Compact Mass Spectrometer
1x ) System Security Key (License Key)

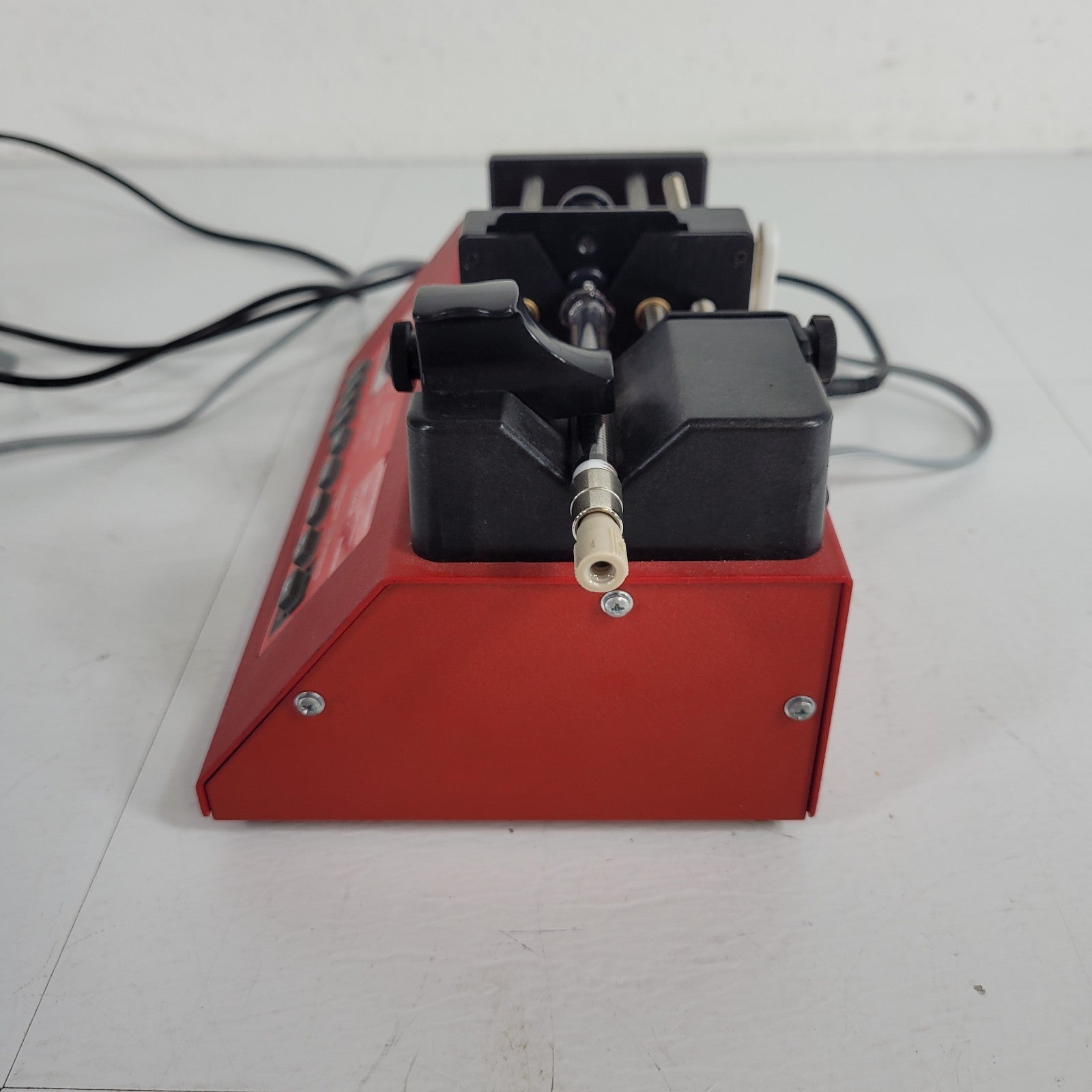

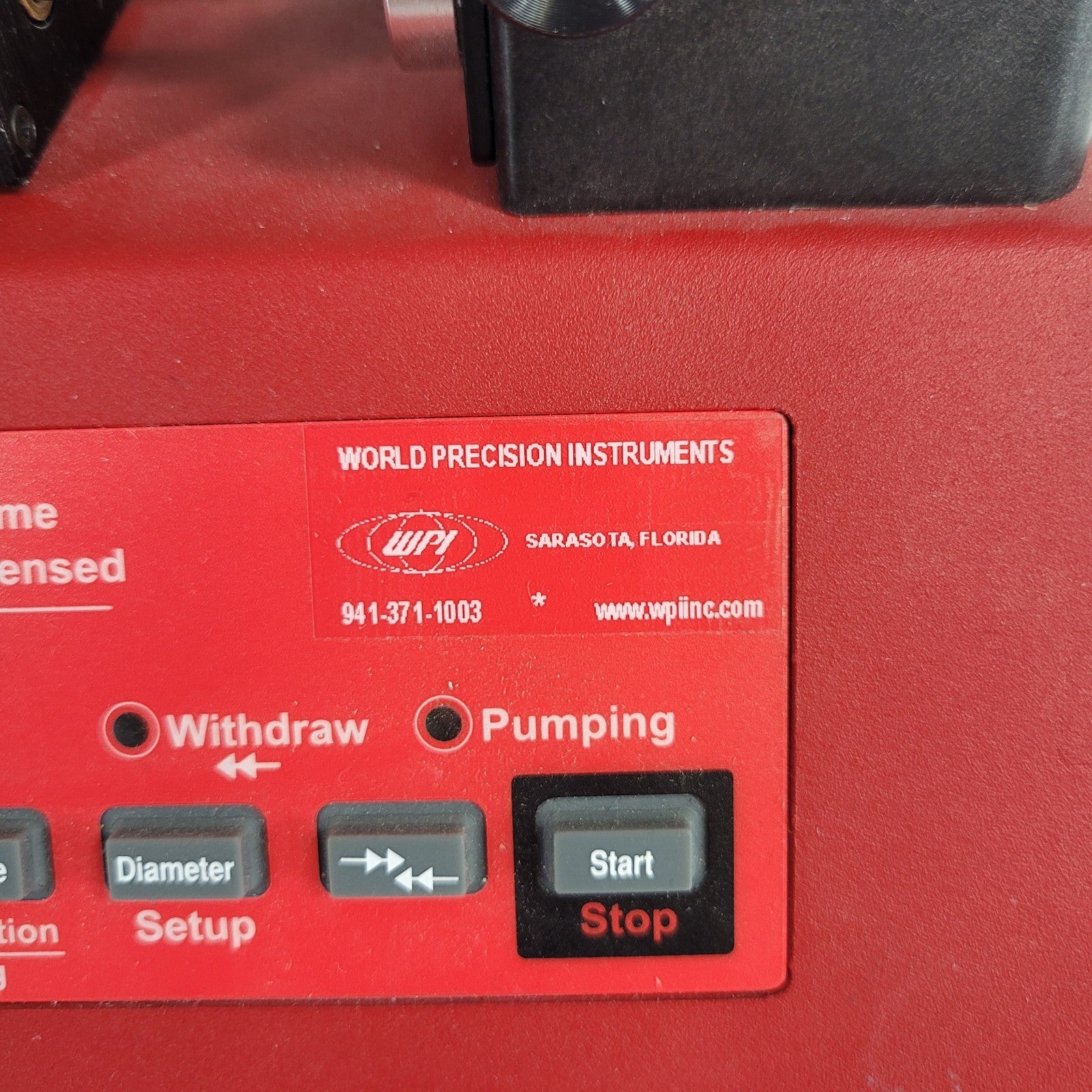

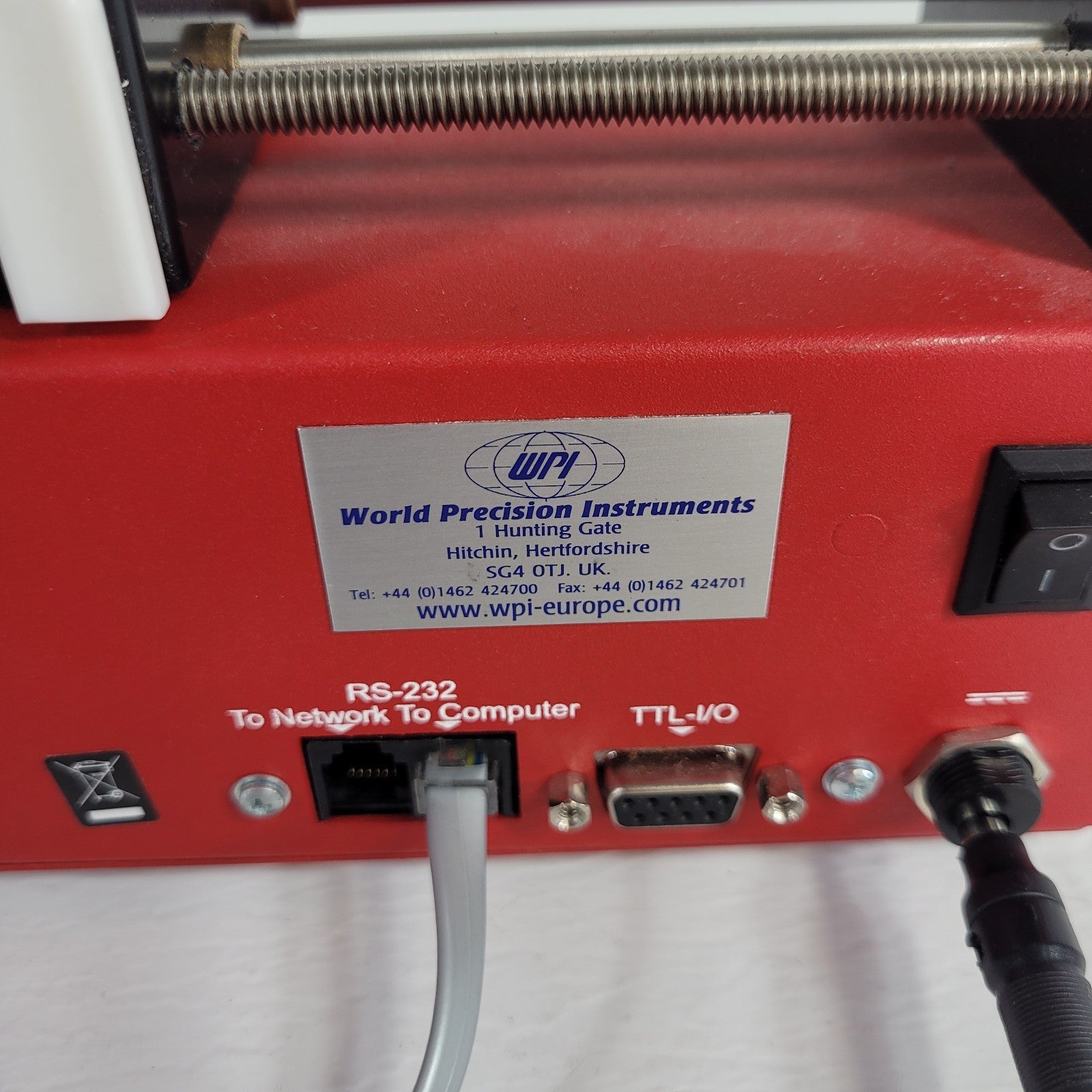

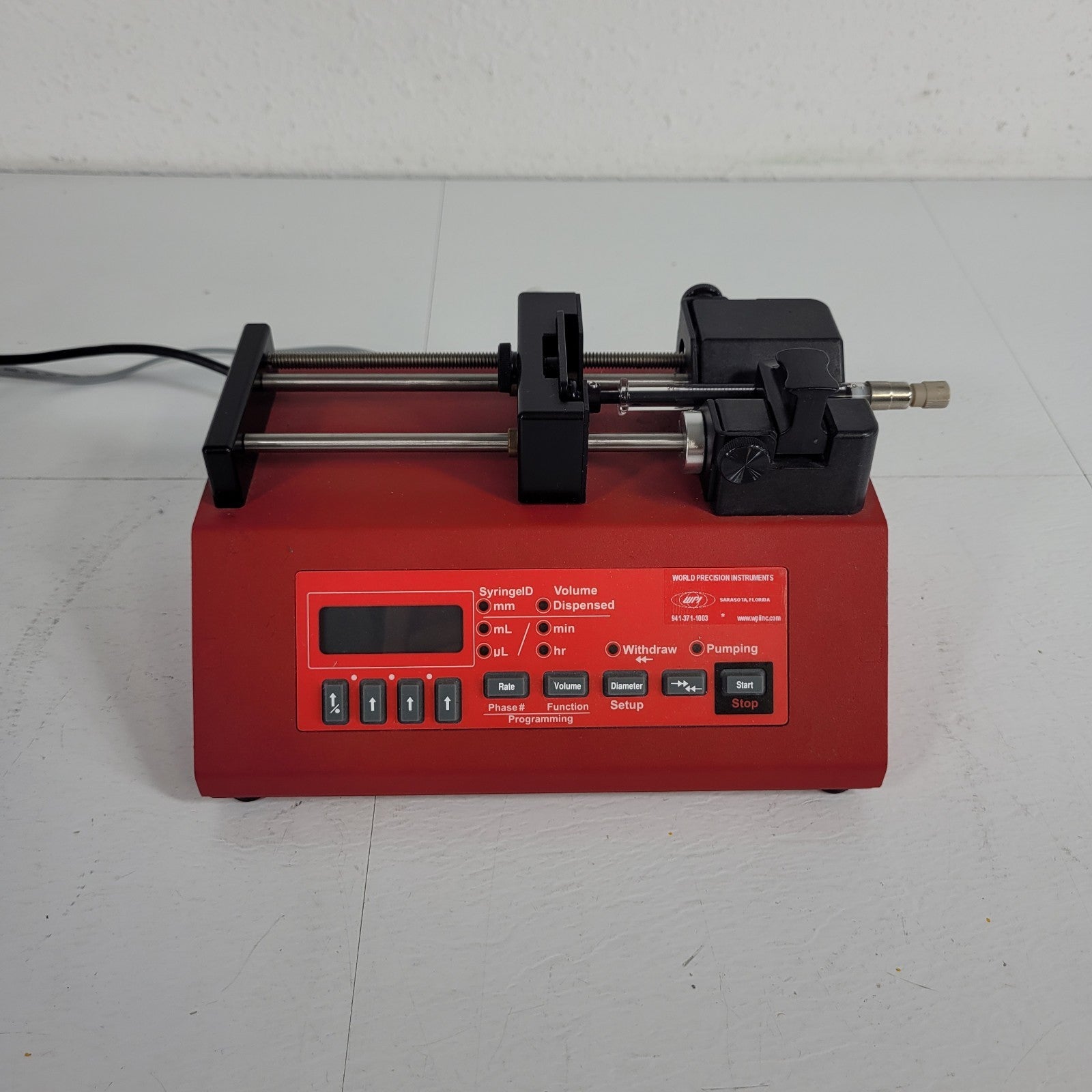

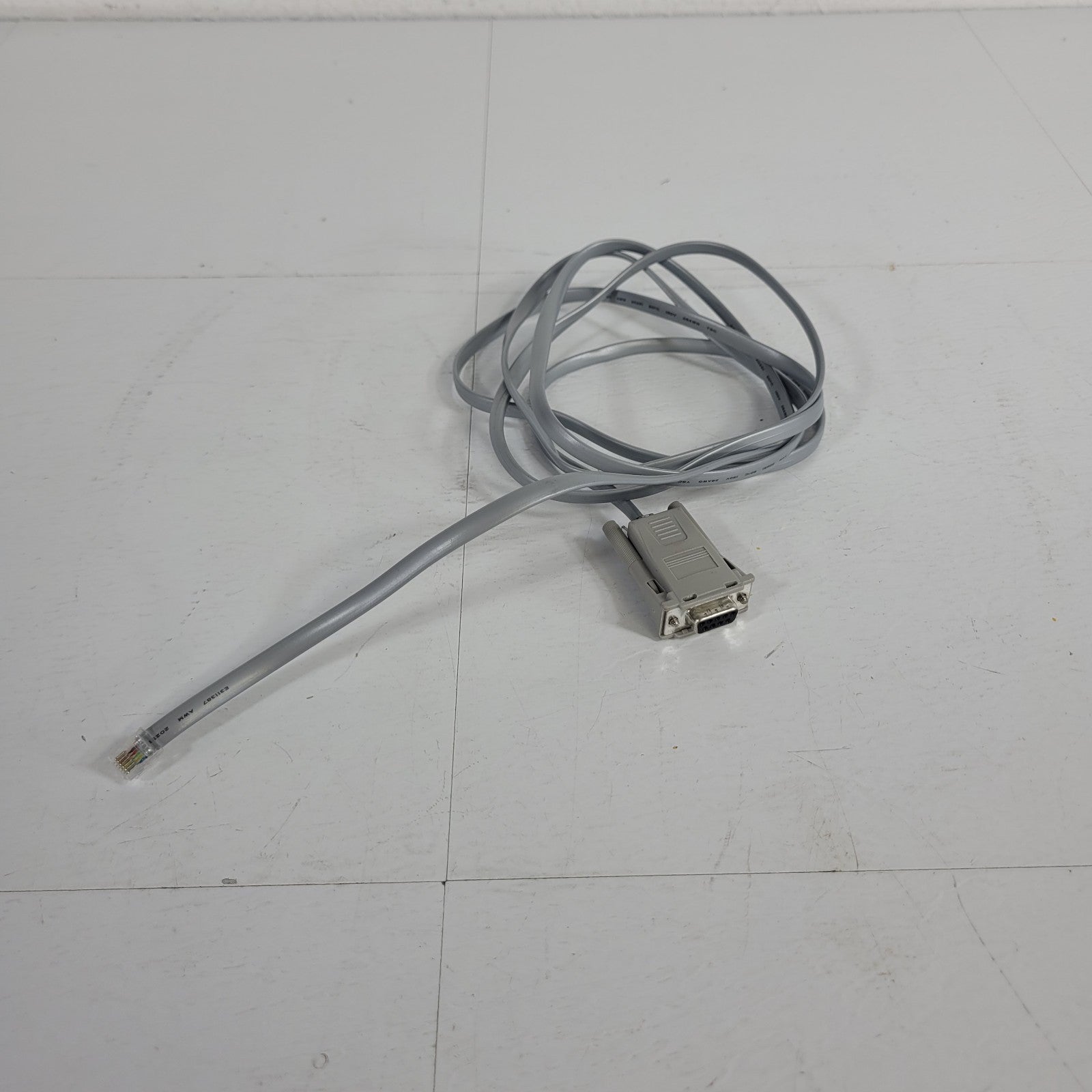

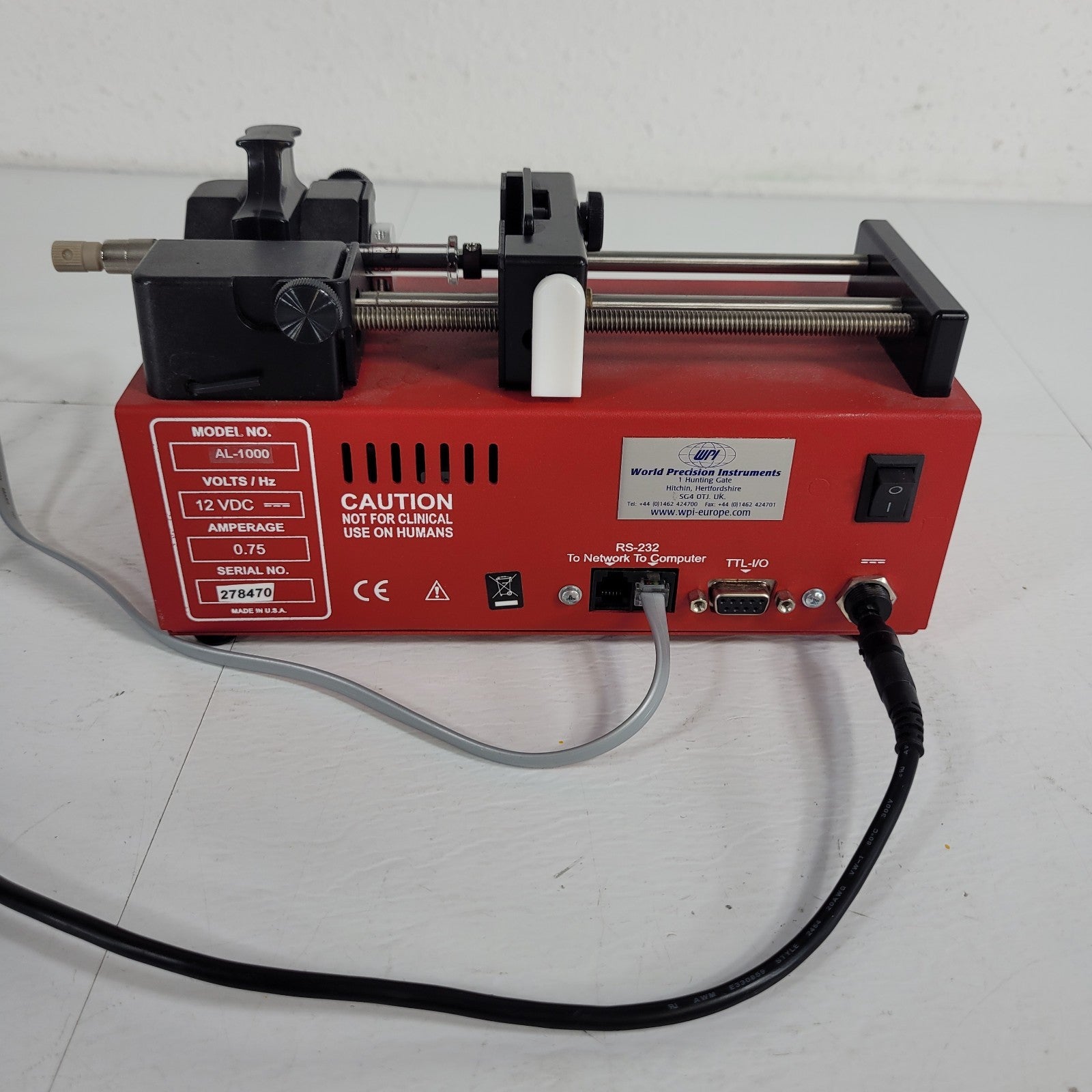

1x ) AL-1000 Sample Pump, with connecting cable

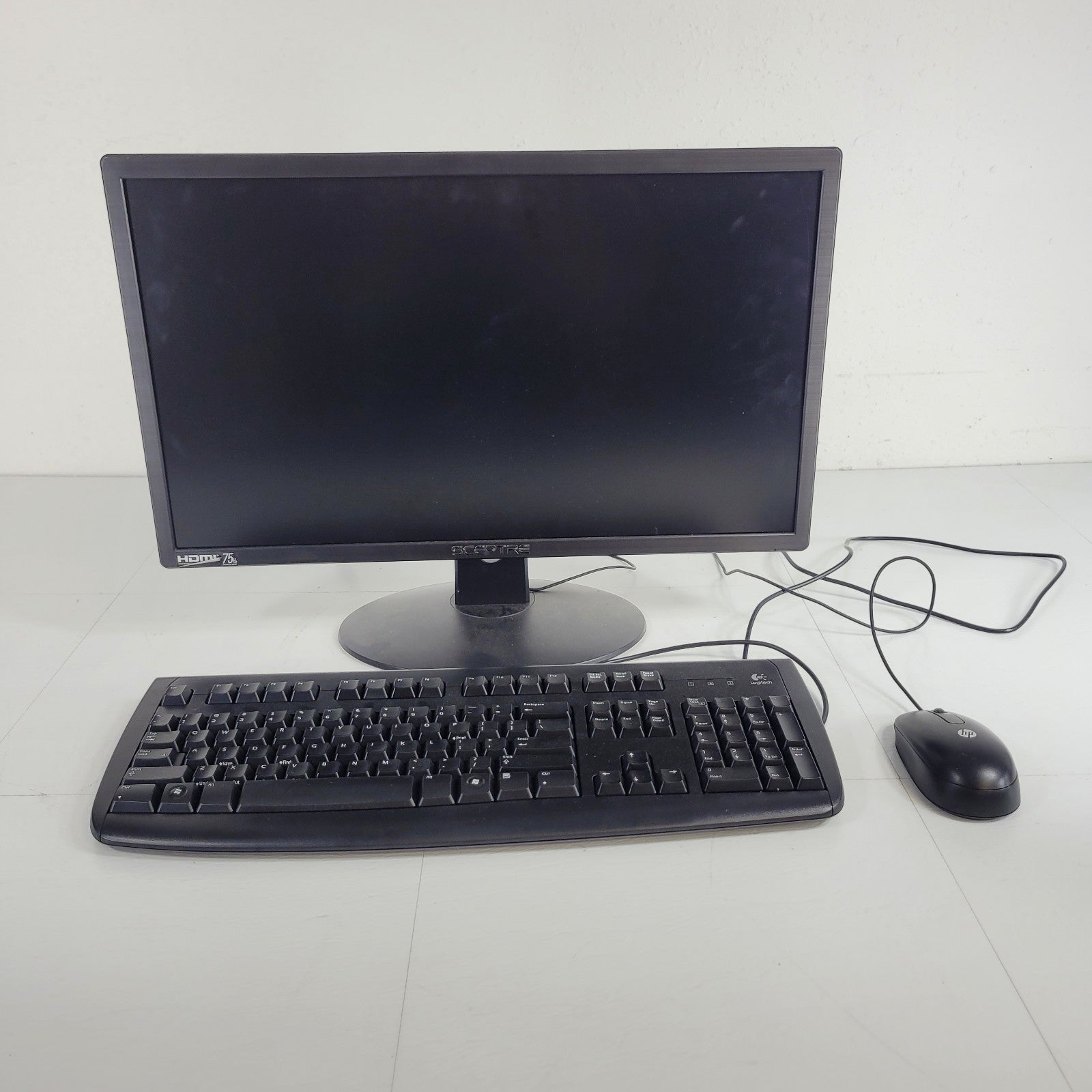

1x ) Spectre computer monitor
1x ) Keyboard and mouse

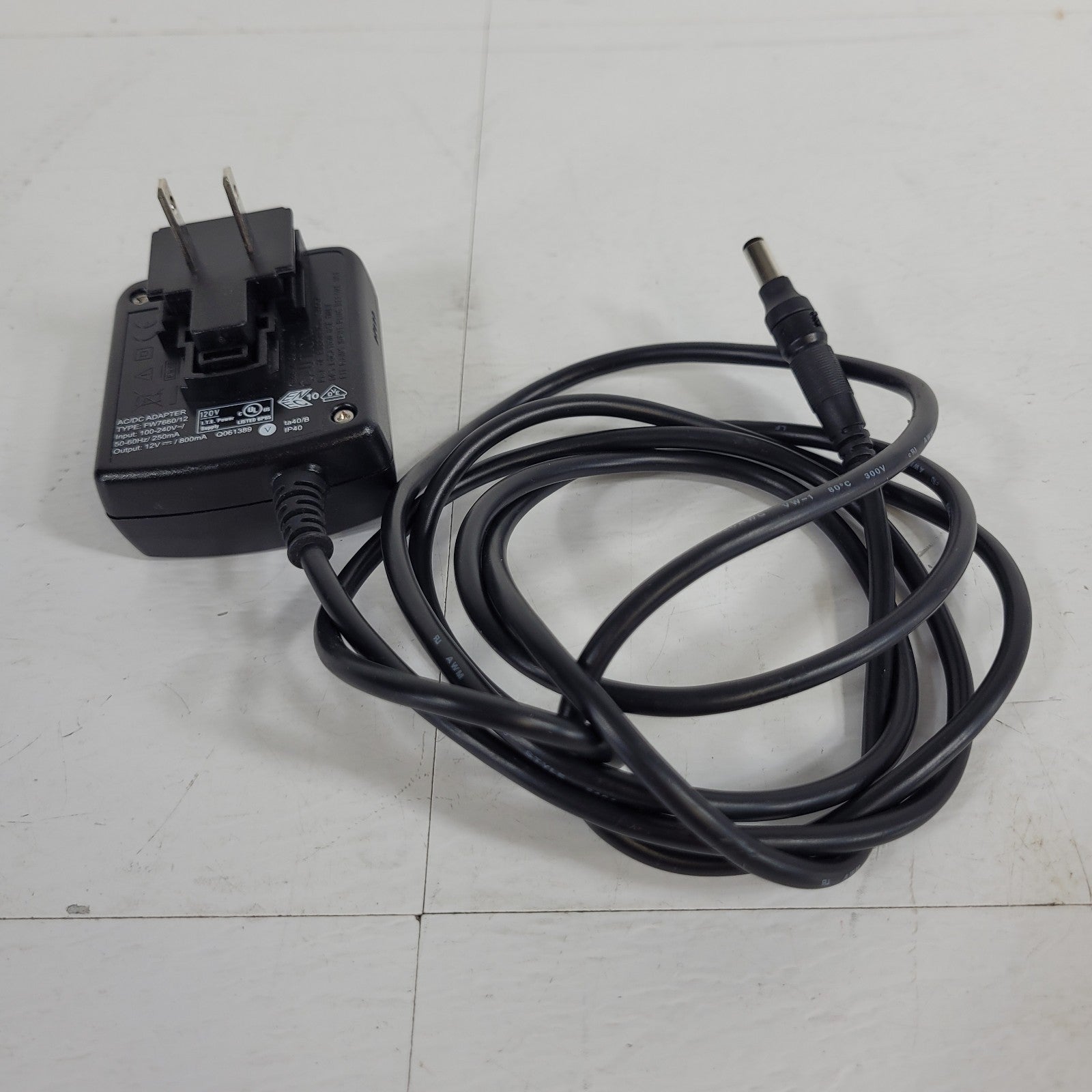

3x ) Power cables
1x ) Network cable
1x ) VGA Video cable
2x ) Peek tubing waste and input lines

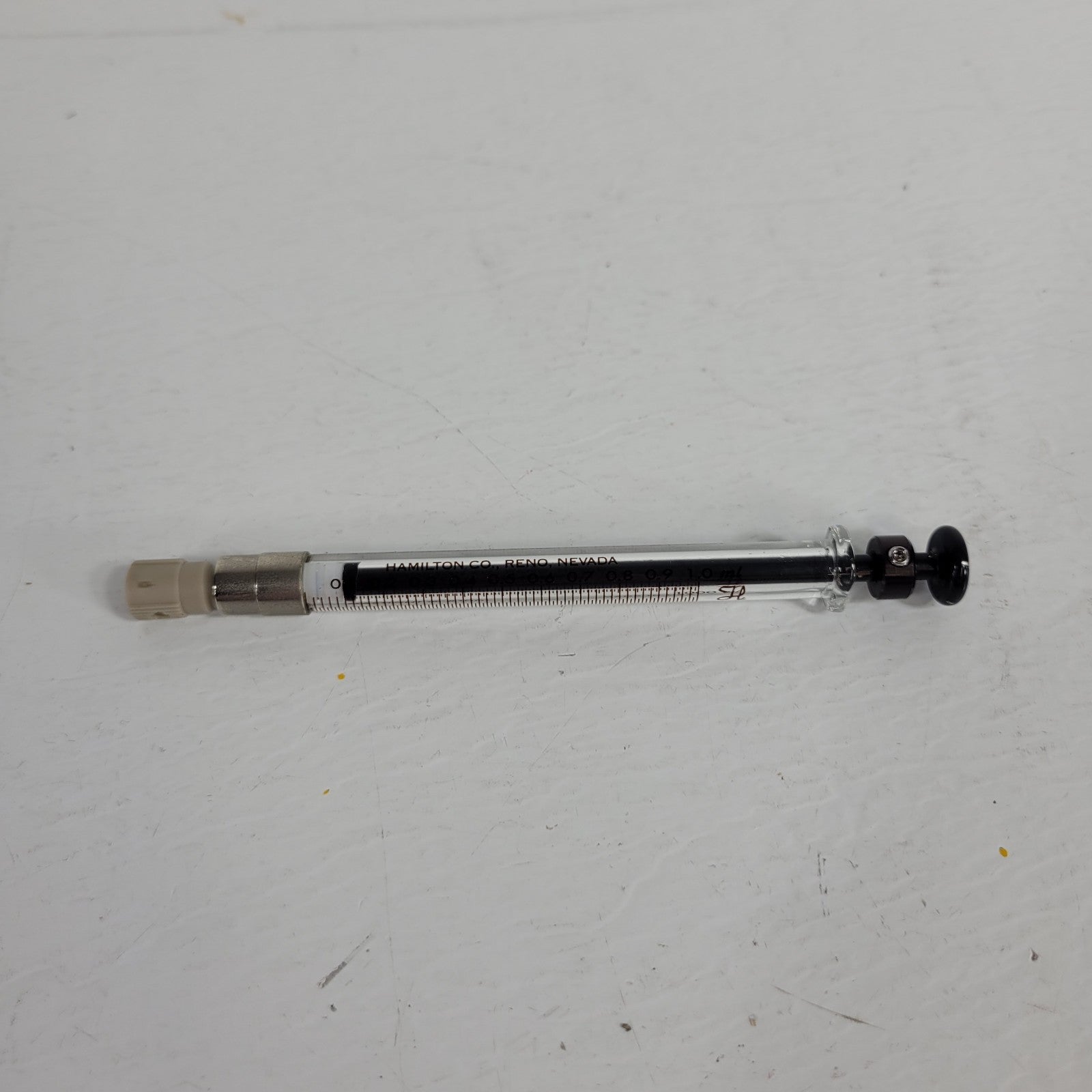

1x ) 250ul syringe
Due to the fragile nature of this system, it must be shipped via freight. Ships free dock-to-dock within the continental USA. Extra shipping charges apply for accessorial (eg liftgate service).
From the manufacturer: "The VERITY® 1900 MS Detector from Gilson offers a new approach that overcomes some of the constraints to miniaturisation. The VERITY® 1900 MS Detector relies on proprietary micro-electro-mechanical systems (MEMS) technology developed by Microsaic Systems. The result is the ionchip®, a palm-sized, chip-based mass detector component that has detection power similar to the larger single quadrupole mass spectrometers. The use of the innovative chip-based mass detector helps to shrink the overall VERITY® 1900 MS Detector footprint, simplifies the complexity during operation and maintenance, and offers reduced cost of ownership so the instrument can easily be accommodated in a non-specialised lab.

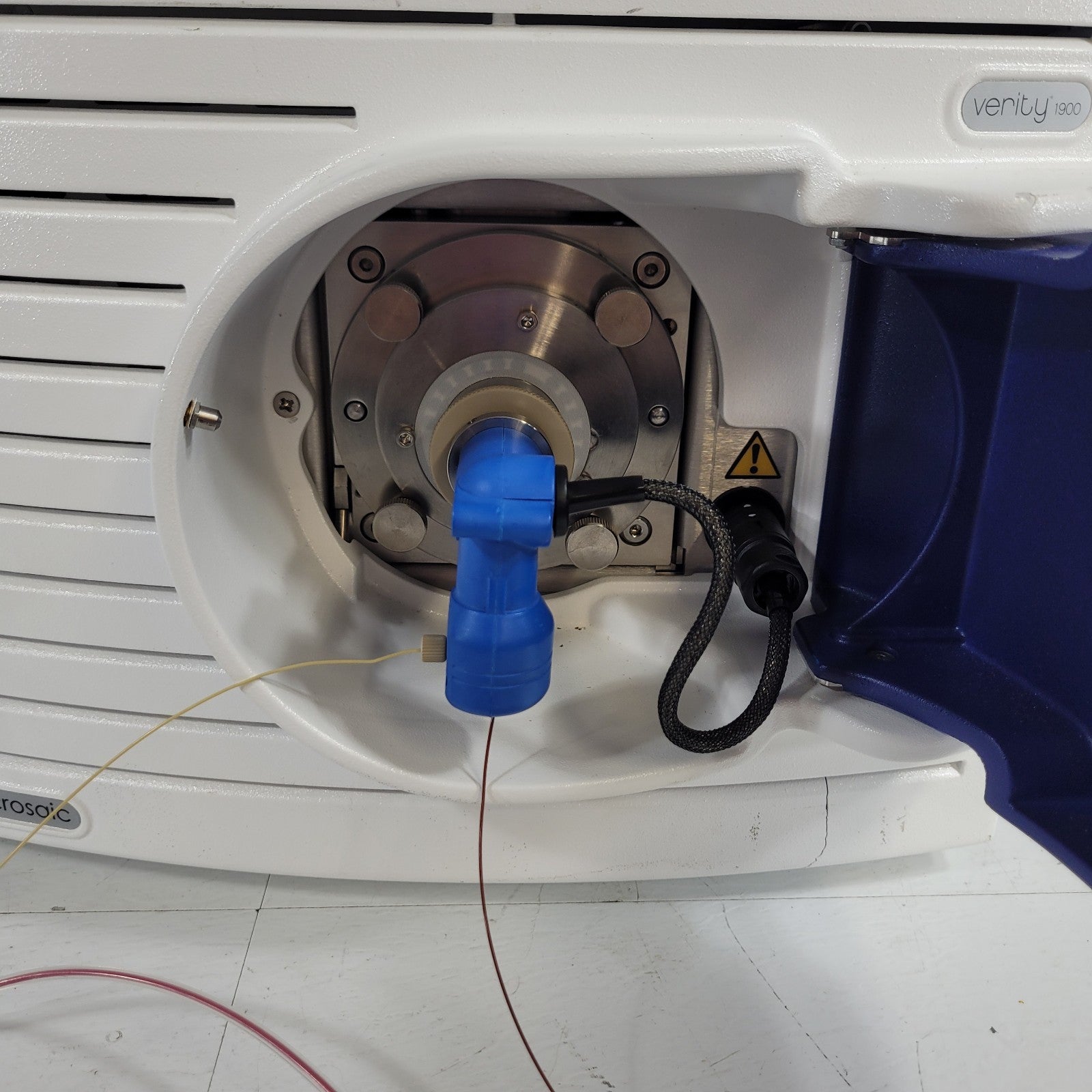

Ion Source: Spraychip® electrospray ionization source
Ionization Modes: Positive and negative ESI
Sample Inlet: Compatible with standard capillaries and unions e.g., 1/32"
tubing
Flow Rate Range: 0.3–2000 µL/min
Mass Analyzer: Ionchip® quadrupole mass filter
Mass Range: m/z 50 – 800 with Ionchip® 150
Mass Accuracy: ± m/z 0.3 in full scan*
Mass Resolution: m/z 0.7 ± FWHM *
Sensitivity: 10 pg of reserpine yields a peak in SIM mode with a S/N ratio of 10:1 (RMS)
Interface: Vac-chip™ microengineered atmospheric pressure interface
Detector: Electron multiplier
Dynamic Range: 3 orders of magnitude
Scan Modes: Full scan, SIM (4 m/z channels), simultaneous scan/SIM, and timed SIM
Scan Rate: m/z 1,500/s (7,500 pts/s)
Pumping System: Integrated oil-free pumps

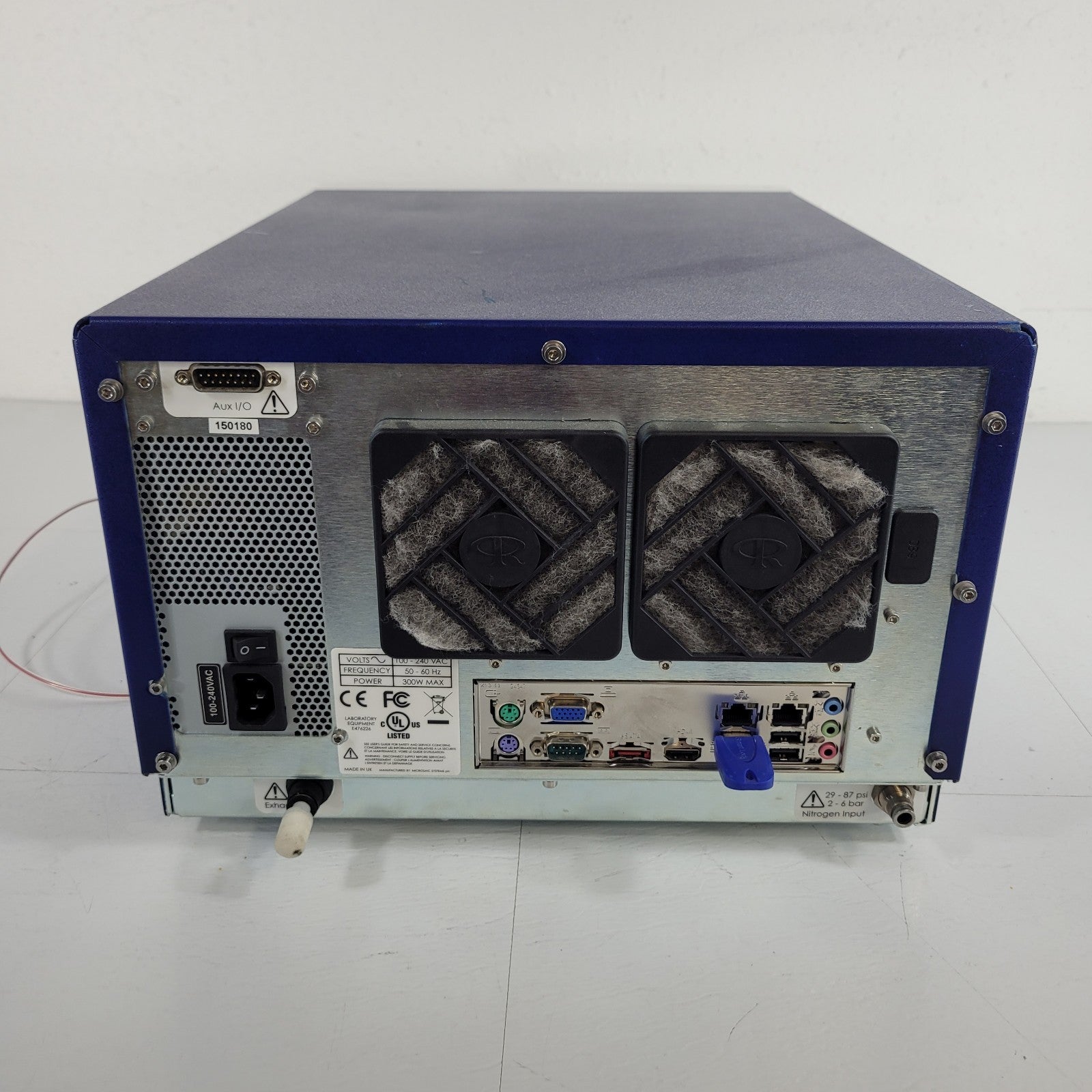

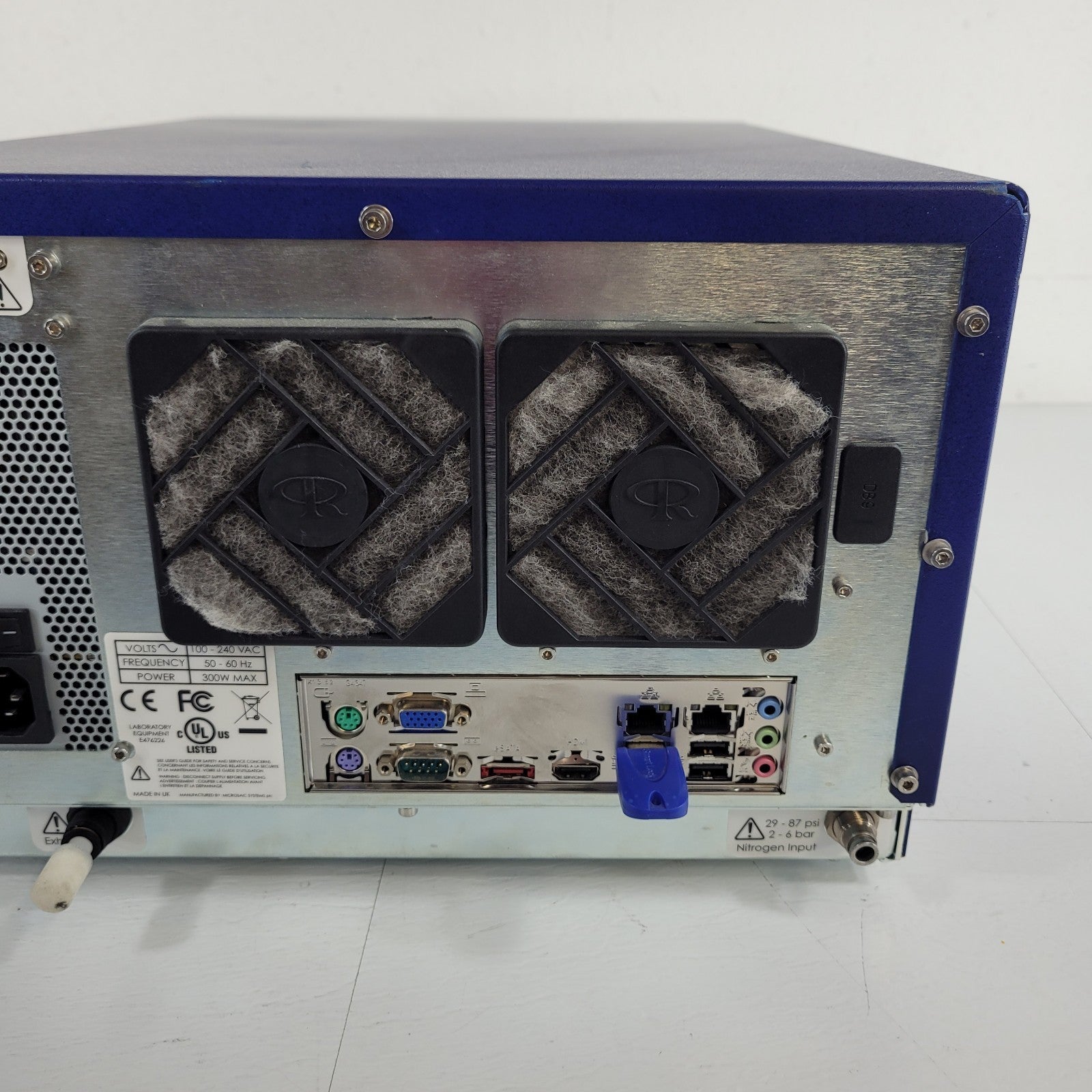

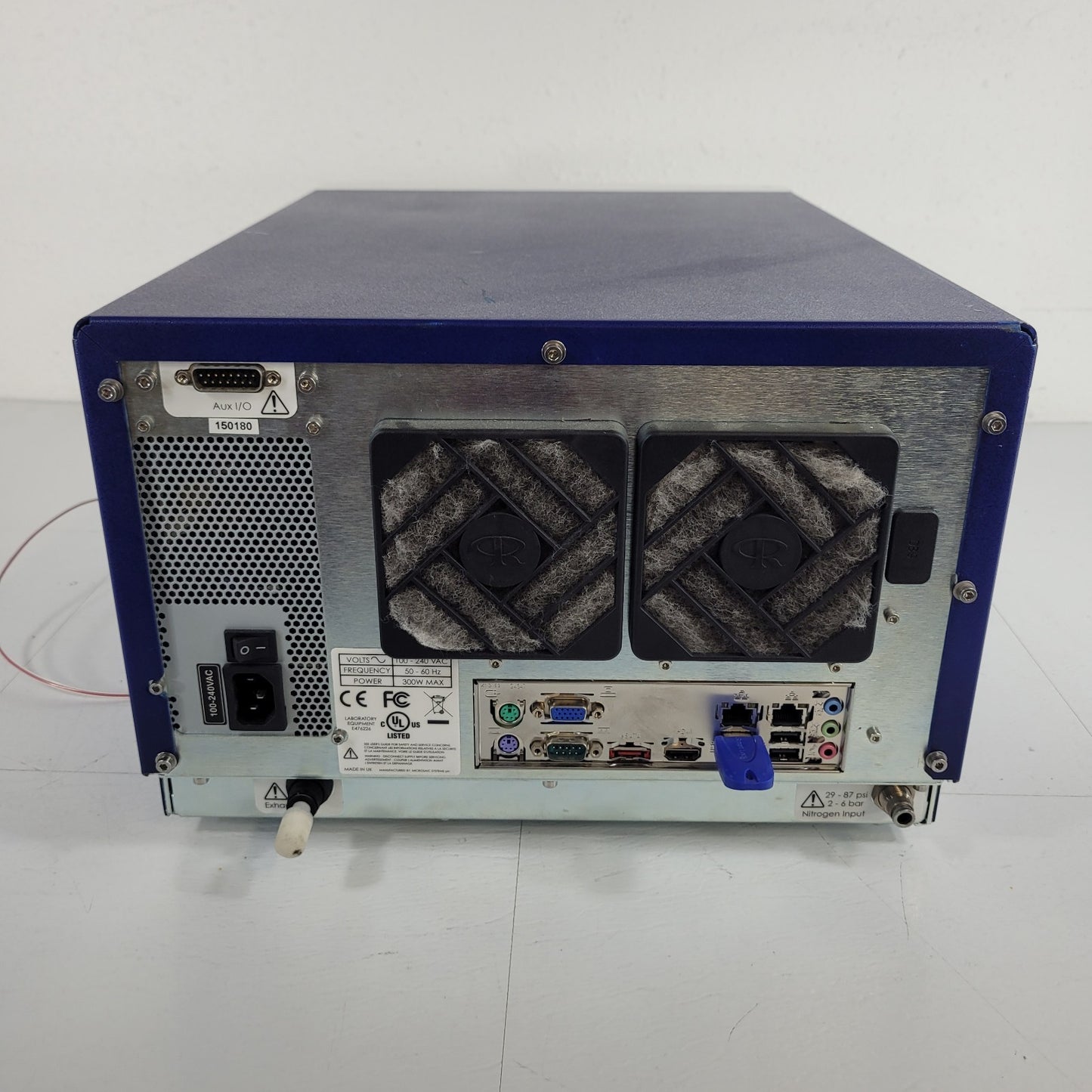

Connections: Ethernet, 5 x USB, 2 x digital in (e.g., LC trigger input), 2 x digital out, 4 x in (e.g. UV Trace), 4 x out (e.g., triggering external device), 1 x RS232 (e.g., syringe pump control)

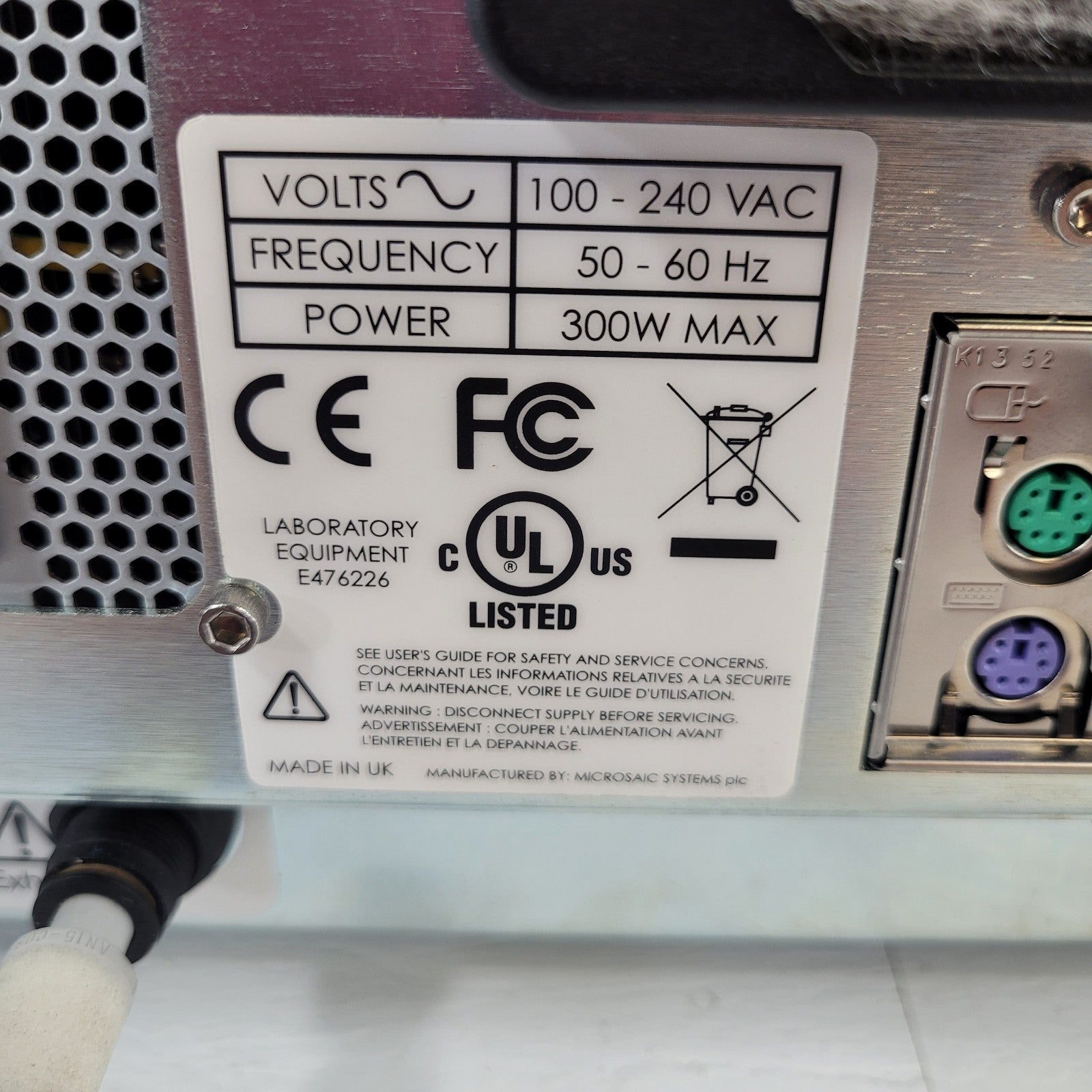

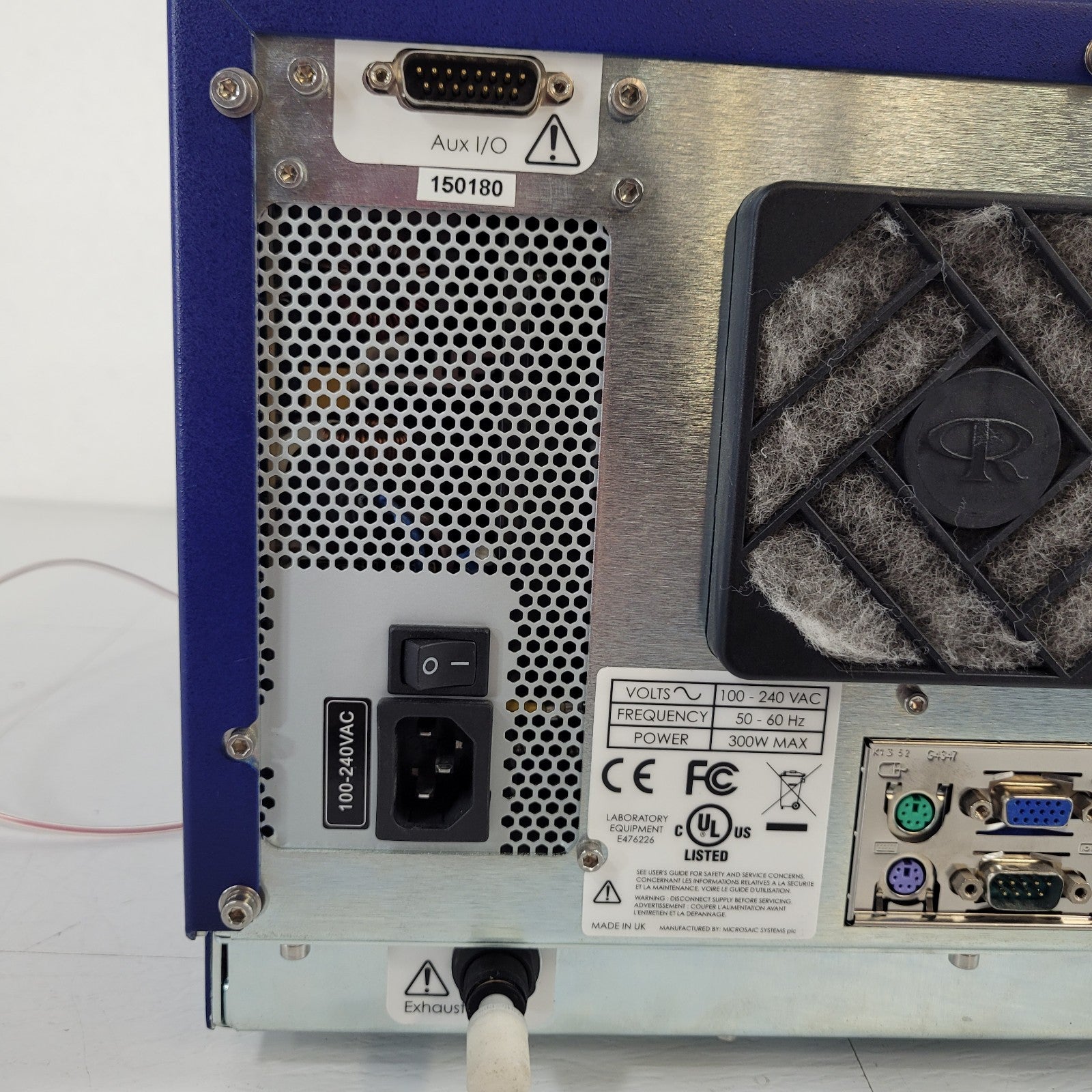

Power Requirements: Power: 250 W (operating), 300 W (peak)
Line voltage: 100–240 V AC ±10%
Line frequency: 50/60 Hz
Nitrogen Gas Pressure: 2–6 bar (29–87 psi), Purity (≥99.5%), 6 mm OD push fit connection, Pump Exhaust Exhaust connects to a 8 mm OD push fit
Dimensions: (L x W x H) 55 x 35 x 25 cm (22 x 14 x 10 in.) **
Weight: 32 kg (70.5 lbs.)"
