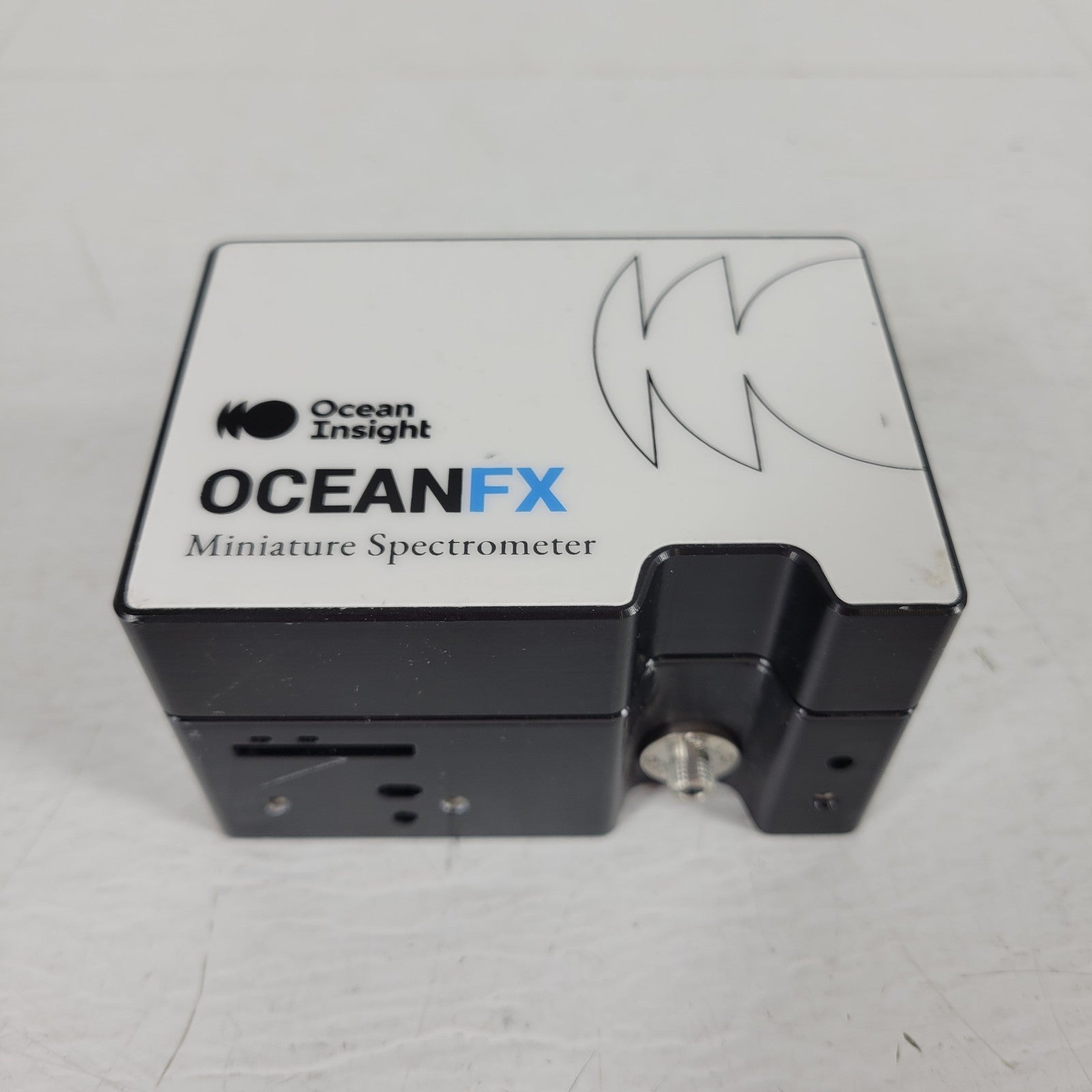

TESTED Ocean Insight OceanFX High Speed Spectrometer 190-909nm w/ Onboard Memory

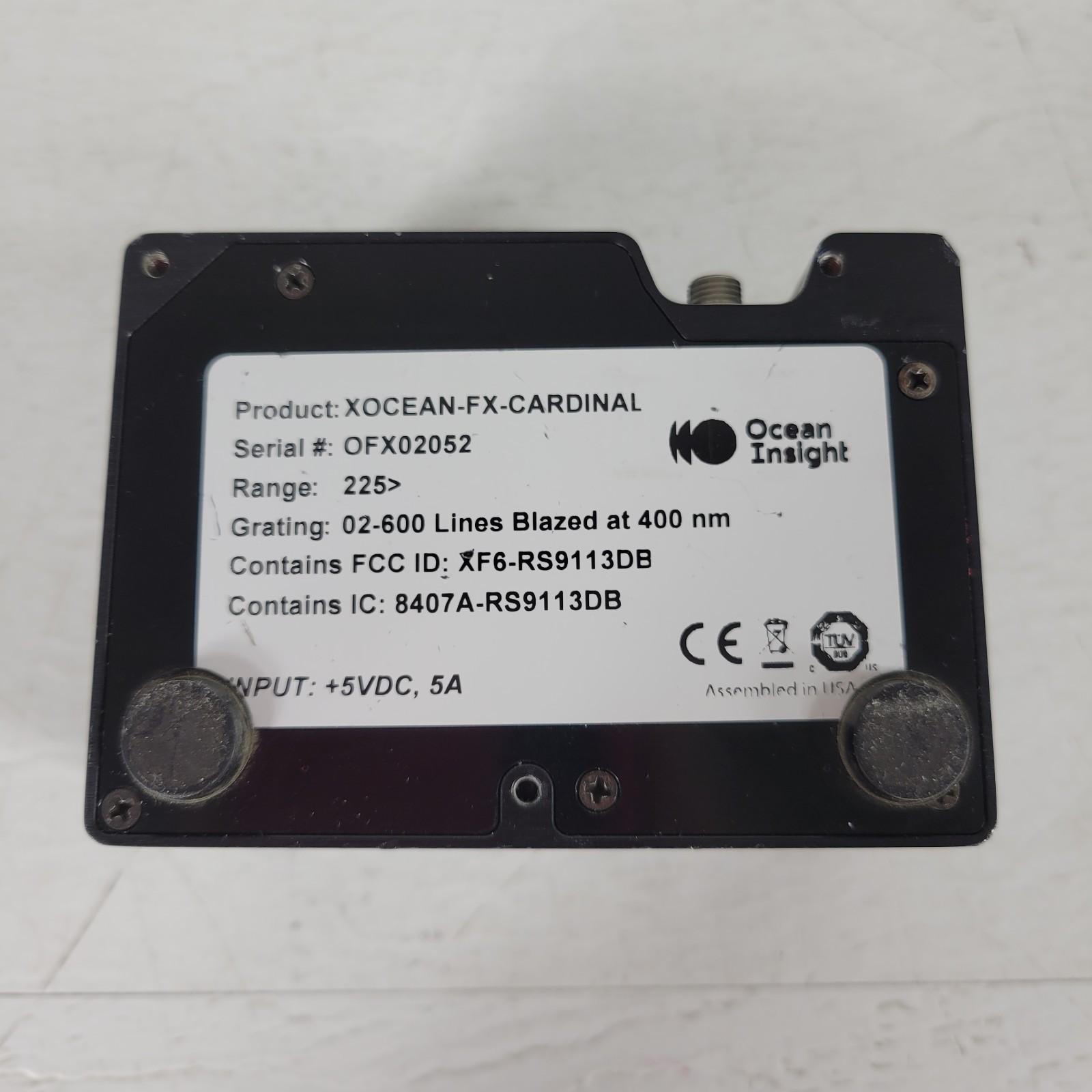

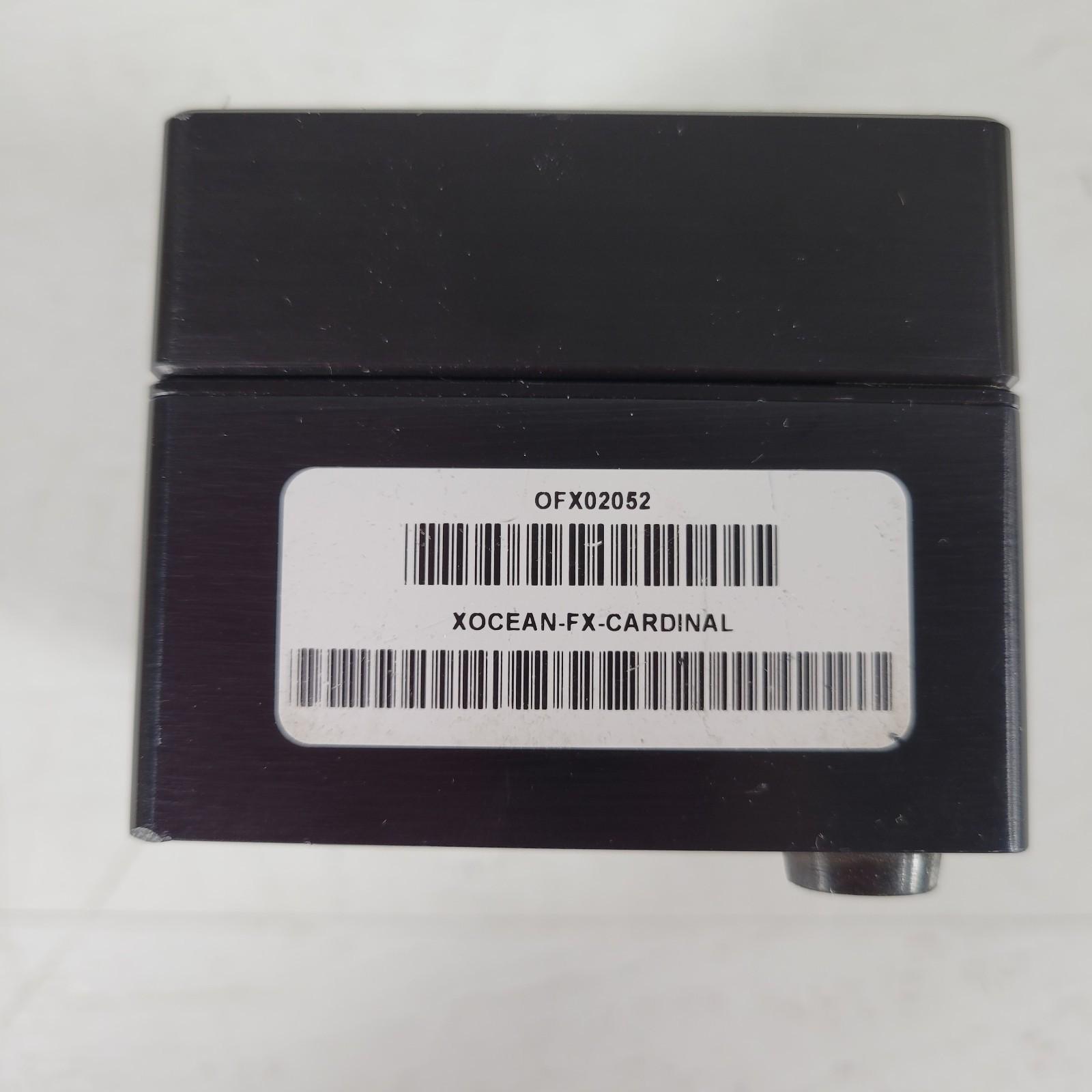

Ocean Optics Insight XOCEAN-FX-CARDINAL OceanFX High Speed Miniature Spectrometer 190-909nm w/ Onboard Memory

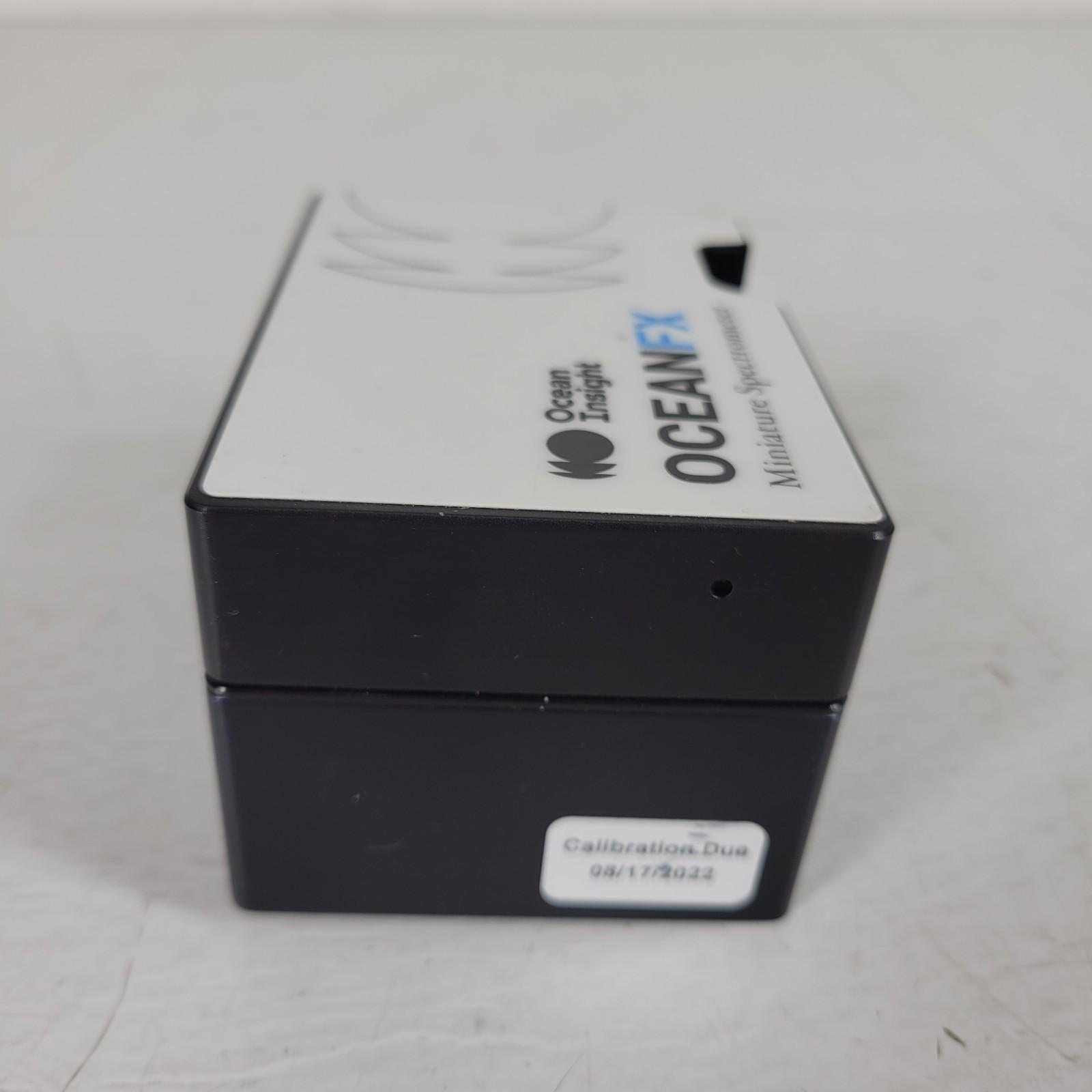

Used see photos

Tested works see photos & video: youtube.com/watch?v=ET6PbEqAsHI

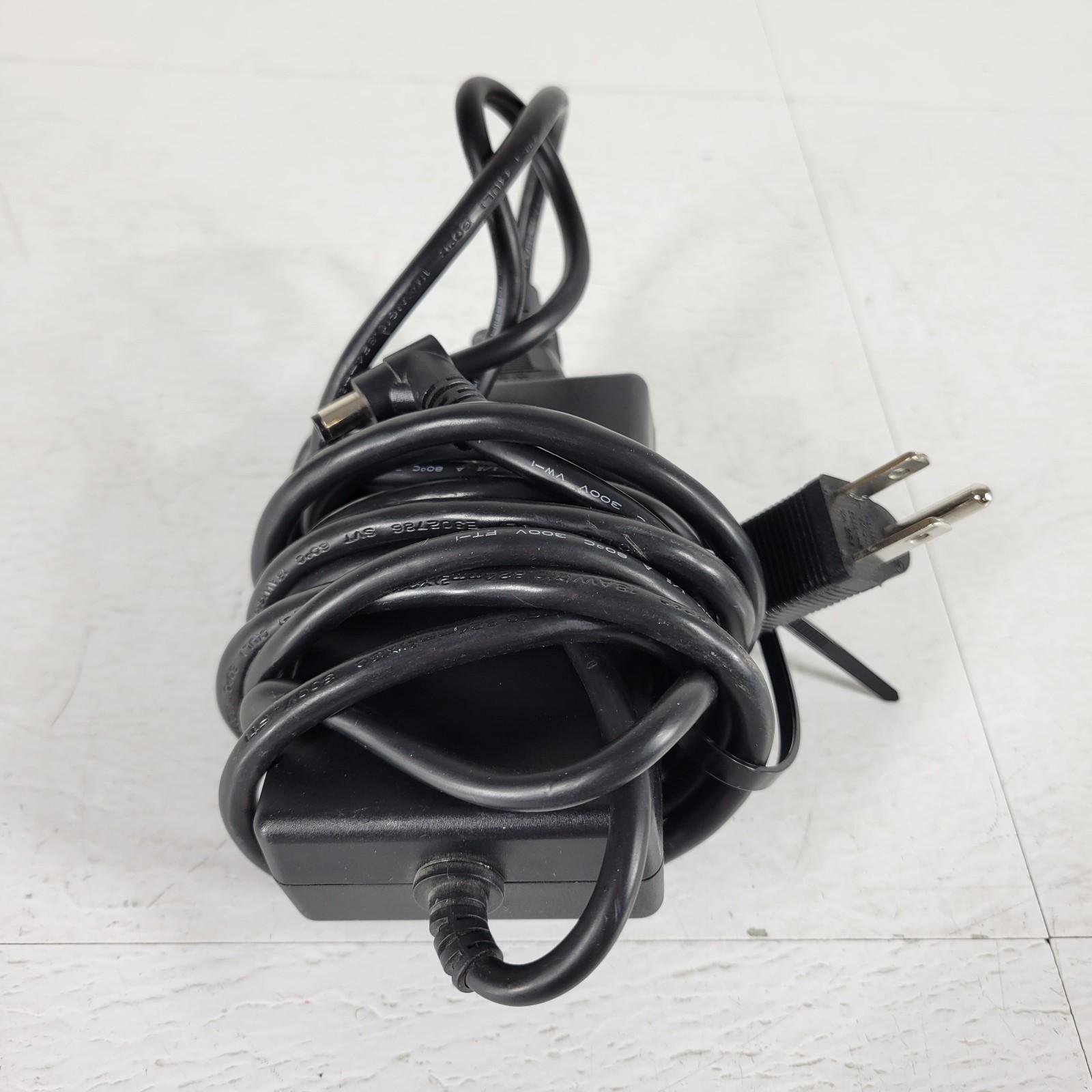

Listing only includes spectrometer and power supply, all other accessories seen during the demo are not included (we can include them for an extra cost if you need them).

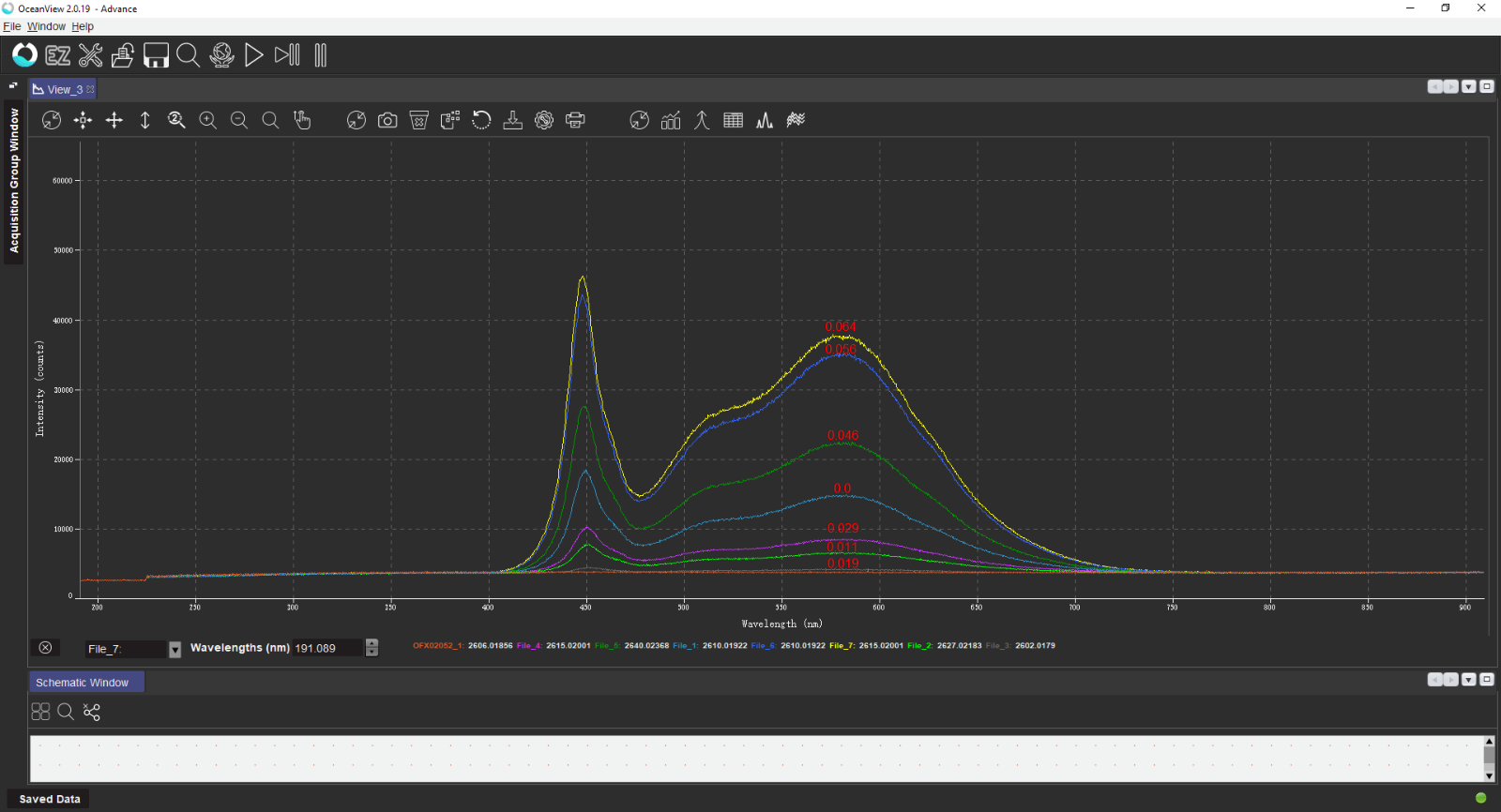

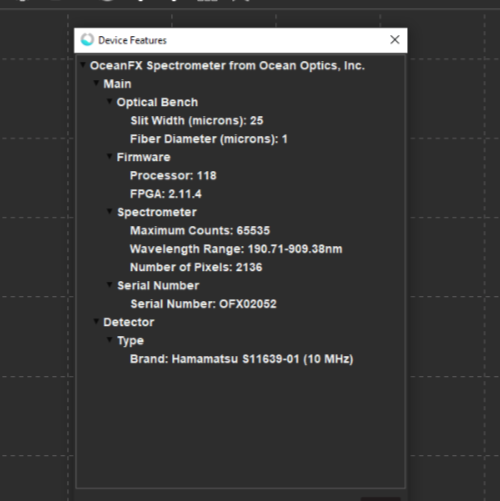

Image four shows a burst of spectra that was taken and the time in-between each spectra. Slit width: 25 microns, Fiber diameter: 1 micron, Maximum counts: 65535, Wavelength range: 190.71-909.38nm, Detector type: Hamamatsu S11639-01 (10MHz).

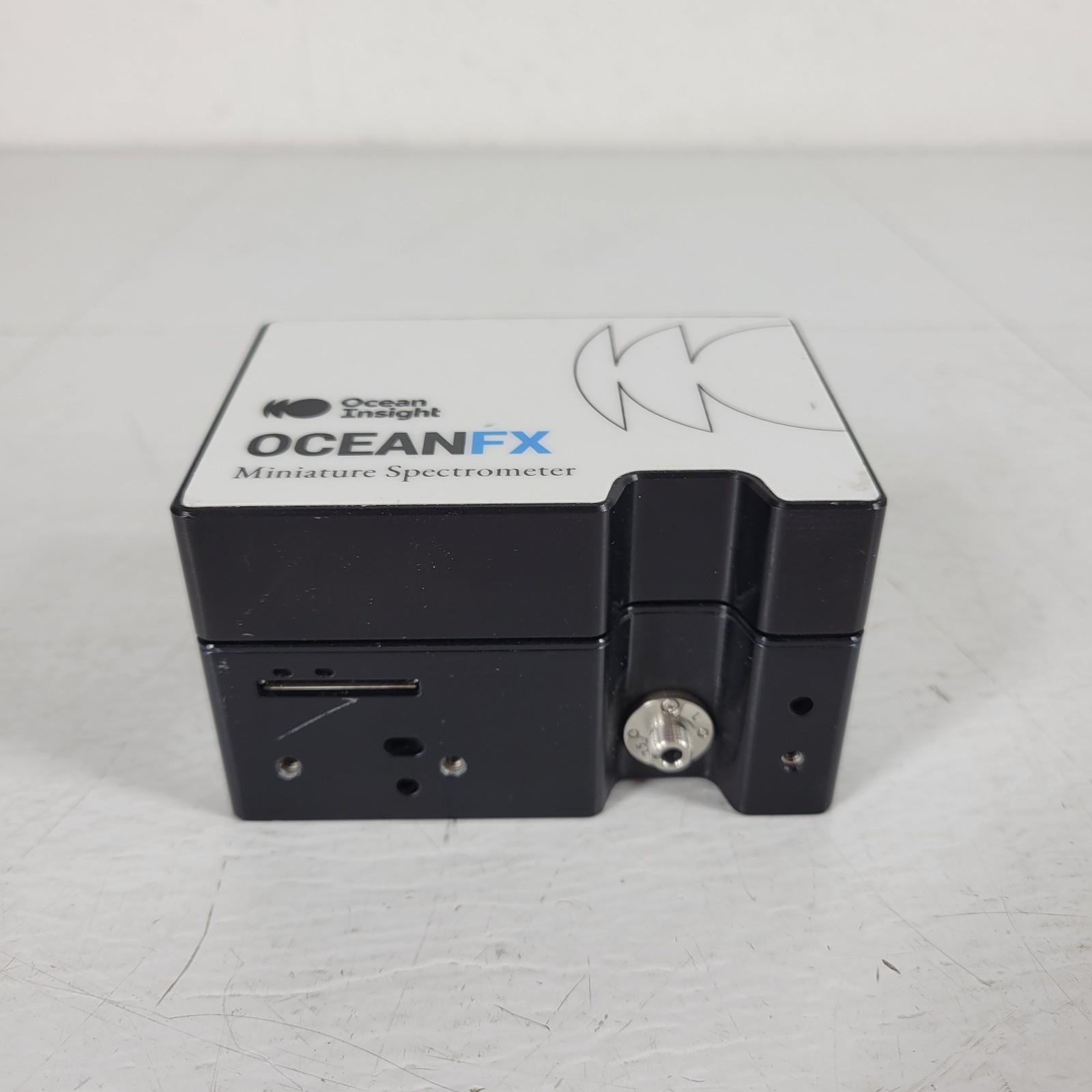

Ocean Insight (Ocean Optics) Insight OceanFX High Speed Miniature Spectrometer configured for 190.71–909.38 nm, built for fast UV-VIS-NIR acquisition and burst capture when you cannot afford to miss transient spectral events. OceanFX combines a high-speed CMOS linear array detector with onboard buffering (up to 50,000 timestamped spectra) and high throughput (up to 4,500 spectra/second; 10 µs-10 s integration time), making it a strong fit for both lab R&D and process environments; especially when you need rapid time-series spectra, flicker/event measurement, triggered acquisition, or production-line QA. This unit is tested working; photos show a burst acquisition and the recorded timing between spectra.

Key configuration and performance highlights:

• Wavelength range (calibrated): 190.71–909.38 nm

• Entrance slit: 25 µm

• Detector: Hamamatsu S11639-01 CMOS linear array; supports 10 MHz video data rate

• Maximum counts: 65,535 (16-bit scale)

• Acquisition: integration time 10 µs–10 s; up to 4,500 spectra/second; onboard buffer up to 50,000 spectra; onboard averaging supported

• Stability and timing: thermal stability spec 0.11 pixels/°C; trigger jitter spec 21 ns

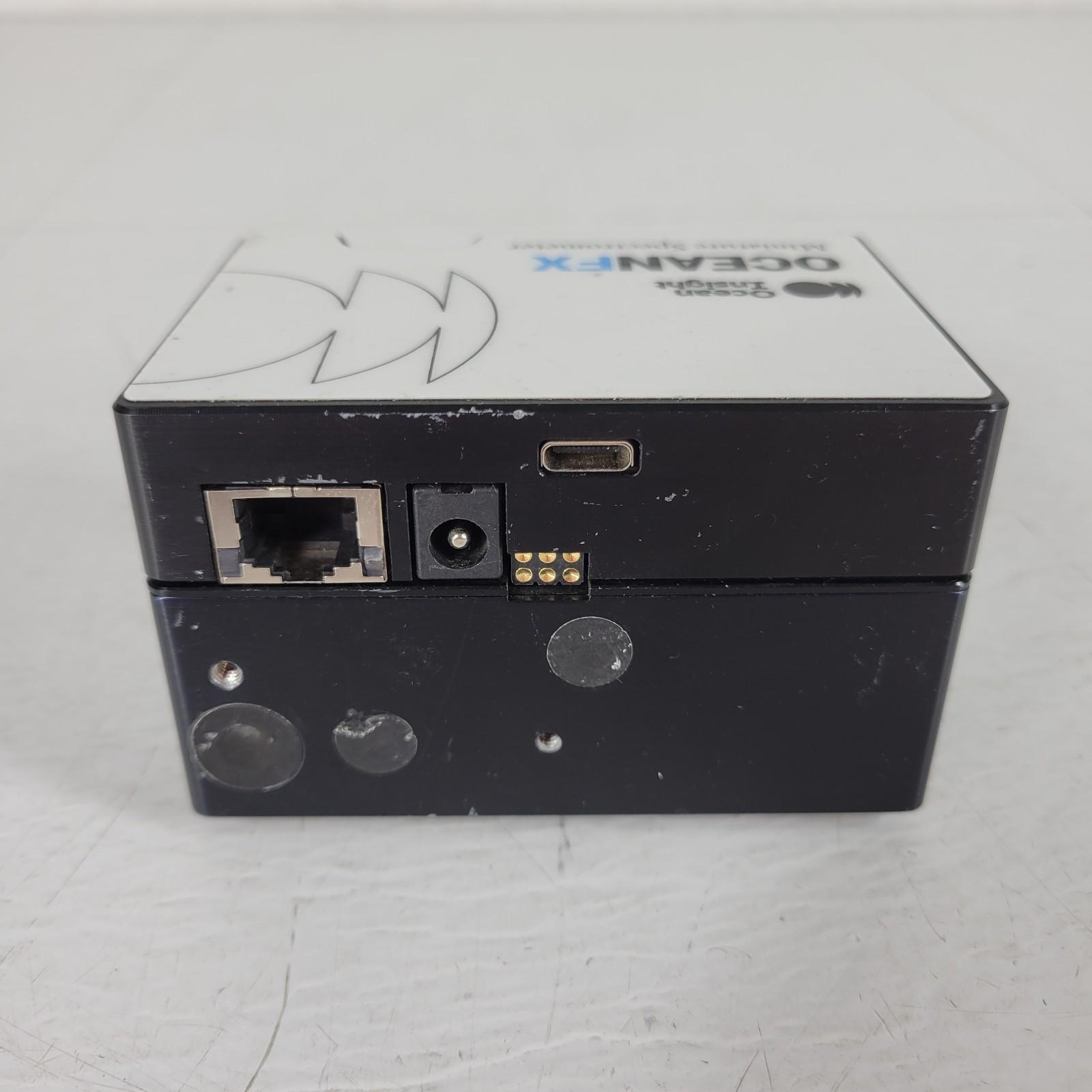

• Interfaces and I/O (platform features): USB; 8 GPIO plus trigger/strobe capability for synchronization and automation

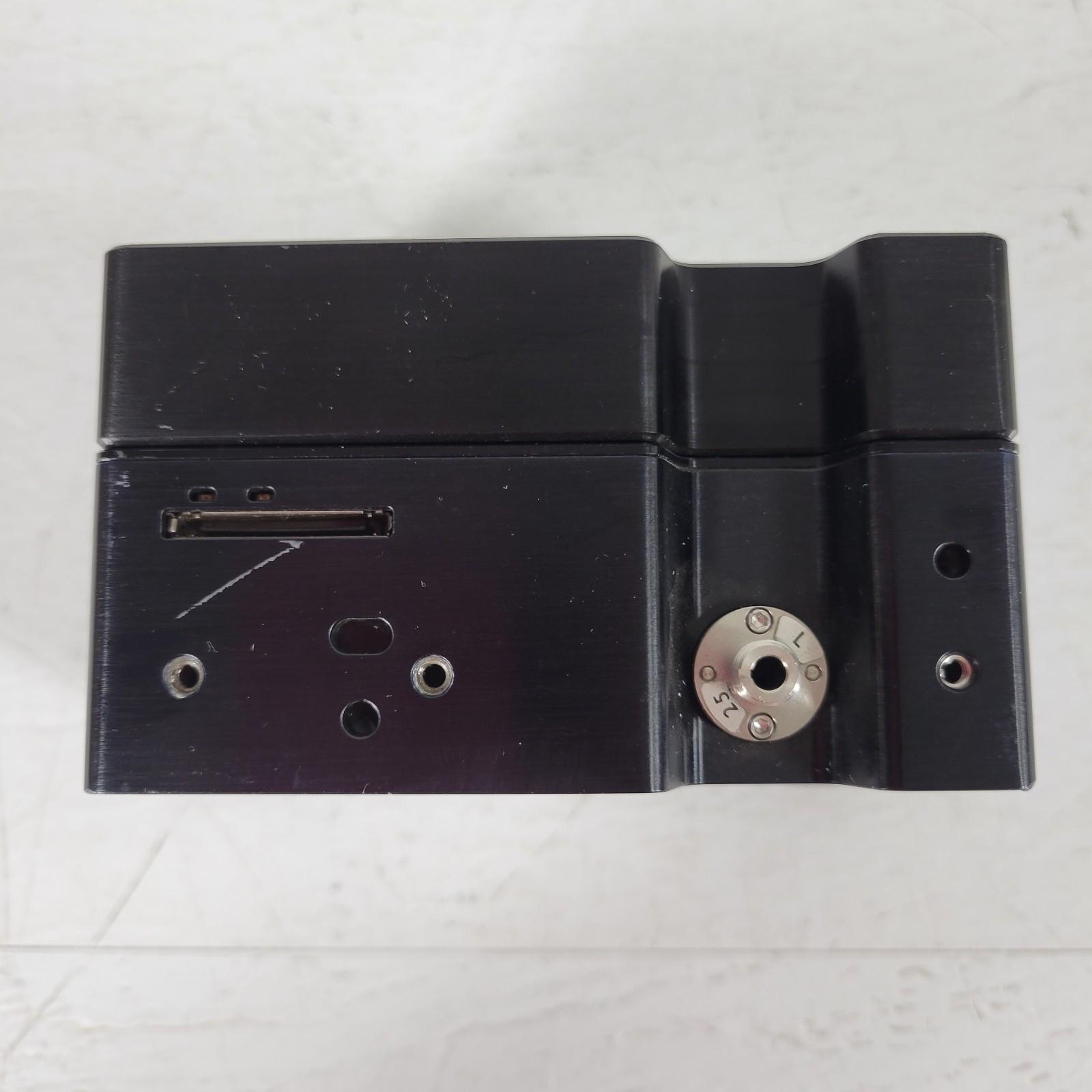

• Fiber input: SMA 905; fiber diameter field on this unit: 1 µm

Common applications:

• UV absorbance for nucleic acids and proteins; DNA/RNA quant; A260/A280 workflows (with appropriate fixtures)

• Enzyme kinetics and fast reaction monitoring; stopped-flow style kinetics; catalyst screening

• Pharmaceutical reaction profiling; process analytical monitoring; endpoint detection

• Chemical kinetics in cells and other fast biological assays

• UV gas analysis; absorption-based monitoring of UV-active species

• High-intensity plasma emission monitoring; arc/plasma diagnostics; welding plume observation

• Laser characterization; spectral linewidth checks; wavelength drift monitoring

• LED spectral characterization; flicker measurements; driver validation; lighting QC

• Transient event spectroscopy; sparks; explosions; combustion flashes; pulsed sources

• Laser-induced breakdown spectroscopy (LIBS) with external triggering and appropriate optics

• Production-line measurements; conveyor-based sorting; color and material discrimination

• Food sorting and processing; detect/grade by spectral signatures (with proper illumination/probes)

• Quality control in manufacturing; defect identification; raw material inspection; verification testing

• Thin-film and coating checks; transmission/reflectance tracking; filter and glass characterization

• Fluorescence and photoluminescence measurements (with proper excitation and filtering)

• Photopolymer and UV-curing process monitoring; resin cure progression

• Environmental monitoring; air and water quality analysis (method dependent)

• Remote sensing field measurements; spectral logging

• Volcanic research and other geochemical remote spectroscopy use cases

• General UV-VIS-NIR spectroscopy: absorbance; reflectance; transmittance; irradiance; color analysis

From Ocean Optics:

High Sensitivity and Fast Acquisition Speed

Ocean FX offers rapid data acquisition, onboard processing, and versatile communication for high-speed applications like QC sorting and event measurement.
