*TESTED* Ocean Optics QE65000 Spectrometer Control Board PCB Circuit

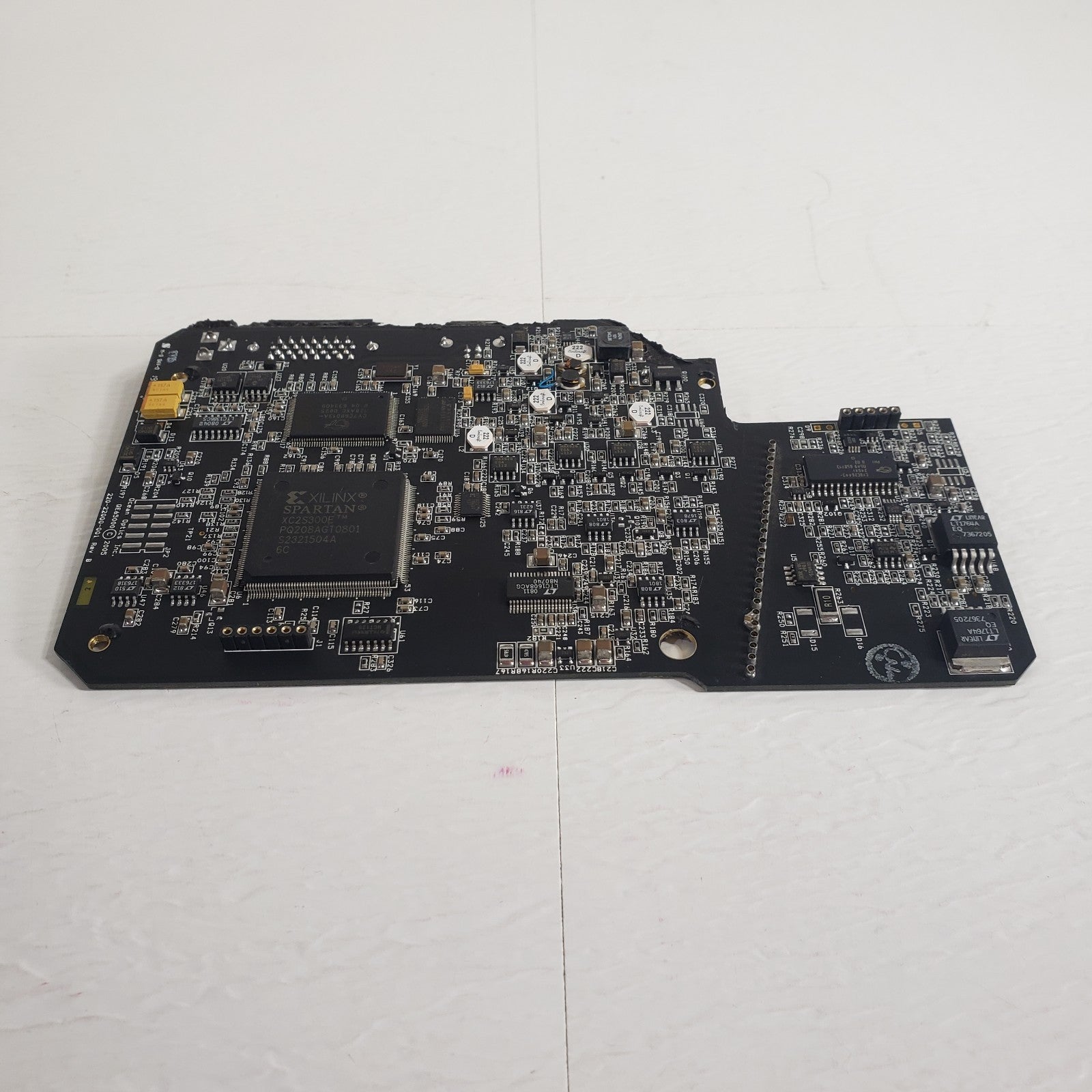

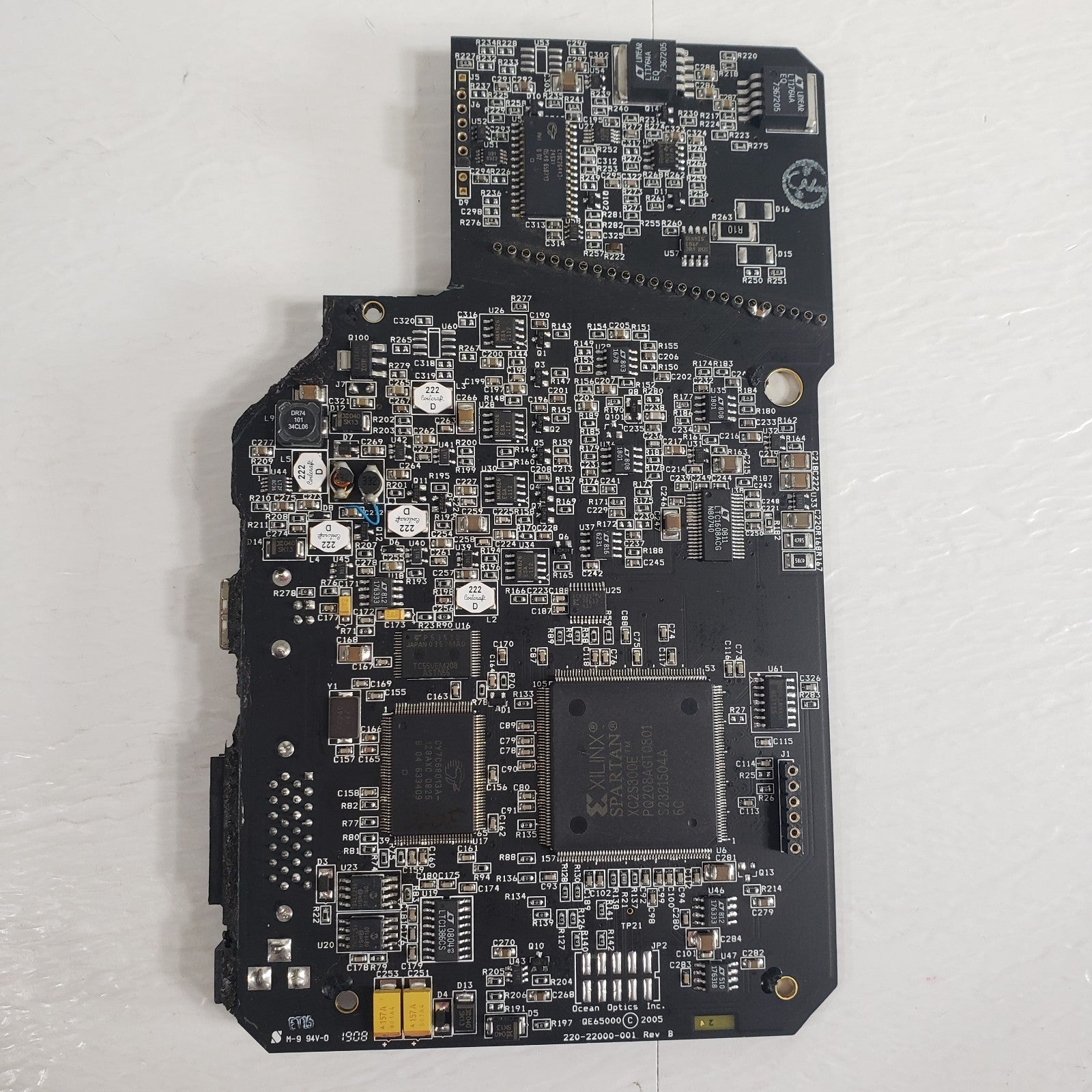

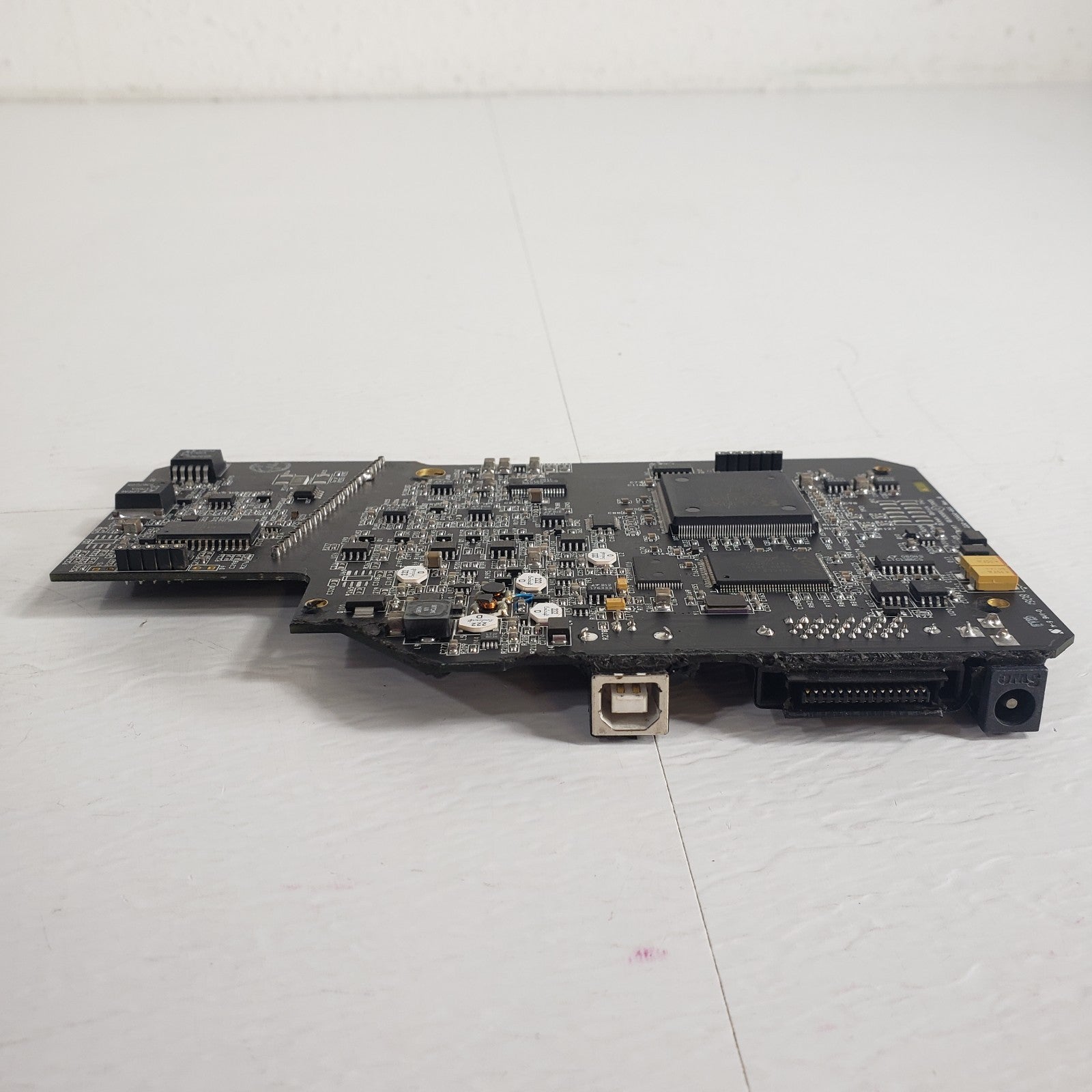

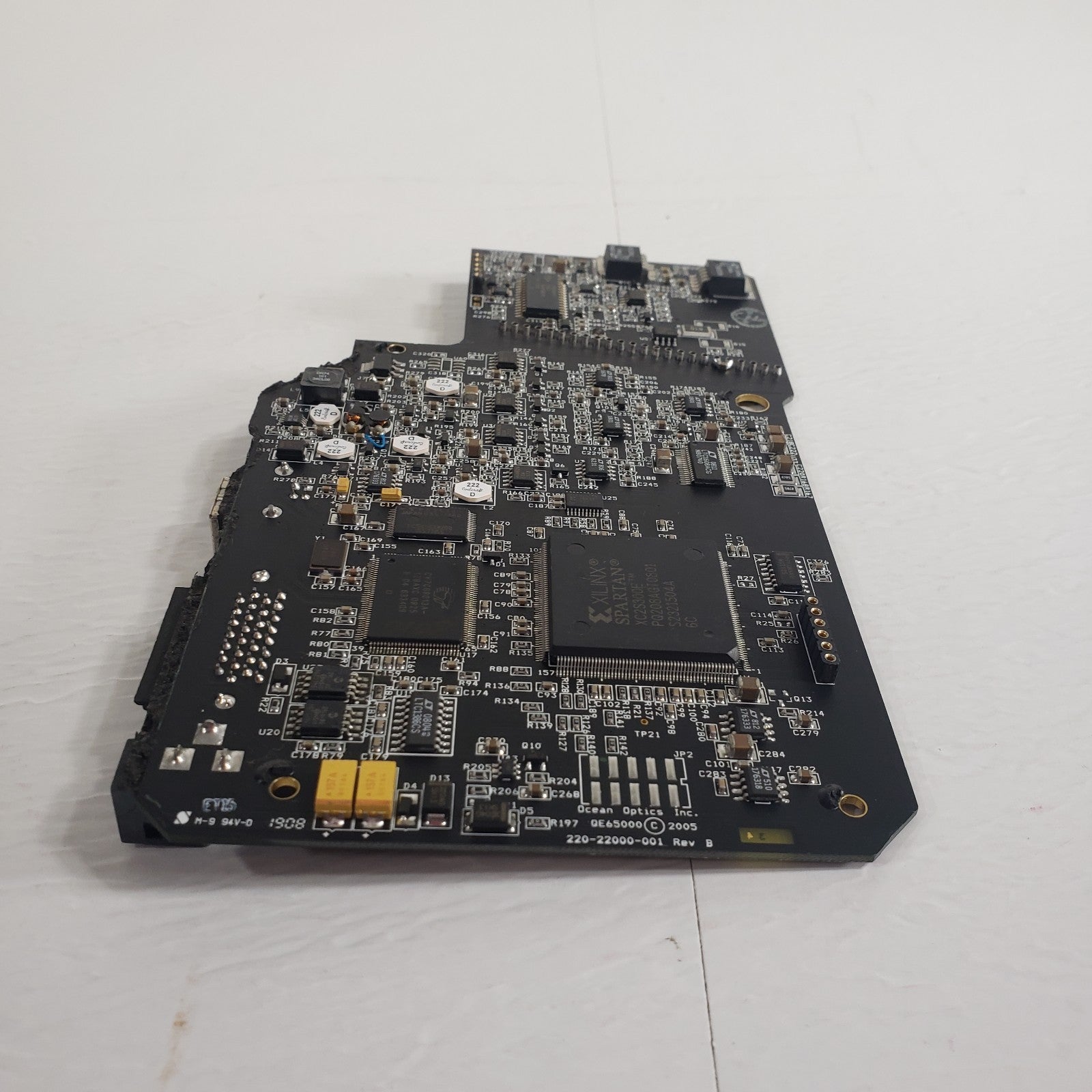

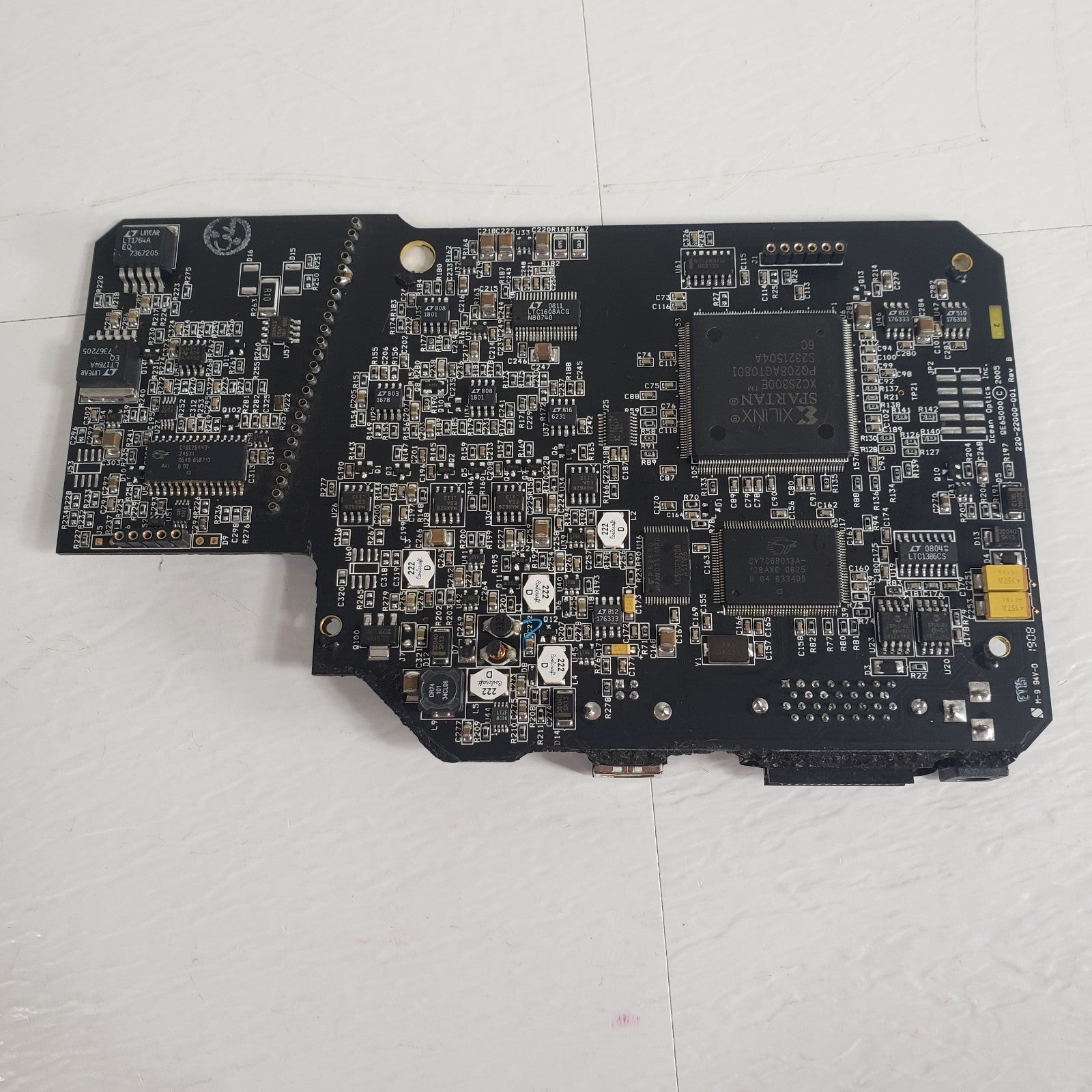

*TESTED* Ocean Optics QE65000 Spectrometer Control Board PCB

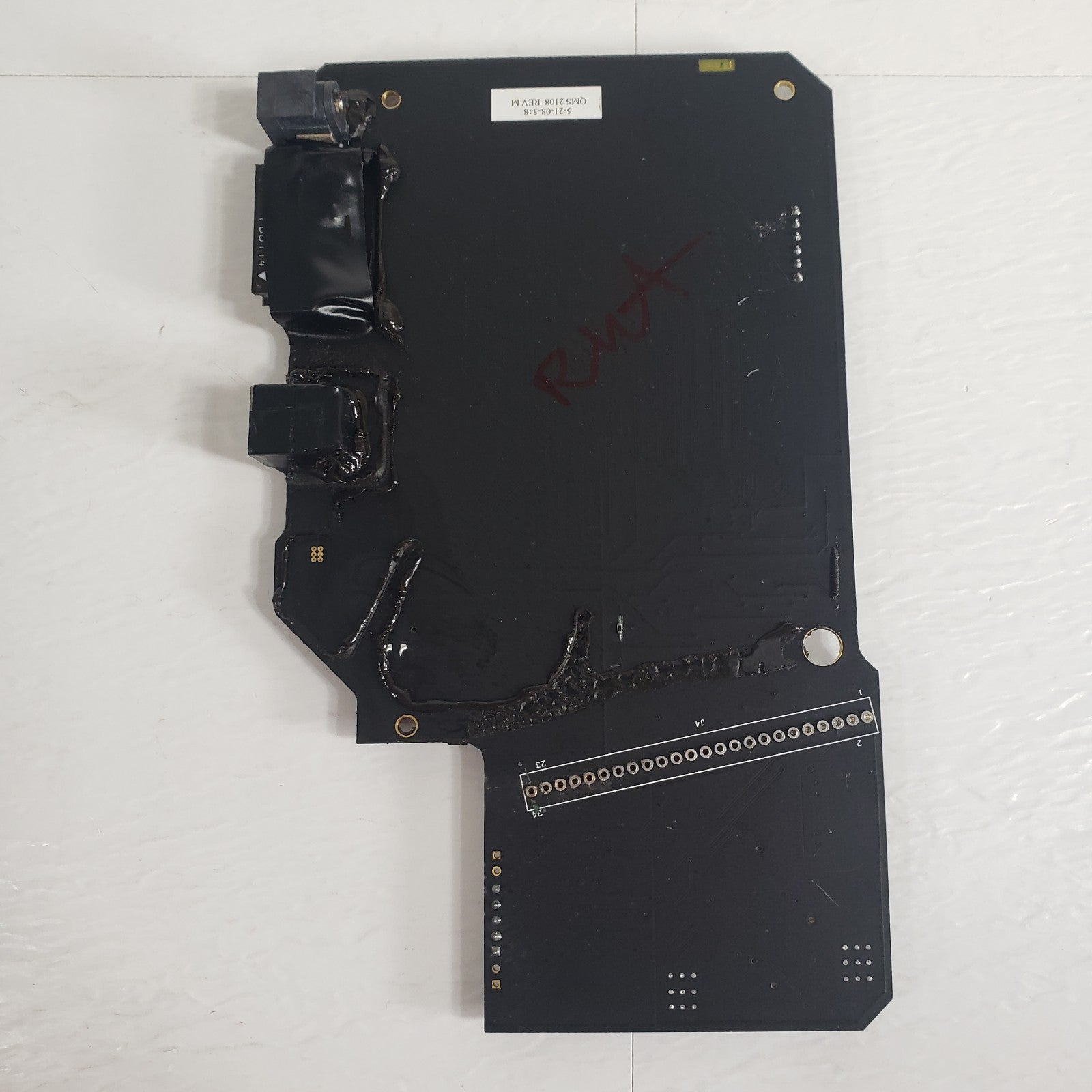

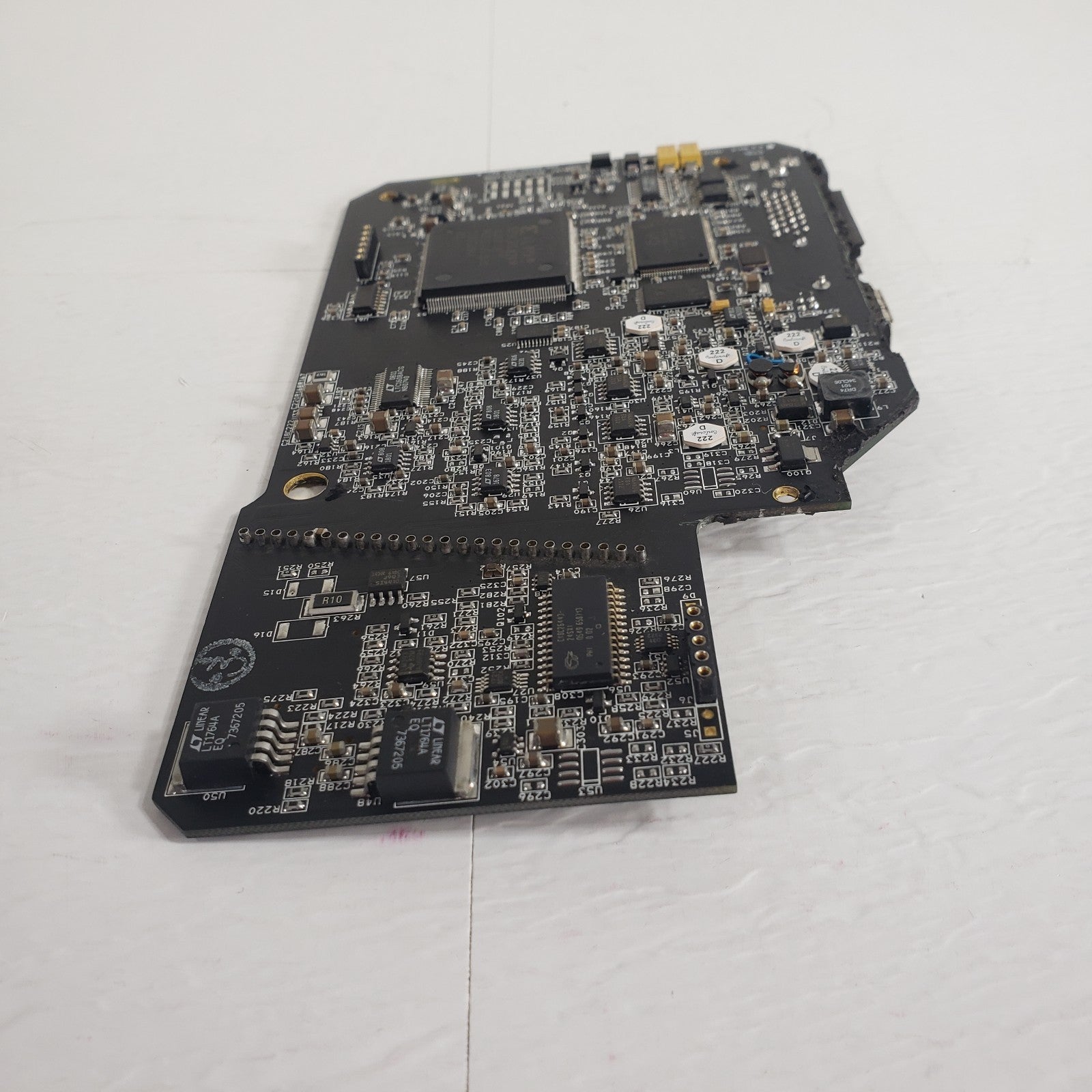

For parts not working see photos

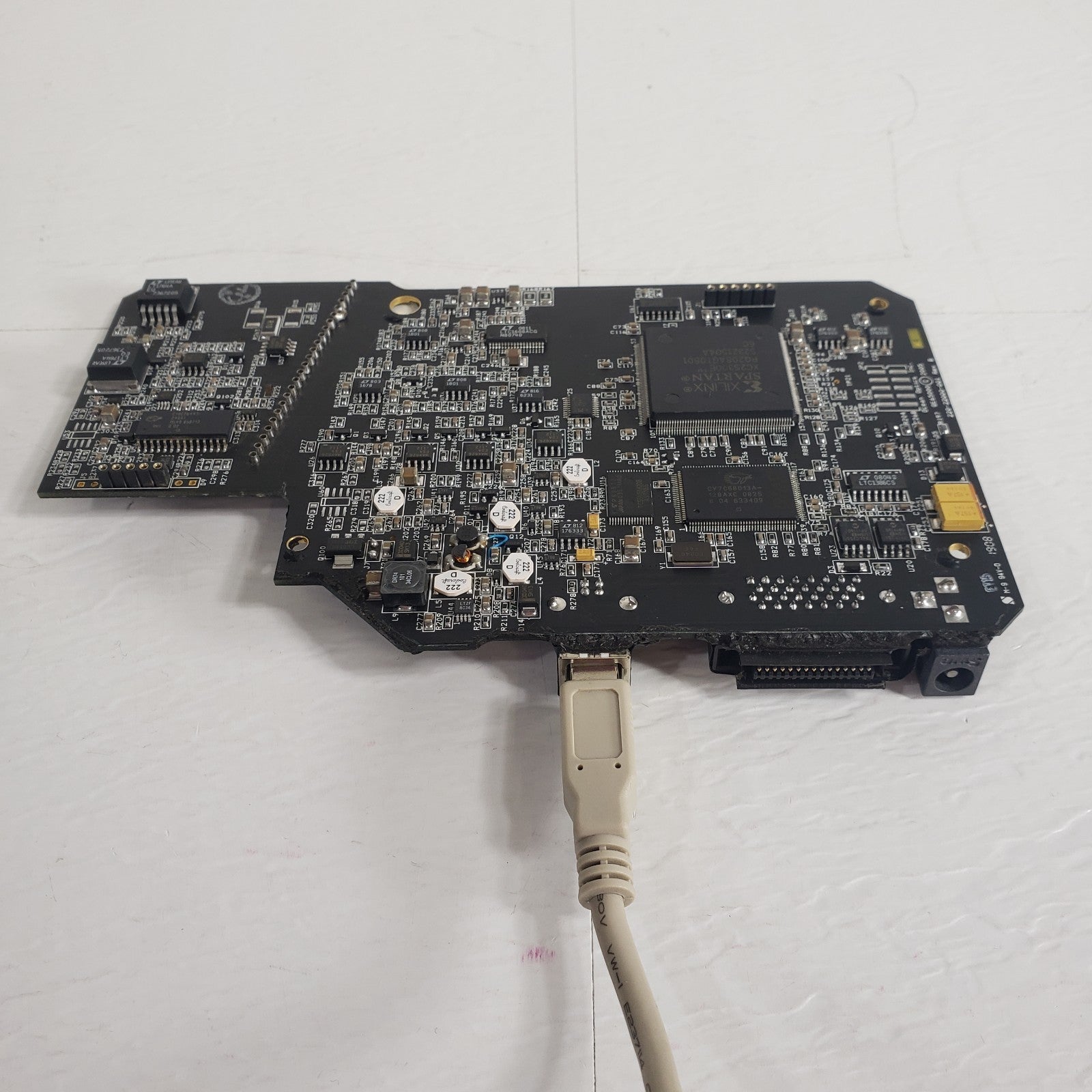

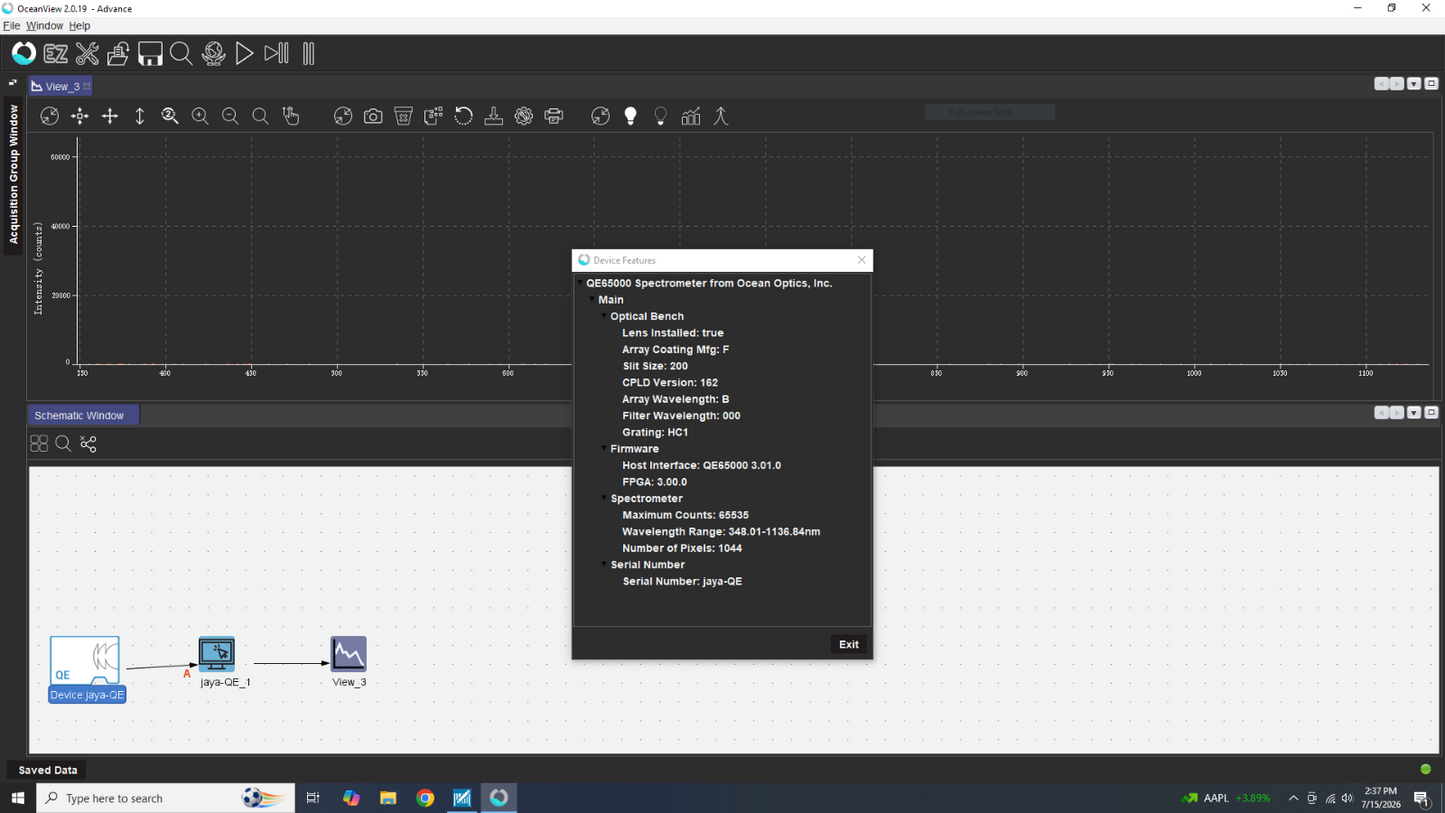

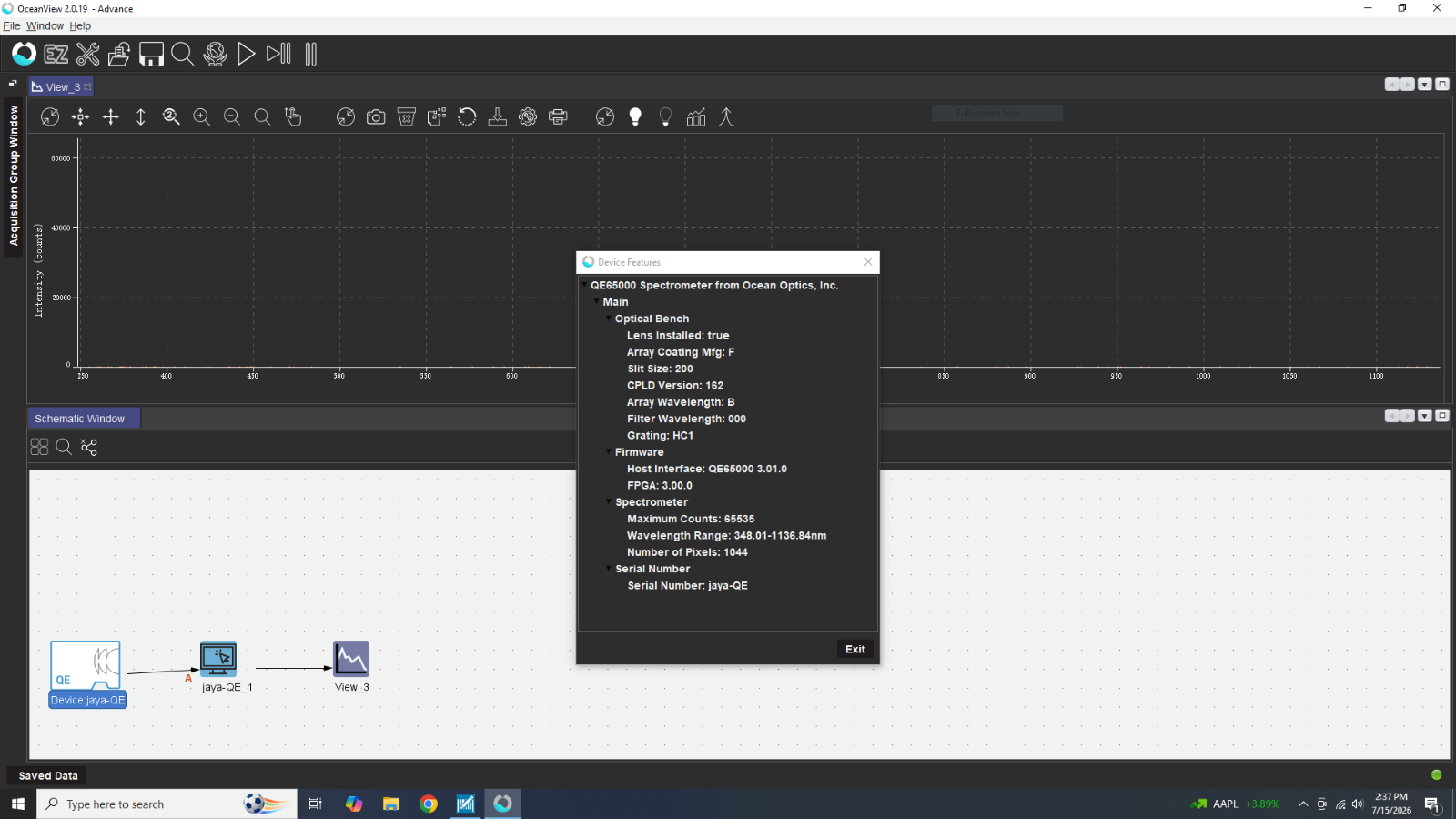

Tested board connects to Ocean View software see photos. Could be used to repair your QE65000 or as electronics to start your own bench spectrometer.

Specs,

Slit Size: 200

CPLD Version: 162

Array Wavelength: B

Filter Wavelength: 000

Grating: HC1

Maximum Counts: 65535

Wavelength Range: 348 - 1100nm

Number of Pixels: 1044
