Tested Olympus GX51F Inverted System Metallurgical Microscope 5 Objectives, Camera, Software PC
Used, See Photos.
Tested- The software and accessories work functionally and we used them to demonstrate the microscopes features. See photos.

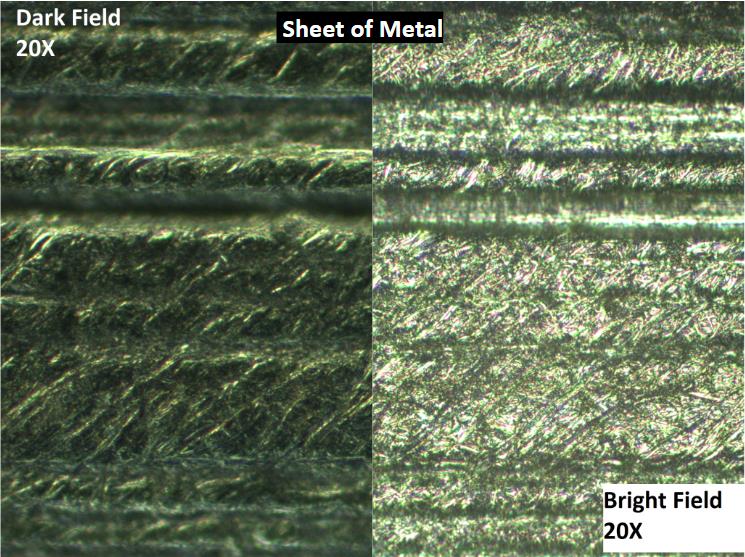

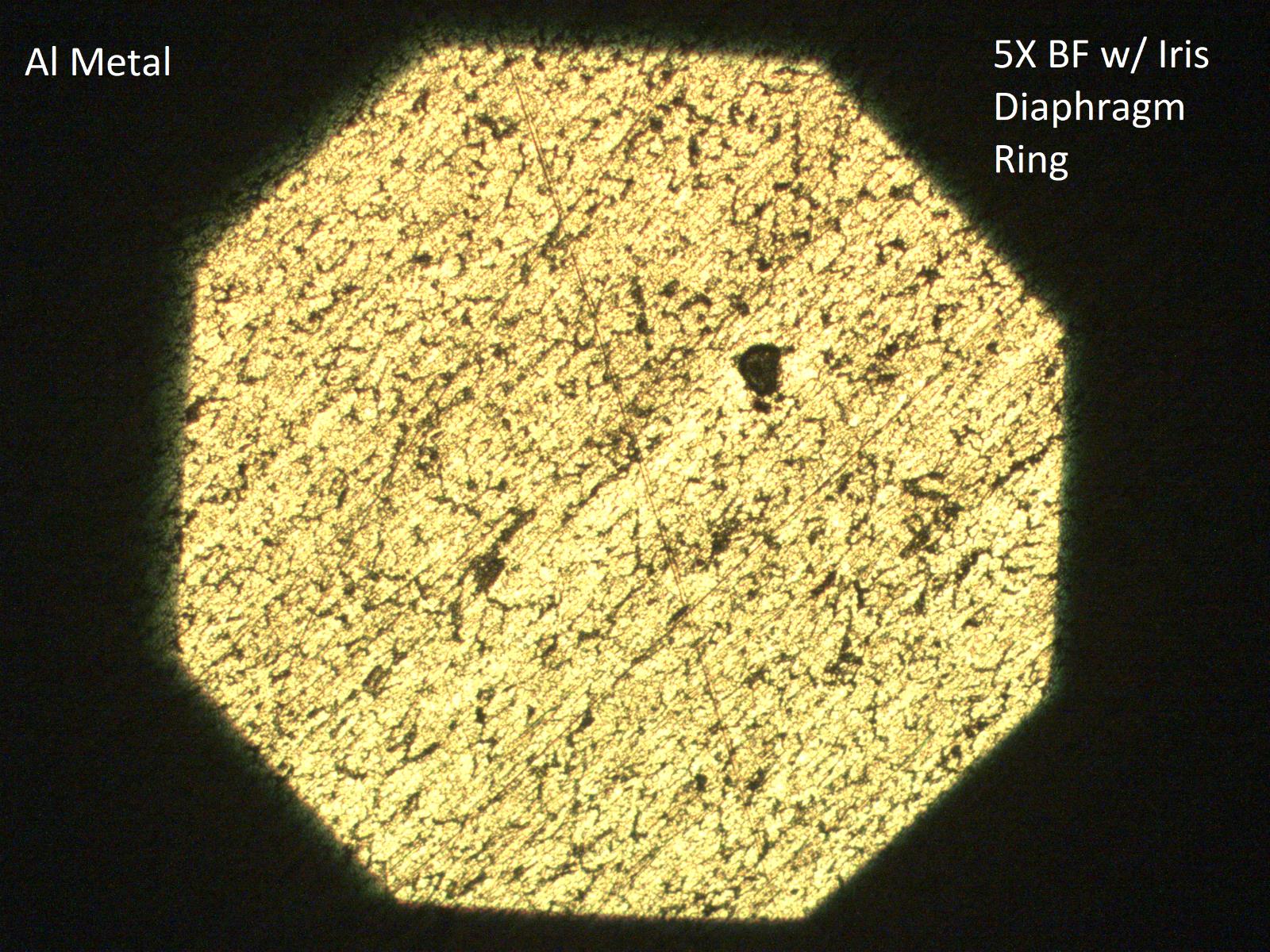

Displayed under the microscope:

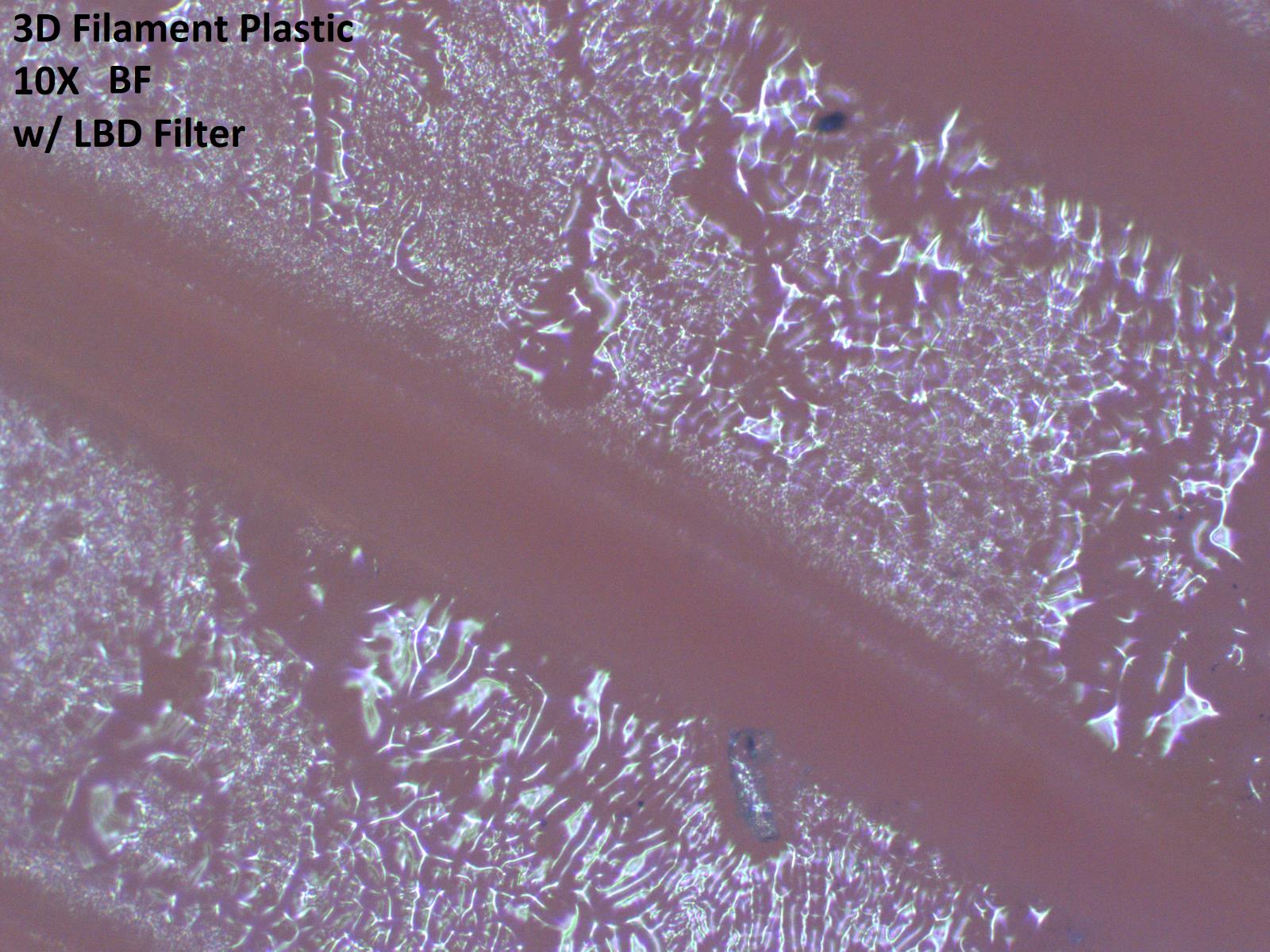

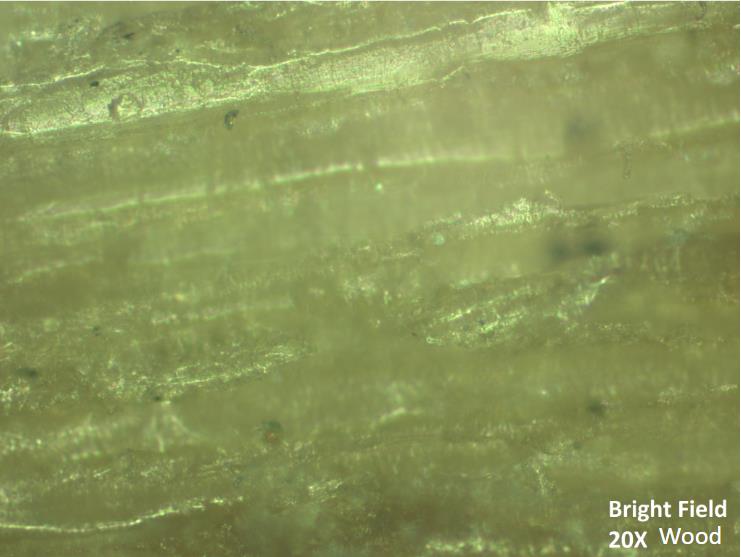

Sheet metal, 3D plastic filament, and wood

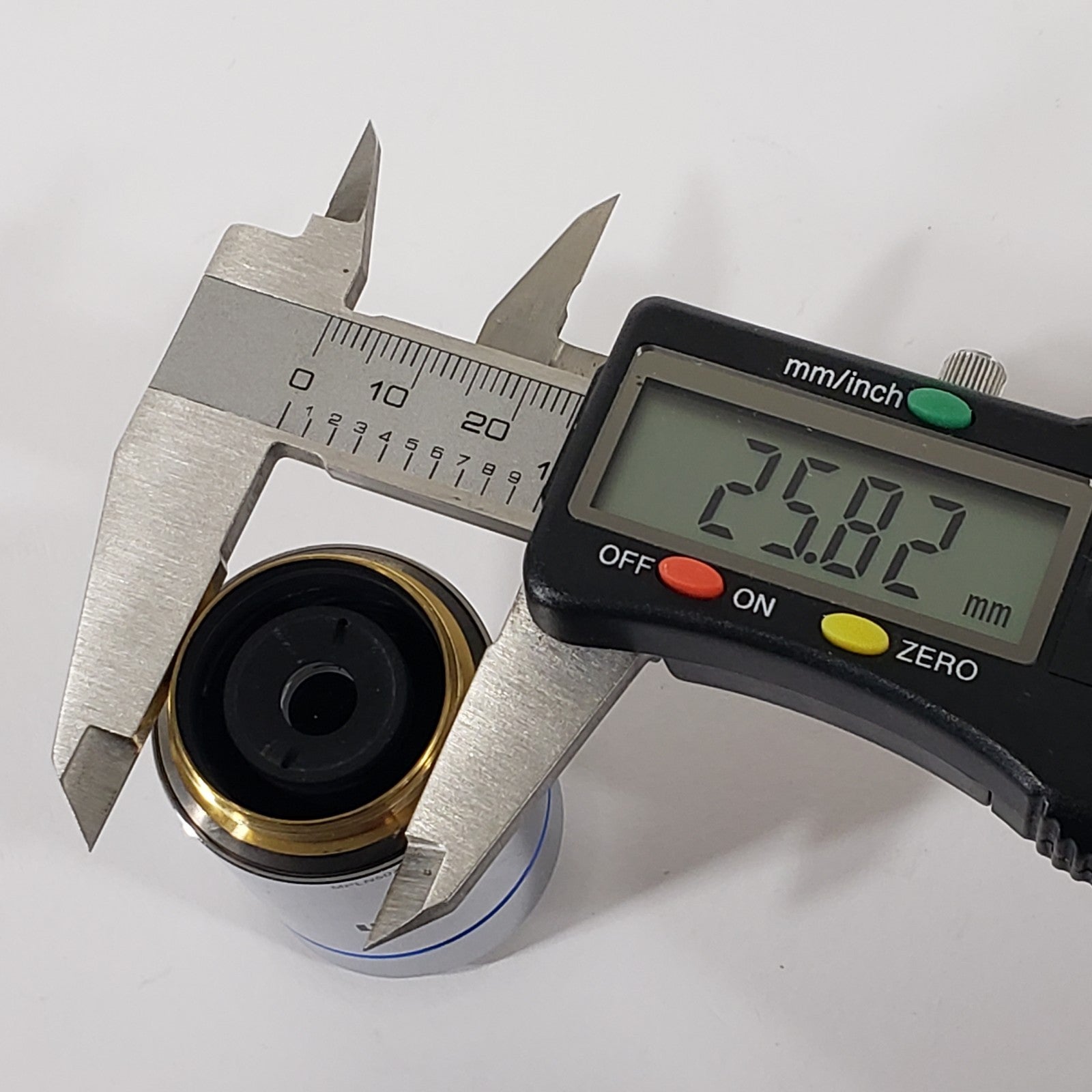

Optics in general are in good shape and the 5 objectives are in good optical condition, some have external scratches on them but the glass is in excellent shape. All have a M26 threaded base width. Nose piece is a sextuple M26 threaded bases.
All components of the GX51 work smoothly including lamp housing, stage & nosepiece functions, eyepieces, and the LBD filter.
Software's username & password written on the computer.

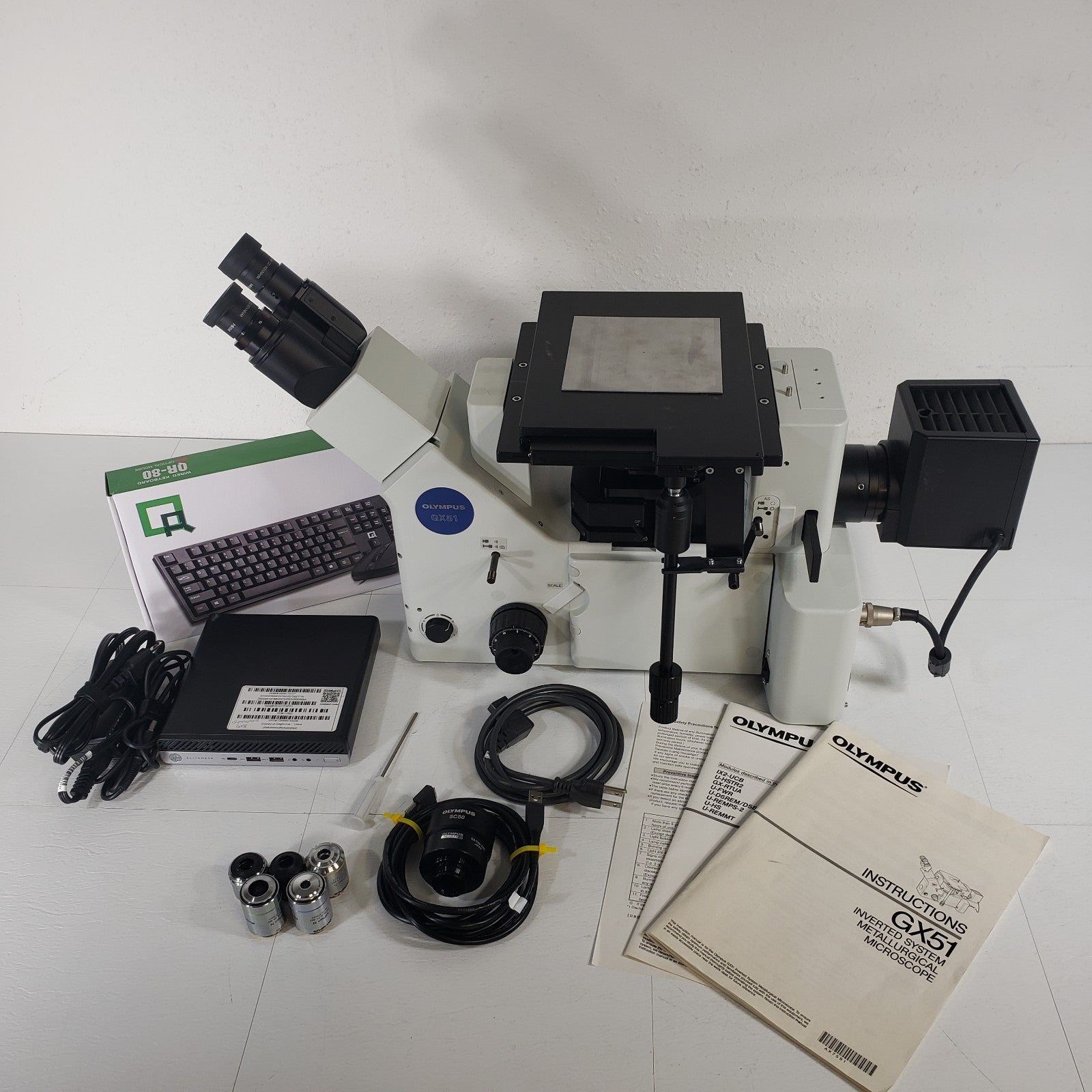

Here is a list of what all is included in this purchase:
Part List for this Olympus GX51 Offering
Eyepieces

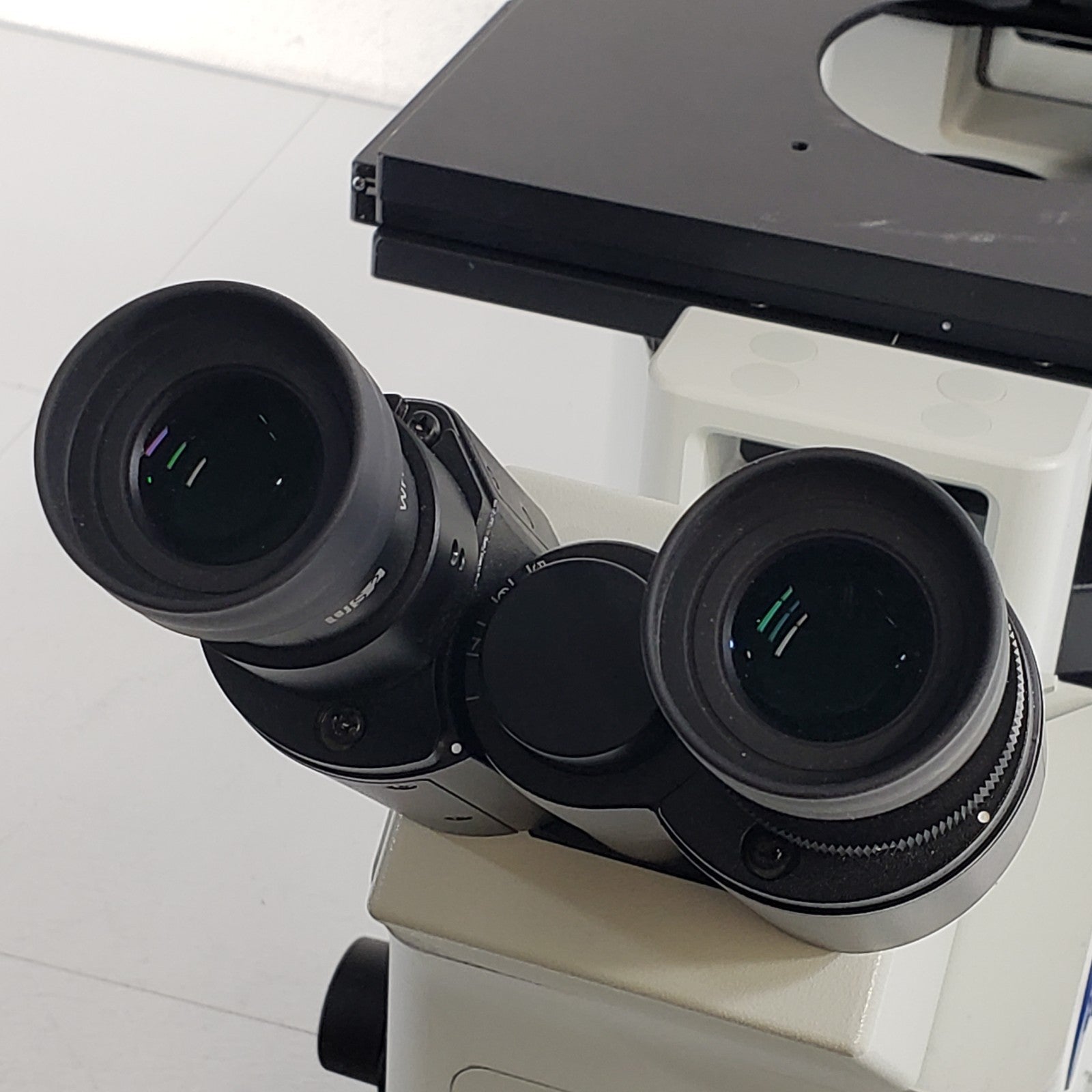

- Olympus WHN10X-H/22 Focusing Eyepiece x2

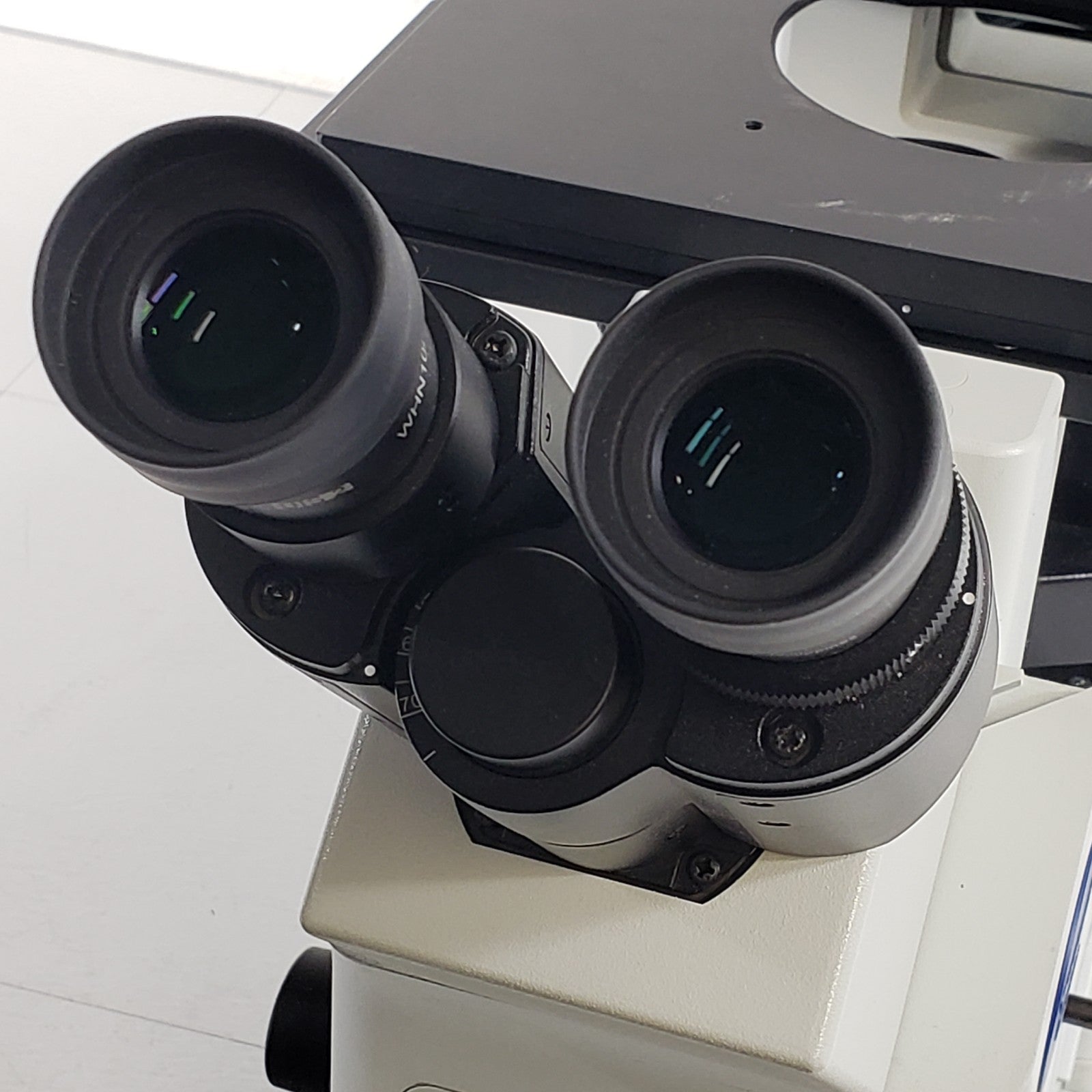

Binocular Tube
- U-BI90 Binocular Tube
Stand

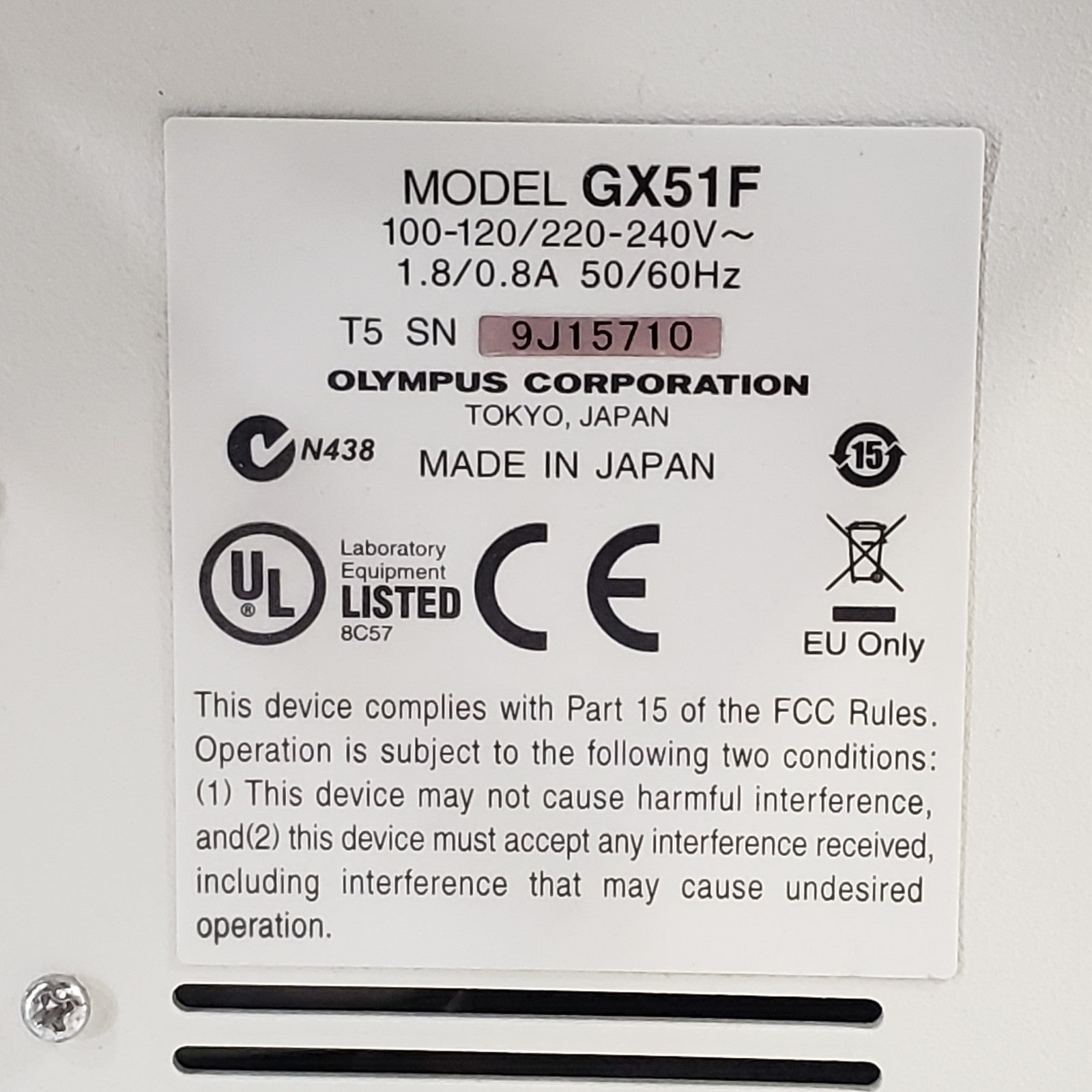

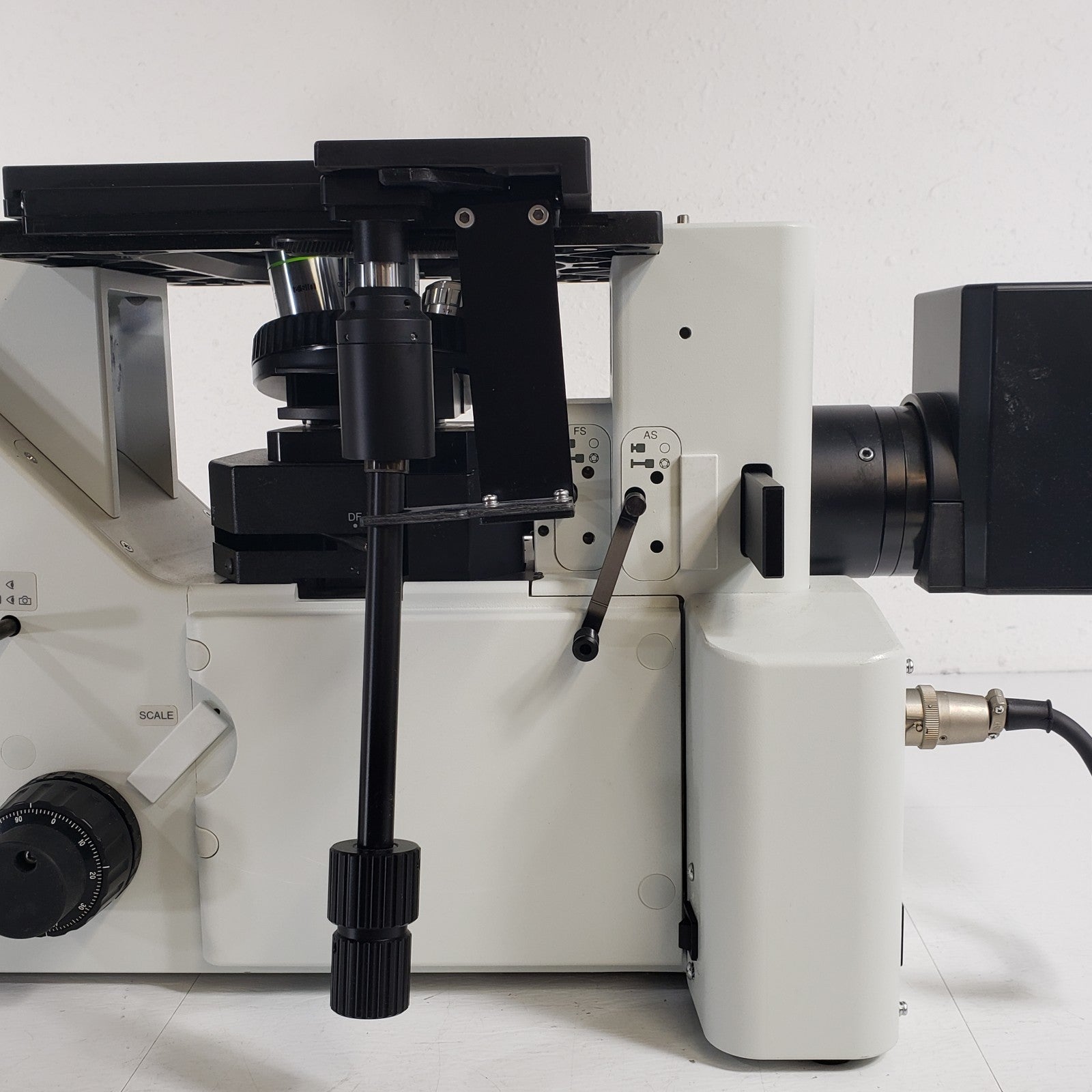

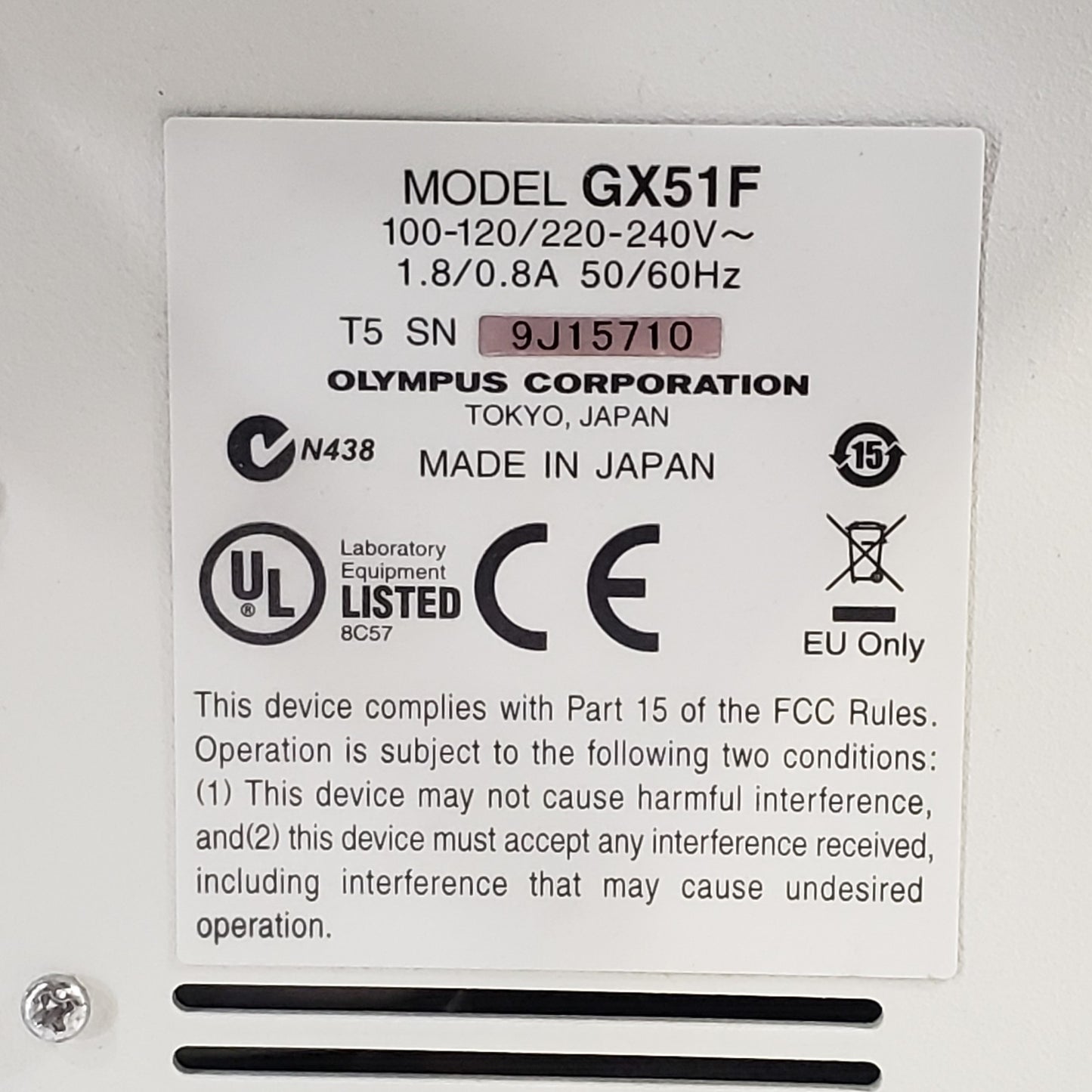

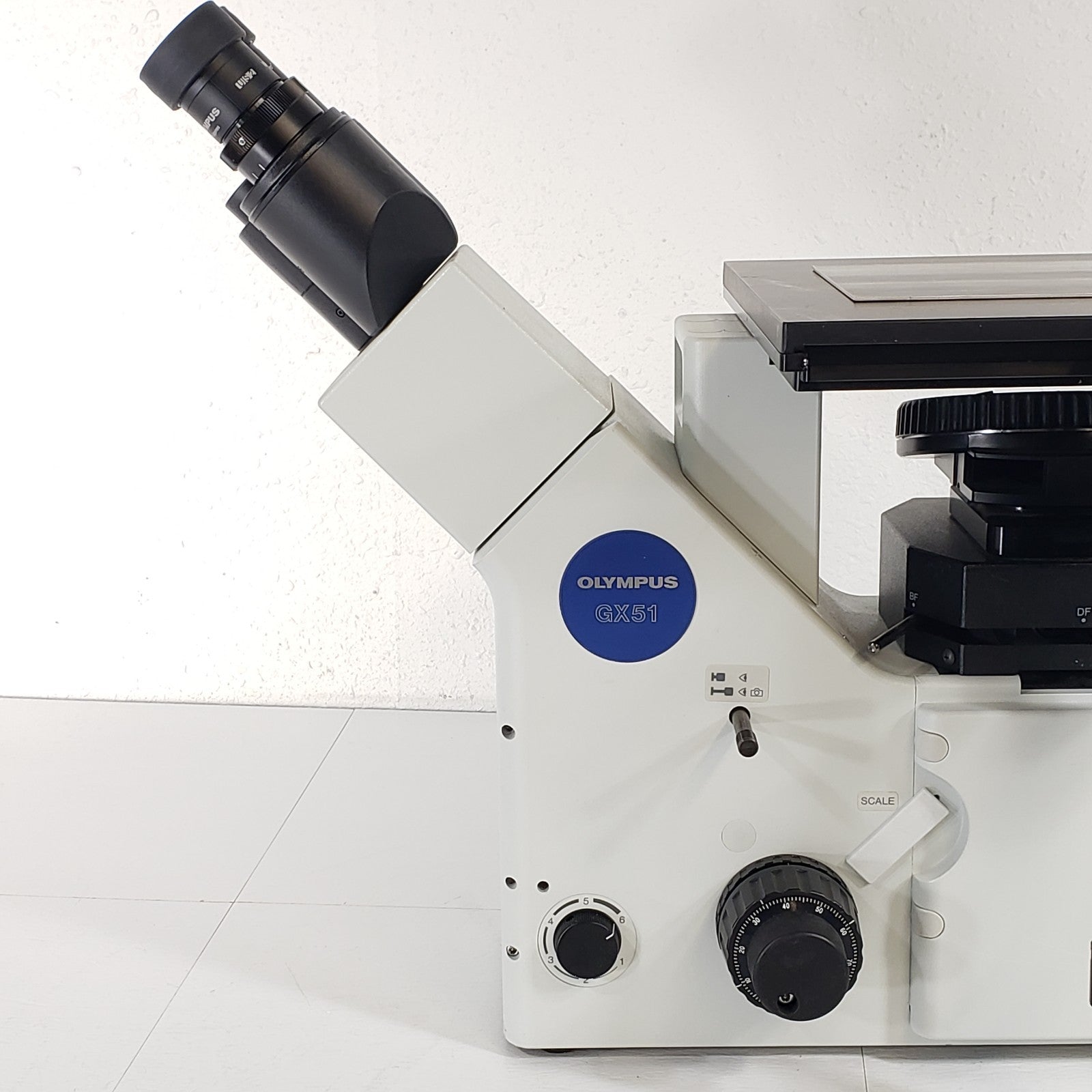

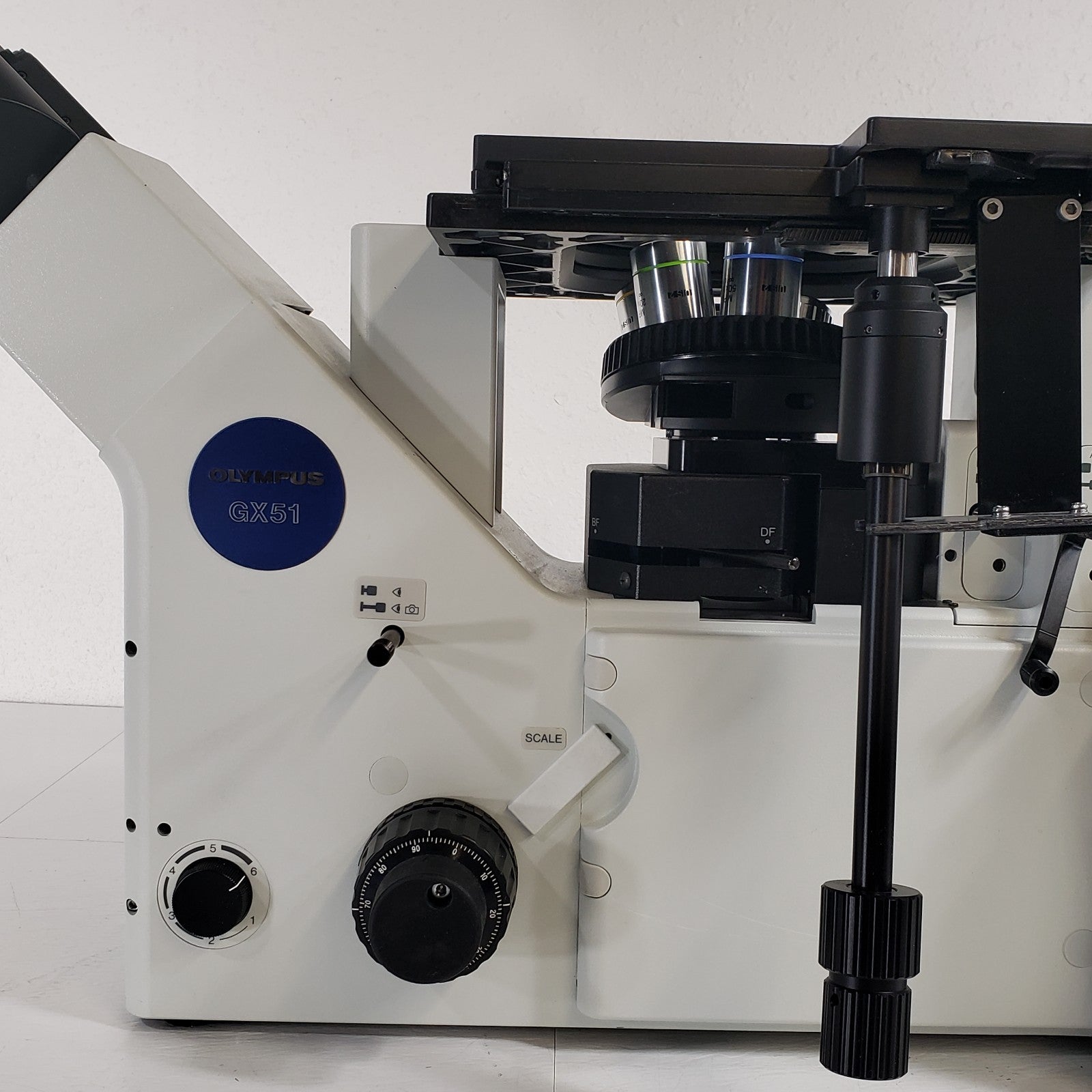

- GX51F Microscope Stand
Stage

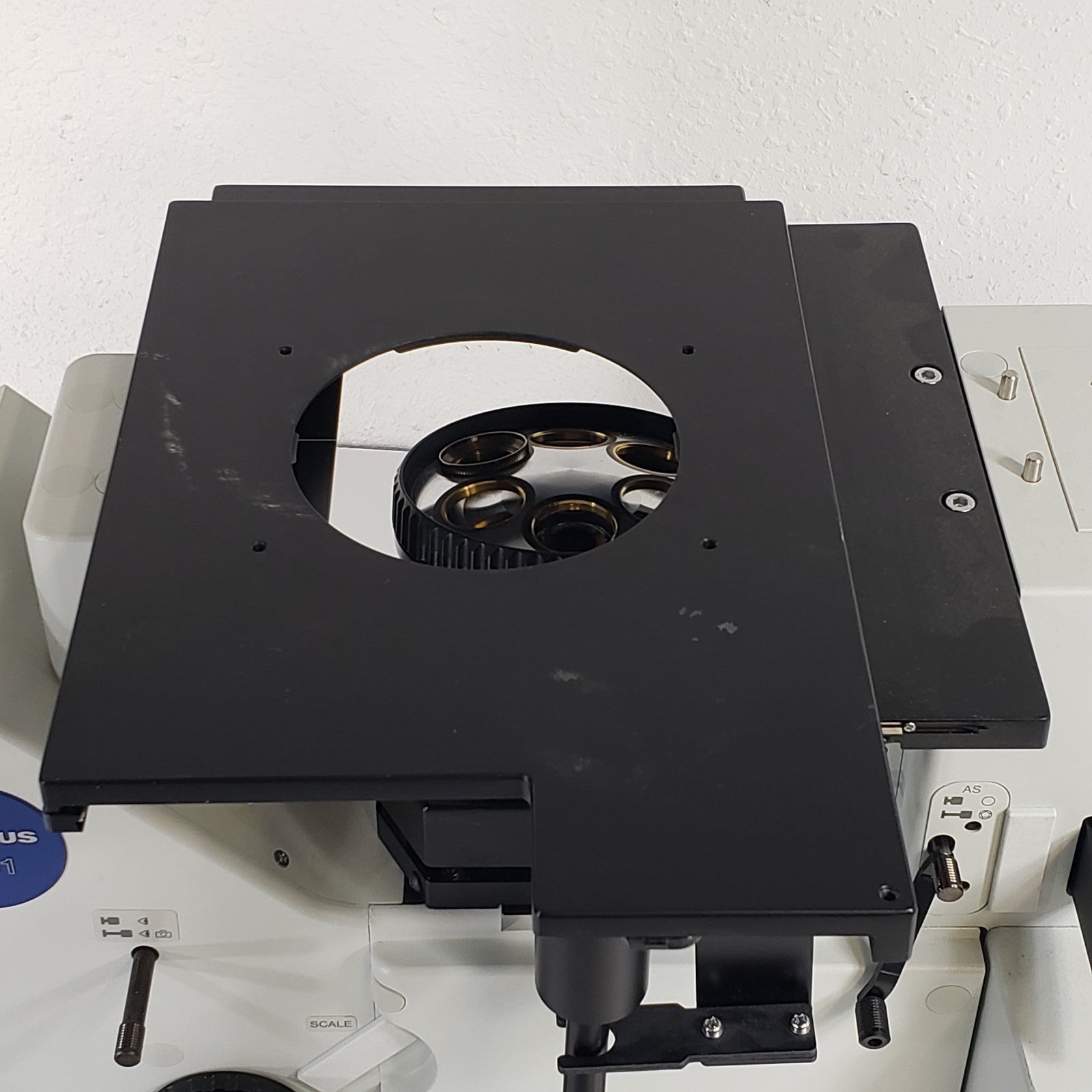

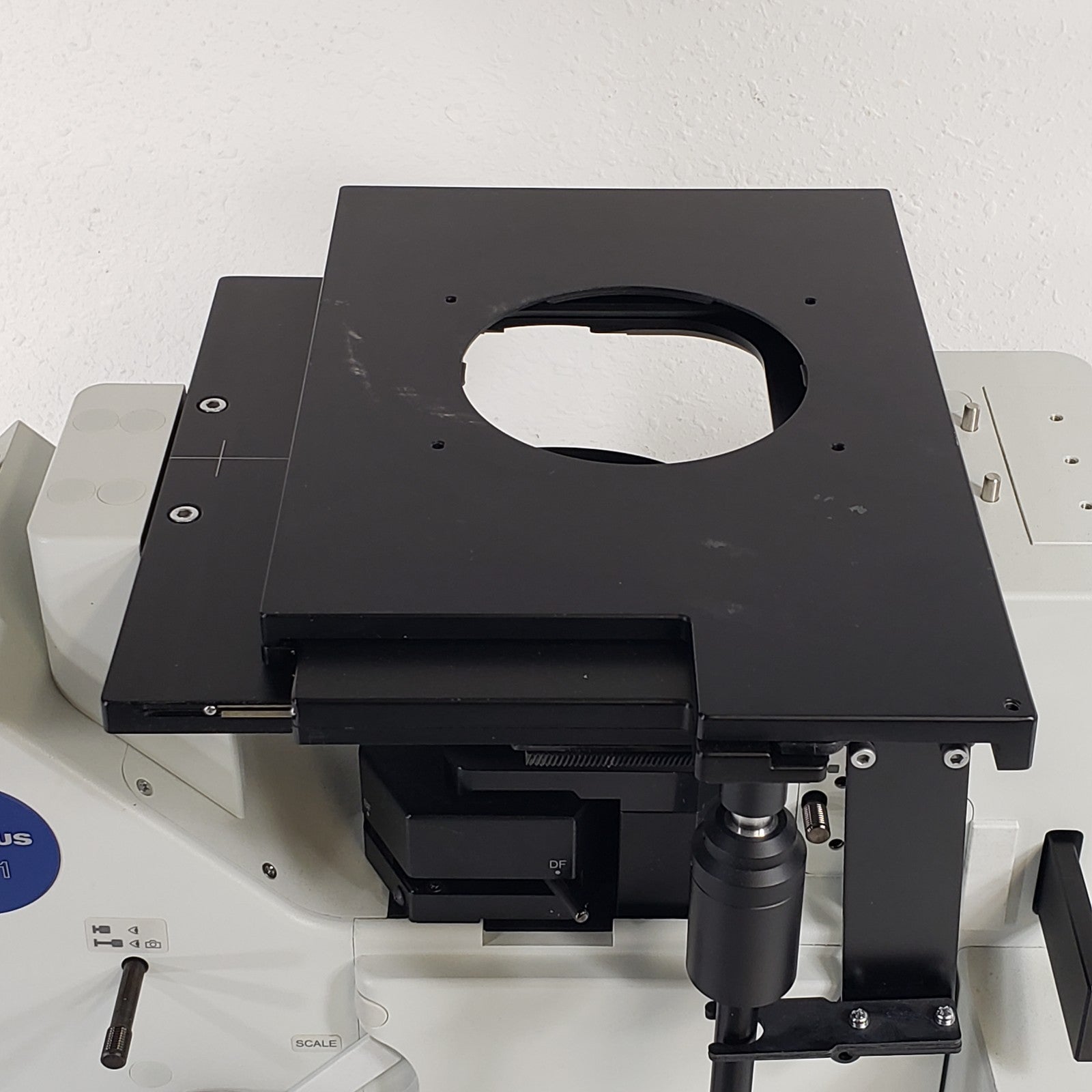

- GX-SFR Flexible right handle stage

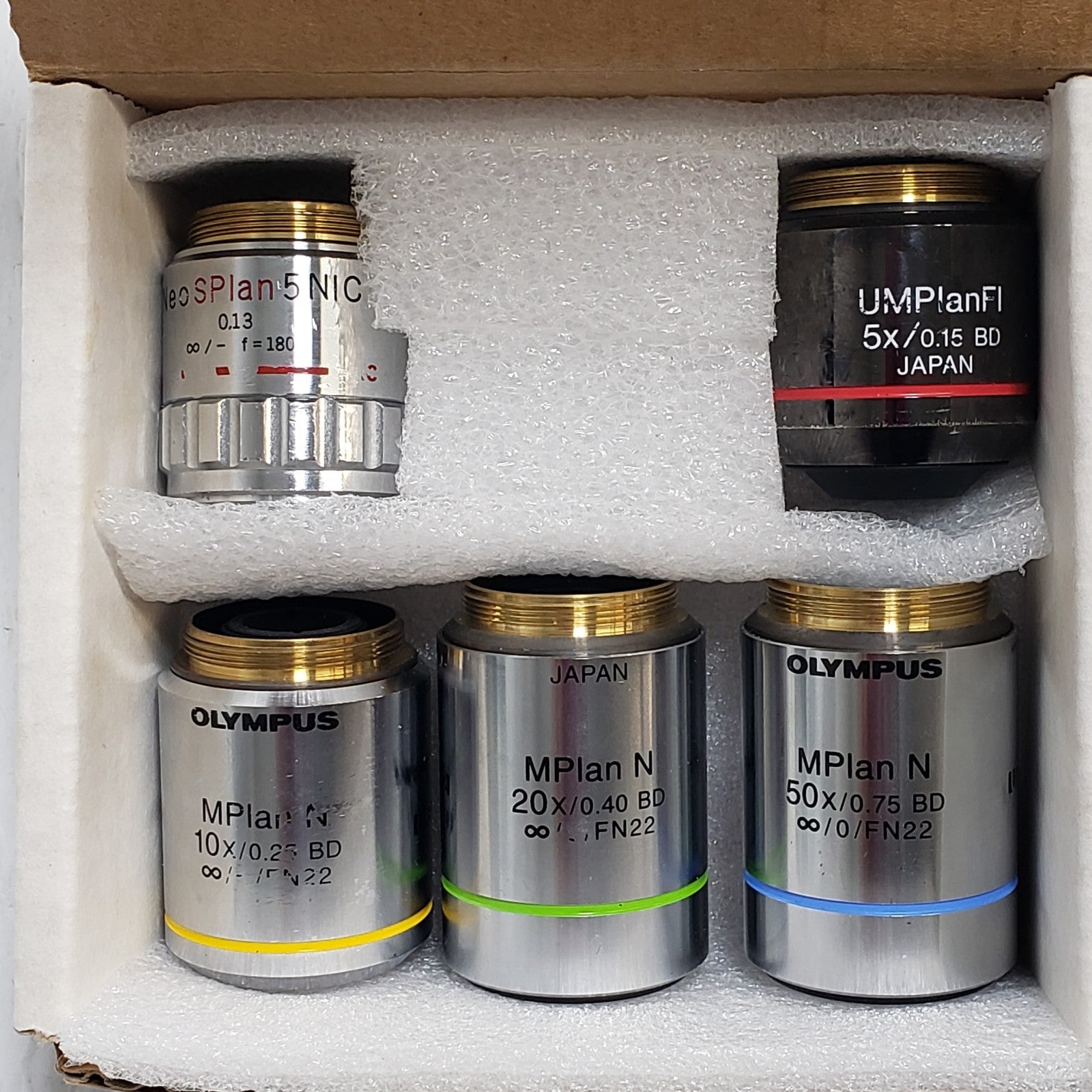

Objectives:
- Olympus NeoSPlan5NIC 0,13 Microscope Objective
- Olympus UMPlanFl 5x BD P Microscope Objective
- Olympus MPlan 20x BD Microscope Objective
- Olympus MPlanFL N 50x BD Microscope Objective
- Olympus MPlan 10x BD Microscope Objective
Nosepiece
U-D6RE Sextuple revolving nosepiece - Missing Analyzer Slot component
Scale Slider
GX-SLMG Parfocal glass
Slide Filter
GX-FSL w/ 1 (LBD) Light-Balancing Daylight Filter

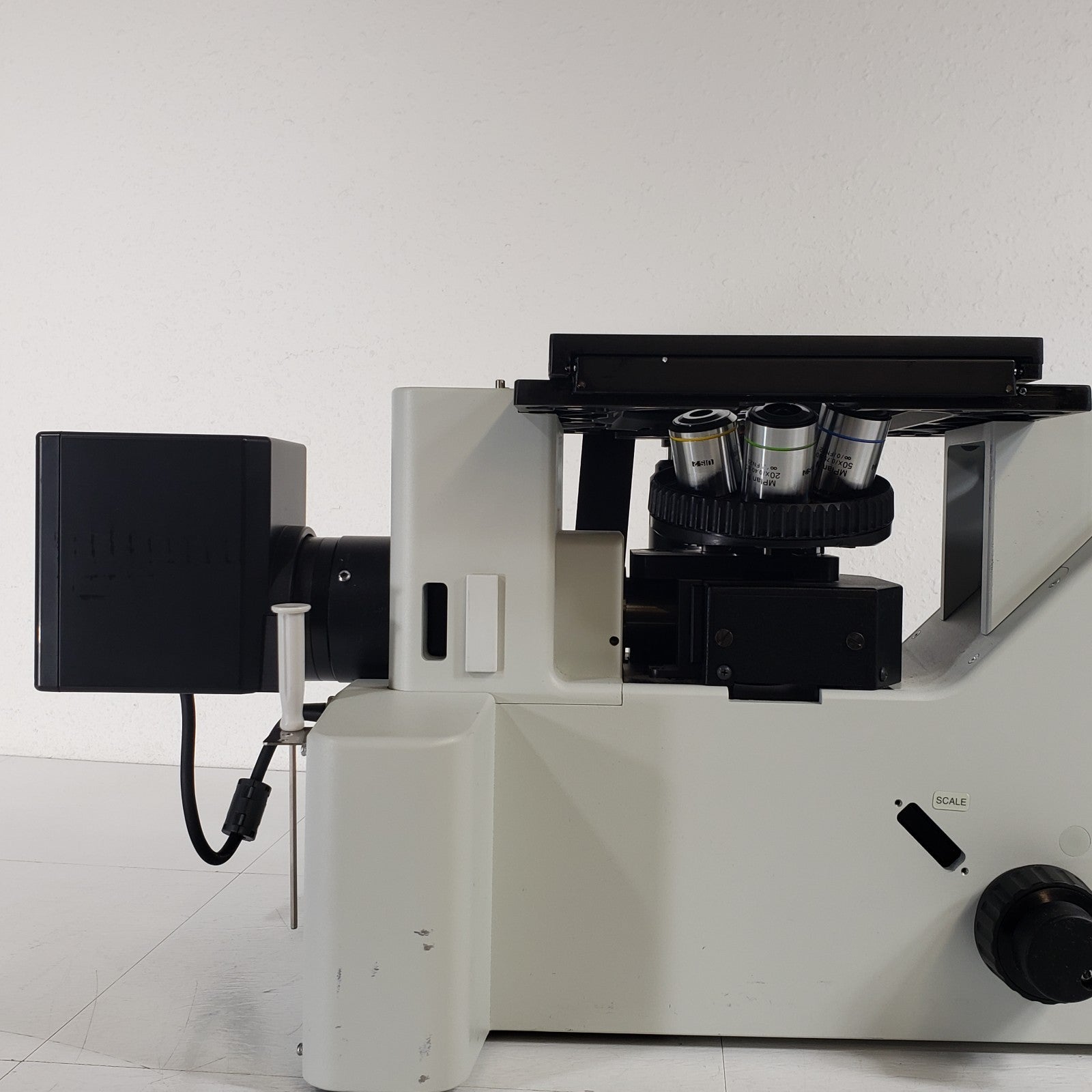

Camera & Accessories:

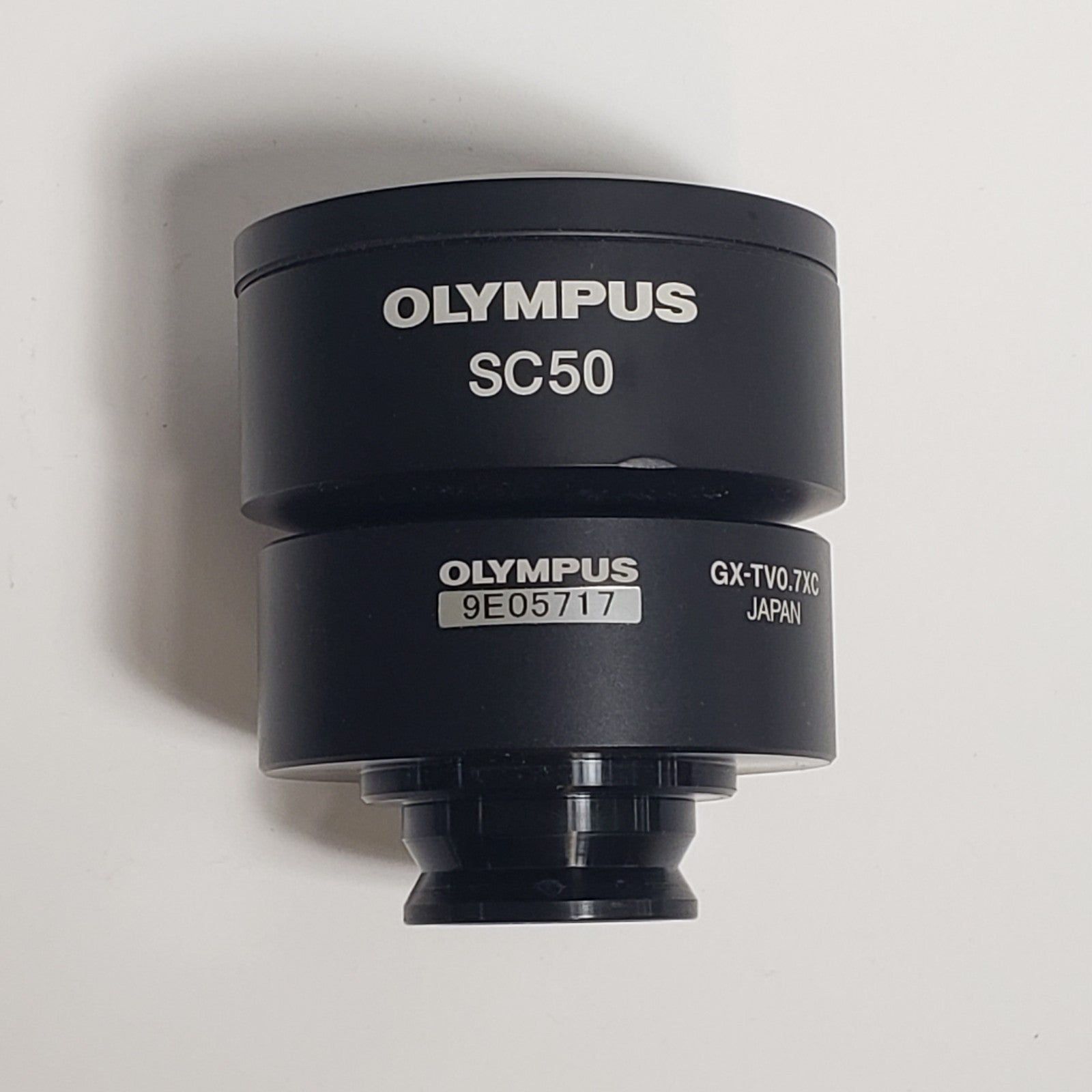

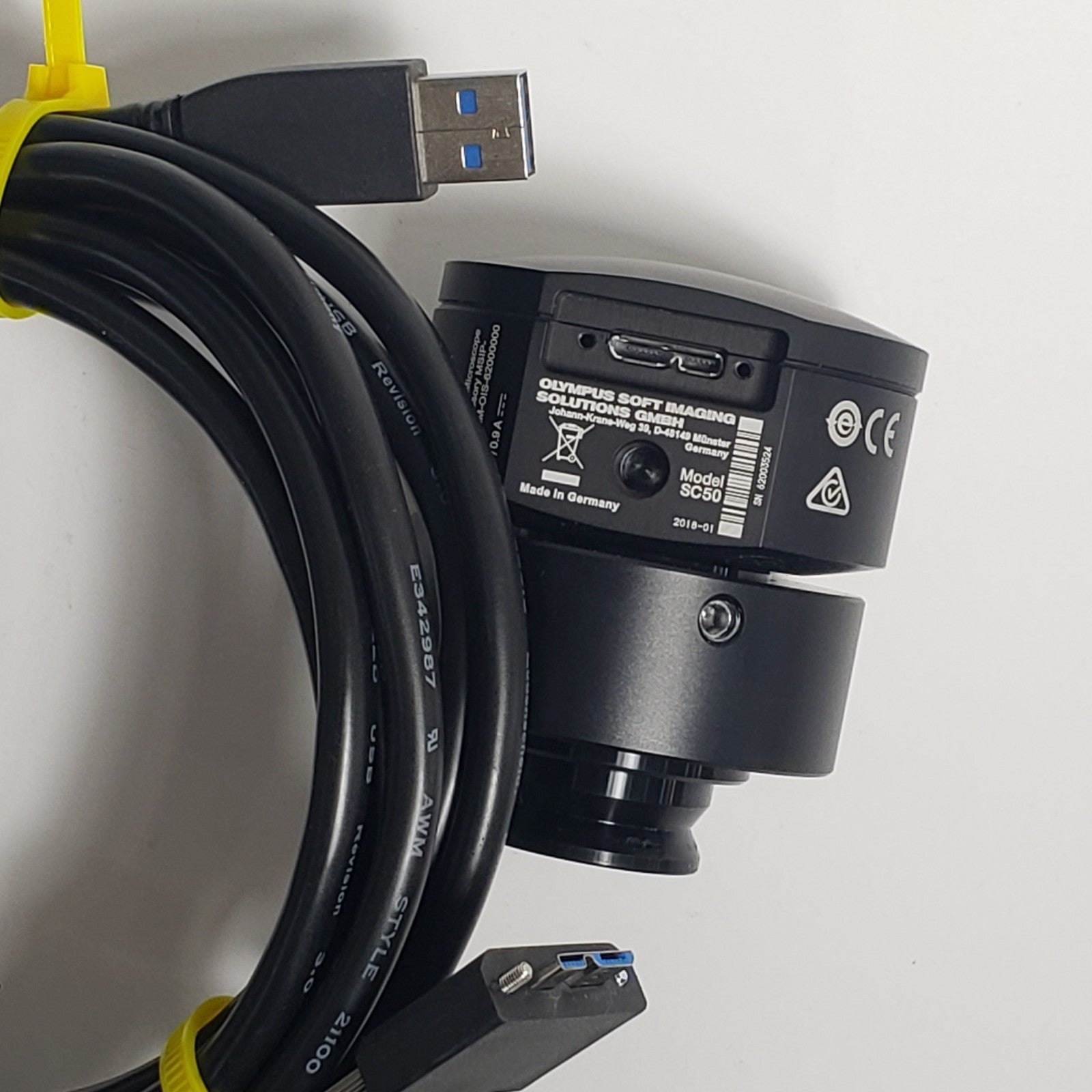

- Olympus SC50 5MP C-mount camera
- Olympus GX-TV0.7XC (Camera works fine as it is, but a C mount adapter could be added to improve the plane positioning of the camera.)
- AK-300116-050-S USB 5Gbps (USB 3.0, USB 3.x Gen 1, Superspeed) Cable A Male to Micro B Male 16.40' (5.00m) Shielded
Lamp Housing

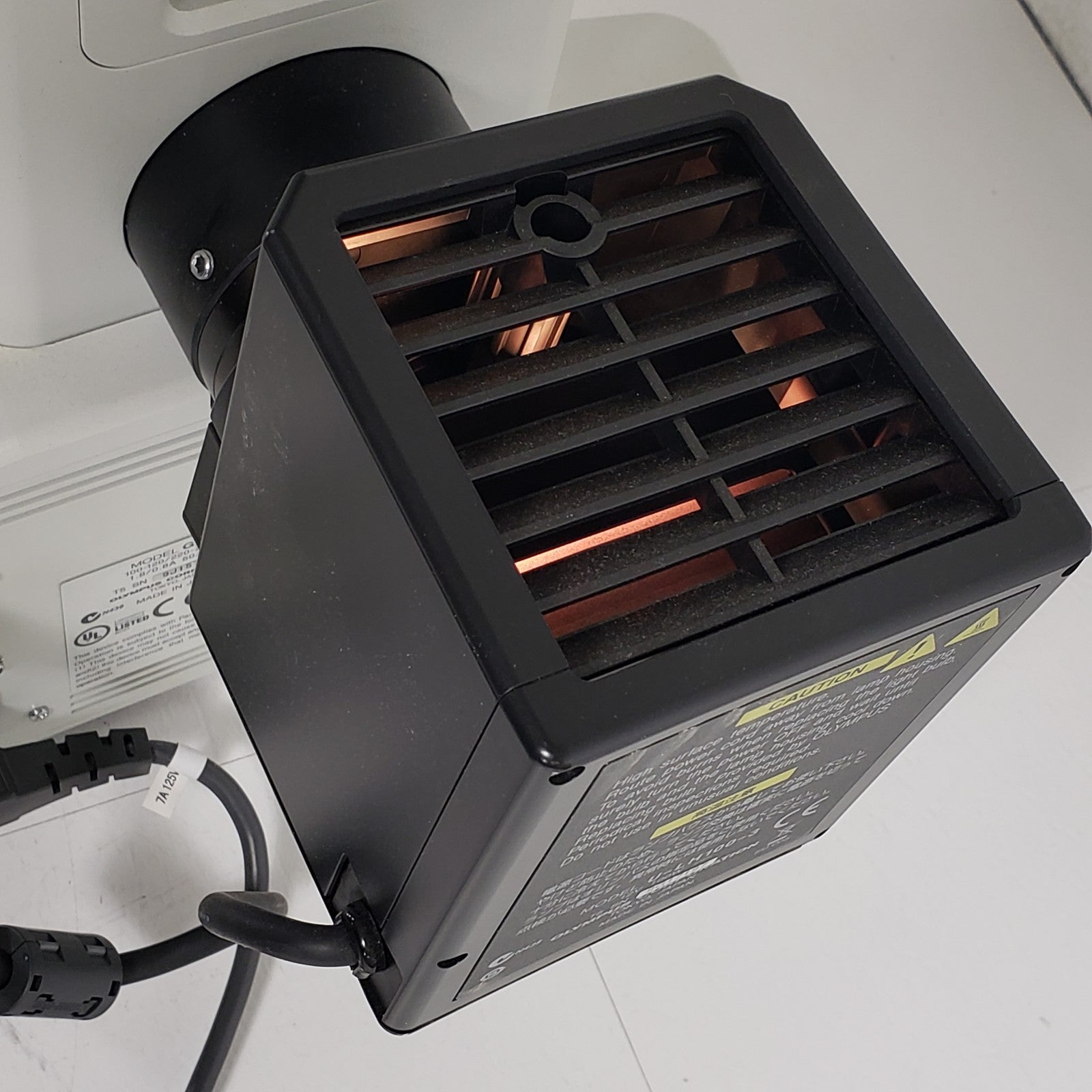

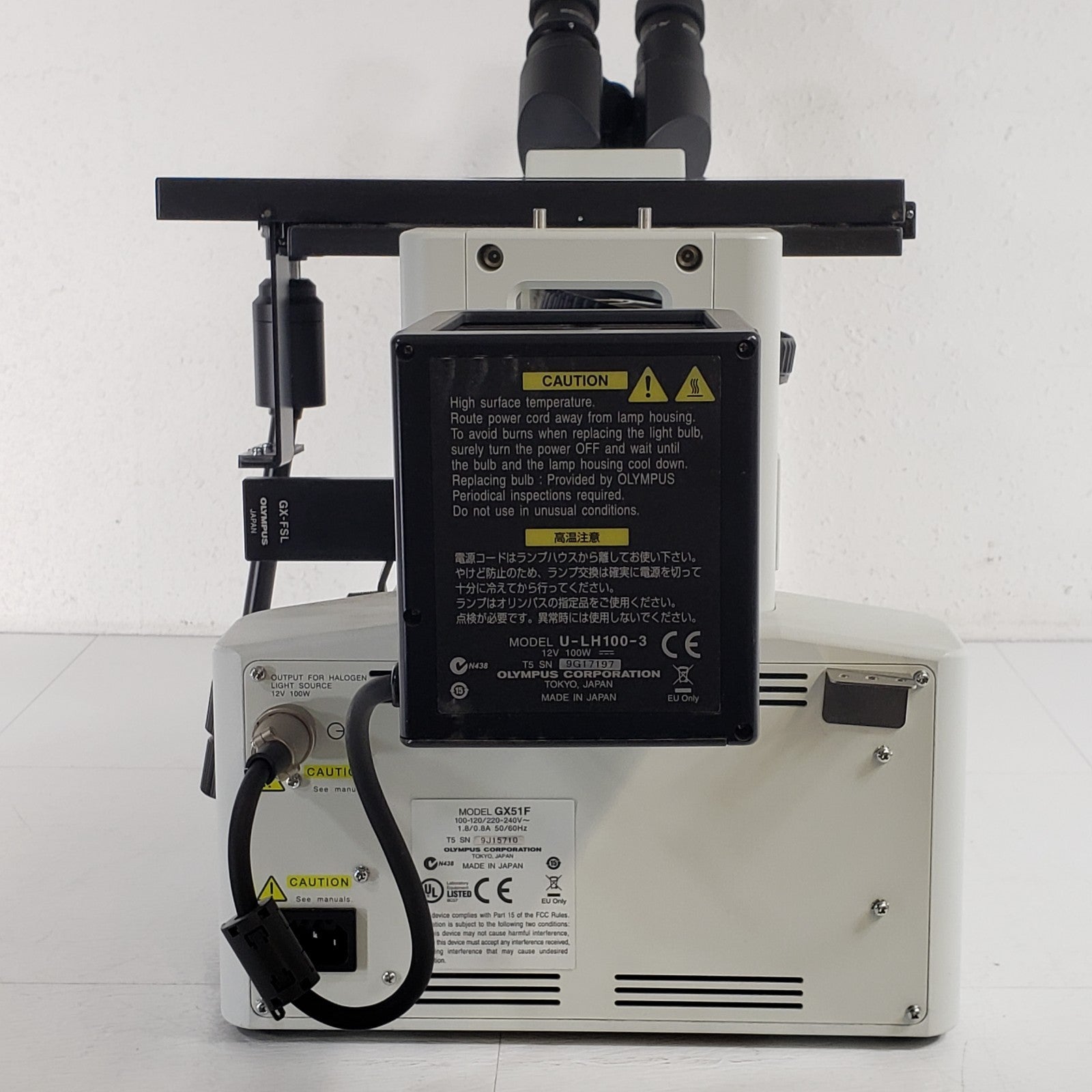

U-LH100-3 100W Halogen Lamp Housing, with Lamp
Power Cables:
- Hirakawa VM0076B Standard Power Cable (For GX51)
- TPC-LA58 AC Adapter (For HP EliteDesk)

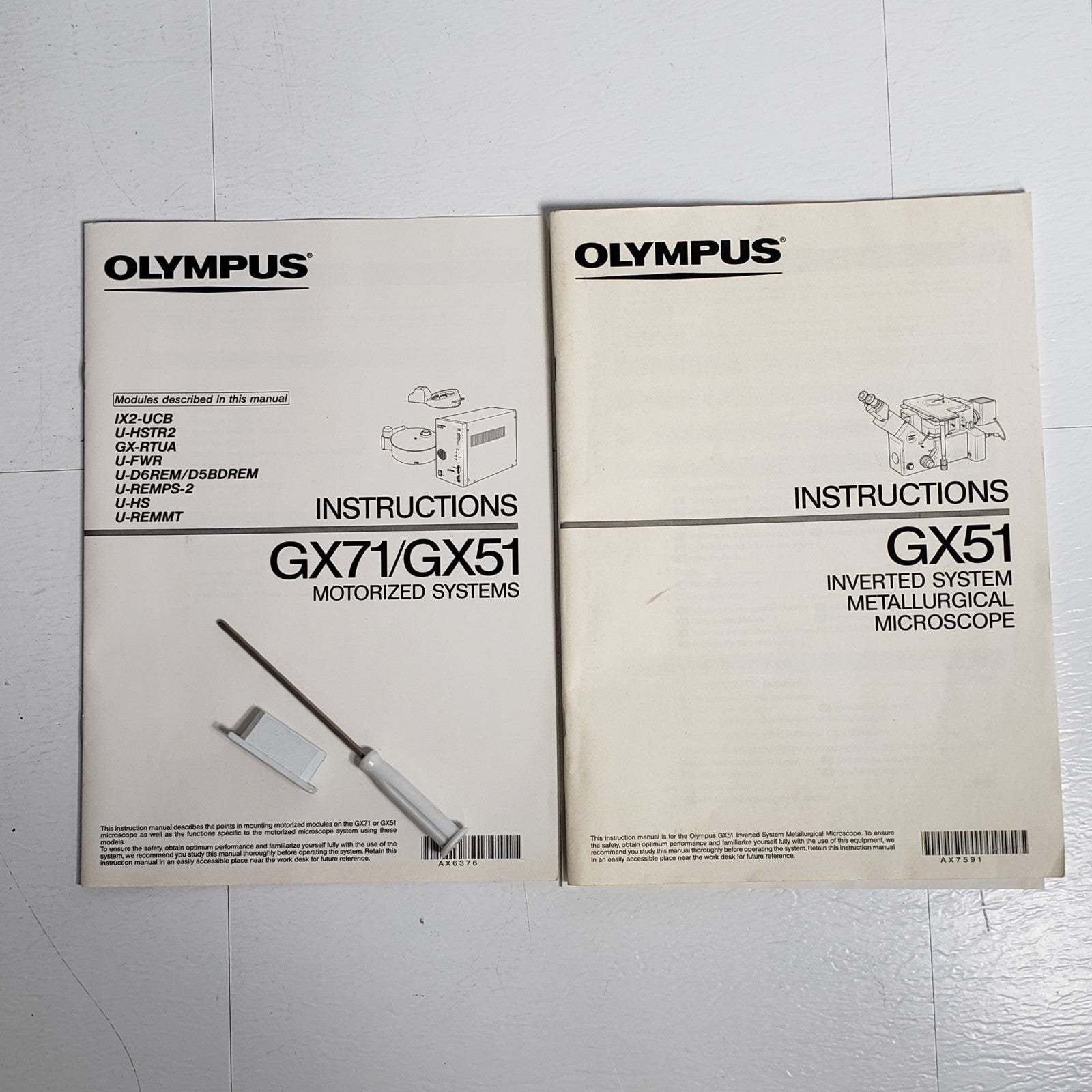

Manuals:
- Instructions for GX71/GX51 Motorized Systems
- Safety Precautions for Use of Illumination Devices (Lamp Housing)
- Instructions for GX51 Inverted System Metallurgical Microscope
Computer & Accessories

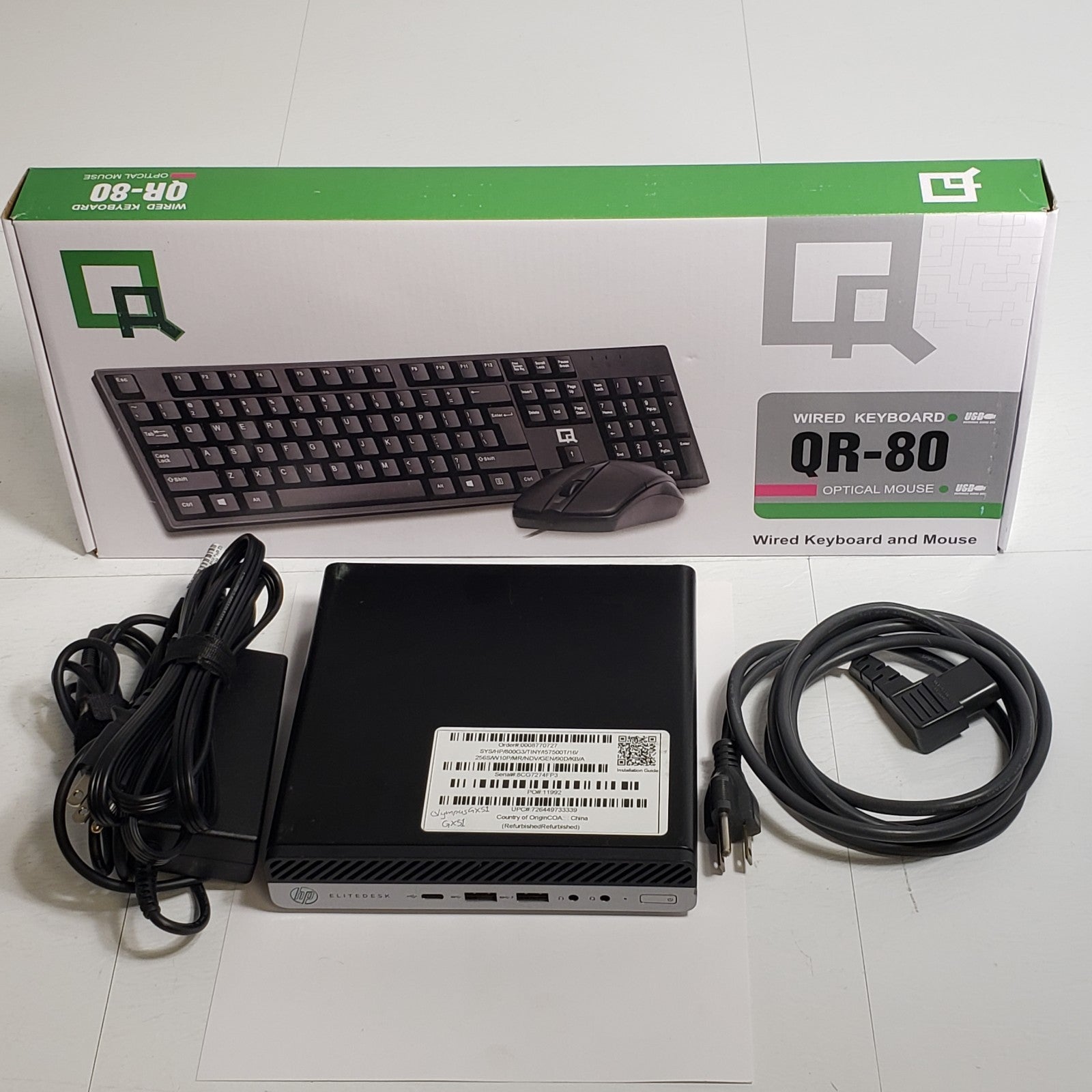

- HP EliteDesk TPC-W031-DM, with Ueye Cockpit Olympus SIS software to control the camera
- QR-80 Wired Keyboard & Optical Mouse
Other Accessories
