Optoelectronics Technology MGL-F-532-2W Laser Head w/ PSU-H-FDA Power Supply
Used condition. Never put into heavy use.
Tested Works see photos. Shines a bright green.

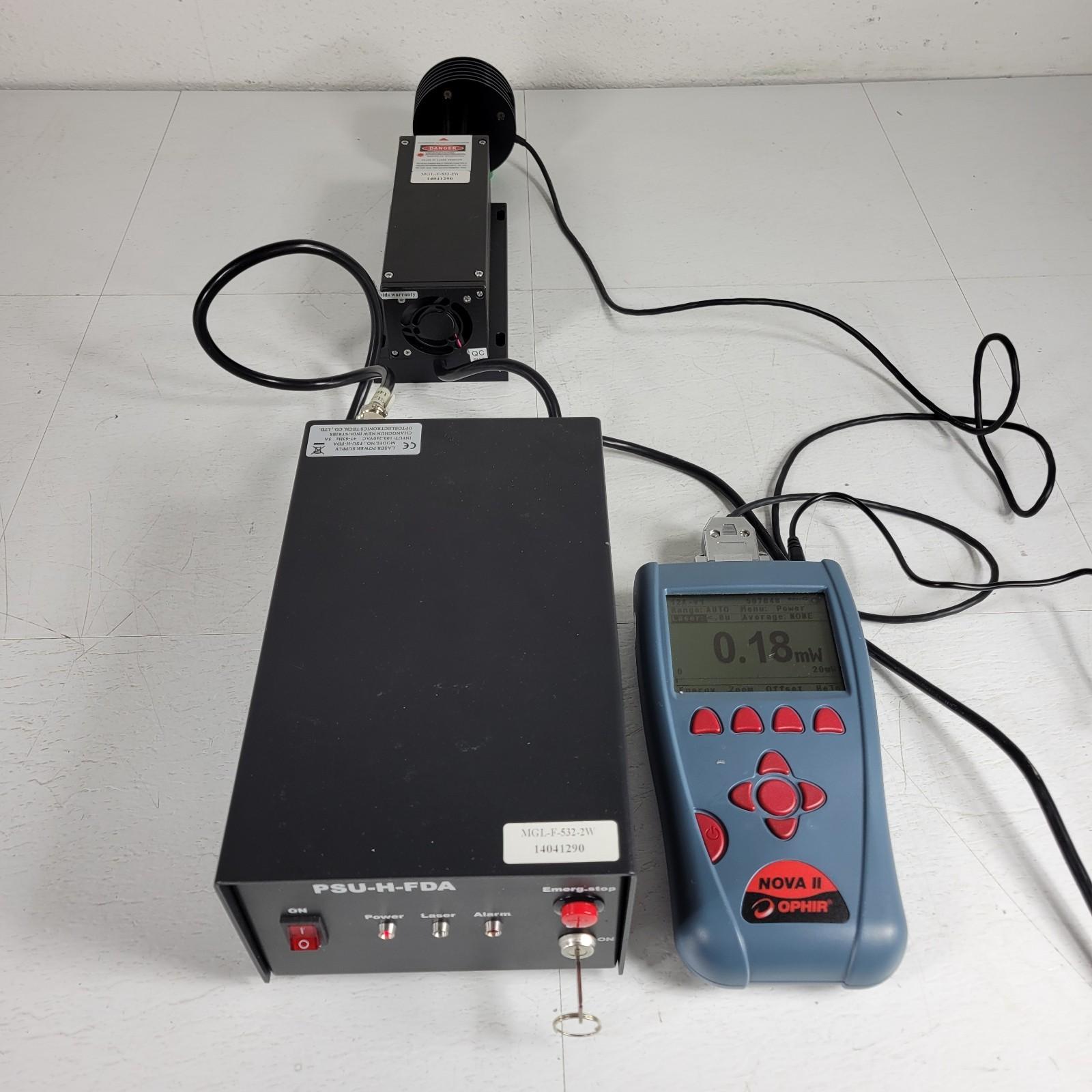

Manufacturer listed laser as 2W of power. When tested (see photos) it showed about 0.5W of delivered power to our power meter. Power meter not included in purchase.

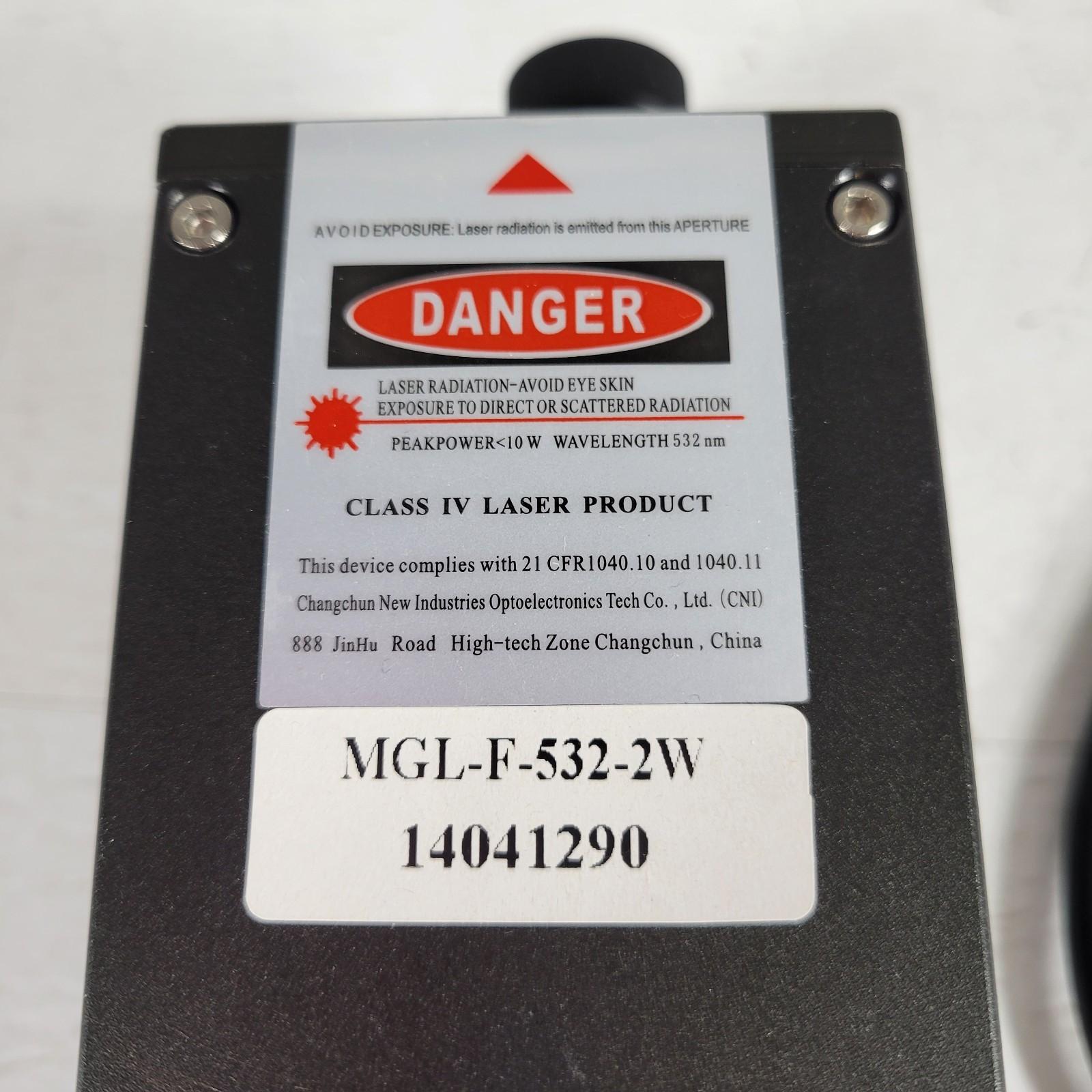

CNI MGL-F-532-2W 532nm Green DPSS Laser Head w/ PSU-H-FDA Power Supply; TEM00
High-output 532 nm CW DPSS green laser head paired with PSU-H-FDA supply. Clean TEM00 beam with low M² spec; good for optics benches, holography/illumination experiments, alignment, and general lab use where you want real Diode Pumped Solid State Laser green.
IMPORTANT: In-house output test shows ~0.5 W on our power meter; laser is bright and stable-looking but is currently less power than the factory rating. See notes below.
Highlights (manufacturer series specs; unit options may vary):
• Wavelength: 532 nm (±1 nm)
• Operation: CW; transverse mode TEM00
• Beam quality: M² < 1.2 (better optional on some configs)
• Beam divergence (full angle): < 1.2 mrad
• Beam diameter at aperture (1/e²): ~1.2 mm
• Power stability (rms, 4 hrs, ±3°C): <3% (tighter grades optional)
• Spectral linewidth: <0.1 nm (ultra-narrow options exist on some builds)
• Polarization: >100:1 (typically horizontal unless labeled otherwise)
• Warm-up: <10 min (practically, allow ~10–15 min)
• Pointing stability: <50 µrad (2 hrs after warm-up); <20 µrad/°C
• Modulation (options on this platform): DC–1 kHz / 1–10 kHz / 10–30 kHz; TTL/analog control depending on build
Mechanical:

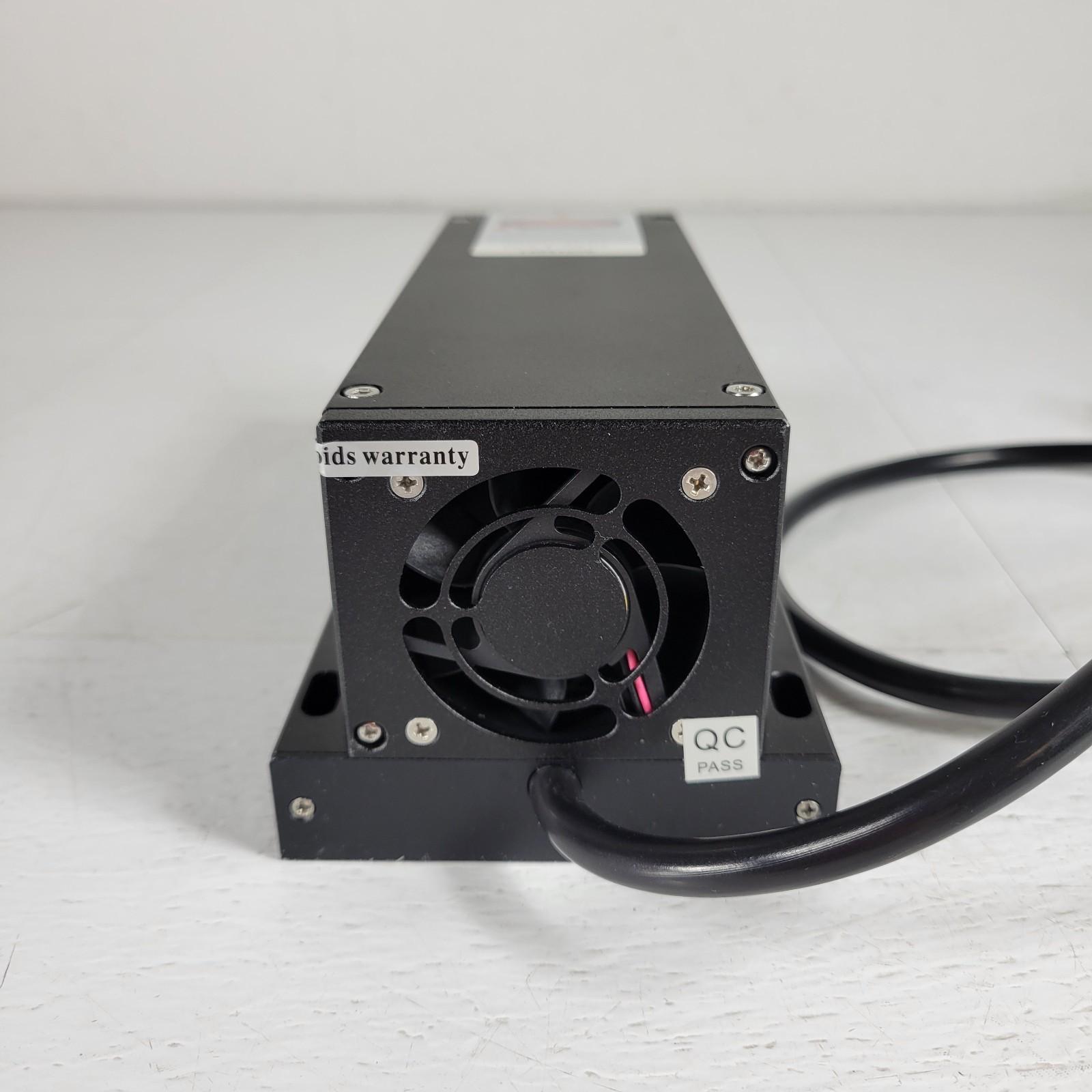

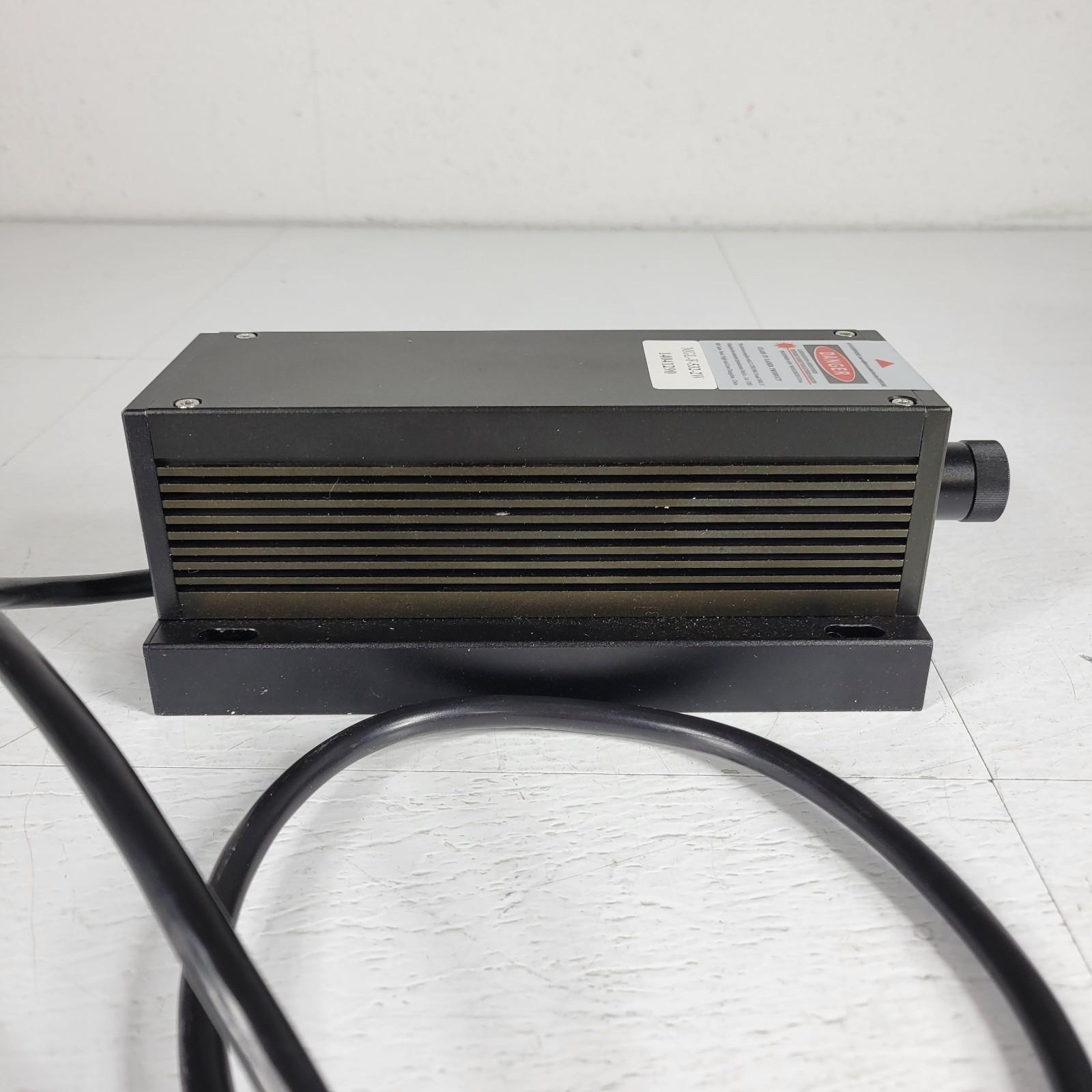

• Laser head: ~204.5 × 88 × 74 mm; ~2.3 kg; 45 mm beam height from base

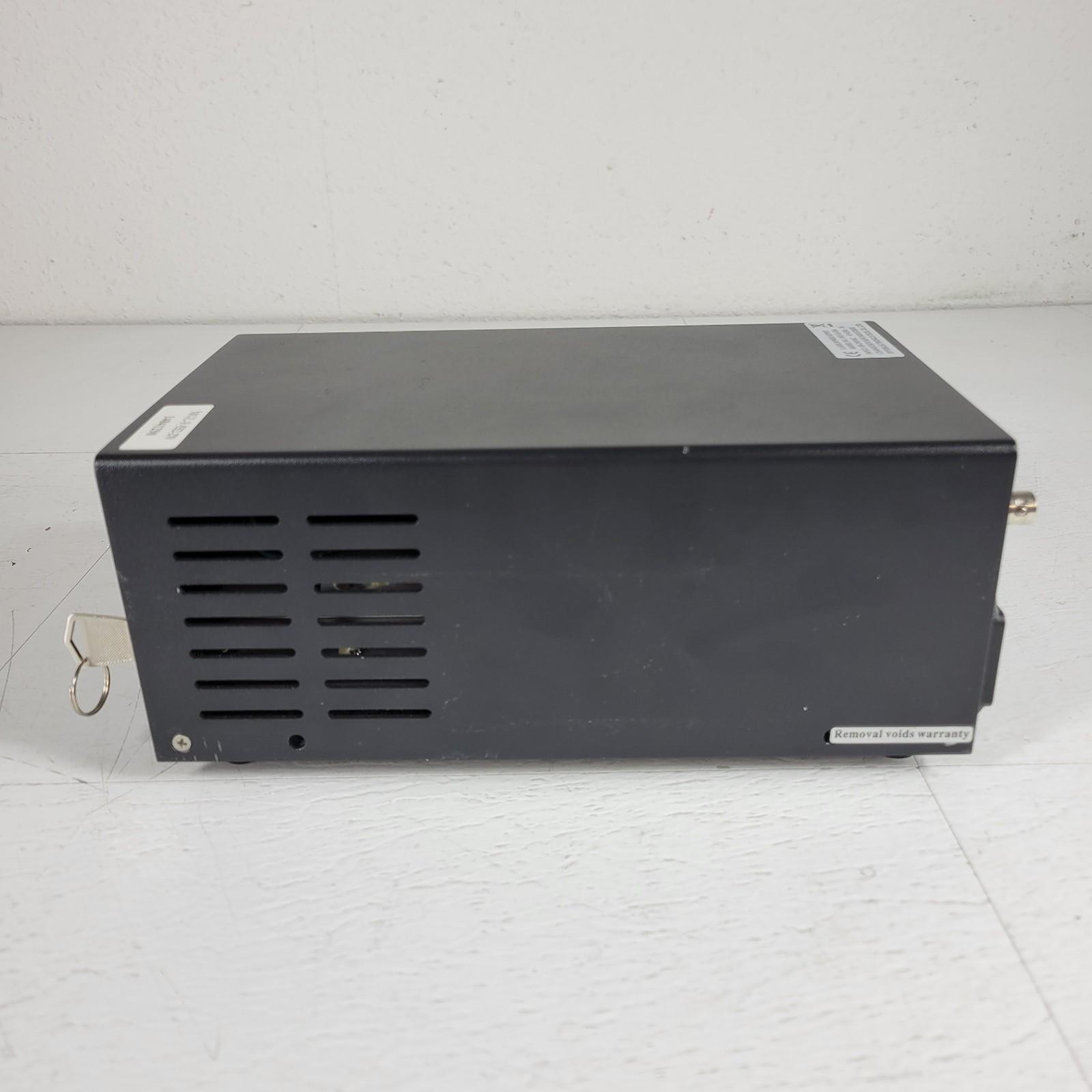

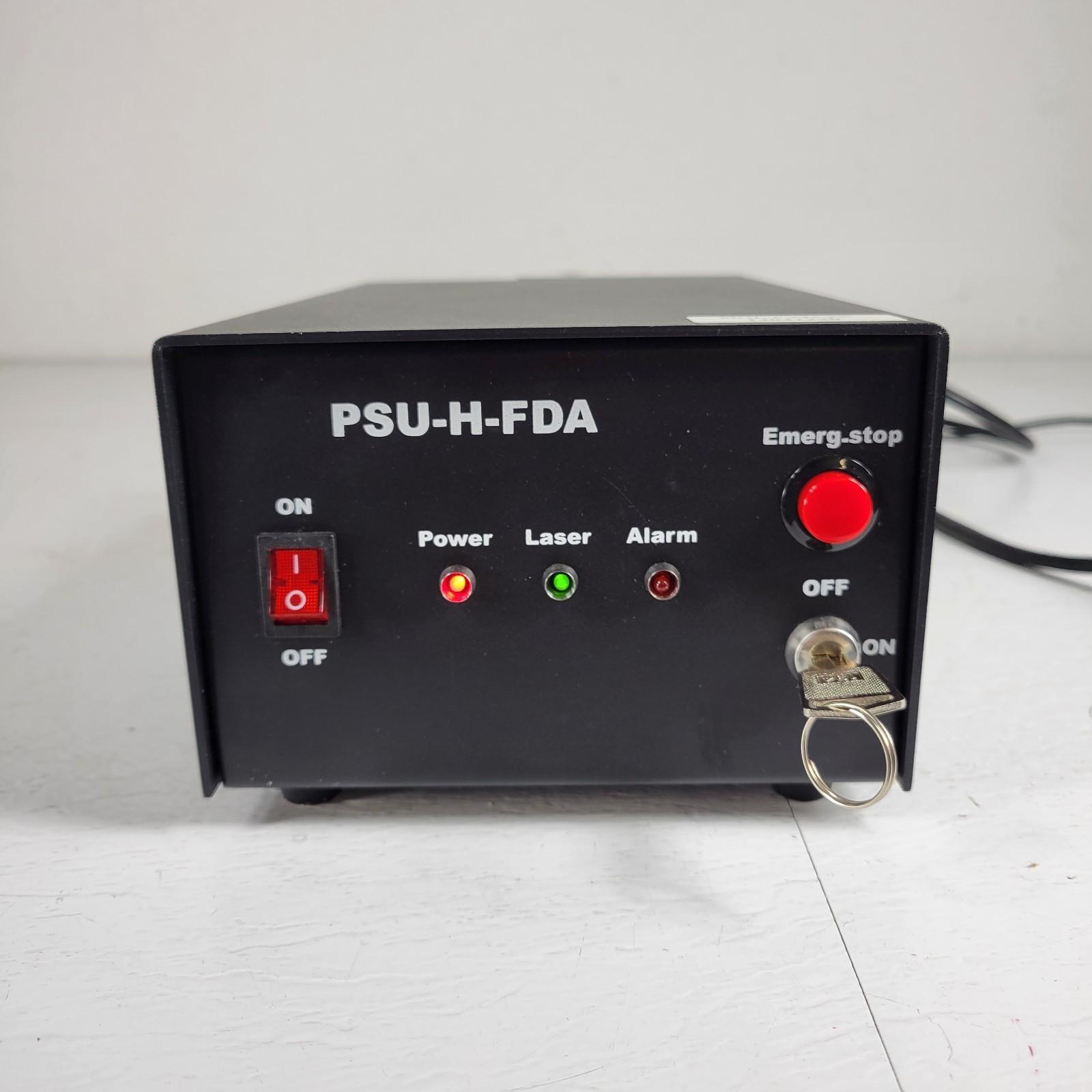

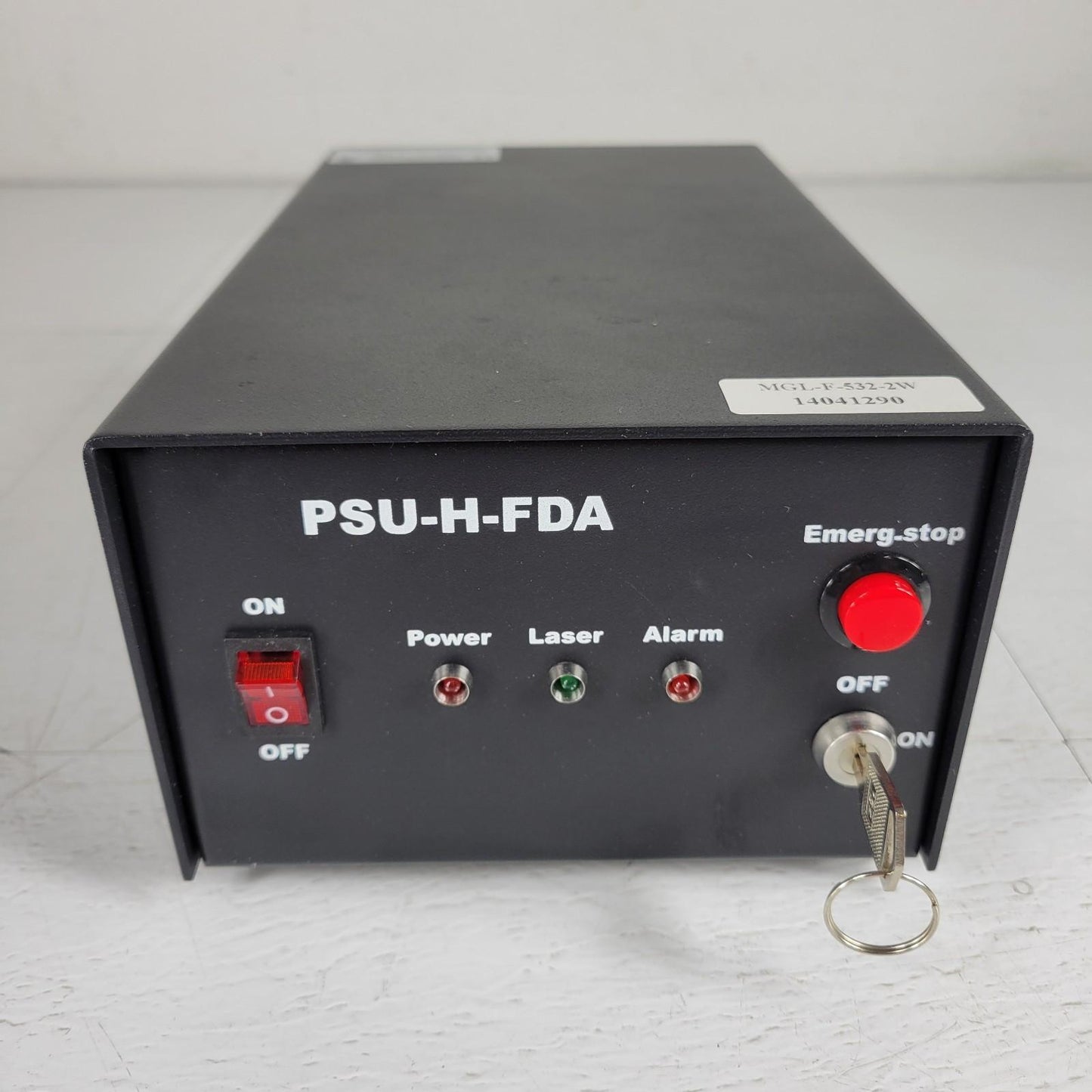

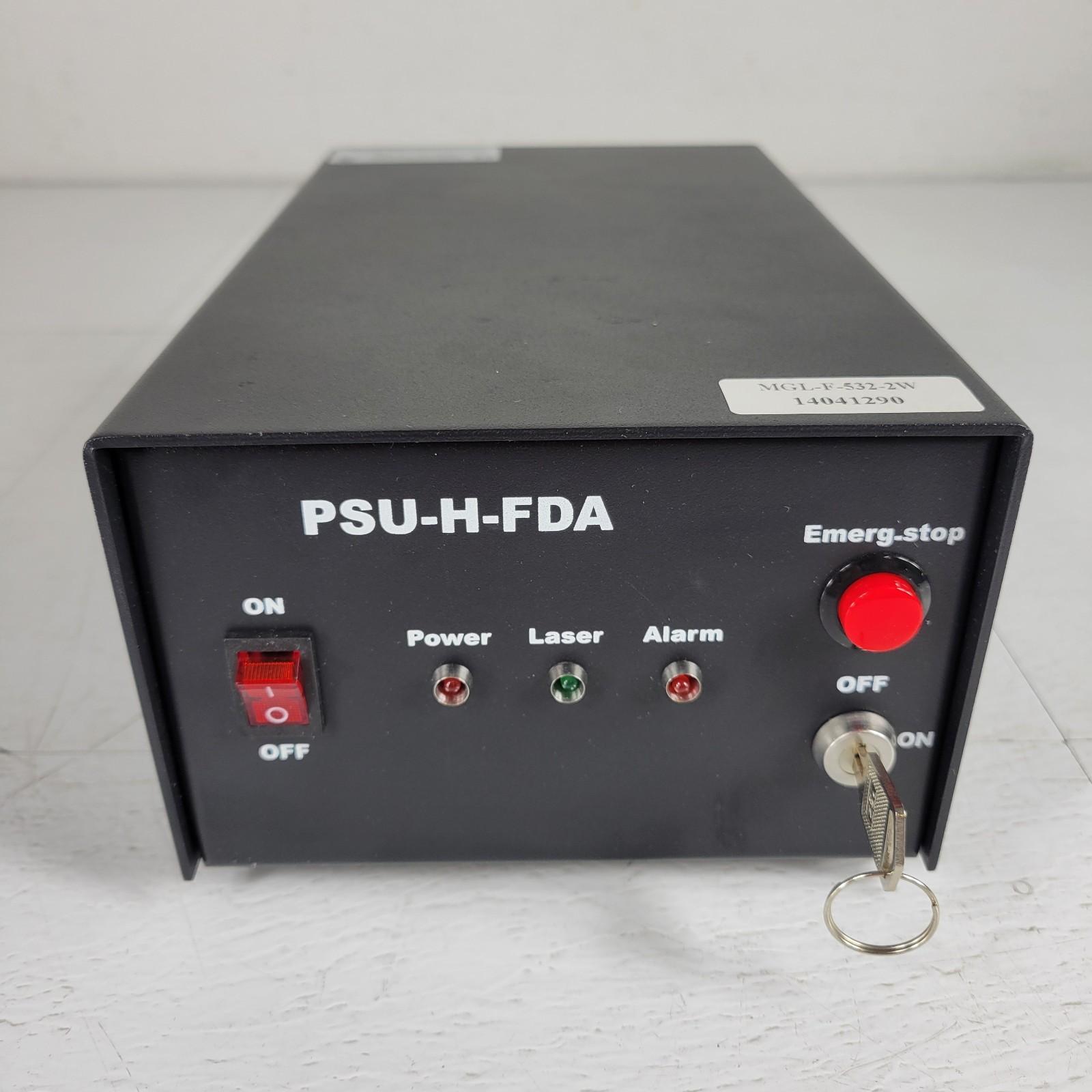

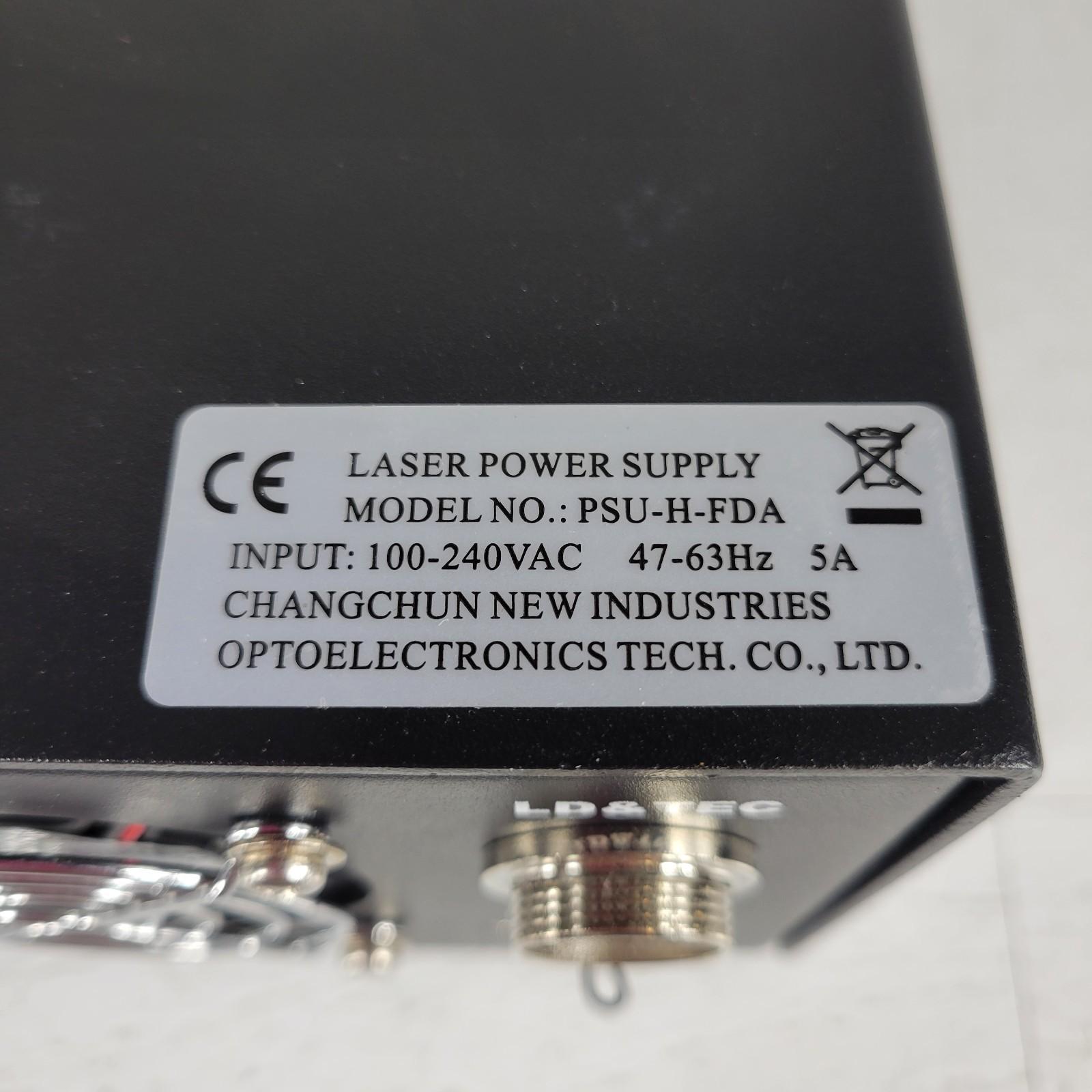

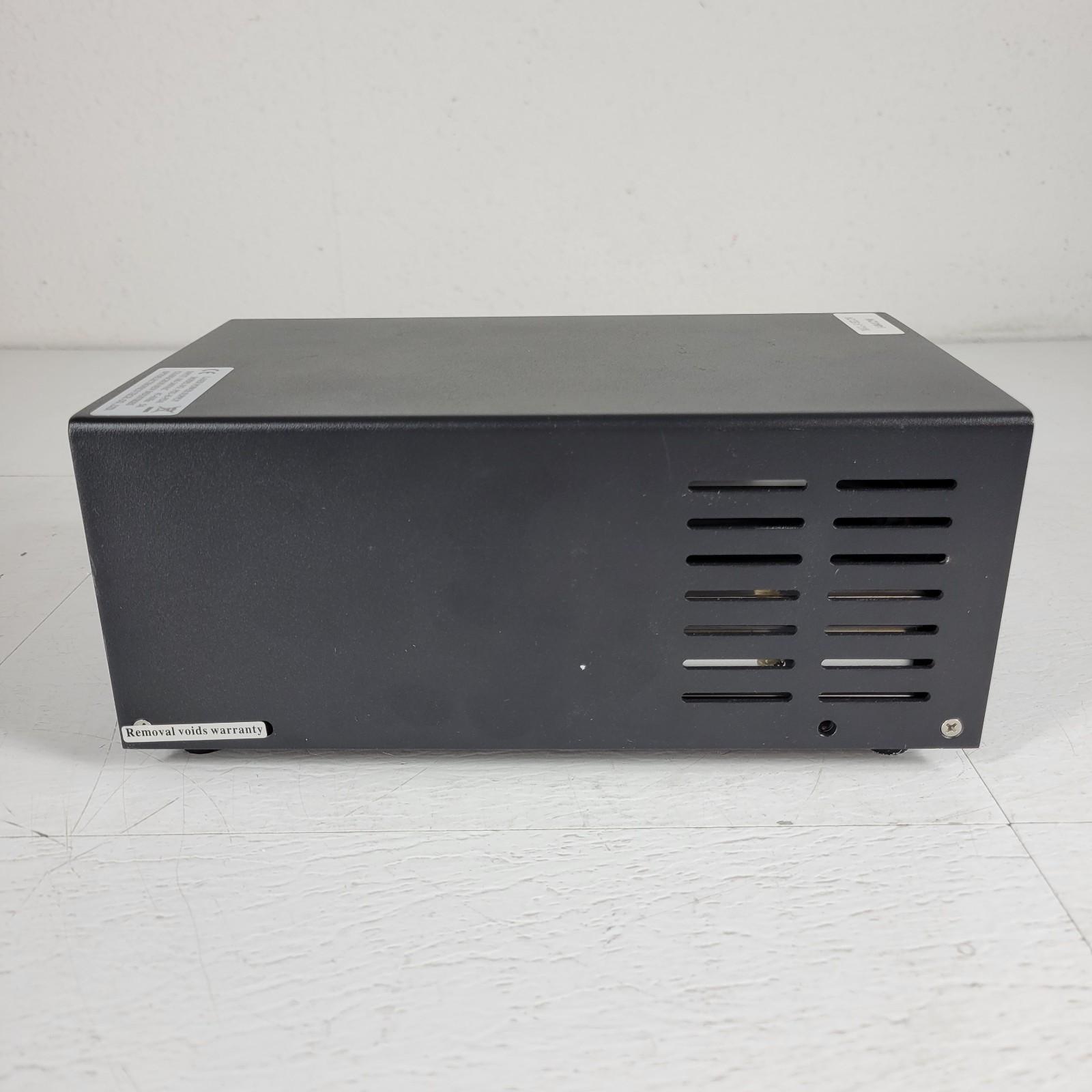

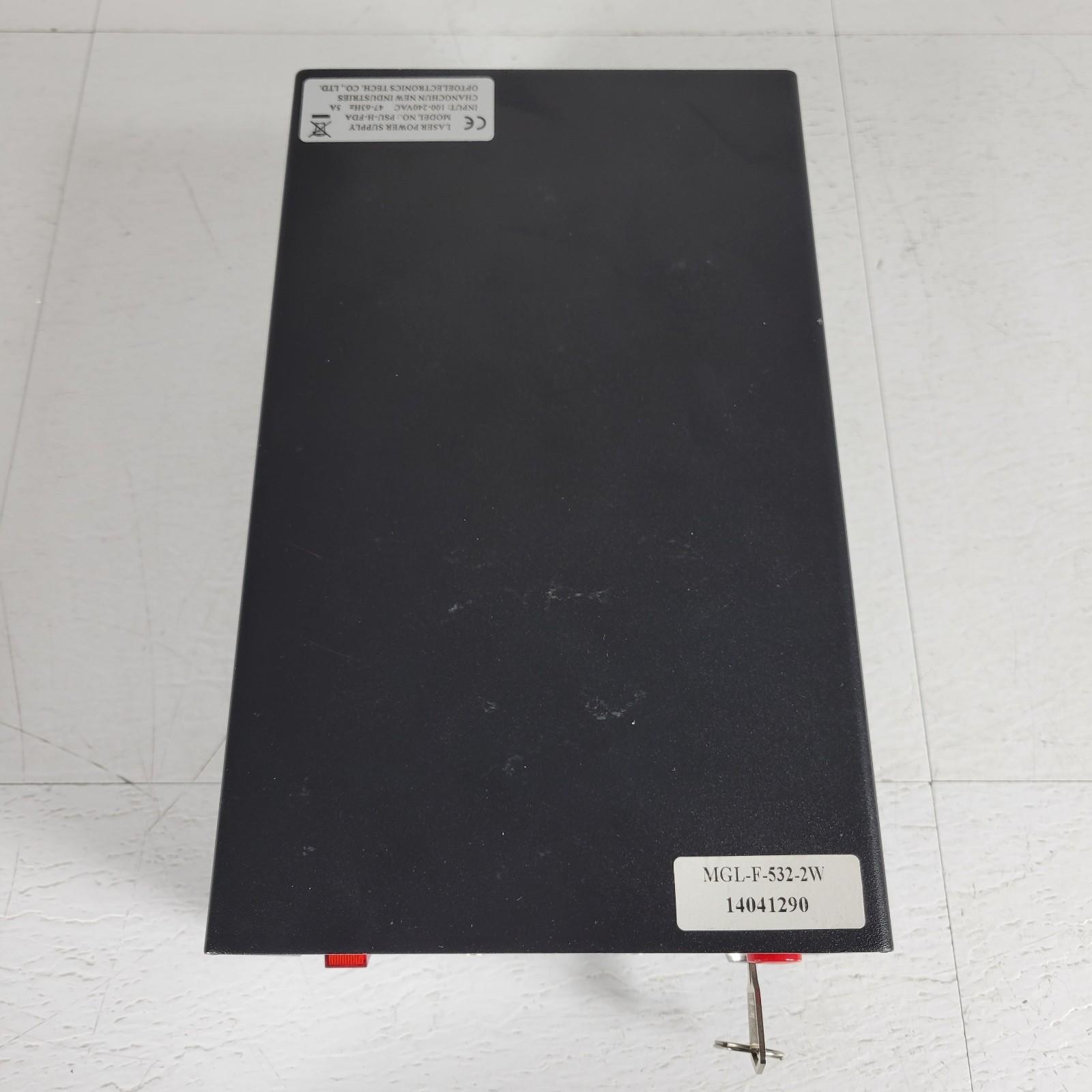

• Power supply (PSU-H-FDA): ~275.5 × 145 × 106 mm; ~2.5 kg; 100–240 VAC input

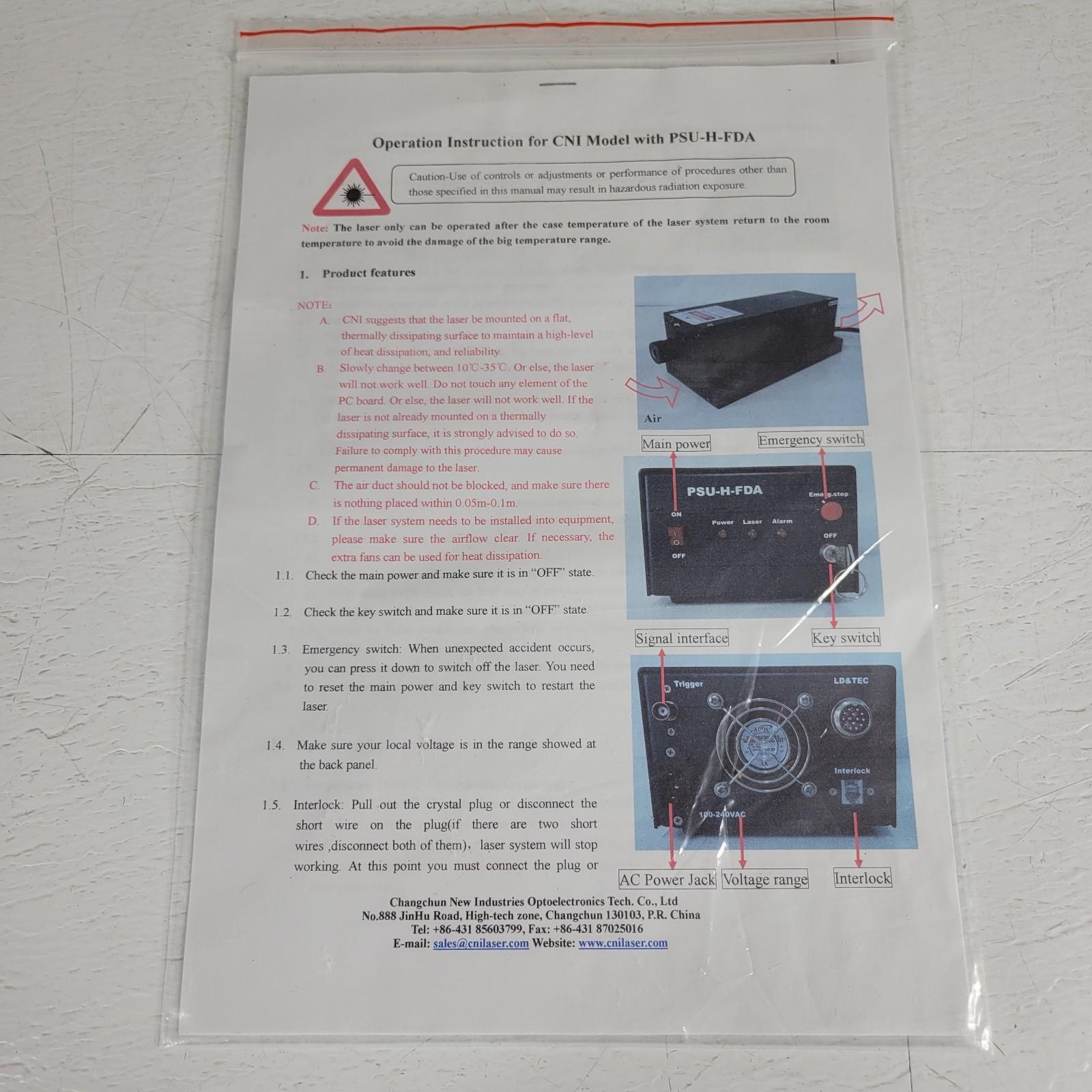

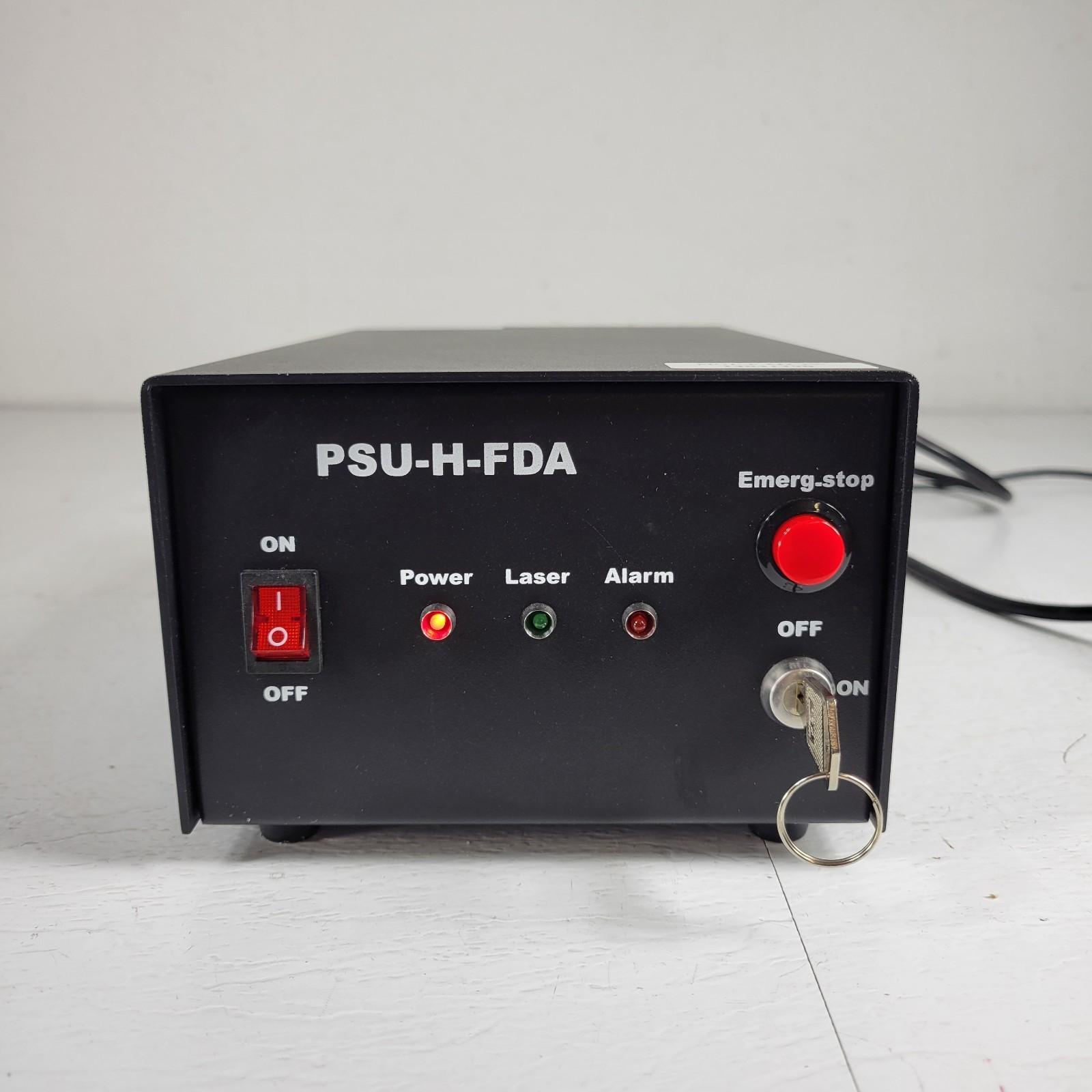

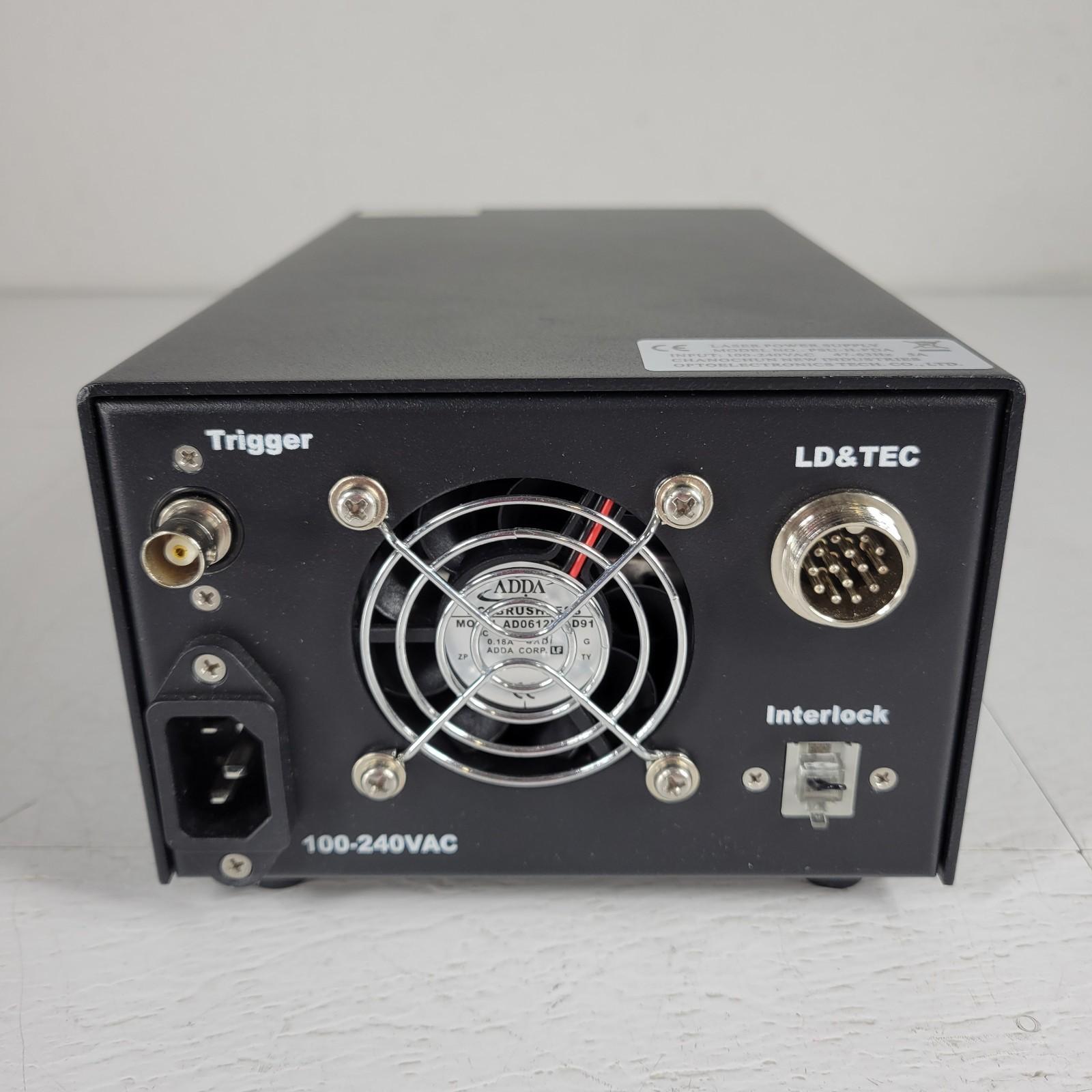

• PSU front-panel safeties/features: key switch; e-stop; interlock; external control interface (analog 0–5 V noted in PSU manual)

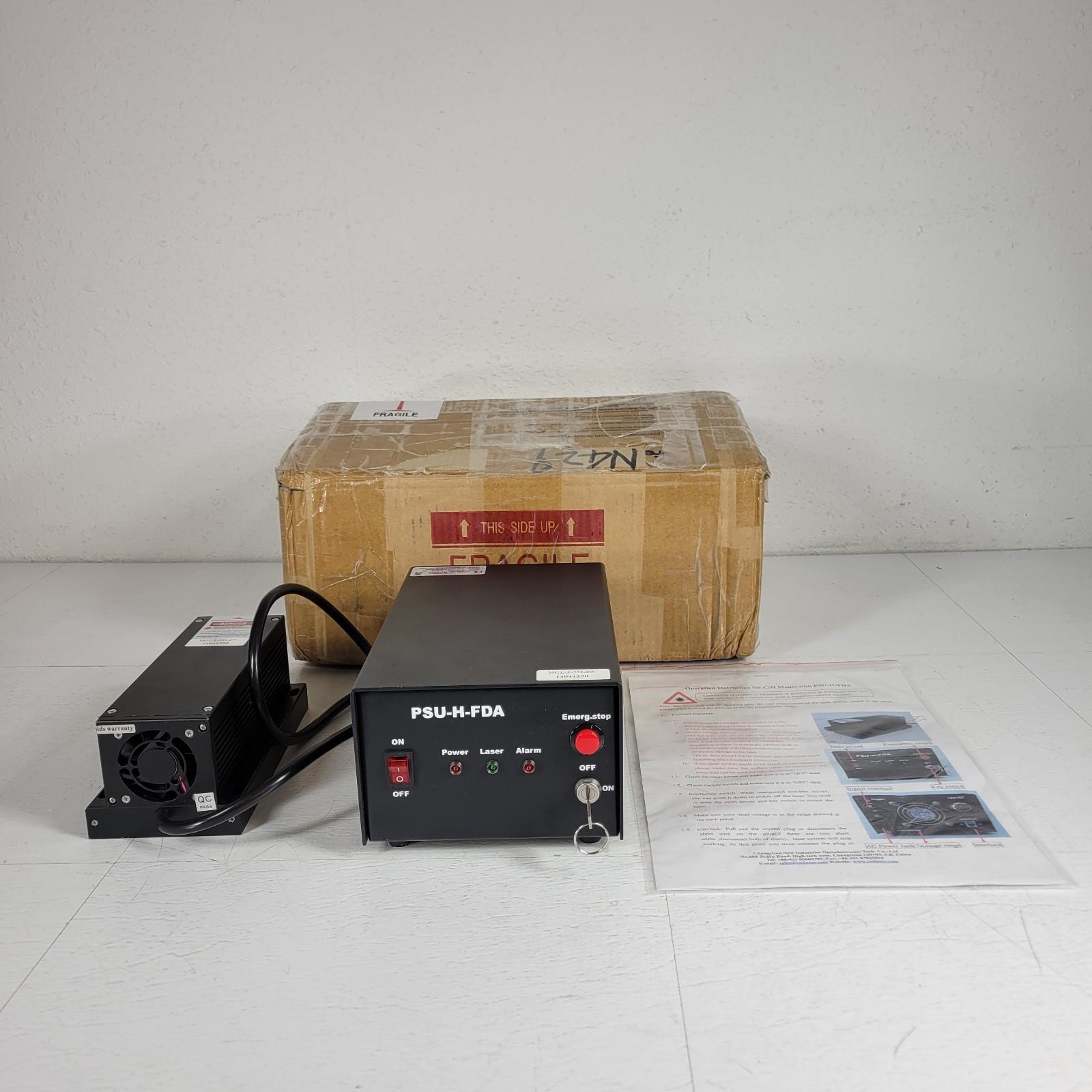

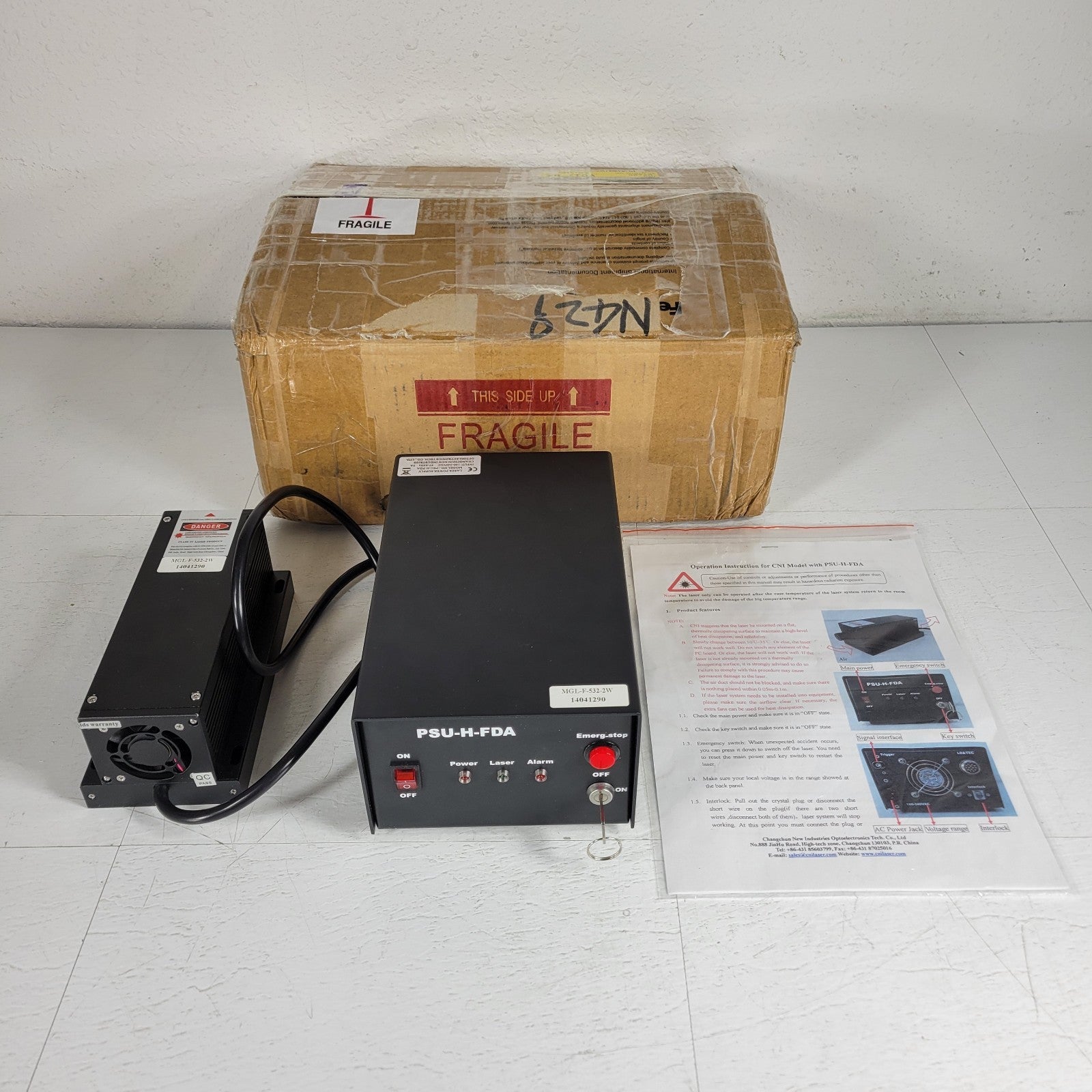

Included:

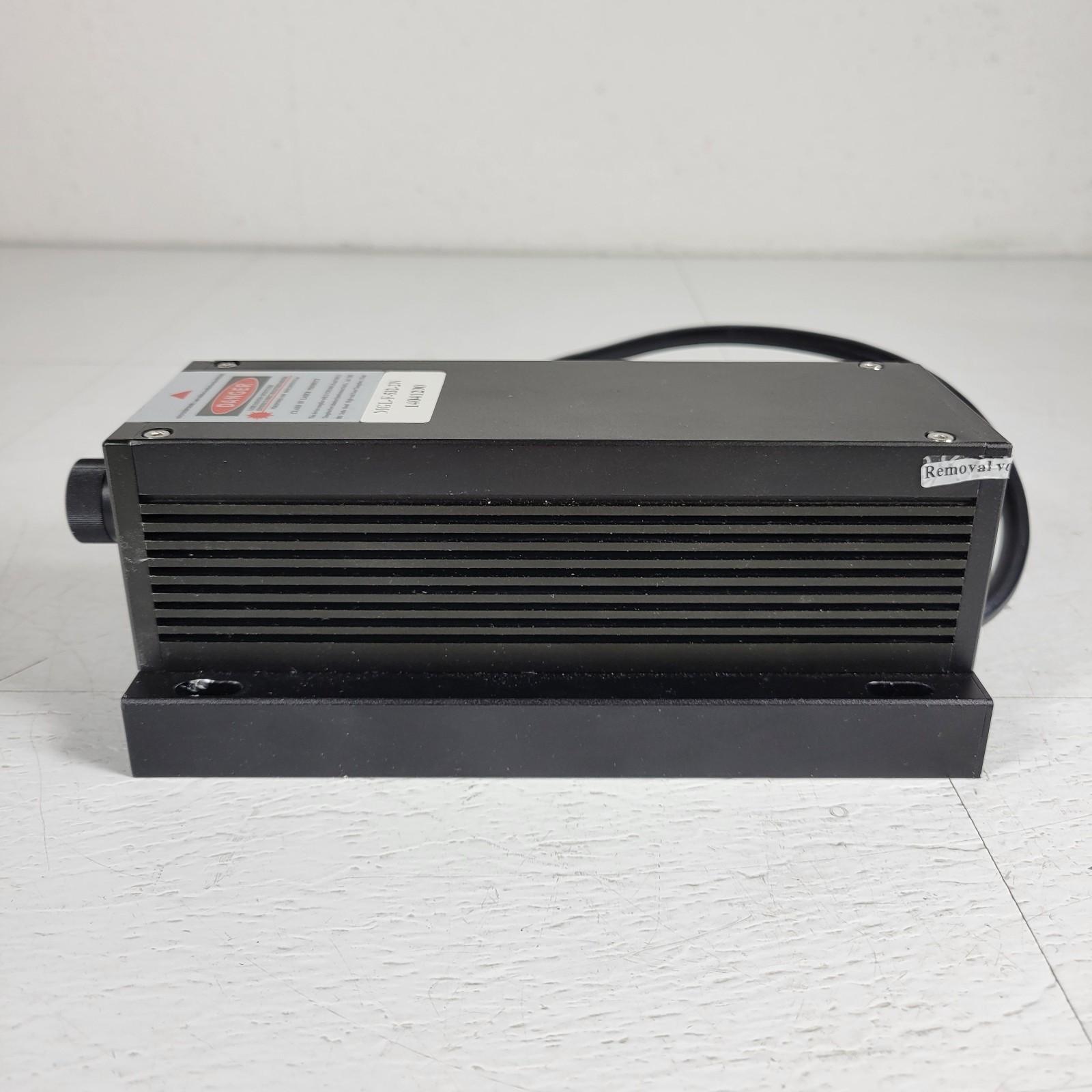

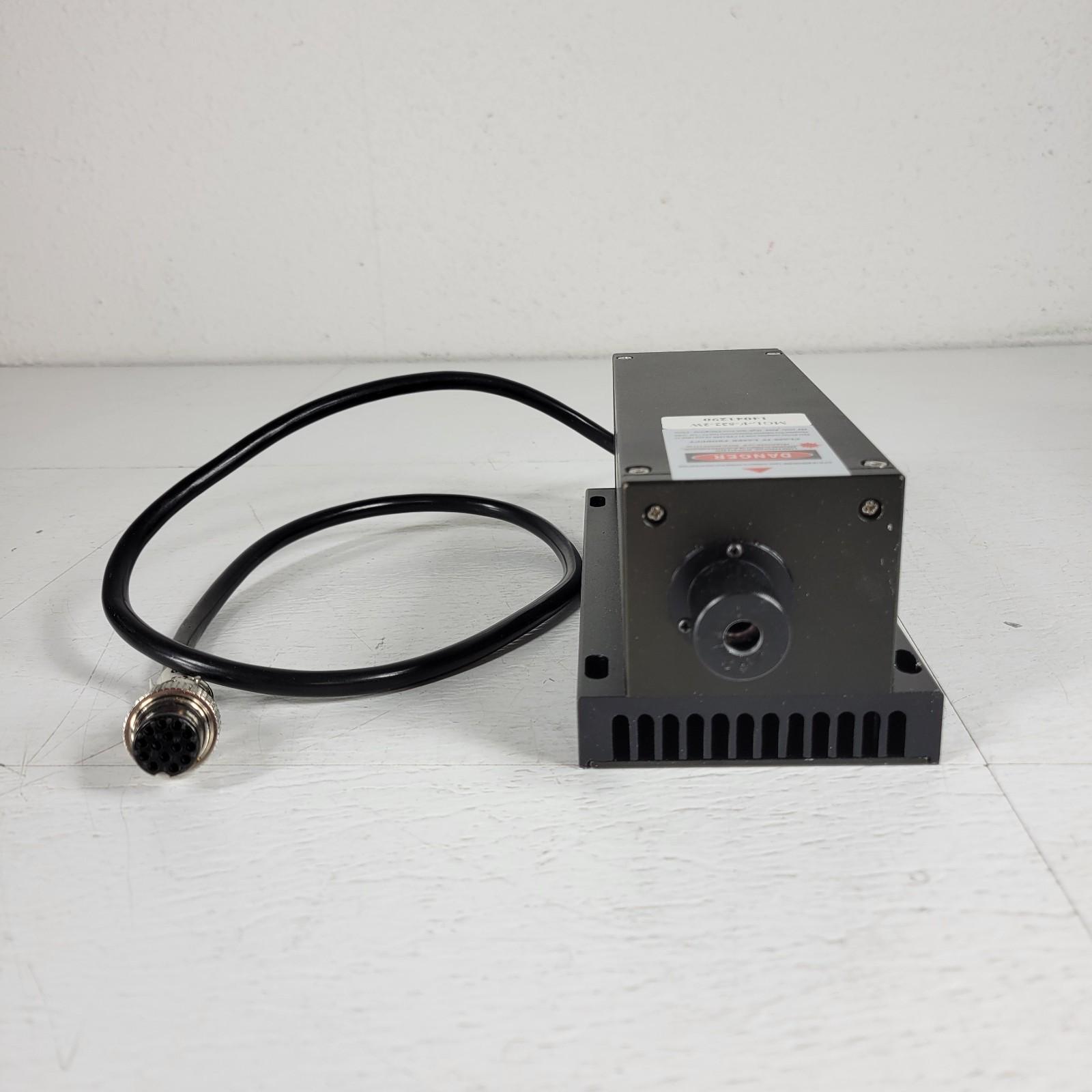

• MGL-F-532 laser head
• PSU-H-FDA power supply
• (Any keys/cables/interlock plugs included only if shown in photos / explicitly listed)
Test notes:

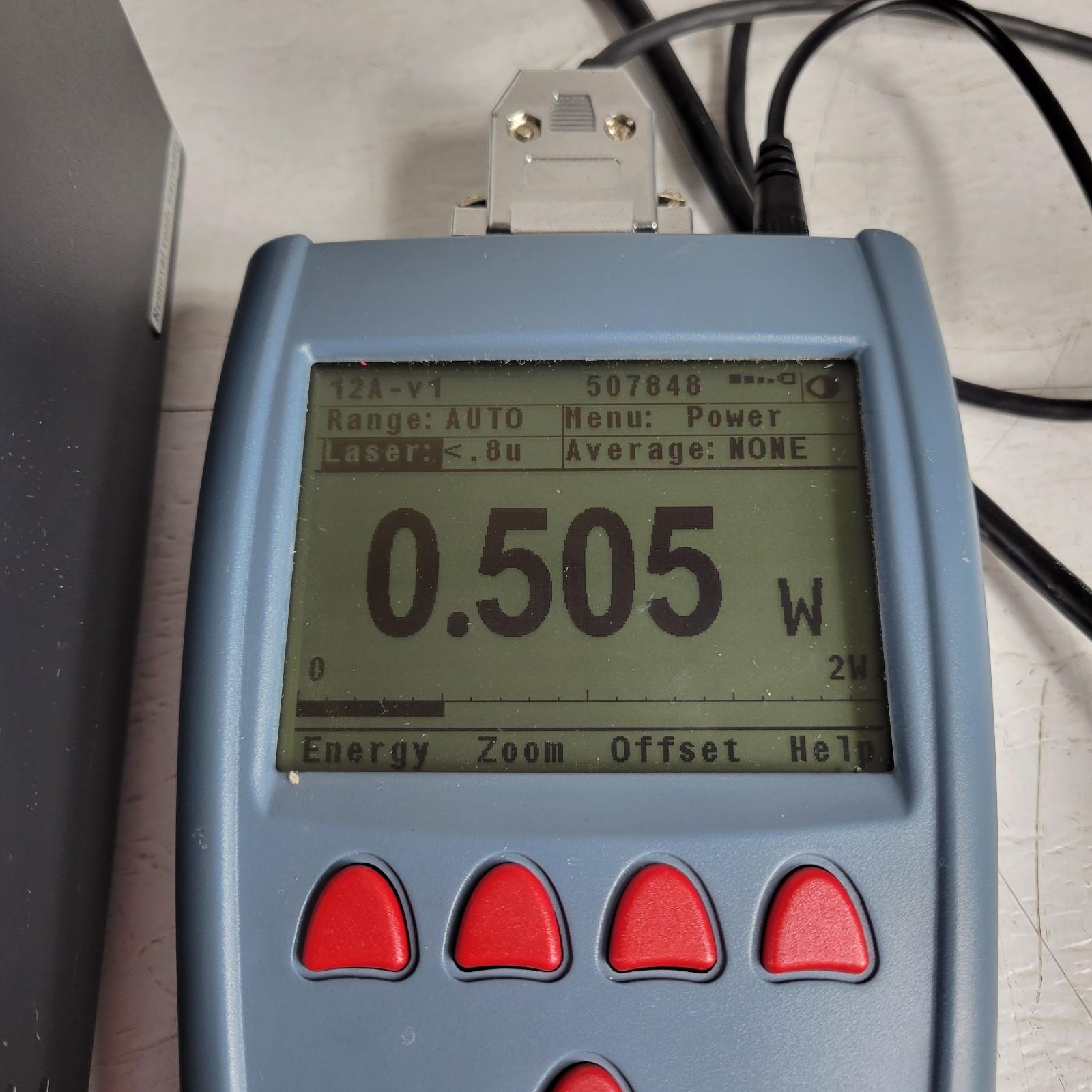

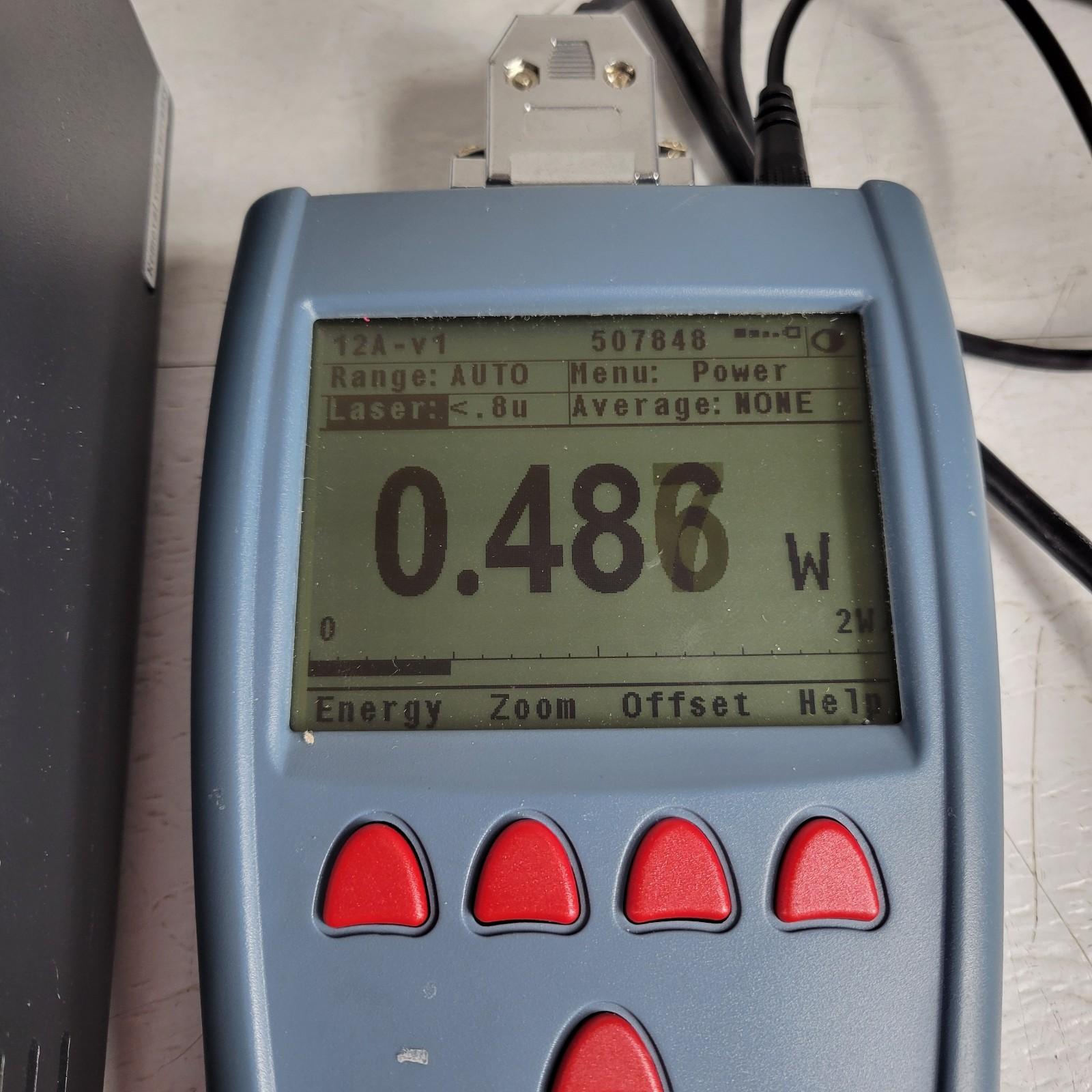

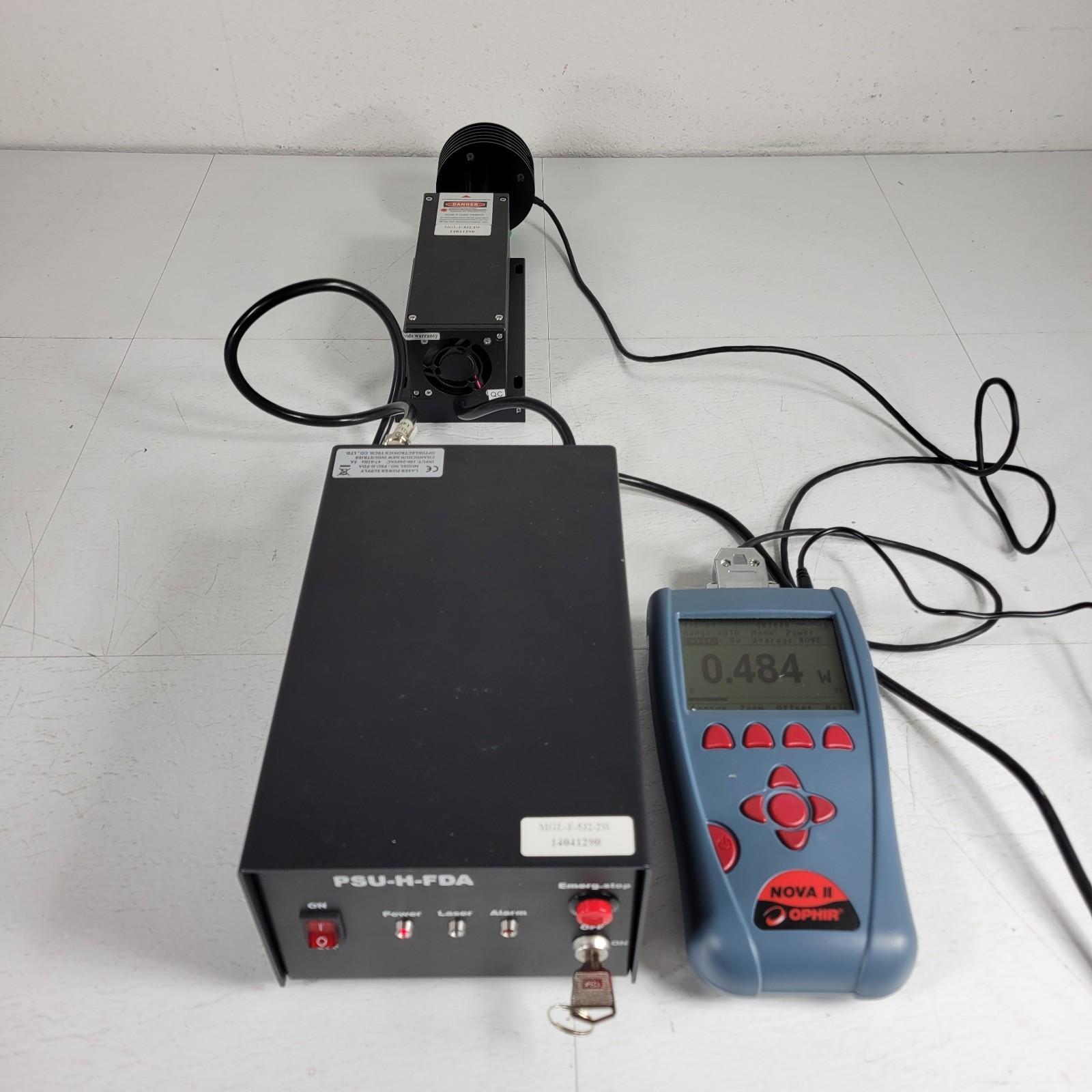

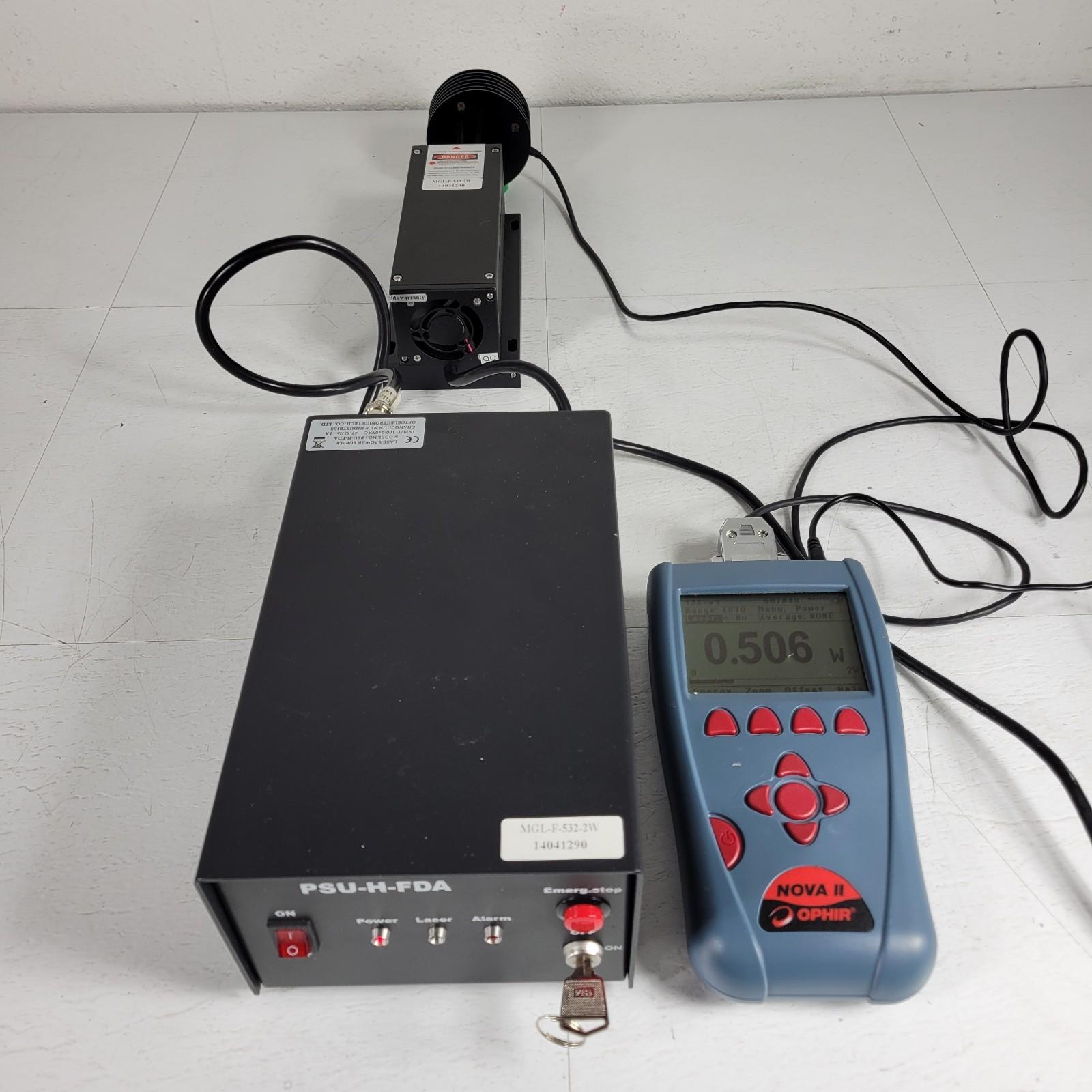

• Output measured on our bench: ~0.5 W at the aperture (method: handheld power meter)
• Sold as tested/working but under our own power measurement; may need calibration, optics cleaning, or service to restore full power depending on root cause.
