TESTED Shimadzu GC-2014AFsc Gas Chromatograph w/ AOC-20i, FID, Computer & Key
To watch a video of our testing, please follow the link below:
youtube.com/watch?v=jLiOi5MoZZ0

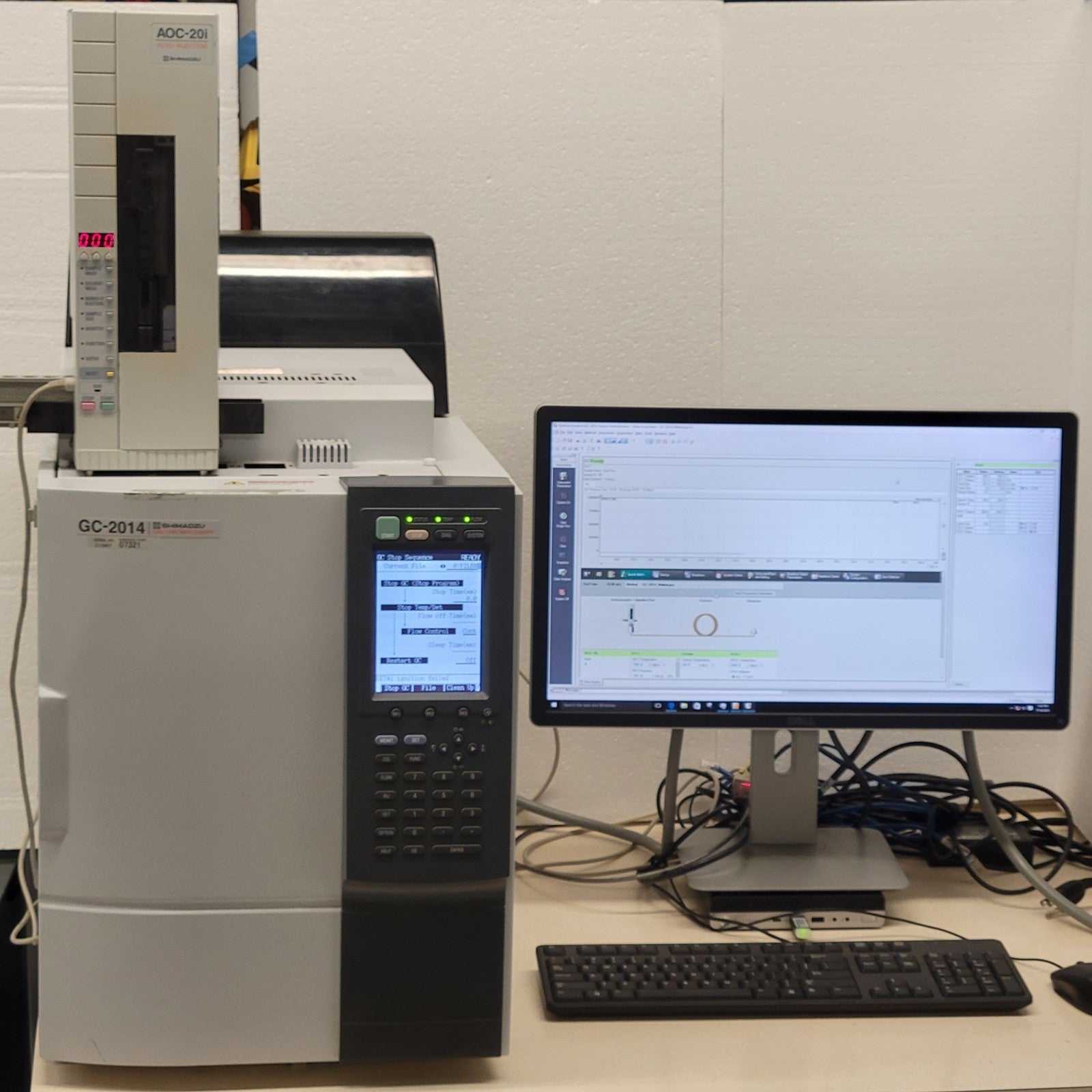

Sale Includes the Following Items

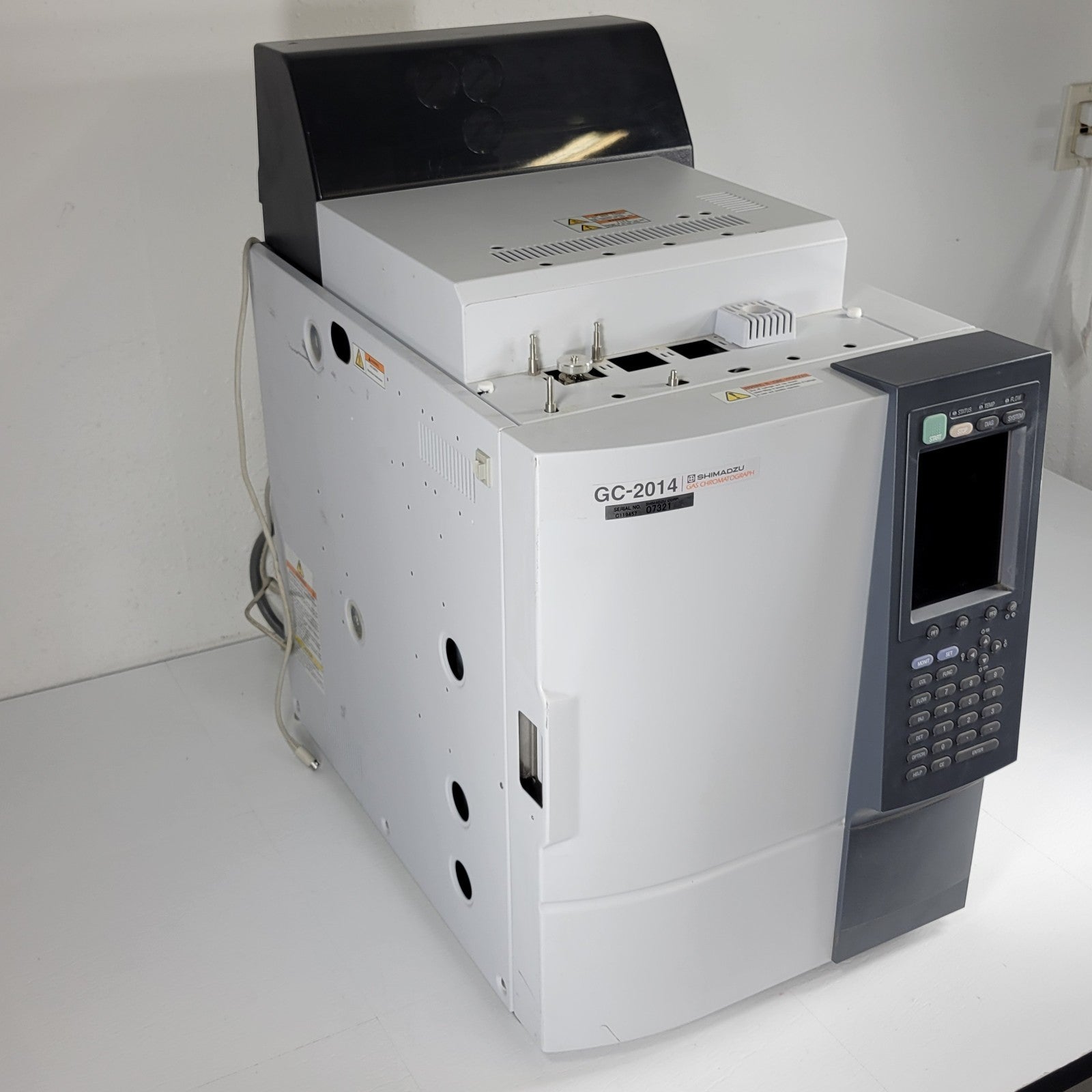

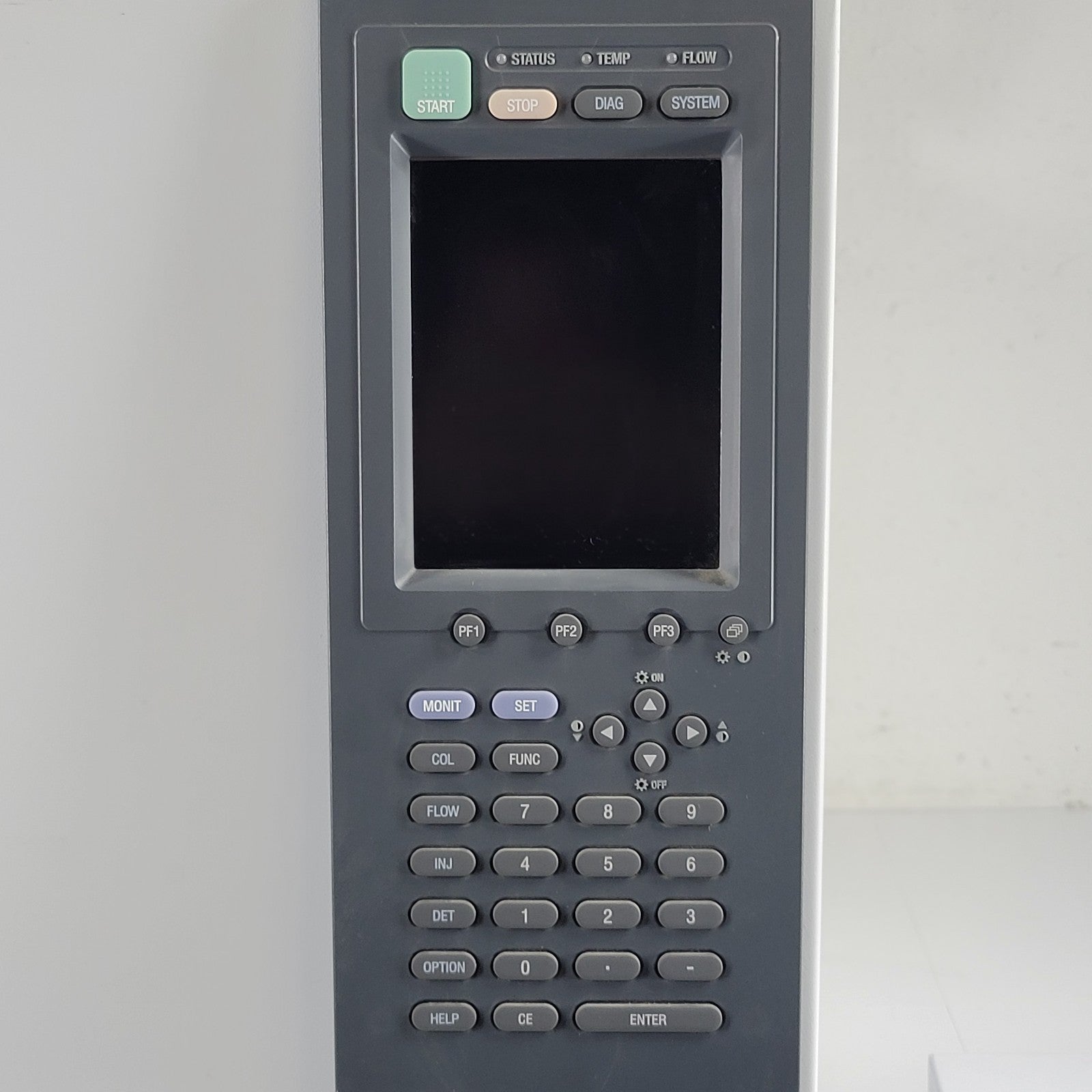

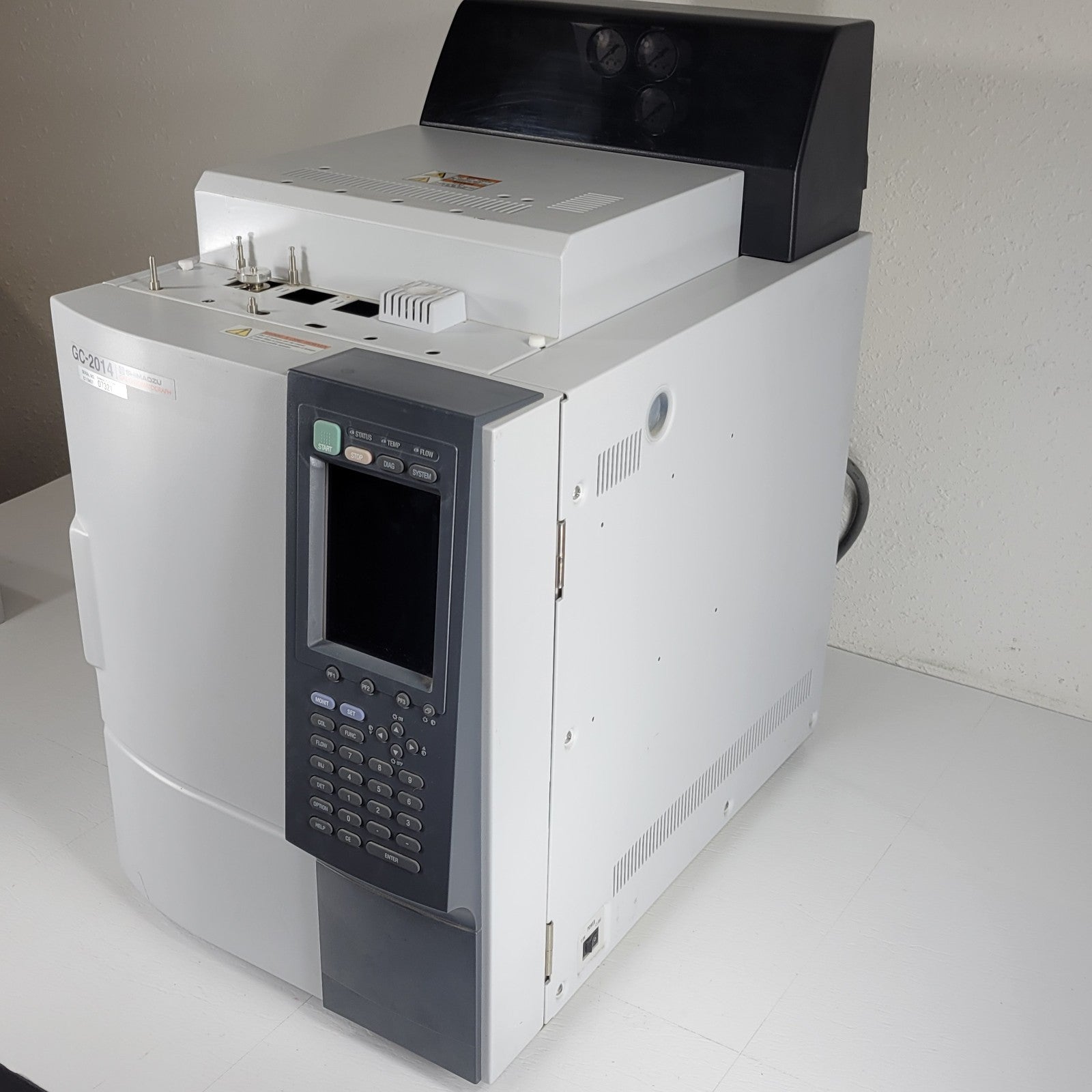

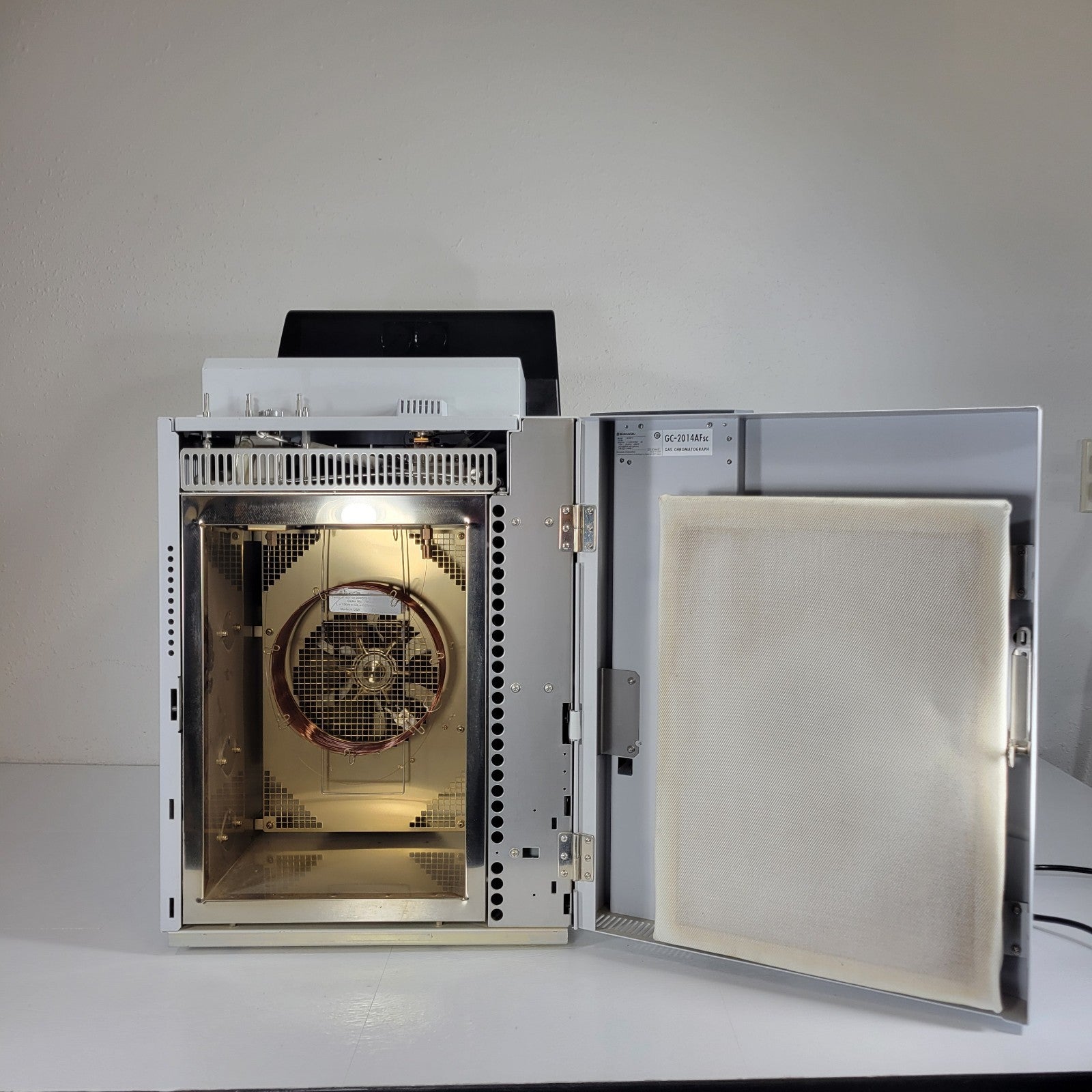

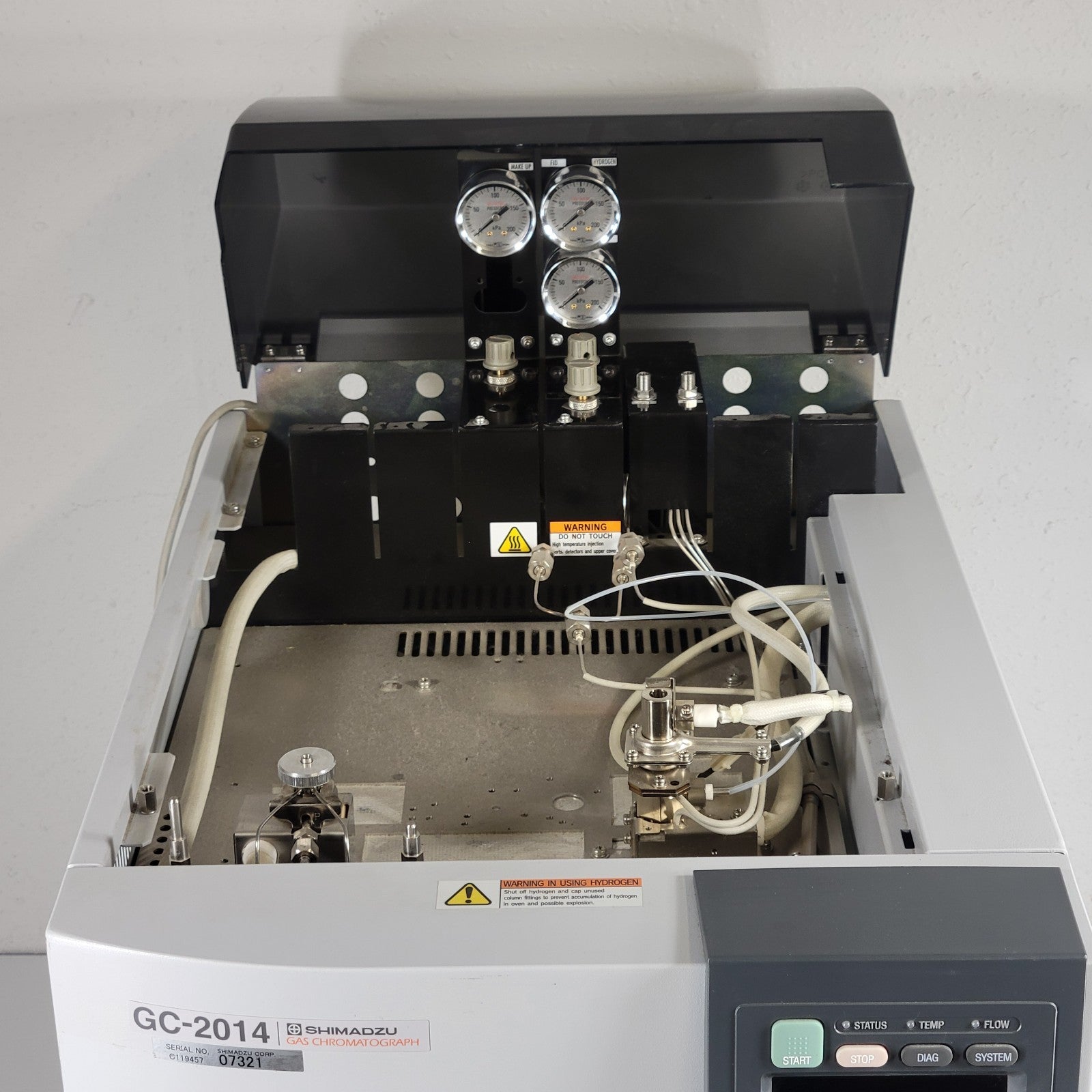

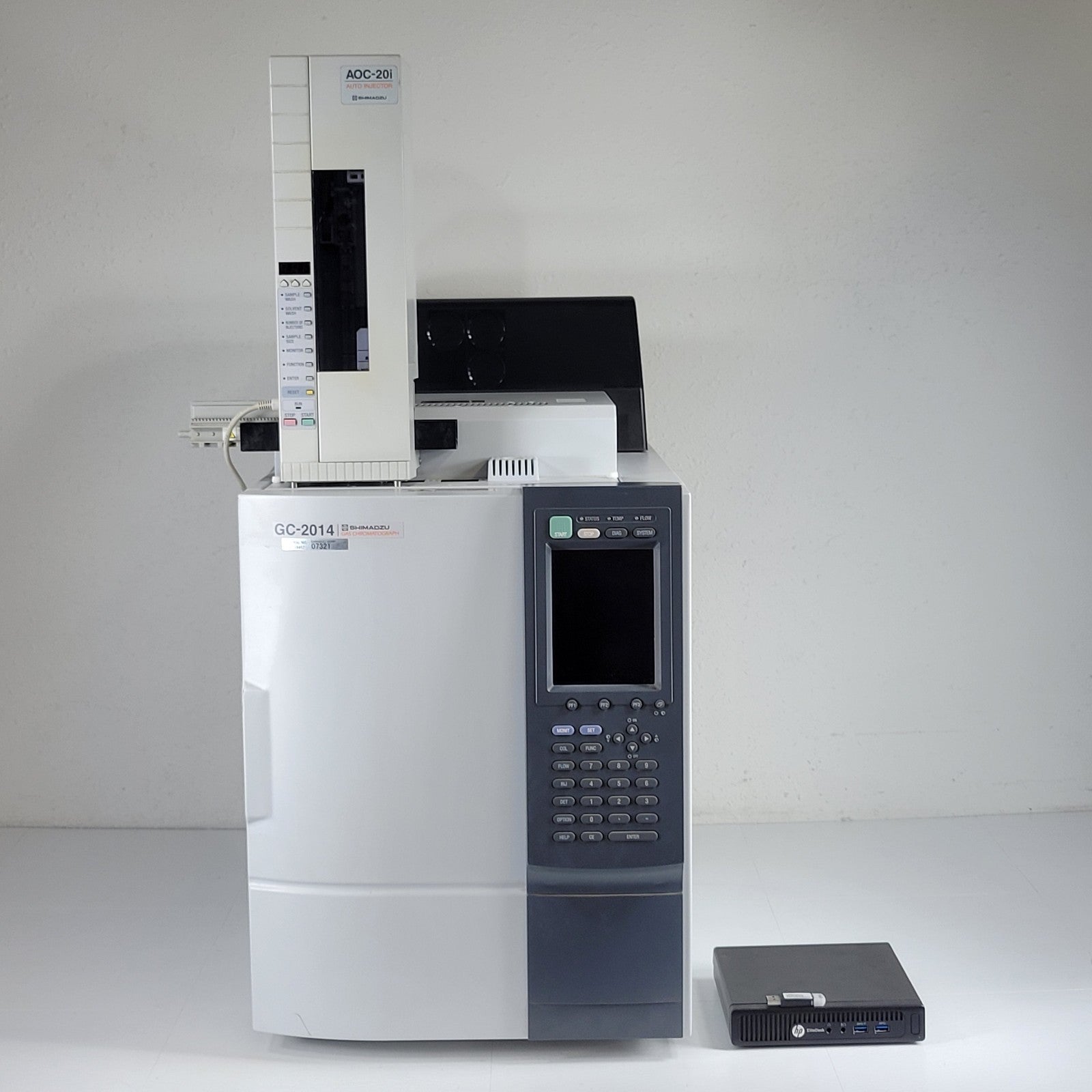

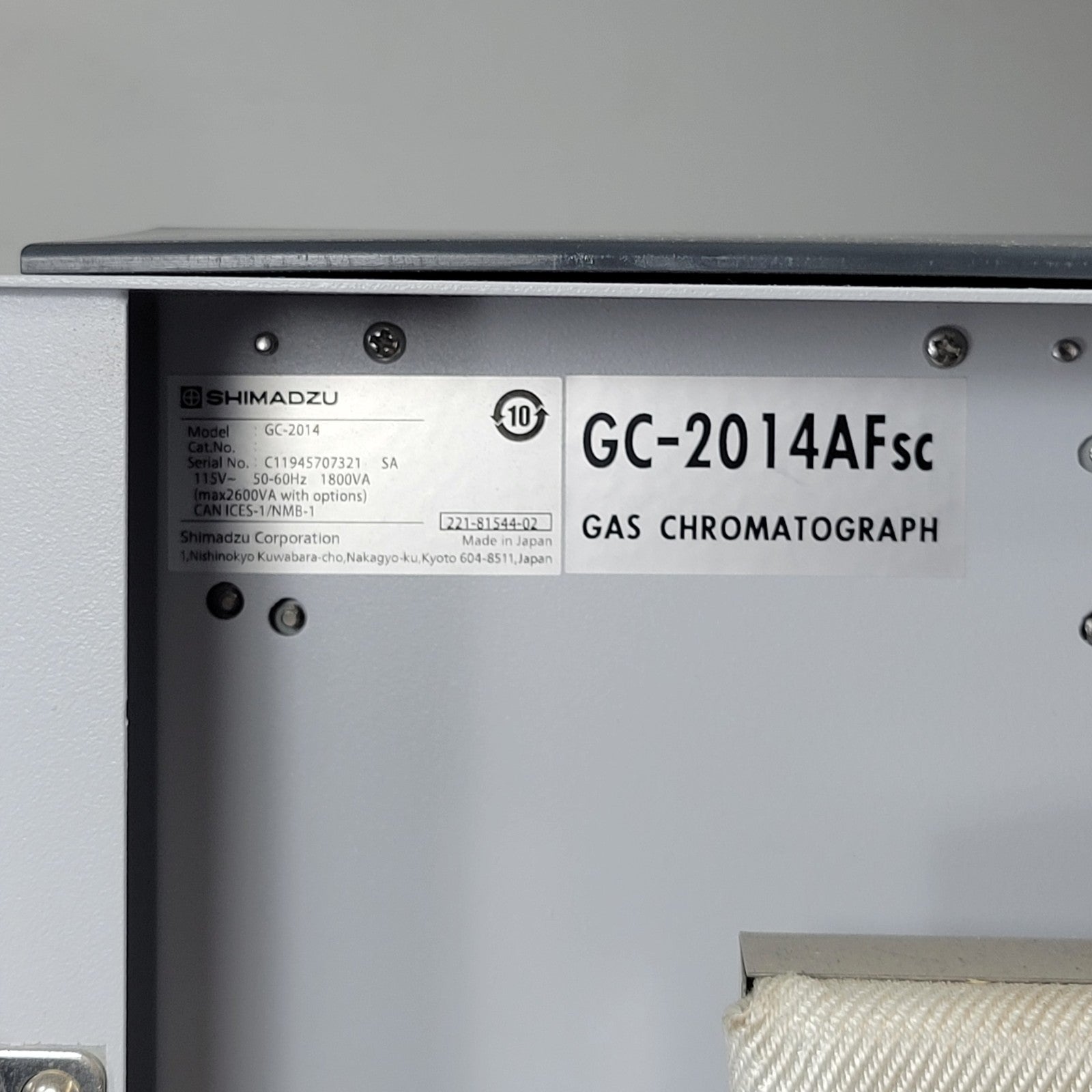

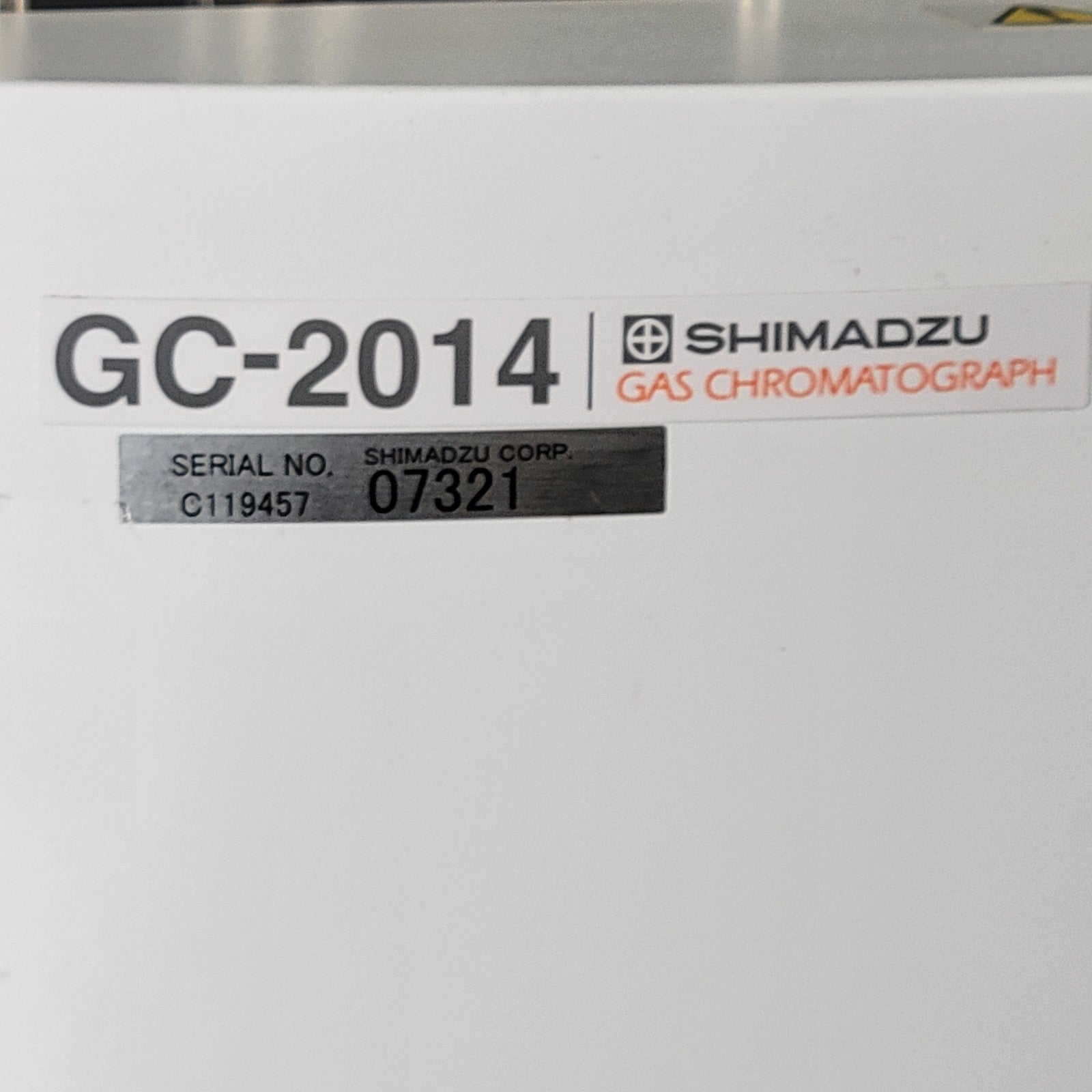

1x) Shimadzu GC-2014AFsc Gas Chromatograph

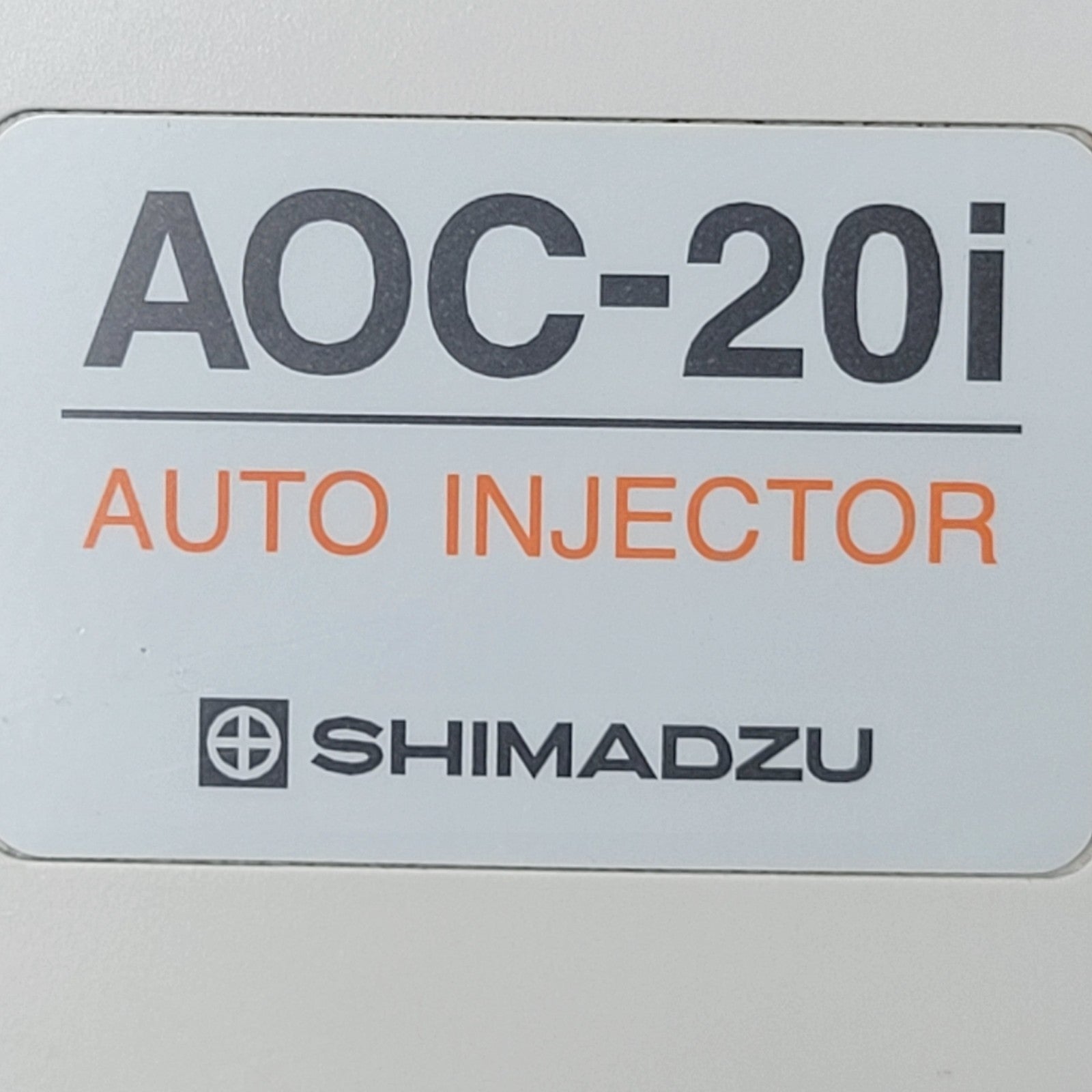

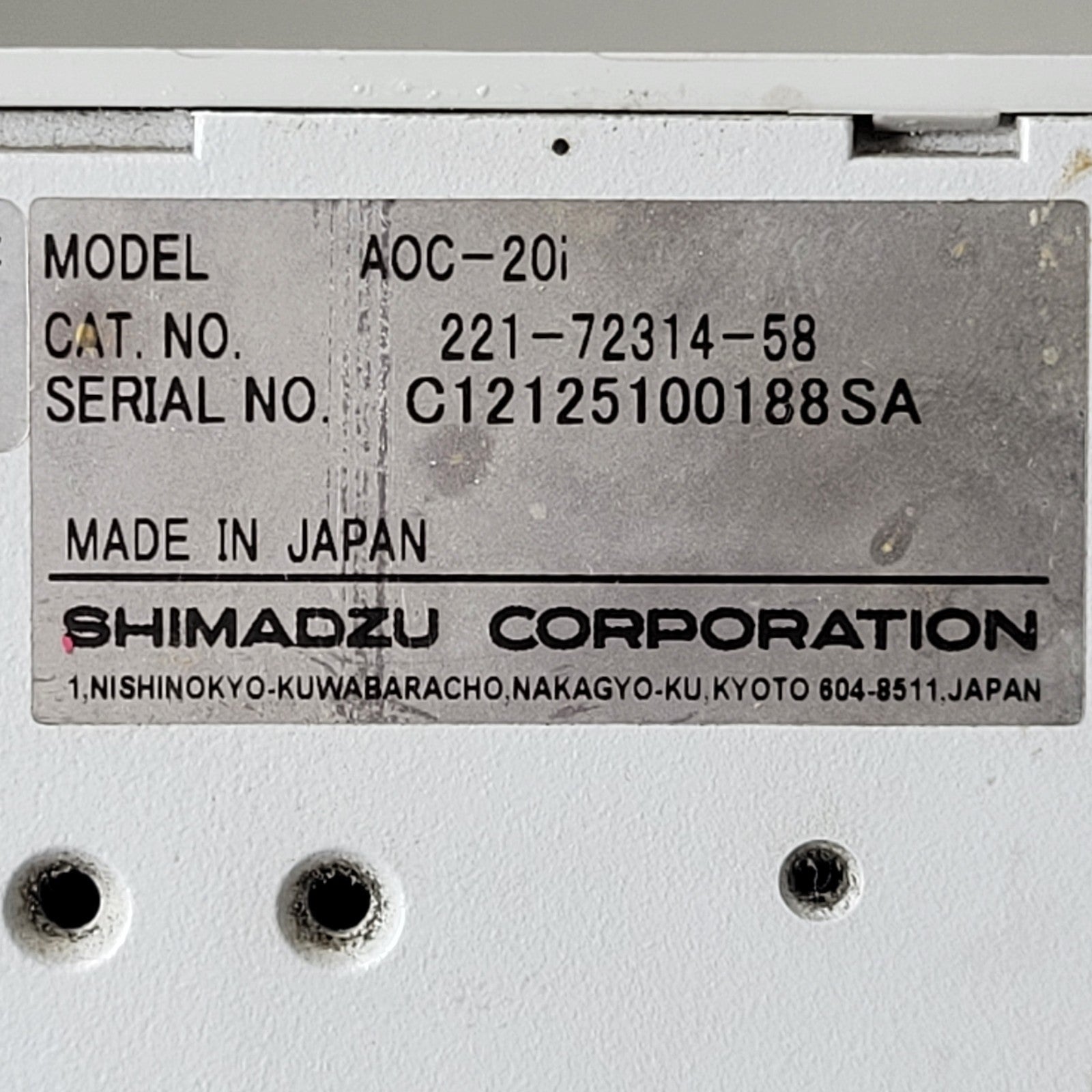

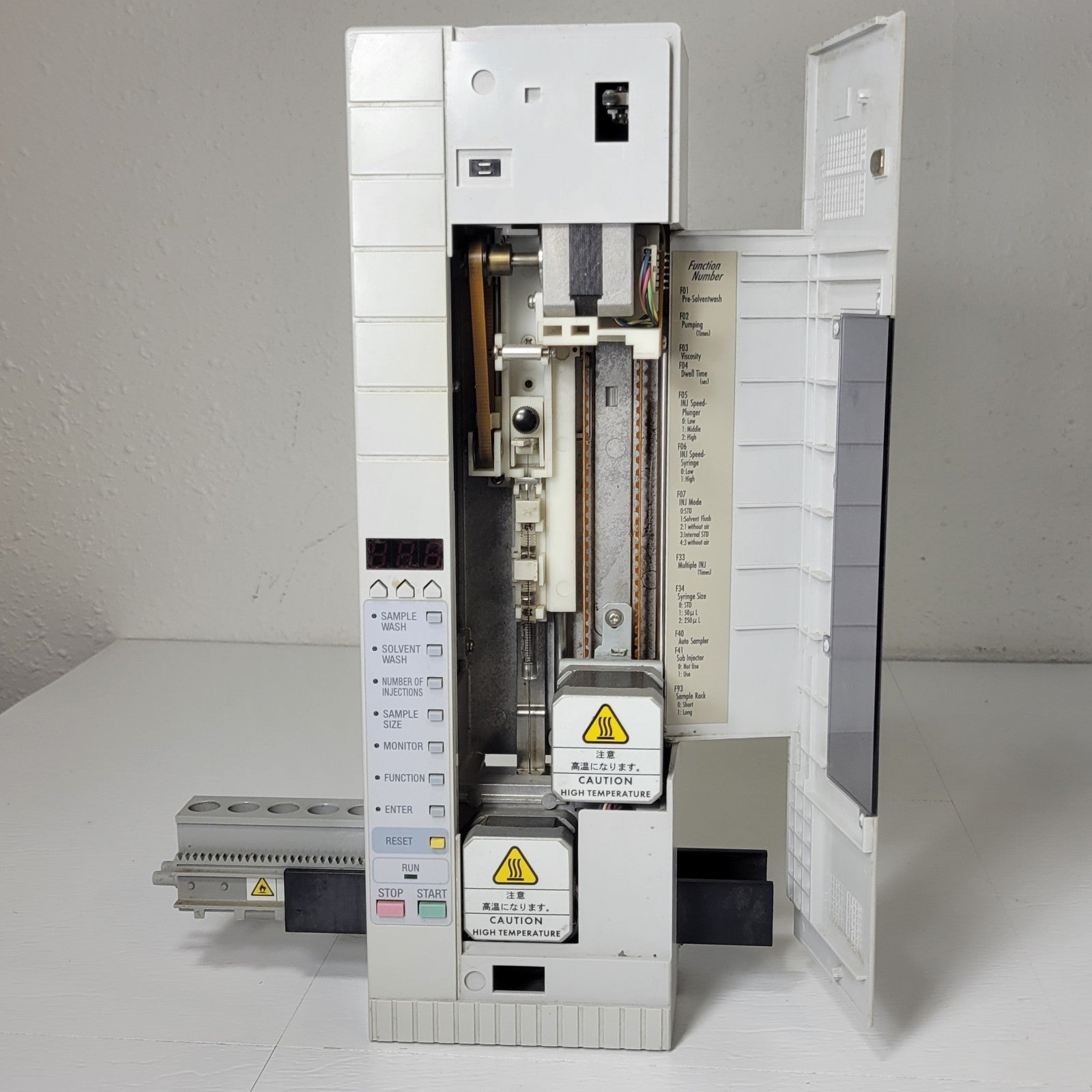

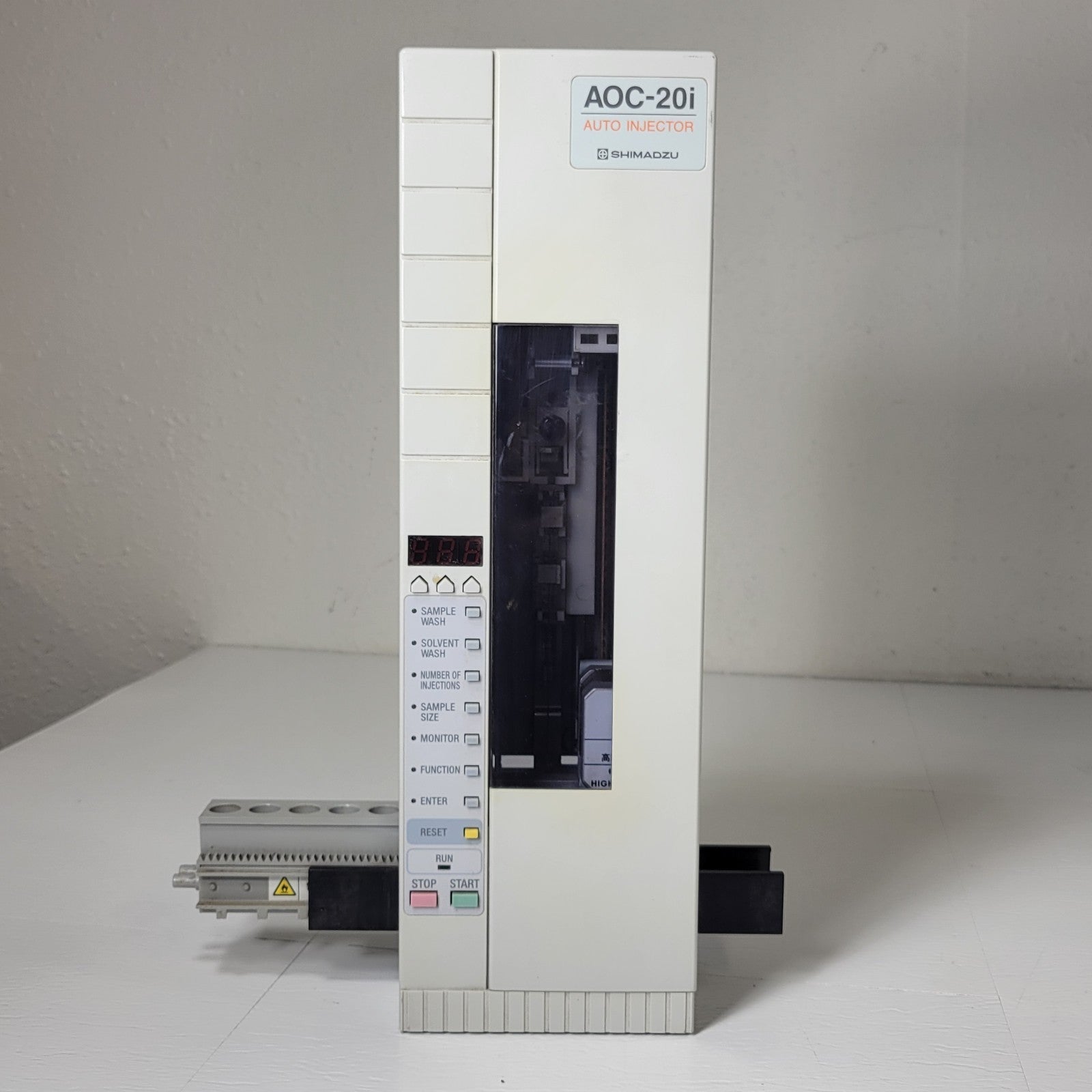

1x) Shimadzu AOC-20i Auto Injector w/ 10uL Syringe and 6-Sample (Short) Rack

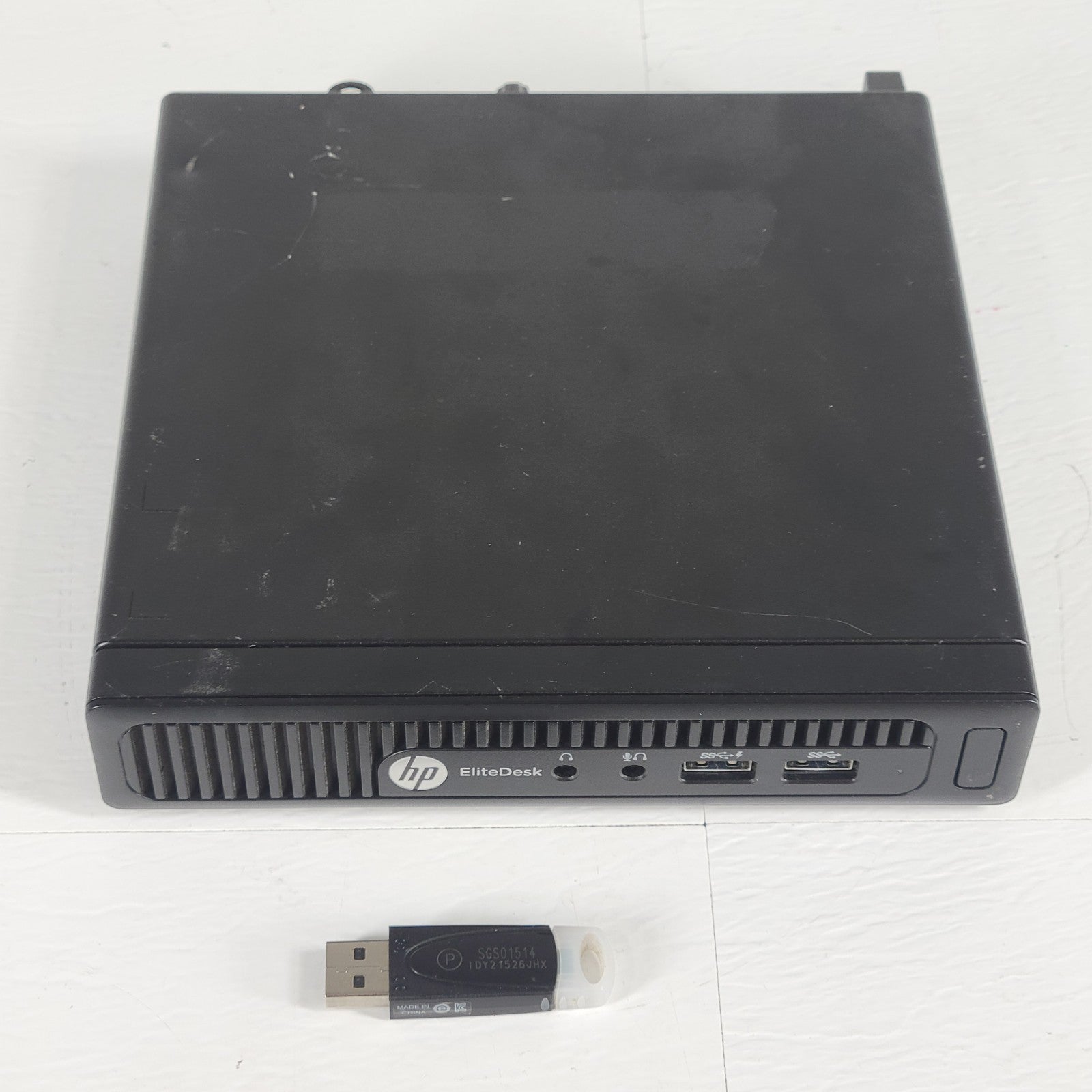

1x) HP EliteDesk Computer w/ Shimadzu LabSolutions software pre-installed
1x) Shimadzu GC/LC License Key

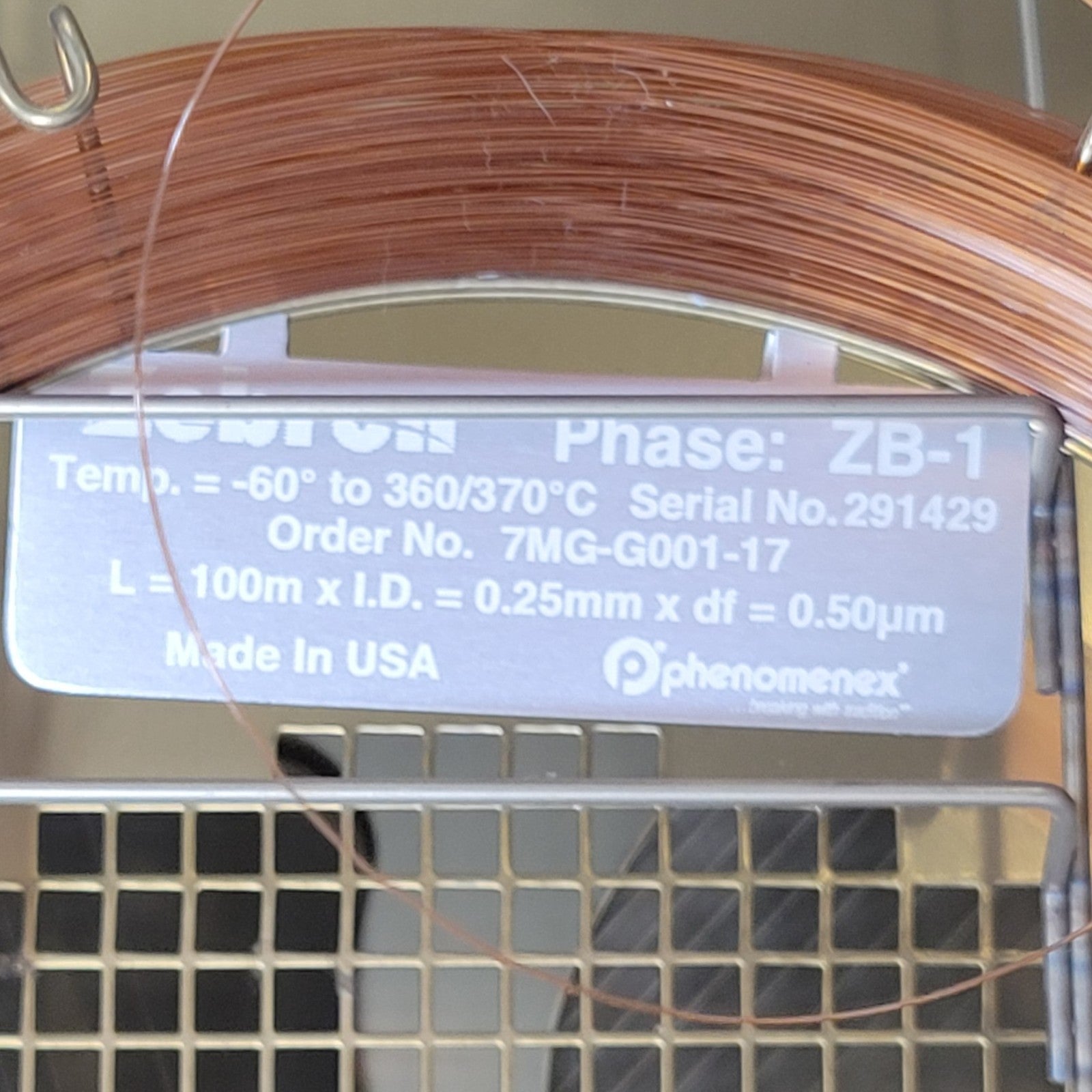

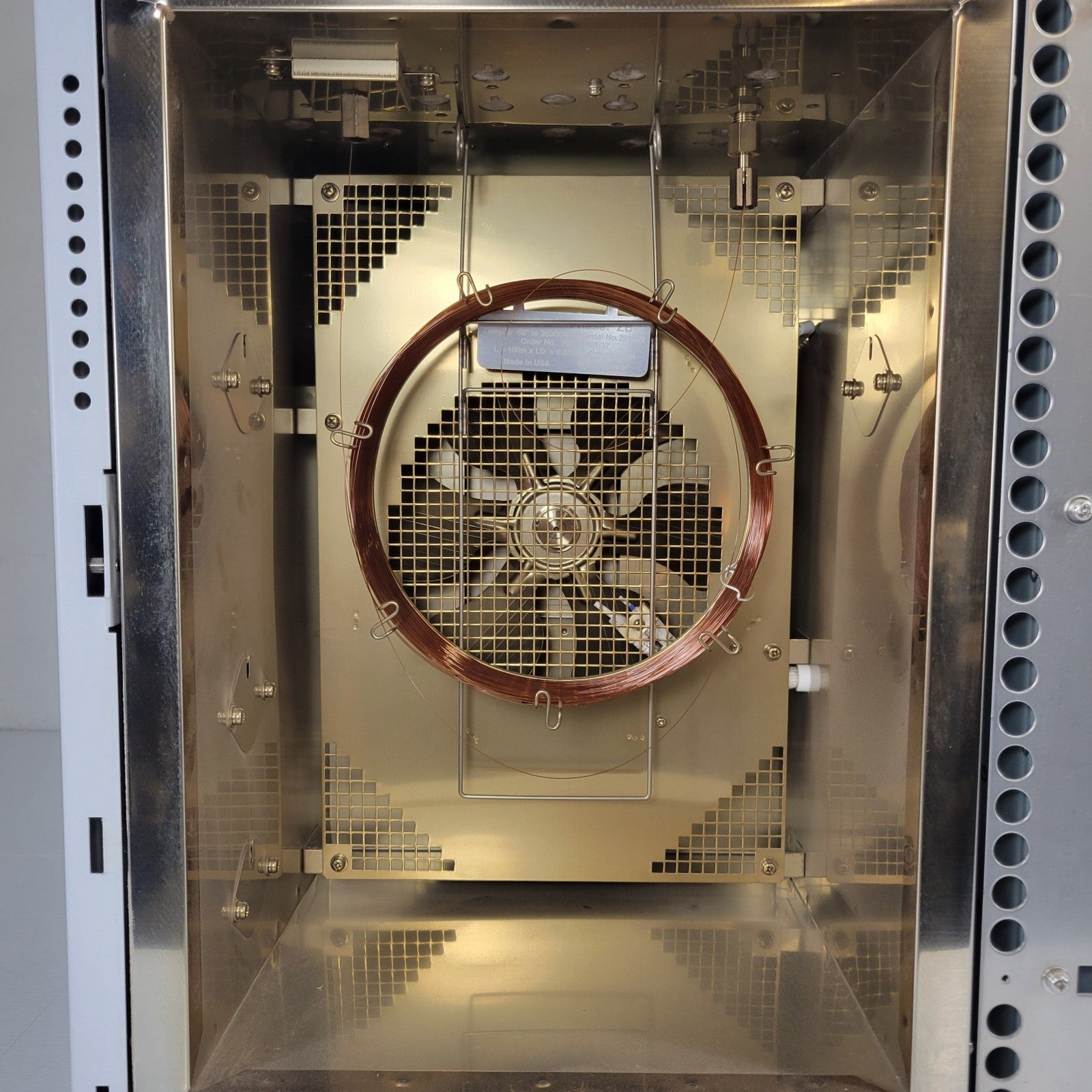

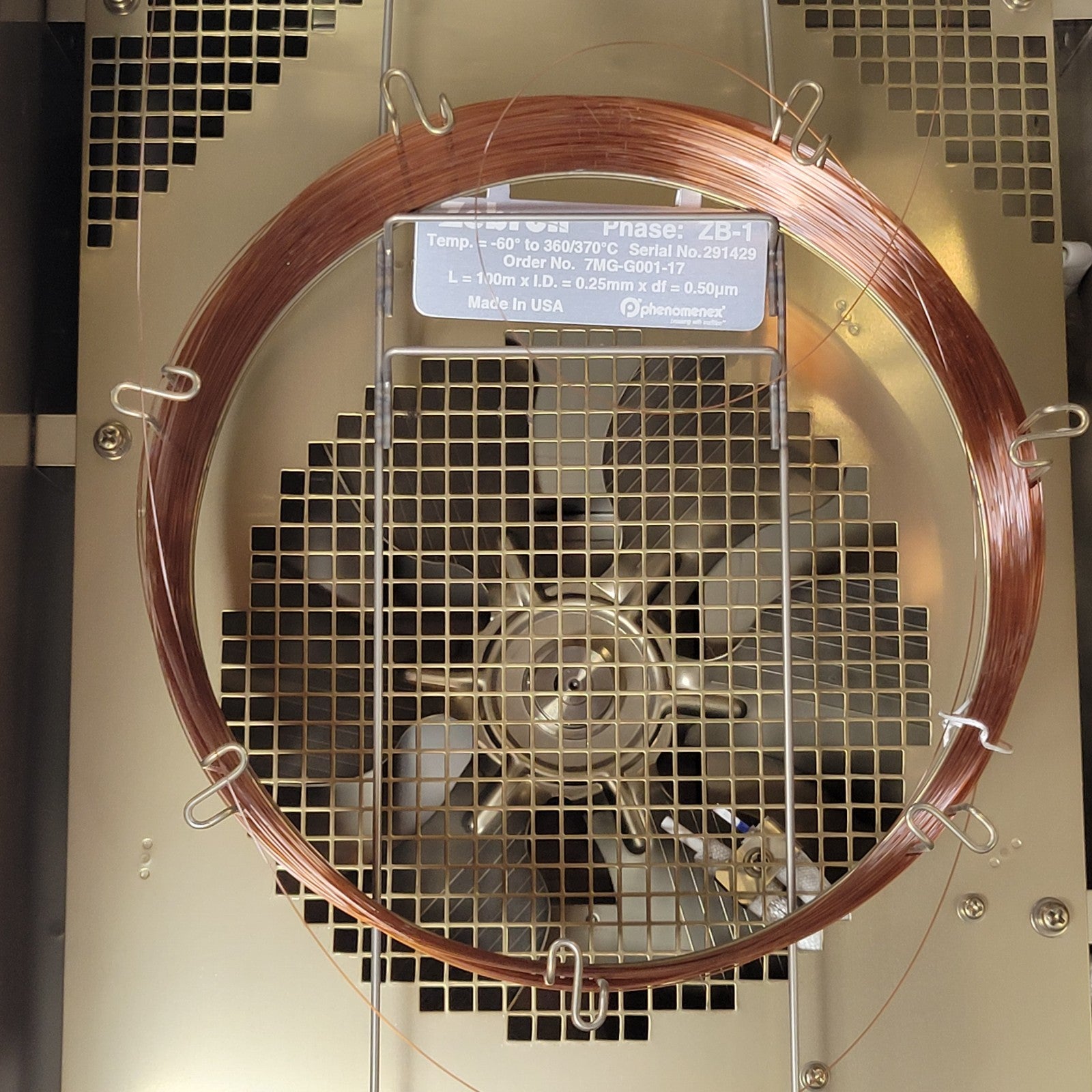

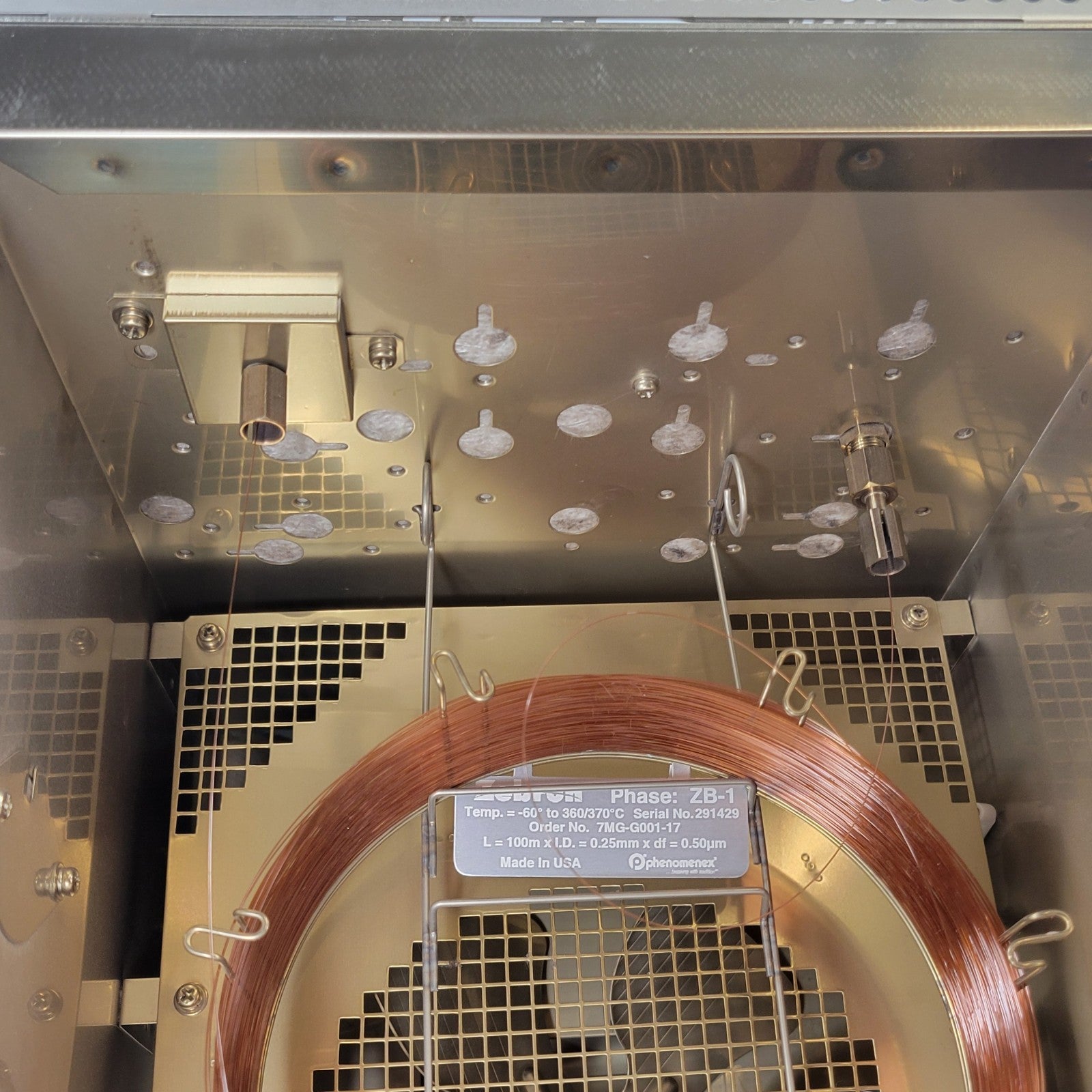

1x) Includes the currently-installed Zebron ZB-1 column
Testing Included the Following:

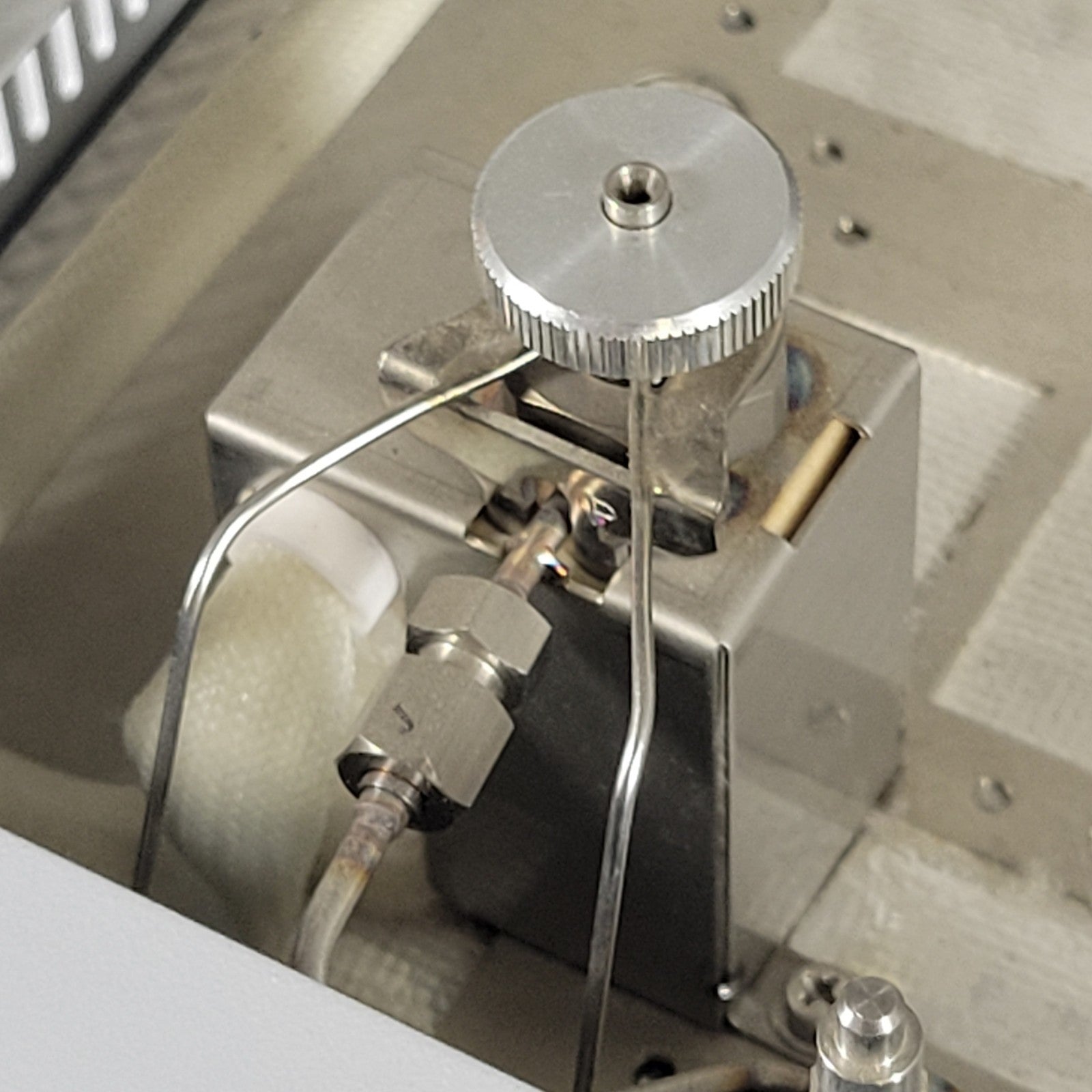

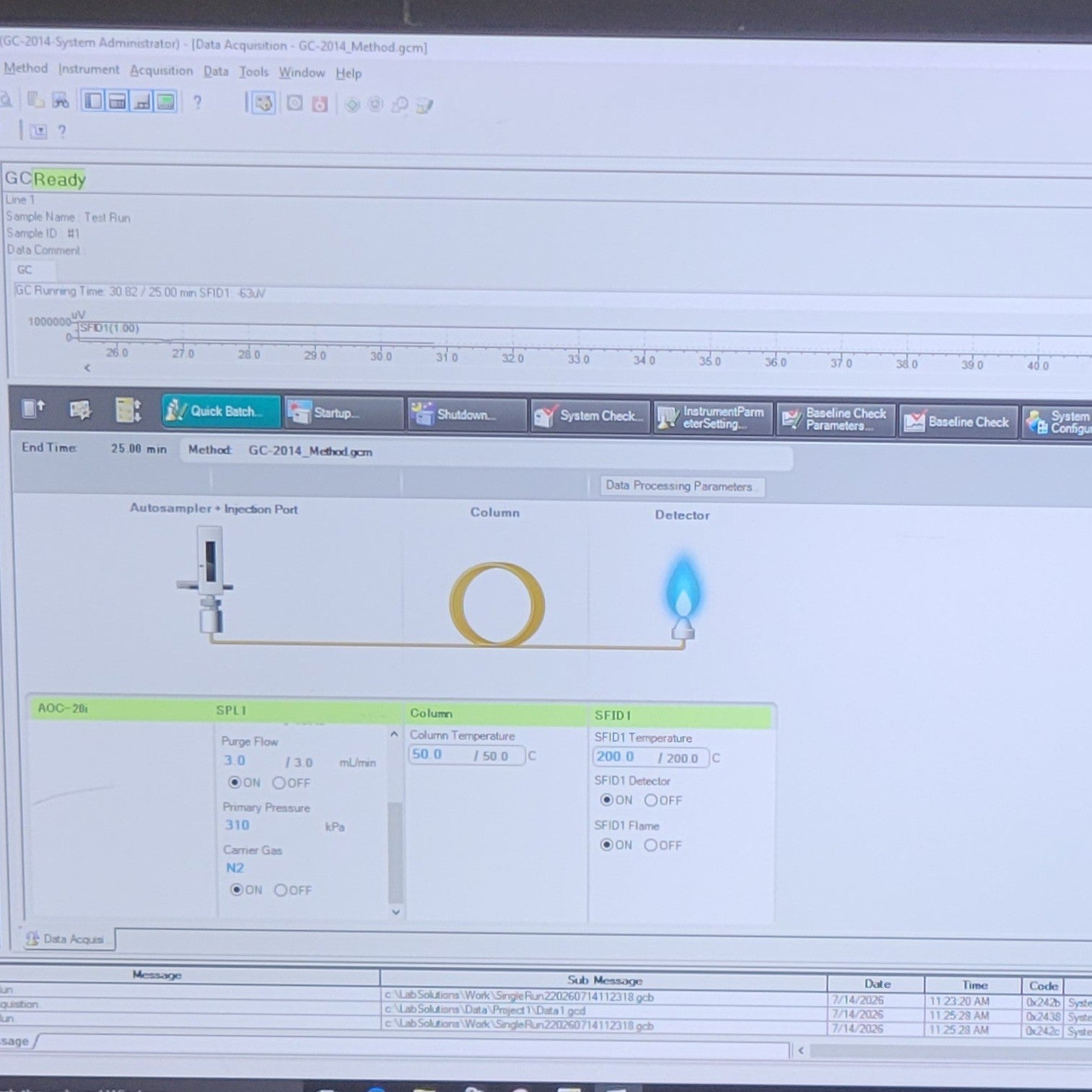

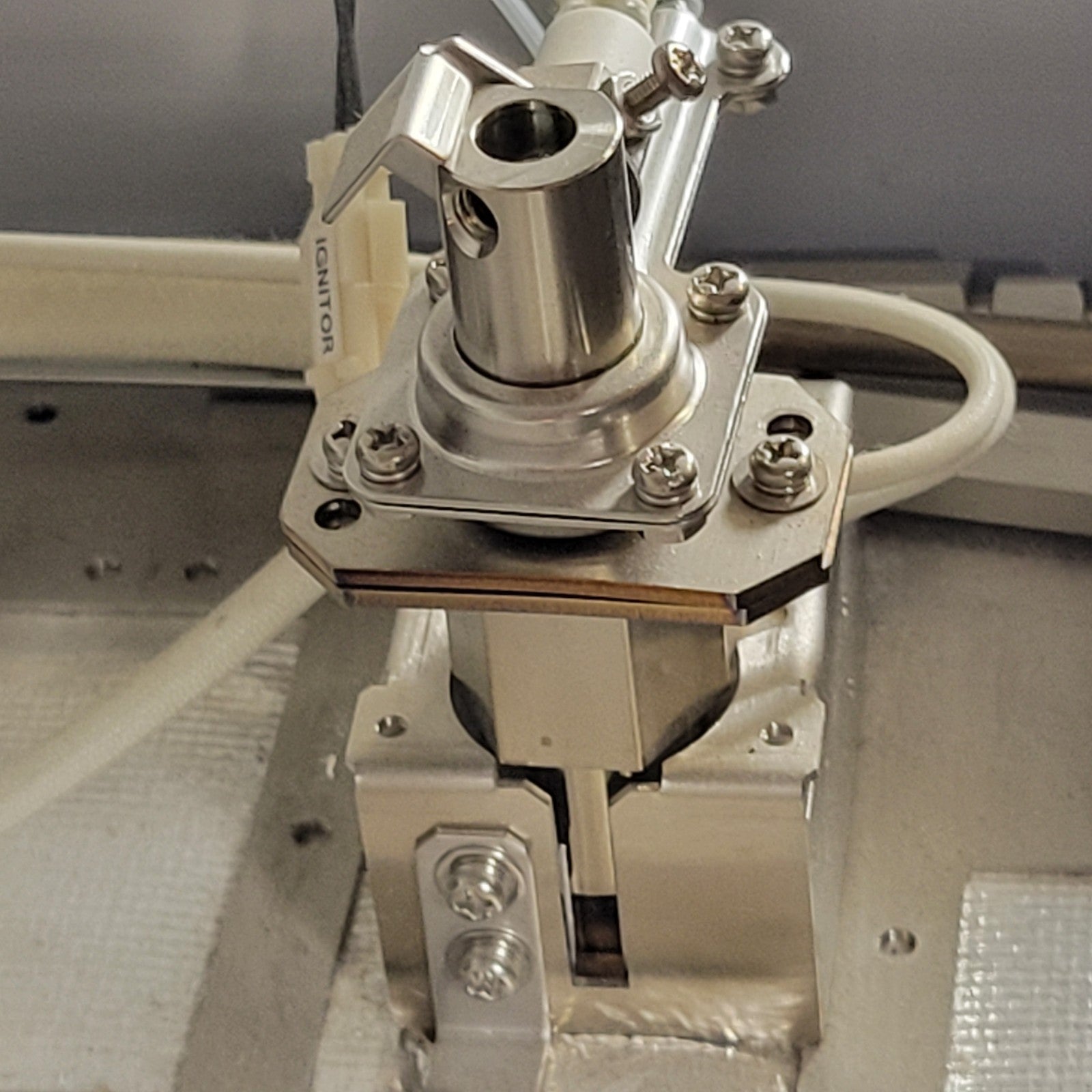

The system was connected to Shimadzu LabSolutions and tested using nitrogen carrier gas with the installed 100 m × 0.25 mm ID × 0.50 µm capillary column. Communication with LabSolutions was confirmed, a method was created and downloaded, and the GC completed a system check successfully. The AOC-20i autosampler was recognized and completed an automated 1.0 µL liquid injection. The SPL inlet reached and maintained 180 °C, the column oven completed the programmed 50-100 °C temperature ramp, and the SFID detector reached and maintained 200 °C. Nitrogen carrier pressure and flow remained stable, the FID ignited and remained lit, and the system reached ready status and completed a full run. LabSolutions recorded a chromatogram with multiple resolved peaks from an ethanol/hexane test mixture, confirming data acquisition, detector response, oven programming, carrier control, and autosampler operation. Only the items shown are included.
Shipping:
Due to the size and weight of this system, it must be shipped via freight. Buyer is responsible for paying for the cost of freight shipping to their facility.
Used, see photos
-BJ
