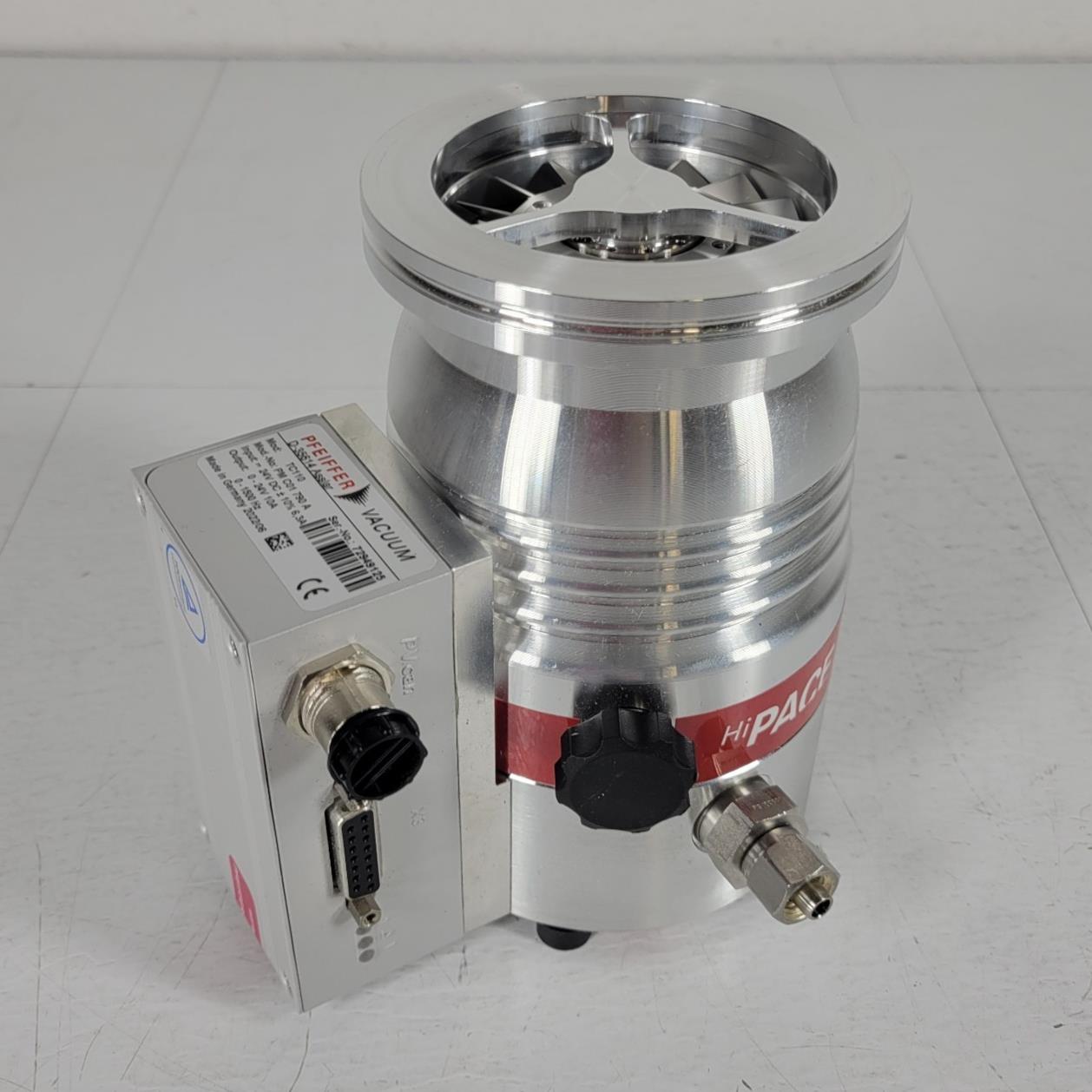

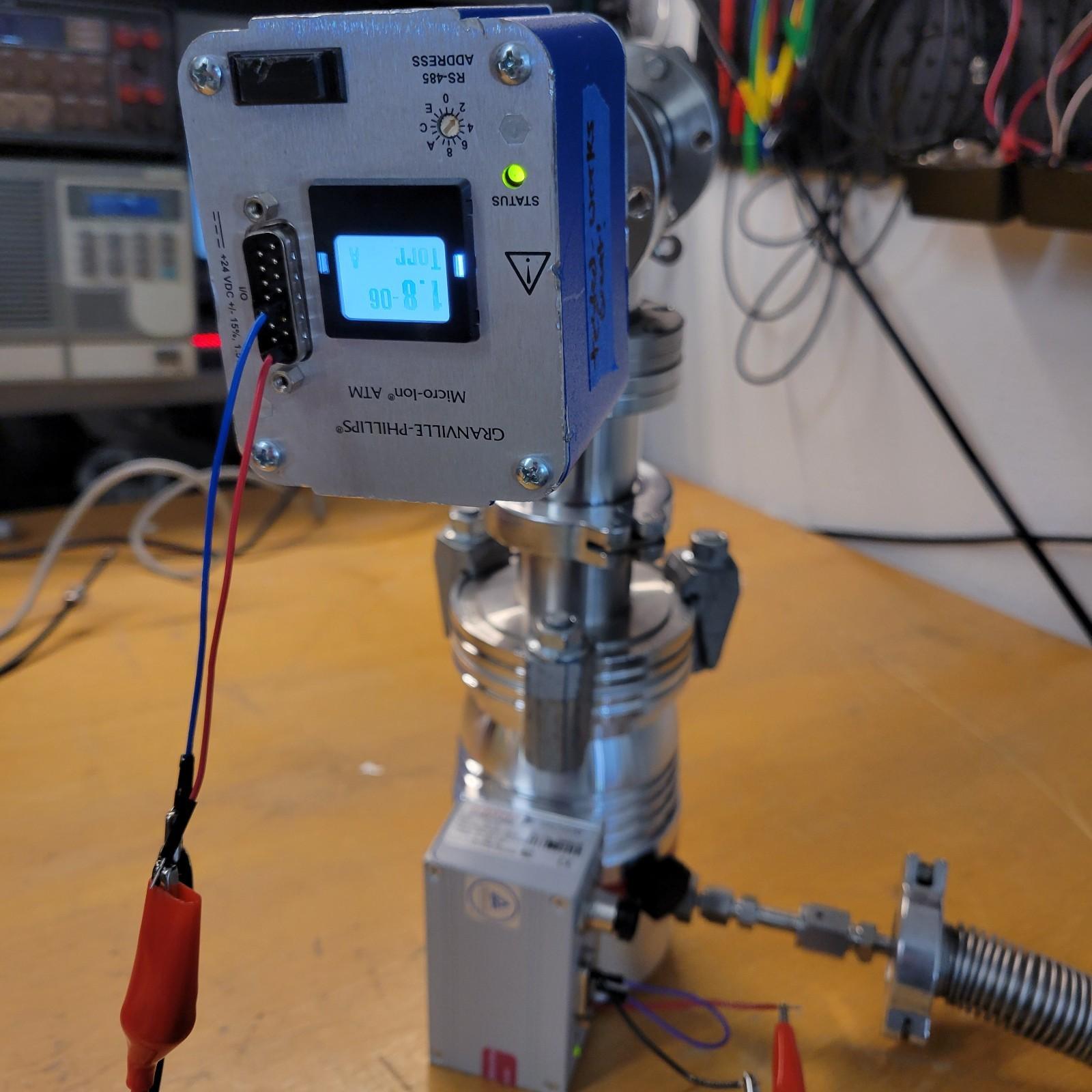

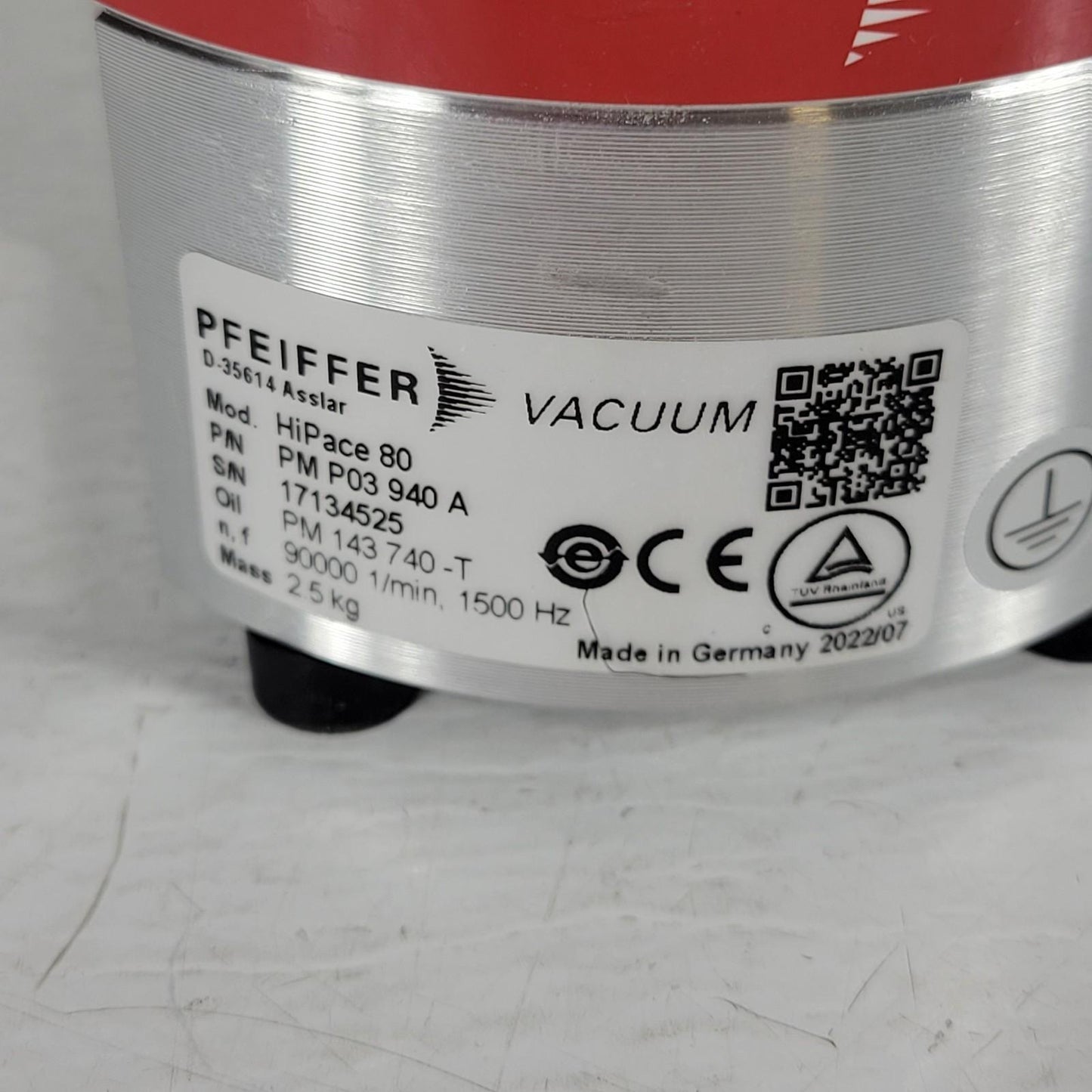

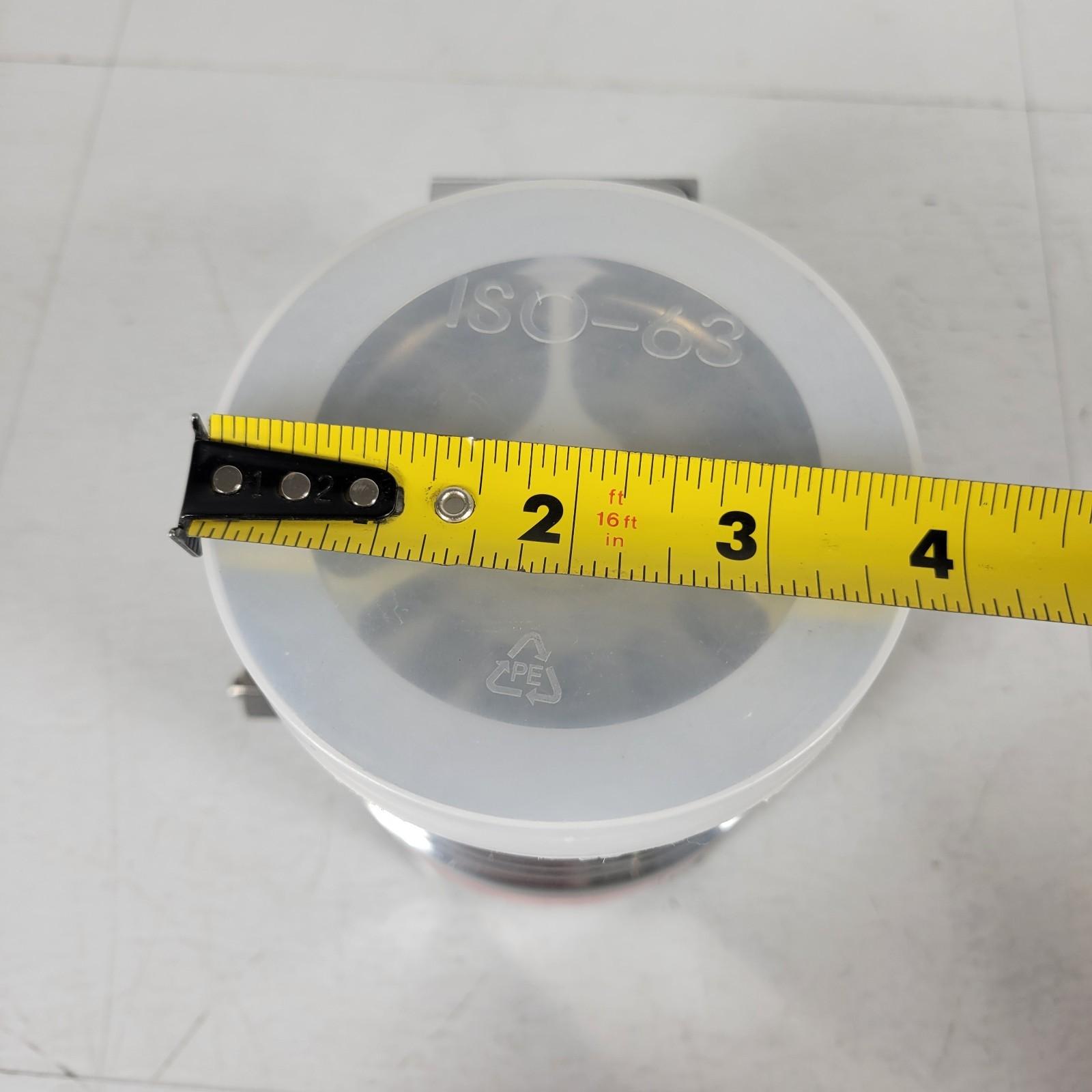

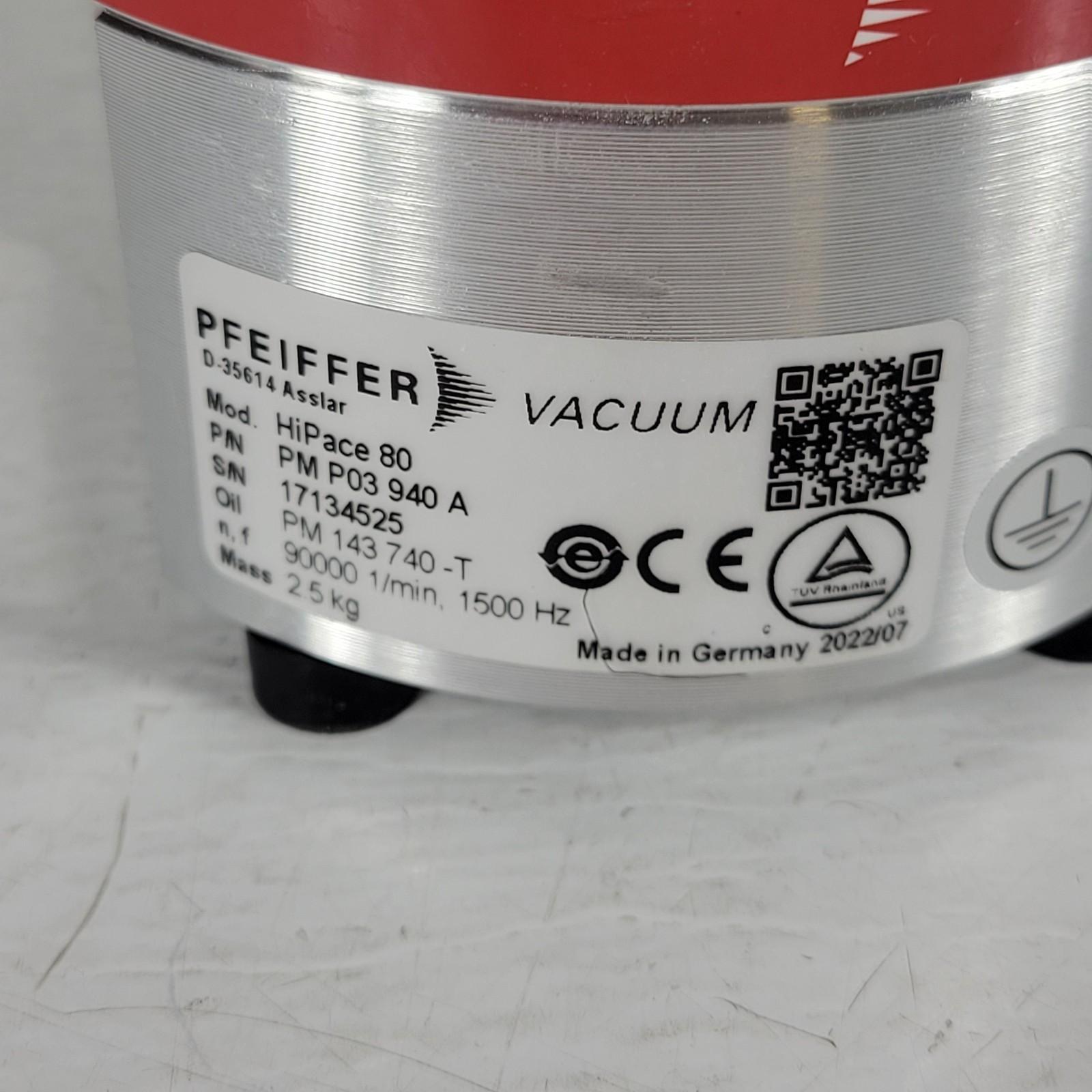

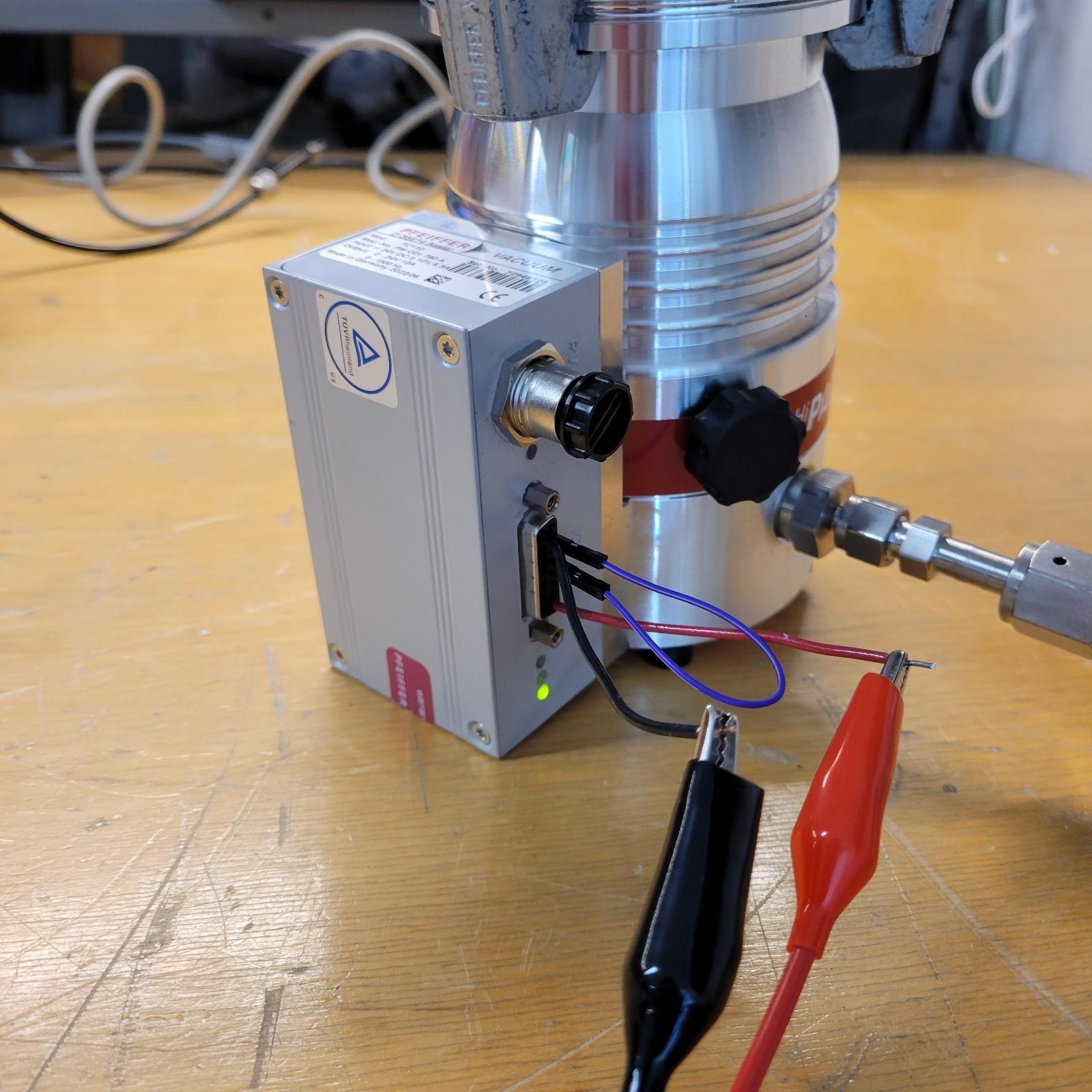

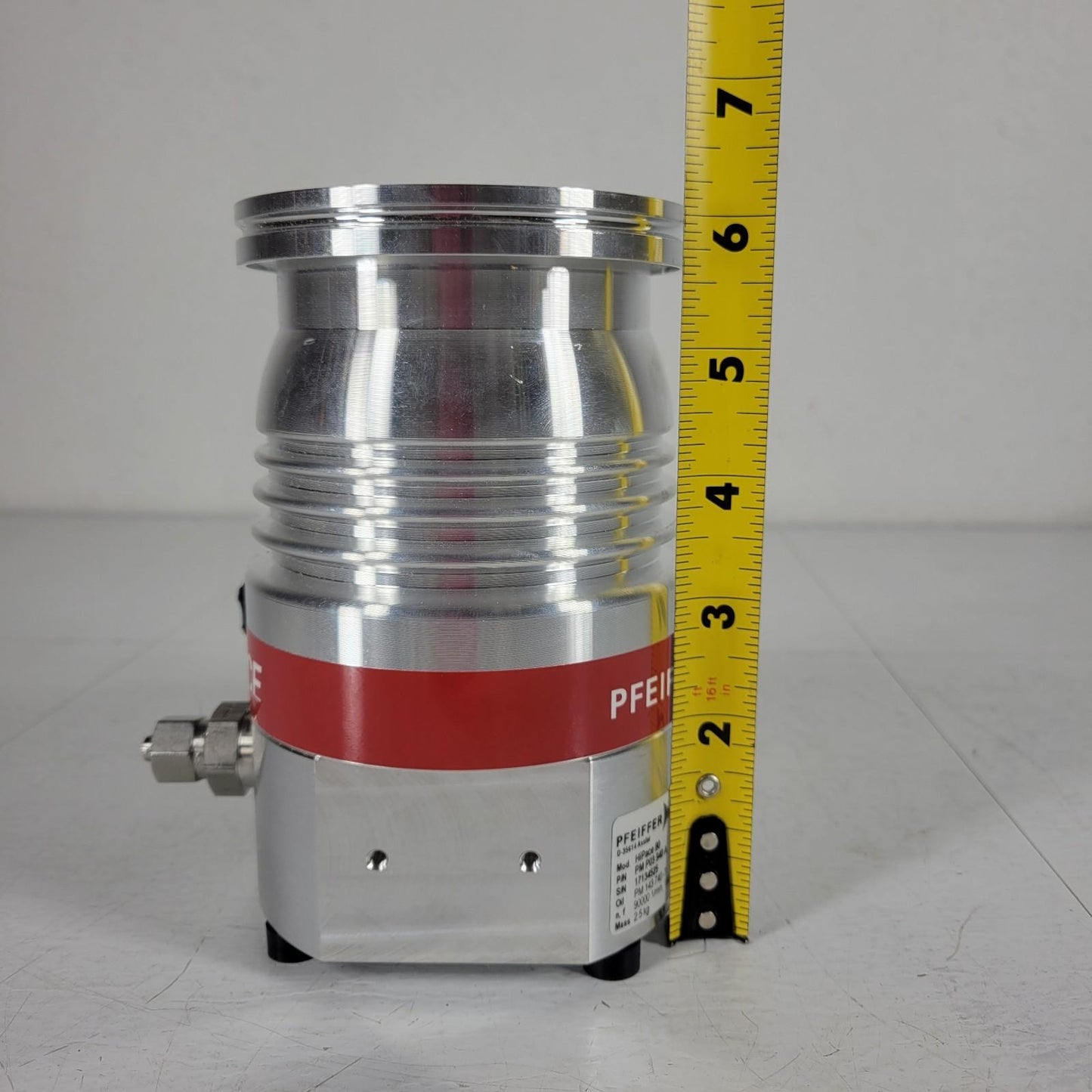

Lab Liquidators LLC is selling a tested 1.8E-6 Torr Pfeiffer HiPace 80 PM-P03-940-A Turbo Pump UHV Ultra High Vacuum TC110 PM-C01-790-A turbomolecular pump system. This unit is tested working and pulled down to 1.8×10^⁻6 Torr in our setup as shown in the photos using an ion gauge. Flange size is ISO 63 ISO-K 63.

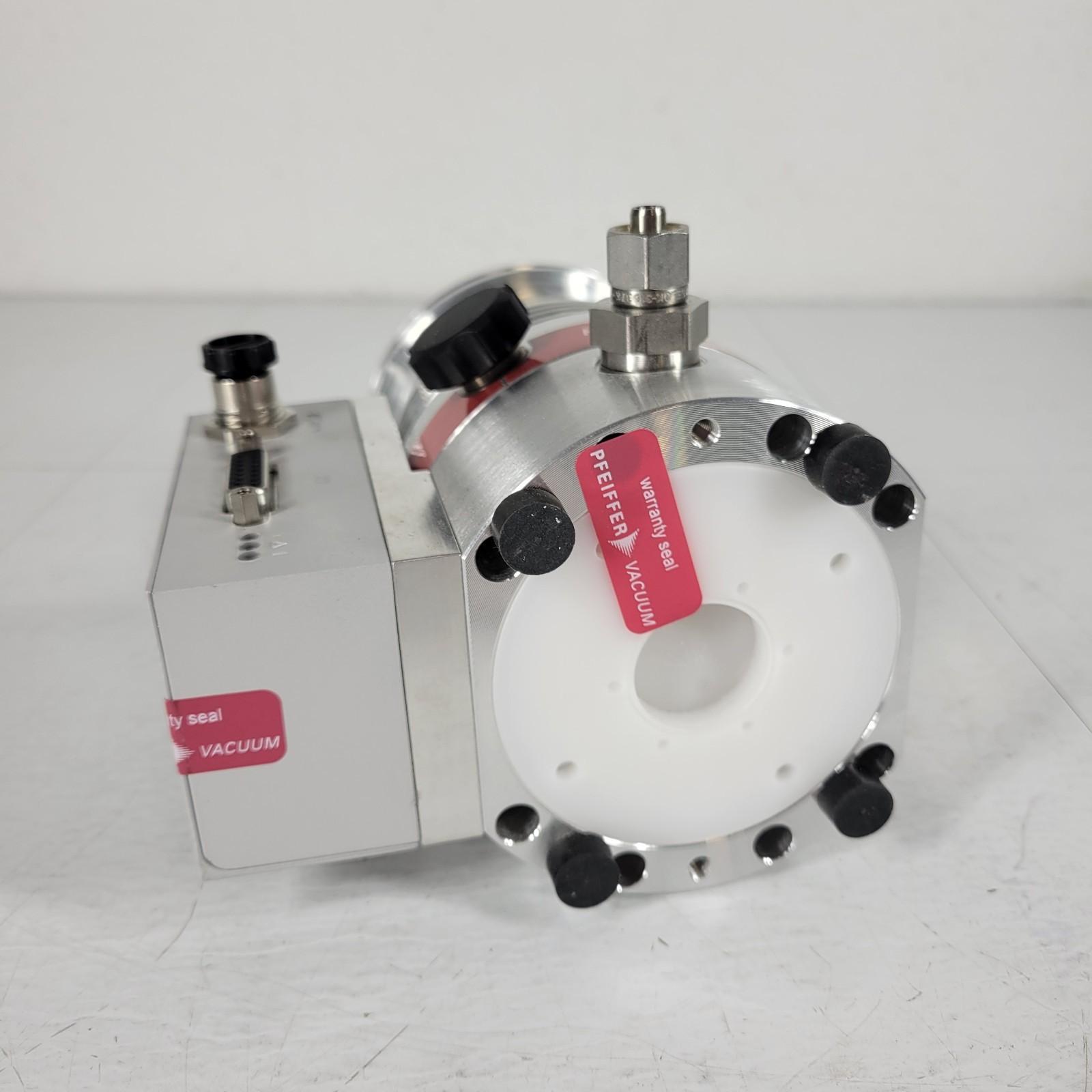

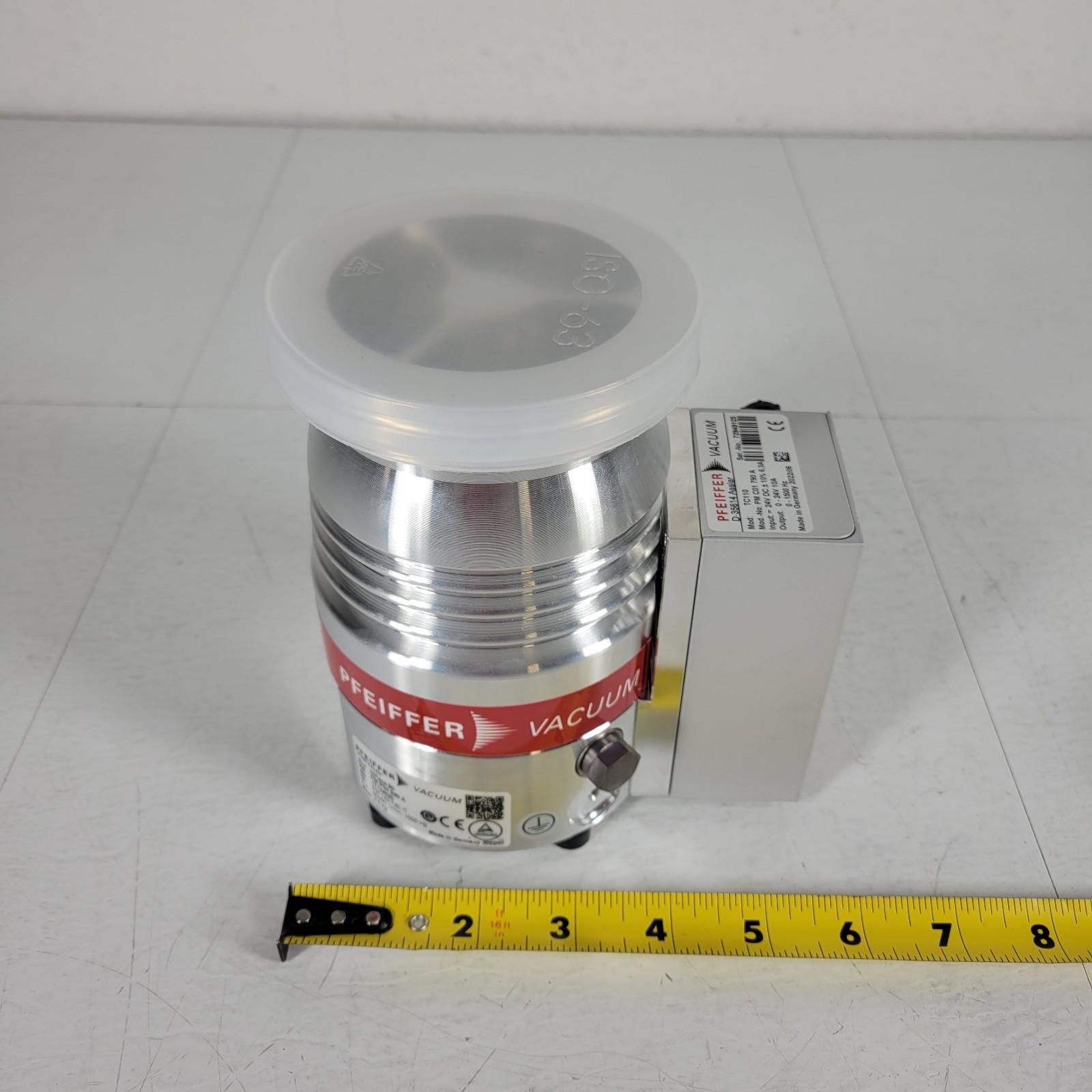

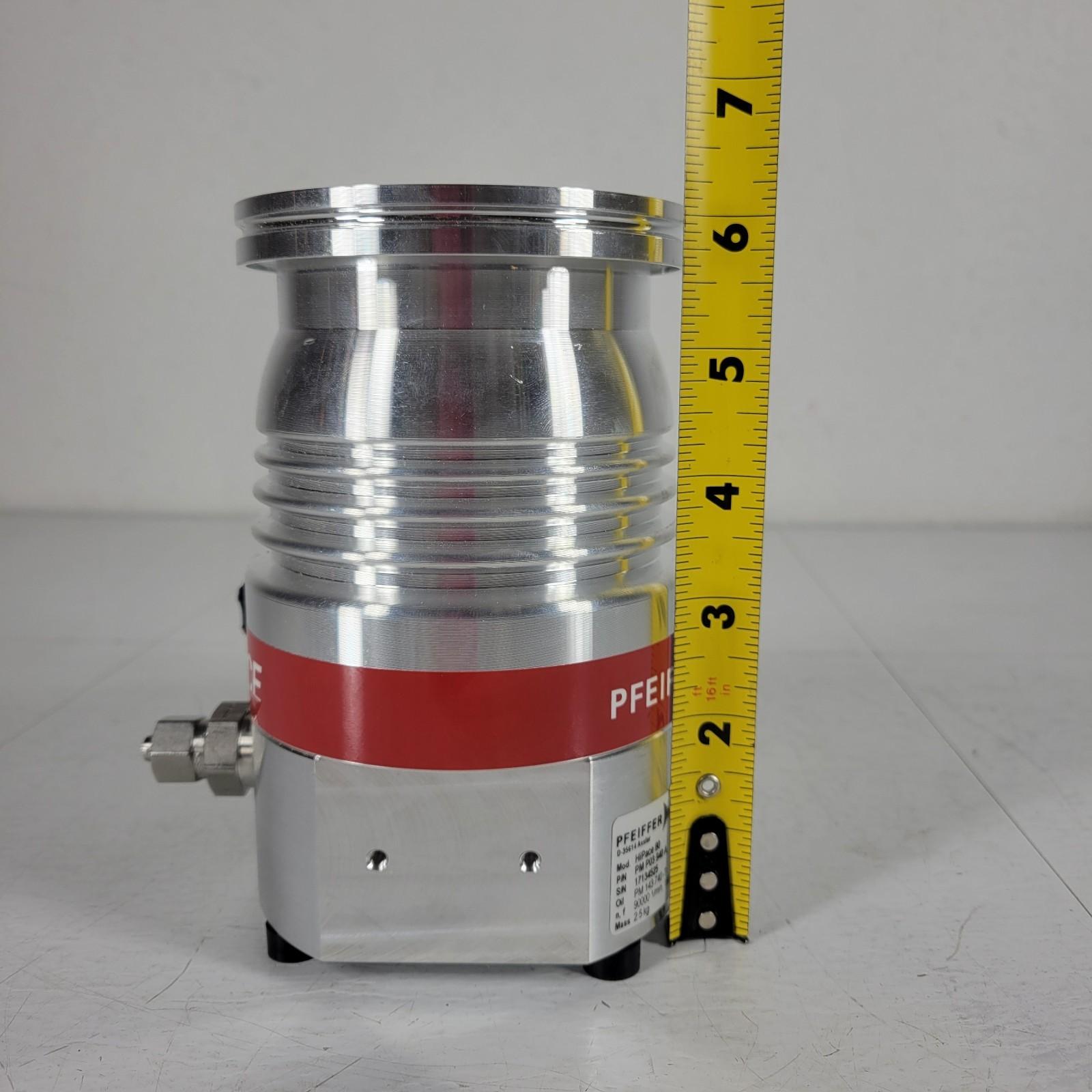

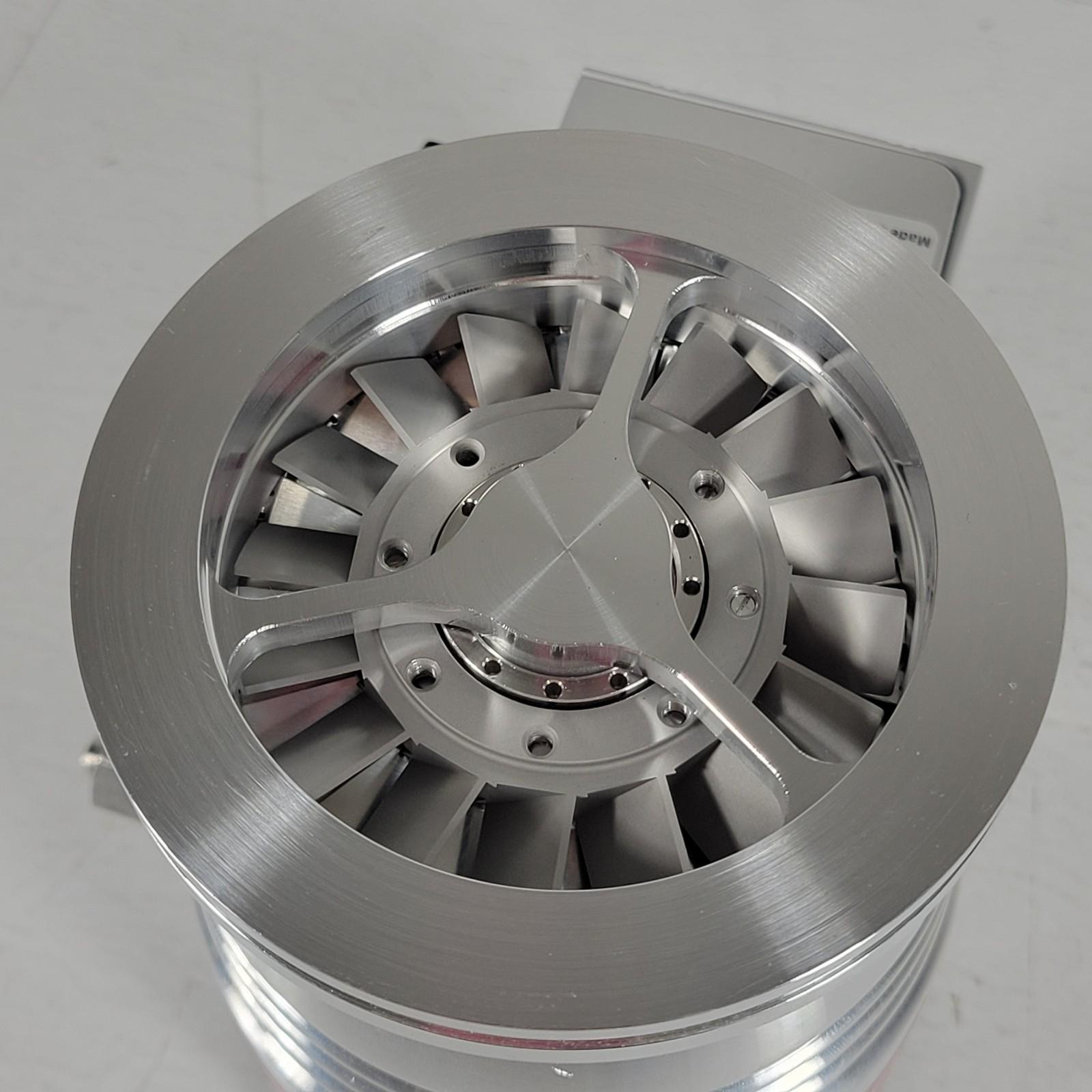

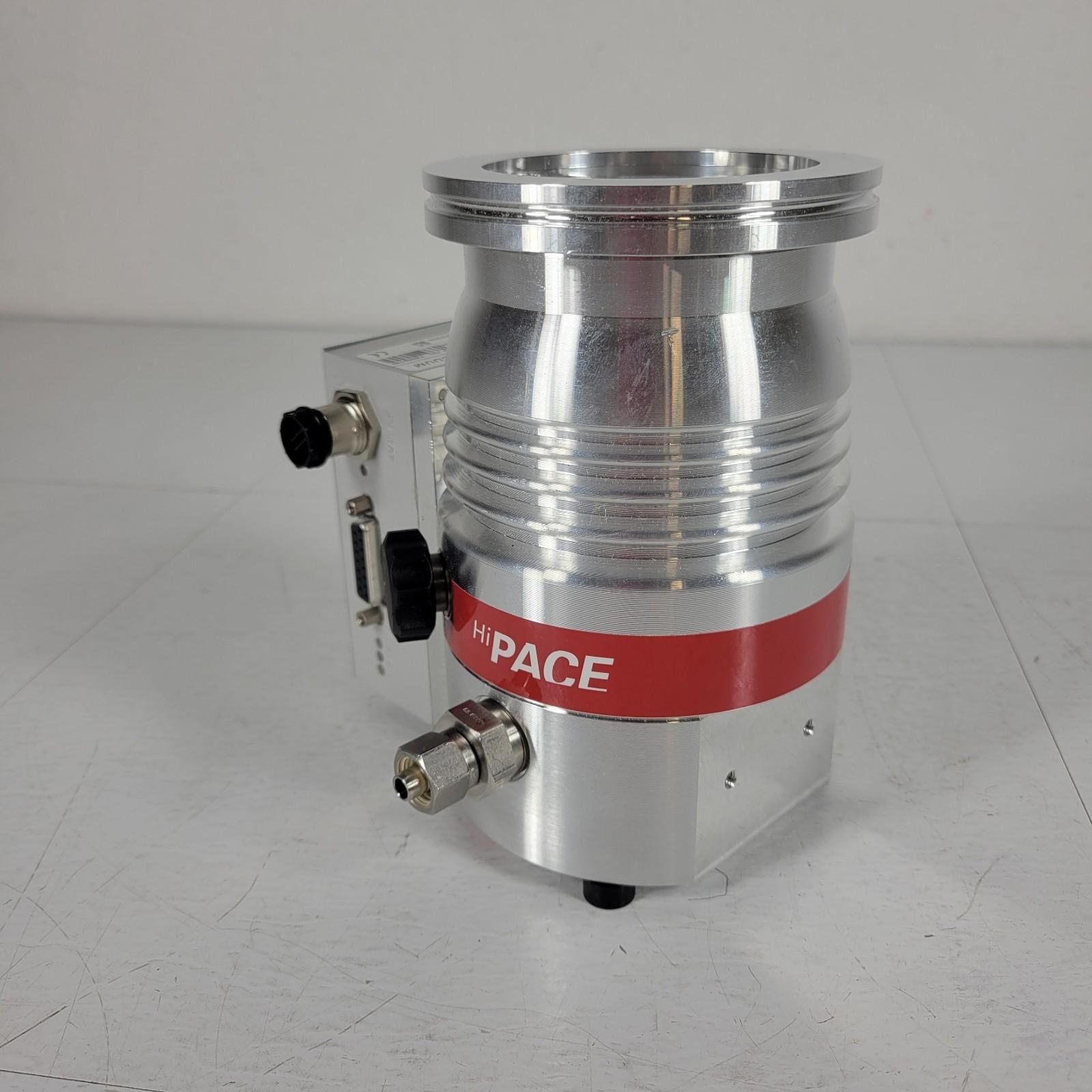

We pumped it down on our turbo test station, and it worked well as expected. The unit is in good cosmetic shape and is fully operational. See photos.
Does not include the ion gauge, other flanges, or bellows or roughing pump in this purchase. If you need those, we can sell them to you separately.
Specs from manufacturer: "Bearing Hybrid
Compression ratio for Ar > 1 · 1011
Compression ratio for H2 1.4 · 105
Compression ratio for He 1.3 · 107
Compression ratio for N2 > 1 · 1011
Cooling method, optional Air/Water
Cooling method, standard Convection
Cooling water consumption 75 l/h
Cooling water consumption, max 75 l/h
Cooling water consumption, min 75 l/h
Cooling water temperature 5 °C | 41 °F | 278 K

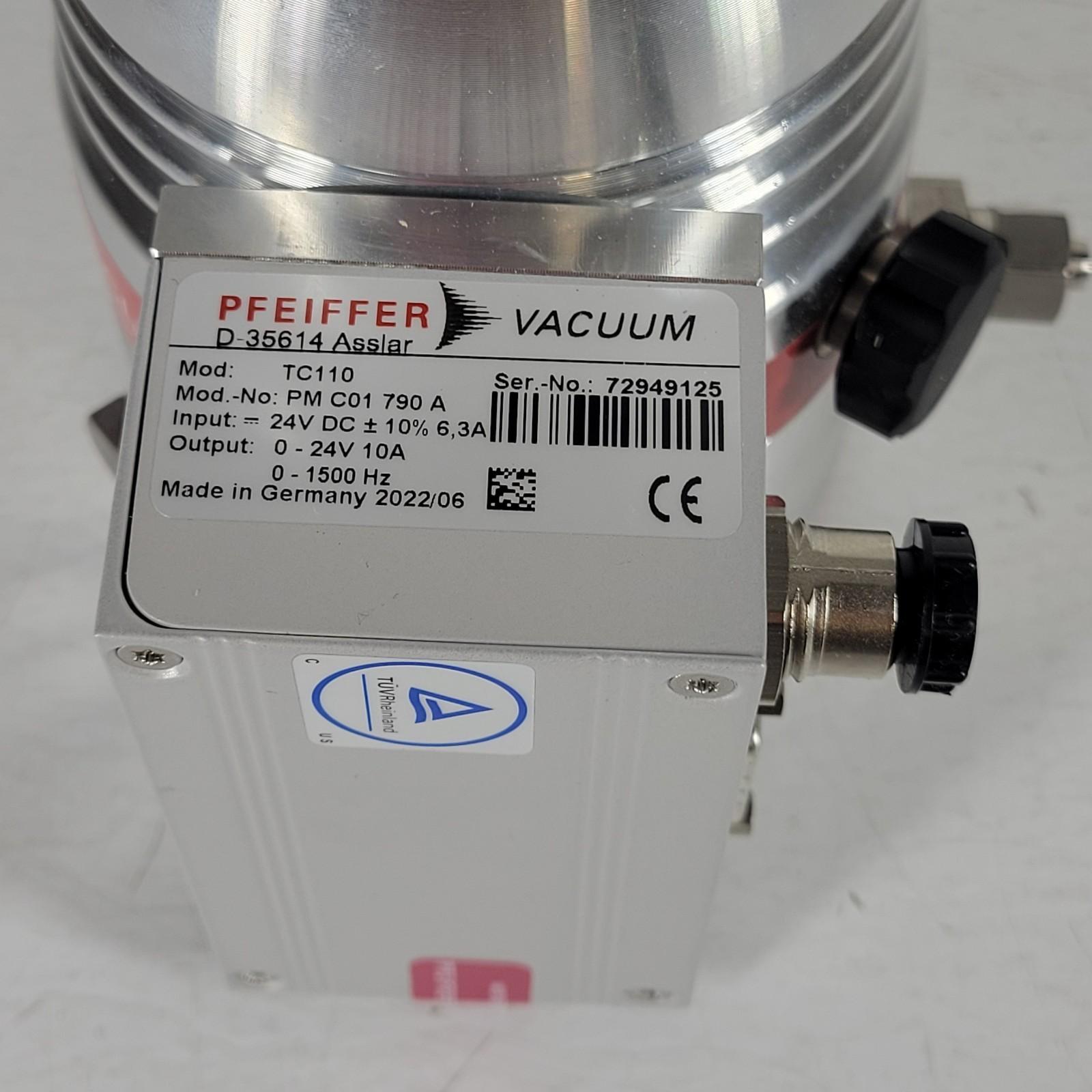

Electronic drive unit with TC 110
Flange (in) DN 63 ISO-K or CF-F
Flange (out) DN 16 ISO-KF/G ¼”
Fore-vacuum max. for N2 22 hPa | 16.5 Torr | 22 mbar
Gas throughput at full rotational speed for Ar 0.54 hPa·l/s
Gas throughput at full rotational speed for H2 15.3 hPa·l/s
Gas throughput at full rotational speed for He 2.7 hPa·l/s
Gas throughput at full rotational speed for N2 1.3 hPa·l/s
Interfaces RS-485, Remote
Mounting orientation in any orientation
Operating voltage: V DC 24 (± 5 %) V DC V DC
Permissible magnetic field max. 3.8 mT
Protection category IP54
Pumping speed for Ar 66 l/s
Pumping speed for H2 48 l/s
Pumping speed for He 58 l/s
Pumping speed for N2 67 l/s
Rotation speed ± 2 % 90,000 rpm | 90,000 min-1
Rotation speed variable 50 – 100 %
Run-up time 1.7 min
Sound pressure level ≤ 48 dB(A)
Ultimate pressure according to PNEUROP < 5 · 10-10 hPa | < 3.75 · 10-10Torr | < 5 · 10-10 mbar
Venting connection G 1/8″
Weight 3.8 kg | 8.38 lb"
