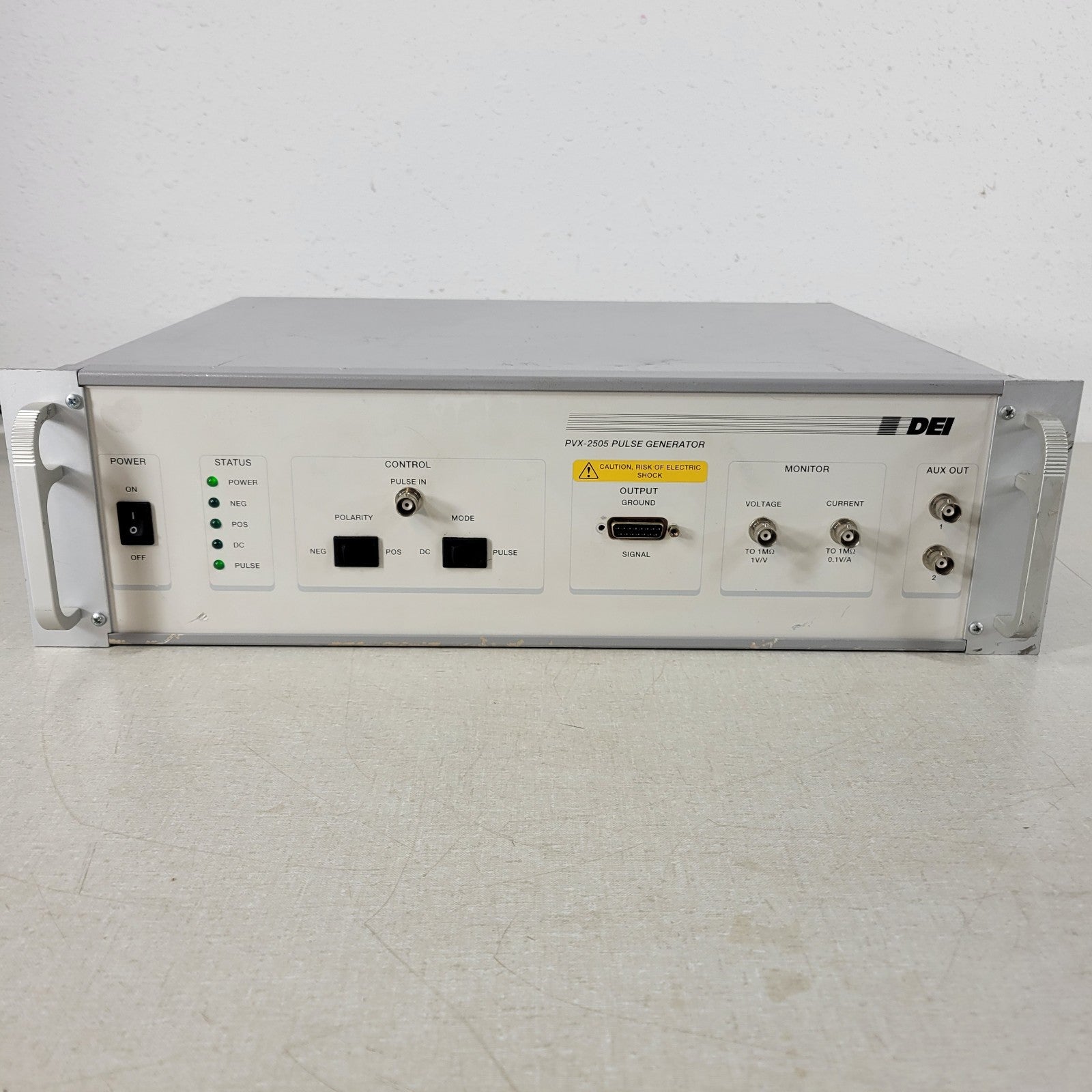

DEI Directed Energy BNC Berkeley Nucleonics PVX-2505 Pulse Generator 10A 50KHz 50V DC w/ Monitor Outputs
Used see photos. Tested working, see a video of our technician demonstrating the functionality: youtube.com/watch?v=gO7lMvhP6uw
Our technician tested this inline using a signal generator, oscilloscope, and power supply (these are not included in purchase and were used for testing purposes only). See the above video to see the tests performed. There were no errors or issues seen with this system. We have the user manual and pinout for the pulse output connector if you need it.
About this signal generator:

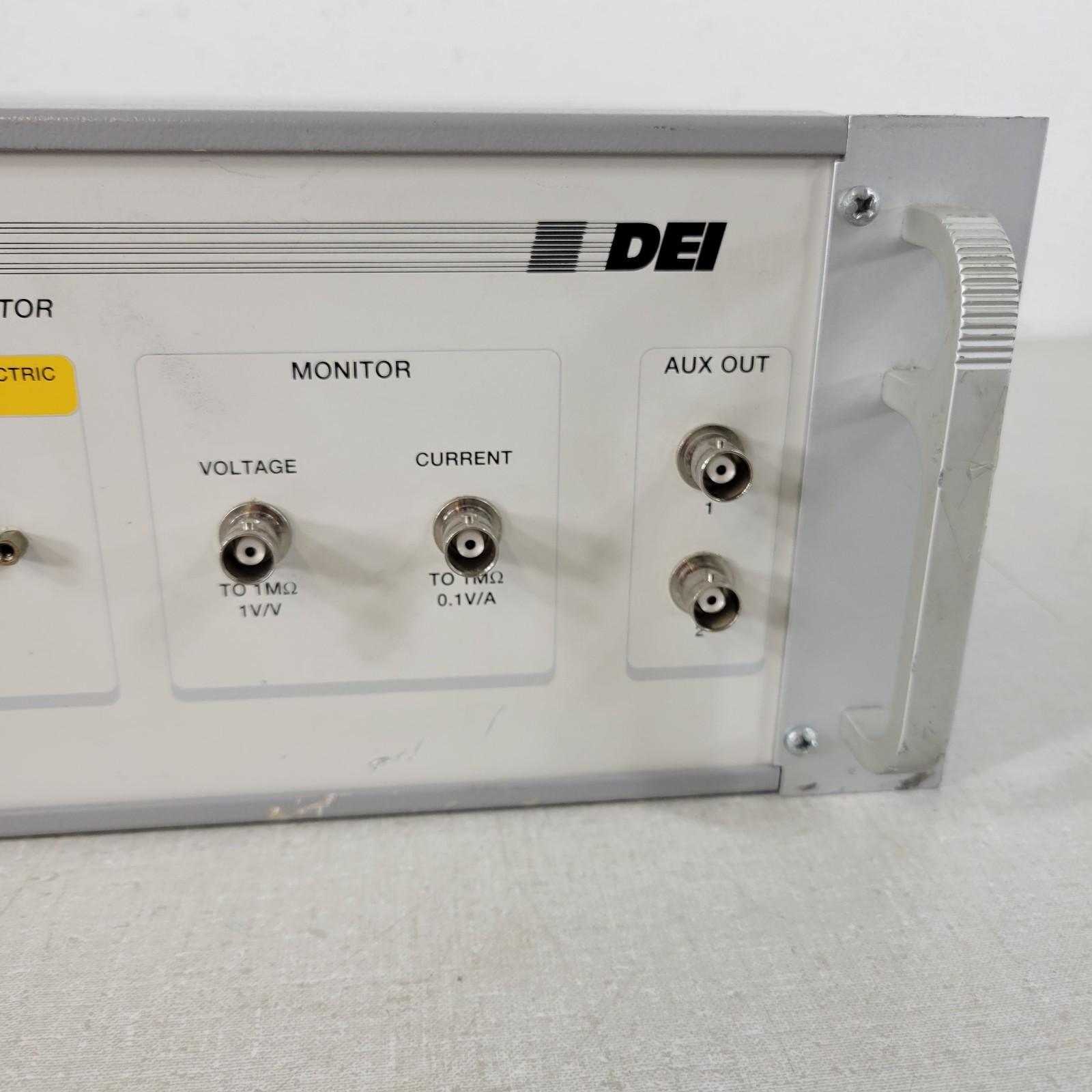

"The DEI Directed Energy / Berkeley Nucleonics PVX-2505 is a precision pulsed I-V pulse generator built for serious semiconductor characterization work, delivering up to +50 V and 10 A with pulse repetition rates to 50 kHz, a 50% maximum duty cycle, and instrument-quality analog voltage and current monitor outputs for clean scope or DAQ capture. Its direct-coupled, air-cooled solid-state design is meant to preserve pulse fidelity with fast transitions, low power dissipation, minimal overshoot, undershoot, and ringing, plus over-current protection and shutdown circuitry for added survivability around shorts or arcs. That makes it a strong fit for pulsed I-V testing of semiconductor devices, power transistors, MOSFETs, RF devices, diodes, wafer and probe-station work, device screening, reliability studies, failure analysis, dynamic characterization, bias-tee setups, high-current precision pulse applications, university and industrial R&D, and production QA environments where conventional DC curve-tracing can blur real operating behavior."
