TM TSLX Engineering Ring and Puck Pulverizer Manual Clamp 3 Phase Power
Not tested, as our facility does not have three-phase power. Motor spins by hand and is not seized.

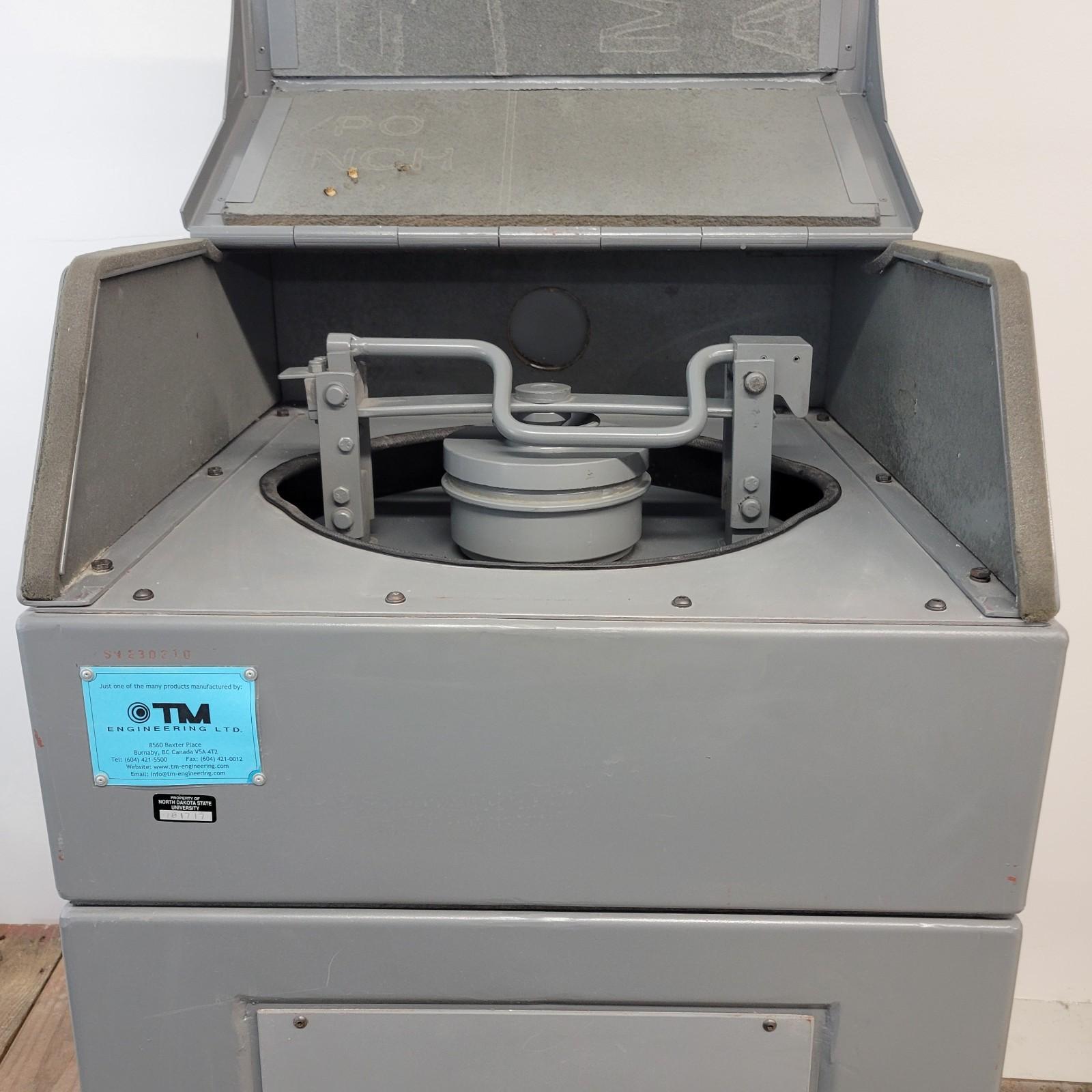

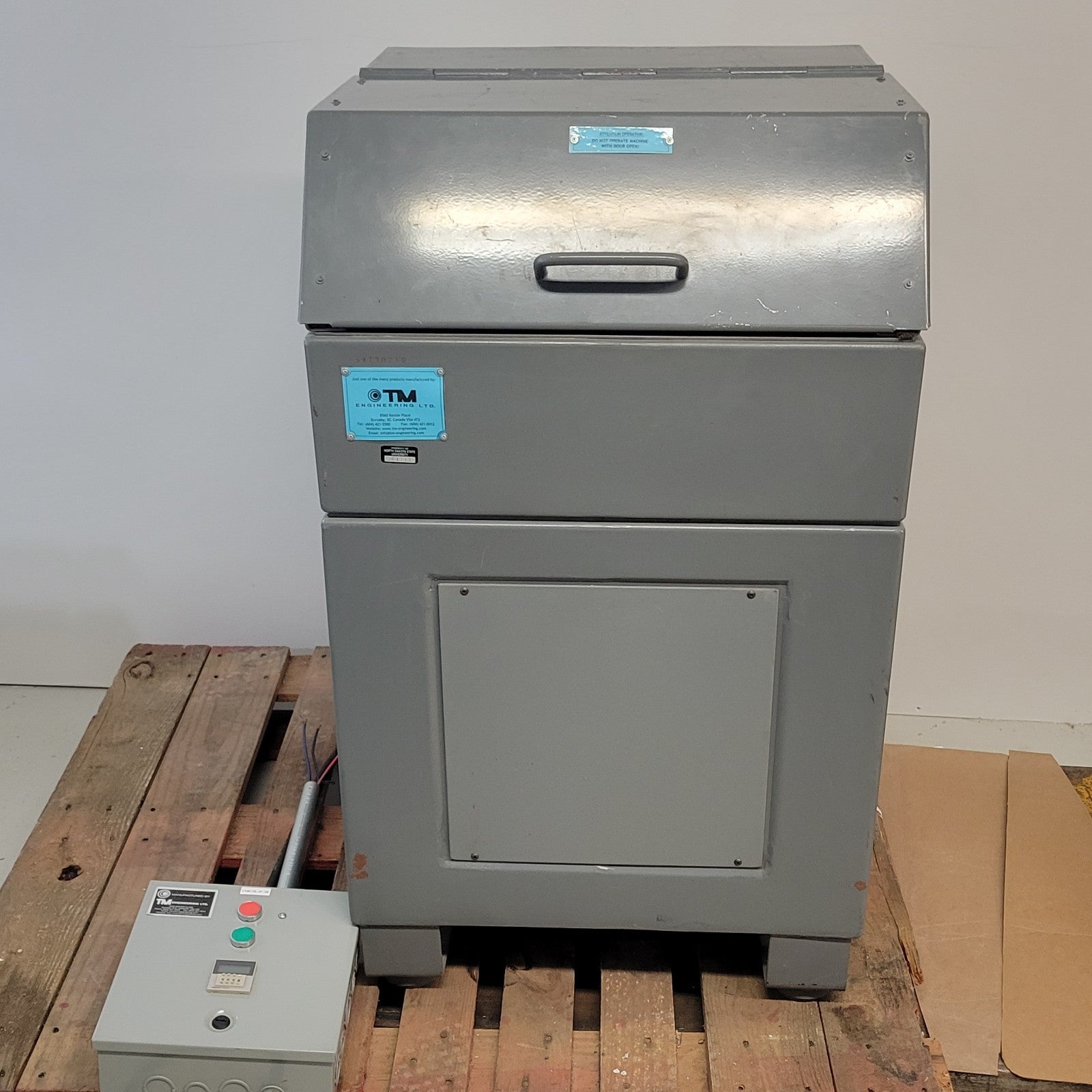

TM Engineering ring and puck pulverizer in good used condition. This is a heavy-duty laboratory sample prep mill designed for rapid pulverizing of hard materials such as rock, ore, soil, and similar samples. It uses a manual self-adjusting clamp system to secure the grinding barrel during operation and is housed in a sound-reducing cabinet style enclosure.

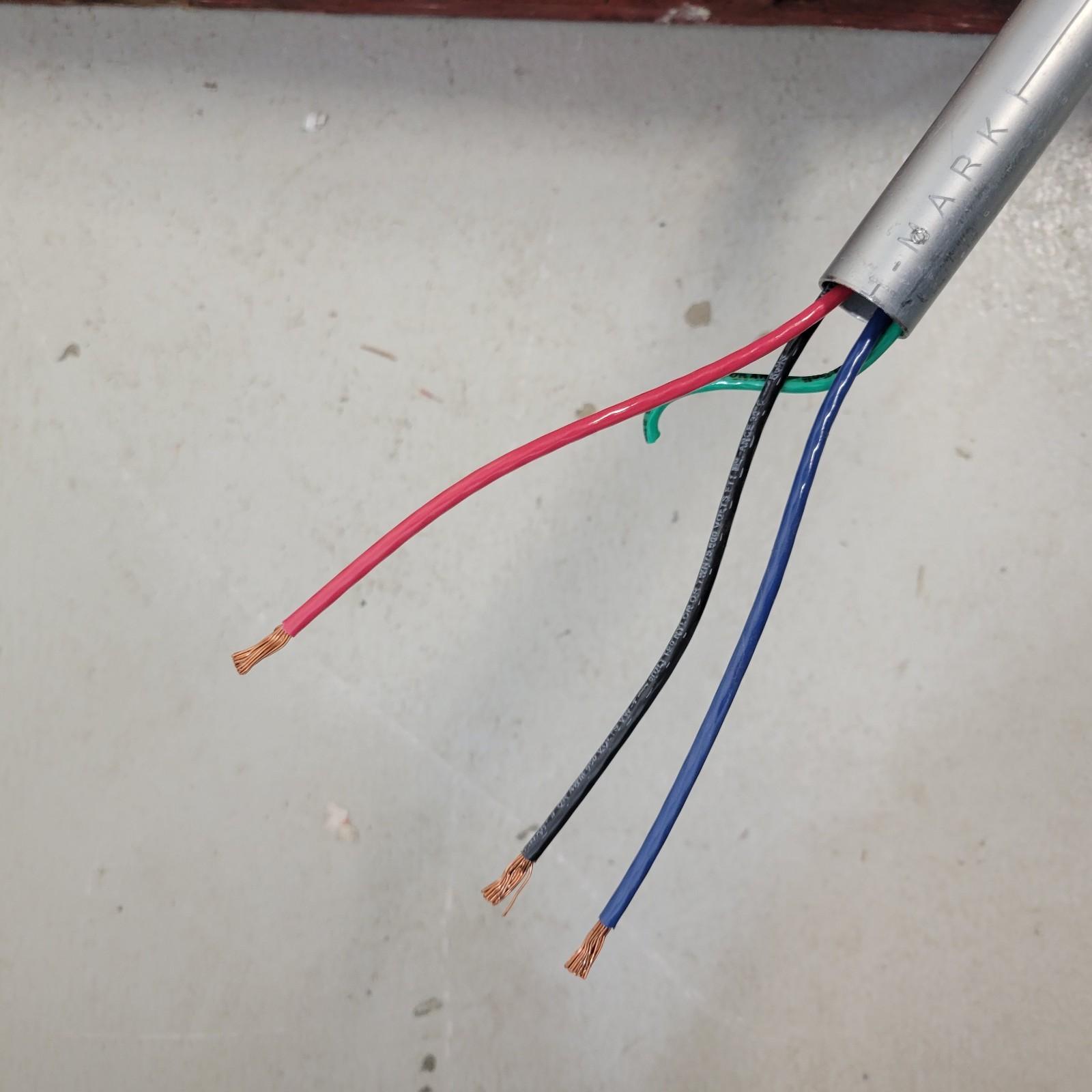

This unit is fitted with a 208-230/460 VAC 3-phase motor (you can wire this motor for either voltage). TM’s STLX configuration is a compact, user-friendly pulverizer platform designed to accept grinding barrels from 20 mL up to 500 mL. The platform is also commonly paired with an electronic timer/control arrangement and a lift-up access door for loading and unloading the grinding barrel.
These TM Engineering pulverizers are widely used in assay, geology, mining, materials research, and laboratory sample preparation workflows where a fast, repeatable fine grind is needed prior to analysis. The manual clamp design is straightforward and robust, with fewer pneumatic components than automatic-clamp systems.
Features / specs:

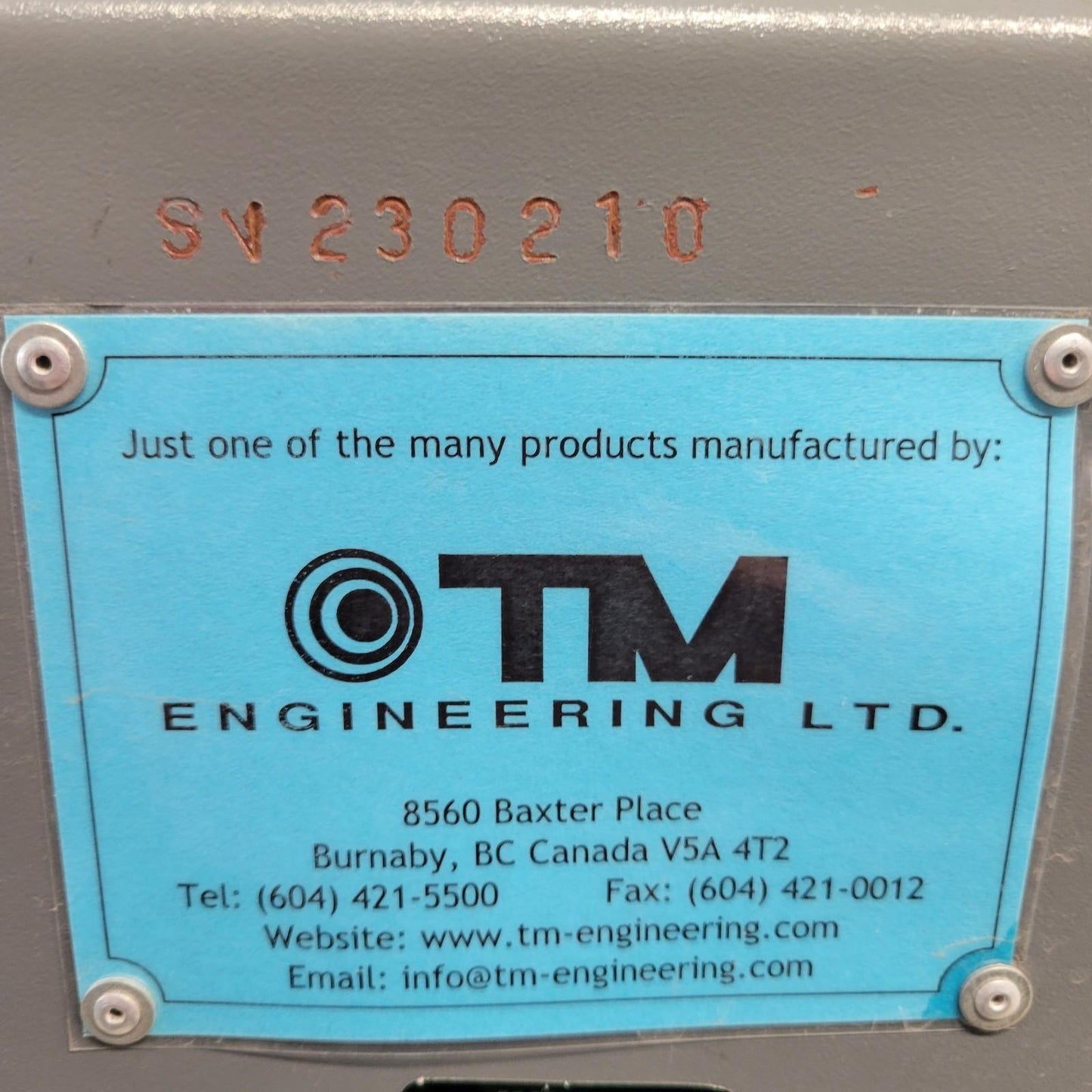

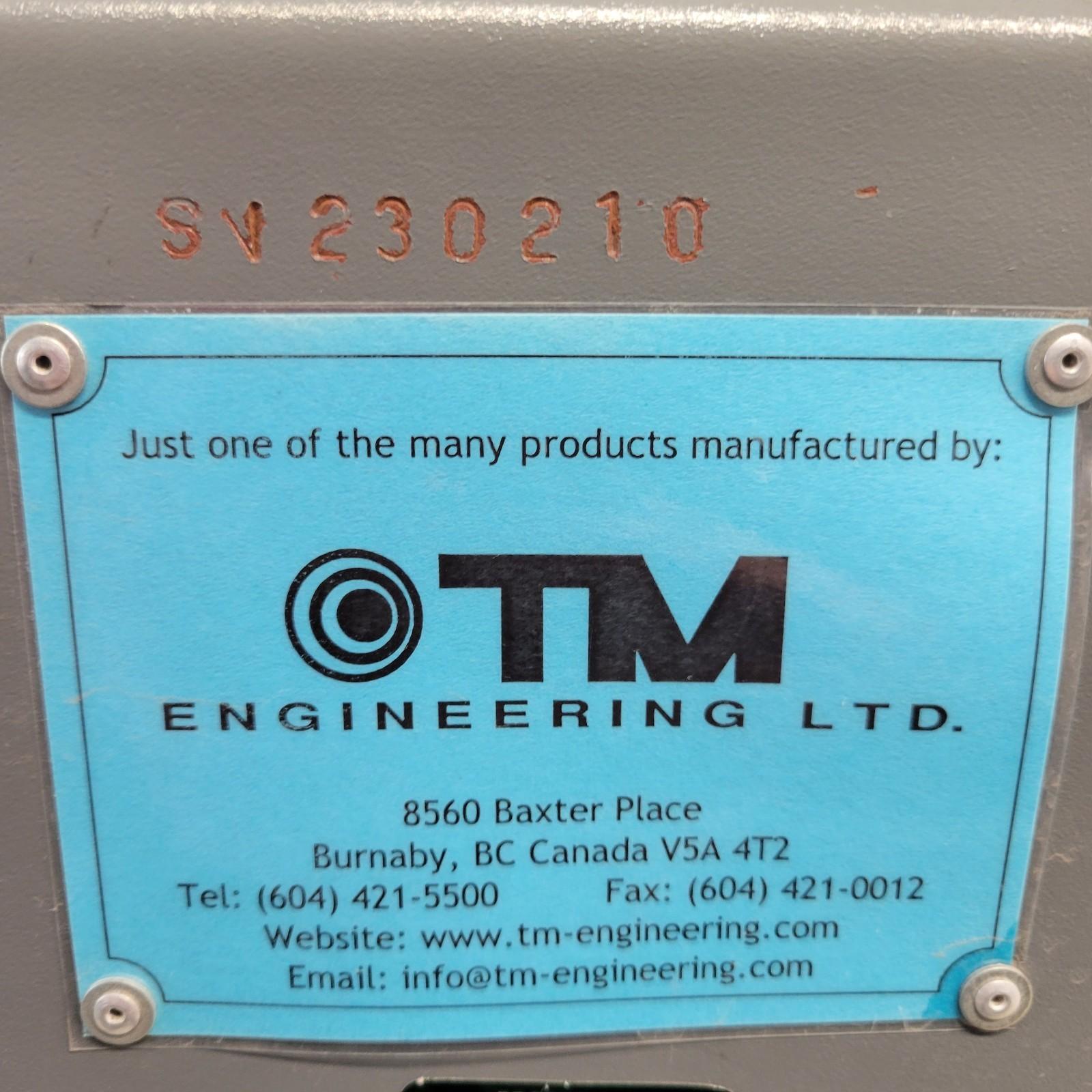

-Manufacturer: TM Engineering
-Type: Ring and Puck Pulverizer / Ring Mill / Vibratory Pulverizer

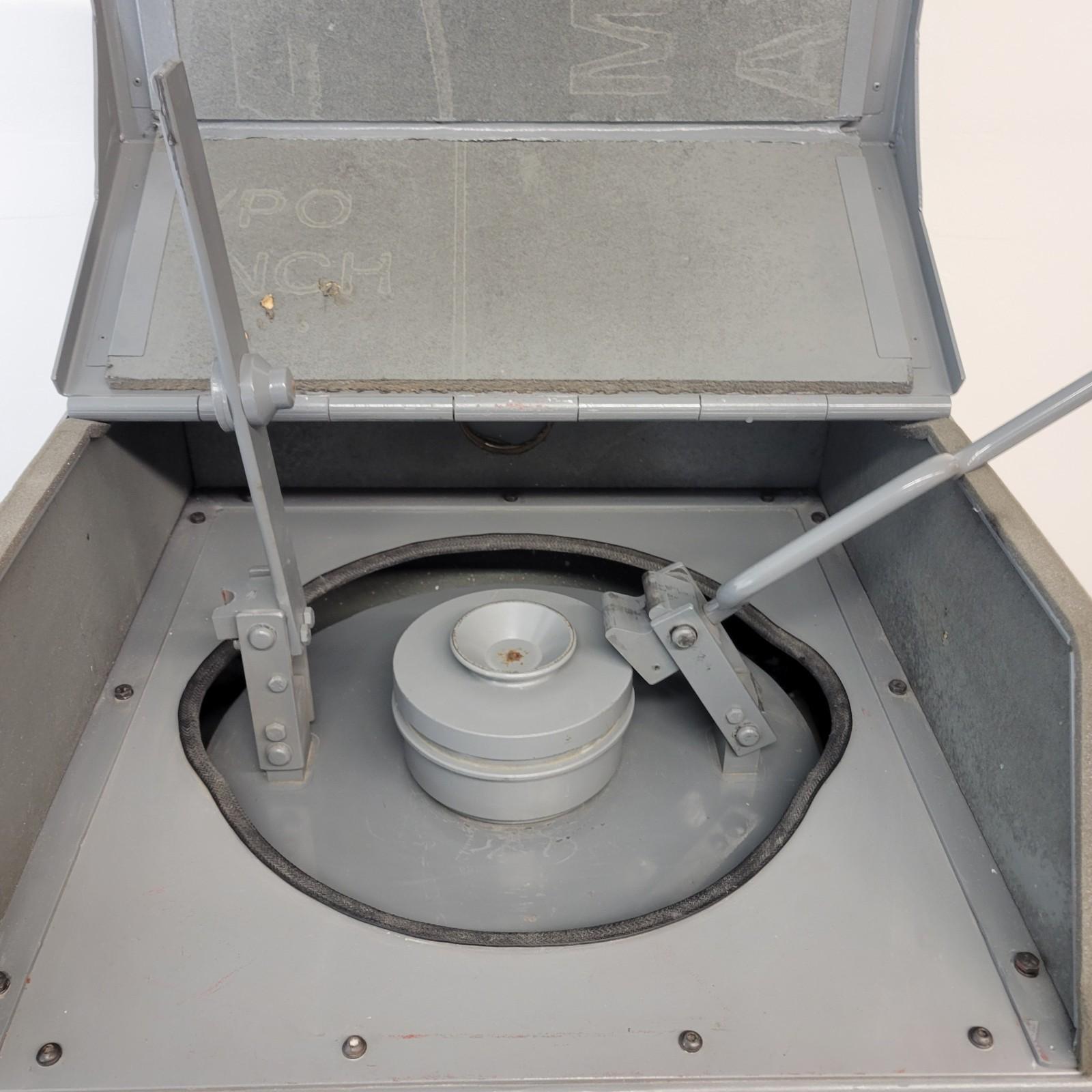

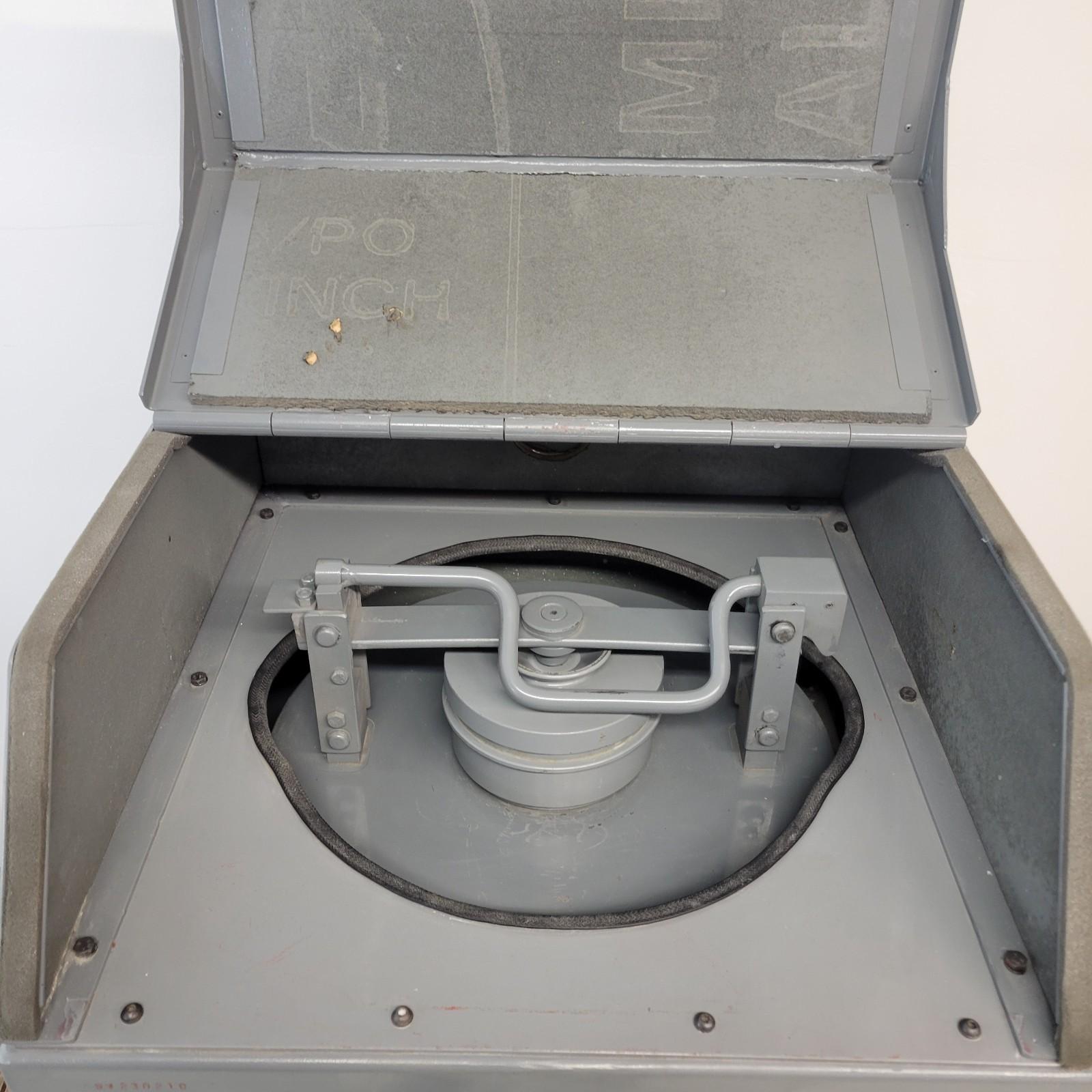

-Clamp style: Manual self-adjusting clamp
-Power: 208-230/460 VAC
-Phase: 3 phase
-Motor: 1 HP class motor
-Grinding barrel capacity range: 20 mL to 500 mL platform compatibility

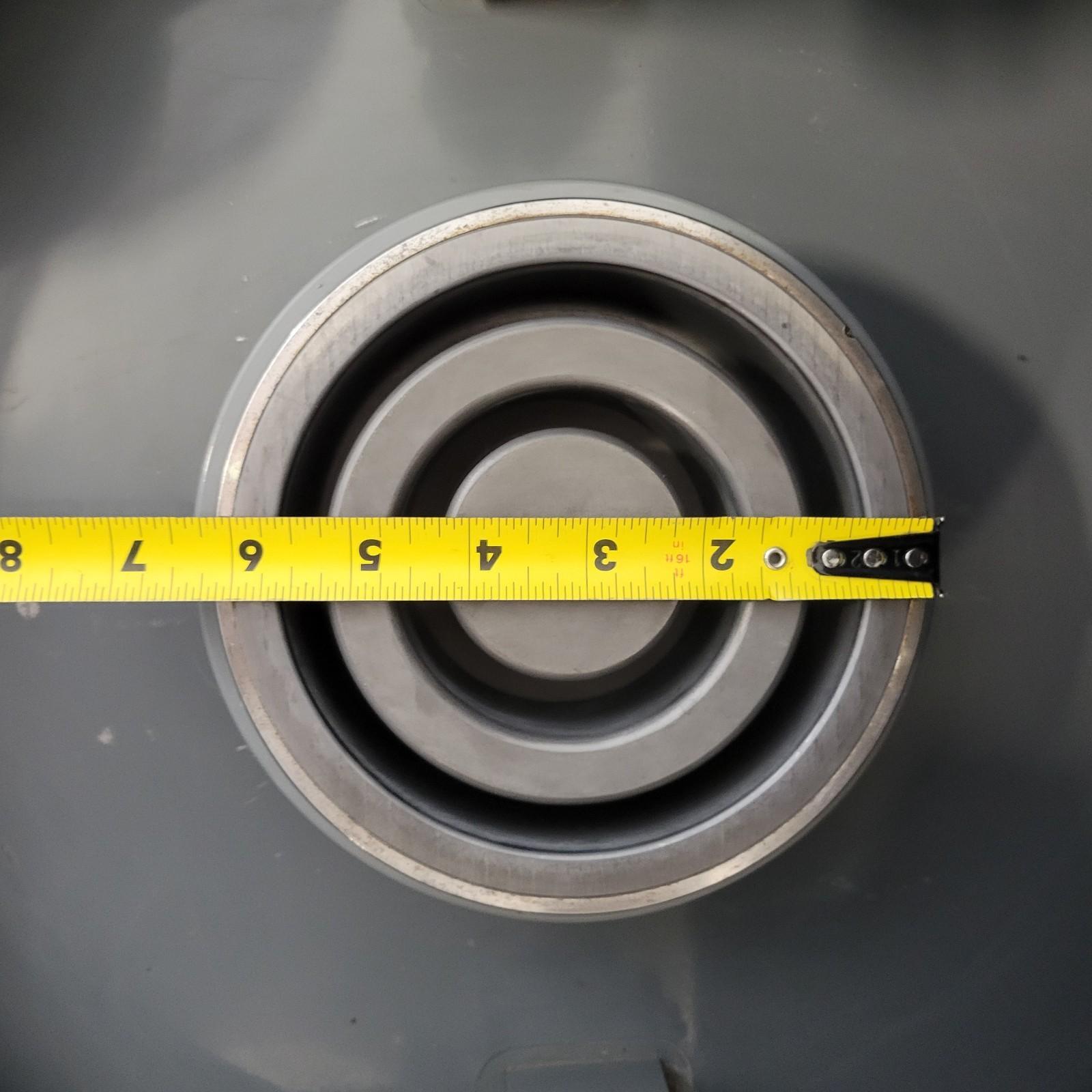

-Barrel size: Measured internal bowl volume approx. 650 mL empty; ring+puck displacement approx. 300 mL, leaving ~350mL free volume.
-Enclosure: Sound-dampening cabinet style

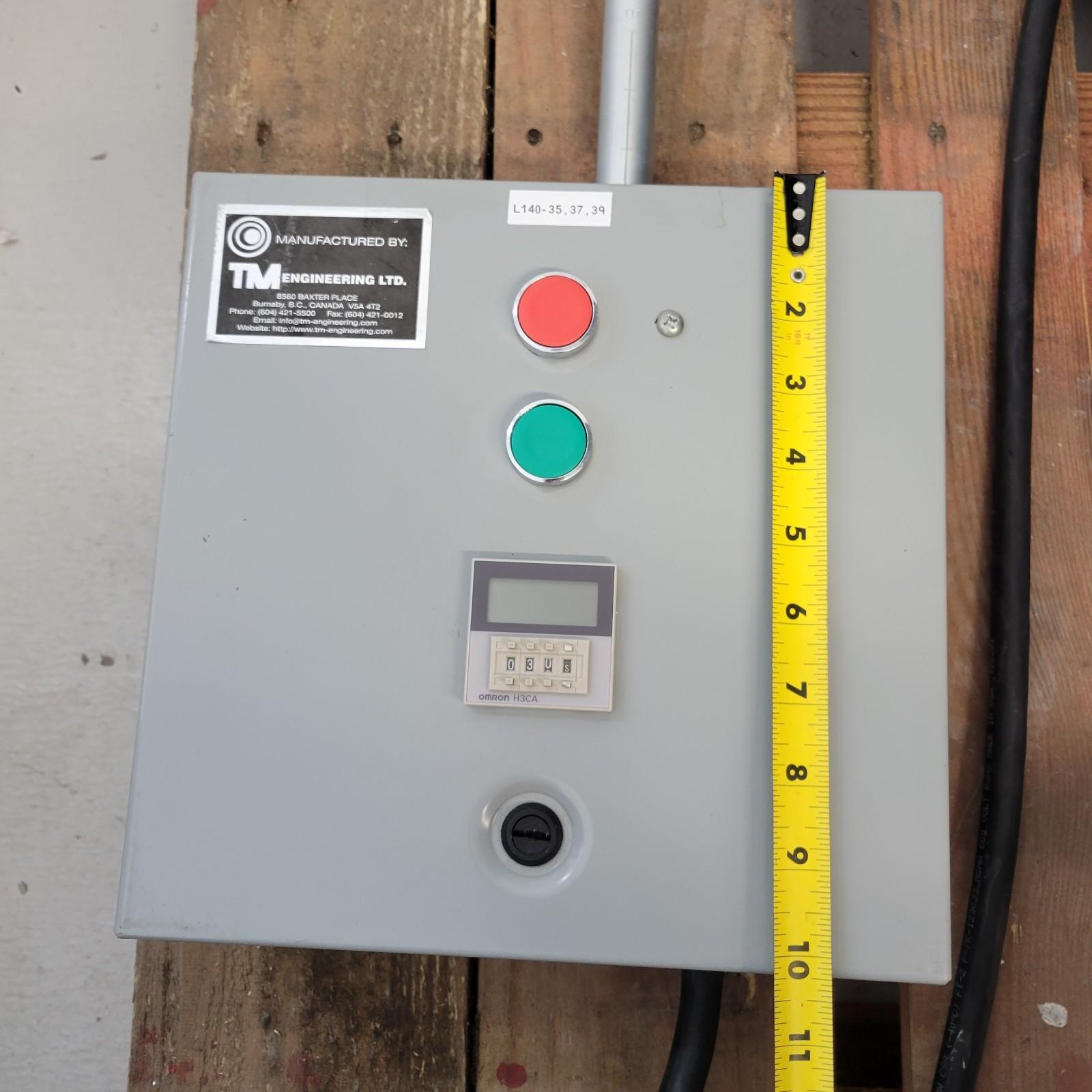

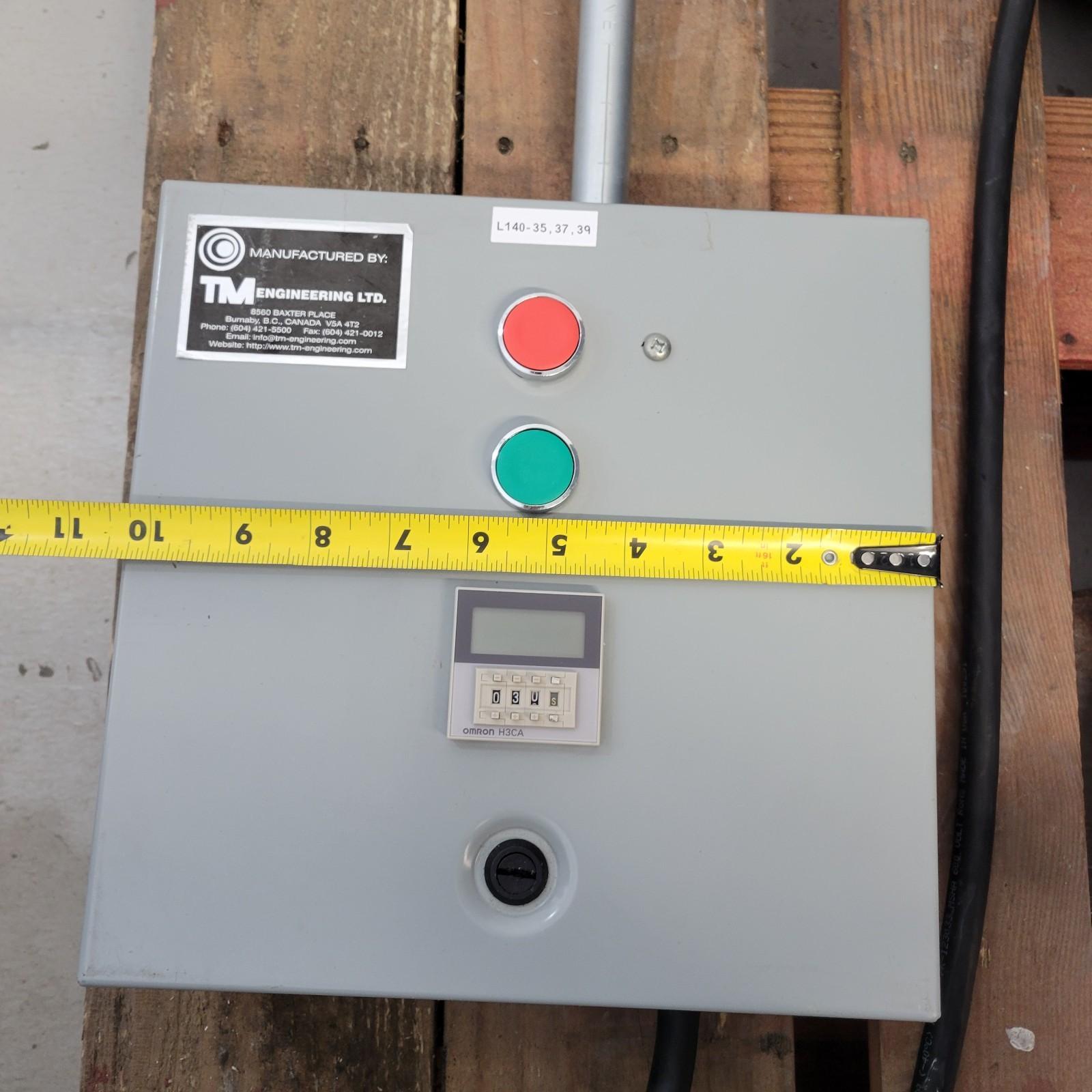

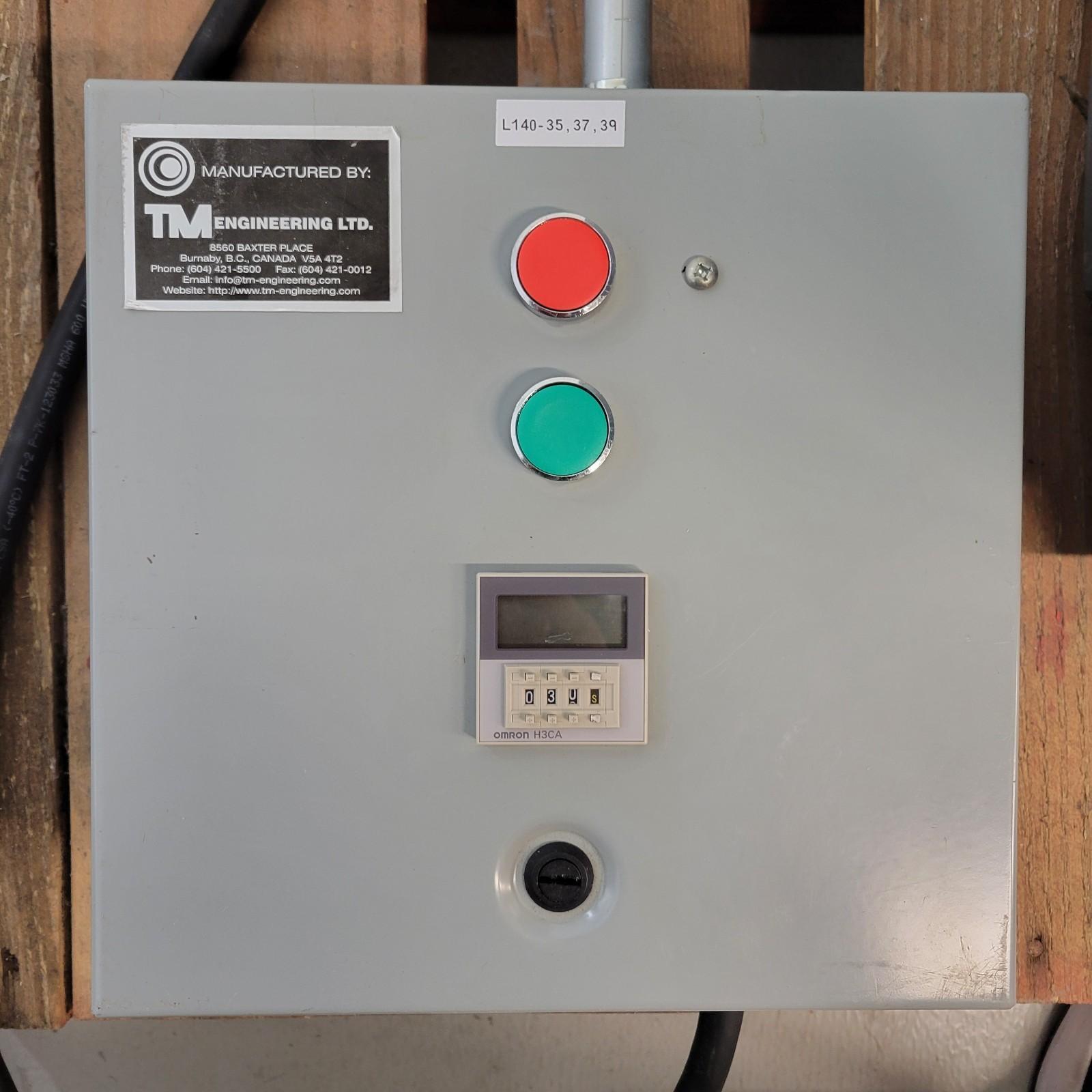

-Typical controls: Timer/start-stop control arrangement on many TM/STLX units
Included:
-Pulverizer unit as shown

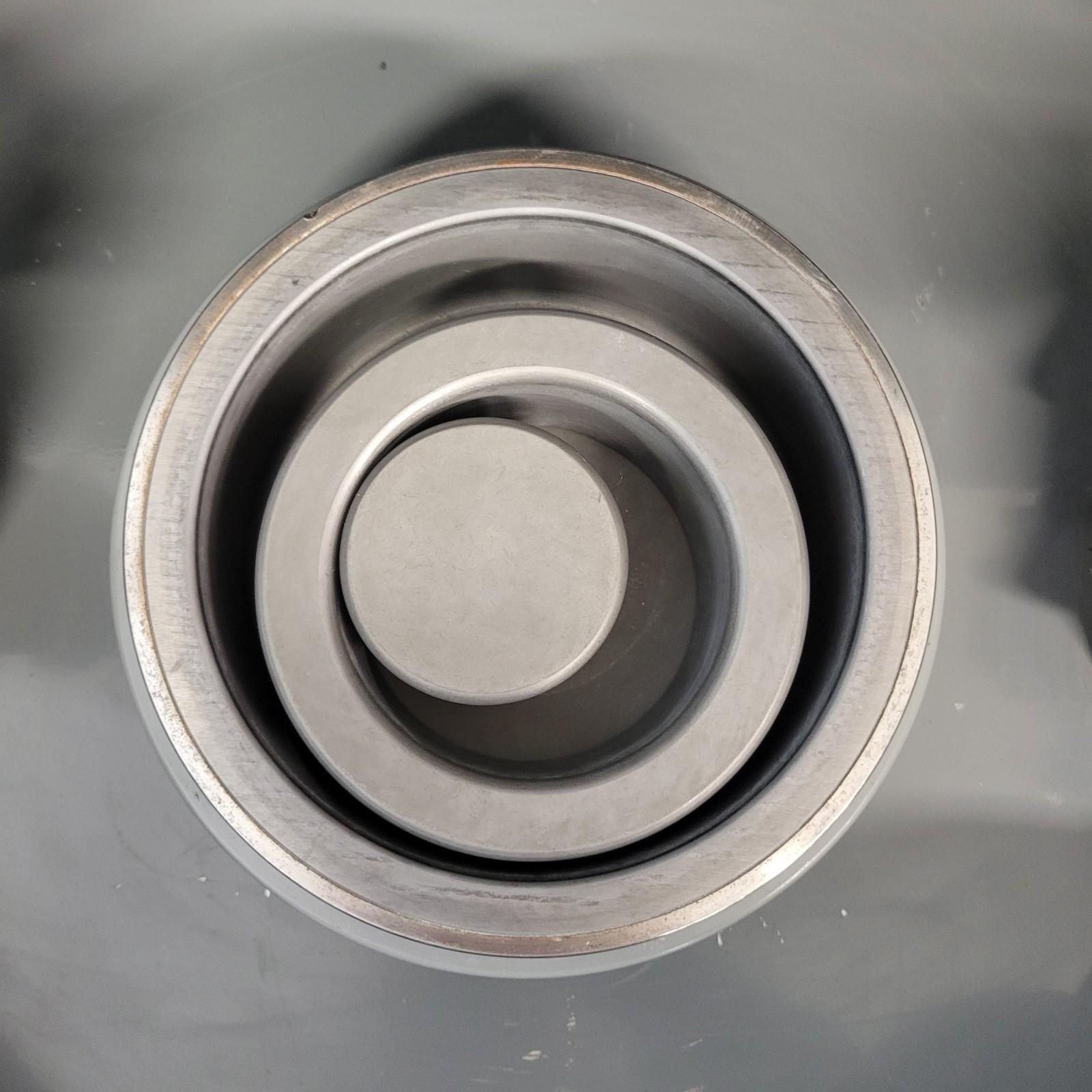

-Includes one grinding set as shown

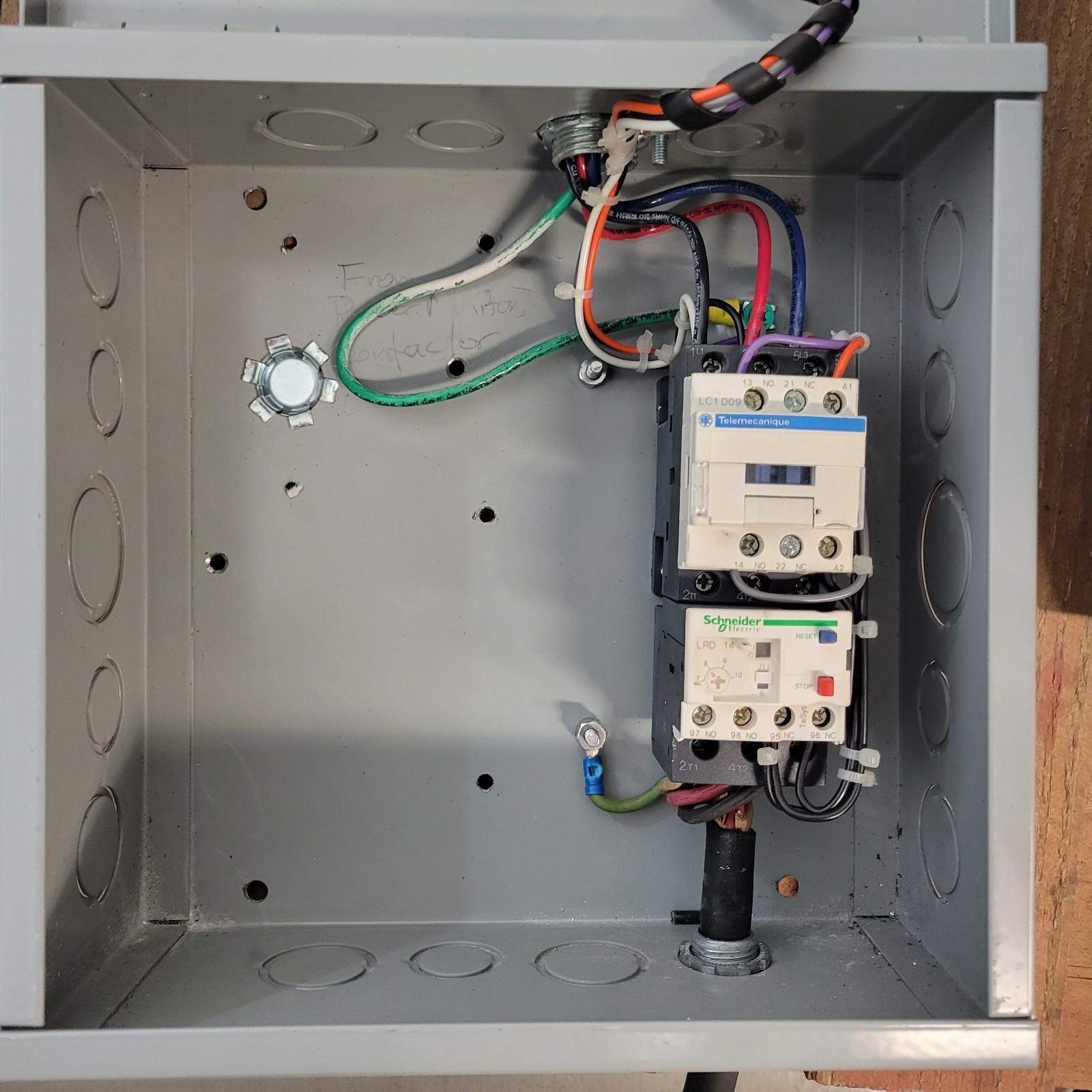

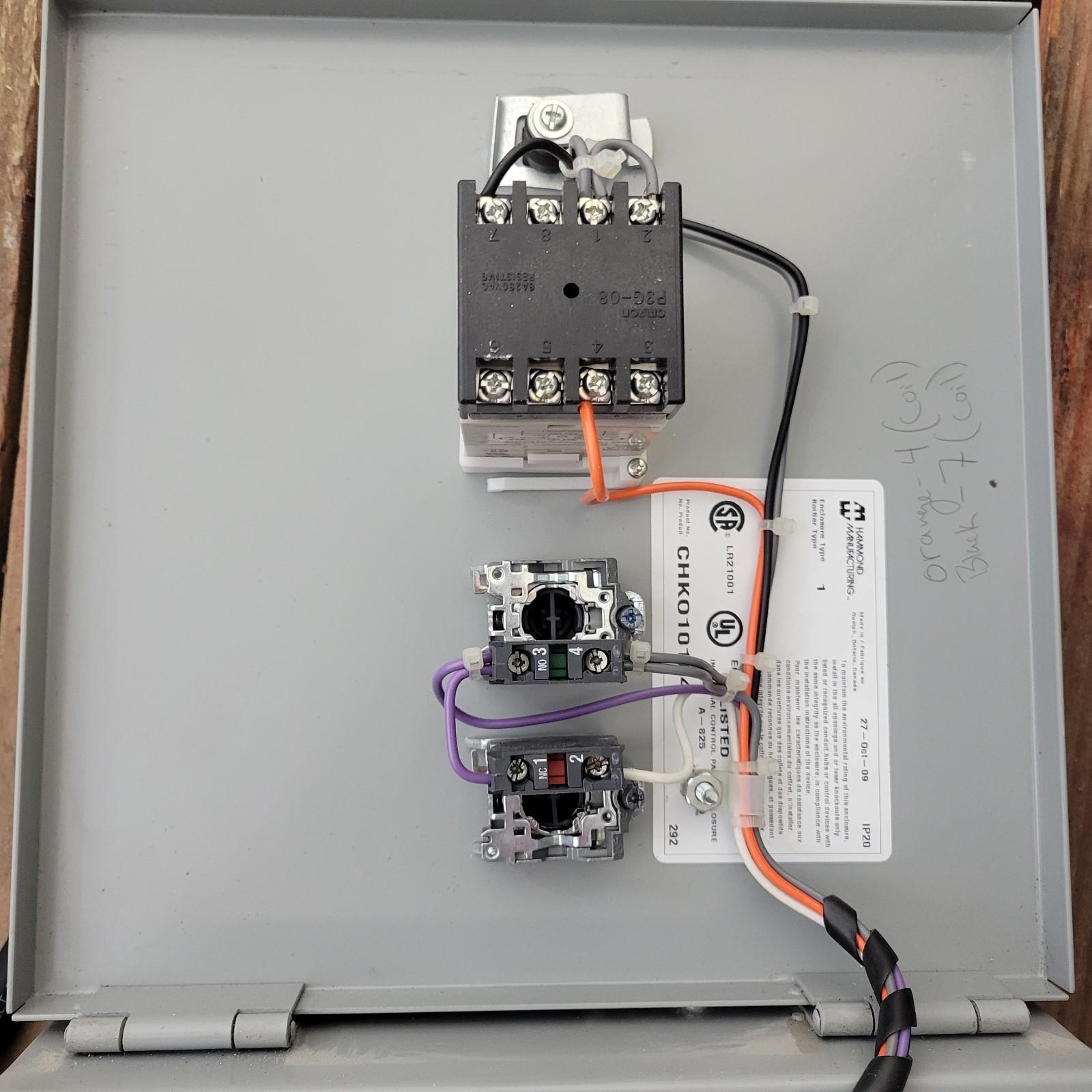

-Timer circuitry
-Does not include anything not shown in photos
Used see photos.
Due to large size and weight, this system must be shipped via freight. Buyer is responsible for freight shipping costs to their location.
