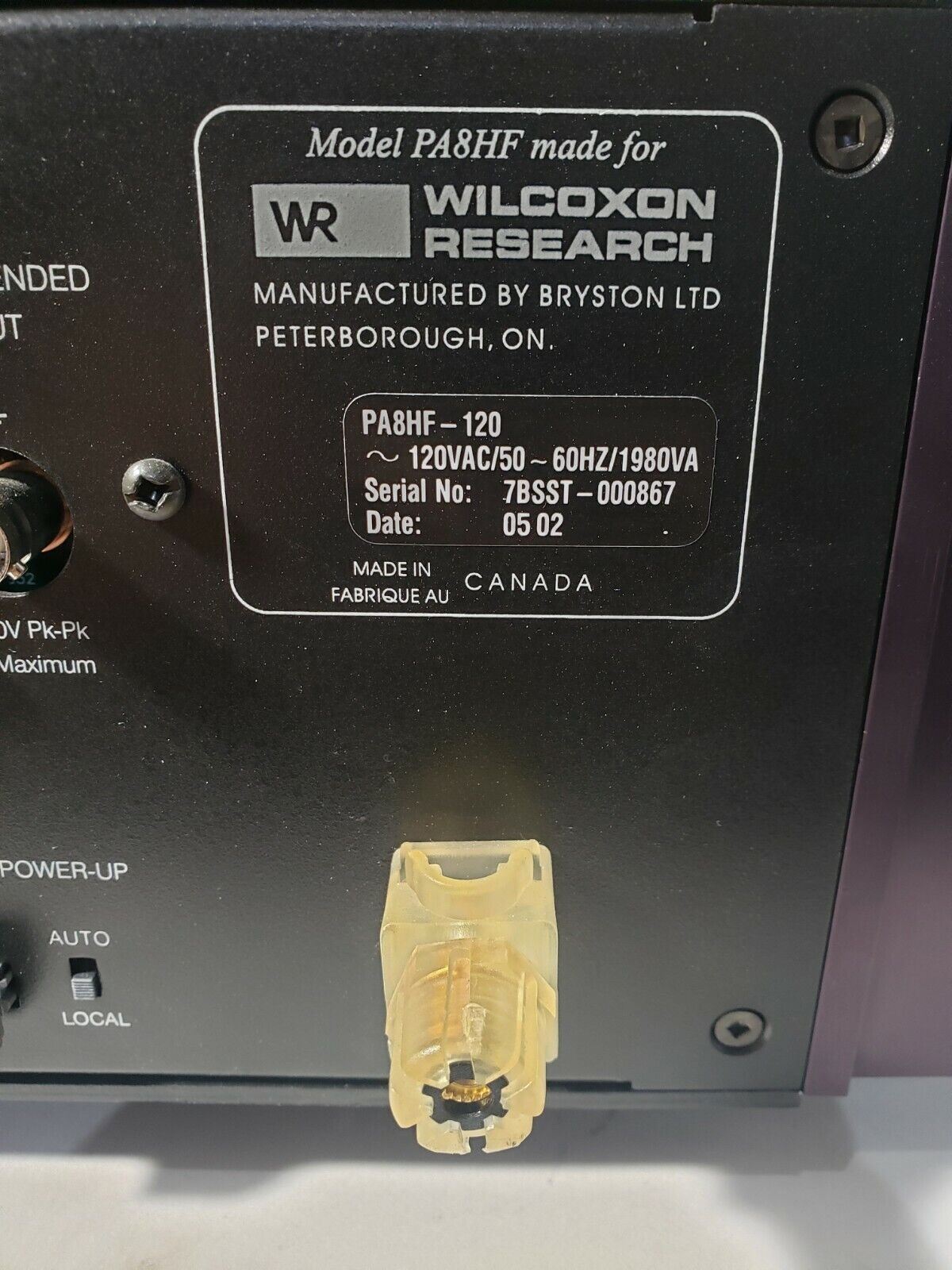

Wilcoxon Research PA8HF Power Amplifier PA8HF-120 120v

Wilcoxon Research PA8HF Power Amplifier PA8HF-120 120v.

From the manual:

Specifications: PA8HF

Power output: 800 Watts, maximum, into 4 Ohm load

Power bandwidth: 0.5 Hz to 100,000 Hz

Output fusing: 12 Ampere, type 3AG or AGC, fast-blow

Input sensitivity: 2.5 Volt peak, for full output

Input impedance 50 kOhm, nominal

Dimensions: 19” wide, 17.5” deep, 5.25” high

Weight 50 lb

Power requirements: 2,000 Watts, maximum
