Windfreak Technologies SynthHD Dual Channel RF Generator 54MHz-13.6GHz

Windfreak Technologies SynthHD Dual Channel RF Generator 54MHz-13.6GHz.

Tested, works.

Includes the following:

•Windfreak Technologies SynthHD RF Signal Generator

•USB cable

•AC power adapter

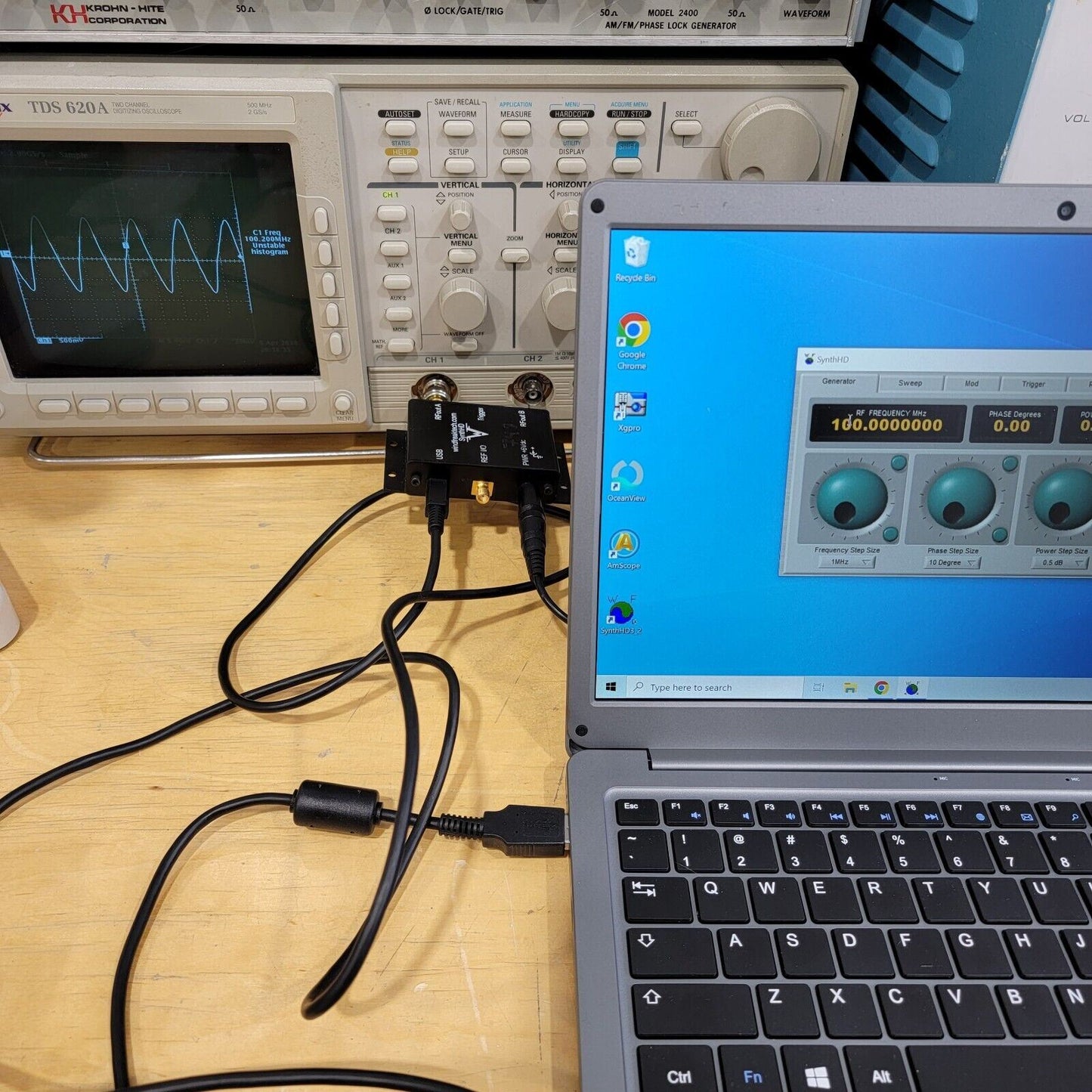

The software is available on their website, which is what I used to test the signal generator. See last two photos in the listing for the test I ran. No other equipment is included other than what is listed above. Tested up to 600MHz, which is the upper bound of my oscilloscope and the signal generator stayed spot on.

From the manufacturer:

"Features:

• Open source Labveiw GUI software control via USB

• Run hardware functions with or without a PC

• 96MHz 32 bit ARM processor on board

• Two channel frequency, phase and amplitude control

• Quadrature (or other phase) LO signal generation

• 0.1Hz or less frequency resolution

• 2.5ppm generator frequency accuracy

• .01 degree phase control on each channel

• 4mS RF lock time standard

• 70uS RF lock time (TBD) (subject to export control)

• Up to +20dBm output power

• 16 bit 0.01dB amplitude resolution

• Over 50dB of power control

• Absolute power display on Software GUI

• Calibration option

• 10MHz – 100MHz external reference input

• Selectable 10 or 27 MHz internal reference output

• Internal and external FM, AM, Pulse Modulation

• Pulsed FMCW Chirp

• External Sweep, Step and modulation Trigger

• 100 point Frequency and Amplitude Hop Table

• Dual Channel Frequency and Amplitude Lock

• Daughter card expandability (custom applications)

• Channel enable / disable saves energy

• 7 Ultra Low Noise linear regulators on board

• 2.75 X 2.15 inches not including mounting flanges"
